yolox-dmc-inference

A standalone execution pipeline optimized for detecting and locating Data Matrix Codes (DMC) and peened needle marks. This model is trained using the YOLOX architecture in standard ABB (Axis-Aligned Bounding Box) mode and compiled into a high-performance binary executable.

---

License & Commercial Restrictions

• Project License: Distributed strictly under the proprietary Non-Commercial Research and Educational License (see the local LICENSE.md file).
• Strict Non-Commercial Use: Any execution of this software binary, configurations, or trained model weights for commercial purposes, industrial production lines, factory floors, or corporate automation frameworks is strictly PROHIBITED.
• Independent Research: This is a personal, independent research project conducted entirely in a domestic environment using privately owned consumer hardware. It is completely independent of, and has no relation to, any commercial entities, brands, or corporate employers.

---

Training Methodology & Data (Synthetic Only)

This repository represents a pure Proof of Concept (PoC) focused on the structural and geometric layout detection of DMC frames.

• Synthetic Dataset: The underlying network was trained exclusively on artificial images generated by the standalone DPM-Pattern-Image-Generator utility.
• No Factory Testing: Due to technical constraints, this model has NOT been tested or validated on real-world industrial marked hardware or live manufacturing lines. There is no training data derived from proprietary physical parts.
• Domestic Verification: Functional verification was performed in a domestic environment using a standard desktop webcam and printed paper sheets displaying the artificially generated synthetic patterns.

---

Visual Demonstration

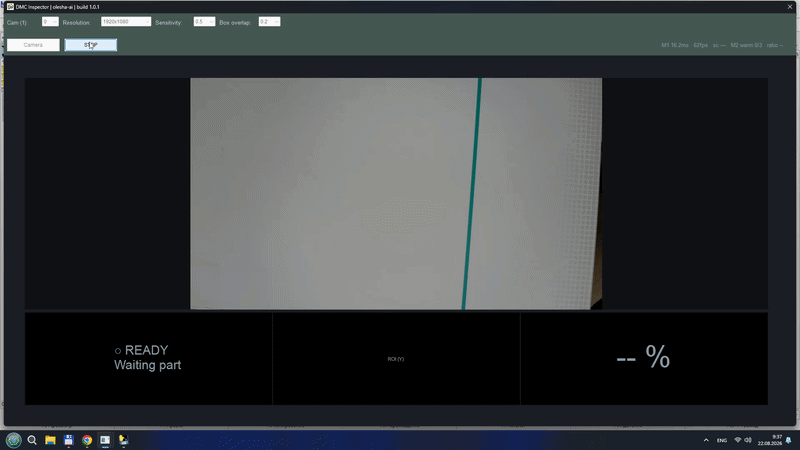

Domestic Inference Verification (infer.gif)

Demonstration of YOLOX-ABB tracking stability during manual paper adjustments:

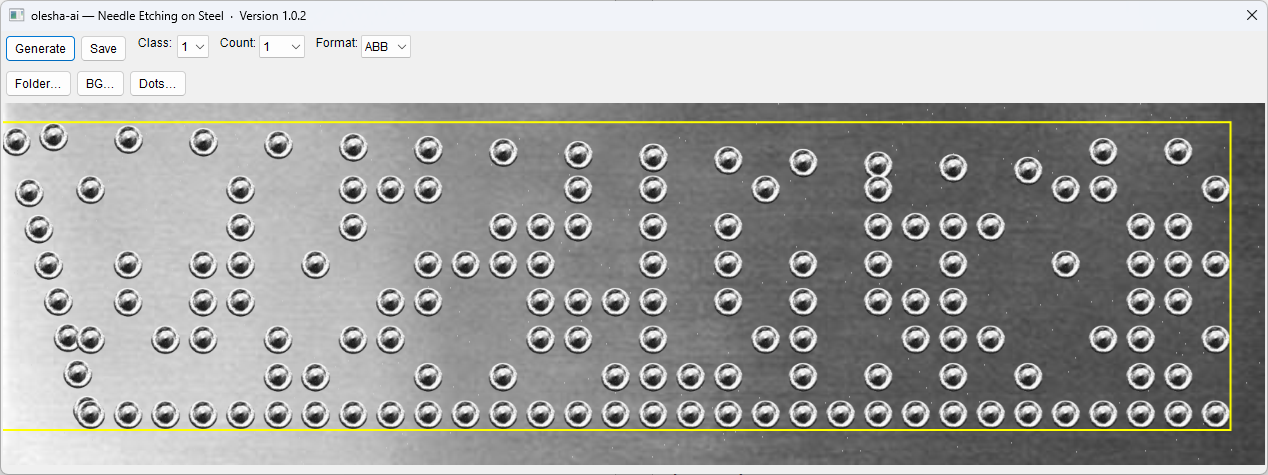

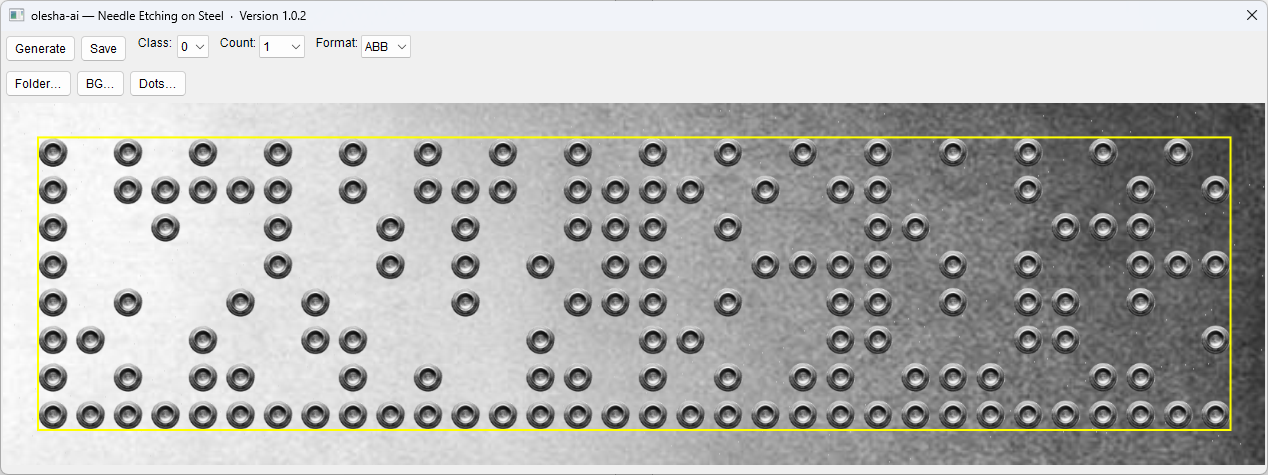

Synthetic Dataset Samples

Examples of ideal and defected patterns used during training:

---

Hardware Specifications & Performance Logs

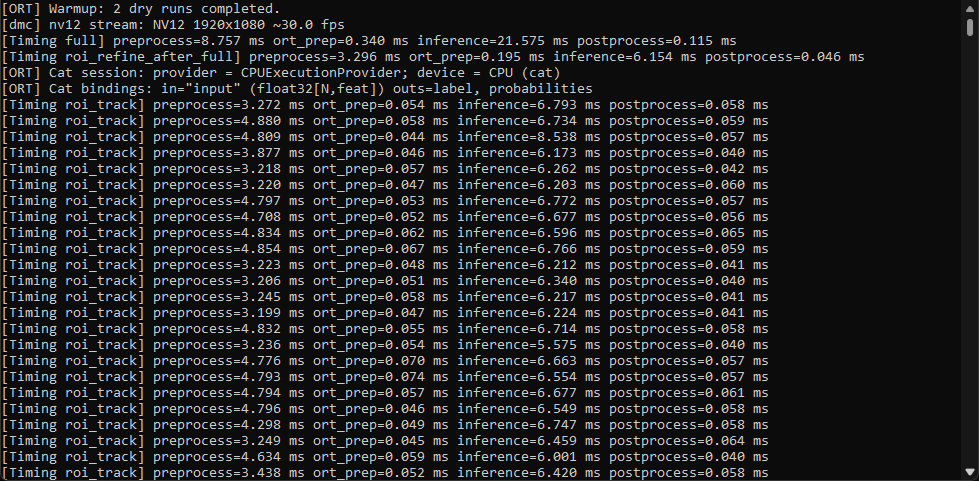

The execution pipeline is optimized for standard Central Processing Units (CPU). Performance diagnostics are captured directly from the execution console:

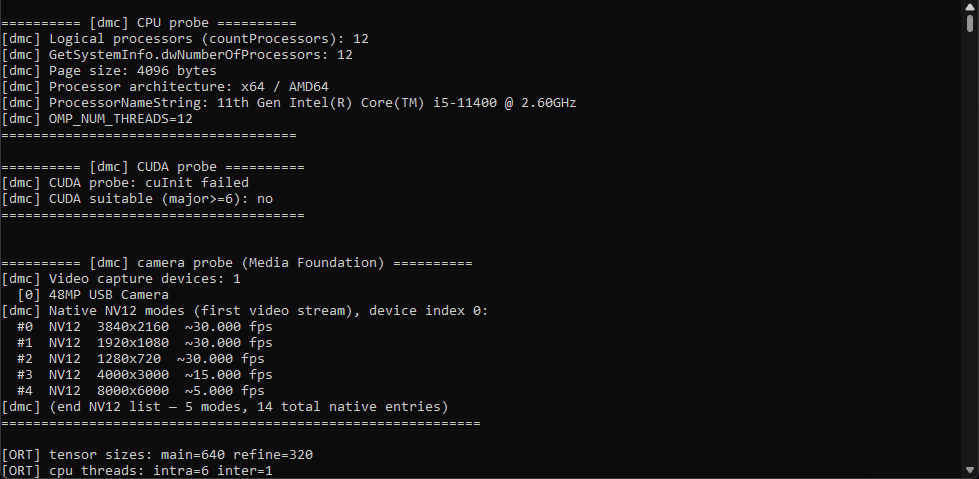

• Execution Hardware: 11th Gen Intel Core i5-11400 @ 2.60GHz (No GPU required, CUDA probe: cuInit failed).
• Neural Network Inference: ~6.1 – 6.7 ms per individual frame.
• Total Tracking Loop (roi_track): ~10 ms per frame (guaranteeing stable 100 FPS performance on a standard CPU via ONNX Runtime and OpenVINO).

---

Configuration Layout (settings.json)

The runtime execution pipeline is fully configured via a local settings.json file. This architecture allows fine-tuning thread allocation, hardware providers, and detection thresholds without recompiling the application binary.

{
  "camera_index": 0,
  "cat_model": "model\\test_l.onnx",
  "conf": 0.5,
  "dev_ui_key": "1",
  "ort_provider": "openvino",
  "ort_intra_threads": 6,
  "ort_inter_threads": 1,
  "openvino_device_type": "multi",
  "openvino_performance_hint": "latency",
  "openvino_num_streams": 1,
  "cuda_cudnn_algo_search": "heuristic",
  "cuda_do_copy_in_default_stream": true,
  "iou": 0.2,
  "model": "model\\test_x.onnx",
  "part_verdict_collect_ms": 3000,
  "memory_diag_enabled": false,
  "main_tensor_size": 640,
  "refine_tensor_size": 320
}

Parameter Breakdown:

• Inference Engine Routing:
  • "ort_provider": "openvino" — Routes execution through Intel's OpenVINO backend for accelerated CPU inference.
  • "openvino_device_type": "multi" — Utilizes both standard CPU cores and integrated graphics (iGPU) simultaneously.
  • "openvino_performance_hint": "latency" — Prioritizes minimum processing time per frame, reducing latency down to ~6ms.
• Resource Allocation:
  • "ort_intra_threads": 6 — Allocates internal computing threads across physical CPU cores (optimized for 6-core processors like the i5-11400).
• Neural Network Topology:
  • "model": "model\\test_x.onnx" / "cat_model": "model\\test_l.onnx" — Target paths for the YOLOX-ABB model graph and classification layouts.
  • "main_tensor_size": 640 / "refine_tensor_size": 320 — Input matrix scales for primary target interception and structural refinement.
• Memory Diagnostics:
  • "memory_diag_enabled": false — Enforced memory profiling switch. When set to true, the pipeline dynamically creates a local /logs directory and appends runtime memory consumption data every 15 seconds to trace and prevent potential memory leaks during long-run execution cycles.
• Temporal Validation:
  • "part_verdict_collect_ms": 3000 — Temporal validation window (3 seconds) used to accumulate sequential predictions before issuing a final output.

---

Compliance Summary

This project references open-source architectures and runtimes under permissive execution terms (YOLOX — Apache 2.0 by Megvii, ONNX Runtime — MIT by Microsoft Corporation, Intel OpenVINO — Apache 2.0). However, this specific compiled binary package, wrapper architecture, and design config assembly are proprietary and governed strictly by the local LICENSE.md.

---

Distribution & Execution Directory

The pre-compiled binary executable and lightweight model weights (test_x.onnx — 3 MB, test_l.onnx — 4 MB) are distributed together as a compressed archive under the Releases tab.

To run the software, extract the archive and maintain the following directory layout:

├── your_folder/
    ├── DMC_Inspector.exe
    ├── settings.json
    └── model/
        ├── test_x.onnx
        └── test_l.onnx
