Render Mermaid diagrams to SVG in pure Go — no headless browser, no Node.js, no JavaScript runtime. Just a library and a single static binary.
Status: pre-1.0, actively developed. 20 diagram types supported (see the table below). Not affiliated with the Mermaid project; this is an independent, compatible renderer.
Rendered by go-mermaid (PNG at 2x) from the fixtures in testdata/golden.
Regenerate them after any rendering change with
go run ./internal/gallery/cmd. CI checks that each image still matches the
diagram it came from.

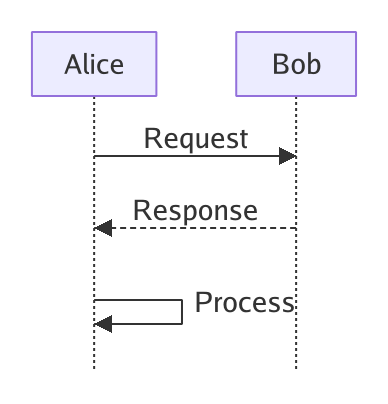

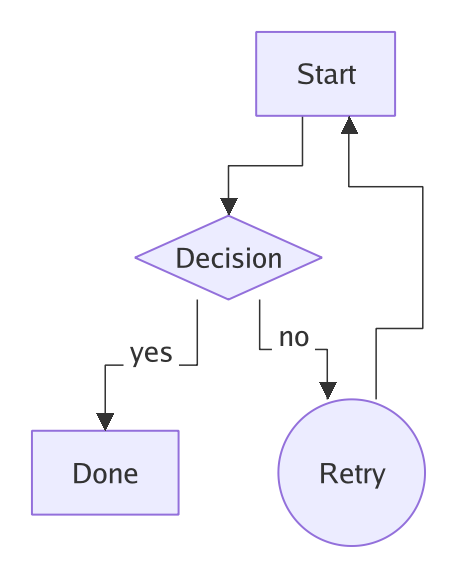

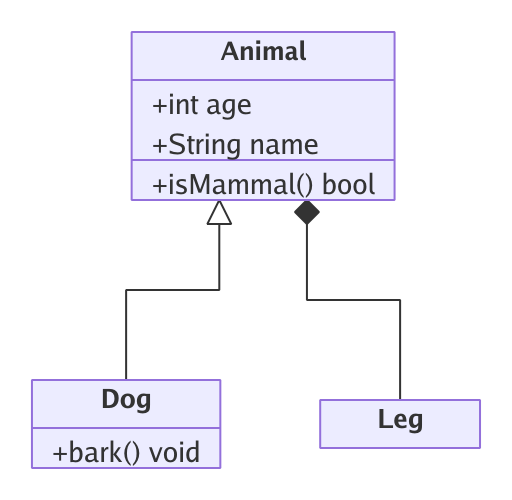

| Flowchart | Sequence | Class |
|---|---|---|
 |  |  |

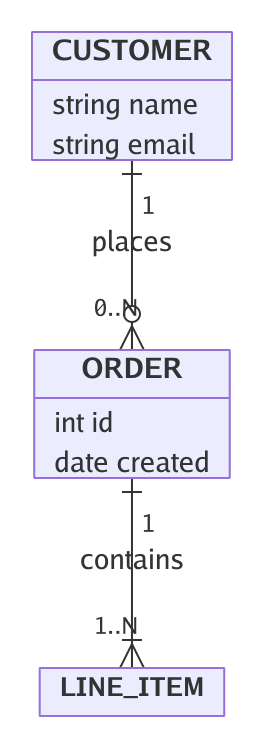

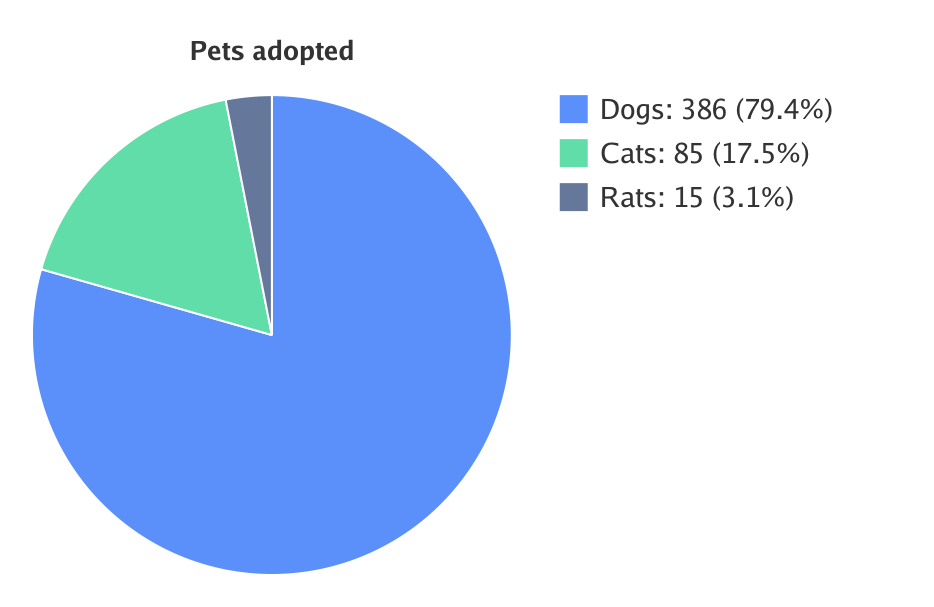

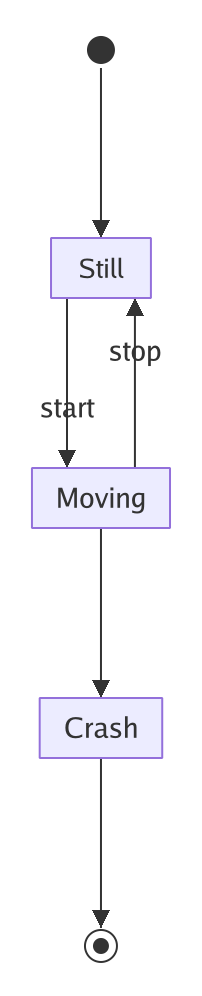

| State | ER | Pie |
|---|---|---|
 |  |  |

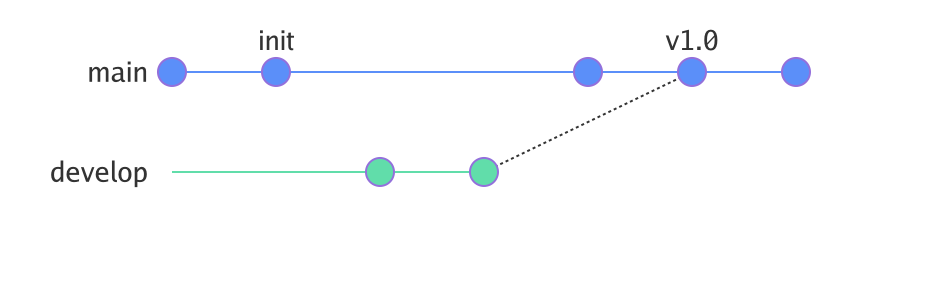

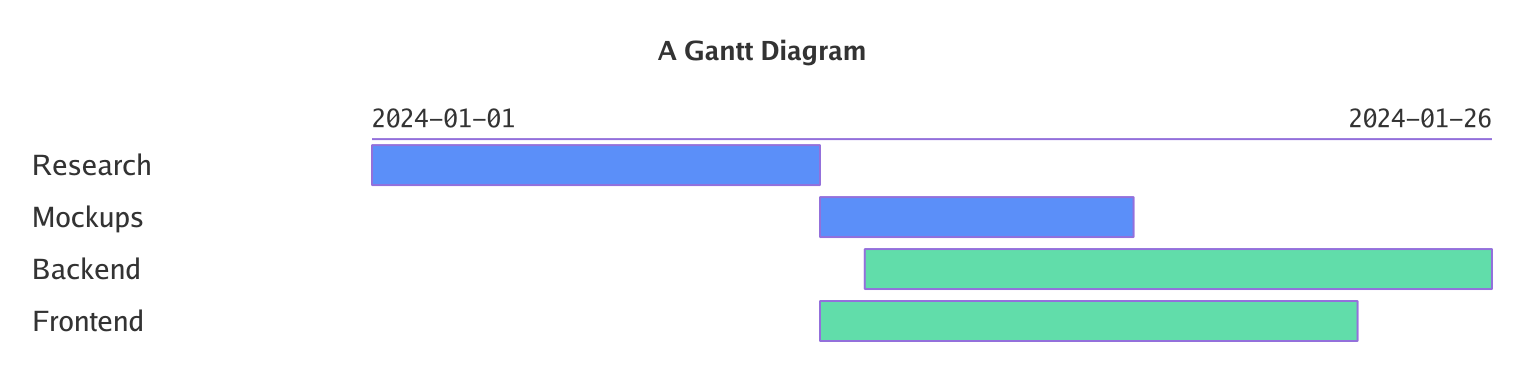

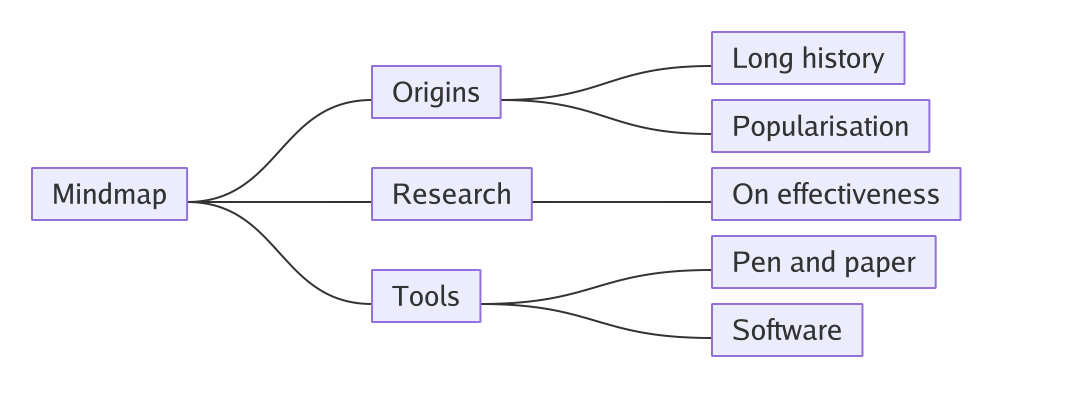

| Gantt | Git graph | Mindmap |
|---|---|---|
 |  |  |
Every existing Go path to Mermaid SVG shells out to headless Chrome or a Node
sidecar. That's heavy, slow, and hard to deploy. go-mermaid does the parse →
layout → SVG pipeline natively, so you can render diagrams inside any Go service
or CLI with zero external dependencies.
Library:
go get github.com/zkrebbekx/go-mermaid
CLI:
go install github.com/zkrebbekx/go-mermaid/cmd/mermaid@latest
Homebrew:
brew install zkrebbekx/tap/mermaid
Docker:
echo "graph LR; A-->B" | docker run -i --rm ghcr.io/zkrebbekx/go-mermaid > out.svg
Prebuilt binaries for Linux/macOS/Windows (amd64/arm64) are attached to each GitHub release.
package main
import (
"os"
mermaid "github.com/zkrebbekx/go-mermaid"
)
func main() {
svg, err := mermaid.Render("graph TD\n A[Start] --> B{OK?}\n B -->|yes| C([Done])")
if err != nil {
panic(err)
}
os.WriteFile("diagram.svg", svg, 0o644)
}
With options:
svg, err := mermaid.Render(src,
mermaid.WithTheme(mermaid.Dark),
mermaid.WithFont("Inter", 14),
mermaid.WithPadding(24),
mermaid.WithSpacing(50, 60),
)
mermaid diagram.mmd > diagram.svg
echo "graph LR; A-->B-->C" | mermaid -theme dark -o out.svg
mermaid a.mmd b.mmd c.mmd # batch: writes a.svg, b.svg, c.svg
mermaid -list-types # list supported diagram types
mermaid -list-themes # list themes
mermaid serve -addr :8080 # HTTP endpoint (POST source / GET ?src=, ?format=png)
mermaid -png -scale 2 -o d.png d.mmd # PNG output (rasterized)
The core library is dependency-free and emits SVG. PNG rasterization lives in a separate package so only PNG users pull the rasterizer dependency:
import "github.com/zkrebbekx/go-mermaid/raster"
img, err := raster.PNG("graph TD\n A --> B", 2) // 2 = scale factor
PNG is also available from the CLI (-png -scale N) and the HTTP server
(?format=png&scale=N). Output formats: SVG (core) and PNG (raster).
Render wraps stage-specific sentinels so you can branch on the failure, and
parse errors carry source position:
svg, err := mermaid.Render(src)
if errors.Is(err, mermaid.ErrParse) {
var pe *mermaid.ParseError
if errors.As(err, &pe) {
log.Printf("syntax error at line %d col %d: %s", pe.Line, pe.Col, pe.Msg)
}
}
Sentinels: ErrParse, ErrLayout, ErrRender, ErrUnsupported.
The renderer dispatches on the diagram header. Status vs. Mermaid:
| Type | Header | Notes |
|---|---|---|
| Flowchart | graph / flowchart | 12 shapes, subgraphs, styling, orthogonal edges |
| Sequence | sequenceDiagram | notes, activations, loop/alt/opt frames, autonumber |
| Class | classDiagram | members, 6 relationship types |
| State | stateDiagram-v2 | start/end, composite states |
| Entity-relationship | erDiagram | attributes, crow's-foot cardinality |
| Pie | pie | legend with percentages |
| User journey | journey | scored tasks, section bands |
| Quadrant | quadrantChart | axes, 4 quadrants, points |
| Git graph | gitGraph | branches, merges, tags |
| Timeline | timeline | sections, periods, events |
| Mindmap | mindmap | indentation hierarchy |
| Gantt | gantt | dates, durations, after deps |
| C4 | C4Context / C4Container | people, systems, relationships |
| Requirement | requirementDiagram | requirements, elements, typed relations |
| Sankey | sankey-beta | proportional flow bands |
| XY chart | xychart-beta | bar and line charts |
| Block | block-beta | column grid of labeled blocks |
| Kanban | kanban | columns of cards by indentation |
| Packet | packet-beta | bit/byte field table |
| Radar | radar-beta | polar chart with data curves |
Flowchart extras: curved edges (WithCurvedEdges), clickable nodes
(click ID href).
Unsupported types return ErrUnsupported. A ---/title: front-matter block
and accTitle:/accDescr: (SVG <title>/<desc>) are honored for all types.
Themes: default, dark, neutral, forest, base, plus custom palettes (WithCustomTheme). Background is configurable (WithBackground, WithTransparentBackground).
Rendering is fast — roughly 10–50µs per diagram with no external processes.
| Feature | Example |
|---|---|
| Directions | graph TD, TB, BT, LR, RL |
| Rectangle | A[Label] |
| Rounded | A(Label) |
| Stadium | A([Label]) |
| Circle | A((Label)) |
| Diamond | A{Label} |
| Hexagon | A{{Label}} |
| Subroutine | A[[Label]] |
| Cylinder | A[(Label)] |
| Parallelogram | A[/Label/], A[\Label\] |
| Trapezoid | A[/Label\], A[\Label/] |
| Arrow / open / dotted / thick | A --> B, A --- B, A -.-> B, A ==> B |
| Edge label | A -->|text| B, A -- text --> B |
| Subgraph | subgraph T … end |
| Styling | classDef, class, style, A:::cls |
| Link | click A href "url" |
| Separators / comments | A-->B; B-->C, %% comment |
| Feature | Example |
|---|---|
| Participant | participant A / actor A |
| Alias | participant A as Alice |
| Message + arrowhead | A->>B: text |
| Reply (dashed) | B-->>A: text |
| Plain line | A->B / A-->B |
| Cross end | A-xB / A--xB |
| Self-message | A->>A: text |
| Note | Note right of A: text, Note over A,B: text |
| Activation | A->>+B: ..., B-->>-A: ..., activate/deactivate |
| Frames | loop/alt/opt/par … end, autonumber |
classDef/style/:::, clickable nodesrole/title/desc/accTitle), 5 themes,
configurable/transparent backgroundraster subpackage)serve HTTP, -list-*), Render/RenderTo API./internal/gallery/cmd and drift-checked in CIWithCustomTheme)Each diagram type has a self-contained pipeline; the public Render dispatches
on the header. The flowchart pipeline is:
source → lexer → parser → domain.Graph → layout → render → SVG
internal/domain holds the flowchart model; internal/sequence is the
self-contained sequence pipeline; internal/theme and internal/svgutil are
shared by all renderers. See CONTRIBUTING.md.
Releases are automated with release-please + GoReleaser, driven by Conventional Commits. See RELEASING.md for the versioning policy and the optional AI code-review setup.
MIT © Zac Krebbekx
