PaperMono Shopping List

Firmware for the M5Stack PaperMono e-paper device. It turns the device into a household shopping list that lives on the fridge and stays in sync with a phone web app.



The PaperMono is an ESP32-S3 with a 3.97" 480×800 e-paper touchscreen. This project is a complete, working app for it that's small enough to read: about 2,400 lines of C++. You can use it as a shopping list, or as a starting point for your own PaperMono firmware.

What it shows on the PaperMono

• E-paper refreshes handled properly. Taps, scrolling and typing use fast partial updates with no flash. A full refresh is forced after every 10 partial updates to keep ghosting down and protect the panel. Greys are drawn as 1-bit dot patterns, so they look the same under both refresh modes.
• A usable touch UI on e-paper. Tap, swipe and the side buttons all work. There's an on-screen keyboard that only redraws the parts that change as you type, and it suggests items you've added before.
• Low-power networking. Wi-Fi is on only while syncing: every hour, sooner if you tap the screen and the last sync is more than 5 minutes stale, and straight after an edit. Everything else works offline, and edits are queued on flash until the next sync.

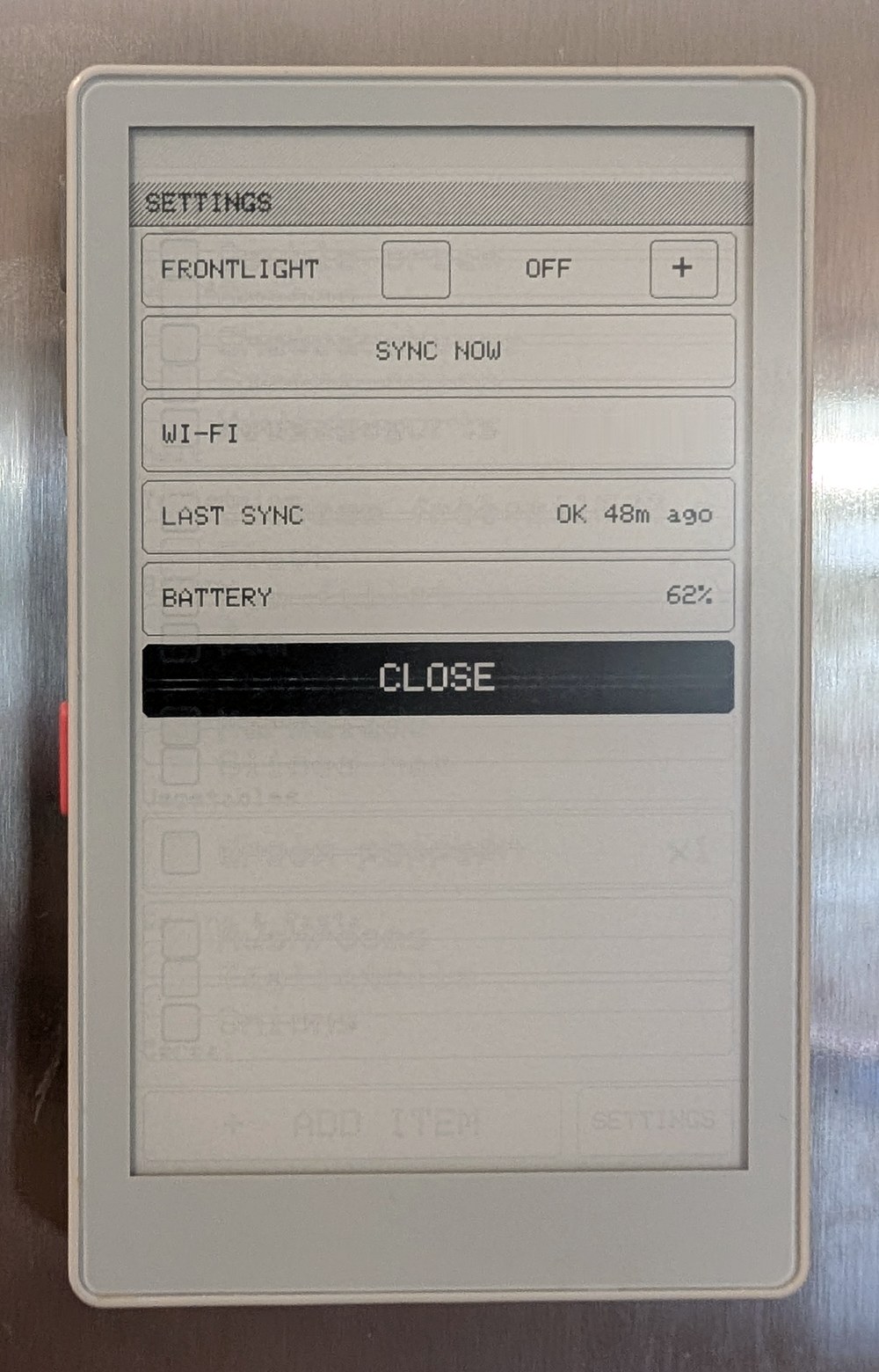

• Tidy power handling. Power-button shutdown, with a deep-sleep fallback for when USB power stops the power IC switching off. The device turns itself off at a safe battery voltage. The frontlight is off by default.
• Documented bring-up. The power IC, IO expander, panel and touch controller are brought up in a known-good order. docs/hardware.md has the pin map, I²C addresses and the quirks found along the way.

How it works

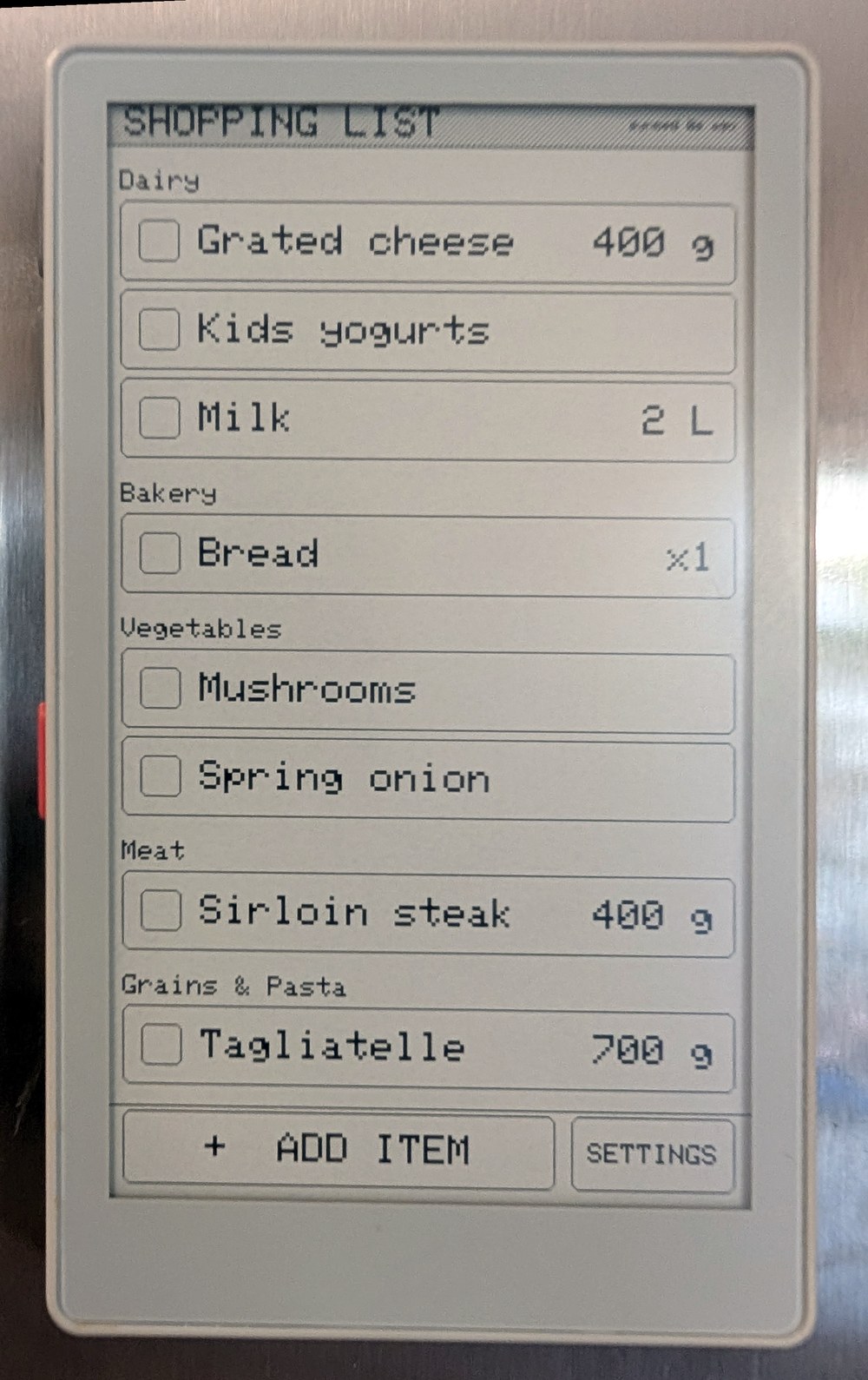

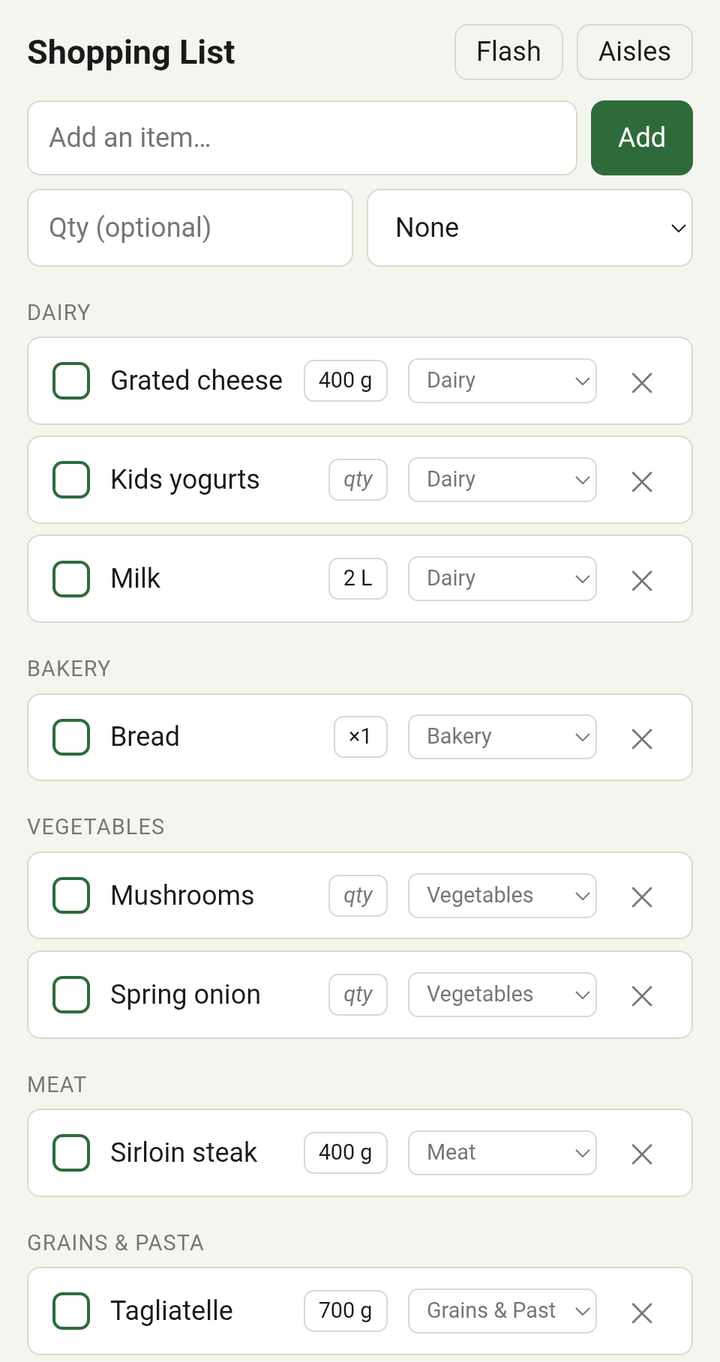

The device shows the list grouped by aisle, in the order you walk the shop. Tap an item to tick it off, or add one with the on-screen keyboard. Everyone else adds things from their phone.



A small server in between stores the list. It remembers which aisle every item belongs to and can optionally sort brand-new items into the right aisle with Claude.

flowchart LR
    device["PaperMono<br/>(firmware/)"] -- "Wi-Fi, hourly or on tap<br/>and after each edit" --> server
    phone["Phone browser"] -- HTTP --> server
    subgraph server["Server (server/)"]
        api["FastAPI + SQLite"]
        web["Web UI"]
    end
    api -. "new item names only" .-> claude["Claude Code CLI<br/>(optional)"]

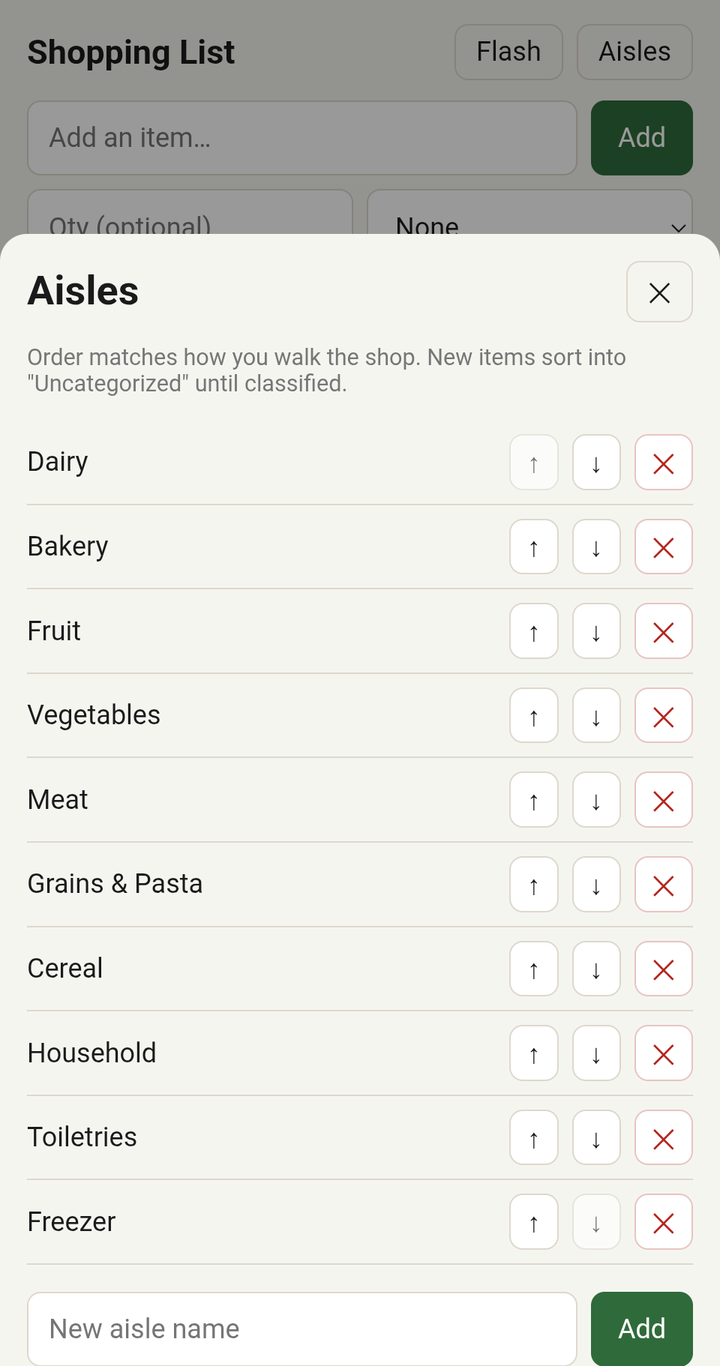

• Grouped by aisle, in walking order. You set the aisle order once from the phone, and both screens follow it.
• Works offline. The list, suggestions, ticking off and adding all work without a connection, including in a shop with no signal.
• Remembers your items. Every name you've added goes into a catalog that drives suggestions on both the device and the phone.
• Optional auto-sorting. The first time the server sees a name, it can send it to Claude to file it under an aisle. If you move an item to a different aisle by hand, that correction sticks.

Repository layout

firmware/   PlatformIO project for the PaperMono (C++ / Arduino)
server/     FastAPI server, SQLite store, phone web UI, tests
docs/       Hardware notes, architecture, API, build and deploy guides, design notes

Quick start

1. Run the server

cd server
python3 -m venv .venv && .venv/bin/pip install -e .
SHOPPING_LIST_CLASSIFIER=none .venv/bin/uvicorn shopping_list.main:app --host 0.0.0.0 --port 8000

Open http://<server-ip>:8000/ on your phone, tap Aisles, and add your shop's aisles in the order you walk them. See docs/server.md for systemd and Docker deployment and for turning on auto-sorting.

2. Build and flash the firmware

You need PlatformIO and a PaperMono connected over USB-C.

cd firmware
cp src/secrets.example.h src/secrets.h   # set Wi-Fi SSID/password and the server URL
pio run -t upload

Back up your device's flash before the first flash. It holds that unit's factory calibration data. docs/firmware.md covers the backup, download mode and flashing from a browser.

Documentation

Status

A personal project, running on one device at home. It works, but it isn't a product. There's no on-device Wi-Fi setup (credentials are compiled in), no authentication on the server (keep it on your LAN or behind an authenticating reverse proxy), and only the PaperMono C153 has been tested. See known limitations.

Author

Built by Seamus Cawley, who builds Bronto, the logging and observability platform, by day.

Credits

The firmware's board support, e-paper and touch drivers, keyboard layout and widget style are adapted from MonoMesh by andrecolz, an independent Meshtastic-compatible firmware for the same hardware. docs/design-notes.md lists exactly what was reused.

License

GNU General Public License v3.0, the same license as MonoMesh, which parts of the firmware derive from.
