Universal Manipulation Interface

[Project page] [Paper] [Hardware Guide] [Data Collection Instruction] [SLAM repo] [SLAM docker]

Cheng Chi^1,2, Zhenjia Xu^1,2, Chuer Pan¹, Eric Cousineau³, Benjamin Burchfiel³, Siyuan Feng³,

Russ Tedrake³, Shuran Song^1,2

¹Stanford University, ²Columbia University, ³Toyota Research Institute

🛠️ Installation

Only tested on Ubuntu 22.04

Install docker following the official documentation and finish linux-postinstall.

Install system-level dependencies:

$ sudo apt install -y libosmesa6-dev libgl1-mesa-glx libglfw3 patchelf

We recommend Miniforge instead of the standard anaconda distribution for faster installation:

$ mamba env create -f conda_environment.yaml

Activate environment

$ conda activate umi
(umi)$

Running UMI SLAM pipeline

Download example data

(umi)$ wget --recursive --no-parent --no-host-directories --cut-dirs=2 --relative --reject="index.html*" https://real.stanford.edu/umi/data/example_demo_session/

Run SLAM pipeline

(umi)$ python run_slam_pipeline.py example_demo_session

...
Found following cameras:
camera_serial
C3441328164125    5
Name: count, dtype: int64
Assigned camera_idx: right=0; left=1; non_gripper=2,3...
             camera_serial  gripper_hw_idx                                     example_vid
camera_idx
0           C3441328164125               0  demo_C3441328164125_2024.01.10_10.57.34.882133
99% of raw data are used.
defaultdict(<function main.<locals>.<lambda> at 0x7f471feb2310>, {})
n_dropped_demos 0

For this dataset, 99% of the data are useable (successful SLAM), with 0 demonstrations dropped. If your dataset has a low SLAM success rate, double check if you carefully followed our data collection instruction.

Despite our significant effort on robustness improvement, OBR_SLAM3 is still the most fragile part of UMI pipeline. If you are an expert in SLAM, please consider contributing to our fork of OBR_SLAM3 which is specifically optimized for UMI workflow.

Generate dataset for training.

(umi)$ python scripts_slam_pipeline/07_generate_replay_buffer.py -o example_demo_session/dataset.zarr.zip example_demo_session

Training Diffusion Policy

Single-GPU training. Tested to work on RTX3090 24GB.

(umi)$ python train.py --config-name=train_diffusion_unet_timm_umi_workspace task.dataset_path=example_demo_session/dataset.zarr.zip

Multi-GPU training.

(umi)$ accelerate --num_processes <ngpus> train.py --config-name=train_diffusion_unet_timm_umi_workspace task.dataset_path=example_demo_session/dataset.zarr.zip

Downloading in-the-wild cup arrangement dataset (processed).

(umi)$ wget https://real.stanford.edu/umi/data/zarr_datasets/cup_in_the_wild.zarr.zip

Multi-GPU training.

(umi)$ accelerate --num_processes <ngpus> train.py --config-name=train_diffusion_unet_timm_umi_workspace task.dataset_path=cup_in_the_wild.zarr.zip

🦾 Real-world Deployment

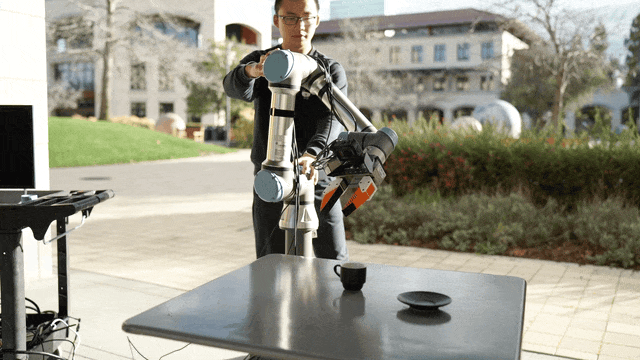

In this section, we will demonstrate our real-world deployment/evaluation system with the cup arrangement policy. While this policy setup only requires a single arm and camera, the our system supports up to 2 arms and unlimited number of cameras.

⚙️ Hardware Setup

1. Build deployment hardware according to our Hardware Guide.

2. Setup UR5 with teach pendant:

   • Obtain IP address and update eval_robots_config.yaml/robots/robot_ip.
   • In Installation > Payload
     • Set mass to 1.81 kg
     • Set center of gravity to (2, -6, 37)mm, CX/CY/CZ.
   • TCP will be set automatically by the eval script.
   • On UR5e, switch control mode to remote.

   If you are using Franka, follow this instruction.

3. Setup WSG50 gripper with web interface:

   • Obtain IP address and update eval_robots_config.yaml/grippers/gripper_ip.
   • In Settings > Command Interface
     • Disable "Use text based Interface"
     • Enable CRC
   • In Scripting > File Manager
     • Upload umi/real_world/cmd_measure.lua
   • In Settings > System
     • Enable Startup Script
     • Select /user/cmd_measure.lua you just uploaded.

4. Setup GoPro:

   • Install GoPro Labs firmware.
   • Set date and time.
   • Scan the following QR code for clean HDMI output


5. Setup 3Dconnexion SpaceMouse:

   • Install libspnav sudo apt install libspnav-dev spacenavd
   • Start spnavd sudo systemctl start spacenavd

🤗 Reproducing the Cup Arrangement Policy ☕

Our in-the-wild cup arragement policy is trained with the distribution of "espresso cup with saucer" on Amazon across 30 different locations around Stanford. We created a Amazon shopping list for all cups used for training. We published the processed Zarr dataset and pre-trained checkpoint (finetuned CLIP ViT-L backbone).

Download pre-trained checkpoint.

(umi)$ wget https://real.stanford.edu/umi/data/pretrained_models/cup_wild_vit_l_1img.ckpt

Grant permission to the HDMI capture card.

(umi)$ sudo chmod -R 777 /dev/bus/usb

Launch eval script.

(umi)$ python eval_real.py --robot_config=example/eval_robots_config.yaml -i cup_wild_vit_l.ckpt -o data/eval_cup_wild_example

After the script started, use your spacemouse to control the robot and the gripper (spacemouse buttons). Press C to start the policy. Press S to stop.

If everything are setup correctly, your robot should be able to rotate the cup and placing it onto the saucer, anywhere 🎉

Known issue ⚠️: The policy doesn't work well under direct sunlight, since the dataset was collected during a rainiy week at Stanford.

🤗 Reproducing Policies on ARX X5 Robot Arms

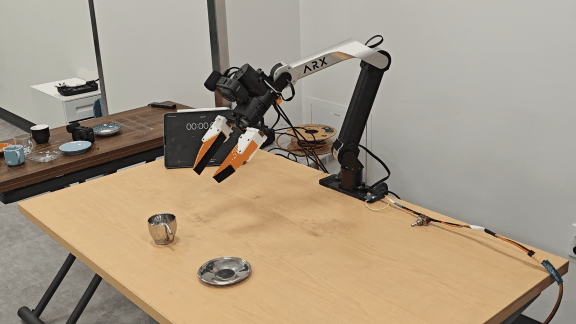

Please follow umi-on-legs for hardware modification and umi-arx for detailed policy deployment instructions.

🏷️ License

This repository is released under the MIT license. See LICENSE for additional details.

🙏 Acknowledgement

• Our GoPro SLAM pipeline is adapted from Steffen Urban's fork of OBR_SLAM3.
• We used Steffen Urban's OpenImuCameraCalibrator for camera and IMU calibration.
• The UMI gripper's core mechanism is adpated from Push/Pull Gripper by John Mulac.
• UMI's soft finger is adapted from Alex Alspach's original design at TRI.
