LaTex Formula OCR API

FastAPI-based API to convert LateX formula images into LaTeX code using a pre-trained Transformer model.

---

How to Run

Locally

Clone the repository

git clone https://github.com/olmobaldoni/LaTex-Formula-OCR-API.git
cd LaTex-Formula-OCR-API/app

Install dependencies

pip install -r requirements.txt

Run the API

fastapi dev main.py

Using Docker

Build the Docker image

docker build -t latex-ocr-api .

Run the Docker container

docker run -d --name nougat-ocr-api-container -p 80:80 latex-ocr-api

Access the API

Open your web browser and go to localhost/docs to access the Swagger UI for the API.

Download from Docker Hub

Pull the Docker image

docker pull olmobaldoni/nougat-ocr-api:latest

Run the Docker container

docker run -d --name nougat-ocr-api-container -p 80:80 olmobaldoni/nougat-ocr-api:latest

Access the API

Open your web browser and go to localhost/docs to access the Swagger UI for the API.

---

API Endpoints

Upload LaTex Image

• URL: /upload_latex_image/
• Method: POST
• Description: Upload an image containing LaTeX formula to receive the corresponding LaTeX code.
• Request:
  • 'file': The image file containing the LaTeX formula.
• Response: Plain text containing the LaTeX code.

---

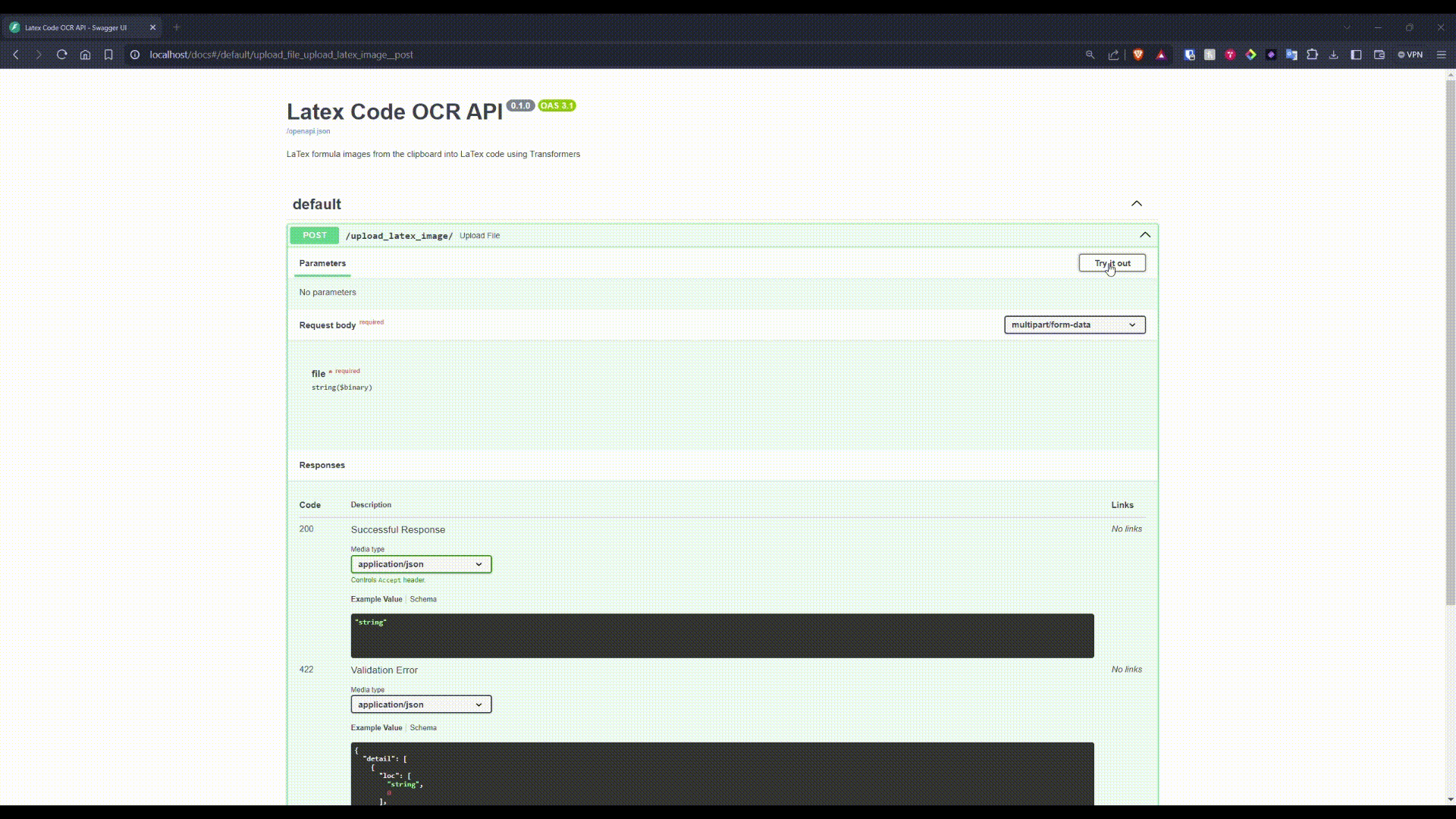

Demo

---

Acknowledgements

This API is based on nougat-latex-base, a fine-tuning of facebook/nougat-base with im2latex-100k, and made by NormXU.

---

License

MIT
