MOSAIC Operating System Model and Checker
This is the artifact for Paper #202 of USENIX ATC'23 "The Hitchhiker’s Guide to Operating Systems". (Cherry-picked from the backend of my course homepage.)
- mosaic.py - The model checker (zero dependency; self-documented)
- vis/ - The visualization script of an interactive state space explorer
- examples/ - The code examples evaluated in the paper
The Operating System Model
MOSAIC supports simple applications with "system calls". The program entry is main():
def main():
pid = sys_fork()
sys_sched() # non-deterministic context switch
if pid == 0:
sys_write('World\n')
else:
sys_write('Hello\n')
MOSAIC can interpret these system calls, or model-check it:
python3 mosaic.py --run foo.py
python3 mosaic.py --check bar.py
A JSON file (state transition graph) will be printed to stdout. The output (state transition graph) can be piped to another tool, e.g., a visualization tool:
# quick and dirty check
python3 mosaic.py --check examples/hello.py | grep stdout | sort | uniq

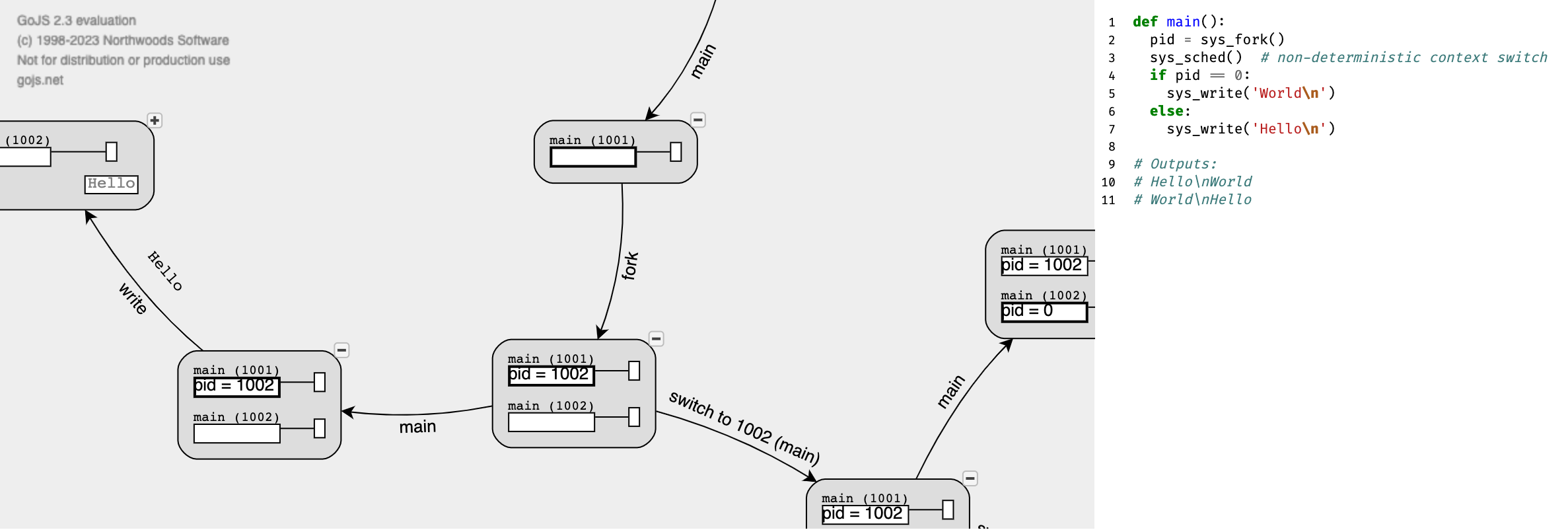

# interactive state explorer
python3 mosaic.py --check examples/hello.py | python3 -m vis
Modeled System Calls
| System Call | Behavior |
|---|---|
sys_fork() | create current thread's heap and context clone |
sys_spawn(f, xs) | spawn a heap-sharing thread executing f(xs) |
sys_write(xs) | write string xs to a shared console |
sys_bread(k) | return the value of block id k |
sys_bwrite(k, v) | write block k with value v |
sys_sync() | persist all outstanding block writes |
sys_sched() | perform a non-deterministic context switch |
sys_choose(xs) | return a non-deterministic choice in xs |
sys_crash() | perform a non-deterministic crash |
Limitation: system calls are implemented by yield. To keep the model checker minimal, one cannot perform system call in a function. (This is not a fundamental limitation and will be addressed in the future.)
Reproducing Results
python3 examples/_reproduce.py
Similar results in Table 2 are expected. Tested on: Python 3.10.9 (macOS Ventura), Python 3.11.2 (Ubuntu 22.04)
