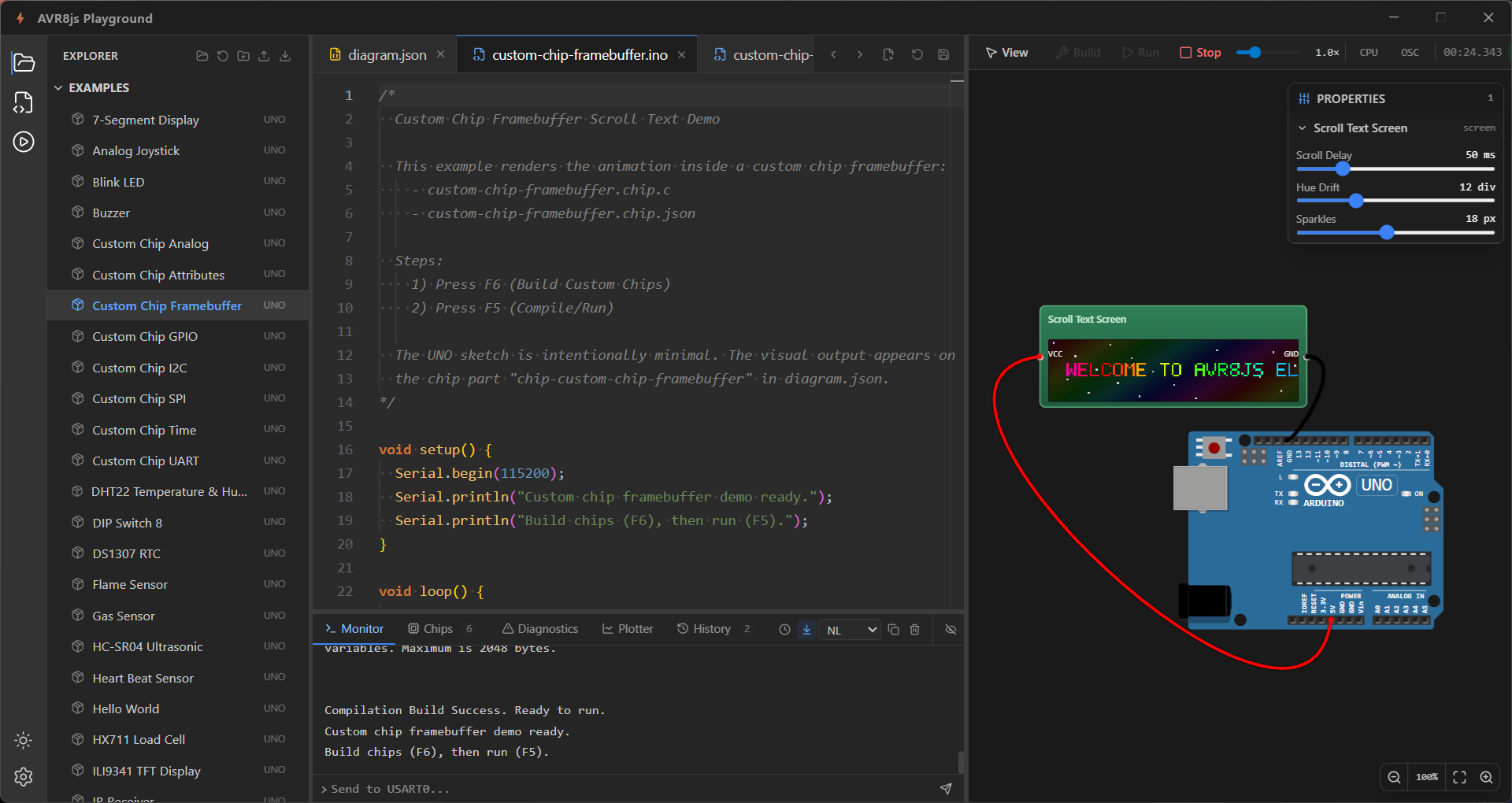

AVR8js Electron Playground

A full-featured Arduino simulator built with AVR8js, Wokwi Elements, and Electron. Write Arduino code, design circuits visually, and simulate everything in real time — all offline in a native desktop application.

See ROADMAP.md for the phased plan to expand the simulator and improve AVR8 architecture coverage, and BACKLOG.md for the prioritized execution backlog.

---

Features

Editor and Project Workflow

• Monaco Editor with lazy language loading, model reuse, view-state restore, and diagnostics markers
• Tabbed multi-file editing for sketches, diagrams, chip sources, manifests, and support files
• Async project discovery/load/import/export in the Electron main process with cancellation and progress reporting
• Per-project UI session restore for active file, open tabs, sidebar sections, terminal state, diagnostics state, compile history, and layout

Simulator and Diagram UX

• Visual circuit editor with drag-and-drop components, wire routing, pan/zoom, undo/redo, and autosave
• Real-time simulation using avr8js with GPIO, ADC, timers, USART, SPI, TWI/I2C, EEPROM, and component bridges
• Property editor for live sensor/device tuning during simulation
• Improved startup and runtime responsiveness with cached project metadata, preloading, segmented terminal buffers, and simulation setup caching

Terminal, Diagnostics, and Recovery

• Serial Monitor, Plotter, Chips, History, and Diagnostics tabs in one bottom panel
• Chip build diagnostics with file/line navigation, quick filters, expandable details, and restore-aware warnings
• Compile history persistence per project, including expanded details and restored truncation summaries
• Session restore warnings that can be dismissed per project and reopened later for debugging

Custom Chips

• Build and run custom chips (.chip.c/.cpp + .chip.json + .chip.wasm) inside the simulator
• External and embedded-experimental build backends with build cache, diagnostics parsing, and reusable WASM artifacts
• Runtime bridges for GPIO, I2C, UART, SPI, timing, controls, attributes, and framebuffer-style output

Performance and Persistence

• Dedicated Performance Mode with live metrics panel, regression thresholds, snapshot export/import, and local baselines
• Renderer persistence backed by main-process storage IPC for UI session, chip cache, and perf-panel data
• Smoke performance tests for project discovery/load, diagram parse, and netlist build

Supported Components

GPIO Routing (26 handlers)

All wired connections in diagram.json are automatically routed between Arduino pins and components:

• Digital Output: LED, RGB LED, Buzzer, Relay, LED Bar Graph, 7-Segment
• Digital Input: Pushbutton, Slide Switch, Tilt Switch, DIP Switch
• Analog Input: Potentiometer, Slide Potentiometer, Analog Joystick (ADC binding)
• Sensors: NTC (analog), Photoresistor/Flame/Sound (analog+digital), PIR/Heartbeat (digital)
• Scan Matrix: Membrane Keypad (row/column scanning)
• Encoder: Rotary Encoder (quadrature CLK/DT/SW)
• PWM Output: Servo (pulse width to angle), Stepper Motor (4-phase)
• Dialer: Rotary Dialer (pulse train)

I2C Bus

• LCD 1602 (address 0x27)
• LCD 2004 (address 0x27)
• SSD1306 OLED (addresses 0x3C, 0x3D)
• DS1307 RTC (address 0x68)

Serial Monitor

• Full-duplex serial communication with the simulated Arduino
• Line ending options: Newline, Carriage Return, Both, None
• Timestamp toggle for incoming messages
• Auto-scroll with manual override
• Copy and clear controls
• Separate scroll/session restoration for Monitor, History, and Diagnostics views

Diagnostics and History

• Dedicated Diagnostics tab for custom-chip build issues with severity and chip filters
• Click-to-open diagnostics, quick per-item filter actions, and expandable inspection details
• Persistent compile history with success/failure status, duration, and saved output
• Restore banners that explain when persisted logs were trimmed to stay within storage budgets

Custom Chips (MVP)

• Build custom chips (.chip.c/.cpp + .chip.json) into WASM and run them inside the simulator
• Build Chips command (F6) plus automatic chip build before sketch compile (F5)
• Dedicated Chips tab for runtime/bridge logs
• Monaco diagnostics plus bottom-panel Diagnostics view for chip build errors with file/line mapping and jump-to-source
• Incremental chip build cache and persisted artifacts for faster rebuilds

File convention

• mychip.chip.json (manifest)
• mychip.chip.c or mychip.chip.cpp (source)
• mychip.chip.wasm (generated artifact)

Supported runtime ABI (MVP)

• Lifecycle: chip_init(), chip_tick(), chip_dispose()
• Time imports: millis/avr8js_millis, micros/avr8js_micros
• GPIO imports: avr8js_gpio_read(pin), avr8js_gpio_write(pin, value), avr8js_gpio_mode(pin, mode)
• I2C exports (optional): chip_i2c_connect, chip_i2c_read, chip_i2c_write, chip_i2c_disconnect
• Controls exports (optional): chip_control_set/get (or aliases chip_set_control/get_control)

Build backends

• external (default): command template in Settings (default: clang --target=wasm32 -O2 -nostdlib -Wl,--no-entry -Wl,--export-all -Wl,--allow-undefined -o "{{OUTPUT}}" "{{SOURCE}}")
• embedded-experimental: renderer-side embedded pipeline with fallback and support for:
  • // @wasm-base64 <...> test directive in *.chip.c/*.chip.cpp
  • reuse of existing <name>.chip.wasm from project files (with validation)

Current limitations

• Embedded backend is experimental and not yet a full C→WASM toolchain
• Compatibility target is MVP + core bridges (GPIO/I2C/controls), not full Chips API parity yet

Component Property Editor

• Live adjustable sliders for sensor values during simulation
• Supported: DHT22 (temperature/humidity), HC-SR04 (distance), NTC (temperature), Photoresistor (light level), Flame/Sound/PIR/Heartbeat sensors

Diagram Editor

• Add/remove components visually
• Wire color picker with 12 color options
• Undo/Redo with Ctrl+Z / Ctrl+Y (up to 100 history states)
• Auto-save diagram to disk (1-second debounce)
• Manual diagram.json editing synced with visual editor

Project Management

• Auto-discovery of bundled examples plus external project roots
• Project metadata caching and cancellable async loading via the Electron main process
• Project export/import as .avr8js JSON bundles
• Last-opened project persistence and background preload of recent disk-backed projects

Session Persistence

• Dedicated UI session storage for layout, tabs, terminal state, diagnostics filters, and restore context
• Separate persistence for chip build cache and performance panel data
• Restore-time warnings when large logs or history entries are trimmed during persistence

Layout

• VS Code-inspired desktop layout with custom titlebar and resizable split panels
• Toggle sidebar, editor, and simulator independently
• Activity bar with quick toggles

Performance Mode

• Live performance panel with operation timeline, domain summaries, regression thresholds, and cache counters
• Export/import of perf snapshots and saved local baselines for comparison across sessions
• Optional lightweight renderer memory metrics when exposed by Chromium

---

Tech Stack

---

Getting Started

Prerequisites

• Node.js 18+
• npm

Install & Run

# Clone the repository
git clone https://github.com/arcostasi/avr8js-electron.git
cd avr8js-electron

# Install dependencies
npm install

# Development (build + launch)
npm run dev

# Or build and start manually
npm run build
npm start

Scripts

Performance Validation

The repository includes a lightweight smoke benchmark for the main hot paths in the app:

• project discovery
• project load
• diagram parse/migration
• netlist build

Run it locally with:

npm run test:perf-smoke

The thresholds are intentionally loose and meant to catch obvious regressions, not replace profiling.

---

Project Structure

avr8js-electron/
├── index.html                  # Electron renderer entry
├── vite.config.ts              # Vite build configuration
├── tsconfig.json               # TypeScript configuration
├── eslint.config.mjs           # ESLint flat config
├── tailwind.config.cjs         # Tailwind CSS configuration
├── examples/                   # Built-in simulator examples and custom-chip demos
├── src/
│   ├── main/                   # Electron main process
│   │   ├── main.ts             #   Window creation, IPC handlers, storage and project IPC
│   │   ├── project-io.ts       #   Async project discovery/load/import/export services
│   │   └── *.test.ts           #   Main-process tests and perf smoke checks
│   ├── electron/               # IPC infrastructure
│   │   ├── ipc-app.ts          #   App bootstrap
│   │   ├── ipc-channel.ts      #   Channel interface
│   │   ├── ipc-request.ts      #   Request types
│   │   ├── ipc-service.ts      #   Service base class
│   │   └── info-channel.ts     #   System info channel
│   ├── renderer/               # React UI (renderer process)
│   │   ├── App.tsx             #   Root component
│   │   ├── index.tsx           #   React mount point
│   │   ├── index.css           #   Global styles
│   │   ├── components/
│   │   │   ├── Editor.tsx      #   Monaco code editor
│   │   │   ├── PerformancePanel.tsx
│   │   │   ├── ProjectSidebar.tsx
│   │   │   ├── SerialMonitor.tsx
│   │   │   └── simulator/
│   │   │       ├── WokwiSimulator.tsx
│   │   │       ├── PartRenderer.tsx
│   │   │       ├── SimulatorToolbar.tsx
│   │   │       ├── AddComponentMenu.tsx
│   │   │       ├── CanvasZoomControls.tsx
│   │   │       ├── PinOverlay.tsx
│   │   │       ├── PinTooltip.tsx
│   │   │       ├── WireLayer.tsx
│   │   │       ├── WireColorPopup.tsx
│   │   │       └── ComponentPropertyEditor.tsx
│   │   ├── hooks/
│   │   │   ├── useSimulation.ts
│   │   │   ├── useDiagramState.ts    # Undo/redo history
│   │   │   ├── useAutoSave.ts
│   │   │   ├── useCanvasInteraction.ts
│   │   │   ├── usePinPositions.ts
│   │   │   ├── useResizableLayout.ts
│   │   │   └── useWireRenderer.tsx
│   │   ├── services/
│   │   │   ├── app-session.ts        #   Session snapshot/restore helpers
│   │   │   ├── chip-build-cache.ts
│   │   │   ├── chip-build-diagnostics.ts
│   │   │   ├── chip-build-embedded.ts
│   │   │   ├── custom-chips.ts
│   │   │   ├── gpio-router.ts
│   │   │   ├── netlist-builder.ts
│   │   │   ├── perf-dashboard.ts
│   │   │   ├── perf-panel-storage.ts
│   │   │   ├── project-export.ts
│   │   │   ├── project-loader.ts
│   │   │   ├── renderer-persist.ts
│   │   │   ├── simulation-engine.ts
│   │   │   └── ui-session.ts
│   │   ├── store/
│   │   │   ├── projectStore.ts
│   │   │   └── settingsStore.ts
│   │   ├── constants/
│   │   │   └── wokwi-components.ts   # 49 component catalog
│   │   ├── types/
│   │   │   ├── editor-diagnostics.ts
│   │   │   └── wokwi.types.ts        # Diagram schema + V1→V2 migration
│   │   └── utils/
│   │       ├── catenary.ts           # Wire physics
│   │       ├── perf.ts               # Performance event stream and helpers
│   │       └── pin-mapping.ts        # Arduino pin → AVR port mapping
│   └── shared/                 # AVR simulation core
│       ├── execute.ts          #   AVRRunner (CPU lifecycle)
│       ├── compile.ts          #   Cloud hex compilation
│       ├── adc-registry.ts     #   ADC channel management
│       ├── i2c-bus.ts          #   I2C device multiplexer
│       ├── lcd1602.ts          #   LCD 16x2 controller
│       ├── lcd2004.ts          #   LCD 20x4 controller
│       ├── ssd1306.ts          #   SSD1306 OLED controller
│       ├── ws2812.ts           #   WS2812/NeoPixel controller
│       ├── dht22.ts            #   DHT22 sensor controller
│       ├── hc-sr04.ts          #   HC-SR04 ultrasonic controller
│       ├── ds1307.ts           #   DS1307 RTC controller
│       ├── ir.ts               #   NEC IR protocol
│       ├── speaker.ts          #   Speaker/buzzer audio
│       ├── stepper.ts          #   Stepper motor controller
│       ├── eeprom.ts           #   EEPROM persistence
│       ├── intelhex.ts         #   Intel HEX parser
│       ├── format-time.ts      #   Time formatting utility
│       ├── cpu-performance.ts  #   FPS/speed measurement
│       └── task-scheduler.ts   #   Cooperative task scheduler

---

Example Projects

The examples/ folder contains a broad set of working sketches and circuit demos, including:

Every bundled example is intended to stay functional and directly runnable inside the app.

Custom Chip API Examples

---
