👁️ Vision: "Thinking with Images"

"The eye sees only what the mind is prepared to comprehend." – Robertson Davies

Humans don't just passively observe; we actively engage with visual information, sketching, highlighting, and manipulating it to understand. OpenThinkIMG aims to bring this interactive visual cognition to AI, enabling agents that can genuinely "think with images."

News

• [2025/06/01] OpenThinkIMG is moved to a new repo. We have released Docker for all environments to simplify setup.
• [2025/05/17] Our work is reported by Qubit (量子位)
• [2025/05/14] Our work is reported by both Deep Learning and NLP (深度学习自然语言处理) and Machine Learning and NLP (机器学习算法与自然语言处理).
• [2025/05/13] The models and datasets are released on HuggingFace.
• [2025/05/13] OpenThinkIMG codebase is released along with evaluation scripts. Try it out!
• [2025/05/13] OpenThinkIMG paper available on arXiv.

---

🤔 What is OpenThinkIMG?

OpenThinkIMG is an end-to-end open-source framework that empowers Large Vision-Language Models (LVLMs) to think with images. It features:

• Flexible vision tool management and easy integration of new tools.
• Efficient dynamic inference with distributed tool deployment.
• A streamlined SFT (Supervised Fine-Tuning) and Agent-RL (Reinforcement Learning) training pipeline, including our novel V-ToolRL method.

Our goal is to enable AI agents to interactively use visual tools to decompose, analyze, and solve complex visual problems, moving beyond passive observation towards active visual cognition.

---

🐚 Why OpenThinkIMG?

Current LVLMs excel at many tasks but often struggle when:

• Deep, iterative visual reasoning is required, not just single-pass description.
• Precise interaction with visual content (e.g., reading specific chart values, identifying exact locations) is crucial.
• Generalizing learned tool-use to new scenarios dynamically.

OpenThinkIMG addresses these challenges by:

• Bridging the Gap to Human-like Visual Cognition: We enable LVLMs to "think with images" by actively using a suite of visual tools, much like humans use sketches or highlights to understand complex scenes.
• Standardizing a Fragmented Landscape: The current ecosystem for vision tools lacks unification. OpenThinkIMG provides:
  • Unified Tool Interfaces: A standardized way to define and interact with diverse visual tools.
  • Modular, Distributed Deployment: Tools run as independent services, enhancing scalability, fault isolation, and resource management.
• Moving Beyond Static SFT Limitations: Supervised Fine-Tuning (SFT) on fixed trajectories often leads to poor generalization and lacks adaptability. We introduce:
  • V-ToolRL for Adaptive Policies: Our novel reinforcement learning framework allows agents to autonomously discover optimal tool-usage strategies by directly optimizing for task success through interaction and feedback. This leads to significantly better performance and adaptability compared to SFT-only approaches.
• Driving Reproducible Research: By open-sourcing the entire framework, we aim to provide a common platform for the community to build upon, experiment with, and advance the field of tool-augmented visual reasoning.

---

🚧 Project Status

OpenThinkIMG is currently an alpha release but is actively being developed. The core end-to-end system, including tool integration, trajectory generation, SFT (Cold-Start), and V-ToolRL training, is functional and can be used to replicate the results in our paper.

The project team is actively working on the following key milestones:

• 🥇 Release of Pre-trained Models: Providing readily usable SFT-initialized and V-ToolRL-trained agent models (e.g., based on Qwen2-VL-2B).
• 🛠️ Expanding the Vision Toolset: Integrating more diverse and powerful vision tools (e.g., advanced image editing, 3D analysis tools).
• 🤖 Broader LVLM Backbone Support: Adding easy integration for more open-source LVLMs (e.g., LLaVA series, MiniGPT-4).
• 📊 More Benchmarks & Evaluation Suites: Extending evaluation to a wider range of visual reasoning tasks beyond chart reasoning.
• 🌐 Community Building: Fostering an active community through GitHub discussions, contributions, and collaborations.

We welcome contributions and feedback to help us achieve these goals!

---

🔧 Vision Toolset

💡 More vision tools are coming soon!

📊 Results on Chart Reasoning (ChartGemma)

Our V-ToolRL approach significantly boosts performance:

V-ToolRL not only enhances our base model by +29.83 points but also outperforms other open-source tool-augmented agents and even strong closed-source models like GPT-4.1.

⚙️ Installation

We provide a general setup that works across most tools. Individual tools may have specific requirements (to be released separately).

# Clone the repository
git clone [email protected]:zhaochen0110/Tool-Factory.git
cd Tool-Factory

# [Optional] Create a clean Conda environment
conda create -n tool-server python=3.10
conda activate tool-server

# Install PyTorch and dependencies (make sure CUDA version matches)
conda install pytorch==2.0.1 torchvision==0.15.2 torchaudio==2.0.2 pytorch-cuda=11.8 -c pytorch -c nvidia

# Install remaining dependencies
pip install -r tool_server_requirements.txt
pip install -e .

💡 Note: The requirements.txt is tailored for inference & evaluation. For training, refer to the Training Section for additional dependencies.

If you encounter issues, check out our 📄 Documentation.

🚀 Quick Start

🔌 Step 1: Launch Vision Tool Services

To enable tool-enhanced inference, start all vision tools before using the inferencer. Each tool runs independently and is launched via a unified config.

## First, modify the config to adapt to your own environment
## tool_server/tool_workers/scripts/launch_scripts/config/all_service_szc.yaml

## Start all services
cd tool_server/tool_workers/scripts/launch_scripts
python start_server_config.py --config ./config/all_service.yaml

## Press control + C to shutdown all services automatically.

🔍 Step 2: Run Inference with OpenThinkIMG

✅ Option 1: Direct Evaluation (e.g., Qwen2VL on ChartGemma)

accelerate launch  --config_file  ${accelerate_config} \
-m tool_server.tf_eval \
--model qwen2vl \
--model_args pretrained=Qwen/Qwen2-VL-7B-Instruct \
--task_name chartgemma \
--verbosity INFO \
--output_path ./tool_server/tf_eval/scripts/logs/results/chartgemma/qwen2vl.jsonl \
--batch_size 2 \
--max_rounds 3 \
--stop_token <stop>

🧩 Option 2: Evaluation via Config File (Recommended)

accelerate launch  --config_file  ${accelerate_config} \
-m tool_server.tf_eval \
--config ${config_file}

Config file example:

- model_args:
    model: qwen2vl
    model_args: pretrained=Qwen/Qwen2-VL-7B-Instruct
    batch_size: 2
    max_rounds: 3
    stop_token: <stop>
  task_args:
    task_name: chartgemma
    resume_from_ckpt:
      chartgemma: ./tool_server/tf_eval/scripts/logs/ckpt/chartgemma/qwen2vl.jsonl
    save_to_ckpt:
      chartgemma: ./tool_server/tf_eval/scripts/logs/ckpt/chartgemma/qwen2vl.jsonl
  script_args:
    verbosity: INFO
    output_path: ./tool_server/tf_eval/scripts/logs/results/chartgemma/qwen2vl.jsonl

For detailed information and config setting please refer to our documentation.

🧠 Training

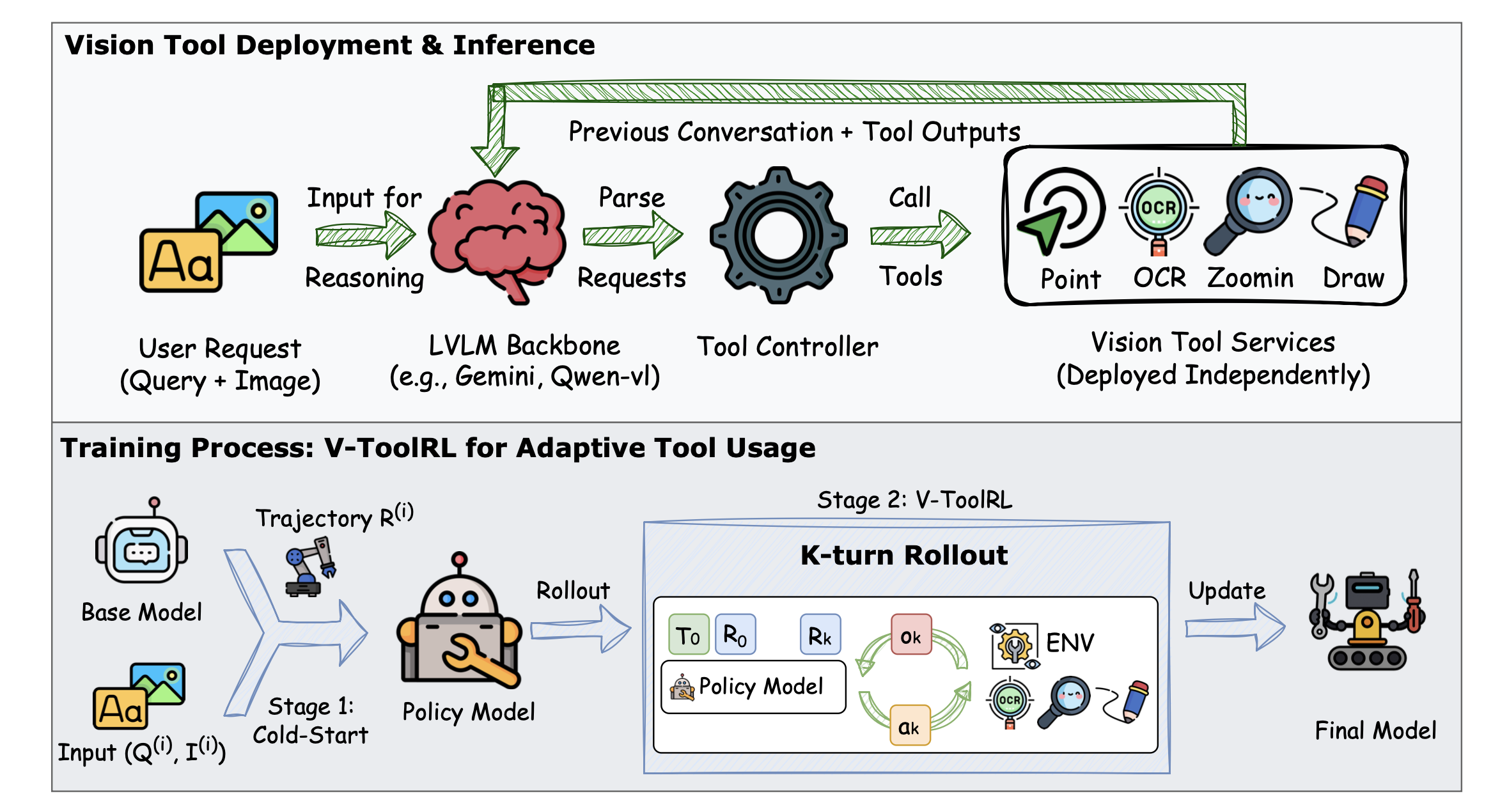

Once the vision tools are properly deployed, we provide a flexible training pipeline to teach models how to plan and invoke tools effectively through SFT and our proposed V-ToolRL methods.

Our training pipeline builds on the solid foundation of OpenR1, integrating visual tools as external reasoning capabilities.

📦 Install Additional Dependencies

To run the training code, make sure to install the additional required packages:

pip install -r requirements_train.txt

🔁 V-ToolRL: Reinforcement Learning with Vision Tools

We provide a customized implementation of V-ToolRL for training models to leverage vision tools dynamically in complex tasks.

torchrun --nproc_per_node=${nproc_per_node} \
    --nnodes="1" \
    --node_rank="0" \
    --master_addr="127.0.0.1" \
    --master_port=${master_port} \
    src/open_r1/tool_grpo.py --use_vllm True \
    --output_dir ${output_dir} \
    --model_name_or_path ${model_path} \
    --dataset_name ${data_path} \
    --max_prompt_length 16000 \
    --max_completion_length 2048 \
    --temperature 1.0 \
    --seed 42 \
    --learning_rate 1e-6 \
    --num_generations 8 \
    --lr_scheduler_type "constant" \
    --vllm_gpu_memory_utilization 0.8 \
    --deepspeed ${DS_CONFIG} \
    --per_device_train_batch_size 2 \
    --gradient_accumulation_steps 12 \
    --logging_steps 1 \
    --bf16 true \
    --report_to wandb \
    --gradient_checkpointing true \
    --attn_implementation flash_attention_2 \
    --max_pixels 200000 \
    --num_train_epochs 1 \
    --run_name $RUN_NAME \
    --save_steps 100 \
    --save_only_model true \
    --controller_addr http://SH-IDCA1404-10-140-54-15:20001 \
    --use_tool true

📈 This helps the model learn dynamic planning & tool invocation using environment feedback.

🧪 SFT: Supervised Fine-Tuning

We also support supervised fine-tuning for training models on curated tool usage demonstrations. Modify the config according to your use case:

    accelerate launch --num_machines 1 --num_processes 6 --main_process_port 29502 --multi_gpu\
    src/open_r1/sft.py \
    --output_dir ${output_dir} \
    --model_name_or_path ${model_path} \
    --dataset_name ${data_path} \
    --seed 42 \
    --learning_rate 2e-5 \
    --max_seq_length 4096 \
    --deepspeed config/deepspeed/ds_z3_offload_config.json \
    --per_device_train_batch_size 2 \
    --gradient_accumulation_steps 8 \
    --logging_steps 1 \
    --report_to wandb \
    --gradient_checkpointing true \
    --attn_implementation flash_attention_2 \
    --bf16 \
    --num_train_epochs 2 \
    --run_name $RUN_NAME \
    --save_steps 100 \
    --warmup_ratio 0.1 \
    --save_only_model true

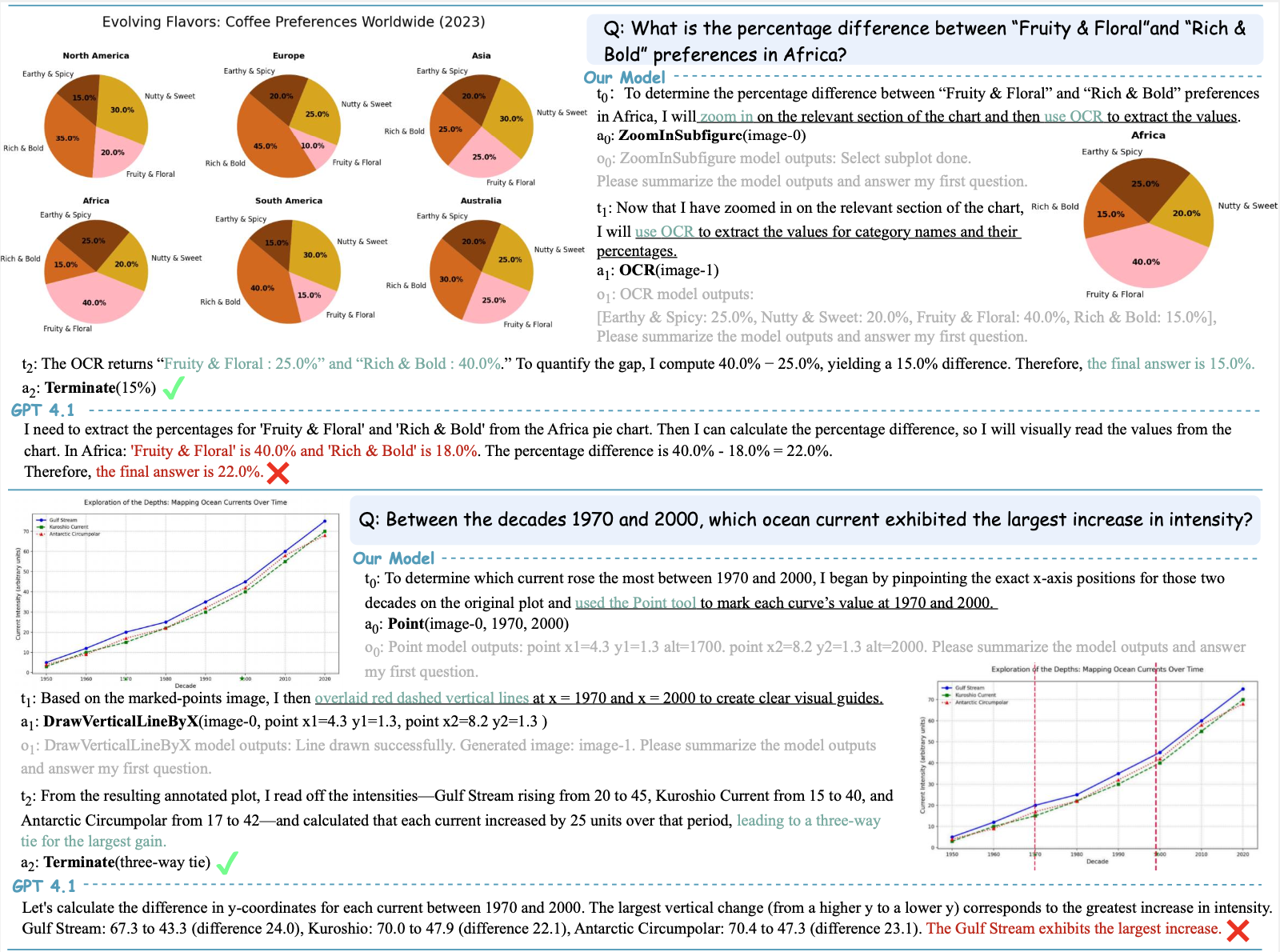

📂 Case Studies

🤝 Contributing

We welcome contributions of all kinds! In our Documentation you’ll find detailed guides for:

• Importing custom models
• Defining and integrating new vision tools
• Extending the training pipeline

To contribute:

1. Fork the repository and create a feature branch (e.g., feature/new-vision-tool).
2. Implement your changes, adding or updating tests under tests/.
3. Submit a pull request referencing the relevant issue, with clear descriptions and code snippets.

🙏 Acknowledgments

We thank the Visual Sketchpad and TACO teams for inspiring our vision-driven reasoning paradigm.

📖 Citation

Please cite the following if you find OpenThinkIMG helpful:

@article{su2025openthinkimg,
  title={OpenThinkIMG: Learning to Think with Images via Visual Tool Reinforcement Learning},
  author={Su, Zhaochen and Li, Linjie and Song, Mingyang and Hao, Yunzhuo and Yang, Zhengyuan and Zhang, Jun and Chen, Guanjie and Gu, Jiawei and Li, Juntao and Qu, Xiaoye and others},
  journal={arXiv preprint arXiv:2505.08617},
  year={2025}
}
