Calib3D: Calibrating Model Preferences for Reliable 3D Scene Understanding

Lingdong Kong^1,2,*    Xiang Xu^3,*    Jun Cen⁴    Wenwei Zhang¹
Liang Pan¹    Kai Chen¹    Ziwei Liu^5
1Shanghai AI Laboratory    ²National University of Singapore    ³Nanjing University of Aeronautics and Astronautics    ⁴The Hong Kong University of Science and Technology    ⁵S-Lab, Nanyang Technological University

About

Calib3D is a comprehensive benchmark targeted at probing the uncertainties of 3D scene understanding models in real-world conditions. It encompasses a systematic study of state-of-the-art models across diverse 3D datasets, laying a solid foundation for the future development of reliable 3D scene understanding systems.

• :construction: Aleatoric Uncertainty in 3D: We examine how intrinsic factors, such as sensor measurement noises and point cloud density variations, contribute to data uncertainty in 3D scene understanding. Such uncertainty cannot be reduced even with more data or improved models, necessitating efforts that effectively interpret and quantify this inherent variability.
• :bus: Epistemic Uncertainty in 3D: Different from the rather unified network structures in 2D, 3D scene understanding models shed a wider array of structures due to the complex nature of 3D data processing. Our investigation extends to the model uncertainty associated with the diverse 3D architectures, highlighting the importance of addressing knowledge gaps in model training and data representation.

Citation

If you find this work helpful for your research, please kindly consider citing our papers:

@inproceedings{kong2025calib3d,
    title     = {{Calib3D}: Calibrating Model Preferences for Reliable {3D} Scene Understanding},
    author    = {Lingdong Kong and Xiang Xu and Jun Cen and Wenwei Zhang and Liang Pan and Kai Chen and Ziwei Liu},
    booktitle = {Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision (WACV)},
    pages     = {1965-1978},
    year      = {2025}
}

@misc{mmdet3d,
    title     = {{MMDetection3D}: {OpenMMLab} Next-Generation Platform for General {3D} Object Detection},
    author    = {MMDetection3D Contributors},
    howpublished = {\url{https://github.com/open-mmlab/mmdetection3d}},
    year      = {2020}
}

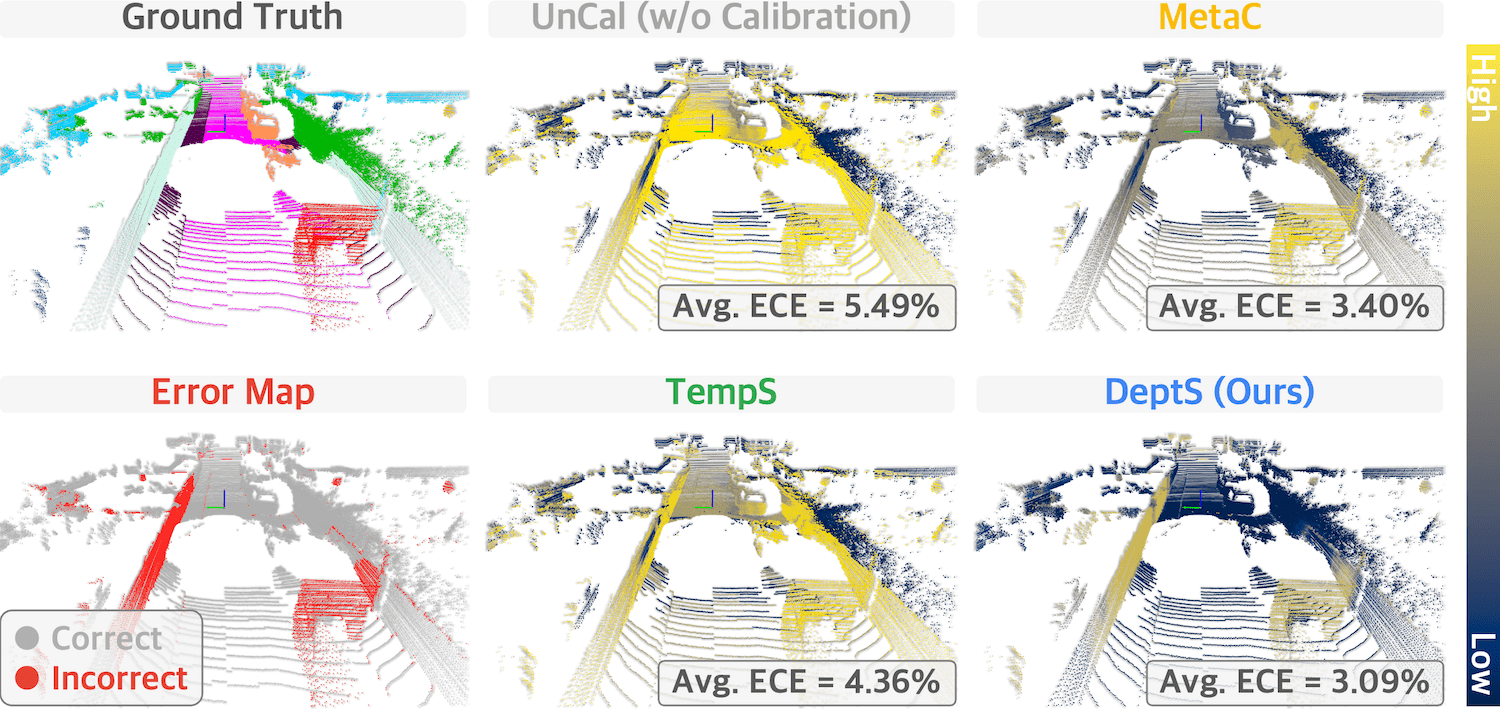

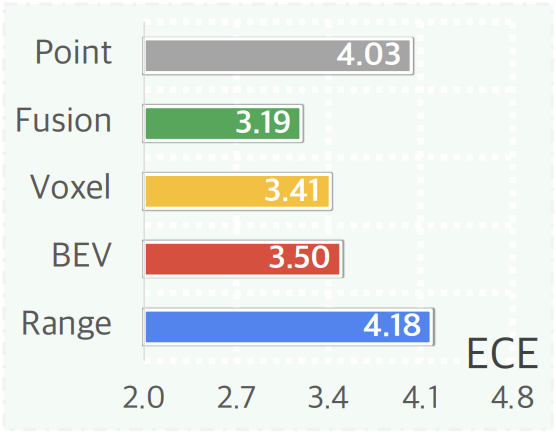

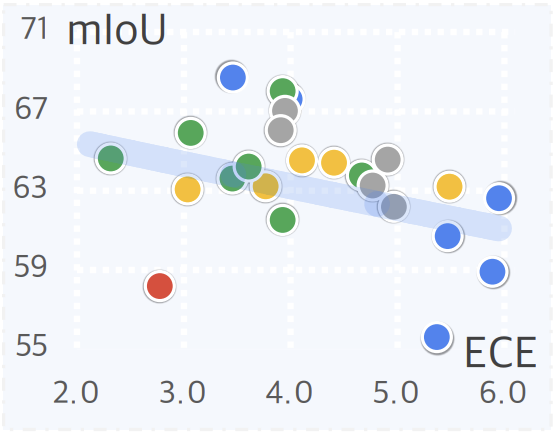

Motivation

Visit our project page to explore more examples. :blue_car:

Updates

• [2024.03] - Our paper is available on arXiv. The code has been made publicly accessible. :rocket:

Outline

• Installation
• Data Preparation
• Getting Started
• Model Zoo
• Calib3D Benchmark
• TODO List
• Citation
• License
• Acknowledgements

:gear: Installation

For details related to installation and environment setups, kindly refer to INSTALL.md.

:hotsprings: Data Preparation

Kindly refer to DATA_PREPARE.md for the details to prepare these datasets.

:rocket: Getting Started

To learn more usage about this codebase, kindly refer to GET_STARTED.md.

:dragon: Model Zoo

 Range View

• RangeNet⁺⁺, IROS 2019. ^[Code]
• SalsaNext, ISVC 2020. ^[Code]
• FIDNet, IROS 2021. ^[Code]
• CENet, ICME 2022. ^[Code]
• RangeViT, CVPR 2023. ^[Code]
• RangeFormer, ICCV 2023.
• FRNet, arXiv 2023. ^[Code]

 Bird's Eye View

• PolarNet, CVPR 2020. ^[Code]

 Sparse Voxel

• MinkUNet₁₈, CVPR 2019. ^[Code]
• MinkUNet₃₄, CVPR 2019. ^[Code]
• Cylinder3D, CVPR 2021. ^[Code]
• SpUNet₁₈, arXiv 2022. ^[Code]
• SpUNet₃₄, arXiv 2022. ^[Code]

 Multi-View Fusion

• SPVCNN₁₈, ECCV 2020. ^[Code]
• SPVCNN₃₄, ECCV 2020. ^[Code]
• RPVNet, ICCV 2021.
• 2DPASS, ECCV 2022. ^[Code]
• CPGNet, ICRA 2022. ^[Code]
• GFNet, TMLR 2022. ^[Code]
• UniSeg, ICCV 2023.

 Raw Point

• PointNet⁺⁺, NeurIPS 2017. ^[Code]
• DGCNN, TOG 2019. ^[Code]
• KPConv, ICCV 2019. ^[Code]
• PAConv, CVPR 2021. ^[Code]
• PIDS_1.25x, WACV 2023. ^[Code]
• PIDS_2.0x, WACV 2023. ^[Code]
• WaffleIron, ICCV 2023. ^[Code]

 3D Data Augmentation

• PolarMix, NeurIPS 2022. ^[Code]
• LaserMix, CVPR 2023. ^[Code]
• FrustumMix, arXiv 2023. ^[Code]

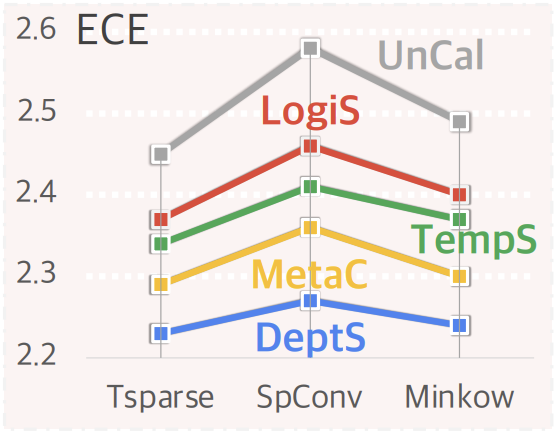

 SparseConv Backend

• MinkowskiEngine, CVPR 2019. ^[Code]
• SpConv, arXiv 2022. ^[Code]
• TorchSparse, MLSys 2022. ^[Code]
• TorchSparse⁺⁺, MICRO 2023. ^[Code]

:triangular_ruler: Calib3D Benchmark

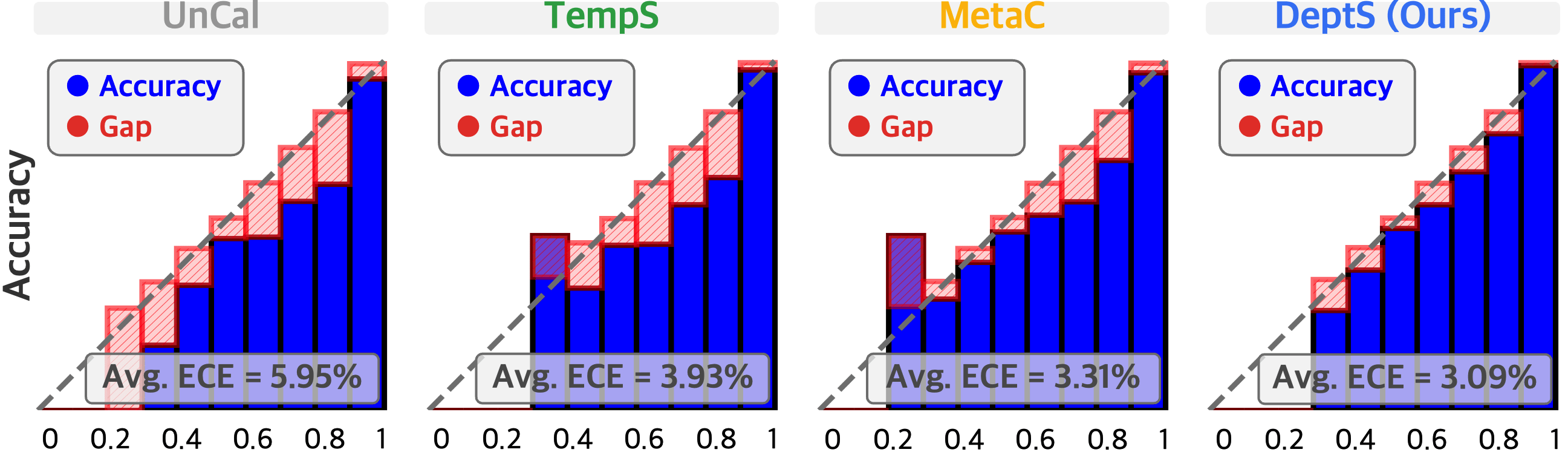

Reliability Diagram

In-Domain 3D Uncertainty

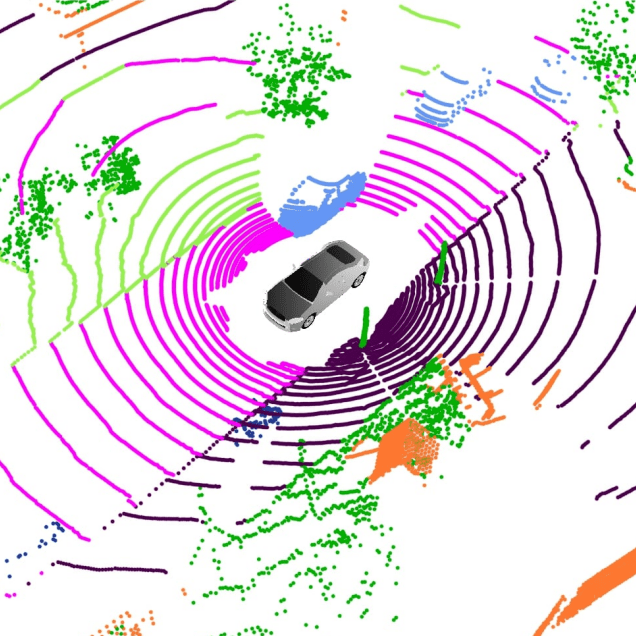

 nuScenes & SemanticKITTI

Method	Modal	nuScenes						SemanticKITTI
		UnCal	TempS	LogiS	DiriS	MetaC	DeptS	UnCal	TempS	LogiS	DiriS	MetaC	DeptS
RangeNet++	Range	4.57%	2.74%	2.79%	2.73%	2.78%	2.61%	4.01%	3.12%	3.16%	3.59%	2.38%	2.33%
SalsaNext	Range	3.27%	2.59%	2.58%	2.57%	2.52%	2.42%	5.37%	4.29%	4.31%	4.11%	3.35%	3.19%
FIDNet	Range	4.89%	3.35%	2.89%	2.61%	4.55%	4.33%	5.89%	4.04%	4.15%	3.82%	3.25%	3.14%
CENet	Range	4.44%	2.47%	2.53%	2.58%	2.70%	2.44%	5.95%	3.93%	3.79%	4.28%	3.31%	3.09%
RangeViT	Range	2.52%	2.50%	2.57%	2.56%	2.46%	2.38%	5.47%	3.16%	4.84%	8.80%	3.14%	3.07%
RangeFormer	Range	2.44%	2.40%	2.41%	2.44%	2.27%	2.15%	3.99%	3.67%	3.70%	3.69%	3.55%	3.30%
FRNet	Range	2.27%	2.24%	2.22%	2.28%	2.22%	2.17%	3.46%	3.53%	3.54%	3.49%	2.83%	2.75%
PolarNet	BEV	4.21%	2.47%	2.54%	2.59%	2.56%	2.45%	2.78%	3.54%	3.71%	3.70%	2.67%	2.59%
MinkUNet18	Voxel	2.45%	2.34%	2.34%	2.42%	2.29%	2.23%	3.04%	3.01%	3.08%	3.30%	2.69%	2.63%
MinkUNet34	Voxel	2.50%	2.38%	2.38%	2.53%	2.32%	2.24%	4.11%	3.59%	3.62%	3.63%	2.81%	2.73%
Cylinder3D	Voxel	3.19%	2.58%	2.62%	2.58%	2.39%	2.29%	5.49%	4.36%	4.48%	4.42%	3.40%	3.09%
SpUNet18	Voxel	2.58%	2.41%	2.46%	2.59%	2.36%	2.25%	3.77%	3.47%	3.44%	3.61%	3.37%	3.21%
SpUNet34	Voxel	2.60%	2.52%	2.47%	2.66%	2.41%	2.29%	4.41%	4.33%	4.34%	4.39%	4.20%	4.11%
RPVNet	Fusion	2.81%	2.70%	2.73%	2.79%	2.68%	2.60%	4.67%	4.12%	4.23%	4.26%	4.02%	3.75%
2DPASS	Fusion	2.74%	2.53%	2.51%	2.51%	2.62%	2.46%	2.32%	2.35%	2.45%	2.30%	2.73%	2.27%
SPVCNN18	Fusion	2.57%	2.44%	2.49%	2.54%	2.40%	2.31%	3.46%	2.90%	3.07%	3.41%	2.36%	2.32%
SPVCNN34	Fusion	2.61%	2.49%	2.54%	2.61%	2.37%	2.28%	3.61%	3.03%	3.07%	3.10%	2.99%	2.86%
CPGNet	Fusion	3.33%	3.11%	3.17%	3.15%	3.07%	2.98%	3.93%	3.81%	3.83%	3.78%	3.70%	3.59%
GFNet	Fusion	2.88%	2.71%	2.70%	2.73%	2.55%	2.41%	3.07%	3.01%	2.99%	3.05%	2.88%	2.73%
UniSeg	Fusion	2.76%	2.61%	2.63%	2.65%	2.45%	2.37%	3.93%	3.73%	3.78%	3.67%	3.51%	3.43%
KPConv	Point	3.37%	3.27%	3.34%	3.32%	3.28%	3.20%	4.97%	4.88%	4.90%	4.91%	4.78%	4.68%
PIDS1.25x	Point	3.46%	3.40%	3.43%	3.41%	3.37%	3.28%	4.77%	4.65%	4.66%	4.64%	4.57%	4.49%
PIDS2.0x	Point	3.53%	3.47%	3.49%	3.51%	3.34%	3.27%	4.91%	4.83%	4.72%	4.89%	4.66%	4.47%
PTv2	Point	2.42%	2.34%	2.46%	2.55%	2.48%	2.19%	4.95%	4.78%	4.71%	4.94%	4.69%	4.62%
WaffleIron	Point	4.01%	2.65%	3.06%	2.59%	2.54%	2.46%	3.91%	2.57%	2.86%	2.67%	2.58%	2.51%

 Other Datasets

Dataset	Type	Method	Modal	UnCal	TempS	LogiS	DiriS	MetaC	DeptS	mIoU

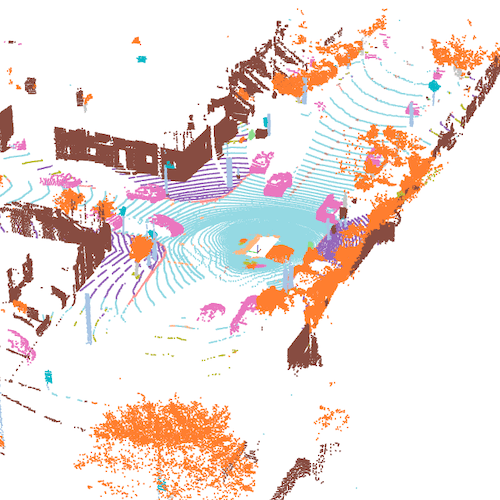

Waymo Open	High-Res	PolarNet	BEV	3.92%	1.93%	1.90%	1.91%	2.39%	1.84%	58.33%
		MinkUNet	Voxel	1.70%	1.70%	1.74%	1.76%	1.69%	1.59%	68.67%
		SPVCNN	Fusion	1.81%	1.79%	1.80%	1.88%	1.74%	1.69%	68.86%

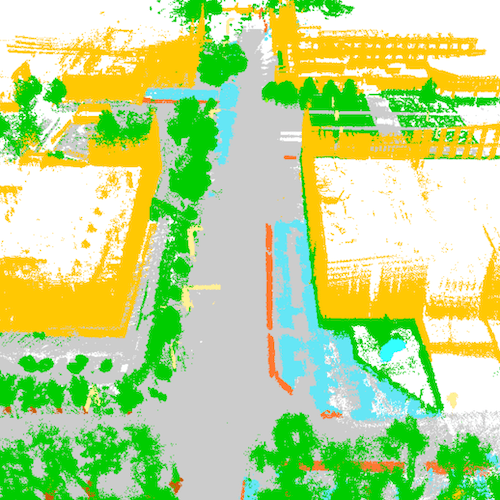

SemanticPOSS	Dynamic	PolarNet	BEV	4.24%	8.09%	7.81%	8.30%	5.35%	4.11%	52.11%
		MinkUNet	Voxel	7.22%	7.44%	7.36%	7.62%	5.66%	5.48%	56.32%
		SPVCNN	Fusion	8.80%	6.53%	6.91%	7.41%	4.61%	3.98%	53.51%

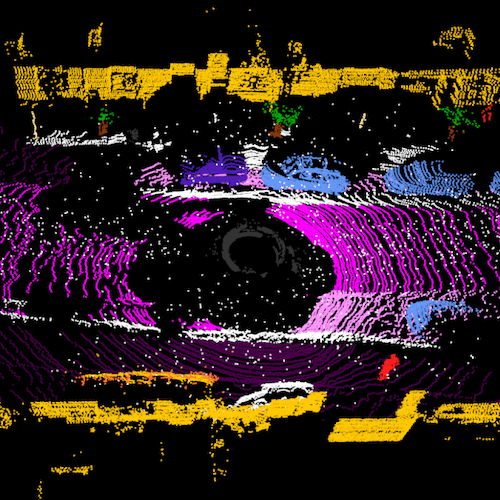

SemanticSTF	Weather	PolarNet	BEV	5.76%	4.94%	4.49%	4.53%	4.17%	4.12%	51.26%
		MinkUNet	Voxel	5.29%	5.21%	4.96%	5.10%	4.78%	4.72%	50.22%
		SPVCNN	Fusion	5.85%	5.53%	5.16%	5.05%	5.12%	4.97%	51.73%

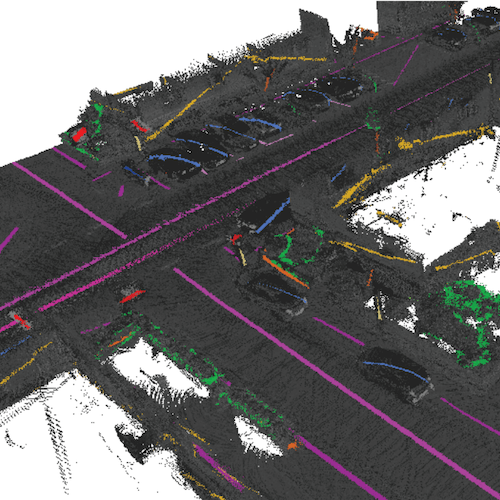

ScribbleKITTI	Scribble	PolarNet	BEV	4.65%	4.59%	4.56%	4.55%	3.25%	3.09%	55.22%
		MinkUNet	Voxel	7.97%	7.13%	7.29%	7.21%	5.93%	5.74%	59.87%
		SPVCNN	Fusion	7.04%	6.63%	6.93%	6.66%	5.34%	5.13%	60.22%

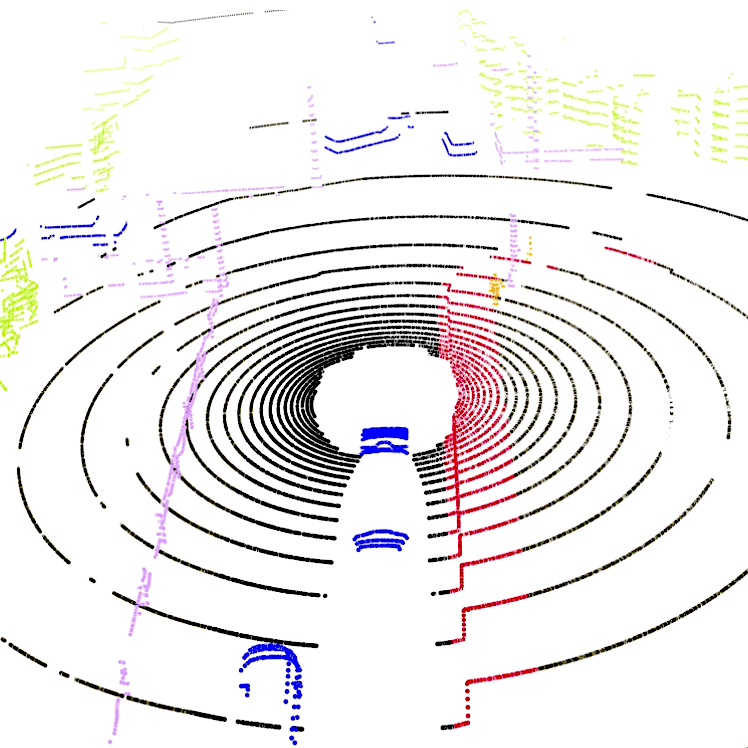

Synth4D	Synthetic	PolarNet	BEV	1.68%	0.93%	0.75%	0.72%	1.54%	0.69%	85.63%
		MinkUNet	Voxel	2.43%	2.72%	2.43%	2.05%	4.01%	2.39%	69.11%
		SPVCNN	Fusion	2.21%	2.35%	1.86%	1.70%	3.44%	1.67%	69.68%

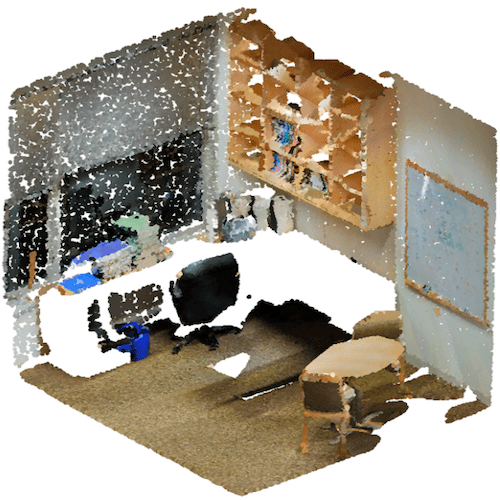

S3DIS	Indoor	PointNet++	Point	9.13%	8.36%	7.83%	8.20%	6.93%	6.79%	56.96%
		DGCNN	Point	6.00%	6.23%	6.35%	7.12%	5.47%	5.39%	54.50%
		PAConv	Point	8.38%	5.87%	6.03%	5.98%	4.67%	4.57%	66.60%

Domain-Shift 3D Uncertainty

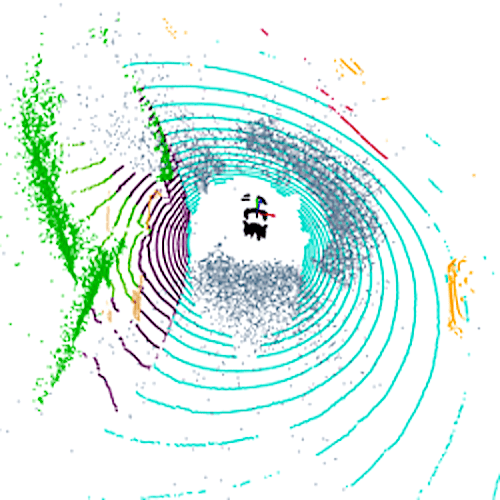

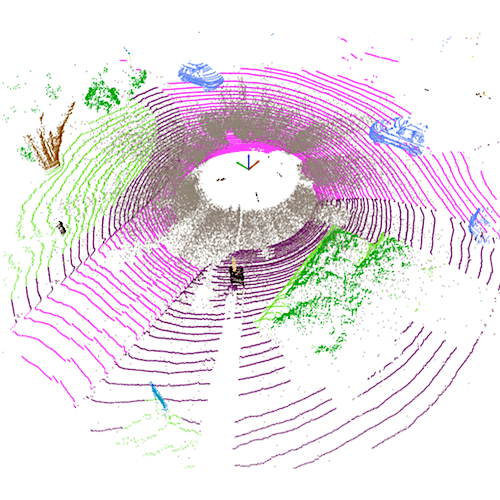

 nuScenes-C & SemanticKITTI-C

Type	nuScenes-C						SemanticKITTI-C
	UnCal	TempS	LogiS	DiriS	MetaC	DeptS	UnCal	TempS	LogiS	DiriS	MetaC	DeptS
Clean	2.45%	2.34%	2.34%	2.42%	2.29%	2.23%	3.04%	3.01%	3.08%	3.30%	2.69%	2.63%
Fog	5.52%	5.42%	5.49%	5.43%	4.77%	4.72%	12.66%	12.55%	12.67%	12.48%	11.08%	10.94%
Wet Ground	2.63%	2.54%	2.54%	2.64%	2.55%	2.52%	3.55%	3.46%	3.54%	3.72%	3.33%	3.28%
Snow	13.79%	13.32%	13.53%	13.59%	11.37%	11.31%	7.10%	6.96%	6.95%	7.26%	5.99%	5.63%
Motion Blur	9.54%	9.29%	9.37%	9.01%	8.32%	8.29%	11.31%	11.16%	11.24%	12.13%	9.00%	8.97%
Beam Missing	2.58%	2.48%	2.49%	2.57%	2.53%	2.47%	2.87%	2.83%	2.84%	2.98%	2.83%	2.79%
Crosstalk	13.64%	13.00%	12.97%	13.44%	9.98%	9.73%	4.93%	4.83%	4.86%	4.81%	3.54%	3.48%
Incomplete Echo	2.44%	2.33%	2.33%	2.42%	2.32%	2.21%	3.21%	3.19%	3.25%	3.48%	2.84%	2.19%
Cross Sensor	4.25%	4.15%	4.20%	4.28%	4.06%	3.20%	3.15%	3.13%	3.18%	3.43%	3.17%	2.96%
Average	6.78%	6.57%	6.62%	6.67%	5.74%	5.56%	6.10%	6.01%	6.07%	6.29%	5.22%	5.03%

Model Configurations

:memo: TODO List

• Initial release. 🚀
• Add 3D calibration benchmarks.
• Add 3D calibration algorithms.
• Add acknowledgments.
• Add citations.
• Add more 3D scene understanding models.

License

This work is under the Apache License Version 2.0, while some specific implementations in this codebase might be with other licenses. Kindly refer to LICENSE.md for a more careful check, if you are using our code for commercial matters.

Acknowledgements

This work is developed based on the MMDetection3D codebase.

MMDetection3D is an open-source toolbox based on PyTorch, towards the next-generation platform for general 3D perception. It is a part of the OpenMMLab project developed by MMLab.

Part of the benchmarked models are from the OpenPCSeg and Pointcept codebases.

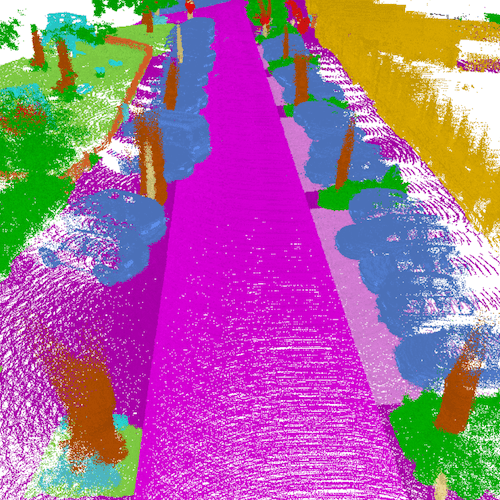

We acknowledge the use of the following public resources, during the course of this work: ¹nuScenes, ²SemanticKITTI, ³Waymo Open, ⁴SemanticPOSS, ⁵Synth4D, ⁶SemanticSTF, ⁷ScribbleKITTI, ⁸S3DIS, ⁹Robo3D, ¹⁰lidar-bonnetal, ¹¹MinkowskiEngine, ¹²SPConv, ¹³TorchSparse, ¹⁴WaffleIron, ¹⁵PolarMix, ¹⁶LaserMix, ¹⁷FRNet, and ¹⁸Open3D-ML.

We thank the exceptional contributions from the above open-source repositories! :heart:
