Flowchart Fun

Flowchart Fun is a webapp for quickly generating flowcharts from text. With a fast and intuitive workflow, you can visualize your ideas and plans in minutes.

📝 Example

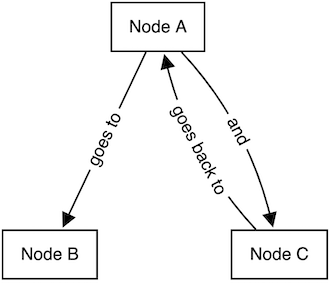

For an example of how Flowchart Fun works, take the following input:

Node A
  goes to: Node B
  and: Node C
    goes back to: (Node A)

You can generate this flowchart with just a few clicks:

🛠️ Development

Flowchart Fun is built with React and cytoscape.js.

💡 Prerequisites

If you plan on developing the premium features, you will need accounts on Vercel, Supabase, Stripe and Sendgrid.

🚀 Getting Started

1. Clone the repository
2. Copy .env.example to .env and add env variables
3. pnpm install and vercel dev

Note: shared and formulaic must be built before the app will run — run pnpm -F shared build && pnpm -F formulaic build after installing.

🔒 To run with login features:

vercel dev

Note: You will need to create a Vercel account and install the CLI to run the app locally. To deploy the app, you will need a Pro Vercel account because it uses more than 12 serverless functions.

⚙️ To run without login features:

pnpm dev

🌐 Translations

We welcome anyone interested in helping us add translations to Flowchart Fun. Translations can be added to the .po files located in /app/src/locales/[language]/messages.po. After adding translations, please run pnpm -F app compile. We would appreciate your help in making Flowchart Fun accessible in even more languages!

💬 Interested in Adding a Language?

Let us know about your plans in the Discord, and we'd be glad to lend a helping hand.

🧪 Tests

To ensure quality and accuracy, Flowchart Fun employs Jest for unit testing and Playwright for e2e testing.

Unit Tests

pnpm -F app test

E2E Tests

pnpm -F app e2e

🔍 Analyzing the Bundle

pnpm -F app build && pnpm -F app analyze

🤝 Contributing

If you're interested in contributing, we'd love to have your help with the underlying syntax parser - Graph Selector. Our community welcomes all contributions, big or small!

To get started, please fork the dev branch and start developing and testing your feature. If you have any questions, don't hesitate to join the discussion on Discord. We're always happy to help and answer any questions you may have.
