Custom Wrap Images for Tesla Vehicles

This repository provides templates and examples for creating custom wrap designs for your Tesla's 3D vehicle visualization. Personalize your car's appearance in the Paint Shop with your own unique designs.

How to Use Custom Wraps

1. Download the template for your specific vehicle model (see links below)
2. Edit the template with your custom design (fill in the white areas)
3. Save your design as a PNG file (512x512 to 1024x1024 pixels, max 1 MB)
4. Transfer your wraps to your vehicle using the mobile app or a USB drive:
   • Mobile app (requires v4.59.0 or later): Creations → Wrap → Upload
   • USB drive: place your wraps in a folder called Wraps
5. Apply in your Tesla: Toybox → Paint Shop → Wraps tab

Select Your Vehicle

Choose your vehicle to download the template and view example wraps:

Requirements & Setup

Image Requirements

• Resolution: 512x512 to 1024x1024 pixels (use template size for best results)
• File Size: Images must be no larger than 1 MB.
• File Name: Use alphanumeric characters, underscores, dashes, and spaces only (max 30 characters).
• File Format: Images must be in PNG format.
• File Count: Up to 10 from the mobile app and up to 10 from a USB drive

Applying Wraps in Your Vehicle

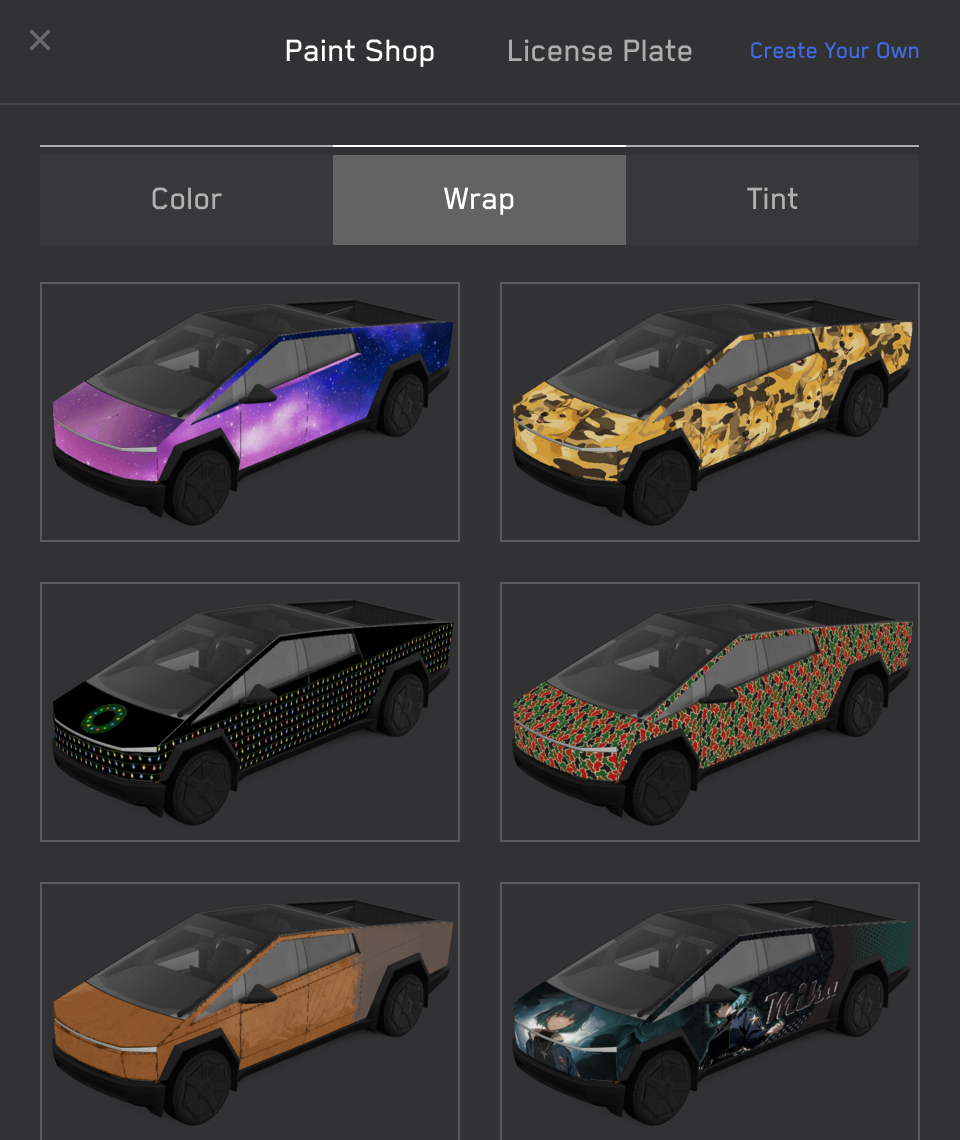

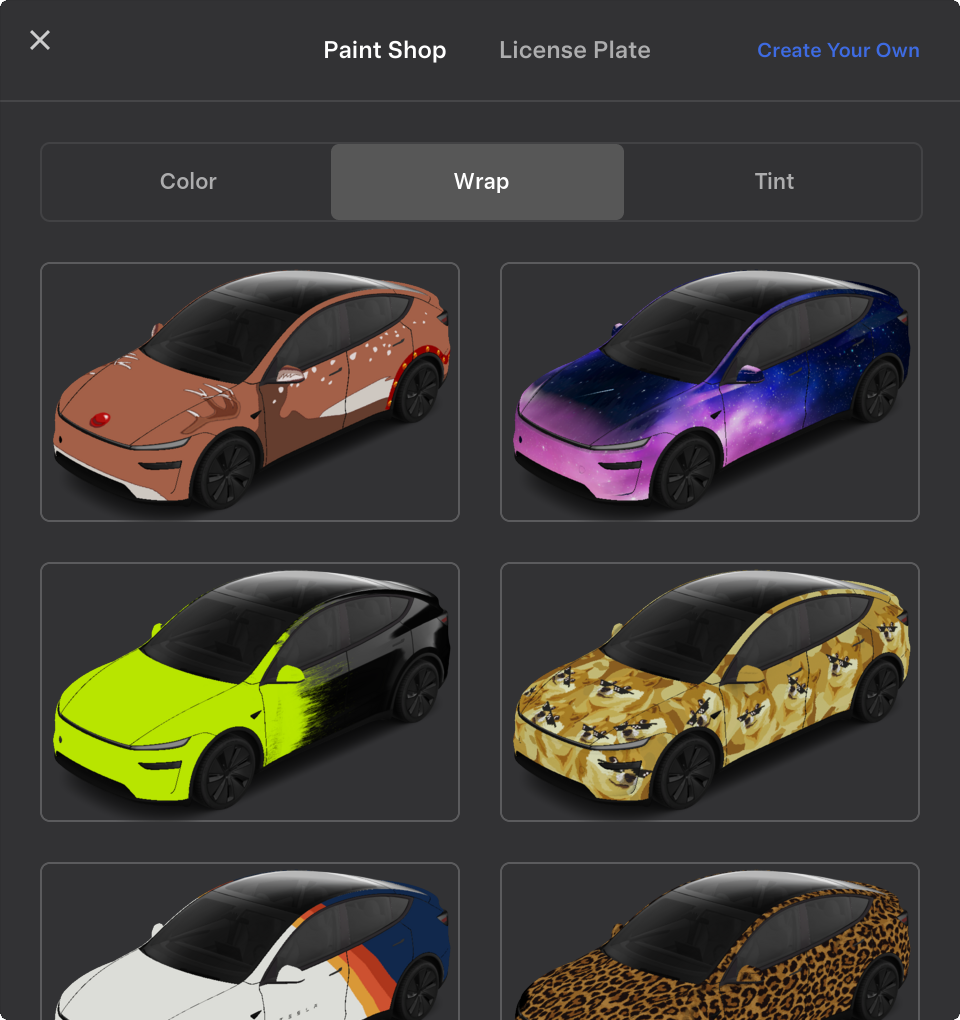

Once transferred, your wraps will appear in Toybox → Paint Shop → Wraps tab:

USB Drive Setup

1. Format the USB drive as one of the following:
   • exFAT
   • FAT 32 (for Windows)
   • MS-DOS FAT (for Mac)
   • ext3
   • ext4
   • Note: NTFS is not currently supported
2. Create a folder called Wraps at the root level of the drive
3. Place your PNG files inside the Wraps folder
4. Ensure the drive doesn't contain map or firmware updates

USB Drive Troubleshooting

If you encounter any issues loading wraps from a USB drive, please check the following:

• Ensure that the USB drive is formatted correctly and does not contain any map update or firmware update files.
• Verify that the wrap images meet the requirements listed above.
