Why

Drafting is mostly choosing. Ordinary editors make you delete the version you are not sure about; Terraphim Editor keeps every alternative attached to the text it belongs to, inside the Markdown file itself, so you can decide later. Nothing is rewritten without you asking, and every change is one undo step.

Features

Your alternatives, ghosts and overflow live in a small trailing block at the end of the Markdown file:

Every team runs on a handful of trade-offs.

```terraphim-alternatives
{"version":1,"spans":[{"id":"s1","kind":"word","anchor":{"start":32,"end":42,"text":"trade-offs"},
  "active":0,"alts":[{"text":"trade-offs","source":"original"},{"text":"choices","source":"human"}]}]}
```

Any Markdown viewer still shows the text; Terraphim Editor shows the alternatives.

Run it locally

You need Rust, the WebAssembly target, Trunk, and two small Node tools that build the embeddable bundle.

1. Toolchain

curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh   # Rust (skip if installed)
rustup target add wasm32-unknown-unknown
cargo install trunk wasm-pack
npm install -g terser clean-css-cli                               # used by Trunk's build hook

2. Access to the Terraphim crate registry

Some dependencies (terraphim_automata, terraphim_types, terraphim_lsp_core and the editor's own crates) come from the private Terraphim registry on git.terraphim.cloud. The repository already declares it in .cargo/config.toml; you only need a Gitea token with package read access:

export CARGO_REGISTRIES_TERRAPHIM_TOKEN="Bearer <your-gitea-token>"

3. Clone and serve

git clone https://github.com/terraphim/terraphim-editor.git
cd terraphim-editor
trunk serve

Open http://127.0.0.1:8080. Trunk compiles the Rust to WebAssembly, serves the page and rebuilds on every change. The first build takes a few minutes; later ones take seconds.

4. Check everything works (optional)

cargo test --workspace          # Rust tests
scripts/browser-tests.sh        # browser tests in headless Chrome (needs Chrome)

Try it in five minutes

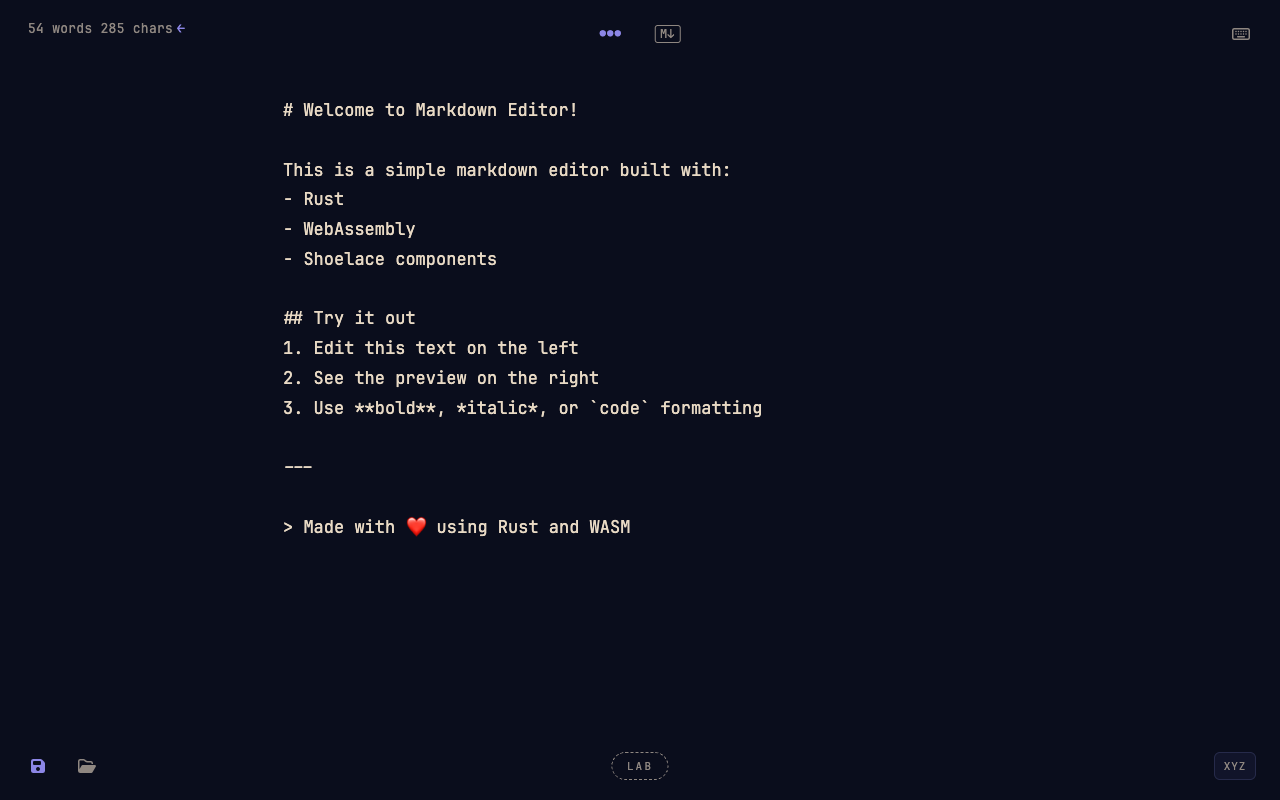

1. Switch to Write_On. Click the word counter at the top left.

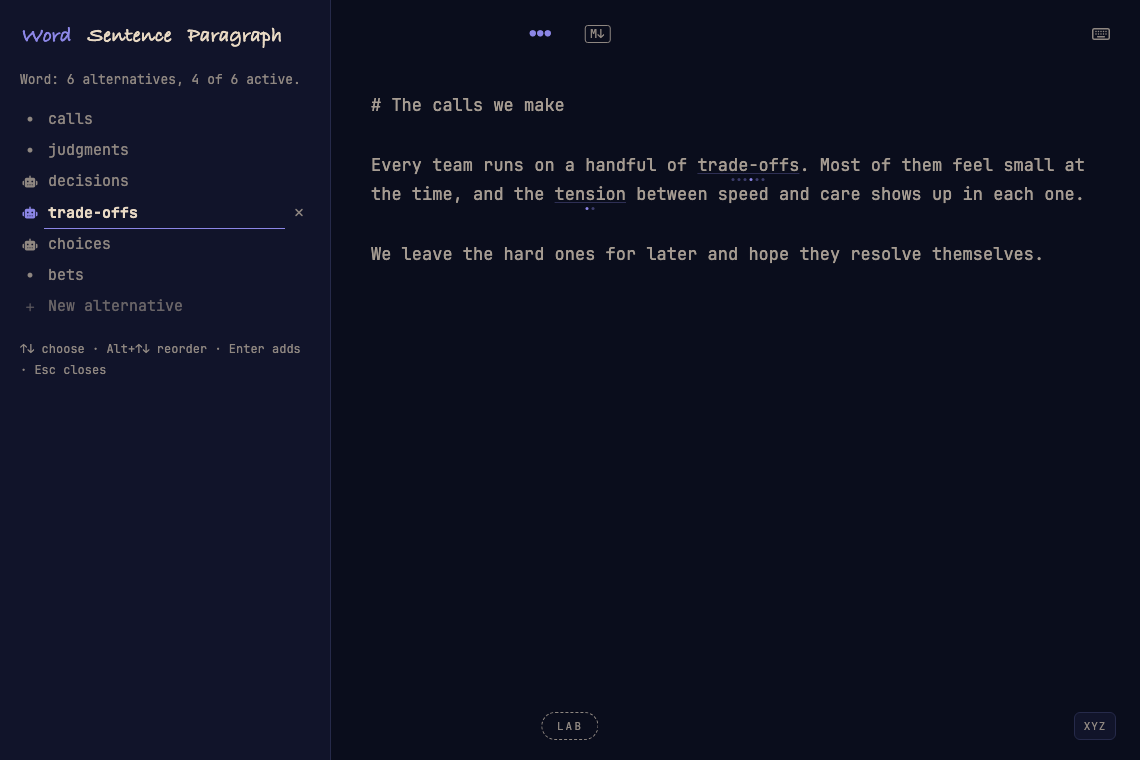

2. Add alternatives. Select a word, press Ctrl+Shift+A, type another version in the panel and press Enter. Dots appear under the word.
3. Cycle. Close the panel (Escape), hover the word and press Up or Down.

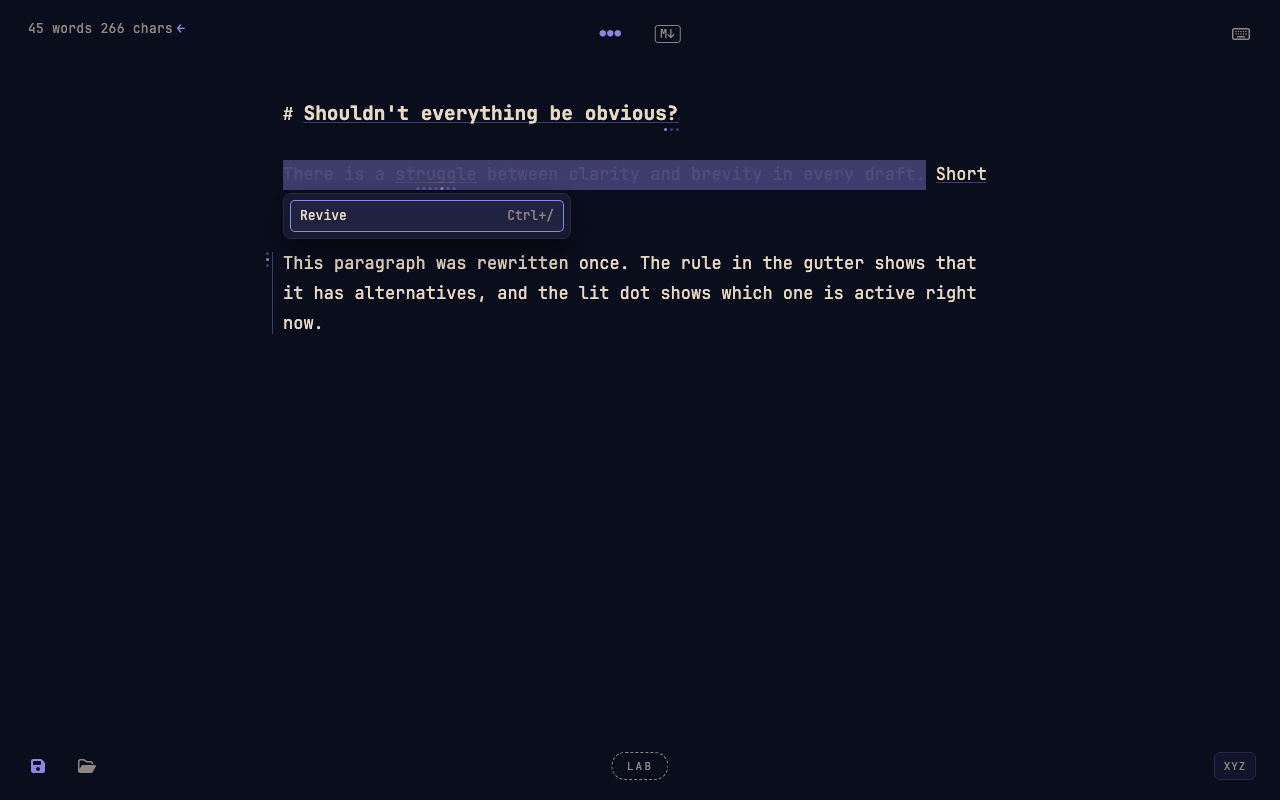

4. Ghost a sentence. Select it and press Ctrl+/. Press it again with the caret inside to revive it.

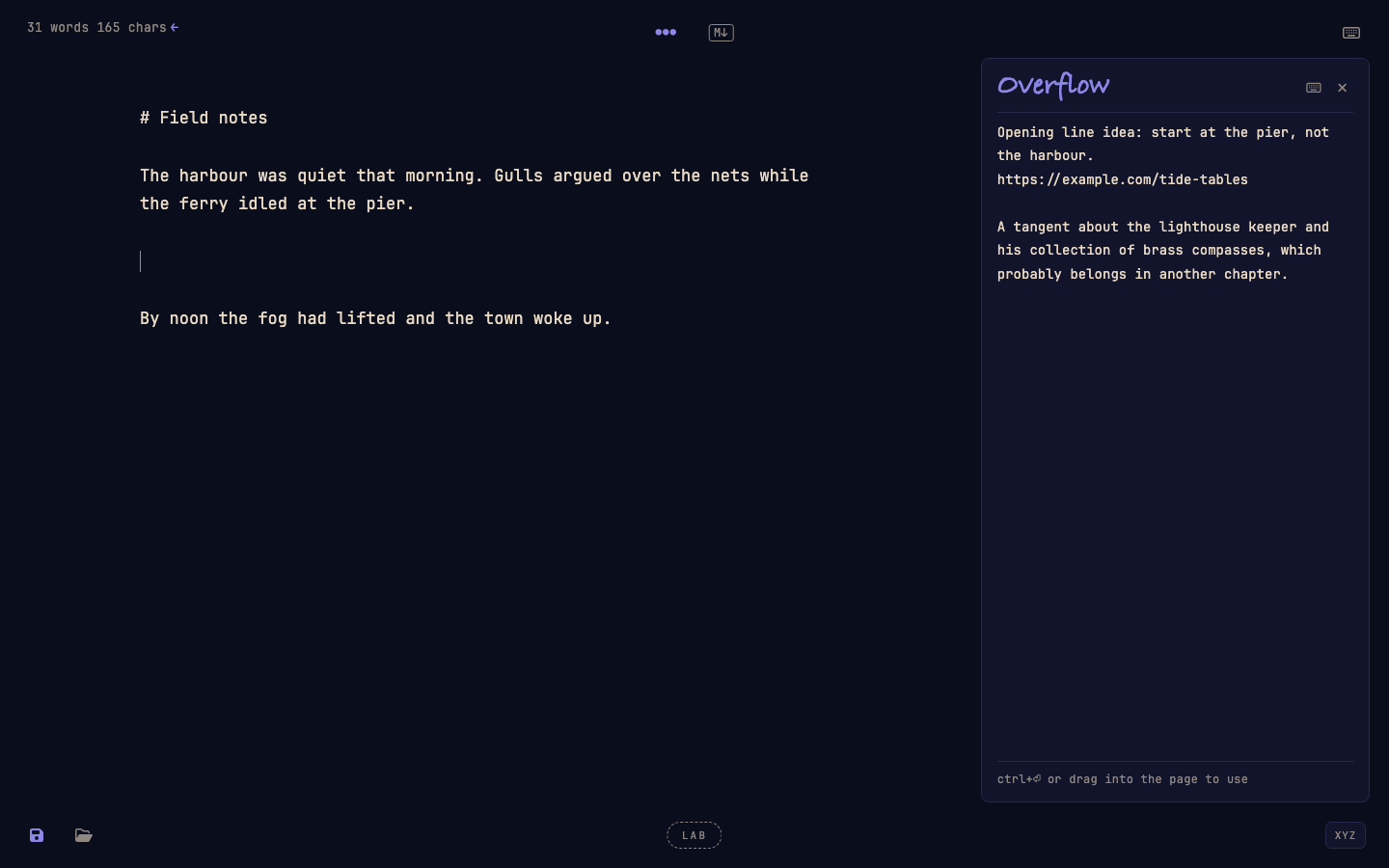

5. Stash a tangent. Select a paragraph and press Ctrl+Shift+X; open XYZ at the bottom right to see it.

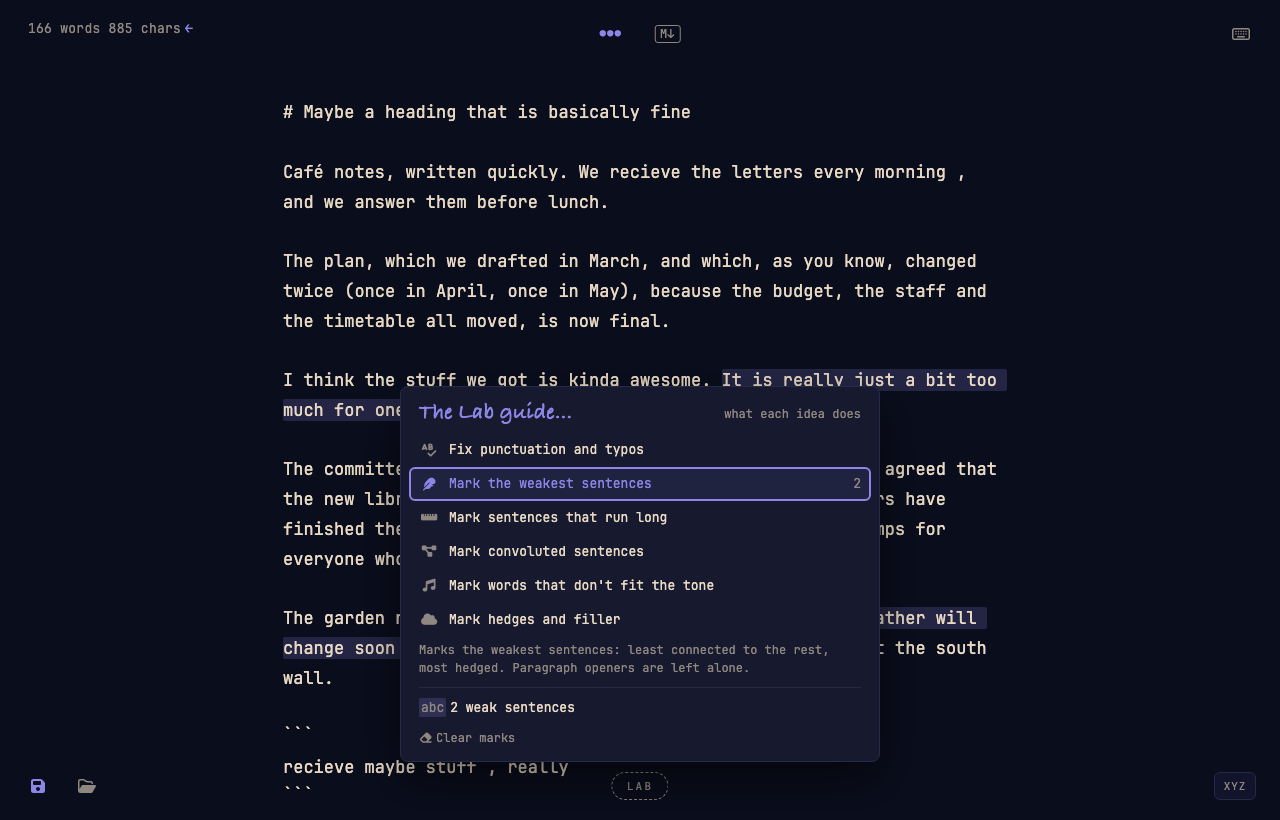

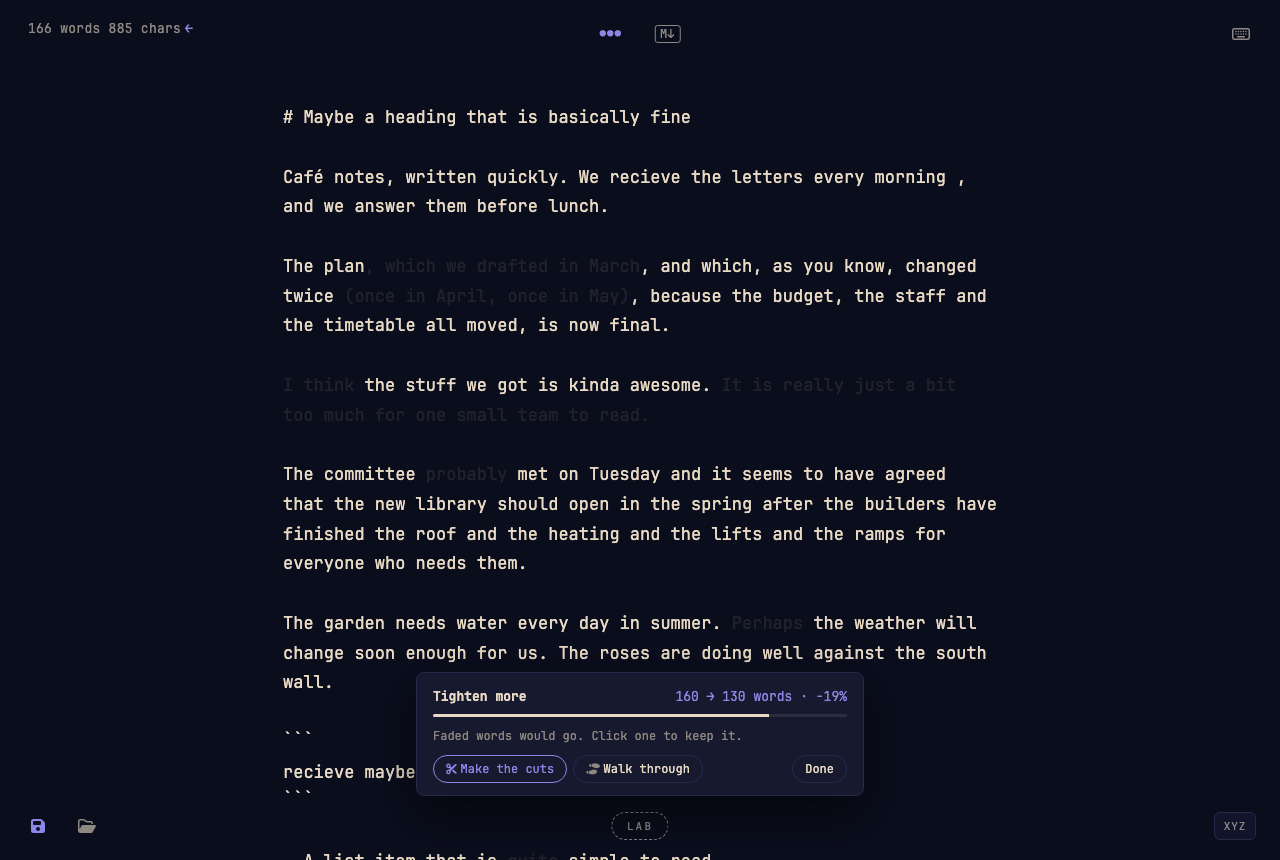

6. Ask the Lab. Click LAB, choose "Mark hedges and filler", then try Tighten more and Make the cuts. Ctrl+Z undoes the whole trim.

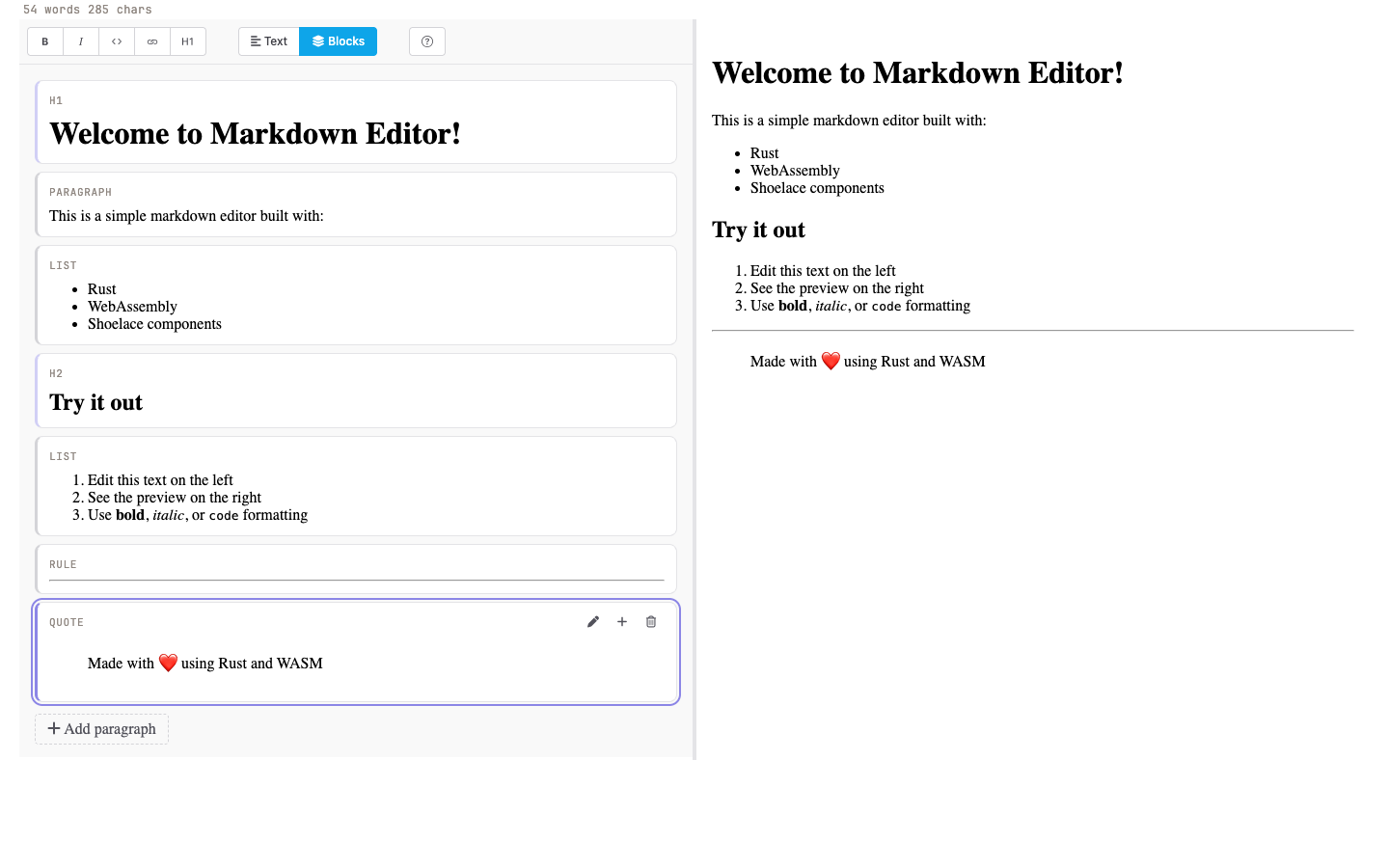

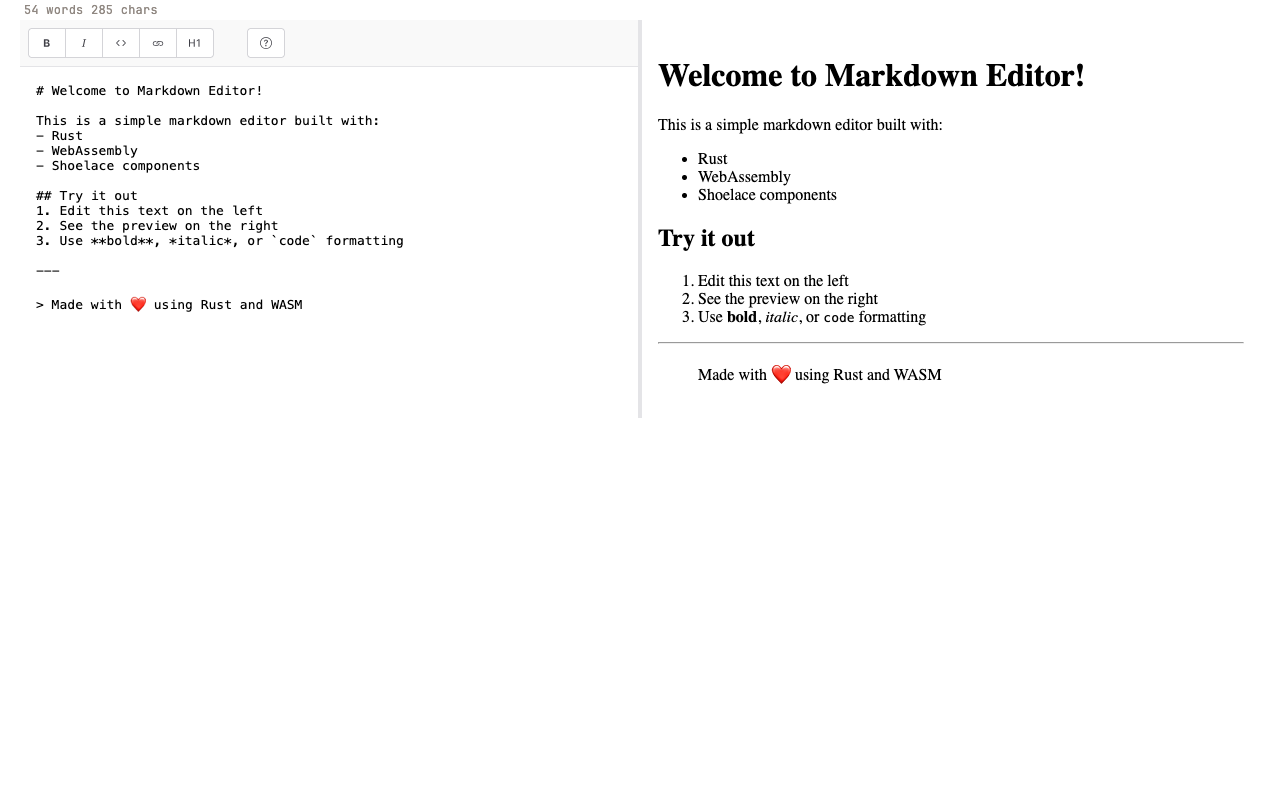

7. Rearrange. In plain mode press Ctrl+Shift+L for the toolbar, switch to Blocks and move a paragraph with Alt+Down.

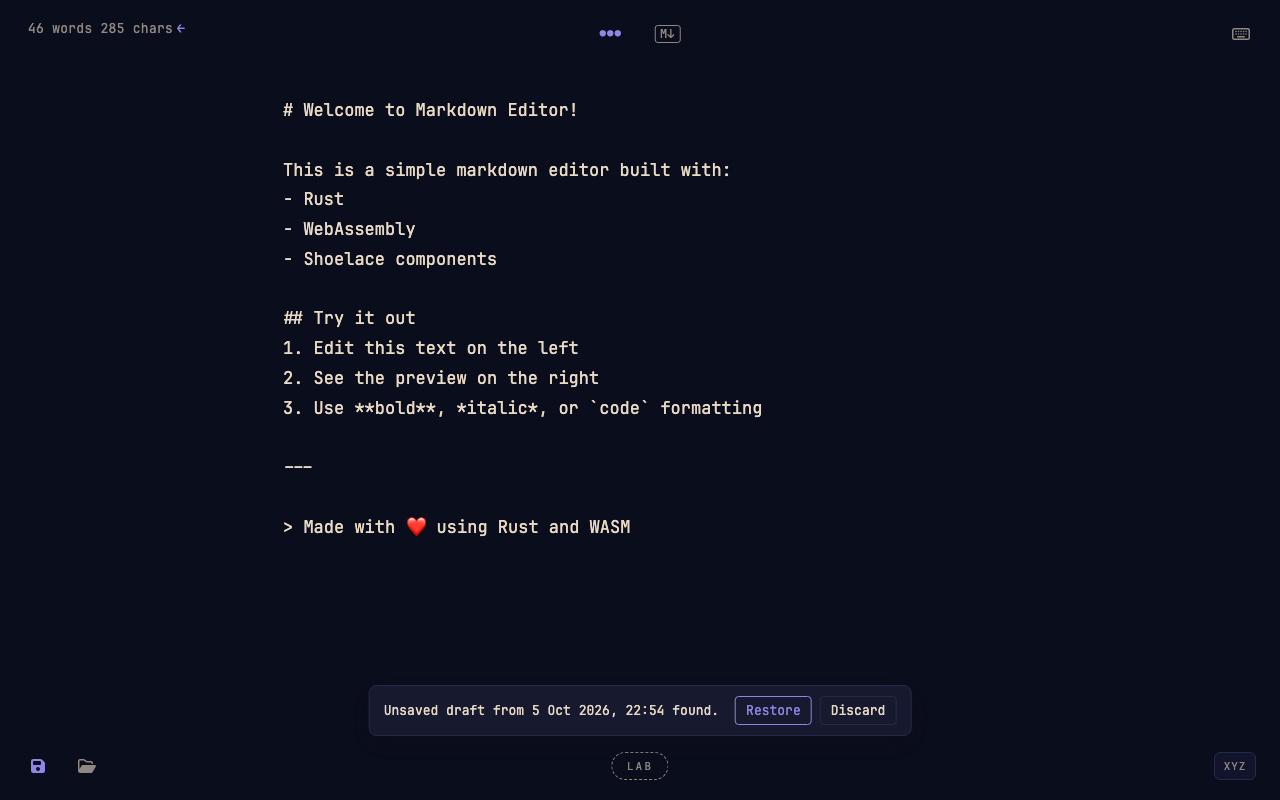

8. Save. Press Ctrl+S (or click the floppy). In Chrome and Edge the first save asks where to put the .md file and later saves write to it; in Firefox and Safari it downloads. Opening it again (Ctrl+O, the folder icon, or dropping the file on the editor) restores every alternative, ghost and stash, and unsaved work survives a reload as a draft the editor offers to restore.

Keyboard shortcuts

Formatting and selection shortcuts use Ctrl on every platform (not Cmd); undo, redo, save, open and Ctrl+Enter also accept Cmd. The keyboard glyph in Write_On mode shows the same reference.

Writing

Keys	Action
Ctrl+B / Ctrl+I	Bold / italic
Ctrl+K / Ctrl+L	Inline code / link
Ctrl+H	Heading
/	Command palette
Ctrl+Shift+L	Show or hide the toolbar and preview (plain mode)
Ctrl+Z / Ctrl+Y (or Cmd)	Undo / redo
Ctrl+S / Ctrl+O (or Cmd)	Save / open a file (replaces the browser's own)

Selection (Write_On)

Keys	Action
Right-click, Menu key or Shift+F10	Selection menu
Ctrl+Shift+A	Alternatives for selection

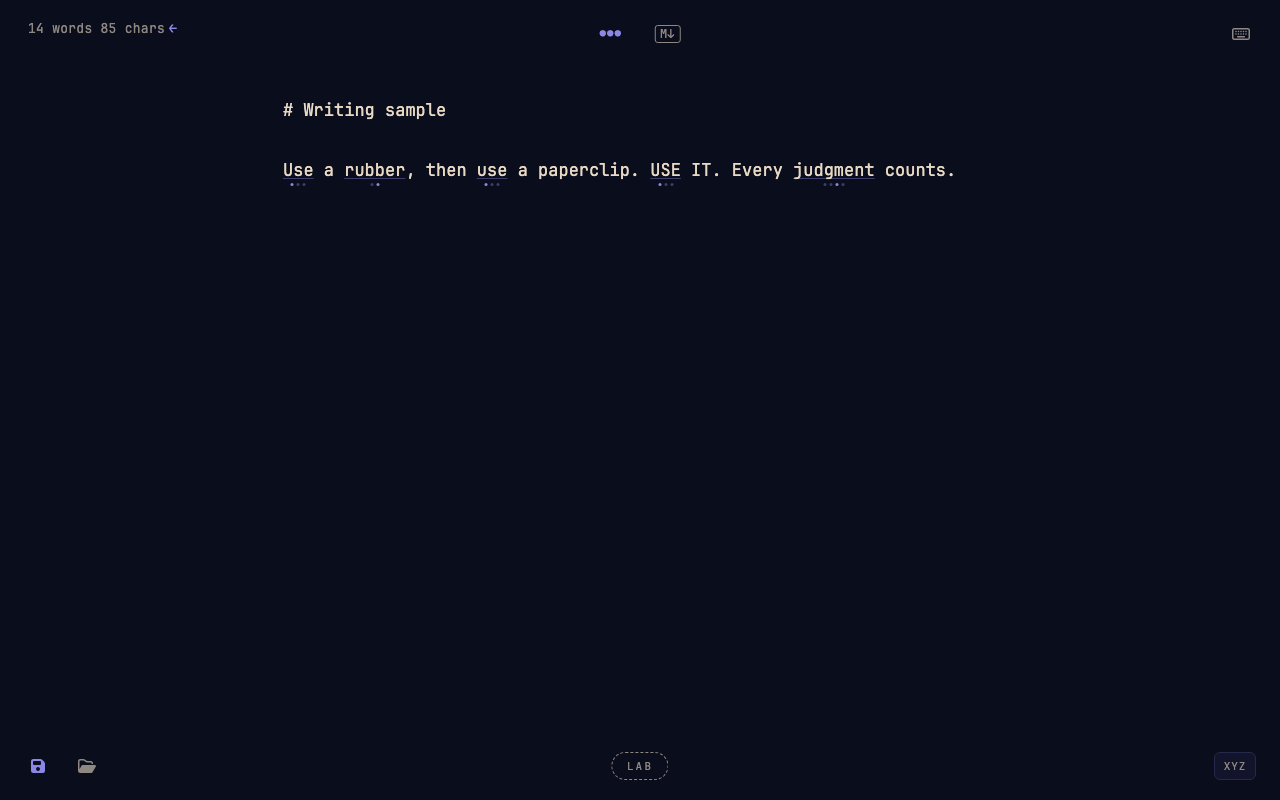

Ctrl+Shift+G	AI alternatives for selection (knowledge-graph synonyms)
Ctrl+/	Ghost it / Revive
Ctrl+Shift+X	Stash this in Overflow

Alternatives

Keys	Action
Hover a span, Up / Down	Cycle in place (wraps round)
Alt+Up / Alt+Down, caret in a span	Cycle without the mouse
Click a dot	Jump to that alternative
Panel: Up / Down	Make a line active
Panel: Alt+Up / Alt+Down	Reorder
Panel: Enter on the last line	Add an alternative
Escape	Close the panel

Overflow, Lab and trim

Keys	Action
XYZ (bottom right)	Open or close Overflow
Ctrl+Enter in Overflow	Insert the selection (or current line) at the caret
LAB (bottom centre)	Open the Lab; Up / Down, Home / End move between actions
Walk through: Left / Right, K, Escape	Previous / next cut, keep it, stop

Blocks view

Keys	Action
Up / Down, Home / End	Move between cards
Enter or F2	Edit the block
Shift+Enter	Add a paragraph below
Delete	Delete the block
Alt+Up / Alt+Down	Move the block
Ctrl+Enter / Escape (editing)	Commit / close (typed text is kept in the drafts notice)

Embed it in a page

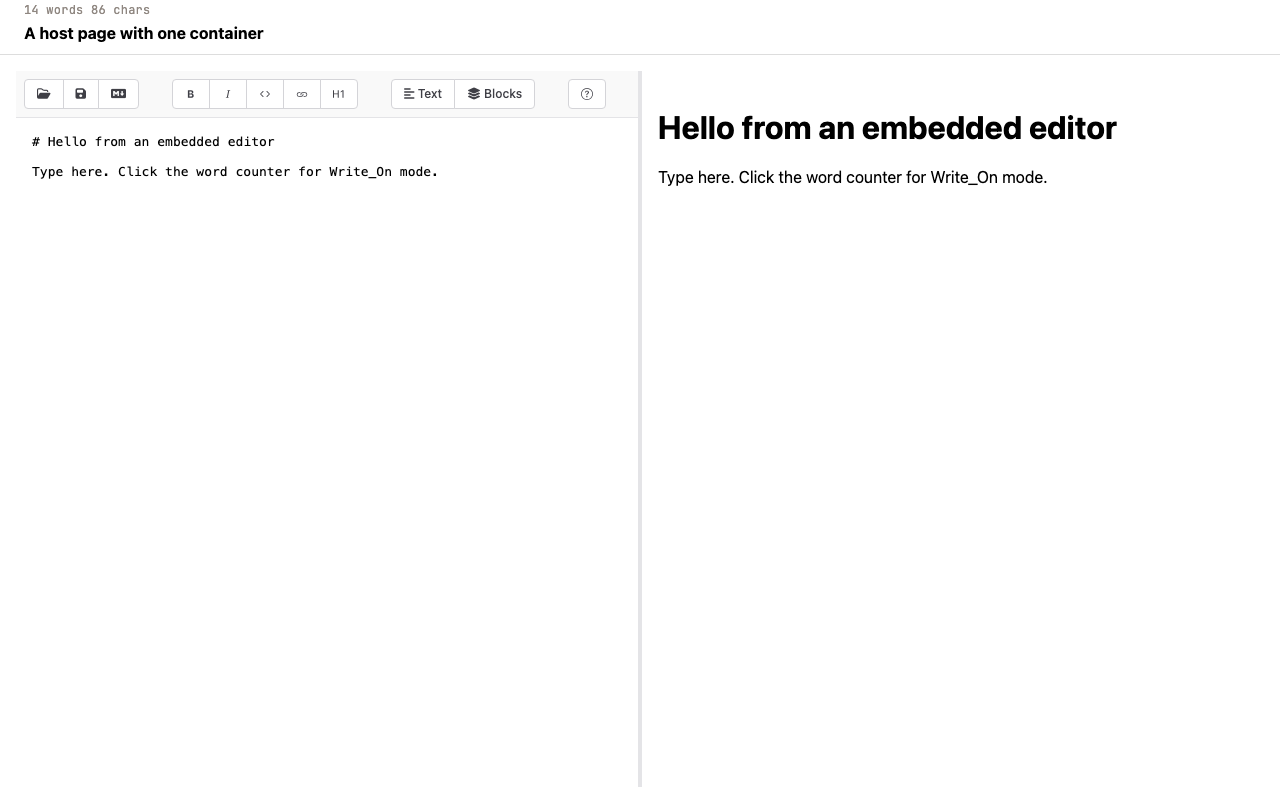

trunk build --release writes an embeddable bundle next to the standalone page in target/trunk-dist: terraphim-editor.min.js, terraphim-editor.min.css, the WebAssembly module (terraphim_editor.js and terraphim_editor_bg.wasm) and a working example.html. Serve those files from one directory and a page with nothing but a container gets the whole editor, Write_On chrome, alternatives, Lab, Blocks, Overflow and save/open included:

<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.5.2/css/all.min.css">
<link rel="stylesheet" href="terraphim-editor.min.css">
<div id="editor" style="height: 80vh"></div>
<script src="terraphim-editor.min.js"></script>
<script type="module">
  const editor = await TeraphimEditor.create(document.getElementById('editor'), {
    value: '# Hello',
    // wasmUrl / glueUrl: only if the module is not next to the script
    // standalone: true: Ctrl+S / Ctrl+O anywhere on the page
  });
  editor.setValue('# Hello again');
  editor.on('te:saved', (event) => console.log(event.detail.text));
</script>

The editor object has getValue(), setValue(), openDocument(text, name), saveDocument() (Markdown plus the annotation block), exportDocument() (clean Markdown), isWriteOn() / setWriteOn(), on() / off() for its te:* events, persistence and destroy(). Shoelace is loaded from its CDN; link FontAwesome yourself, as above. One editor per page: the document model lives in the WebAssembly module as a single instance, so a second create() is refused until the first is destroyed. Write_On themes the editor's own container and never restyles the host page; its corner controls sit in the viewport corners, so give the editor most of the page. Design notes: docs/design/embedding.md.

The standalone page (index.html) creates its editor on load and exposes it as window.terraphimEditor; with the embed, use the object create() returns. Either way a host script can take over storage:

<script>
  document.addEventListener('te:save', (event) => {
    event.preventDefault(); // store documents yourself instead of a file
    const text = window.terraphimEditor.saveDocument(); // Markdown plus annotation block
    fetch('/documents/draft.md', { method: 'PUT', body: text })
      .then(() => window.terraphimEditor.persistence.markClean());
  });

  document.addEventListener('te:open', (event) => {
    event.preventDefault();
    fetch('/documents/draft.md')
      .then((response) => response.text())
      .then((text) => window.terraphimEditor.openDocument(text, 'draft.md'));
  });
</script>

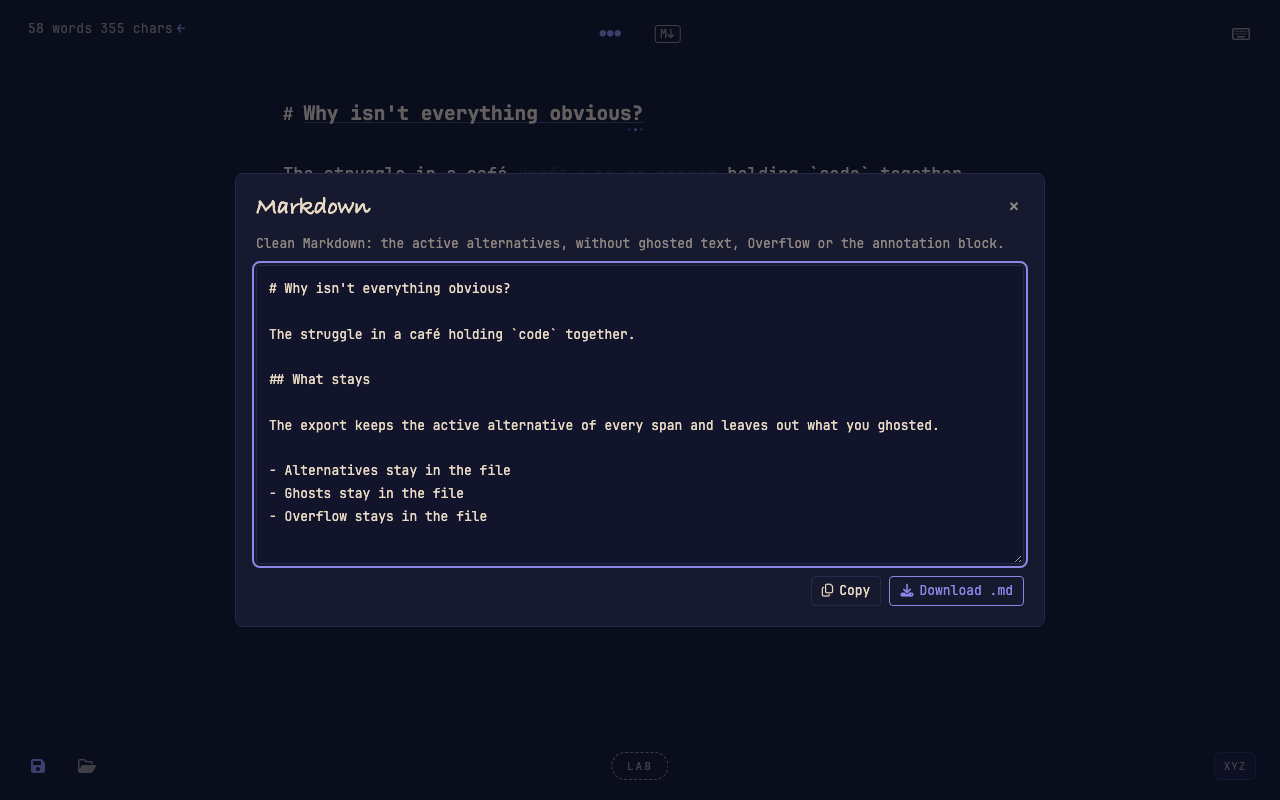

te:save, te:open and te:markdown (the M↓ control) bubble to document and are cancelable; without preventDefault() the editor saves to a file or download, opens a file, and shows the export dialog. te:saved carries the serialised document (detail.text) whenever the editor saves; te:written, te:opened, te:dirty-change, te:mode-change and te:blocks-drafts report what happened. exportDocument() returns the clean Markdown. Set fileSystemAccess: false in the editor config to always download instead of using the browser's file picker. In an embedding page Ctrl+S and Ctrl+O act only while focus is in the editor, so the host's own shortcuts keep working; standalone: true (what the standalone page sets) makes them act anywhere. Design notes: docs/design/persistence.md.

How it is built

flowchart LR
  subgraph Browser
    UI["public/js<br/>surface, chrome, panels,<br/>Lab, trim, Blocks"]
  end
  subgraph WebAssembly
    Bridge["src/<br/>document, lab, kg bridges"]
    Alt["terraphim_alternatives<br/>spans, ghosts, overflow,<br/>annotation block"]
    Lab["terraphim_lab<br/>marks and trim"]
    Core["terraphim_lsp_core<br/>KG matching, synonyms"]
  end
  UI <--> Bridge
  Bridge --> Alt
  Bridge --> Lab
  Bridge --> Core
  Core --> Alt
  Lab --> Alt

The Rust model is the source of truth: every edit goes to it first, and the surface follows, so undo and redo restore text and annotations together.

Develop and test

Browser tests drive the real DOM and the real WebAssembly bindings; there are no mocks. Development builds write to target/trunk-dist; dist/ changes only through scripts/release-dist.sh.

Contributing

Work is tracked in Gitea issues at git.terraphim.cloud. Create a branch per issue (task/<number>-<short-title>), keep each change one undo step for the writer, and open a pull request against main.

Licence

MIT. See LICENSE.
