pitwall

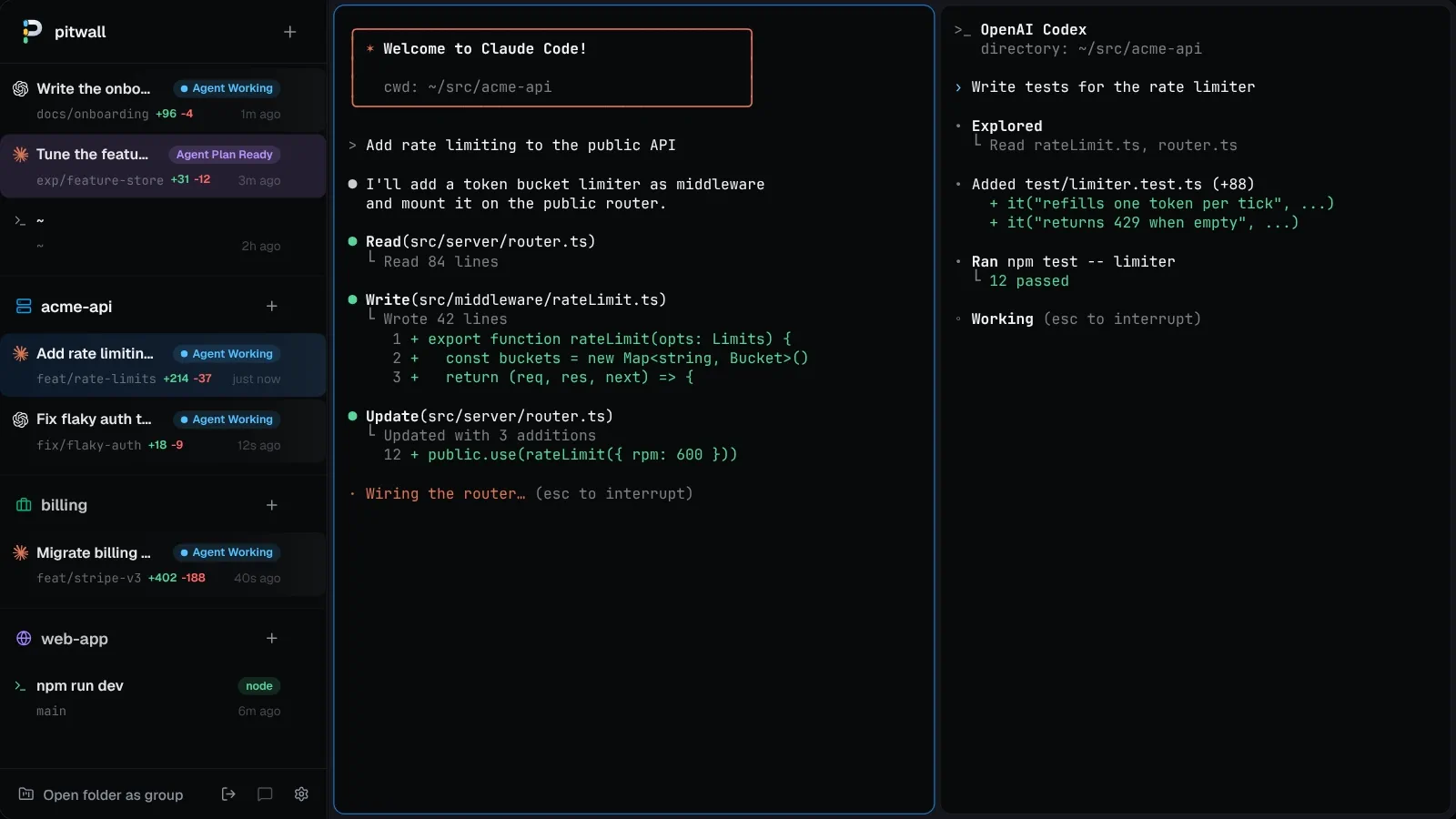

pitwall is a terminal multiplexer for running coding agents side by side. It opens straight into a shell like tmux, but it is a native window: a sidebar lists every tab and what it is doing right now, whether that is a command running in a terminal or a Claude Code or Codex agent working, waiting for your answer, asking for approval, done, or failed. Terminals are drawn with real fonts and pixels, not character cells.

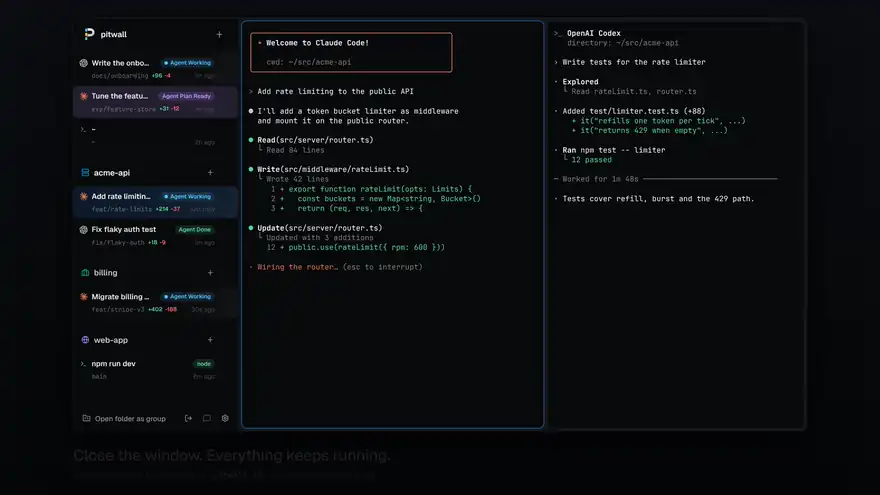

A background daemon owns every terminal. Closing the window leaves tabs running, and after a reboot they come back in the same folders with agents resumed where they left off.

pitwall is in alpha. It is used every day on Linux, but expect rough edges, and config or saved state may change between releases. It is developed on Linux (Hyprland) and works on any Wayland or X11 desktop. macOS and Windows builds are new; see the notes below. Releases are tagged v0.1.0-alpha.N.

Install

On Linux or macOS:

curl -fsSL https://raw.githubusercontent.com/quanticstudios/pitwall/main/scripts/get.sh | sh

On Windows, in PowerShell:

irm https://raw.githubusercontent.com/quanticstudios/pitwall/main/scripts/get.ps1 | iex

The script downloads the latest release for your system, checks it against the release's checksums.txt, and installs pitwall in ~/.local/bin. On Windows it installs pitwall.exe in %LOCALAPPDATA%\pitwall\bin and adds that folder to your user PATH. To pin a release, set PITWALL_VERSION=v0.1.0-alpha.1; to install somewhere else, set PITWALL_INSTALL_DIR. In PowerShell, set them first with $env:PITWALL_VERSION = 'v0.1.0-alpha.1'.

The macOS and Windows builds compile and pass the platform-independent tests in CI, but nobody has used them yet. Expect rough edges, and please report what breaks.

Known gaps on macOS:

• Release binaries are not signed. get.sh clears the quarantine flag; for an archive you downloaded yourself, run xattr -d com.apple.quarantine pitwall.
• There is no app bundle or Dock icon yet. Start pitwall from a terminal.
• Notifications come through osascript, so macOS shows them under Script Editor.

Known gaps on Windows:

• Agent status comes from hooks only. Windows has no foreground process group to read, so an agent started without hooks, or a command running in a shell, shows nothing in the sidebar.
• A tab's folder does not follow cd. It stays the folder the tab opened in.
• There is no Start menu entry. Run pitwall from a terminal; started from Explorer, a console window flashes before the window opens.
• Claude Code runs hook commands through Git Bash. Other shells get a path with forward slashes, quoted only when it contains spaces.
• When an upgrade replaces a running daemon, the old daemon is stopped without a final save. It saves within moments of every change, so little is lost.

The Linux release archive holds only the binary. For a desktop entry and icon, build from source as below.

Build from source

You need Git, a C compiler, pkg-config, and mise. Gio, the UI toolkit, needs the development headers for EGL, Wayland, X11, xkbcommon, Xcursor and Xfixes (egl, wayland-egl, wayland-client, wayland-cursor, x11, x11-xcb, xkbcommon, xkbcommon-x11, xcursor, xfixes in pkg-config).

git clone https://github.com/quanticstudios/pitwall.git
cd pitwall
mise install go
./scripts/install.sh

The installer builds ~/.local/bin/pitwall and adds a desktop entry and icon under ~/.local/share, so pitwall shows up in your app launcher. Set PREFIX to install elsewhere. It never edits Claude Code or Codex configuration.

Check the install:

pitwall --version

Quick start

pitwall hooks install --dry-run   # see what would change
pitwall hooks install             # let Claude Code and Codex report their state
pitwall                           # open the window

The window opens on a shell in the folder you launched it from. Run claude, codex, a dev server, anything. The tab's row in the sidebar shows what is happening: the name of a running command, or the agent's state.

Open more tabs with + in the sidebar header. Each tab can be split into panes. Typing exit closes a pane; an empty tab closes, and the window closes with your last tab. Tabs you detached keep running in the background.

Concepts

• Tab: one working context, a set of split panes started in a folder. Its title follows the work: the agent's topic or first prompt, the running command, or the folder the shell is in now (~ for home). Naming a tab replaces the title. The command line also takes its number in pitwall ls.
• Pane: one terminal.
• Group: tabs you put together after the fact, for example all the tabs working on one repo. Tabs start ungrouped.
• Daemon: the background process that owns the terminals. The window and the pitwall commands talk to it.

Everyday use

Watching agents

Each sidebar row shows a tab's state:

A tab running Claude or Codex always shows it, idle or busy: the agent's logo replaces the row icon. The logo goes when the agent exits back to the shell.

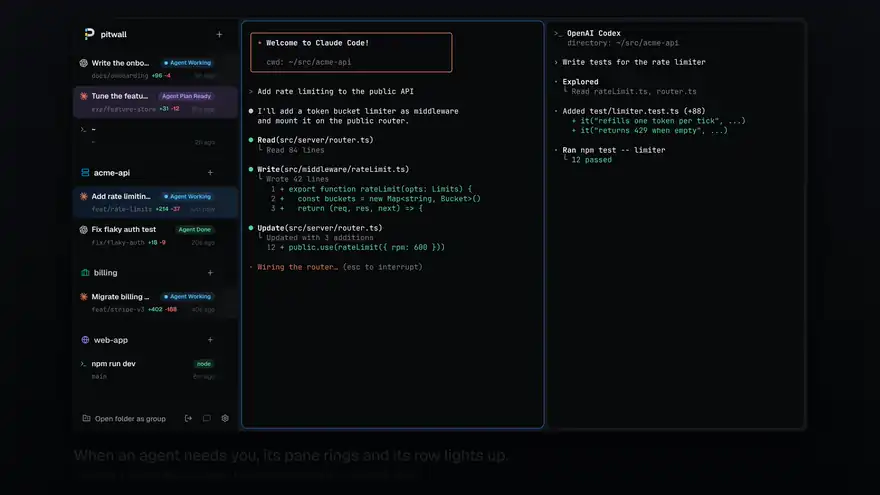

When an agent needs you (a question, an approval, a plan, an error, a finished turn) in a pane you are not looking at, that pane gets a ring in the state's color and its sidebar row gets an accent bar and a dot. Not looking means another tab, another pane of the same tab, or the window in the background. The mark stays until you focus that pane, and a group header counts its tabs that carry one. pitwall also sends a desktop notification for it. Ctrl+Shift+U (Alt+U in the aide preset) jumps to the pane that most recently started waiting; press it again for the next one. Once you have seen them all, it walks the waiting panes by priority.

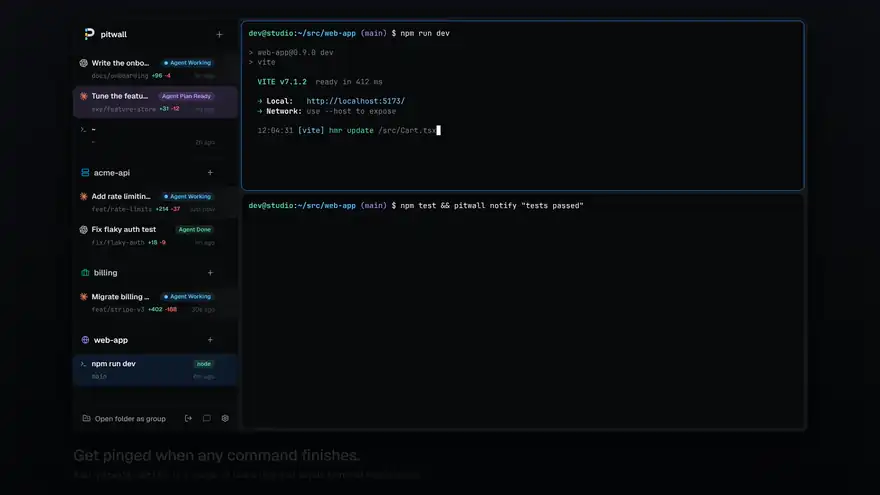

Any command can ask for your attention, no hooks needed: npm test && pitwall notify "tests passed" rings the pane it runs in. Tools that send terminal notifications ring it too: OSC 9 (iTerm2's form), OSC 777 (urxvt, foot, Ghostty) and kitty's OSC 99 in its single-chunk form. The pane then shows as Input with the message until you focus it or the agent's state changes. ConEmu's numeric OSC 9 forms, such as 9;4 progress, are ignored.

States are exact when the agent's hooks are installed (pitwall hooks install). Without hooks, pitwall still recognizes claude and codex running in a pane and reads their state from the screen, which is a little less precise.

Tabs and panes

The keyboard shortcuts are in Keybindings. With the mouse: click a tab to switch to it, double-click it to rename it, middle-click to close it, right-click it for Rename tab, Detach tab, Close tab, grouping, and more. The "+" in the sidebar header, on a group header, or on a hovered tab opens a new one; it opens right below the one you were in, in the same group and folder.

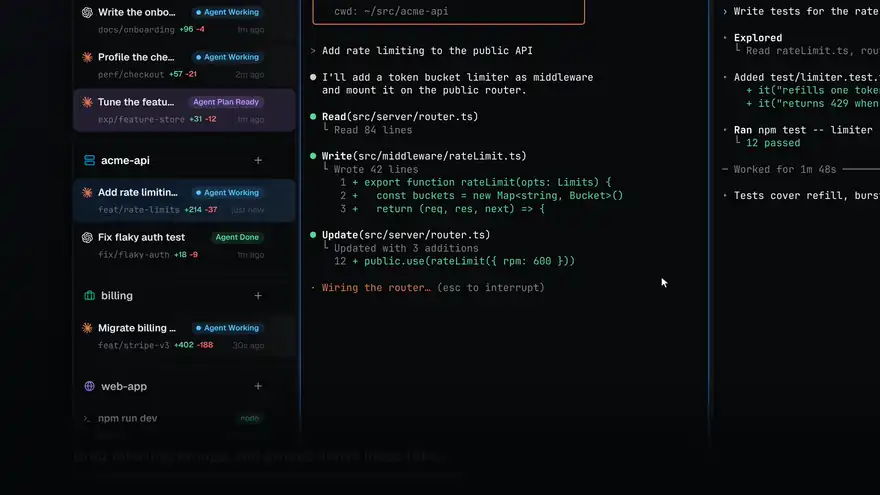

Drag a tab or a group header to reorder it: the other rows slide apart to show where it will land, and Escape puts it back. Groups and ungrouped tabs share one order, so a group can sit above loose tabs and a loose tab between two groups: drop on the top half of a group header to land above the group, on the bottom half to land first inside it. Rest on a group header for a moment, or drop on a collapsed one, to move the tab to the end of that group. Ctrl+click or Shift+click several tabs to drag them together. Drag the gaps between panes to resize them. Ctrl+Shift+B (Ctrl+B in the aide preset) hides the sidebar; pitwall remembers that across restarts.

Grouping

• By folder: right-click a tab and choose Group tabs in <folder>. Every ungrouped tab in that repo or folder joins one group, and new tabs you start inside that folder join it automatically.
• By hand: Ctrl+click or Shift+click to pick tabs, then right-click and choose New group or Move to group.
• Ungroup or Remove from group never close anything.

For a Git repo group, New worktree tab in the group menu starts a tab in a fresh worktree under <repo>/.worktrees/, so parallel agents on one repo do not step on each other. Deleting that tab removes the worktree it made. pitwall never deletes a folder it did not create.

Detaching

Detach (right-click a tab, or pitwall detach) hides a tab and keeps everything in it running. The Detached list in the sidebar footer brings it back, as does pitwall attach <name>.

Let agents name their tab

Claude Code and Codex set a terminal title, which pitwall shows as the tab's title with spinners stripped. An agent can also name its tab explicitly:

pitwall tab rename "fix login redirects"

To have agents do this on their own, add to your CLAUDE.md or AGENTS.md:

At the start of a task inside a pitwall pane, run
`pitwall tab rename "<short description of the task>"`.

Command line

Run these from any terminal. Inside a pitwall pane, commands that take an optional name act on the pane's own tab. Older pitwall versions called tabs sessions; the commands and flags are the same.

A name is a tab's # from pitwall ls (3 or #3), else its title. A title matches exactly first, then by a unique prefix, so pitwall attach fix finds the tab titled fix login redirects. Detached tabs are numbered after the ones the sidebar shows.

pitwall new -n auth -d ~/src/service   # start a background tab
pitwall ls
pitwall attach auth

Keybindings

Two presets ship. conventional is the default and follows Linux terminal defaults (Ghostty, kitty, GNOME Terminal); it leaves plain Ctrl+letters and readline's Alt+B/F/D/. to the shell. aide is the Alt-key layout pitwall started with. Pick one with preset in config.toml and override single actions there. The settings button in the sidebar footer shows the bindings in effect.

conventional:

conventional leaves tab mode and pane mode unbound so Ctrl+T and Ctrl+P reach the shell. Give tab_prefix or pane_prefix a chord in config.toml or the settings page to use them; their keys are the ones in the aide table.

aide:

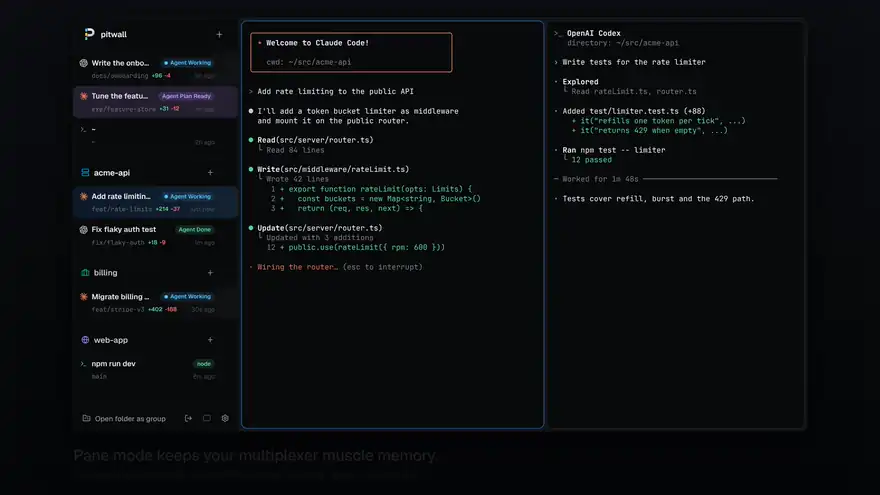

Tab mode runs one key and ends. Pane mode stays on, zellij style, so Ctrl+P d j x splits, moves down and closes in one go; it ends on Esc, Enter, Ctrl+P or any key it does not know. A pill at the bottom left shows the mode and its keys. A fullscreen pane ends when focus leaves it or it closes.

Every action, with its config name, is listed by pitwall config default. The session-era names next_session, prev_session, new_session and jump_session_1-9 still work as next_tab, prev_tab, new_tab and goto_tab_1-9; pitwall config check notes each one to rename.

Configuration

pitwall reads ~/.config/pitwall/config.toml ($XDG_CONFIG_HOME). Without the file everything has its default. An open window rereads the file within a second of a change and applies keys, theme, fonts and spacing at once. Mistakes show as a desktop notification; the window keeps running, and only the broken entries fall back to their defaults.

The file init writes starts with #:schema ~/.config/pitwall/schema.json, so editors with taplo or Even Better TOML complete action names and flag a bad chord, color or key as you type. The window refreshes the schema files when a new pitwall knows more keys.

[keys]
preset = "conventional"
new_tab = ["Ctrl+Shift+T", "Super+T"]  # a chord or a list of chords
toggle_sidebar = "Ctrl+B"
tab_prefix = []                         # [] unbinds

[keys.tab]                              # tab mode, after tab_prefix
rename = "F2"

[keys.pane]                             # pane mode, after pane_prefix
fullscreen = ["F", "Z"]

[theme]
name = "tokyo-night"

[theme.colors]
primary = "#ff9e64"

[font]
mono_family = "Iosevka"
mono_size = 14
line_height = 1.1
mono_fallback = ["Noto Sans Mono CJK SC"]

[layout]
pane_gap = 4
pane_margin = 4

Chords are modifiers (Ctrl, Alt, Shift, Super) and a key joined by +, in any case. Keys are a printable character, Space, Tab, Enter, Esc, Backspace, Delete, Home, End, PageUp, PageDown, Up, Down, Left, Right or F1-F12. Two actions on one chord is an error naming both.

Themes

Built in: aide-dark (the default), aide-light, tokyo-night, catppuccin-mocha. A custom theme is ~/.config/pitwall/themes/<name>.toml with the same keys as [theme]; its name picks the built-in it starts from, so it only lists what differs. Add #:schema ~/.config/pitwall/theme.schema.json as its first line for completion.

[theme.terminal] has foreground, background, cursor and ansi, an array of the 16 ANSI colors (black, red, green, yellow, blue, magenta, cyan, white, then the bright ones). Colors are #rrggbb or #rrggbbaa. The daemon answers programs' color queries (OSC 10, 11 and 4) from the terminal colors; a running daemon picks a change up the next time it starts.

Fonts and spacing

[font] takes ui_family (default the bundled Geist), ui_size (13), mono_family (JetBrainsMono Nerd Font), mono_size (13), line_height (a multiple of the font's, 1.0) and mono_fallback, families tried for characters the terminal font lacks before any monospace font and color emoji. Families are any installed font (fc-list : family); a missing one is reported and the default is used. [layout] sets pane_gap and pane_margin in dp (both 4).

Hooks

Hooks are how Claude Code and Codex tell pitwall exactly what they are doing. pitwall hooks install merges pitwall's entries into ~/.claude/settings.json and ~/.codex/hooks.json:

• It keeps every existing setting and hook and never adds a duplicate.
• It backs each file up first as <file>.pitwall-backup-<unix time> and writes atomically. A symlinked config stays a symlink.
• Add --dry-run to print the result without writing.

Inside Codex, run /hooks once to trust the new hooks, and restart agent sessions that were already running. pitwall hooks uninstall removes only the exact entries pitwall added. pitwall hooks prints the blocks if you prefer to edit the files yourself.

The hooks do nothing outside a pitwall pane, so they are safe to keep installed globally.

Where things live

macOS uses the same paths. On Windows, config and themes live in %APPDATA%\pitwall, and saved tabs, the daemon log, window state and the socket in %LOCALAPPDATA%\pitwall. The XDG_* variables win when set.

After a reboot, run pitwall: tabs, groups and panes come back in their folders. State saved by an older version opens with each of its nested tabs as a tab of its own, in the same place and group. Agent panes resume with claude --resume <id> or codex resume <id>; if a resume fails, the pane falls back to a shell in the same folder. Running processes and scrollback do not survive a reboot.

When you upgrade pitwall while an older daemon is running, the next pitwall detects it, has it save its state and stop, and starts the new one. Programs running in panes at that moment stop.

Troubleshooting

• The window does not open from the launcher. Errors are sent as a desktop notification (an alert on macOS, a message box on Windows); run pitwall in a terminal to see them.
• An agent's state is missing or late. Check pitwall hooks install was run with the installed binary, and in Codex run /hooks once.
• Something else. Look at ~/.local/state/pitwall/daemon.log, which starts with the daemon's version.

Development

mise.toml sets GOFLAGS=-tags=novulkan so Gio builds with OpenGL and no Vulkan headers. Use mise so every command gets it:

mise exec -- go build ./cmd/pitwall
mise exec -- go vet ./...
mise exec -- go test -race ./...

Releases use patch versioning; see CHANGELOG.md.

Contributing

Read CONTRIBUTING.md for setup, checks and the pull request process. Use the issue templates to report bugs or propose features. Report vulnerabilities privately as described in SECURITY.md.

Credits

pitwall stands on other people's open source work. The full list, with every license, is in THIRD_PARTY_NOTICES.md. In short:

• tuios (MIT, Gaurav Gosain): pitwall adapted its PTY spawning, agent detection, resume commands and screen patterns, and its test fixtures.
• charmbracelet/x/vt (MIT, Charmbracelet): the terminal emulator, vendored with a one-line patch.
• Gio (MIT / Unlicense): the UI toolkit.
• creack/pty (MIT): pseudo-terminals.
• go-text/typesetting (BSD / Unlicense): text shaping.
• Lucide (ISC) and Feather (MIT): the icons.
• Geist (OFL 1.1): the UI font.
• BurntSushi/toml (MIT): the config parser.
• Tokyo Night, Catppuccin and GitHub's Primer (all MIT): theme colors.
• aide (Quantic Studios): the sidebar design and agent states pitwall ports.
• zj-radar, zellij, tmux and Ghostty: ideas for hook handling, tab mode, session naming, detach and keymaps.

License

MIT, see LICENSE.
