AgentZero Lite

A minimalist IDE for the AI era — driving many CLIs side by side, from a single window.

🇰🇷 한국어 문서: README-KR.md

🧩 Extension features (file tools · Diff Review · command palette · multi-agent CLI · worktrees · orchestration · automations · cost): Extension Manual → README-EX.en.md · 한국어

🖥️ Avalonia host (Windows + macOS) — the multi-OS edition and the WPF-first conversion playbook: README-Avalonia.md · 한국어

---

🎬 Demo — driving Claude and Codex in parallel:

Pipe a single instruction to an AI CLI (Claude, Codex, any model you can run in a shell) living in the same workspace — or in a different one — and have it act. Run two different AI models side by side and let them talk to each other through the same mechanism: cross-model dialogue, no custom broker required.

AgentZero Lite is a Windows desktop shell built around a simple idea: in the AI era most of your day is spent talking to command-line tools. claude, codex, gh, docker, pwsh, a REPL, a build log tail — each wants its own terminal, and you want all of them visible at once without juggling windows. AgentZero Lite gives you a true multi-tab, multi-workspace ConPTY terminal and a small chat surface that forwards text and skill macros to whichever terminal is in focus — nothing more, nothing less.

---

Features

• Multi-tab ConPTY terminals — a real Windows pseudo-console per tab, not a pseudo-PTY pretending. Driven by ManagedConPtyHost (our own CreatePseudoConsole P/Invoke) and drawn by xterm.js in a WebView2, so themes and fonts are selectable and no native terminal DLLs ship at all.
• Workspaces — group tabs by folder so each project keeps its own set of CLIs (one click = cd context and a fresh Claude).
• AgentChatBot (labelled AgentCLI in the UI from v0.9.1) — a dockable chat pane that forwards whatever you type into the active terminal. CHT mode types text, KEY mode forwards raw keystrokes (Ctrl+C, arrows, Tab). It is not an AI; it is an input broker. The rebrand is user-visible only — the underlying actor path /user/stage/bot and AgentBotActor class names are unchanged, so external scripts and skill macros keep working.
• AI ↔ AI conversation (the headline trick) — teach AgentZeroLite.ps1 to a Claude tab or a Codex tab once ("learn AgentZeroLite.ps1 help and use it for cross-terminal talk"), and from that point on either AI can greet the other terminal by name and strike up a real dialogue. Claude in tab 0 writes to Codex in tab 1, Codex replies back, each reads the peer's last output with terminal-read. No extra broker, no cloud relay — just the two CLIs poking each other through AgentZero's IPC. This is the tiki-taka between models that the Lite edition exists for.
• AIMODE — on-device LocalLLM as your in-shell coordinator — flip the AgentBot to AI mode (Shift+Tab) and a small on-device LLM (Gemma 4 today; Nemotron staged) becomes a secretary that drives the other AI CLIs for you. You ask in Korean or English, it picks the right terminal AI, sends the message, waits, reads the reply, brings back a summary. Two-way channel: peer terminals call back through the existing bot-chat CLI so the LocalLLM doesn't have to keep polling. Nothing leaves the machine. See AIMODE section below.
• 🎙 Voice — drive AgentBot hands-free while you keyboard the next tab — speak into your mic and AgentBot transcribes the audio locally (Whisper.net, GGML small/medium models cached on disk) and types the text straight into the active terminal AI. The point is dual multitasking: while one tab takes your fingers (writing code, reading Claude's diff), the other tab takes your voice. Two parallel AI conversations, one supervisor — same AgentBot pipeline, just a different input channel. Backend ships CPU + Vulkan so AMD / Intel / NVIDIA all accelerate the same binary; multi-GPU systems get an auto-best heuristic plus a manual override in Voice settings. TTS reply ships three backends — Windows SAPI (instant, offline), OpenAI TTS (cloud, byok), and as of v0.9.2 Supertonic (Supertone Inc's on-device ONNX, ~99M params, 10 voices, 31 languages incl. Korean) — the first AgentZero provider that drives a pip-installed Python package via a subprocess seam, opening up the wider Python on-device model ecosystem for future adoption. Settings → Voice → Supertonic auto-discovers installed Pythons (py -0p + filesystem fallback), exposes a Download Model dialog with live progress + cancel + Start fresh, and a Check Install probe that diagnoses multi-Python machines.
• 🎵 Music — instrument classification + live spectrum from mic or speaker output — Settings → Music runs MIT's ast-finetuned-audioset-10-10-0.4593 (Audio Spectrogram Transformer, 86.6M params, 527 AudioSet classes) via ONNX Runtime on a sliding 10 s window. Two input sources: microphone (NAudio WaveIn — capture a live instrument) or system output (WASAPI loopback — analyse whatever Spotify / YouTube / a game is currently playing through your speakers, no virtual cable needed). Re-infers every 1.5 s; the top-K labels list updates in place and a 64-bar log-frequency dBFS spectrum repaints at ~30 Hz above the labels. Model + class CSV pull from the onnx-community HuggingFace mirror through the same ModelDownloadDialog Supertonic uses (~347 MB, one-time, resumable cleanup via "Start fresh"). The next step from Voice's listen & speak axis into a listen & understand axis — first AgentZero feature whose output is a structured semantic judgement about audio rather than a transcription.
• AgentBot [+] menu — 3 ways to arm a terminal AI —
  • AgentZeroCLI Helper — drops a ready-made briefing into the chat input that teaches any terminal AI (Claude, Codex, shell-hosted model) how to call AgentZeroLite.exe -cli once, no skill install. Review, hit Send, done. If the CLI is not on PATH the menu nudges you to Settings → Register PATH and restart first.
  • Import Starter Skills — copies the shipped agent-zero-lite skill into the active workspace's .claude/skills/ so Claude Code picks it up persistently on next session.
  • Skill Sync — with Claude already running in a tab, reads the skill list out of its own /skills view and turns it into a slash-command menu in the chat box. Type /, pick a skill, Enter — the macro text is fired at the terminal. No LLM round-trip.
• 🌐 WebDev — in-app browser sandbox + plugin system (v0.4) — top-level menu next to AgentBot. Embeds a WebView2 with a window.zero.* JavaScript bridge to AgentZero's native services (LLM chat / streaming, TTS, STT-with-VAD, summarize). Two install channels: a local .zip, or a public GitHub folder URL (no git CLI required — the installer talks raw HTTP + Trees API). First reference plugin is voice-note under Project/Plugins/voice-note/ — a STT-driven voice journal with VAD-gated capture, sensitivity slider, pause/resume, LLM summary (length-chunked recursive), and IndexedDB note storage. See the WebDev section below.
• 🔎 Scrap — window spy + scroll-aware text capture (v0.9.1) — drag a crosshair onto any visible window (or paste an HWND) and Scrap pulls the readable text out, including auto-scroll for long content. Four capture strategies in order: UIA TextPattern, focused-area UIA scroll, clipboard scroll (Ctrl+Home → Ctrl+A/C + PageDown loop, works on IntelliJ / Chrome / VS Code / anywhere Ctrl+A is supported), and a WM_VSCROLL fallback. Each capture lands as a timestamped logs/scrap/*.txt and the preview pane fills live as the scroll advances. The original clipboard is restored when the capture finishes. See the Scrap section below.
• Notes with live rendering — a second bottom panel with a Markdown viewer that also renders Mermaid diagrams and Pencil files, scoped to the active workspace folder.
• CLI remote-control — run AgentZeroLite.exe -cli terminal-send 0 0 "npm test" from any script and drive the GUI over WM_COPYDATA + memory-mapped files.
• Actor model (Akka.NET) — terminal lifecycle, workspace routing and chat input all run through supervised actors, so a crashing session does not take the window down with it.
• 🧭 agent-one — a standalone CLI agent, same repo, no shared code — a Native AOT single binary (Windows / macOS / Linux, npm-installable) that reads a workspace, writes files, runs commands behind an approval gate and answers, with a small on-device model doing the work and a decision engine (TypeSafe Jev) answering the fixed questions — route, scope, safety, escalate to a stronger model. It remembers per workspace (memory file, resumable sessions, a Kùzu knowledge graph the engine fills and consults), runs as the same AgentBotActor / AgentLoopActor pair as the GUI's Bot mode on its own Akka.NET, and can be driven from any shell — or by another agent — through a background session. agent-one dashboard opens what it left behind — memory, transcripts, the graph, a Cypher box — as a local, read-only web page. See the agent-one section below and Project/AgentOne/README.md.
• One executable, one process — single-instance guard, SQLite for config, zero external dependencies beyond the .NET 10 runtime. The build is under ~60 MB.

---

Screenshot of the mental model

+--------------------------------------------------------------------------+
| AgentZero                                                    -  □  ×    |
+---+------------+-----------------------------------------------+--------+
|   | WORKSPACES | [Claude1] [pwsh1] [build-log] [+]            |        |
| ⚙ | ▸ monorepo +-----------------------------------------------+        |
| 🤖 |   ▸ web    |                                              |        |
|   |   ▸ api    |           ConPTY terminal (active tab)        |        |
|   | ▸ blog     |                                              |        |
|   |            |                                              |        |
|   | SESSIONS   +-----------------------------------------------+        |
|   |  · Claude1 | AGENT BOT ▾ | OUTPUT | LOG | NOTE                    |
|   |  · pwsh1   +-----------------------------------------------+        |
|   |            |  > /skills                                    |        |
|   |            |  [skill list]                                 |        |
|   |            |  > run tests and summarize                     [Send]  |
+---+------------+-----------------------------------------------+--------+

Top bar: ConPTY terminals, one per tab. Left rail: activity icons + sidebar with workspaces and sessions. Bottom panel: tabbed — AGENT BOT (text/key sender to the active terminal), OUTPUT, LOG, NOTE (per-workspace markdown viewer).

---

Architecture

┌─ AgentZeroWpf (WinExe, WPF, net10.0-windows) ───────────────────────────┐
│                                                                         │
│  MainWindow  ──── hosts N ConPTY tabs  ──── AgentBotWindow (dock/float) │
│      │                                              │                   │
│      │  WM_COPYDATA + MMF  <─  CliHandler.cs  ──>   │                   │
│      │  (external scripts drive the GUI)            │                   │
│      ▼                                              ▼                   │
│  ActorSystemManager (Akka.NET)                                          │
└──────────────────────┬──────────────────────────────────────────────────┘
                       │  ProjectReference
┌─ ZeroCommon (ClassLib, net10.0) ────────────────────────────────────────┐
│  Actors/    Stage → Workspace(N) → Terminal(N)  + AgentBot (1)          │
│  Services/  ITerminalSession, AgentEventStream, AppLogger               │
│  Data/      AppDbContext + EF Core (SQLite)                             │
│             CliDefinition / CliGroup / CliTab / ClipboardEntry          │
│  Module/    CliTerminalIpcHelper, CliWorkspacePersistence, ...          │
└─────────────────────────────────────────────────────────────────────────┘

ZeroCommon is UI-free and covered by its own headless test project (ZeroCommon.Tests, xUnit + Akka.TestKit). AgentTest covers the WPF-dependent surface.

Actor topology

/user/stage                  — supervisor, lifecycle broker, one per app
    /bot                     — AgentBotActor: UI gateway (Chat/Key mode,
                               UI callback, peer routing). Spawns AgentLoop lazily.
        /loop                — AgentLoopActor: THE agent. Owns one IAgentLoop,
                               drives Idle→Thinking→Generating→Acting→Done FSM.
    /ws-<workspace>          — WorkspaceActor: owns terminals in a folder
        /term-<id>           — TerminalActor: wraps one ITerminalSession

Messages are defined in one place (ZeroCommon/Actors/Messages.cs). Canonical agent vocabulary table — harness/knowledge/_shared/agent-architecture.md. The same two-actor shape, with the same message names, runs inside agent-one on its own ActorSystem (/user/bot → /user/bot/loop), so the CLI and the GUI's Bot mode read alike.

---

Project layout

Reference graph: AgentTest → AgentZeroWpf → ZeroCommon ← ZeroCommon.Tests, and ZeroWearable → ZeroCommon. AgentOne references nothing and nothing references it — it is a second product that shares the repo and the actor vocabulary, not the code. Anything without WPF / Win32 dependencies belongs in ZeroCommon. ZeroWearable is a second process on purpose — its BLE central is WinRT and needs a Windows-SDK target framework, which the GUI must not move to. It owns the watch's single BLE link; see Wearable device.

---

Build & run

Requirements: Windows 10/11, .NET 10 SDK, a terminal that can run dotnet. Rider or Visual Studio 2022 17.11+ works; see the IDE note below about disabling "Terminal Mode" when debugging.

# Restore + build the WPF app (auto-builds ZeroCommon as a project reference)
dotnet build Project/AgentZeroWpf/AgentZeroWpf.csproj -c Debug

# Release build (required before using the CLI wrapper script)
dotnet build Project/AgentZeroWpf/AgentZeroWpf.csproj -c Release

# Launch the GUI
Project/AgentZeroWpf/bin/Debug/net10.0-windows/AgentZeroLite.exe

# Run headless tests (shared logic)
dotnet test Project/ZeroCommon.Tests/ZeroCommon.Tests.csproj

# agent-one — the standalone CLI agent (its own README has the rest)
dotnet build Project/AgentOne/AgentOne.csproj -c Debug
dotnet test  Project/AgentOne.Tests/AgentOne.Tests.csproj
Project/AgentOne/agent-one.ps1 run "hello" --provider echo
Project/AgentOne/agent-one.ps1 chat

# Run WPF-dependent tests (actors, terminal sessions, approval parser)
dotnet test Project/AgentTest/AgentTest.csproj

⚠️ IDE note — turn off Terminal Mode when debugging

AgentZero hosts its own ConPTY terminals inside WPF. If your IDE attaches its own terminal to the process stdin/stdout/stderr (Rider's default, VS "Redirect standard output", VS Code's integrated terminal when launched directly), it will intercept the console events that ConPTY needs to own, and tabs will either refuse to start or show garbled output.

Always disable the IDE's terminal attachment before you press Run / Debug:

TL;DR — give the child process its own real console window. dotnet run from a normal shell also works because it does not steal stdio.

---

CLI — drive the GUI from any script

Every scriptable action goes through AgentZeroLite.exe -cli <command>. The GUI must be running; the CLI speaks to it over WM_COPYDATA (marker 0x414C "AL") and reads responses back from named memory-mapped files. A 5-second poll timeout protects scripts from a hung GUI; add --no-wait for fire-and-forget.

A PowerShell wrapper is shipped at Project/AgentZeroWpf/AgentZeroLite.ps1 for convenience once the app directory is on PATH (do this from the Settings pane: AgentZero CLI → Register PATH).

---

🖥 OS-Control — drive Windows from CLI or LLM

The os verb group (mission M0014) imports the desktop-automation surface from AgentZero Origin and bolts it on to both the CLI and the on-device LLM agent loop. Every read-only verb is symmetrical: shell calls and LLM tool calls touch the same code path, log to the same audit JSONL, and write the same screenshot files.

# Enumerate visible windows
AgentZeroLite.exe -cli os list-windows --filter "AgentZero"

# Capture a PNG of the whole desktop (grayscale, downscaled to 1920×1080)
AgentZeroLite.exe -cli os screenshot

# Inspect a window's UI Automation tree
AgentZeroLite.exe -cli os element-tree 0x000A0234 --depth 5

# Press Alt+F4 (input simulation — gated)
$env:AGENTZERO_OS_INPUT_ALLOWED = "1"
AgentZeroLite.exe -cli os keypress alt+f4

LLM tools (callable from AIMODE): os_list_windows, os_screenshot, os_activate, os_element_tree, os_mouse_click, os_key_press. The two os_mouse_* / os_key_* tools are gated by the same env var as the CLI; a denied call returns {"ok":false,"error":"…gate denied…"} and the system prompt forbids retrying. Read-only tools are unconditional.

Artefacts land under tmp/os-cli/:

tmp/os-cli/
├── audit/<date>.jsonl         every CLI/LLM call recorded as one line
├── screenshots/<date>/        PNG outputs
└── e2e/<date>.log             smoke summary (acceptance probe)

E2E acceptance probe: Docs/scripts/launch-self-smoke.ps1 uses the new verbs to verify a fresh build is reachable from the desktop. Read-only — no driving, no input simulation. Run it after any CLI / build change that touches the OS surface.

Full reference: Docs/OsControl.md. Internal architecture notes: harness/knowledge/_shared/os-control.md.

---

Making two AI CLIs talk to each other

This is the Lite edition's signature use case and it takes about one minute to set up.

1. Register the CLI path once. Open Settings → AgentZero CLI → click Register PATH. Now AgentZeroLite.ps1 resolves from any shell.
2. Open two AI tabs in the same workspace. For example, group 0 tab 0 = claude, group 0 tab 1 = codex (any AI CLI that accepts natural-language instructions works).
3. Teach each AI the tool. In each tab, paste one line:

   Learn AgentZeroLite.ps1 help and use it for cross-terminal talk. Use terminal-list to see the tabs, terminal-send <grp> <tab> "text" to speak to another AI tab by name, and terminal-read <grp> <tab> --last 2000 to read the peer's reply.

4. Start the dialogue. In the Claude tab say: "Greet the tab named Codex and propose we co-design a REST endpoint." Claude will run AgentZeroLite.ps1 terminal-send 0 1 "hi Codex, ...". Codex sees it at its prompt, composes a reply, and sends it back with terminal-send 0 0 "...". You watch the conversation stream in both tabs.

What makes this work:

• Each AI runs in its own ConPTY — no shared memory, no context leakage.
• Messages traverse AgentZero's IPC (WM_COPYDATA + memory-mapped files), not a cloud relay; nothing leaves your machine.
• The tab layout means you can interrupt, nudge, or splice in at any step — the human stays the supervisor.
• Because the broker is just a shell command the AI already understands, you can swap claude for any CLI-native agent (Aider, Copilot, a local ollama chat, …) and keep the same protocol.

This is the "tiki-taka between models" the Lite edition was built for. Terminal multiplexers let you watch many prompts; AgentZero Lite lets them talk.

---

🧠 AIMODE — LocalLLM as your in-shell coordinator

The next step up from "teach two CLIs to talk to each other" is "have a small on-device LLM coordinate the conversation for you." That is AIMODE — flip the AgentBot pane with Shift+Tab and a Gemma 4 (Nemotron staged) running on your GPU/CPU becomes a tiny in-app secretary that drives the real AI CLIs on your behalf.

Philosophy. The LocalLLM here is not trying to out-think Claude or Codex. The goal is the small secretary role: take the fuzzy ask, route it to the right terminal AI, organise the result. Less than a PM, more than a bash alias. The heavy reasoning lives in those bigger CLIs; the LocalLLM is the receptionist who knows everyone's extension number and the protocol for transferring calls.

What it looks like

                  +----------------------+
                  |      You (user)      |
                  +----------+-----------+
                             | chat: "claude한테 토론해줘", "hi", ...
                             v
+----------------------------+----------------------------+
|                AgentBot AIMODE  (chat pane)             |
|                                                         |
|   +----------------------+      Tool catalog            |
|   | LocalLLM             |      list_terminals          |
|   | Gemma 4 / Nemotron   | ---  read_terminal           |
|   | on-device            |      send_to_terminal        |
|   | GBNF-constrained     |      send_key  wait  done    |
|   | one JSON call/turn   |                              |
|   +----------+-----------+                              |
|              | Tell                                     |
|              v                                          |
|   +-------------------------------------------------+   |
|   |  AgentLoopActor   (Akka FSM, /bot/loop)         |   |
|   |  Idle -> Thinking -> Generating -> Acting -> Done   |
|   |  owns KV cache; ONE cycle per StartAgentLoop    |   |
|   +-------------------------------------------------+   |
+----------------------------+----------------------------+
                             | ConPTY (write text + Enter)
                             v
            +-----------------+   +-----------------+
            | Claude (tab)    |<->| Codex  (tab)    |   ...
            | the smart one   |   | the other one   |
            +--------+--------+   +--------+--------+
                     | replies via the existing CLI
                     v
   AgentZeroLite.exe -cli bot-chat "DONE(text)" --from <peerName>
                     |
                     | WM_COPYDATA  (existing CLI/IPC channel)
                     v
   MainWindow.HandleBotChat
       -> /user/stage/bot.Tell(TerminalSentToBot)
       -> AgentLoop wakes for a continuation cycle

How an LLM becomes an Agent — the function-call tool chain

A bare LLM is a text-completion engine. It is not an agent. To make it act on the world you have to do four things:

1. Constrain its output to a tool surface. Here, a GBNF grammar forces every emission to be {"tool": "<name>", "args": { ... }} and nothing else. The sampler literally cannot produce free-form prose.
2. Run the tool and capture the result.
3. Feed the result back into the LLM's context as the next user turn.
4. Repeat until the LLM emits done.

That generate → tool → result → generate-again loop is what turns text completion into agency. AgentZero's recipe lives in Project/ZeroCommon/Llm/Tools/:

One cycle per run is the central rule: each StartAgentLoop does ONE short round-trip with a peer (send → wait → read → react → done) and then stops. Subsequent cycles are triggered by the user OR an arriving peer signal — never by the LLM trying to script a 5-turn discussion in one giant tool chain. KV cache preserves history across cycles.

Two-way channel — peer terminal AI talks back via CLI

The novel piece: the terminal AI (Claude in a tab, Codex in a tab) can push messages back to AgentBot via the existing bot-chat CLI. When AgentBot first contacts a terminal it sends a handshake header explaining:

You are Claude and I am AgentBot. Step 1 — verify the channel: AgentZeroLite.exe -cli help Step 2 — acknowledge: AgentZeroLite.exe -cli bot-chat "DONE(handshake-ok)" --from Claude

When that command runs, the message routes through WM_COPYDATA → MainWindow.HandleBotChat → Tell(TerminalSentToBot) to the bot actor. If the peer is in an active conversation, the Reactor wakes for a fresh continuation cycle. Polling the visible terminal output (read_terminal) is the fallback for peers that don't or can't emit the signal.

This makes the terminal AI an active participant — it can delay its reply (long compile, big refactor) and call back when ready, instead of forcing AgentBot to repeatedly poll a Crafting… indicator.

Tested scenarios (live, Gemma 4)

• T5G — greetings stay direct: "안녕" → bot replies in chat, never routes to a terminal.
• T6G — five sequential continuation cycles, each ≤ 6 tool iterations (one cycle per run, not one giant run for the whole conversation).
• T7G — vague Mode 2 asks ("Claude한테 토론 시작해") still trigger send_to_terminal with a reasonable opener instead of bouncing the request back at the user.

42/42 headless tests + the live suite above gate every change to the loop / actor / prompt.

---

🎙 Voice — dual multitasking, hands & voice in parallel

Voice input is wired straight into AgentBot. You speak, the audio is transcribed locally (no cloud, Whisper.net offline GGML models cached on disk), and the resulting text takes the same path as if you had typed it into the chat box — straight to whichever AI CLI tab is active.

Why it matters — this is the dual-multitask play: while one terminal is taking your keyboard (writing code, navigating files, code-reviewing Claude's diff), you can drive a second terminal with your voice without lifting your hands. Two parallel AI conversations supervised by one human, two distinct input channels. AIMODE's tiki-taka between models extends here into tiki-taka between your own two input modalities.

┌─ Tab 0 ─ Claude (keyboard) ──┐   ┌─ Tab 1 ─ Codex (voice) ──────┐
│ you type:                    │   │ you say into the mic:        │
│ "refactor this function …"   │   │ "오늘 작업한 PR 요약해줘"    │
│         │                    │   │         │                    │
│         ▼                    │   │         ▼ Whisper.net (Vulkan)│
│   Claude works               │   │   AgentBot transcribes        │
│         │                    │   │         │                     │
│         ▼                    │   │         ▼                     │
│   reply in tab 0             │   │   typed into tab 1            │
└──────────────────────────────┘   └──────────────────────────────┘
                  one supervisor (you), two streams running in parallel

Stack

• Whisper.net — offline STT, GGML small (~466 MB) and medium (~1.5 GB) models cached at %USERPROFILE%\.ollama\models\agentzero\ whisper\. Downloaded on first use.
• CPU + Vulkan runtimes bundled (~63 MB Vulkan added to the installer). The Vulkan backend is cross-vendor — AMD / Intel / NVIDIA all accelerate the same binary. CUDA isn't bundled (its cuBLAS payload is ~750 MB; revisit later as on-demand download).
• Multi-GPU support — Voice settings exposes a GPU device picker. Auto uses a vendor + VRAM heuristic to pick the best adapter (NVIDIA discrete > AMD discrete > Intel Arc > Intel iGPU); on laptops with dGPU + iGPU it correctly picks the dGPU. Manual override is one click away.
• Mic capture — NAudio with VAD silence-segmentation; sensitivity slider; persistent mute + system-volume control on the AskBot toolbar.
• Test harness — WhisperCpuVsGpuBenchmarkTests runs the same TTS sample through CPU and GPU and prints prep / transcribe / RT factor / similarity, so you can verify the Vulkan runtime actually loaded on your machine.

Status: input ✓ · output ✓ (3 backends as of v0.9.2)

• ✅ STT (you → terminal AI) — shipping. Mic → AgentBot → active terminal.
• ✅ TTS (terminal AI → spoken reply) — shipping. Three backends in Settings → Voice:
  • Windows SAPI — instant, offline, uses OS-installed voices.
  • OpenAI TTS — tts-1, 11 voices, byok.
  • Supertonic (new in v0.9.2) — Supertone Inc's on-device ONNX TTS, ~99M params, 10 voices (M1–M5 / F1–F5), 31 languages incl. Korean. First AgentZero provider that drives a pip-installed Python library through a python -c <script> subprocess seam — opens the door to the wider Python on-device model ecosystem. Settings → Voice → Supertonic auto-discovers installed Pythons (py -0p + filesystem fallback), exposes a Download Model dialog with live tqdm progress + cancel + Start fresh, and a Check Install probe with actionable error hints (cache lock, HF rate limit, network, disk). Model + code license OpenRAIL-M / MIT.

---

🎵 Music — instrument classification + live spectrum

Voice taught AgentZero to listen and speak. Music adds listen and understand — point the app at any audio source on this machine and it identifies what's playing (instrument family, genre cue, environmental sound) every 1.5 s, with a real-time spectrum bar above the labels list so you can correlate model output against the actual frequency content.

┌─ Tab 0 — Music tab (Settings → Music) ──────────────────────────────┐
│ Source  [▼ System Output  — WASAPI loopback, no virtual cable ]    │
│ Device  [▼ ★ Default — current Windows playback device          ]   │
│ Window  10 s    Top-K  5                                            │
│                                                                     │
│ ▓▓▓░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░  (mic / loopback level)  [STOP]│
│ SPECTRUM  (30 Hz – 8 kHz, log-frequency)                            │
│ ┌─────────────────────────────────────────────────────────────────┐ │
│ │  ▆█▆▃▃ ▆▆ ▃ ▆█▆▃ ▃▃▆ ▆ ▃▃ █▆ ▆▆▆▆▆ ▃▃ ▃                       │ │
│ └─────────────────────────────────────────────────────────────────┘ │
│ TOP LABELS  (live · sliding 10 s window)                            │
│ ┌─────────────────────────────────────────────────────────────────┐ │
│ │ tick #14 · window 10.0s · mel 1024×128 · pre 12 ms · inf 244 ms │ │
│ │ ───────────────────────────────────────────────────────────────  │ │
│ │ 71.2% ██████████████████████  Electric guitar                  │ │
│ │ 18.4% █████                   Guitar                           │ │
│ │ 12.1% ████                    Music                            │ │
│ └─────────────────────────────────────────────────────────────────┘ │
└─────────────────────────────────────────────────────────────────────┘

Stack

• MIT/ast-finetuned-audioset-10-10-0.4593 — Audio Spectrogram Transformer, 86.6M params, trained on Google's AudioSet (527 classes covering musical instruments, genre, voice, environment, etc.). Input is a 10 s / 16 kHz mono / 128-bin log-mel spectrogram; output is per-class logits → sigmoid for multi-label scoring.
• ONNX Runtime 1.20 — CPU inference (~200–400 ms per pass on a modern x64), no GPU dependency. Ships through the onnx-community/ast-finetuned-audioset-10-10-0.4593-ONNX HuggingFace mirror — no optimum-cli Python detour required. The same ModelDownloadDialog Supertonic uses streams the 347 MB file with resume / cancel / "Start fresh".
• Dual capture sources —
  • Microphone — NAudio WaveInEvent at 16 kHz mono (the same pipeline Voice uses; a working voice mic is automatically a working music mic).
  • System Output (WASAPI loopback) — WasapiLoopbackCapture against any active render endpoint (default playback device, secondary speakers, virtual cable), fed through NAudio BufferedWaveProvider → StereoToMono → WdlResamplingSampleProvider(16 kHz) → SampleToWaveProvider16 to match the AST input format regardless of the device's mixer format. Capture what's coming out of your speakers — Spotify, YouTube, a game, a Zoom call — without unplugging headphones or installing a virtual audio cable.
• Realtime sliding-window inference — capture frames stream into a rolling 10 s PCM buffer; a background loop snapshots that buffer every 1.5 s and runs AST through ONNX Runtime, with an interlocked single-flight gate so slow CPU never queues backlogged ticks.
• Live log-frequency spectrum — a separate cheap 2048-point Hann- windowed FFT (independent of the AST mel) computes 64 log-spaced bands every ~33 ms (30 Hz repaint) into a WPF Canvas of Rectangles. dBFS-normalized so the bars sit naturally between -60 dBFS and -3 dBFS instead of saturating on the first note.

Architecture seam

• Backend-agnostic contract — IMusicClassifier (in Project/ZeroCommon/Music/) mirrors ISpeechToText in shape: EnsureReadyAsync warms native resources, ClassifyAsync runs one pass. Adding MERT (music-specific embeddings) or CLAP (zero-shot text-conditioned) is a same-shape new implementation, not a UI redesign.
• Settings tab — Settings → 🎵 Music. Provider is locked to AST AudioSet for the first iteration but kept as a ComboBox so a future MERT/CLAP option lands without churn.
• Knowledge — harness/knowledge/music-curator/ owns the model card, the mel-spectrogram normalization conventions, and the WASAPI loopback pitfalls. The music-curator agent is consulted when adding a new music model, tuning the spectrum visualizer, or debugging loopback capture format mismatches.

What it's good at, what it isn't

The AST mel preprocessing in this build uses a Hann window + HTK mel scale, which is close to (but not identical to) AST's training-time Kaldi compliance.kaldi.fbank (Povey window + pre-emphasis). Expect the published AudioSet mAP slightly degraded — top-K labels for clear instruments (piano, drums, guitar, violin, voice) come back correctly; edge cases (subtle environmental sounds, multi-instrument fusion) may show a couple of percent variance vs the reference pipeline. Refining to byte-for-byte Kaldi parity is tracked as a follow-up in the music-curator knowledge.

---

🌐 WebDev — in-app sandbox + plugin system

Top-level menu (globe icon next to AgentBot). Promoted from a cramped Settings tab in v0.4 to a full-window workspace with a sample list on the left and a WebView2 canvas on the right. The Settings → WebDev tab now hosts a tutorial / plugin-author guide.

The point of WebDev is to let you build small AI tools without touching C#. AgentZero exposes its native capabilities (LLM, TTS / STT, voice-note pipeline, summary) as a JavaScript bridge mounted into the embedded WebView2; web tools call those through a window.zero.* surface and ship as plain HTML / JS folders.

┌──────────────────────────┐  ┌──────────────────────────────┐
│  .NET Native             │  │  WebView2 (Browser)          │
│                          │  │                              │
│  NAudio → VAD → Whisper ─────→ note.transcript event       │
│  LlmGateway streaming   ──────→ chat.token / chat.done     │
│  VoicePlaybackService   ──────  (TTS results)              │
│                          │  │  ↑                           │
│  WebDevHost  ←───────────────  invoke('chat.send', …)      │
│  WebDevBridge (JSON RPC) │  │  invoke('summarize', …)      │
│                          │  │  invoke('note.start', …)     │
└──────────────────────────┘  └──────────────────────────────┘
   single Whisper model    one window.zero in every plugin
   single LLM session      same bridge for built-ins + plugins

The bridge lives at:

• JS wrapper — Project/AgentZeroWpf/Wasm/common/zero-bridge.js
• .NET dispatcher — Project/AgentZeroWpf/Services/Browser/WebDevBridge.cs
• Implementations — Project/AgentZeroWpf/Services/Browser/WebDevHost.cs

window.zero.* surface (today)

// Core
await window.zero.version()                       // { version }
await window.zero.voice.providers()               // { stt, tts, llmBackend }
await window.zero.voice.speak("hello")            // SAPI / OpenAI TTS
await window.zero.chat.status()                   // { available, backend, model }
await window.zero.chat.send("…")                  // { ok, reply, turn }
await window.zero.chat.stream("…", t => …)        // streaming tokens
await window.zero.chat.reset()

// Voice-note plugin surface (M0007)
await window.zero.note.start(75)                  // 0..100 sensitivity
window.zero.note.onTranscript(d => …)             // VAD-gated utterance
window.zero.note.onAmplitude(d => …)              // RMS + threshold for VU
window.zero.note.onSpeaking(d => …)               // frame-level VAD
window.zero.note.setSensitivity(70)               // live tuning
await window.zero.note.pause() / .resume() / .stop()

await window.zero.summarize(longText, 6000)       // length-chunked recursive

Installing a plugin — two channels

A plugin is a folder with manifest.json at the root:

{ "id": "voice-note", "name": "Voice Note",
  "entry": "index.html", "version": "0.1.0", "icon": "🎙" }

1. Local .zip — WebDev → + Install Plugin → From .zip… → pick the file. Auto-unwraps a single top-level folder. Strict manifest validation; nothing partial-writes.

2. Public Git URL — WebDev → + Install Plugin → From Git URL… → paste a folder URL like https://github.com/owner/repo/tree/main/Project/Plugins/my-plugin. The installer fetches manifest.json raw, walks the GitHub Trees API to enumerate the folder, downloads every file. No local git required.

Both extract to %LOCALAPPDATA%\AgentZeroLite\Wasm\plugins\<id>\. The sample list refreshes automatically. Each plugin row gets a × uninstall button (built-ins are exempt).

voice-note — first reference plugin

Lives under Project/Plugins/voice-note/ — outside the build (AgentZeroWpf.csproj only sees its own folder), so plugin code never breaks a release. After the repo's main carries it, you can self-install:

WebDev → + Install Plugin → From Git URL →
  https://github.com/psmon/AgentZeroLite/tree/main/Project/Plugins/voice-note

Features:

• Notes list (left) — new / select / delete; IndexedDB persistence with debounced writes (400 ms), so rapid title typing doesn't thrash disk.
• Capture row — REC toggle, Pause/Resume, Sensitivity slider, live VU meter with threshold marker (drag the slider until the marker sits below your normal voice).
• Three tabs — Raw timeline (one timestamped line per utterance, auto-follow latest when pinned to bottom), Summary (length-chunked recursive LLM summary on demand), Meta (model / token / start-end metadata).
• Inherits the user's Settings → Voice STT provider, language, device, mute switch — no separate setup.

The plugin is the existence proof that the surface is enough to build something useful. M0008 builds the next ones (transcription export, multi-note search) on top of the same bridge.

---

🔎 Scrap — window spy + text capture

Top-level Scrap icon next to AgentCLI / WebDev (mission M0019, v0.9.1). Imported from AgentZero Origin and adapted to Lite's overlay-panel model. The pitch is simple: drag a crosshair onto any visible window — terminal, browser, IDE, chat client, IDE log pane, anything that paints text — and Scrap captures the readable text including content past the current viewport. Each capture lands as a timestamped file under logs/scrap/yyyy-MM-dd-HH-mm-ss-scrap.txt and the preview pane fills live as the scroll advances.

┌─ Scrap toolbar ─────────────────────────────────────────────────┐
│ [⊕ crosshair] [HWND…] [SELECT]                                  │
├─ WINDOW_INFO ────────────────┬─ ELEMENT_TREE (Flutter/Electron) ┤
│ Handle / Class / Title /     │  Pane "code-editor" …            │
│ Rect / Process / Framework   │   ├─ Edit "main.cs" …            │
├──────────────────────────────┴──────────────────────────────────┤
│ [▶ CAPTURE] CLR CPY DIR PS   READY   RANGE [...]~[...] DLY ... │
├─────────────────────────────────────────────────────────────────┤
│  captured text streams in here as the scroll advances …          │
└─────────────────────────────────────────────────────────────────┘

Capture strategy — four fallbacks in priority order

The chain runs strategies in order and stops at the first one that returns text. The new Strategy 2.5 was added in M0019 follow-up #2 because IntelliJ smoke-testing exposed that Swing/AWT exposes no UIA ScrollPattern at all — Strategies 1, 2 and 3 each came back with ~80 characters of window title + "System". The keyboard-driven approach covers that gap with no UIA dependency.

Why it lives alongside os (M0014) instead of replacing it

os <verb> is the shell-shaped automation surface: a single CLI call returns one JSON result, fits inside an LLM os_* tool call, and is read-only by default. Scrap is the UI-shaped capture surface: long-running, scroll-driven, with a live preview pane and date-range filtering. They share Project/AgentZeroWpf/NativeMethods.cs, Module/ElementTreeScanner.cs, and the same UIA primitives — but their interaction shape (one-shot vs interactive) is genuinely different, so they coexist.

Files

Project/AgentZeroWpf/
├── ChromiumTextCapture.cs       Chrome/Electron-specific path
├── ScrapWriter.cs               logs/scrap/*.txt + ChunkWritten event
├── TargetHighlightOverlay.cs    red border overlay around the target
├── TextCaptureService.cs        the 4-strategy capture chain
├── WindowInfo.cs                HWND → class/title/pid record
├── WpfWindowPicker.cs           drag-crosshair window picker
└── UI/Components/
    ├── ScrapPagePanel.xaml      the full overlay UI
    └── ScrapPagePanel.xaml.cs   ~340 lines of event wiring

Roadmap (M0019 stages 4–5, follow-up missions)

• Stage 4 — AgentZeroLite.exe -cli scrap capture/read/list verb group (mirrors the os verb pattern).
• Stage 5 — AIMODE function calls scrap_capture and scrap_read added to AgentToolGrammar.Gbnf so the on-device LLM can grab text from any window mid-conversation.

---

🧭 agent-one — the standalone CLI agent

$ agent-one chat
› 보드 API 만들어줘
  route: → workspace  (confidence 0.98)
  scope: small — going ahead  (confidence 0.73)
  graph: consulted via by_keywords — 2 item(s)  (confidence 0.81)
  ✓ write_file  (0.0s)
  ⚠ run this command?  dotnet build src/BoardApi     ← y runs it
  ✓ run_command  (4.1s)
  escalation: keeping the draft  (confidence 0.98)
◆ 보드 API를 만들고 빌드했습니다. 다음 단계: 1. … 2. …
  knowledge: kept 2 item(s)  (confidence 0.84)

AgentZero Lite is a desktop; agent-one is the same idea as a single binary you can npm install on any machine: an agent that works in a folder, with an on-device model that is small and fast and a decision engine that keeps it honest. It lives in Project/AgentOne and references nothing else here — Native AOT cannot carry Akka.Remote, EF Core, LLamaSharp or ONNX — but it borrows the shape.

Everything else — the settings screen, the chat window's keys, the safety boundary, the JSON contract, the layout of ~/.agent-one/ — is in Project/AgentOne/README.md.

---

🧪 Harness — making the function-call chain self-improve

Wiring an LLM into a useful tool chain is hard, and it is honestly not (yet) my strongest area. The harness — under harness/ — is how this repo iterates without me having to re-reason from scratch every time:

harness/
├── agents/        — specialist evaluators (security-guard, build-doctor,
│                    test-sentinel, code-coach, tamer)
├── engine/        — workflows (release-build-pipeline, pre-commit-review)
├── knowledge/     — domain notes (LLM prompt conventions, tool-calling survey)
└── logs/          — every Mode 3 review, RCA, evaluation pinned here

The feedback loop that improved the AIMODE function-call chain across this iteration:

1. Unit-test feedback — T1G..T7G live tests + headless TestKit suites (42/42 currently) verify the protocol & state machine against regressions.
2. Real-execution feedback — actual app logs at %LOCALAPPDATA%\AgentZeroWpf\logs\app-log.txt capture every Reactor turn, peer signal, JSON parse failure.
3. Mode 3 RCA logs — under harness/logs/code-coach/. Each regression gets a dated post-mortem with: symptom, root cause, patch, evaluation, deferred follow-ups.
4. The user as reviewer — I'm not driving the prompt design alone. The harness produces the suggestions; I review them, accept or course-correct, and the next loop incorporates that feedback. Closer to pair programming with an iterating improver than to "AI does it all" — and the artefact of that pairing (logs / evaluations / final prompt) is the actual material I'm learning from.

Concrete example from this iteration: the AIMODE prompt went through 6 revisions in one sitting — one-cycle rule, vague-relay anti-passivity, anti-denial, handshake split, peer-signal trigger, ID-scheme switch to strings — each one captured in the same Mode 3 doc with what failed and why the next attempt addressed it. The harness is the memory of those attempts so the same mistake doesn't recur.

If you want to study how this kind of harness is structured, the sister repo harness-kakashi is a standalone training ground built around the same patterns.

---

🔁 Loop Engineering — a procedure the AI can't skip

There is a failure mode specific to harness engineering. When you drive an agent's loop by instructions alone — "first do A, then B, only then C" — the model obeys while the whole procedure fits in its working context. But an agent's context gets compressed over a long run, and compression is lossy: the step it silently drops is often the load-bearing one. This is worst exactly where it hurts most — a flow that must follow a procedure (a gate before a release, a verify before a commit), enforced only by prose the model is trusted to remember.

The fix is to stop trusting prose for sequencing. Engineer the loop as a graph. The order and the gates live in the graph's edges — owned by the runtime, not by the prompt — while the LLM does the creative work inside each node. The model can't skip Study-before-Act because there is no edge that lets it; the graph is the part that doesn't forget.

The loop this project engineers is PDSA (Deming's Plan → Do → Study → Act improvement cycle):

• Plan — the LLM commits to a verifiable expected outcome (a metric).
• Do — the work is carried out.
• Study — the LLM judges the result against that expectation (met / partial / unmet).
• Act — learnings are recorded; a reinforcement cycle is auto-linked when needed.

Each cycle accumulates into a per-project graph memory — long-term memory for the agent, so the loop improves the process, not just the task. The loop itself is built with the Akka Streams graph DSL (sibling project akka-graph-loop) and shipped as a single Native-AOT CLI, @webnori/pdsa.

AgentZero exposes this to your agent. Install npm i -g @webnori/pdsa, and a hosted agent can drive a graph-enforced PDSA loop from its own terminal (pdsa plan … → pdsa do … → pdsa study … → pdsa act). The harness wires it in — contract, auth, and the graph-memory model — at harness/knowledge/tamer/pdsa-cli.md.

The whole thing is open source: fork it and tune the graph to engineer your own custom AI loop. The theory, the context-compression failure it addresses, and how the Akka graph enforces the procedure are written up in Docs/loop-engineering.md.

---

Settings

A short tabbed pane (full-window overlay since v0.4 — introduced when the terminal was still a child window that WPF could not draw over; the current renderer has no airspace, but the overlay stayed because it is the right shape for a settings screen):

• CLI Definitions — register shells AgentZero can spawn (cmd, pwsh, claude …, custom entries). Built-ins cannot be deleted. New definitions appear in the + menu of every workspace. The built-in agents are Claude, Codex, AgentOne (agent-one chat, this repository's own CLI agent) and Netclaw (netclaw chat, netclaw.dev); selecting one shows whether it is installed and offers to install it when it is not — npm install -g for the first three, the vendor's install script for Netclaw, which is not on npm.
• LLM — local model picker (Gemma 4 / Nemotron) + external backend (OpenAI-compatible) toggle.
• Voice — STT provider (WhisperLocal CPU/Vulkan, OpenAI Whisper, etc.) + language + GPU device picker + VAD sensitivity. The same values voice-note inherits.
• 🎵 Music — AST AudioSet ONNX classifier with two input sources (microphone or WASAPI loopback against the speaker output). Includes one-click [Download] for the 347 MB model from the onnx-community HuggingFace mirror, a live test panel with realtime sliding-window inference (re-infers every 1.5 s), and a 64-bar log-frequency dBFS spectrum that repaints at ~30 Hz. See the Music section.
• WebDev — tutorial / plugin-author guide. The actual sandbox lives at the top-level globe icon (see WebDev section).
• AgentZero CLI — one-click button to register the app directory in the user PATH so AgentZeroLite.ps1 and AgentZeroLite.exe -cli … resolve from any shell.
• 💲 Budget — cost/budget layer over the recorded token telemetry. Set a monthly cap (USD), edit the per-model price table (input / output / cache-write / cache-read per 1M tokens; overrides matched by substring), and watch a month-to-date spend readout that turns amber near the cap and red once over it. Empty price table = built-in defaults.

Persistence lives in %LOCALAPPDATA%\AgentZeroLite\agentZeroLite.db (SQLite, migrated by EF Core on first run). User-installed WebDev plugins live next door under %LOCALAPPDATA%\AgentZeroLite\Wasm\plugins\<id>\.

---

Status

Alpha — current release v0.20.x. Headless suite green (500+ tests), and agent-one's own suite (500+, including the actor pair under Akka.TestKit); the WPF integration suite is opt-in and requires a desktop session. API surface inside ZeroCommon is considered unstable until v1.0; the WebDev window.zero.* bridge is additive-only since v0.4 — new ops added, none removed.

---

Why another terminal?

Because AI coding tools, not humans, are driving the terminal now. The useful unit of work is no longer "one shell" but "three shells I tab through while one of them thinks." Windows Terminal, Conemu, Hyper — they all optimise for the single-prompt case. AgentZero Lite optimises for the opposite: many concurrent prompts, grouped by project, with a notepad and a text-broker chat pane living next to them. That is the whole product.

---

Roadmap

Why Akka.NET, starting from a standalone Lite build? Today it runs on a single device, but the same actor model extends naturally to Remote / Cluster — remote assistants, on-device AI clusters, and beyond. This is a long-term experiment in progress; whether the bet pays off is something we invite you to watch. LiteMode ships as open source, so the multi-view CLI control surface doubles as a hands-on reference for the Akka.NET basic actor model.

AgentZero PRO Roadmap

🧩 AkkaStacks — Distributed Runtime

🧠 LLMStacks — Intelligence & I/O

---

⌚ Sibling Repo — the device half

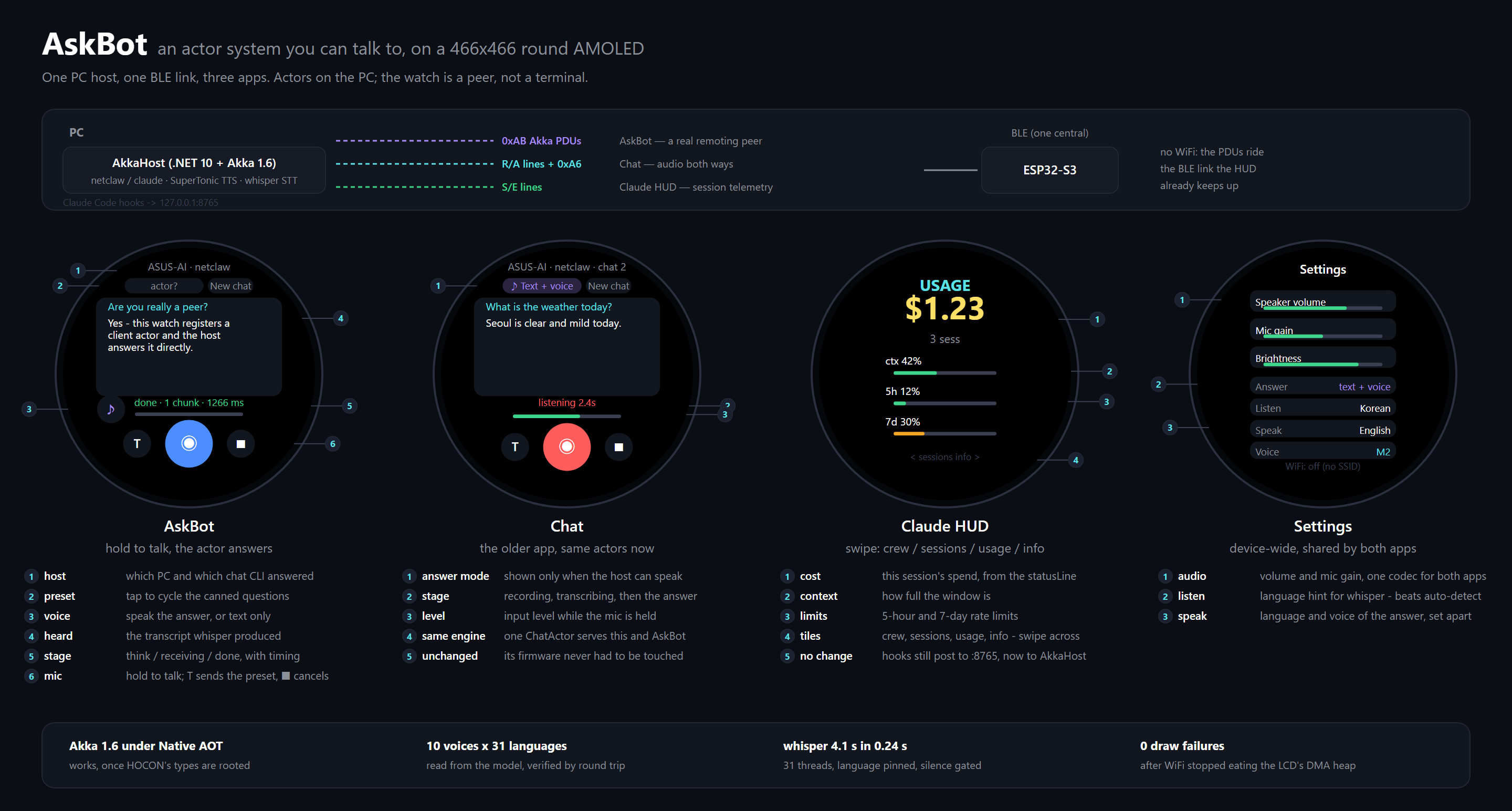

_{From the sibling repo, where watch-apps.svg beside this PNG is generated from the real LVGL layouts by tools/gen_hero_svg.py — when a screen moves, regenerate it there, copy it across and re-render the PNG, rather than editing either copy here. The host it names AkkaHost is the project ZeroWearable was ported from; here it ships as AgentZeroWearable.exe.}

AgentZero Lite talks to a wearable, and only the PC half lives here. The firmware is a separate project:

Building, flashing and debugging a device over USB — port discovery, the arduino-cli and ESP-IDF paths, reading the host and device logs side by side, and the checklist for bringing in a non-Arduino board — is kept out of this README and written up on its own page:

➤ Docs/wearable-device.md

---

🔬 Sister AI Research Repos

---

🚧 In preparation · https://blumn.ai/

_{design coaching: bk-mon · dev: psmon}
