RightWayUp

Full-circle image roll estimation with calibrated abstention. An open model by ORTUS AI, the team behind CHEQIT camera-health monitoring. Find the right way up, or recognise when the image doesn't define one.

Video and write-up · Code · Weights · PyPI · Apache-2.0, commercial use allowed

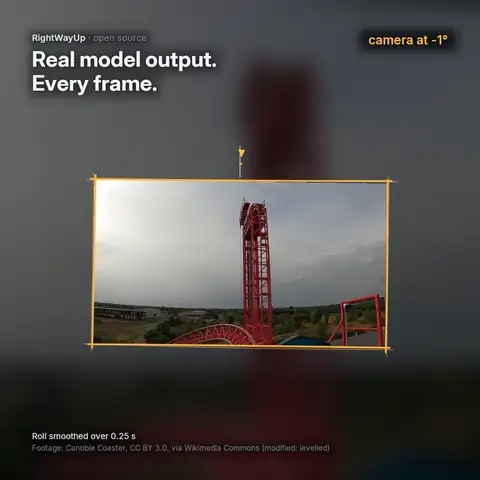

RightWayUp estimates how far an image is rotated from upright, over the full 360° at 1° resolution, from a single image. It returns the angle, a confidence score and an abstain flag, and it can write a corrected copy. The abstain thresholds were fixed on calibration data only, separately for every file format. It runs on CPUs, NVIDIA GPUs, Apple silicon and in web browsers, with ONNX (FP32, FP16, INT8) and Core ML files for every tier.

Frozen weights (hashes in FREEZE.md). All numbers on this card come from RESULTS.md, results/heldout-rescore/RESULTS.md and benchmarks/HARDWARE-summary.md; method and caveats in full: TECHNICAL-REPORT.md.

Tiers

All six tiers ship in one Hugging Face repository, ortusai/rightwayup.

Within 10°, every image answered. ¹ Sealed final holdout, opened once after the weights were frozen and scored once (section below). ² Four MEVA CCTV cameras incl. a thermal one, held out since 24 Sep and re-used once for the release (second use; disclosures below). ³ One image (batch 1), NVIDIA RTX PRO 4500, TensorRT FP16; Pico, Nano and Fast with their one-image files; Balanced and Pro derived at the 10% / 20% calibration route share. ⁴ One image, laptop Intel Core i7-1260P, ONNX Runtime INT8, 4 threads (Woehrer 2026: FP32). ⁵ Pico was chosen after the sealed holdout had been opened; it has development numbers only.

Fill-drop: the small models (Pico, Nano, Fast) drop the letterbox padding tokens before the transformer, so a non-square image costs less. Cascade: Balanced and Pro run Fast on every image and pass the least-confident ones to Max; how many depends on your images (on the sealed test sets: 10–33% for Balanced, 30–80% for Pro, more on photos and thermal than on the calibration mix), which changes their average cost.

Which tier? Max for the best accuracy; Pro or Balanced when most images are easy and you want most of Max's accuracy for a fraction of its cost; Fast as a quick general default; Nano for camera fleets and edge devices; Pico for web browsers and very small CPUs (it is the least accurate tier). Nano and Fast trail Woehrer 2026 on clean COCO photos; their strength is degraded CCTV and thermal footage (tables below).

Quick start

pip install rightwayup
rightwayup predict frame.jpg                          # angle_cw, confidence, abstain
rightwayup fix photo.jpg --snap 90 --out upright/     # writes the upright image; leaves it alone if it abstains
rightwayup predict frames/*.jpg --tier nano --batch   # batch-capable files for throughput

from PIL import Image
from rightwayup import Orienter

o = Orienter(tier="max")                 # pico | nano | fast | balanced | pro | max; files download on first use
r = o.predict("frame.jpg")               # r.angle_cw, r.confidence, r.abstain, r.routed
upright = o.correct(Image.open("photo.jpg"), snap=90)
rs = Orienter(tier="nano", batch=True).predict_batch(["a.jpg", "b.jpg"], batch_size=64)

angle_cw is the clockwise rotation of the image content; rotating the image counter-clockwise by angle_cw makes it upright. routed is true when a cascade tier passed the image to Max. abstain is true when the image has no reliable "up" (bare walls, sky, texture, straight-down aerial views); the angle is still reported. Options: device (auto, cpu, cuda, tensorrt, coreml), precision (auto = INT8 on CPU, FP16 on GPU; or fp32, fp16, int8), abstain (standard, strict, off), batch (one-image files by default; True for the batch-capable files, same answers) and model_dir (run offline from a folder of files). The package applies the thresholds of the file format it loads.

Sealed final holdout (frozen weights, opened once, scored once, 29 Sep 2026)

Weights, tiers and thresholds were frozen first (FREEZE.md, 29 Sep 11:19 Sydney time). The holdout sets had never been trained on, used for model choice, or rendered before the freeze. They were then opened once and scored once, with identical pixels for every model. Within 10°, every image answered; in brackets the paired difference to Woehrer 2026 in images with its 95% bootstrap interval (bold = significant).

• On the 4,706 new photos (COCO + Open Images), Max scores 93.0% against 88.4% for Woehrer 2026, with 33 against 185 upside-down answers (≥150° off). With simulated CCTV degradation: 88.2% against 49.3%. On the two thermal cameras (224 images, a small sample): 87.5% against 50.9%.
• Max beats Woehrer 2026 significantly on 6 of the 8 panels and ties on the other two (max-area crop, R-LiViT RGB).
• "Simulated CCTV degradation" means the same views passed through our CCTV-style degradations (resolution loss, blur, IR/greyscale, exposure, noise, JPEG), not recordings from degraded cameras. Intervals for every cell: RESULTS.md §0 and results/sealed-holdout/FINAL-PAIRED.json.

Held-out CCTV and scene tests (second use, 30 Sep 2026)

The two test sets that scored the superseded 24 Sep weights were re-scored once with the release files after a pre-registration (results/heldout-rescore/PREREG.md). The released models never trained on them.

Within 10°, every view answered; upside-down errors (≥150°) in brackets. Max − Woehrer 2026: +95 views [+77, +113] (four cameras) and +806 [+754, +858] (clean test); Max − Deep-OAD: +67 [+52, +82] and +459 [+413, +506]. Views are clean plus simulated degradation of the same frames. GeoCalib is a calibration model built for about ±45° of roll and cannot represent sideways or upside-down images, which explains most of its full-circle score.

Both sets were first used on 24 Sep to score the earlier weights, so this is their second use. MEVA cameras G331 and G639 were in a development set of the release, so the held-out figure uses the other four (all six, 560 views: Max 100.0%). Comparator rows are the stored 24 Sep predictions on identical pixels. Full tables: results/heldout-rescore/RESULTS.md.

RotBench (independent benchmark with a human baseline, 30 Sep 2026)

RotBench (data Apache-2.0) turns photos 0°, 90°, 180° and 270°; the score is 4-way accuracy per rotation, official protocol. The release files were scored once after a pre-registration (results/rotbench/PREREG.md); the benchmark is public and was also used for our earlier candidate.

Max and Pro answer every RotBench image correctly, on RotBench-Small and on RotBench-Large (300 photos; Woehrer 2026 0.97 mean, Deep-OAD 0.93), with no upside-down answers. On RotBench-Small that is above the published human baseline (0.99 / 0.99 / 0.99 / 0.97), by 1–3 points on 50 photos. All rows and splits: results/rotbench/RESULTS.md.

Development results (used for model choice; Pico included)

Within 10°, every image answered. On Woehrer 2026's benchmark we report the five-seed mean, as its paper does (Max − Woehrer 2026: +41 images [8, 76] over 5,150 views). The JPEG q90 row saves each benchmark view once as an ordinary JPEG; Woehrer 2026 then snaps most answers to the nearest multiple of 90°. We think the rotated JPEG block grid of the source photos carries part of the angle on that benchmark (TECHNICAL-REPORT.md §5; notes and reproduction script: benchmarks/woehrer-2026/). "Cue-free rendering" re-renders photos the way a physically rolled camera sees them (§ on the grid fix below). Full development tables: RESULTS.md §2–§3.

Abstention

Thresholds are fixed on calibration data only (MEVA, Poly Haven and Open Images calibration sets, equal weight), for every file format separately, and then applied unchanged. Standard answers about 90% of calibration images; strict is the lowest threshold with at most 1% wrong answers on calibration data, and never looser than standard.

On the sealed holdout at the standard setting, Max answers 91% of the new COCO photos with 2.1% wrong among its answers, and 74% of the new Open Images photos with 1.2% wrong. On the four held-out CCTV cameras it answers 99.7% of the views, all correctly; on the clean scene test it answers 97.7% with 99.7% correct. Every tier and both operating points: RESULTS.md §4 and results/heldout-rescore/RESULTS.md.

Thermal images: confidence is not reliable there. On the unseen Aalborg thermal camera, Max answers 80% at the standard setting with 12.5% wrong (Nano 77% with 50% wrong), and the strict setting doesn't fix it.

Speed

Single image = batch 1, median latency. GPU single-image cells for Pico, Nano and Fast use the one-image files; the batched row and the derived Balanced/Pro cells use the batch-capable files (Pico/Nano/Fast single image with those: 0.75 / 0.95 / 1.25 ms). Balanced and Pro are derived from Fast and Max at the 10% / 20% calibration route share. Max is the accurate tier, not the fast one: per image it is 1.1–1.3× slower than Woehrer 2026 on the data-centre and workstation GPUs we measured and 1.6–5× slower on CPUs (faster per image only on the RTX 3060 laptop GPU). Peak RAM per process on the i7-1260P (INT8, batch 1): Pico 93 MB, Nano 95 MB, Fast 108 MB (Woehrer 2026 FP32: 436 MB). Six GPUs, seven CPUs, Apple M4 and the method: benchmarks/HARDWARE-summary.md.

Recommended runtimes: TensorRT FP16 on NVIDIA GPUs (or ONNX Runtime CUDA FP16), Core ML on Apple, ONNX Runtime INT8 on CPU, ONNX Runtime Web for Pico in a browser.

Files and formats

Every file takes float32 input image [batch, 3, S, S] and returns float32 prob [batch, 360] (softmax; bin k = k° clockwise). FP16 files keep float32 inputs and outputs.

tiers.json holds the preprocessing contract and every threshold per tier and format in machine-readable form; SHA256SUMS lists every file's hash. Reference implementation: rightwayup/core.py.

Preprocessing. Apply EXIF orientation, convert to RGB, resize to fit inside S × S keeping the aspect ratio (bicubic), centre it on an S × S canvas filled with RGB (124, 116, 104), scale to 0–1, then normalise with mean (0.485, 0.456, 0.406) and std (0.229, 0.224, 0.225). S = 70 (Pico), 112 (Nano), 224 (Fast), 280 (Max). The fill colour matters: the fill-drop and batch files recognise padding by this exact colour.

Decoding. Take the argmax bin k, then refine it with the probability-weighted mean offset over bins k − 10 … k + 10 (wrapping around 360). Confidence is the total probability within ±10° of the decoded angle.

Cascade (Balanced, Pro). Run Fast on every image. For images whose confidence is below the route threshold, run Max on the same image at 280 px and use its angle and confidence instead. Then apply the abstain threshold to the confidence of whichever model answered.

p = fast(x224); a = decode(p); c = conf(p, a)
if tier in (balanced, pro) and c < route[tier][format]:
    p = max(x280); a = decode(p); c = conf(p, a)
abstain = c < abstain[tier][format]

Thresholds by file format (standard / strict; route for cascades), fixed on calibration data only:

Pico's web files use 0.426 / 0.833 (FP32) and 0.415 / 0.833 (INT8). INT8 files are 0.2–0.7 points less accurate on the calibration set than FP32 and slightly less confident, which is why their thresholds are lower; FP16, TensorRT FP16, OpenVINO and Core ML give the same answers as FP32 within a few images.

The grid fix: no JPEG-grid or resampling shortcut

A digitally rotated JPEG photo carries faint traces of its own rotation: the photo's 8 × 8 JPEG block grid and the pixel grid of the resampled image turn with the content, so a model can read part of the angle from them instead of from the scene. A rolled camera never produces these traces. We found that our earlier models read them, removed the cause from training (lossless, grid-free training images; views rendered the way a camera sees them; decoy and content-free probe images; a penalty on any residual lean) and retrained every tier. Every shipped file passes a pre-registered check on content-free probe images in its own runtime (argmax ρ₄ ≤ 0.20 on three probe sets: ONNX Runtime CPU and CUDA, TensorRT FP16, OpenVINO and Core ML). Method, evidence, seed sensitivity and every pre-registration deviation: TECHNICAL-REPORT.md §4.

Built for CHEQIT

We built RightWayUp for our CHEQIT camera-health work: to spot from a single frame that a CCTV camera has been knocked, rolled or remounted, or was mounted at the wrong angle in the first place, and to say by how many degrees. It turned out just as useful on everyday photos and scenes, so we opened it up. If you run cameras at scale, see CHEQIT.

Intended use

Detecting rolled, upside-down or mis-mounted cameras (CCTV, dashcams, body-worn), auto-straightening photos and scans, document capture, and orientation hints for ground robots and handheld devices.

Out of scope and limitations

• No "up" to find. Straight-down aerial images and cue-free close-ups (bare walls, sky, textures) have no defined "up"; use the abstain flag.
• Thermal footage. Accuracy on unseen thermal cameras varies widely (Aalborg camera: Max 83.3%, Nano 48.7%); use Max.
• Pico is weak on strongly rolled CCTV: 41.1% on held-out camera G329, which is rolled about 36° in some clips.
• Rotation corners. Black, white and grey corners from software rotation are handled by every tier; a sky-blue corner fill can flip Nano by 180°.
• Training data is Flickr-heavy (Western consumer photography) plus one US CCTV dataset with ten training cameras (two thermal). See DATA-CARD.md.

Training

DINOv2 backbones (Apache-2.0, Meta) fully fine-tuned with layer-wise learning-rate decay; a 360-bin head with a circular-Gaussian soft-target loss; random 0–360° rotations with angle-independent crops (the angle-leaking max-area crop is never used for training); simulated CCTV-style degradations. For the release every tier was retrained on grid-free data: lossless 448-px training images re-fetched from the original sources, views rendered with a 1.5× output downscale (the way a camera sees a rolled scene), decoys and content-free probes, and knowledge distillation from Max on the clean view. Max is a uniform weight average of eight ViT-L/14 checkpoints (four seeds, two stages each); Fast is distilled from Max; Nano is a two-seed weight average; Pico is Nano fine-tuned at 56–70 px, distilled from Max, then weight-averaged with a rotation-corner fine-tune (0.2 : 0.8). Recipe: RECIPE.md.

Data. Max, Fast and Pico were trained on about 1.24 million distinct images, each with a recorded source and licence: 1.22 million photos (PASS, COCO, Open Images, CommonCatalog; Flickr-hosted, CC BY or public-domain-like terms) plus 14,669 DIODE scans, 3,749 MEVA CCTV frames and 3,579 ORTUS AI renders of Poly Haven assets. Nano used an earlier subset (705,075 training rows). Near-duplicates of benchmark photos were excluded, and there is no customer data. Per-image manifests: manifests/training/ (per-row files in the Hugging Face repository); our Blender renders: ortusai/rightwayup-renders (CC BY 4.0); sources, licences and screening: DATA-CARD.md.

Backbone. DINOv2 was pretrained by Meta on LVD-142M, curated from crawled web data; we use Meta's Apache-2.0 DINOv2 weights (pinned revisions and SHA-256 in RECIPE.md).

Licence and attribution

Code and weights: Apache License 2.0 (LICENSE). If you redistribute RightWayUp or a modified version, include LICENSE and NOTICE and state your changes. Training-data attribution: DATA-CARD.md and manifests/; removal requests: TAKEDOWN.md.

RightWayUp™ and ORTUS AI™ are trademarks of ORTUS AI and are not licensed under Apache-2.0 (§6). You may say your work is "based on RightWayUp by ORTUS AI"; please give modified or retrained models a different name.

Crediting RightWayUp. If RightWayUp helps your product, research or project, we'd be grateful if you mention "Orientation by RightWayUp from ORTUS AI" with a link to https://cheqit.ortusai.io/resources/rightwayup/, cite it in papers (CITATION.cff or the BibTeX below), and tell us where it's used: hello@ortusai.io.

Citation

@misc{ortusai2026rightwayup,
  title  = {RightWayUp: Full-circle image roll estimation with calibrated abstention},
  author = {ORTUS AI},
  year   = {2026},
  url    = {https://github.com/ortusaitech/rightwayup}
}
