AlphaRotate: A Rotation Detection Benchmark using TensorFlow

:rocket::rocket::rocket: News: MMRotate has been released at https://github.com/open-mmlab/mmrotate :rocket::rocket::rocket:

Abstract

AlphaRotate is mainly maintained by Xue Yang with Shanghai Jiao Tong University supervised by Prof. Junchi Yan.

Papers and codes related to remote sensing/aerial image detection: DOTA-DOAI .

Techniques:

• Dataset: DOTA, HRSC2016, ICDAR2015, ICDAR2017 MLT, MSRA-TD500, UCAS-AOD, FDDB, OHD-SJTU, SSDD++, Total-Text
• Baackbone: ResNet, MobileNetV2, EfficientNet, DarkNet53
• Neck: FPN, BiFPN
• Detectors:
  • R²CNN (Faster-RCNN-H): R2CNN_Faster-RCNN_Tensorflow , DOTA-DOAI , R2CNN_FPN_Tensorflow (Deprecated)
  • Double Head
  • RRPN (Faster-RCNN-R): TF code
  • SCRDet (ICCV19): R²CNN++ , IoU-Smooth L1 Loss
  • RetinaNet-H, RetinaNet-R: TF code
  • RefineRetinaNet (CascadeRetinaNet)
  • ATSS
  • FCOS
  • RSDet (AAAI21): TF code
  • RSDet++ (FCOS-RSDet)
  • R³Det (AAAI21): TF code , PyTorch code1 , PyTorch code2 , Pytorch code3
  • Circular Smooth Label (CSL ECCV20): TF code , PyTorch code
  • Densely Coded Label (DCL CVPR21): TF code
  • GWD (ICML21): PyTorch code
  • BCD (TPAMI22): PyTorch code
  • KLD (NeurIPS21): PyTorch code
  • RIDet (GRSL): PyTorch code
  • KFIoU (ICLR23): PyTorch code
  • Mixed method: R³Det-DCL, R³Det-GWD, R³Det-BCD, R³Det-KLD, FCOS-RSDet, R²CNN-BCD, R²CNN-KF
• Loss: CE, Focal Loss, Smooth L1 Loss, IoU-Smooth L1 Loss, Modulated Loss
• Others: SWA, exportPb, MMdnn

The above-mentioned rotation detectors are all modified based on the following horizontal detectors:

• Faster RCNN: TF code
• R-FCN: TF code
• FPN: TF code1 , TF code2 (Deprecated)
• Cascade RCNN: TF code
• Cascade FPN RCNN: TF code
• RetinaNet: TF code
• RefineDet: MxNet code
• FCOS: TF code , MxNet code

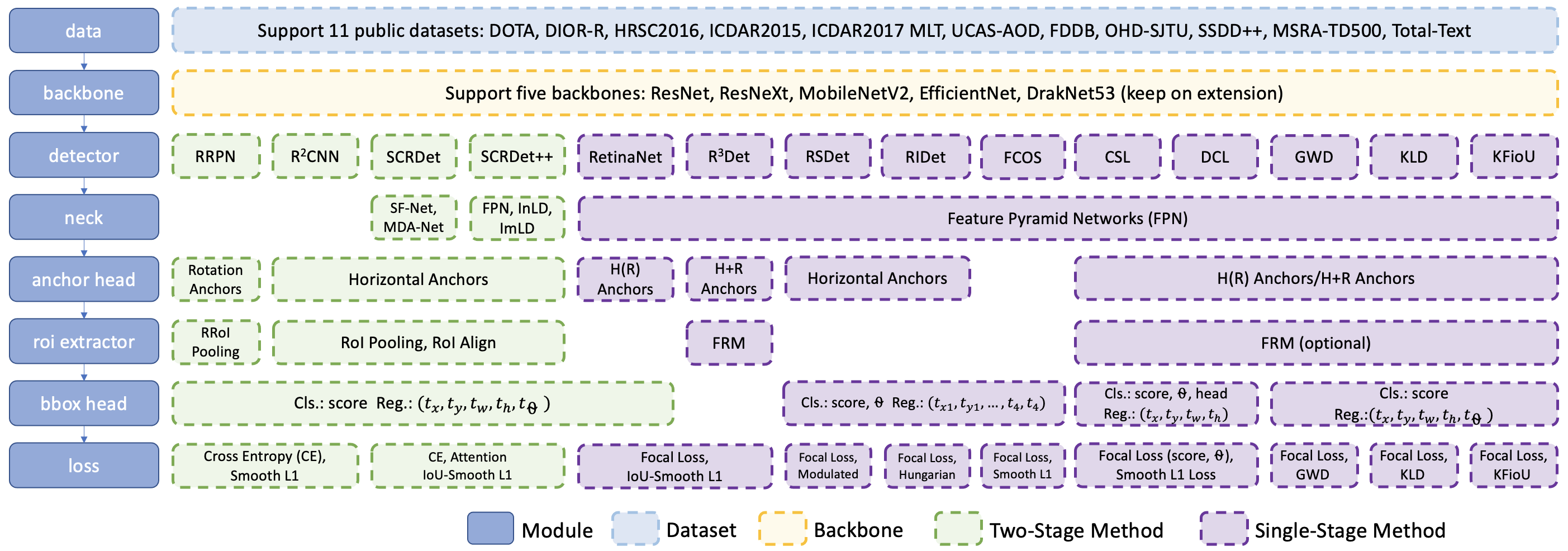

Projects

Latest Performance

All trained weights can also be downloaded from HuggingFace.

DOTA (Task1)

Baseline

SOTA

Note:

• Single GPU training: SAVE_WEIGHTS_INTE = iter_epoch * 1 (DOTA1.0: iter_epoch=27000, DOTA1.5: iter_epoch=32000, DOTA2.0: iter_epoch=40000)
• Multi-GPU training (better): SAVE_WEIGHTS_INTE = iter_epoch * 2

My Development Environment

• python3.5 (anaconda recommend)
• cuda 10.0
• opencv-python 4.1.1.26 (important)
• tfplot 0.2.0 (optional)
• tensorflow-gpu 1.13
• tqdm 4.54.0
• Shapely 1.7.1

Installation

Manual configuration (cuda version < 11)

pip install -r requirements.txt
pip install -v -e .  # or "python setup.py develop"

Or, you can simply install AlphaRotate with the following command:

pip install alpharotate  # Not suitable for dev.

Docker (cuda version < 11)

docker images: yangxue2docker/yx-tf-det:tensorflow1.13.1-cuda10-gpu-py3

Note: For 30xx series graphics cards (cuda version >= 11), I recommend this blog to install tf1.xx, or download image from tensorflow-release-notes according to your development environment, e.g. nvcr.io/nvidia/tensorflow:20.11-tf1-py3

cd alpharotate/libs/utils/cython_utils
rm *.so
rm *.c
rm *.cpp
python setup.py build_ext --inplace (or make)

cd alpharotate/libs/utils/
rm *.so
rm *.c
rm *.cpp
python setup.py build_ext --inplace

Download Model

Pretrain weights

Download a pretrain weight you need from the following three options, and then put it to $PATH_ROOT/dataloader/pretrained_weights.

1. MxNet pretrain weights (recommend in this repo, default in NET_NAME): resnet_v1d, resnet_v1b, refer to gluon2TF.

• Baidu Drive (5ht9)
• Google Drive

2. Tensorflow pretrain weights: resnet50_v1, resnet101_v1, resnet152_v1, efficientnet, mobilenet_v2, darknet53 (Baidu Drive (1jg2), Google Drive).
3. PyTorch pretrain weights, refer to pretrain_zoo.py and Others.

• Baidu Drive (oofm)
• Google Drive

Trained weights

1. Please download trained models by this project, then put them to $PATH_ROOT/output/pretained_weights.

Train

1. If you want to train your own dataset, please note:

   (1) Select the detector and dataset you want to use, and mark them as #DETECTOR and #DATASET (such as #DETECTOR=retinanet and #DATASET=DOTA)
   (2) Modify parameters (such as CLASS_NUM, DATASET_NAME, VERSION, etc.) in $PATH_ROO./configs/#DATASET/#DETECTOR/cfgs_xxx.py
   (3) Copy $PATH_ROO./configs/#DATASET/#DETECTOR/cfgs_xxx.py to $PATH_ROO./configs/cfgs.py
   (4) Add category information in $PATH_ROOT/libs/label_name_dict/label_dict.py
   (5) Add data_name to $PATH_ROOT/dataloader/dataset/read_tfrecord.py


2. Make tfrecord
   If image is very large (such as DOTA dataset), the image needs to be cropped. Take DOTA dataset as a example:

   cd $PATH_ROOT/dataloader/dataset/DOTA
   python data_crop.py


   If image does not need to be cropped, just convert the annotation file into xml format, refer to example.xml.

   cd $PATH_ROOT/dataloader/dataset/
   python convert_data_to_tfrecord.py --root_dir='/PATH/TO/DOTA/'
                                      --xml_dir='labeltxt'
                                      --image_dir='images'
                                      --save_name='train'
                                      --img_format='.png'
                                      --dataset='DOTA'


3. Start training

   cd $PATH_ROOT/tools/#DETECTOR
   python train.py


Test

1. For large-scale image, take DOTA dataset as a example (the output file or visualization is in $PATH_ROOT/tools/#DETECTOR/test_dota/VERSION):

   cd $PATH_ROOT/tools/#DETECTOR
   python test_dota.py --test_dir='/PATH/TO/IMAGES/'
                       --gpus=0,1,2,3,4,5,6,7
                       -ms (multi-scale testing, optional)
                       -s (visualization, optional)

   or (recommend in this repo, better than multi-scale testing)

   python test_dota_sota.py --test_dir='/PATH/TO/IMAGES/'
                            --gpus=0,1,2,3,4,5,6,7
                            -s (visualization, optional)


   Notice: In order to set the breakpoint conveniently, the read and write mode of the file is' a+'. If the model of the same #VERSION needs to be tested again, the original test results need to be deleted.

2. For small-scale image, take HRSC2016 dataset as a example:

   cd $PATH_ROOT/tools/#DETECTOR
   python test_hrsc2016.py --test_dir='/PATH/TO/IMAGES/'
                           --gpu=0
                           --image_ext='bmp'
                           --test_annotation_path='/PATH/TO/ANNOTATIONS'
                           -s (visualization, optional)

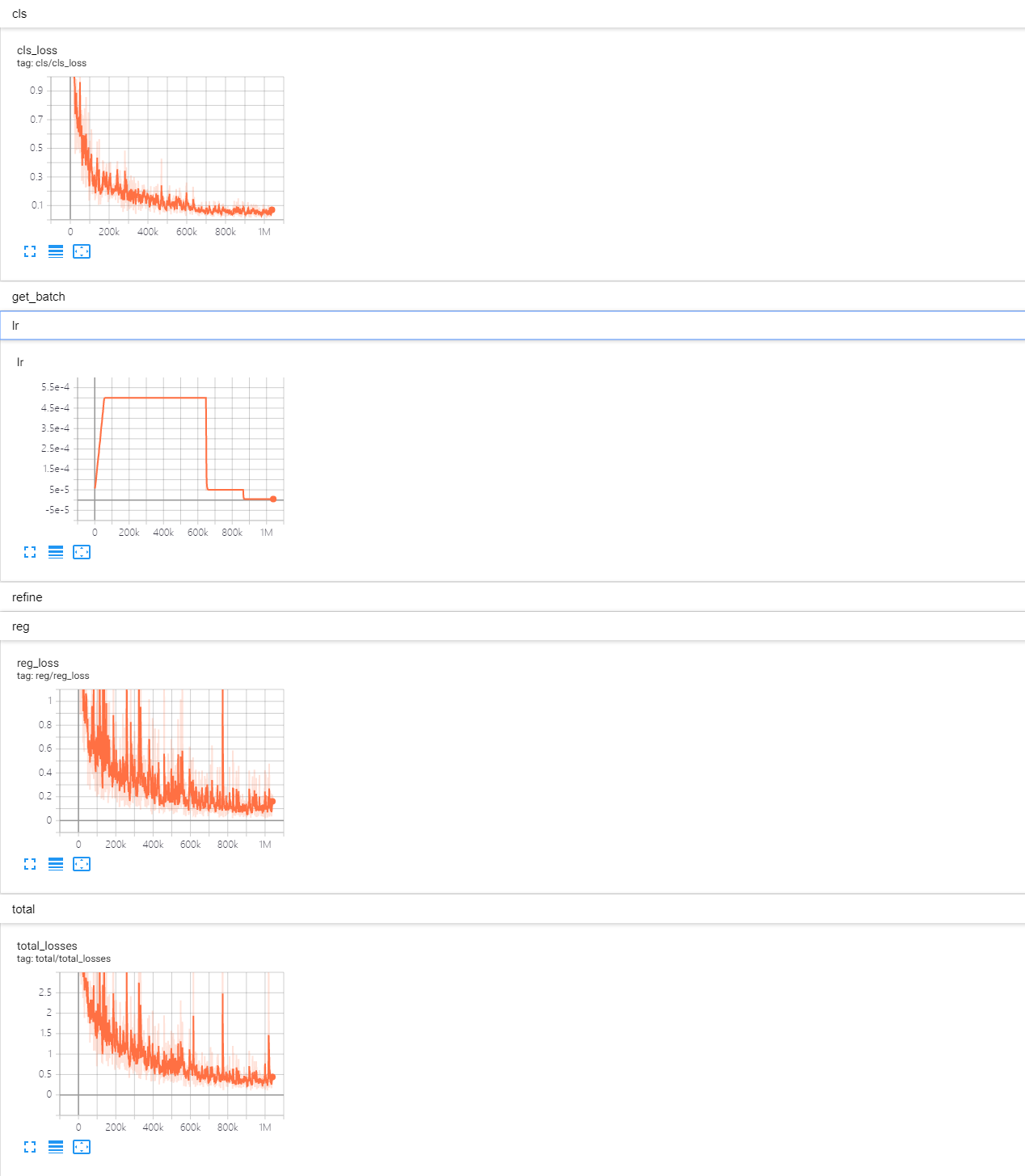

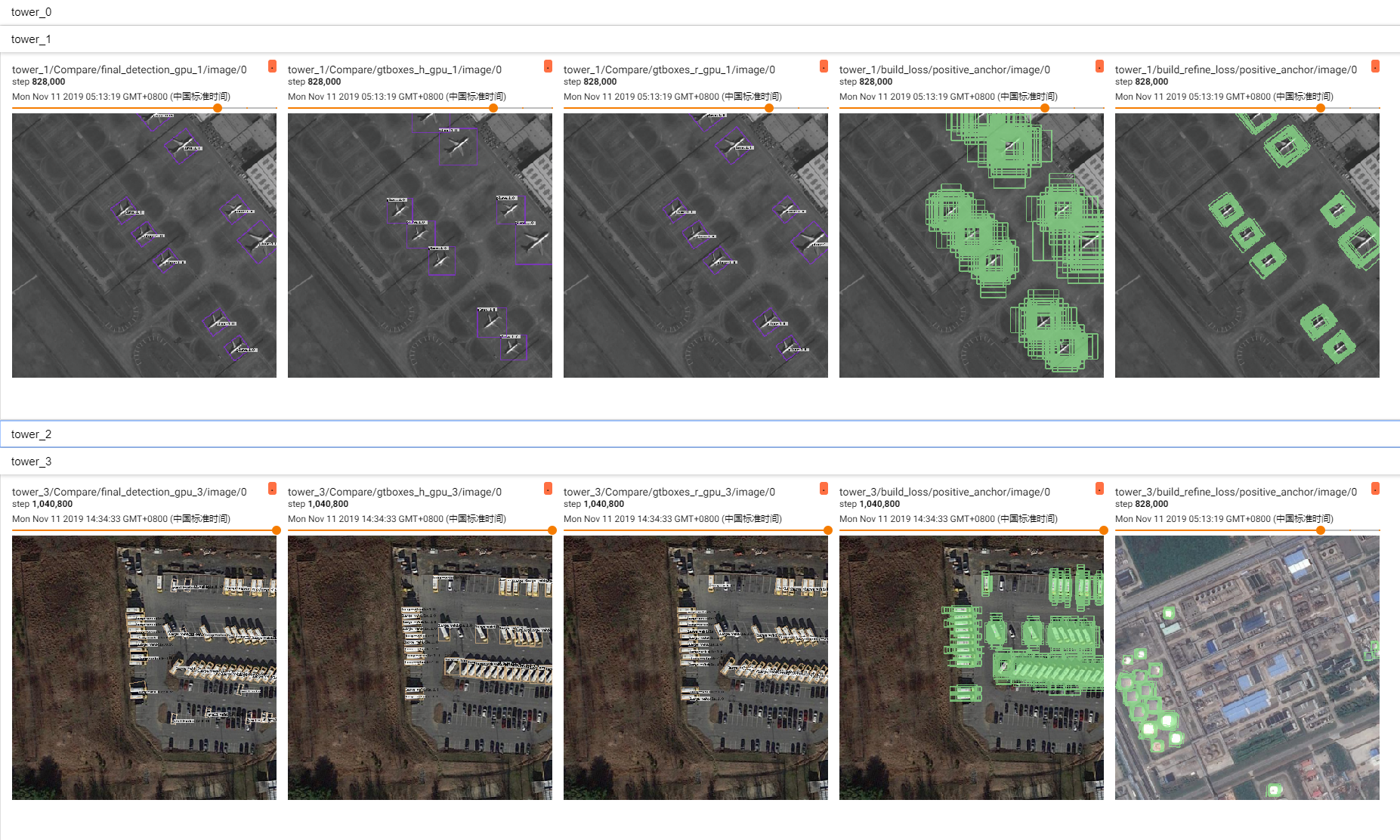

Tensorboard

cd $PATH_ROOT/output/summary
tensorboard --logdir=.

Citation

If you find our code useful for your research, please consider cite.

@article{yang2021alpharotate,
    author  = {Yang, Xue and Zhou, Yue and Yan, Junchi},
    title   = {AlphaRotate: A Rotation Detection Benchmark using TensorFlow},
    journal = {arXiv preprint arXiv:2111.06677},
    year    = {2021},
}
