A self-hosted, real-time port monitoring and discovery tool.

By auto-discovering services on your systems, portracker provides a live, accurate map of your network. It helps eliminate manual tracking in spreadsheets and prevents deployment failures caused by port conflicts.

---

Key Features

• Automatic Port Discovery: Scans the host system to find and display running services and their ports automatically. No manual data entry is needed.
• Platform-Specific Collectors: Includes specialized collectors for Docker and TrueNAS to gather rich, contextual information from the host.
• Internal Port Detection: Distinguishes between internal container ports and published host ports, providing complete visibility into containerized services.
• Lightweight & Self-Contained: Runs as a single process with an embedded SQLite database. No external database dependencies like PostgreSQL or Redis are required.
• Peer-to-Peer Monitoring: Add other portracker instances as peers to view all your servers, containers, and VMs from a single dashboard.
• Hierarchical Grouping: Organize servers in a parent-child structure, perfect for nesting servers, e.g. a VM's portracker instance under its physical host.
• Enhanced TrueNAS Discovery: Providing an optional TrueNAS API key allows portracker to discover running VMs* and gather enhanced system information like the OS version and uptime.

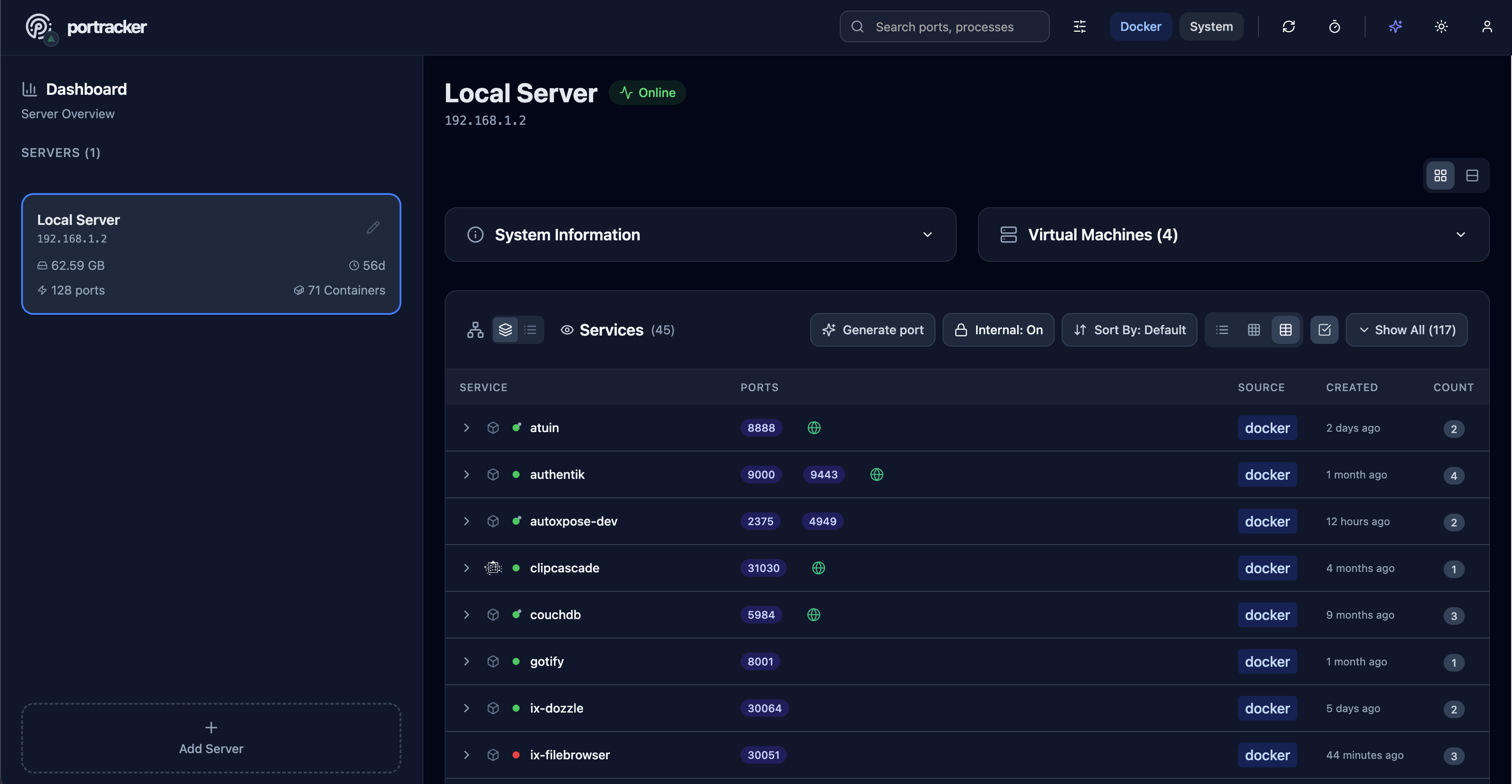

• Modern & Responsive UI: A clean dashboard with light/dark modes, live filtering, and multiple data layout views (list, grid, table).

_{*Note: VMs discovered on TrueNAS with the optional API key are shown in read-only mode. To enable full monitoring, deploy a portracker instance on each VM and add it as a separate server.}

Deployment

Deployment is designed to be simple using Docker.

Quick Get Started

Using Docker Compose:

Create a docker-compose.yml file:

services:
  portracker:
    image: mostafawahied/portracker:latest
    container_name: portracker
    restart: unless-stopped
    pid: "host"  # Required for port detection
    # Required permissions for system ports service namespace access
    cap_add:
      - SYS_PTRACE     # Linux hosts: read other PIDs' /proc entries
      - SYS_ADMIN      # Docker Desktop: allow namespace access for host ports (required for MacOS)
    security_opt:
      - apparmor:unconfined # Required for system ports
    volumes:
      # Required for data persistence
      - ./portracker-data:/data
      # Required for discovering services running in Docker
      - /var/run/docker.sock:/var/run/docker.sock:ro
    ports:
      - "4999:4999"
    # environment:
      # Optional: For enhanced TrueNAS features
      # - TRUENAS_API_KEY=your-api-key-here

Then, run the application:

docker-compose up -d

Using Docker Run:

docker run -d \
  --name portracker \
  --restart unless-stopped \
  --pid host \
  --cap-add SYS_PTRACE \
  --cap-add SYS_ADMIN \
  --security-opt apparmor=unconfined \
  -p 4999:4999 \
  -v ./portracker-data:/data \
  -v /var/run/docker.sock:/var/run/docker.sock:ro \
  mostafawahied/portracker:latest

Enhanced Security with Docker Proxy

For enhanced security, you can run portracker without direct access to the Docker socket by using a proxy. This restricts the Docker API permissions to read-only operations.

Using Docker Compose:

services:
  docker-proxy:
    image: tecnativa/docker-socket-proxy:latest
    container_name: portracker-docker-proxy
    restart: unless-stopped
    environment:
      - CONTAINERS=1
      - IMAGES=1
      - INFO=1
      - NETWORKS=1
      - POST=0
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
    ports:
      - "2375:2375"

  portracker:
    image: mostafawahied/portracker:latest
    container_name: portracker
    restart: unless-stopped
    pid: "host"
    cap_add:
      - SYS_PTRACE
      - SYS_ADMIN
    security_opt:
      - apparmor:unconfined
    volumes:
      - ./portracker-data:/data
    ports:
      - "4999:4999"
    environment:
      - DOCKER_HOST=tcp://docker-proxy:2375
    depends_on:
      - docker-proxy

Using Docker Run:

# Start the Docker proxy
docker run -d \
  --name portracker-docker-proxy \
  --restart unless-stopped \
  -p 2375:2375 \
  -v /var/run/docker.sock:/var/run/docker.sock:ro \
  -e CONTAINERS=1 \
  -e IMAGES=1 \
  -e INFO=1 \
  -e NETWORKS=1 \
  -e POST=0 \
  tecnativa/docker-socket-proxy:latest

# Start portracker
docker run -d \
  --name portracker \
  --restart unless-stopped \
  --pid host \
  --cap-add SYS_PTRACE \
  --cap-add SYS_ADMIN \
  --security-opt apparmor=unconfined \
  -p 4999:4999 \
  -v ./portracker-data:/data \
  -e DOCKER_HOST=tcp://localhost:2375 \
  mostafawahied/portracker:latest

Configuration

Configure portracker using environment variables.

_*Required

For a complete list of all environment variables with detailed explanations, see .env.example.

TrueNAS Integration

Click to expand TrueNAS setup guide

Getting Your TrueNAS API Key

1. Log into your TrueNAS web interface
2. Go to System Settings → API Keys
3. Click Add to create a new API key
4. Give it a descriptive name (e.g., "portracker")
5. Copy the generated key
6. Add it to portracker:
   • TrueNAS Apps: Edit your portracker app → Add Environment Variable: TRUENAS_API_KEY=your-api-key-here
   • Docker Compose: Add to environment section:

     environment:
       - TRUENAS_API_KEY=your-api-key-here


What You'll See

With the API key configured, portracker will display:

• ✅ TrueNAS native apps (from Apps catalog)
• ✅ Virtual machines (VMs)
• ✅ LXC containers
• ✅ Enhanced system information (OS version, uptime, etc.)

Without the API key, you'll only see Docker containers and system ports.

For timeout configuration options, see .env.example.

Authentication Setup (v1.2.0+)

portracker includes optional authentication to secure dashboard access:

1. Enable Authentication: Set ENABLE_AUTH=true in your environment variables
2. First-Time Setup: On first access, you'll see a setup wizard to create the admin account
3. Login: Use your admin credentials to access the dashboard
4. Stay Logged In (optional): Set SESSION_SECRET to avoid being logged out on container restart

Example with Authentication:

services:
  portracker:
    image: mostafawahied/portracker:latest
    environment:
      - ENABLE_AUTH=true
      - SESSION_SECRET=your-random-secret-here-change-this

Important Notes:

• Authentication is disabled by default for backward compatibility
• With authentication disabled, anyone who can reach Portracker has administrator-level UI and API control; keep it on a trusted network or protect it with an authenticated reverse proxy
• When enabled, dashboard, settings, and integration endpoints require a signed-in session
• Peer data endpoints accept API key authentication for instance-to-instance communication
• API key authentication for peer-to-peer communication is available in v1.3.0
• Reverse proxies should preserve the public Host header; otherwise set CORS_ORIGIN to the exact public origin, including https://

Autoxpose Integration (v1.3.0+)

If you run autoxpose to manage your public-facing services, portracker can display which ports are publicly exposed alongside their internal addresses.

Setup:

1. Open Settings (gear icon in header)
2. Expand the autoxpose section
3. Enter your autoxpose URL (e.g., http://autoxpose:3000)
4. Click Connect

After upgrading to v1.3.11, reconnect an existing autoxpose integration once while signed in. Private LAN and container-DNS addresses remain supported. Loopback, link-local, reserved, credential-bearing, query-bearing, and redirecting destinations are rejected; use the autoxpose service name or LAN address instead of localhost.

What You'll See:

Once connected, exposed services show a public URL chip or globe badge next to the port:

• URL Mode: Full clickable chip showing 🌐 photos.example.com 🔒
• Badge Mode: Compact globe icon with tooltip

Display Options:

• Display Mode: Toggle between URL chip or compact badge
• URL Style: Show subdomain only (compact) or full hostname

SSL Status Indicators:

Technical Stack

• Backend: Node.js, Express, WebSocket, better-sqlite3
• Frontend: React, Vite, Tailwind CSS, Shadcn UI
• Containerization: Docker

Roadmap

Future development is focused on improving the application based on community feedback. Key areas include:

• Adding user authentication ✅ Added in v1.2.0 (optional authentication with setup wizard)
• Adding API key authentication for peer-to-peer communication ✅ Added in v1.3.0
• autoxpose integration for public URL visibility ✅ Added in v1.3.0
• Expanding the library of platform-specific collectors for other host systems
• Addressing bugs and incorporating requested changes from the community

Star History

Contributing

Contributions are welcome! Please feel free to open an issue to report a bug or suggest a feature, or submit a pull request with your improvements.

License

This project is licensed under the MIT License - see the LICENSE
