FTP-1: A Generalist Foundation Tactile Policy Across Tactile Sensors for Contact-Rich Manipulation

Table of Contents

• 1. Introduction
• 2. Model & Dataset Download
• 3. Installation
• 4. Post-Training of FTP-1 Model
  • 4.1. Data Preparation
  • 4.2. Post-Training
  • 4.3. FTP-1 Inference
  • 4.4. Evaluation on UniVTAC
• 5. Pre-Training of FTP-1 Model
• 6. Acknowledgment

1. Introduction

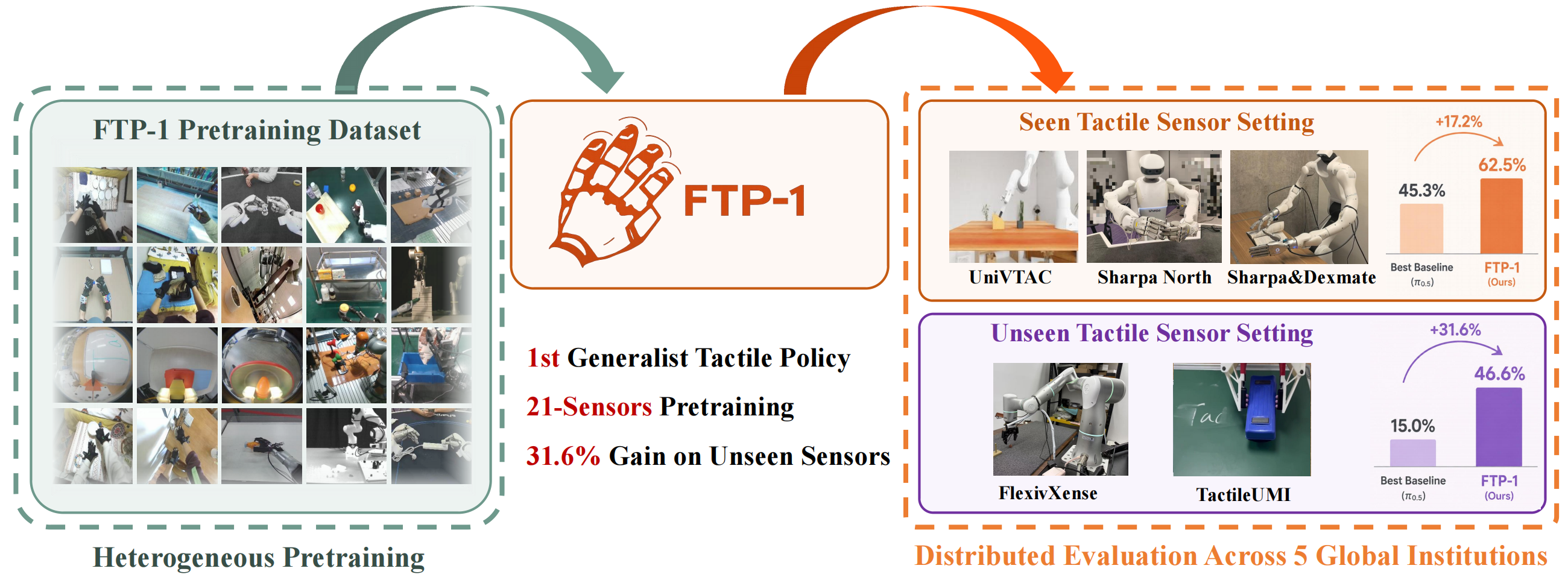

FTP-1 is the first the first generalist foundation tactile policy pretrained to acquire transferable tactile manipulation abilities across diverse sensors and embodiments.

By “generalist”, we mean:

• Sensor-general: FTP-1 supports a wide range of tactile sensing modalities, including image-based, array-based, and state-based tactile sensors.
• Data-scaled: FTP-1 is pretrained on approximately 3,000 hours of large-scale, heterogeneous tactile manipulation data, spanning human demonstrations, dexterous hands, and gripper-based robots.
• Embodiment-transferable: FTP-1 can be fine-tuned across diverse sensors and robot embodiments, and can even transfer to unseen sensors and platforms with measurable performance gains.

This repository contains the FTP-1 codebase and tutorials for fine-tuning FTP-1 on downstream tactile manipulation tasks. It also includes the code used for FTP-1 pretraining.

2. Model & Dataset Download

• Model Checkpoints

• Pretrained Datasets

3. Installation

This repository is built on top of openpi and follows a very similar setup process.

GIT_LFS_SKIP_SMUDGE=1 uv sync
GIT_LFS_SKIP_SMUDGE=1 uv pip install -e .
cp -r ./src/openpi/models_pytorch/transformers_replace/* .venv/lib/python3.11/site-packages/transformers/

For additional environment details, see README_openpi.md.

4. Post-Training of FTP-1 Model

We use UniVTAC as an example domain to illustrate the full FTP-1 fine-tuning workflow for sensor-specific and embodiment-specific tasks.

4.1. Data Preparation

The FTP-1 training pipeline is based on the zarr data format. Before training, the original dataset must be converted into zarr files that follow the FTP-1-compatible key convention. For details, see data_processing/README.md.

4.2. Post-Training

Example fine-tuning scripts are provided in scripts_exp_zarr/univtac. First, prepare a dataset configuration file based on the zarr data generated in the previous step. An example is available at:

scripts_exp_zarr/univtac/dataset_univtac.json

Then compute normalization statistics for the UniVTAC domain:

bash scripts_exp_zarr/univtac/compute_norm_stats_univtac_example.sh

The resulting normalization files are saved under the assets/ directory. For embodiments already seen during pretraining, we recommend reusing the pretrained normalization assets instead of recomputing them from scratch. You can copy the relevant files from the pretrained checkpoint listed in Model & Dataset Download. For sensors already seen during pretraining, we also recommend initializing the tactile encoder from the pretrained checkpoint. See the checkpoint's hpt_tokenizer/ and normalization/ directories in downloaded pretrained checkpoint folder. Once normalization is ready, start fine-tuning with:

bash scripts_exp_zarr/univtac/train_univtac_example.sh

Some important parameters in train_univtac_example.sh and train_univtac_example_swanlab.sh are worth checking before you launch a real run:

• repo_id and exp_name: control how normalization assets and checkpoints are named and organized.
• dataset_config_path: points to the dataset JSON used for training, including the zarr paths for each domain.
• checkpoint_base_dir, assets_base_dir, and OPENPI_DATA_HOME: define where checkpoints, normalization files, and runtime cache are stored.
• pytorch_weight_path: specifies the pretrained FTP-1 or $\pi_{0.5}$ checkpoint used for initialization.
• batch_size, num_train_steps, lr_warmup_steps, lr_peak_lr, and lr_decay_lr: define the main optimization scale and learning-rate schedule.
• state_input_mode and model_tactile_expert_variant: control the model input formulation and the tactile expert backbone used by the policy.
• proprioception_pose_rep, action_pose_rep, proprioception_joint_rep, and action_joint_rep: define the representation format for robot state and action, and should stay consistent with dataset preparation and normalization.
• CUDA_VISIBLE_DEVICES, pytorch_training_precision, and use_torch_compile: control device allocation and performance-related runtime settings.

If you want to log runs with SwanLab, use:

bash scripts_exp_zarr/univtac/train_univtac_example_swanlab.sh

This launcher keeps the same training parameters but additionally sets the SwanLab environment variables, including SWANLAB_API_KEY, SWANLAB_SAVE_DIR, and SWANLAB_LOG_DIR.

4.3. FTP-1 Inference

To instantiate a trained FTP-1 checkpoint for standalone inference, the recommended entry point is FTP1InferenceWrapper in src/openpi/policies/ftp1_inference_wrapper.py. This wrapper handles checkpoint loading, input normalization, and action denormalization.

from openpi.policies import FTP1InferenceWrapper
import numpy as np

wrapper = FTP1InferenceWrapper(
    checkpoint_dir="/path/to/checkpoint/7999",
    domain_name="your_domain_name",
    device="cuda",
    num_inference_steps=10,
)

images = {
    "camera_ego_rgb_0": np.zeros((224, 224, 3), dtype=np.uint8),
}
state = np.zeros((1, wrapper.get_state_dim()), dtype=np.float32)
prompt = "insert the tube"
tactiles = {
    "right_tactile_gripper": np.zeros((1, 2, 224, 224, 3), dtype=np.float32),
}
tactile_function_areas = {
    "right_tactile_gripper": [0, 1],
}
tactile_sensors = {
    "right_tactile_gripper": "GelSightMini",
}

action = wrapper.infer(
    images=images,
    state=state,
    prompt=prompt,
    tactiles=tactiles,
    tactile_function_areas=tactile_function_areas,
    tactile_sensors=tactile_sensors,
)

In the current FTP1InferenceWrapper path, you normally do not need to manage batch_size explicitly: the wrapper is effectively a single-sample inference API and internally uses batch size 1. However, you still need to respect the input time dimension T:

• images are usually passed as single frames with shape (H, W, 3); the wrapper adds the batch dimension automatically.
• state should be shaped as (T, state_dim). For most current FTP-1 checkpoints, T=1 is the standard choice because inference typically uses only the current state (disable_history=True by default).
• tactiles should be shaped as (T, num_areas, ...), and in most standard online inference setups this also means T=1.

The returned action is a denormalized action chunk with shape (action_horizon, action_dim), where action_horizon is determined by the checkpoint config (FTP-1 default is 32). In most setups, you execute the first step or a short prefix of this chunk in the environment, then re-run inference with the latest observation.

For standard FTP-1 tactile checkpoints, you should provide tactiles, tactile_function_areas, and tactile_sensors to wrapper.infer(...) as shown above. Only if the checkpoint itself was trained without tactile input can these arguments be omitted. The full input/output specification and a more complete example are documented directly in src/openpi/policies/ftp1_inference_wrapper.py.

For checkpoint-loading and debugging only, see scripts/zarr_infer_ftp1.py, which loads a checkpoint and drops into pdb for manual inspection.

4.4. Evaluation on UniVTAC

We provide FTP-1 installation instructions for the UniVTAC benchmark environment in UniVTAC/Installation_FTP1.md. After setup, run:

cd UniVTAC
bash scripts/shell/eval_ftp1_batch.sh

This will launch evaluation. Results are saved in UniVTAC/eval_results.

You can also directly download our fine-tuned checkpoints and evaluate them without running fine-tuning yourself.

5. Pre-Training of FTP-1 Model

For a lightweight pretraining example, refer to scripts_exp_zarr/pretrain_small, which provides a minimal recipe for normalization-statistics computation and FTP-1 pretraining launch.

When training on multiple domains jointly, FTP-1 automatically uses its heterogeneous pretraining infrastructure. This infrastructure assigns samples from different domains to separate GPUs so that samples within each GPU batch share the same data format, enabling efficient large-scale heterogeneous training. Gradients of domain-specific modules are updated independently, while gradients of shared modules are merged before the joint update.

6. Acknowledgment

This repository is based on the code from OpenPi, MotionTrans, MotionTrans-Pi, UniVTAC and T3-Encoder. We sincerely appreciate their contribution to the open-source community, which have significantly supported this project. We also sincerely thank our AI-collaborators Codex and ClaudeCode.
