The Sampler's Fault

How compute, schedule, and sampling govern discrete diffusion on formal languages

Kseniia Strelbytska · Stephen Perse Cambridge · IAI²O AI4Sci (Natural & Applied Science: Mathematics)

📄 Paper (PDF) · 📊 Quad chart · ✍️ Typst sources: paper/paper.typ, paper/quad_chart.typ

Status: complete. The paper and quad chart are final and submitted. This repository holds the oracle models, the Gaussian schedule, the full sweep pipeline, the real-model (CoDA-1.7B) validation, and the figure-generation code behind every number in the paper.

---

TL;DR

• Replaced the denoiser neural network with a mathematically exact oracle and isolated the sampling error. With learning error driven to zero, diffusion still fails on formal grammars — so a substantial part of the failure is intrinsic to sampling, not learning.
• Designed a novel position-dependent Gaussian noise schedule giving a 2–4× compute efficiency improvement. It beats the classical uniform schedule on every grammar in at least one sampling regime, at no cost in diversity under categorical sampling (peak gain +0.38 absolute accuracy at T = 16).
• Validated on CoDA-1.7B-Instruct / HumanEval: Gaussian beats uniform by +58% relative at T = 32 and +94% at T = 128 pass@1, confirming the oracle findings transfer to a real masked-diffusion code model.

---

The question

Diffusion language models generate tokens in parallel, which makes them far cheaper than autoregressive models — but they break formal syntax more often. In natural language, two independently chosen tokens that disagree can usually be repaired by the rest of the sentence. In a formal grammar, one misplaced token makes the string invalid with no path back.

When a diffusion model emits an invalid string, the cause is ambiguous:

Did the network fail to learn the language, or did the sampler fail to make independently chosen tokens agree?

The two failures need opposite fixes (more data and better models vs. better schedules and samplers), so they must be separated before either can be addressed.

---

Method

1. The oracle: a mathematically exact denoiser

For a partially masked input S, the oracle returns D ∈ [0,1]^(L×V) where D[i,j] is the exact fraction of grammatically valid completions of S that place token j at position i. No learned model can do better, so every error left in the pipeline belongs to the sampler.

Each language needs its own counting algorithm (src/oracle/grammar_oracles.py, plus src/oracle/deterministic_token_distribution.py for L3). Every oracle is checked against exhaustive brute-force enumeration on short sequences (tests/test_grammar_oracles*.py).

The O(L⁵)/O(L⁴) oracles are why L4 and L6 are evaluated at L = 32, and the four O(L²) languages at L = 128.

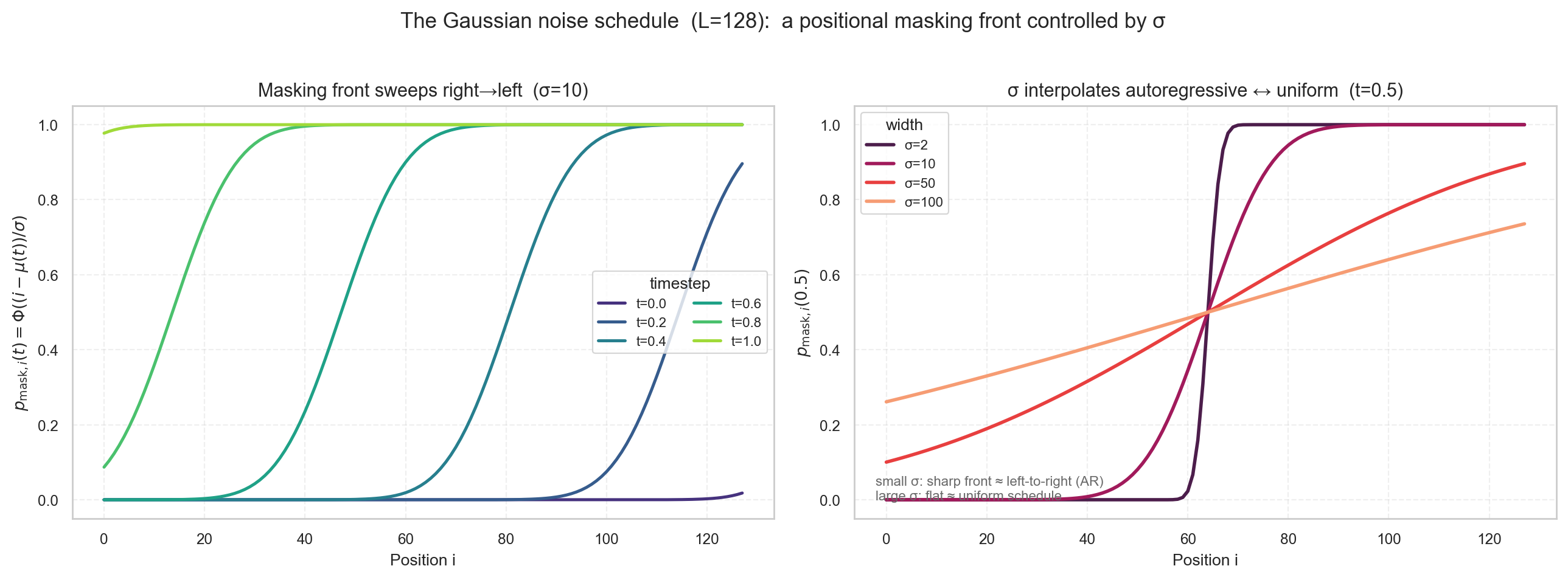

2. The Gaussian noise schedule (our contribution)

Under the standard uniform schedule, early-revealed positions are scattered at random and lack local context. We instead make the masking probability increase from left to right, so suffix positions are revealed after prefix positions and every newly revealed token has prefix context — an autoregressive-like ordering that keeps generation parallel:

W = L + 4σ,   μ(t) = (1 − t)·W − 2σ,   p_mask,i(t) = Φ((i − μ(t)) / σ)

A single width parameter σ sets the sharpness of the reveal front: small σ = sharp front, strong left-to-right bias; large σ = gradual, near-uniform front.

Implementation: src/schedules/gaussian_schedule.py (schedule), src/schedules/decoding_strategy.py (position selection), src/schedules/sampling_strategy.py (greedy / categorical).

3. The experimental grid

Metrics. Both-rules-with-format accuracy (satisfies both grammar rules and the canonical SOS/content/EOS/PAD layout), a per-language diversity metric (uniqueness or n-coverage, chosen by discriminative power at that length — src/diversity_metrics.py), and 95% Wilson score intervals throughout, which stay well-behaved when a cell saturates at 0 or 1.

4. Real-model validation

The oracle isolates sampling by construction, so the findings are stress-tested on a real pre-trained masked-diffusion code model: CoDA-1.7B-Instruct on HumanEval (164 tasks, scored with EvalPlus), L = 128, T ∈ {32, 128}. The schedule/sampler code is ported 1:1 from src/schedules/ into src/realmodel/schedules.py and driven by a single decoding loop, so 1 forward pass = 1 NFE for every decoder and the comparison is fair.

---

Results

RQ1 — the failure is intrinsic to sampling

The autoregressive decoder with the exact oracle reaches 1.000 both-rules accuracy on all six grammars (which also verifies every oracle). The classical decoder of vanilla discrete diffusion (uniform + categorical) needs T ≥ 128 steps to reach 90% accuracy on any grammar, and T = 512 on L1, L3 and L5. Parallel generation only pays off when T < L — exactly the regime where accuracy is guaranteed to fall below 90%. Since the denoiser is perfect, this gap is the sampler's.

RQ2 — four sources of sampling error

No decoder wins everywhere. EB is the most compute-efficient and matches the Gaussian ceiling on four of six grammars, but its local entropy signal misses global counts: on L3 it stalls at 0.620 where the Gaussian schedule reaches 0.992.

The mechanism behind the greedy/categorical split is visible directly in the oracle marginals: where the per-position profile is sharp and monotone, greedy commits correctly in a few steps; where a global constraint leaves interior positions near ½, greedy's one-shot argmax must guess (paper_figures/fig6_oracle_monotonicity.png).

RQ3 — the Gaussian schedule

Best accuracy reached by each schedule under categorical sampling, maximised over all budgets (and over σ for Gaussian):

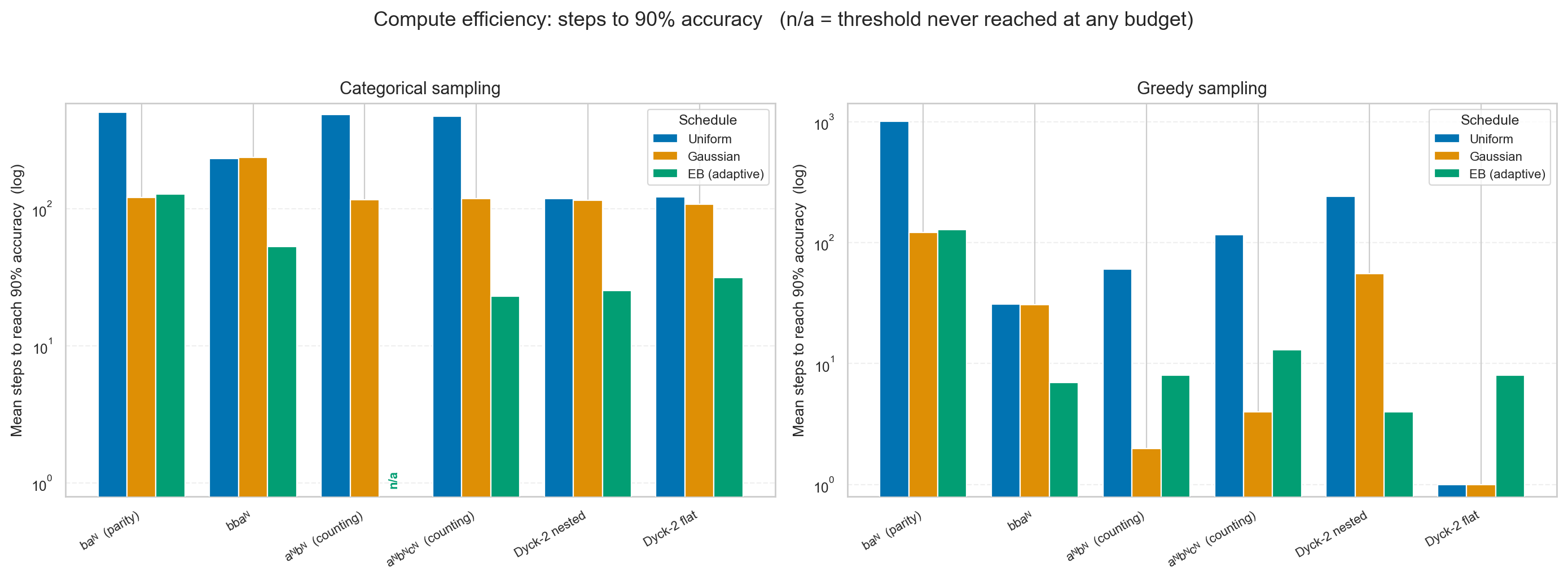

At maximum compute the two schedules have nearly converged, so the deltas are small but consistently positive. The real advantage is in the few-step regime where diffusion earns its place: at T = 16 the gain on L3 is +0.378 (uniform 0.092 → Gaussian 0.470), with L5 almost identical (+0.374). Under greedy sampling with a sharp front, the counting grammars go from near-zero to near-perfect in 2–4 steps. The Gaussian does not lift the ceiling — it reaches a given accuracy with 2–4× fewer denoising steps.

The gain tracks grammar structure: largest on the parity and counting grammars, where a left-to-right order holds a long-range count consistent, and negligible on L4, whose bracket constraint is already local so the uniform schedule leaves little headroom to recover.

Transfer to a real model (CoDA-1.7B-Instruct, HumanEval)

Takeaway: the advance of reliable diffusion-based coding and mathematical agents will come from sampling, not training.

Limitations

The oracle is a ceiling, not deployable end-to-end accuracy; we study only the forward-only regime (no re-masking); the two length regimes (128 and 32) are not compared at matched absolute compute; and the real-model validation is one 1.7B model on one benchmark with a limited hyperparameter grid.

---

Repository layout

discrete-diffusion/
├── src/
│   ├── oracle/               # ★ exact per-grammar oracles + sweep drivers
│   │   ├── grammar_oracles.py            # L1, L2, L4, L5, L6 marginals
│   │   ├── deterministic_token_distribution.py   # L3 marginals
│   │   ├── eval_oracle_T_sweep.py        # grammar × L × decoder × sampler × T × hyperparam
│   │   ├── eval_oracle_param_sweep.py    # hyperparameter grid at fixed T
│   │   └── eval_oracle_sweep.py          # oracle ceiling for a trained-model sweep
│   ├── schedules/            # ★ noise schedules, decoders, samplers
│   │   ├── noise_schedule.py             # p_mask / dp_mask ABC
│   │   ├── gaussian_schedule.py          # our position-dependent schedule
│   │   ├── categorical_schedule.py       # standard uniform schedule
│   │   ├── decoding_strategy.py          # schedule-driven vs. entropy-bounded selection
│   │   └── sampling_strategy.py          # greedy vs. categorical
│   ├── realmodel/            # ★ CoDA-1.7B-Instruct / HumanEval validation (see its README)
│   ├── datasets/             # grammar definitions, masking + evaluation datasets
│   ├── models/               # transformer variants for the training phase (see bottom)
│   ├── eval_scripts/         # checkpoint evaluation, token-distribution investigation
│   ├── diversity_metrics.py  # uniqueness, n/m-coverage, DFA coverage, ...
│   ├── noise_schedule_unmask.py  # the unmasking loop shared by every decoder
│   ├── analyse.py            # sweep analysis
│   └── main.py               # training / eval entry point
├── paper_figures/            # figure generation from the combined sweep CSV
├── paper/                    # Typst sources + final PDFs (paper, quad chart)
├── configs/                  # experiment configs (YAML)
├── results/                  # sweep outputs (T-sweep-*, combined_6_grammar.csv)
│   ├── realmodel*/           # CoDA HumanEval outputs
│   ├── ground_truth_14-06/   # 14/06 oracle vs. trained-model evaluations
│   ├── analysis/             # sweep summaries, monotonicity + noise-schedule plots
│   └── x_figures/, x_clean_figures/  # exploratory per-cell plots from analyse.py
├── docs/                     # notes, pipeline audit, project overview, older paper PDF
├── tests/                    # oracle brute-force checks, decoupling, diversity, efficiency
└── archived/                 # superseded experiments

---

Reproducing the results

python -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt
export PYTHONPATH=src

1 — Oracle sweep (the headline grid; parallelised over cells):

python src/oracle/eval_oracle_T_sweep.py --config configs/config_oracle.yaml \
    --out-dir results/T-sweep-nonDyck --n-evals 5 --workers 28

Set data.l: 32 and the Dyck grammars in the config for the L4/L6 runs. Per-run CSVs are combined into results/combined_6_grammar.csv.

2 — Figures. paper_figures/ is the single source of truth; every figure and number in the paper comes from the one combined CSV:

python paper_figures/make_paper_figures.py

3 — Real-model validation. See src/realmodel/README.md for the full run order (sanity check → CoDA reproduction → pilot → full grid). Requires a GPU:

python -m realmodel.run_code_eval --benchmark humaneval \
    --decoders uniform gaussian eb ar --samplers greedy categorical \
    --nfes 32 128 --sigmas 2 8 32 --gammas 0.5 2 --out-dir results/realmodel
python -m realmodel.aggregate_results --benchmark humaneval \
    --out-dir results/realmodel --csv results/realmodel/humaneval_passk.csv

4 — Tests (oracles vs. brute force, decoder/sampler decoupling, diversity metrics):

PYTHONPATH=src pytest tests/ \
    --ignore=tests/test_anbn_does_satisfy_format.py --ignore=tests/test_anbn_eos.py
# 142 passed

The two ignored files are legacy anbn tests left behind by the src/datasets/ package refactor and no longer import.

---

---

Appendix: training a diffusion model from scratch

The earlier phase of this project — and a large part of its total work — was training transformer based discrete diffusion models on formal languages and comparing them against autoregressive baselines on rule extrapolation and length generalisation. The paper's results deliberately replace the trained denoiser with the exact oracle, so this pipeline is not on the path to the headline findings. It is kept here because it is fully working, it produced the empirical confirmation that the oracle setup is a meaningful model of real training, and it is the natural starting point for extending this work to learned denoisers.

That phase investigated:

1. Whether a discrete diffusion model trained on a language defined as the intersection of two rules learns each rule, and how.
2. Out-of-distribution generalisation on prompts that violate one rule, against autoregressive transformer baselines.
3. Length generalisation to sequences longer than those seen during training.

Inspired by Sequence Modelling with Discrete Diffusion and Compositional Generalisation on OOD Prompts in Language Models (NeurIPS 2024).

Running experiments

Edit a config in configs/ to specify your experiment parameters.

# Train (default config)
python src/main.py --config configs/config.yaml --mode train --save

# Evaluate a checkpoint
python src/main.py --config configs/config.yaml --mode eval

# Investigate token distributions
python src/main.py --config configs/config_investigation.yaml --mode investigate

Grammar selection

Set data.grammar in your config to choose the training grammar. All grammars use token IDs: SOS=3, EOS=2, PAD=4, MASK=5, with grammar content tokens starting at 0.

Built-in grammars

Formal grammar library (RE grammars)

These grammars come from the rule-extrapolation benchmark. The grammar rule is evaluated as a single pass/fail check. The six used in the paper are marked with their paper label.

Example config snippet for aNbNcN:

data:
  grammar: aNbNcN
  l: 60          # sequence content length; total seqs: l//3
model:
  vocab_size: 7  # must match grammar's vocab_size above
  max_len: 62    # l + 2

Example for matched parentheses and brackets:

data:
  grammar: parentheses_and_brackets
  l: 64
model:
  vocab_size: 8
  max_len: 66

Evaluation dataset types

For the anbn / aNbN grammar, structured prompt sets are available:

For RE grammars other than aNbN, use eval_dataset: unconditional.

Config parameters

Expected outputs

outputs/
└── [experiment_name]/
    ├── models/
    │   ├── config_snapshot.yaml
    │   └── diffusion_epochs_500.pt
    └── figures/
        ├── plot.png
        └── loss_log.txt

• models/[experiment_name] — model weights saved every evaluation.eval_every epochs, plus a copy of the YAML config used for the run.
• figures/[experiment_name] — plot.png, a graph of the tracked accuracy metrics (rule 1, rule 2, both rules, format). Expect a line graph after 2 * evaluation.eval_every epochs.

Accuracy metrics used during training

Both the diffusion and the autoregressive pipelines track accuracy on:

• Rule 1 — the two counts match (e.g. the number of 0s and 1s)
• Rule 2 — the ordering holds (e.g. all 0s precede all 1s)
• Both rules — strings satisfying Rule 1 and Rule 2
• Format — the string follows SOS[0s][1s]EOS[PAD], with exactly one SOS and one EOS

Evaluation prompts: diffusion uses n_samples=100 drawn from the training data and randomly masked with 0.8 ≤ masking_probability ≤ 1.0; the autoregressive baseline uses n_samples=100 from a dataset containing '0' * l and '0' * l + '1' for all 1 ≤ l ≤ 128.
