clpeak

clpeak — compute latency peak. It measures the peak compute throughput, memory bandwidth and latency that CPUs, GPUs and NPUs actually reach, using small, tight kernels alongside each vendor's own tuned libraries. It reaches a device through every API that exposes it and runs the same tests on each, so the numbers from one machine can be compared side by side.

• GPU compute APIs: CUDA, ROCm/HIP, Metal, oneAPI/SYCL, Vulkan, OpenCL
• AI runtimes (NPU, GPU and CPU): ONNX Runtime, Core ML, LiteRT
• CPU: native kernels, picked per instruction set at run time (x86-64, AArch64)

The same engine ships as a command-line tool and as an app for Windows, macOS, Linux and Android.

Sample output

Condensed from the saved runs in results/.

$ clpeak --cuda
Backend: CUDA
  Device 0: NVIDIA GeForce RTX 5060
    Tensor cores (WMMA / mma.sync)
      fp16     : 42.6 TFLOPS
      fp8_e4m3 : 85.2 TFLOPS
      nvf4_e2m1 : 328 TFLOPS
      int8     : 84.7 TOPS
    cuBLASLt GEMM peak
      fp16     : 79.1 TFLOPS
      nvf4_e2m1 : 300 TFLOPS
    Global memory bandwidth
      float4   : 420 GB/s
    Kernel launch latency
      roundtrip : 6.35 us

$ clpeak --devices coreml:0
Backend: CoreML
  Device 0: Apple Neural Engine
    Core ML matmul peak
      fp16     : 10.4 TFLOPS
      int4_lut : 11.3 TFLOPS
      int8_qdq : 11.5 TOPS
    Transformer block, prefill
      fp16_s512 : 4.99 TFLOPS
    Transformer block, decode
      fp16_kv2048 : 43.2 GB/s
    Core ML dispatch latency
      trivial_op : 781 us

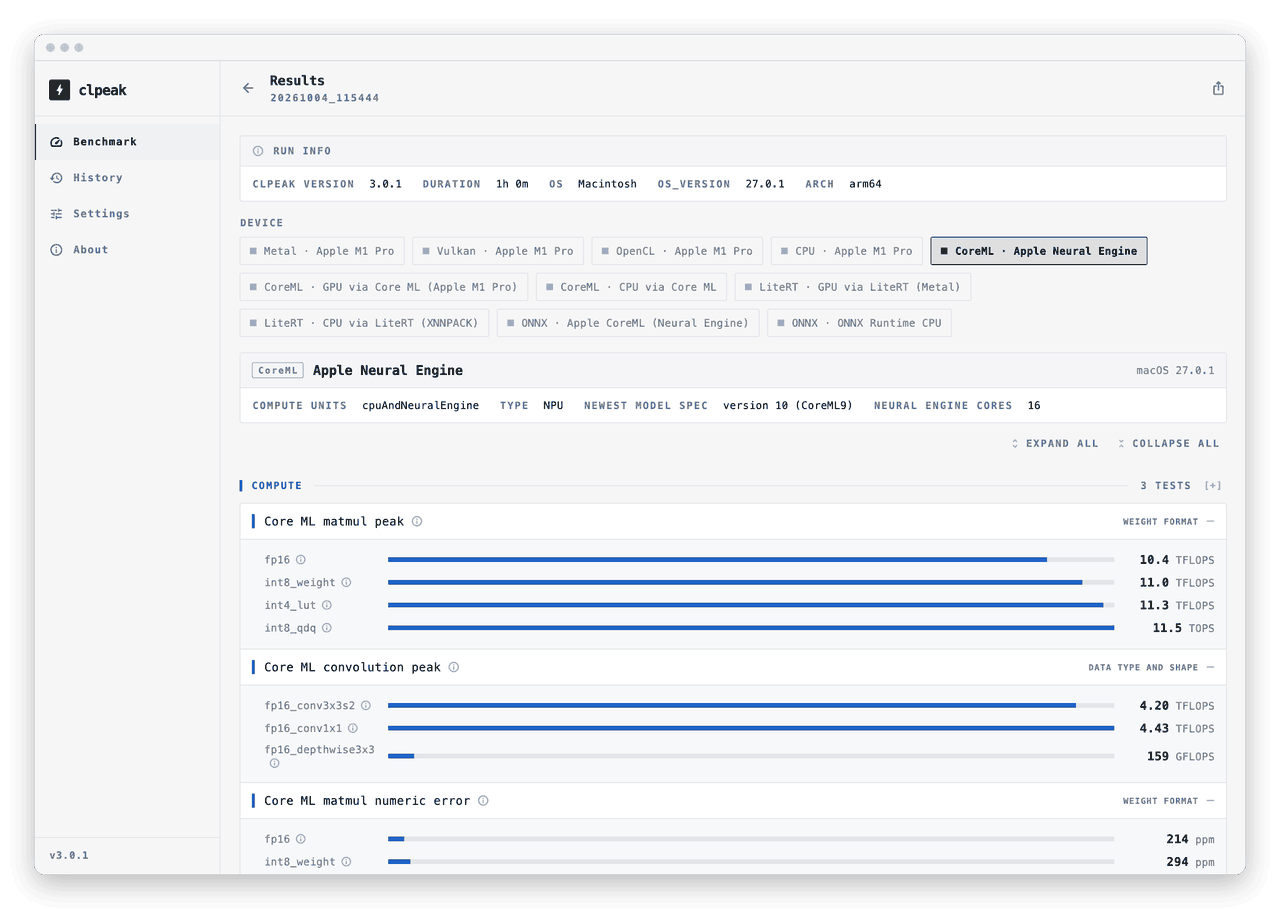

More screenshots are on the project page.

Build

git clone --recursive https://github.com/krrishnarraj/clpeak
cd clpeak
cmake -S . -B build
cmake --build build -j
./build/clpeak

A backend is built when its SDK is found, and -DCLPEAK_ENABLE_<BACKEND>=OFF leaves it out. The ONNX Runtime and LiteRT backends need no SDK: their runtimes are loaded when clpeak runs. The desktop app is built alongside the CLI when the Flutter SDK is on PATH, into build/clpeak-gui/. The project page lists every option; Android and iOS builds are in app/AGENTS.md.

Usage

clpeak                            # every test on every device
clpeak --list-devices             # what clpeak can see, named as --devices takes them
clpeak --devices cuda:0,vulkan:1  # only these devices
clpeak --vulkan --opencl          # only these backends
clpeak --bandwidth                # one category: --compute, --bandwidth, --latency, --ai, …
clpeak --gemm                     # one test, on every backend that has it
clpeak --describe                 # what each test and each reading measures
clpeak -o run.clpeak.json         # save the run as JSON
clpeak --compare run.clpeak.json  # run again and compare with a saved run

clpeak --help lists every flag. --onnx-lib and --litert-lib choose which ONNX Runtime or LiteRT library to load.

Running the release binaries

Each release has a zip per platform with the CLI and the app, plus cuda, rocm and oneapi variants that add those backends, and a .dmg of the macOS app. The binaries aren't signed with a developer certificate, so the OS asks before running them the first time.

Windows: before extracting, right-click the zip → Properties → tick Unblock → OK. If SmartScreen still says "Windows protected your PC", choose More info → Run anyway.

macOS: open the .dmg and drag clpeak to Applications. The first launch is refused; open System Settings → Privacy & Security and click Open Anyway next to clpeak. Or clear the quarantine flag from a terminal, which also works for the CLI from the zip:

xattr -dr com.apple.quarantine /Applications/clpeak-gui.app
xattr -dr com.apple.quarantine ~/Downloads/clpeak-*-macos-arm64

Linux: sudo snap install clpeak --classic, or use the zip as it is.

Android: Google Play.

Reporting a bug

Numbers that look wrong, missing devices and crashes are all worth reporting. Attach a verbose run so the report can be debugged without your machine.

• CLI: run clpeak --verbose -o report.clpeak.json and attach report.clpeak.json. If clpeak crashed before finishing, attach report.clpeak.log from the same folder instead: it is written as the run goes.
• App: turn on Settings → Diagnostics → Verbose diagnostics, run again, then use Export JSON on the results page. A run the app did not survive is listed in History under "Runs that did not finish", with its own export.

Then open an issue and add the file to it.

For AI agents

The tree is documented for coding agents with AGENTS.md files. Start at the root AGENTS.md for the architecture, the directory map and the conventions for adding a benchmark or a backend; a subdirectory's own AGENTS.md covers the code in it. Saved runs in results/ are the baselines to check a suspicious number against, and NOTES.md lists the workarounds for runtime bugs that are waiting on an upstream fix.
