dps150ctl

A Linux command-line tool, live terminal dashboard, and Python driver for the FNIRSI DPS-150. Read measurements, adjust setpoints, log data, and share one USB connection between a dashboard and scripts.

Install and run

Python 3.11 or newer; a Unicode-capable terminal is recommended. From a checkout:

python3 -m venv .venv
.venv/bin/python -m pip install .
.venv/bin/dps150ctl tui --demo
.venv/bin/dps150ctl ports --json
.venv/bin/dps150ctl tui

Or install this checkout with pipx install . to put dps150ctl on your PATH. python -m dps150ctl is equivalent to the console command. The project is prepared for sharing but has not been published to a package registry.

uv is optional. Checkout launchers include PEP 723 inline dependencies:

uv run dps150ctl.py tui --demo
uv run dps150ctl.py status --json

dps150.py remains a compatibility launcher. Both launchers now use the same new CLI. In particular, commands now keep the panel locked on exit, including errors and Ctrl-C. Use unlock explicitly to release remote mode.

Live dashboard

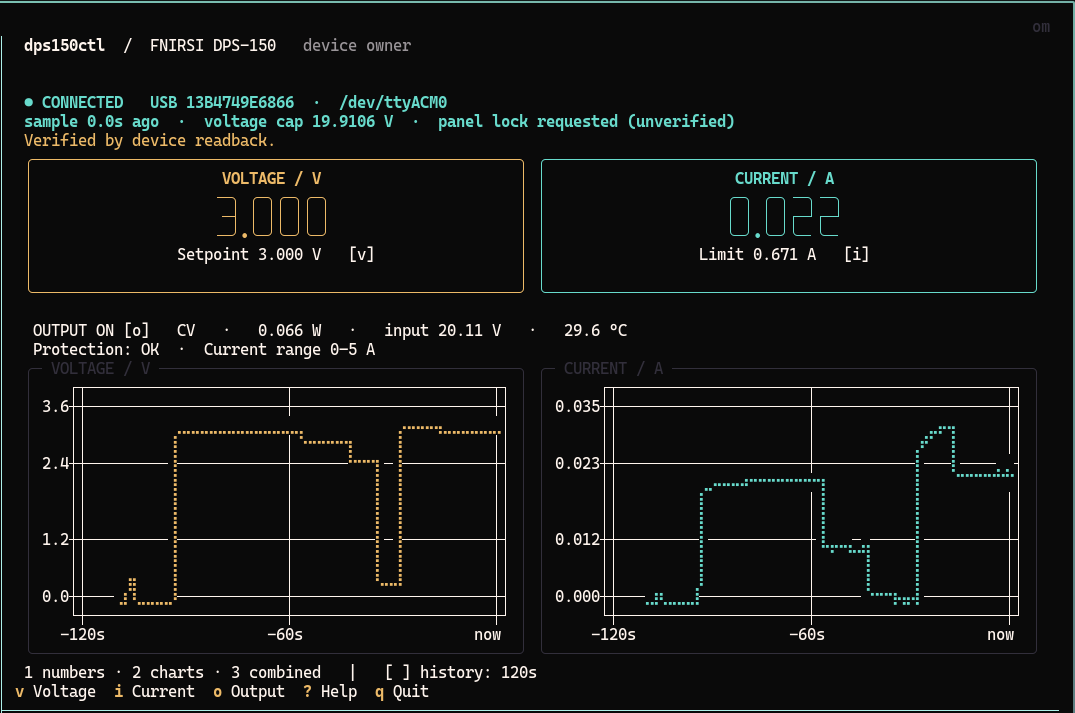

dps150ctl tui shows large measured voltage/current, separate setpoints, output state, CV/CC, power, input voltage, temperature, protection status, and scrolling voltage/current charts. The terminal UI uses Textual, its Digits widget, and textual-plotext. The dashboard and charts use your terminal's native background, including its configured transparency, while retaining colored readings and borders.

The default is combined, with a two-minute window. Charts resize with the terminal; small terminals use a compact display and offer the separate charts view. Connection status, USB serial, current tty, sample age, voltage cap, and errors remain visible. Old readings dim; missing data and reconnects leave chart gaps. Panel locking is shown as requested, since no reliable lock-status readback is known. The protection flag is separate from connection health.

Demo mode uses synthetic data and a private temporary service. It never opens a serial port or connects to a production service. Its controls affect only the simulation.

One device, multiple clients

dps150ctl tui                         # owns the device or attaches to its service
# In another terminal:
dps150ctl status --json
dps150ctl set --voltage 0.42 --current 0.671

# Or run without a dashboard:
dps150ctl daemon run                  # stays in the foreground
dps150ctl daemon status --json
dps150ctl daemon stop

The dashboard and headless service expose the same private Unix socket. CLI commands route through the owner. If there is no service, a command owns the serial port directly until it finishes. A service timeout or disconnect never causes a second connection or automatic retry of a write.

Quitting a dashboard that owns the device stops its service. Quitting a dashboard attached to a separate service leaves that service running. daemon stop, Ctrl-C, and normal owner shutdown leave output and setpoints alone and retain remote panel locking. Only explicit output on / output off change output enable.

dps150ctl lock
dps150ctl unlock    # releases panel controls; also stops a running owner

Lock persistence after closing USB was visually confirmed on firmware V1.2. Persistence across USB/power resets is not guaranteed. --keep-locked is still accepted as a compatibility option and is now the default.

USB identity and reconnection

dps150ctl ports --json
dps150ctl --device USB_SERIAL tui
dps150ctl --device USB_SERIAL status --json
dps150ctl --port /dev/ttyACM0 status

Connection options go before the subcommand. DPS150_PORT also selects a path; /dev/serial/by-id/… paths work. --device selects the USB serial number, which remains stable when /dev/ttyACM0 becomes /dev/ttyACM1. Multiple candidate devices require explicit selection. ports includes USB location and interface.

The service reconnects only to the same VID/PID/USB serial, verifies the model, and reads fresh state. It never restores settings or enables output on reconnection. Without a USB serial, explicit-port operation works but automatic reconnection is disabled. The shared 2e3c:5740 ID identifies an Artery serial bridge, not a compatible family of power supplies. Support is currently for the DPS-150, verified originally with hardware V1.0 / firmware V1.2.

Serial settings are 115200 8N1, RTS/DTR asserted, without RTS/CTS. --rtscts enables that flow-control option; --timeout 3 changes the serial response timeout.

Voltage cap

Use an optional cap when working with a low-voltage circuit:

dps150ctl --max-voltage 1.0 tui
dps150ctl --max-voltage 0.5 set --voltage 0.42

For persistence, put this in ~/.config/dps150ctl/config.toml (or under $XDG_CONFIG_HOME):

max_voltage = 1.0

--config PATH selects another file. The effective cap is the minimum of the persistent cap, owner startup cap, optional client cap, device-reported limit, and nominal 30 V limit. Flags and clients can tighten a cap, never raise the owner's cap. To raise a persistent/startup cap, edit the configuration and restart the owner. Current is limited by the device and nominal 5 A rating.

The UI displays allowed ranges. Every interface rejects negative/non-finite values and validates all requested changes before writing. Current is written before voltage; readback verifies the result. No nominal-resolution rounding is imposed on float requests. Existing output above a newly chosen cap is reported, not automatically changed; output-on is blocked until the setpoint is in range. These are software command limits, separate from hardware protection thresholds.

A command that loses its response after transmission can have an uncertain outcome. Errors report this explicitly; inspect fresh status before deciding whether to issue another command. The tool never retries electrical writes.

Extract information and capture data

dps150ctl info --json
dps150ctl status --json
dps150ctl read 0xc3 --json
dps150ctl stream > readings.jsonl
dps150ctl stream --format csv --interval 1 --count 60 > readings.csv

mkdir -p captures
dps150ctl capture --duration 10 --output captures/session.jsonl
dps150ctl decode captures/session.jsonl > captures/decoded.jsonl
dps150ctl --trace captures/status.jsonl status --json

status requests a fresh full-state block. JSON retains all decoded fields and adds identity, connectivity, freshness and limits. CSV keeps the original main measurement/limit columns. A missing snapshot is an error, not a repeated cached row. Sample timestamps are host timestamps; floats preserve received precision. daemon status reports cached state and freshness without issuing a device read.

Capture and --trace work through the service too. The requesting process writes the file. Direct capture includes connection initialization; capture attached to an existing owner starts at subscription time and includes shared device traffic. A slow capture fails explicitly instead of silently dropping chunks. Files must be new. decode is completely offline and reports malformed/discarded bytes on stderr. With --json, operational errors use {"error": {"code", "message", "uncertain"}} on stdout and a nonzero exit code; human errors use stderr.

captures/ is an optional local folder for serial traces and debugging artifacts from protocol investigation. It is ignored by Git and excluded from installation. You can save captures elsewhere; normal operation does not require this folder. Application code and installation resources live in the package.

Serial permissions and systemd

Your user needs read/write permission on the serial device. A temporary grant is:

sudo setfacl -m "u:$(id -un):rw" /dev/ttyACM0

This applies only to the current node and disappears when unplugging recreates it. The dashboard may correctly find the reconnected device but report Permission denied until access is restored. It keeps retrying automatically.

Persistent access is part of the installed command. Preview the generated rule, then install it once as administrator:

dps150ctl permissions show
sudo "$(command -v dps150ctl)" permissions install

From the unactivated checkout environment, use sudo .venv/bin/dps150ctl permissions install instead. Under sudo, the target account defaults to the invoking user (SUDO_USER); otherwise previews use the current user. --user NAME selects another existing non-root account. When running directly as root, specify --user explicitly. Run the dashboard as your regular user.

The command automatically selects a single connected candidate. With multiple devices, or to prepare access while a unit is unplugged, select its USB serial:

dps150ctl ports --json
sudo "$(command -v dps150ctl)" --device USB_SERIAL permissions install

The serial identifies an individual unit; 2e3c:5740 identifies the shared USB bridge, not the supply model. No personal serial or username is built into the package. The generated rule matches VID/PID and the selected serial, so it works even if the tty number changes.

The installer and rule template ship in both the wheel and source distribution. The command validates the rule when udevadm verify is available, installs it in /etc/udev/rules.d/, reloads udev rules, and triggers a change event only for the selected device if connected. Repeating the command is safe; conflicting files and symlinks are refused. It does not open the serial port or write supply settings. Installing the Python package itself does not change system permissions.

The rule runs /usr/bin/setfacl on add/change events, granting read/write access to the selected user's numeric UID while retaining the normal owner/group. Install the acl package if that executable is missing. This also works for headless processes without an active desktop login. The rule persists across unplugging and rebooting; the running service should reconnect within eight seconds once access is available. A manual reference rule is also available in examples/70-dps150ctl.rules.

examples/dps150ctl.service is an optional systemd user-unit template. Set the executable path and USB serial before installing it in ~/.config/systemd/user/. Service installation is manual. Package installation and normal control commands do not enable services or alter system configuration.

Python API and development

from dps150ctl import DPS150

with DPS150("/dev/ttyACM0", max_voltage=1.0) as supply:
    print(supply.snapshot())
    supply.close(keep_locked=True)

The low-level synchronous API owns a serial port directly and should be used only when no service is running. Its original context-manager behavior releases the remote session on exit; explicitly closing with keep_locked=True retains it. For applications sharing an owner, use dps150ctl.ipc.Client with an Endpoint. See architecture and RPC and the observed wire protocol.

python -m pip install -e '.[dev]'
python -m pytest -q
ruff check .
python -m build

Tests use captured firmware V1.2 frames, simulated transports, real local Unix sockets/PTYs, subprocesses, and Textual's headless Pilot. They block real hardware access. The original driver was verified on an actual unit for voltage/current writes, output-on, and panel lock; output-off and the new service/reconnect paths are covered by simulation. No automatic test changes a connected supply.

Protocol research acknowledgments: nasheed-x/dps150_api, cho45/fnirsi-dps-150, and the manufacturer's DPS-150 page. The implementation includes the observed wire format and provenance in PROTOCOL.md; it does not use an official FNIRSI SDK. MIT licensed.
