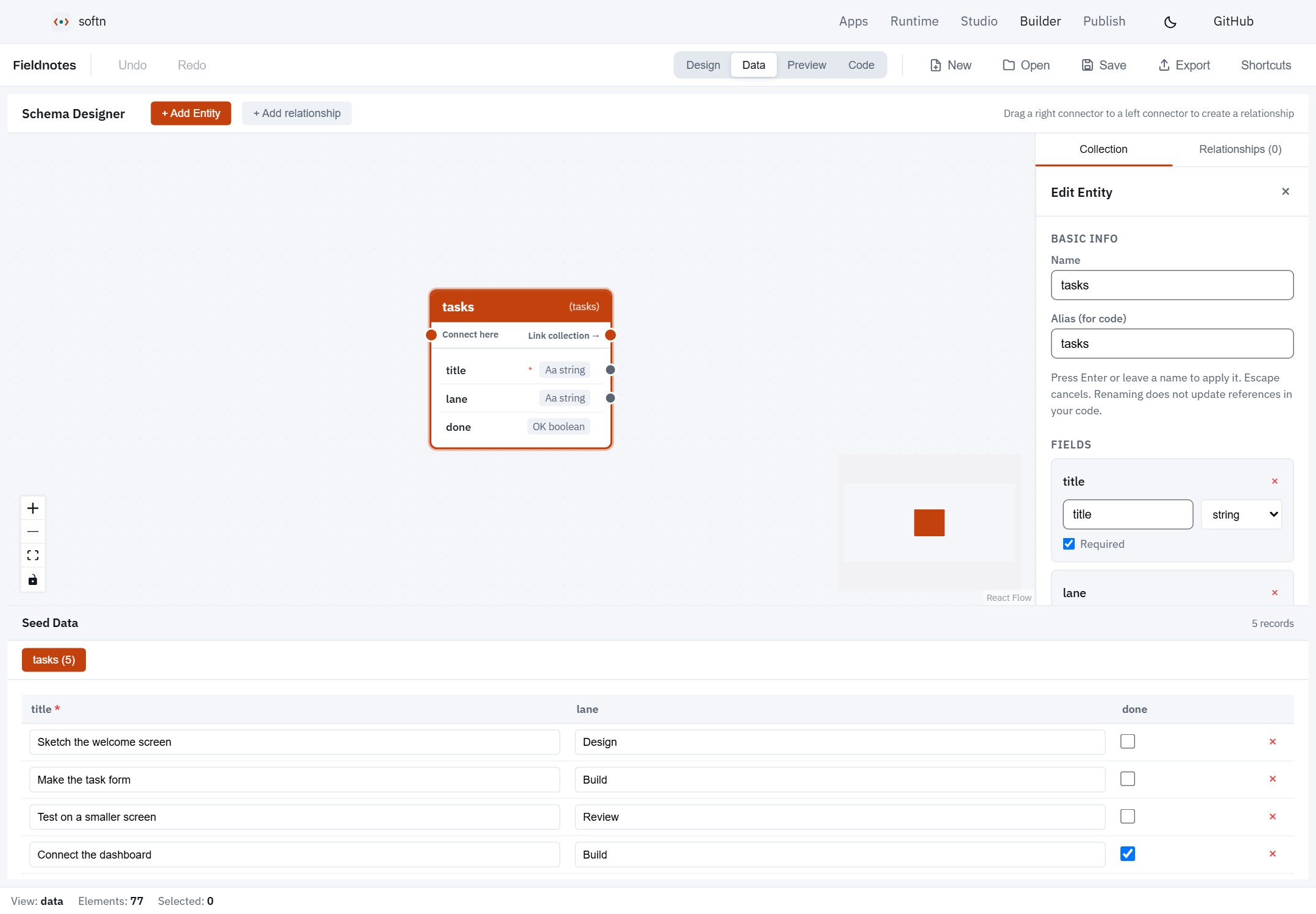

The same Fieldnotes app in Data view: the tasks collection, its field types and the five sample records carried by the bundle.

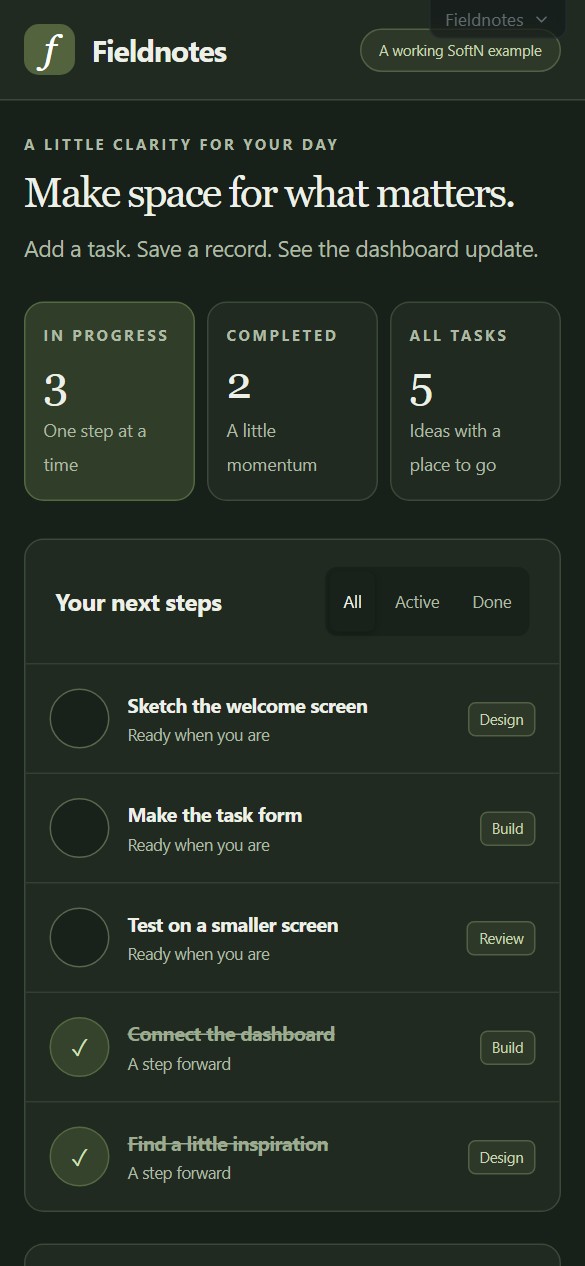

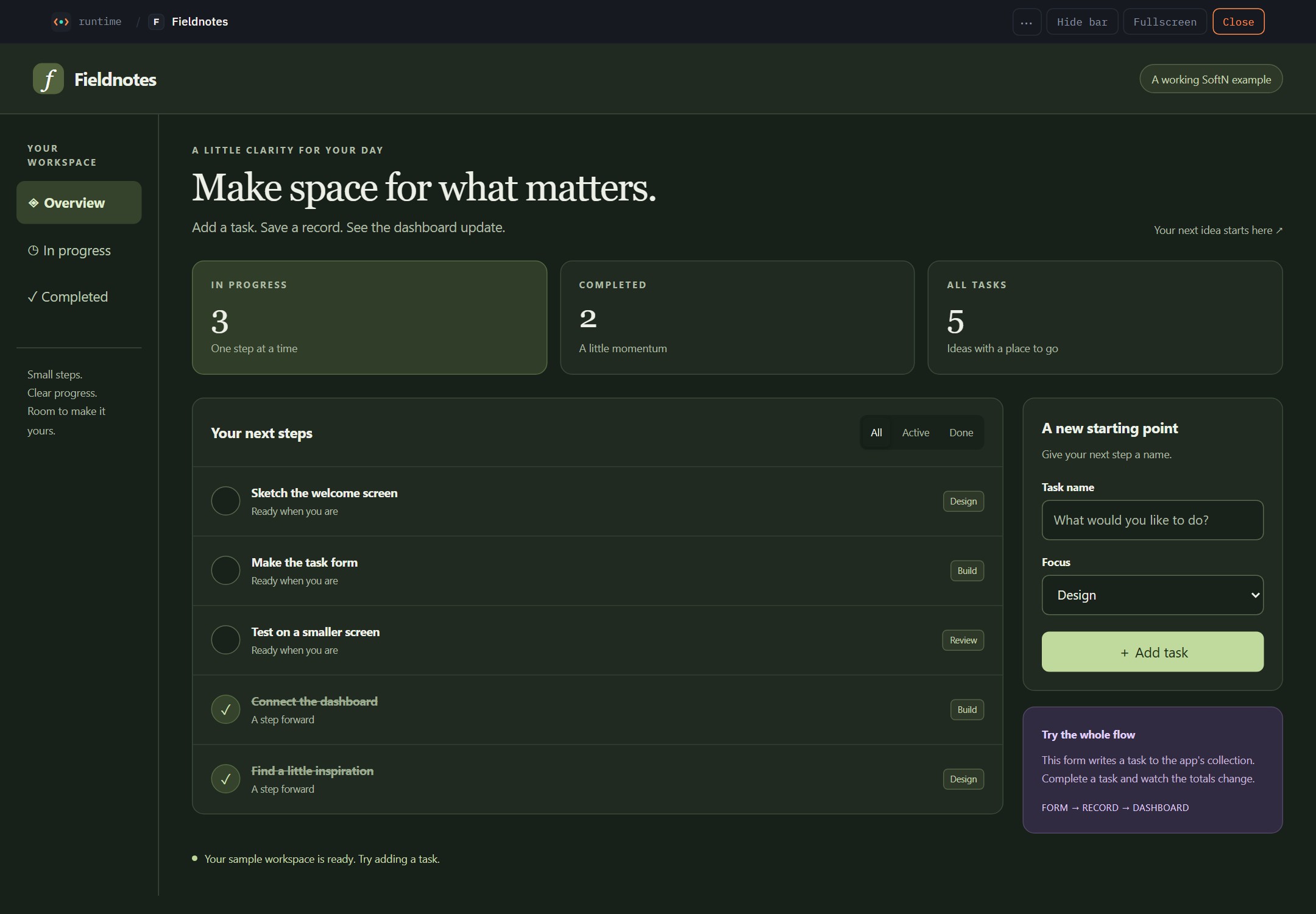

A direct screenshot of the running app. Its colours and responsive layout live in the editable .ui source.

Architecture Overview

.softn/.ui Source
      |
      v
  +-------+     +---------+     +----------+     +----------+
  | Lexer | --> | Parser  | --> | Renderer | --> |  React   |
  +-------+     +---------+     +----------+     +----------+
   Tokens         AST             Elements         Display
                                    |
                                    v
                            Component Registry
                           (90 built-in + custom)

.logic Source
      |
      v
  +-------+     +---------+     +----------+     +----------+
  | Lexer | --> | Parser  | --> | Compiler | --> | zipp VM  |
  +-------+     +---------+     +----------+     +----------+
   Tokens         AST            Bytecode        Register-based
                                                 execution (Rust)

State Flow

Script VM Globals     <--sync-->  React componentState  -->  Render Context  -->  UI
         |                                                        ^
         v                                                        |
    VM Bridges (db, localStorage, window, navigator)         Expression eval

Before each script function call, all React state is synced to VM globals. After the call returns, VM globals are synced back to React state, triggering a re-render.

SoftN Language Syntax

Quick Example

<logic>
  let count = 0

  function increment() {
    count = count + 1
  }
</logic>

<App theme="dark">
  <Stack direction="vertical" gap="md" padding="lg">
    <Heading level={1}>Counter</Heading>
    <Text>Count: {count}</Text>
    <Button variant="primary" @click={increment}>Increment</Button>
  </Stack>
</App>

Props, Events, and Data Binding

// String and expression props
<Button variant="primary" size="md">Click Me</Button>
<Text color={isDark ? "white" : "black"}>{message}</Text>

// Event handlers
<Button @click={handleClick}>Click</Button>

// Two-way binding
<Input :bind={username} placeholder="Enter name" />

// Conditional rendering
#if (isLoggedIn)
  <Dashboard />
#else
  <LoginForm />
#end

// Loop rendering
#each (task in tasks)
  <TaskCard task={task} />
#empty
  <Text>No tasks yet!</Text>
#end

A handler bound in a template is called without the DOM event: @click={fn} runs fn() with the event reduced to null, while component callbacks that carry data (DPad's @press, Slider's @change) pass it through. A script that needs pointer coordinates listens on the window instead — window.addEventListener("pointerdown", fn) hands fn a plain object with clientX, clientY, key, targetTag and the like. Box and Button forward @pointerdown, @pointerup, @pointercancel and @pointerleave, which is enough for a hold-to-press control.

Component Library (90 Components)

Smart Components

Auto-configured, data-driven components:

<SmartGrid
  collection="clients"
  columns="name, email, phone, visits"
  searchable sortable pageable
  editable deletable
  onEdit={editClient}
  onDelete={deleteClient}
/>

<SmartForm
  collection="clients"
  fields="name:text:required, email:email:required, phone:text"
  onSaved={closeModal}
  submitText="Add Client"
/>

Bundle Format (.softn)

SoftN applications are distributed as .softn bundles (ZIP archives).

MyApp.softn (ZIP archive)
+-- manifest.json          # App metadata and configuration
+-- permission.json        # Capabilities the app needs, and what the user approves
+-- ui/main.ui             # Main entry point
+-- logic/main.logic       # Application logic
+-- server/*.logic         # Optional: routes run by softn-server, not the browser
+-- xdb/*.xdb              # Collection data (JSON)
+-- assets/*               # Images, CSS, etc.

permission.json is not optional in practice. The runtime denies every gated capability — network, camera, microphone, filesystem, AI, GPU, peer-to-peer sync, server storage and host acceleration — to a bundle that does not declare it, and the consent prompt is built from what it declares, so an app that ships without one can run but cannot reach the host:

{ "permissions": { "net": { "enabled": true, "allowed_hosts": ["api.example.com"] } } }

Storage identity and permission grants are host-specific. The general bundle loader isolates bundles by digest; configured single-app and FormLogic hosts supply their own deployment identity. A manifest name alone does not grant access to another app's records. See the single-app identity rules.

Scripting Engine

.logic files are JavaScript, executed by zipp -- a clean-sheet JavaScript engine written in Rust and compiled to WebAssembly.

Source Code -> Lexer -> Parser -> Compiler -> Bytecode -> Register-based VM (Rust/WASM)

• Real JavaScript: classes, async/await, destructuring, spread/rest, closures, regex
• Rust + WASM register VM with per-call-site inline caches, via wasm-bindgen
• True sandboxing: the script reaches nothing the engine preamble does not hand it
• Host modules: db, localStorage, window, navigator, host, plus the softn.* async APIs
• Browser events reach a handler as plain data, the same shape everywhere: a key event carries key, code, the modifiers and repeat; a pointer event carries clientX/Y, button, buttons and the target's rectangle (targetLeft/Top/Width/Height), so a script can place the pointer within a canvas scaled to fit its box; both say targetTag and targetEditable
• softn.input.captureKeys(["ArrowUp", " ", "F1"]) names the keys a script wants whole: the browser's default for them (scrolling, a page search) is cancelled before the handler runs, never in a text field and never for a Ctrl chord or the system modifier

The compiled engine is committed at packages/@softn/core/wasm-zipp/, so building SoftN needs no Rust toolchain. The current browser engine is ZIPP v0.0.18, built locally with JavaScript and experimental Python support. Its exact source commit, toolchain and SHA-256 checksum are recorded in SOURCE.json. Existing .logic screens continue to use JavaScript. See language support for the Python host API and its current integration limits.

To reproduce the combined artifact from a clean sibling zipp.org checkout, rebuild the packages and whichever apps you ship:

npm run build:zipp-wasm -w @softn/core
npm run build:packages
npm test -w @softn/core

The local build needs Rust with the wasm32-unknown-unknown target, wasm-bindgen 0.2.126 and wasm-opt. It builds both languages by default; set ZIPP_VARIANT=javascript for a smaller JavaScript-only artifact. vendor:zipp-release remains available for importing the default JavaScript-only archive from a published release.

The engine is selected in one place -- packages/@softn/core/src/runtime/vm-adapter.ts.

Hosts that already use the same engine can call configureZippWasmSource(bytes) before SoftN initializes. FormLogic uses this to download and verify the binary once, then send copies to its expression worker and hosted SoftN apps. Each worker or app keeps its own instance, memory and permissions. See the FormLogic host integration.

let clients = [];

function _init() {
  clients = db.query('clients');
}

function addClient(name, email) {
  db.create('clients', { name: name, email: email });
  clients = db.query('clients');
}

XDB Database

Local-first, reactive database with P2P synchronization. Source: xdb.org.

let client = db.create('clients', { name: 'John', email: 'john@example.com' });
let allClients = db.query('clients');
db.update(client.id, { phone: '555-1234' });
db.delete(client.id);
await db.startSync('my-room-name');

All CRUD operations are synchronous (XDB caches everything in memory).

Audio

softn.audio plays sound from a .logic script. Paths are resolved inside the bundle, the same way asset() resolves them for a template.

softn.audio.play('assets/pickup.wav');
softn.audio.play('assets/theme.mp3', { volume: 0.4, loop: true }, function (r) {
  themeHandle = r.handle;
});
softn.audio.setVolume(0.5); // scales what is playing now, and what comes next
softn.audio.stop(themeHandle);
softn.audio.stopAll();

No capability is declared for it: a template can already write <audio src={asset("…")} autoPlay /> with none, so gating the API and not the tag would inconvenience the tidier route and secure nothing. Sound reads nothing and sends nothing, and everything an app started stops when it closes.

Browsers refuse to make noise before the user has interacted with the page. A one-shot that lands in that window reports { played: false, blocked: true } rather than throwing — playing it later would be a sound effect at the wrong moment. Anything looping is treated as a soundtrack and starts on the first click or keystroke instead.

Microphone

Listening, unlike playing, is gated: mic has to be in permission.json, and the consent prompt names it. The comment above the audio API argues that sound is a nuisance rather than a disclosure because it "reads nothing, sends nothing" — a microphone is the thing that fails that test.

{ "permissions": { "mic": { "enabled": true, "maxSeconds": 20 } } }

There are two routes. The <Microphone> component puts a level meter and a record button on screen:

<Microphone
  mode="clip"          // clip | live | level
  sampleRate={48000}
  processing={false}
  maxSeconds={20}
  onCapture={handleClip}   // { dataUrl, duration, sampleRate, sampleCount }
  onSamples={handleWindow} // live mode: { samples, sampleRate, timestamp }
  onLevel={handleLevel}    // { level, peak, clipping }
/>

And softn.mic.* records without anything visible:

softn.mic.record({ seconds: 5, sampleRate: 48000 }, function (r) {
  if (r.recorded) softn.audio.play(r.dataUrl);
});
softn.mic.stop(); // end it early; the record callback still fires

Both hand back uncompressed 16-bit WAV as a data: URL, not MediaRecorder's Opus. Opus is a speech codec: it reproduces what a voice sounds like, not what the waveform was. That is fine for a voice note and useless for anything treating sound as a signal — level analysis, pitch detection, or data over audio. A WAV is what came off the microphone, so it can be played, saved, or taken apart sample by sample.

processing is the one switch for the browser's echo cancellation, noise suppression and automatic gain control. It defaults to on, which is right for speech. Turn it off for anything measuring the sound rather than listening to it: all three are trained on speech and treat a steady tone as noise to remove, so a level meter reads low, a tuner drifts, and data sent over audio arrives as silence.

sampleRate is a request, not a promise. The graph is built at the rate asked for so the samples really are resampled, but hardware and browser both get a say — every callback reports the rate actually in use, and code that cares about absolute frequencies must read that rather than assume.

Like <Camera>, the component opens the device itself and the browser's own permission prompt is what stands in front of the hardware; the mic capability gates the scripting API and is what the consent dialog shows the user.

Pixels and PCM

Two primitives for scripts that generate a signal rather than arrange widgets. Neither is gated: both are sinks, and a script that can already draw a <Box> or play an <audio> tag gains nothing it did not have.

<PixelCanvas> is the dense-bitmap counterpart to <PixelGrid>. PixelGrid renders sparse {x, y, color} cells as DOM nodes, which is right for a board of a few hundred squares and hopeless for a photograph — 160x144 is 23,040 divs and around 54ms a frame before the browser paints. PixelCanvas keeps one ImageData and one canvas, pulls frames through a callable prop on its own requestAnimationFrame loop, and never re-renders React.

<PixelCanvas
  width={160} height={144}
  palette={shades}         // present => 1 byte per pixel; absent => RGBA
  fit="contain"            // fill the box, or "pixel" for whole-number scaling
  getFrame={nextFrame}     // -> { pixels: "<base64>", ... }, or null to hold
  @fps={report}
/>

fit is the one choice worth making deliberately. "pixel" takes the largest whole multiple that fits and centres it, so every source pixel is the same size — what pixel art needs, at the cost of a margin. "contain" fills the box and lets the factor go fractional, which is right when filling the frame matters more than exact geometry.

<AudioStream> is the output side of softn.audio. That API plays files; this one plays a waveform a script is still generating, which .logic cannot do by itself — it has no AudioContext, no AudioWorklet and no Blob.

<AudioStream
  getSamples={nextBlock}   // -> { pcm: "<base64>", frames, rate, ... }
  sampleRate={48000} channels={2} format="i16"
  bufferMs={90} muted={muted}
  @ready={started}         // reports the rate the browser ACTUALLY gave
/>

It owns the graph and schedules successive buffers at explicit start times so playback is gapless. sampleRate is a request: hardware and browser both get a say, so @ready reports what was really allocated and a script that cares about pitch must read it rather than assume. The frames field of each block is authoritative too — at 48kHz a 59.7275Hz console frame is 803.65 samples, so the count genuinely varies and a caller that assumes a constant drifts.

Both are demonstrated by Pocket, an 8-bit handheld emulator: .logic runs the CPU, PPU, APU and mappers, PixelCanvas shows the screen and AudioStream is the speaker.

3D Scenes

<Scene3D> wraps Three.js. Beyond loading models, it carries what a first-person game needs:

• type: "instanced" objects draw thousands of identical meshes in one call: a flat instances array of positions, with an optional palette and a fourth number per instance to pick a colour from it.
• pointerLock captures the mouse for mouse-look. The scene reports the view through window.__scene3dYaw and __scene3dPitch, whether the lock is held through __scene3dLocked, and a script asks for it by setting __scene3dWantLock. pitchLimit clamps the look, cameraSmoothing eases it and mouseLookSensitivity scales it. On a touch screen a drag looks around instead.
• attach: "camera" on an object or light keeps it in front of the player: a held block, a torch, a muzzle flash.
• fill sizes the canvas to its container, maxPixelRatio caps the render resolution on high-density screens, and staticObjects holds geometry that never changes so only the moving list is diffed each frame.

Blockscape, Dead Hours and Maze Escape 3D are built on these. F8 in any of them shows the engine's debug readout.

Applications

The three browser apps are installable PWAs: each ships a web app manifest and a service worker that precaches the runtime, the component library and the WebAssembly engine, so they keep working with the network off.

Deploying softn.com

npm run build:site

Builds the packages, then each app with the VITE_BASE matching where it will be served, and assembles a single uploadable tree. Upload dist/ to one domain; no subdomains or cross-origin configuration are required:

dist/             landing page and app directory
dist/demos/       the example .softn bundles — only with --with-demos
dist/softn-files/ the same bundles with a download page — only with --with-demos
dist/web/         web runtime
dist/play/        the single-app shell; /play/<slug> is an app's play page, rendered by the API
dist/builder/     visual builder
dist/studio/      AI studio
dist/api/         the directory API (PHP)
dist/data/        the directory's state; never served
dist/.htaccess    Apache rules, with nginx.conf.example and DEPLOY.md alongside

Configure the host to serve each app's index.html for deep links. The build writes Netlify/Cloudflare Pages rules to dist/_redirects and a GitHub Pages fallback to dist/404.html. On another host, apply the equivalent rewrites:

/web/*     -> /web/index.html
/builder/* -> /builder/index.html
/studio/*  -> /studio/index.html
/*         -> /index.html

Two things the host must do beyond rewrites. It runs PHP for /api/, the directory, and for the two pages the API renders, /app/<slug> and /play/<slug>. And it sends Cross-Origin-Opener-Policy: same-origin and Cross-Origin-Embedder-Policy: credentialless on every response, not only documents: the runtime's worker mode (Pocket, WarbleWire) is a dedicated worker, and a cross-origin isolated page refuses one whose script arrives without the embedder policy. The generated .htaccess and nginx.conf.example do both; DEPLOY.md in dist/ walks through the rest, and GET /api/health reports what the server found.

Pushing a v* tag builds the site in CI and attaches softn-com-<tag>.zip to the GitHub release. npm run package:site -- --tag vX.Y.Z makes the same archive locally.

To exercise that assembled artifact locally on one port before uploading it:

npm run preview:site

This performs a fresh build and serves it at http://localhost:1420. Set SOFTN_SITE_PORT if that port is already occupied.

The app directory

softn.com is a directory of .softn apps. Anyone can publish: POST /api/apps with the bundle answers with an edit key, and that key, not an account, is what updates, re-thumbnails or unpublishes the listing later. The site remembers the keys it has been given in the browser, so "Your apps" on the publish page finds them again. Visitors can run, rate, comment on and remix any app; a remix is a new listing that records its parent.

Apps that declare the storage capability get a small database of their own on the server, reached from a script as softn.storage.*. Snake's shared top ten and the Notes board are the worked examples. The routes are described in apps/softn-api/README.md, and GET /api lists them.

Play goes to /play/<slug>: the single-app shell, served by the API with the app's configuration written into the page, so the page fetches the bundle and nothing else before the app is on screen. An app runs with what it declares withheld until the visitor allows it; the site owner can trust an app by setting "trusted": true in the app object of its data/apps/<slug>/app.json on the server, and its play page then grants the declaration from the start with no bar.

To run the directory locally against a built site (PHP 8.1+ with pdo_sqlite and zip):

npm run build:site
php -S 127.0.0.1:5500 -t dist apps/softn-api/router.php

The router does what the deployed .htaccess does: /api/ to PHP, /data/ refused, /app/<slug> a share page with Open Graph tags, and every static file served with the isolation headers. By default the build ships no example apps and the directory starts empty: drop .softn files on any page to publish them (a folder at once, with the admin key from data/config.json for the site owner). npm run build:site -- --with-demos fetches the pinned softn-Examples release, ships the bundles under /demos/ and /softn-files/, and has the directory seed itself from them on the first request — the shape softn.com itself deploys. Demo changes are refreshed while seedDemos is enabled. You can also copy a folder containing v1.softn directly into data/apps/<slug>/: the API discovers it and maintains an app.json for its metadata and social history, with locked atomic updates. Existing SQLite catalogues migrate automatically; see the API README before upgrading.

Demos

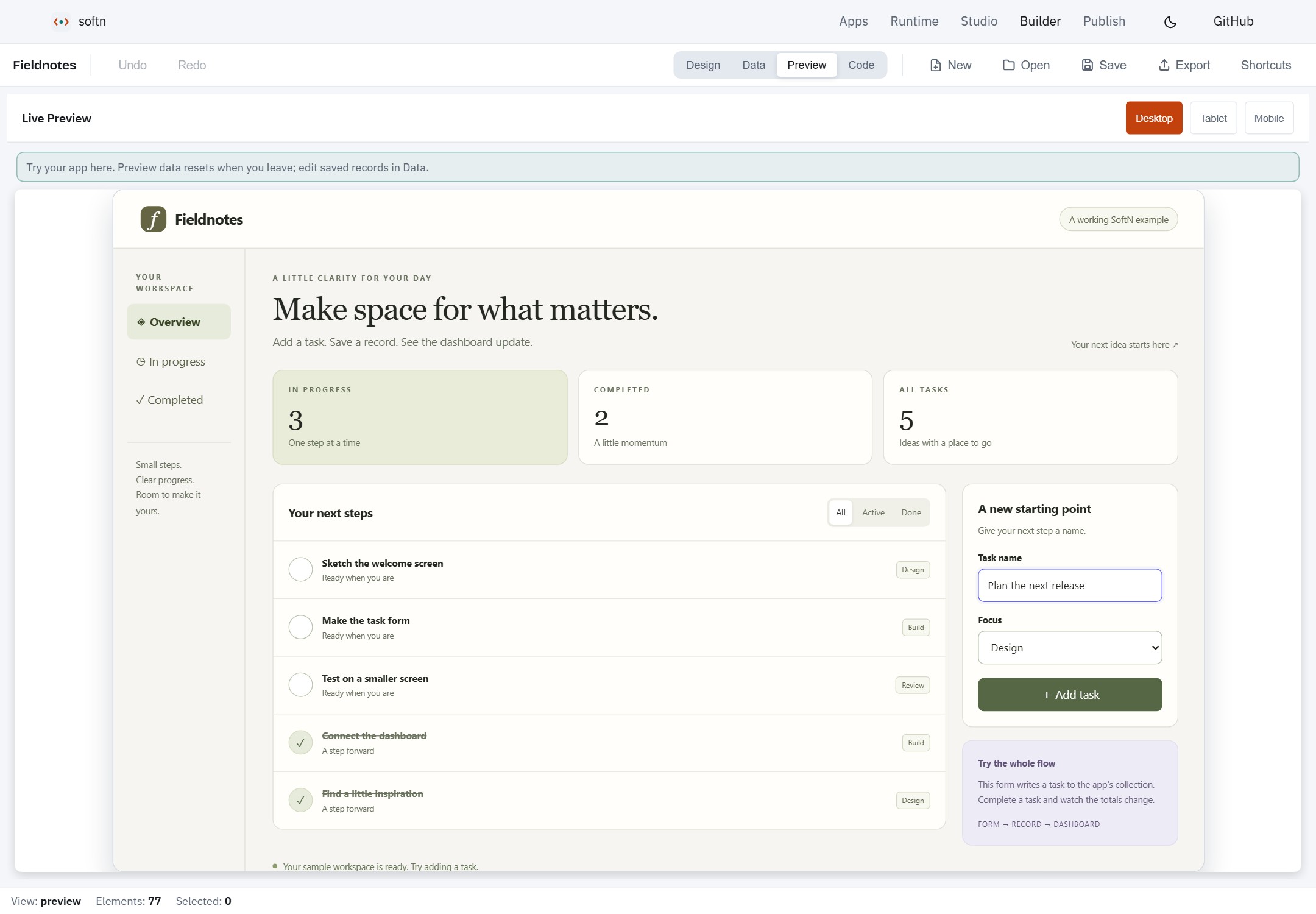

The included Fieldnotes teaching app is the working example shown above. Its editable source and .softn bundle are checked into this repository.

The downloadable demo catalogue comes from the example applications in softn-Examples: every bundle the directory lists, as source, with the packer, the validator and the tests. That repository's Release workflow packs them and publishes the archives, and this repository fetches those release bundles when needed. apps/softn-web/public/demos/index.json pins a release by download URL, size and SHA-256 for each bundle, and npm run fetch:demos downloads whatever is missing or stale and refuses an archive that does not verify. dev, dev:web, build:site --with-demos, screenshot:demos and test fetch first, so a fresh clone needs nothing more than the network the first time.

node scripts/fetch-demos.mjs --pin v1.0.1   # move to a new release: rewrites the sizes, digests and URLs in index.json, then fetches
node scripts/fetch-demos.mjs --check        # verify what is on disk without downloading

Each is a worked example of some part of the runtime.

Games

Apps

Examples (the directory's Examples category)

A new demo is added to index.json by hand (id, file, name, description and primary colour) once a release of softn-Examples publishes it, then pinned with --pin. npm run screenshot:demos photographs every demo in a headless browser for the directory's thumbnails under public/demos/thumbs/; pass --base http://127.0.0.1:5500/web for the worker-mode apps, which need the built site.

Host acceleration (accel)

A script that generates numeric code at run time — an emulator's compiled traces, a signal kernel — is limited by the sandbox's interpreter, which runs a bytecode operation in a few nanoseconds. With the accel capability the script hands such a function to the host, which compiles it with the browser's own engine and runs it over views of the script's typed arrays, so the compiled code reads and writes the same bytes the script does:

// Inside a .logic script that declared "accel": { "enabled": true }.
let outer = accel.compile(['RAM', 'ST'], 'return function(ST,h){ST[0]=RAM[h]*2;return 1;};');
let fn = accel.make(outer, 'RAM=g:MY_RAM,ST=g:MY_STATE'); // views of two typed-array globals
accel.state('MY_STATE'); // the array run() passes first
accel.run(fn, 5); // MY_STATE[0] = MY_RAM[5] * 2

compile(params, body) validates and compiles, answering an id or throwing; make(id, spec) calls that function with the arguments spec describes (NAME=g:GLOBAL a view of a typed-array global, NAME=c:GLOBAL a callback into a global function with numbers, NAME=a:ID another compiled function, NAME=n:NUMBER a number, NAME=t the host's trace table) and answers the id of the function it returned; state(GLOBAL) names the array run(id, h) passes as the first argument; install(slot, id) fills the trace table a compiled function may call through. Every call is synchronous and answers a number; all of them throw unless the capability was granted.

What keeps it safe: the source must fit a closed arithmetic language (parameters, let locals, labels, keywords and pure Math functions; no other identifier, no member access, no string literals, no new or this), so a function that passes can name nothing outside its parameters and locals; the views cover exactly the arrays the engine resolved and pinned, and index past them as any typed array does; callbacks carry numbers only and only while a run is in progress. SoftDOS is the worked example: DOOM went from 5-9 fps to its own 35 fps cap. The host side is packages/@softn/core/src/runtime/accel-host.ts.

Security Model
