ca-combos-editor

A combo editor for NV ITEM 00028874 (RFNV_LTE_CA_BW_CLASS_COMBO_I)

Disclaimer

The file generated by this tool may brick your device. Make a backup of your EFS before doing anything else. I suggest you to always keep QRCT open, NSG closed and test your file as follows:

1. Open a root terminal on your phone: dmesg -w | grep failure and keep it running. This will show all the modem errors that may happen if your file is invalid.
2. Use QRCT and EFS Explorer to upload your file and synchronize the EFS. If your modem bootloops, just put the phone in FTM (it will stop it from bootlooping) and restore the original 00028874 file / try a new one.

Setup

1. Clone this repo
2. From the repo's root, run:

go run cmd/main.go --help

Or build the binary:

go build -o ca-combos-editor cmd/main.go
./ca-combos-editor --help

Usage

ca-combos-editor [global flags] <command> [args]

Global Flags

Environment Variables

All flags can also be set via environment variables prefixed with CA_COMBOS_:

A configuration file named ca-combos-editor.yaml (or one in $HOME/.config/ca-combos-editor) is also supported.

Commands

parse - Parse an uncompressed 00028874 payload

1. Extract the NV item:

ca-combos-editor decompress 00028874 extracted.bin

Or with zlib-flate:

zlib-flate --uncompress < 00028874 > extracted.bin

2. Parse it:

ca-combos-editor parse extracted.bin

With verbose logging:

ca-combos-editor --log-level debug parse extracted.bin

create - Create a 00028874 payload from a single bands file

1. Provide a bands.txt file in the format shown in test/resources/2019-10-17/bands.txt (one combo per line)
2. Generate the payload:

ca-combos-editor create bands.txt 00028874_uncompressed

3. Compress it:

ca-combos-editor compress 00028874_uncompressed 00028874

Or with the helper script:

./compress.sh 00028874_uncompressed

4. Write the new 00028874 file to your modem

Use writer mode 201 or 333 if needed:

ca-combos-editor --mode 201 create bands.txt 00028874_uncompressed
ca-combos-editor --mode 333 create bands.txt 00028874_uncompressed

create-dlul - Create a payload from separate downlink and uplink files

Given two files, downlink.txt and uplink.txt, containing a list of downlink bands and uplink bands as follows:

downlink.txt

1C
1A-1A
3C
3A-1A

uplink.txt

1A
1A
3A
1A, 3A

The following records will be created:

DL: 1C
UL: 1A

DL: 1A-1A
UL: 1A

DL: 3C
UL: 3A

DL: 3A-1A
UL: 1A
UL: 3A

Generate the payload with:

ca-combos-editor create-dlul downlink.txt uplink.txt output

A new file output will be generated. Compress it with ca-combos-editor compress output 00028874 or with ./compress.sh output to get the final 00028874 file.

decompress / compress - Manage the zlib wrapper directly

These commands wrap/unwrap the raw zlib layer without needing zlib-flate:

# Extract the payload from a raw 00028874 file
ca-combos-editor decompress 00028874 extracted.bin

# Create a raw 00028874 file from an extracted payload
ca-combos-editor compress extracted.bin 00028874

FAQ

My 00028874 file doesn't get applied and I'm using a Oneplus / Oppo device

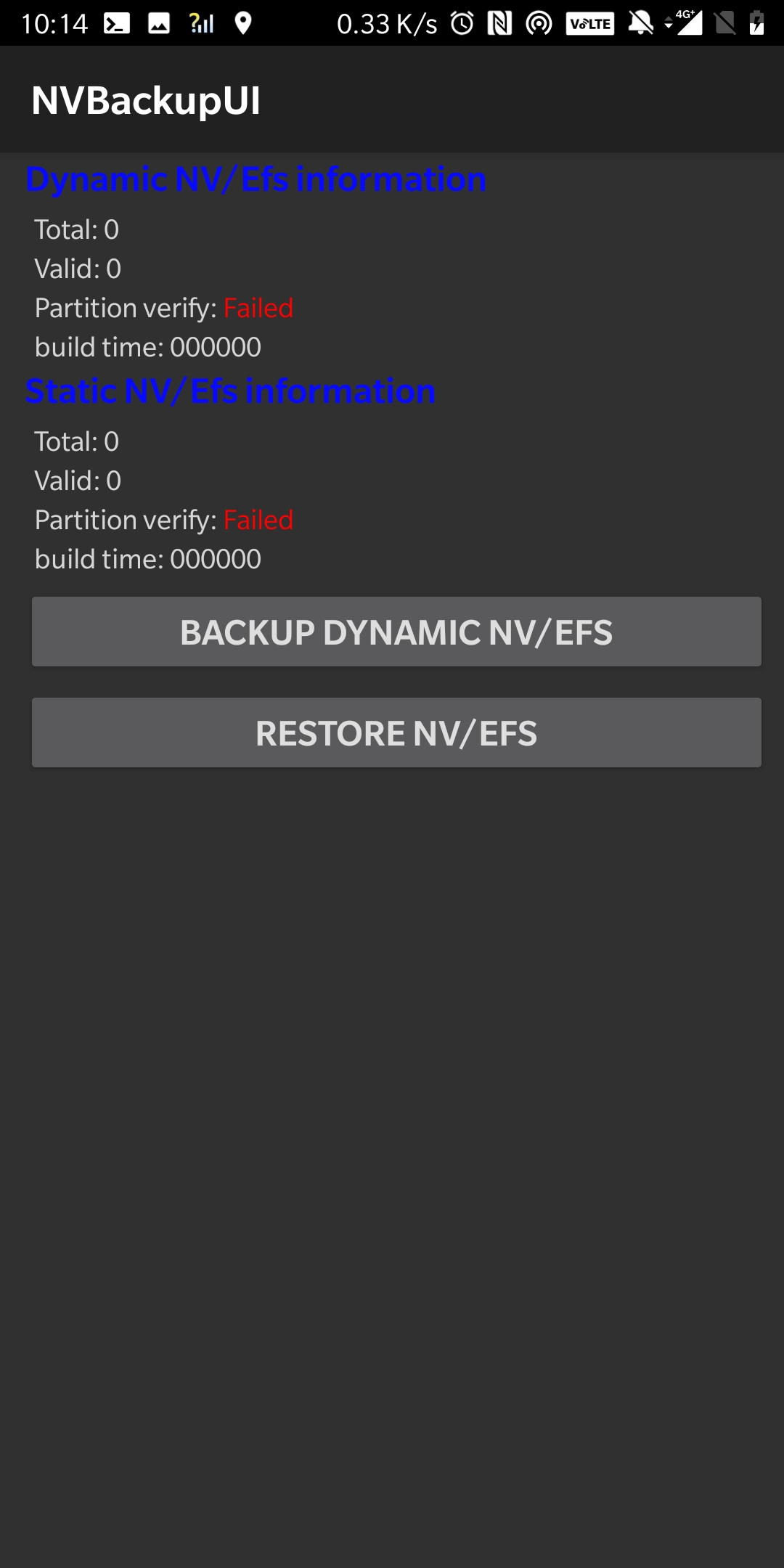

Oneplus does rewrite the NV Item files via its "NV Backup". Use a patched /vendor/bin/rmt_storage to avoid that (extract it from any other device with an identical chipset). You can find the one I'm using on my OP5T on Android 9 (Oxygen OS 9.0.9) in resources/rmt_storage_patch/op5t/oos/9.0.9/rmt_storage (see its checksum below). This will completely disable the NV Backup and will allow you to rewrite any NV item file without having it rewritten at every reboot. If the patch succeeds you'll have the following output when you go to the dialer pad, write *#268# (2NV) and click "NV parameters":

2ebd9ab966f395f387c888c9c591c8a2b5720204abc2ba2619d2c10d6cc38506  rmt_storage (patched)
d02daf4725be98999a98b240010dabc0ab231b46e47c3d6824c4625d7cb5a87b  rmt_storage (original)
