Cairn

A calm, local-first workspace for notes, project tracking, and visual idea mapping — with an AI assistant and MCP server built in.

Overview

Cairn is a desktop app (Electron + Next.js) that combines markdown notes with a kanban board. It is fully compatible with Obsidian vaults, allowing you to point a workspace directly to any existing Obsidian folder. Notes are saved as plain .md files directly in your vault; project and task data lives in a local SQLite database alongside them. No accounts, no cloud, no backend. An embedded AI assistant and a standalone MCP server let AI agents read and write your workspace directly.

Features

• Projects — Multiple projects inside a workspace, each with notes and a board

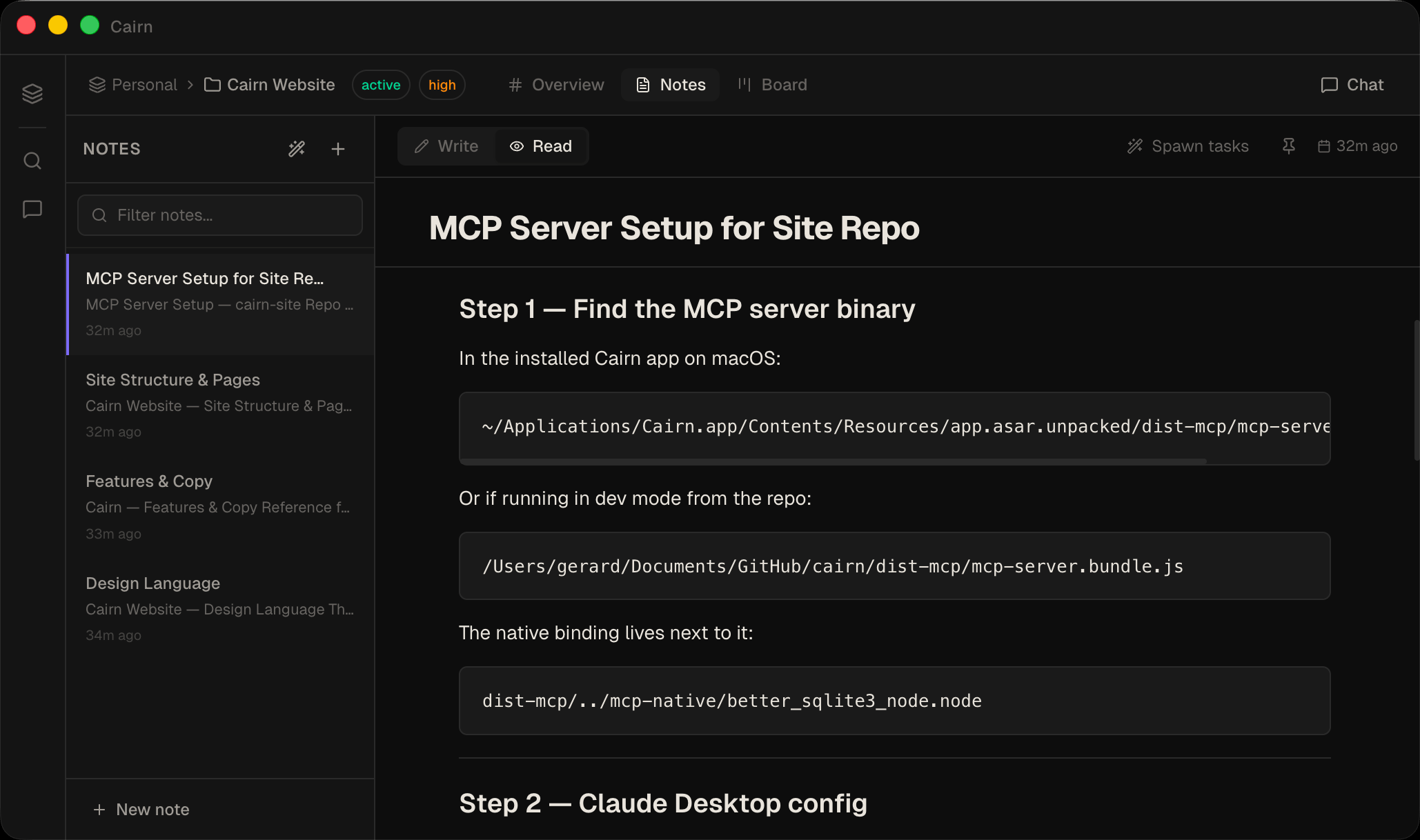

• Notes — Split-pane markdown editor (write on the left, preview on the right)
• AI text actions — Select any text in a note → floating toolbar → Rephrase, Summarize, Expand, Fix Grammar, Change Tone, or custom prompt

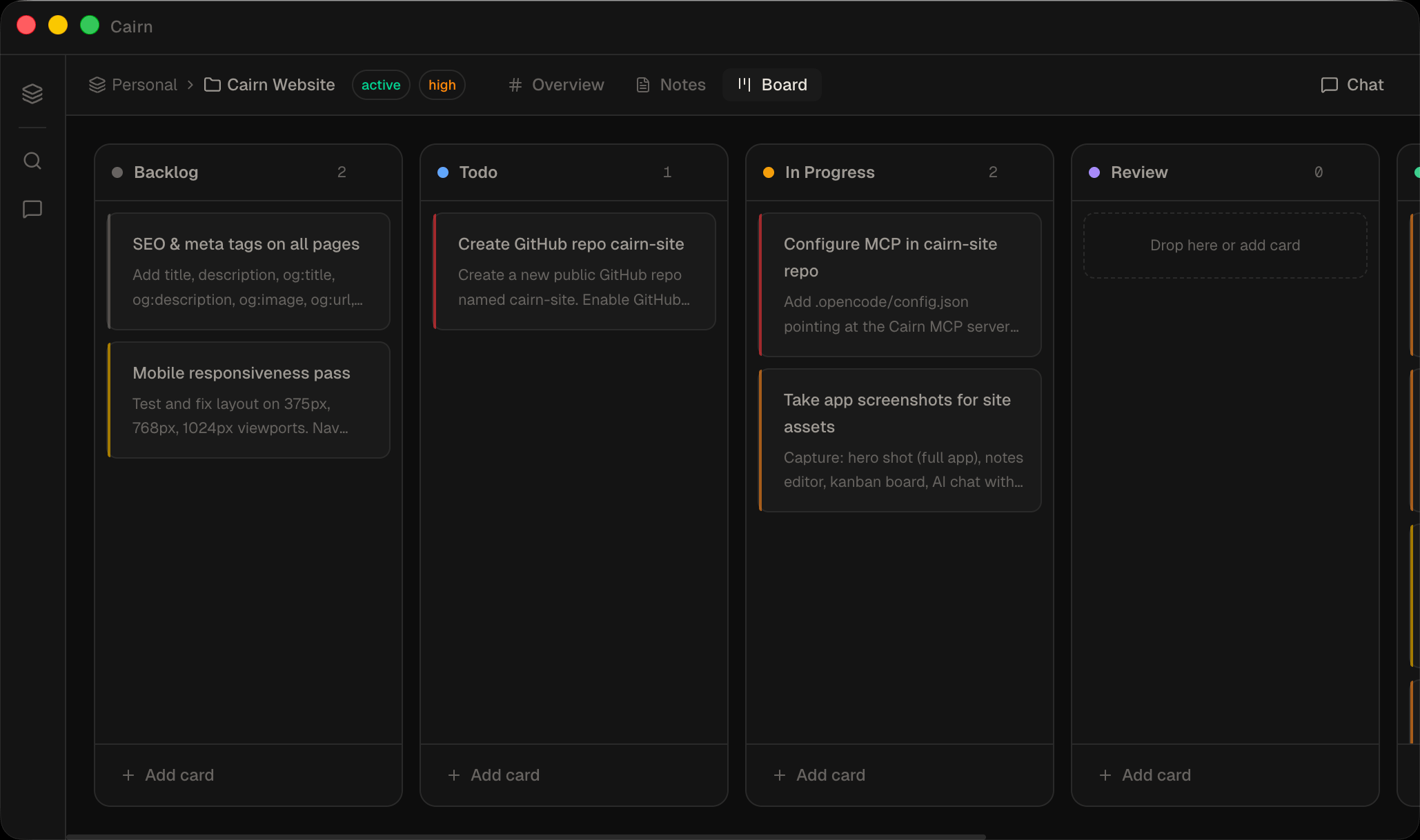

• Kanban board — Drag-and-drop cards across columns with priority indicators; Archive All Done button clears the Done column in one click; Archive view (Board / Archive toggle) shows all archived tasks in a searchable grid with restore and delete actions
• Drag notes into folders — Drag any note in the sidebar directly onto a folder row to move it; a "Move to root" drop zone appears while dragging
• Linked context — Notes and cards reference each other bidirectionally
• Global search — Instant full-text search across all notes and tasks (⌘K or ⌘⇧F)

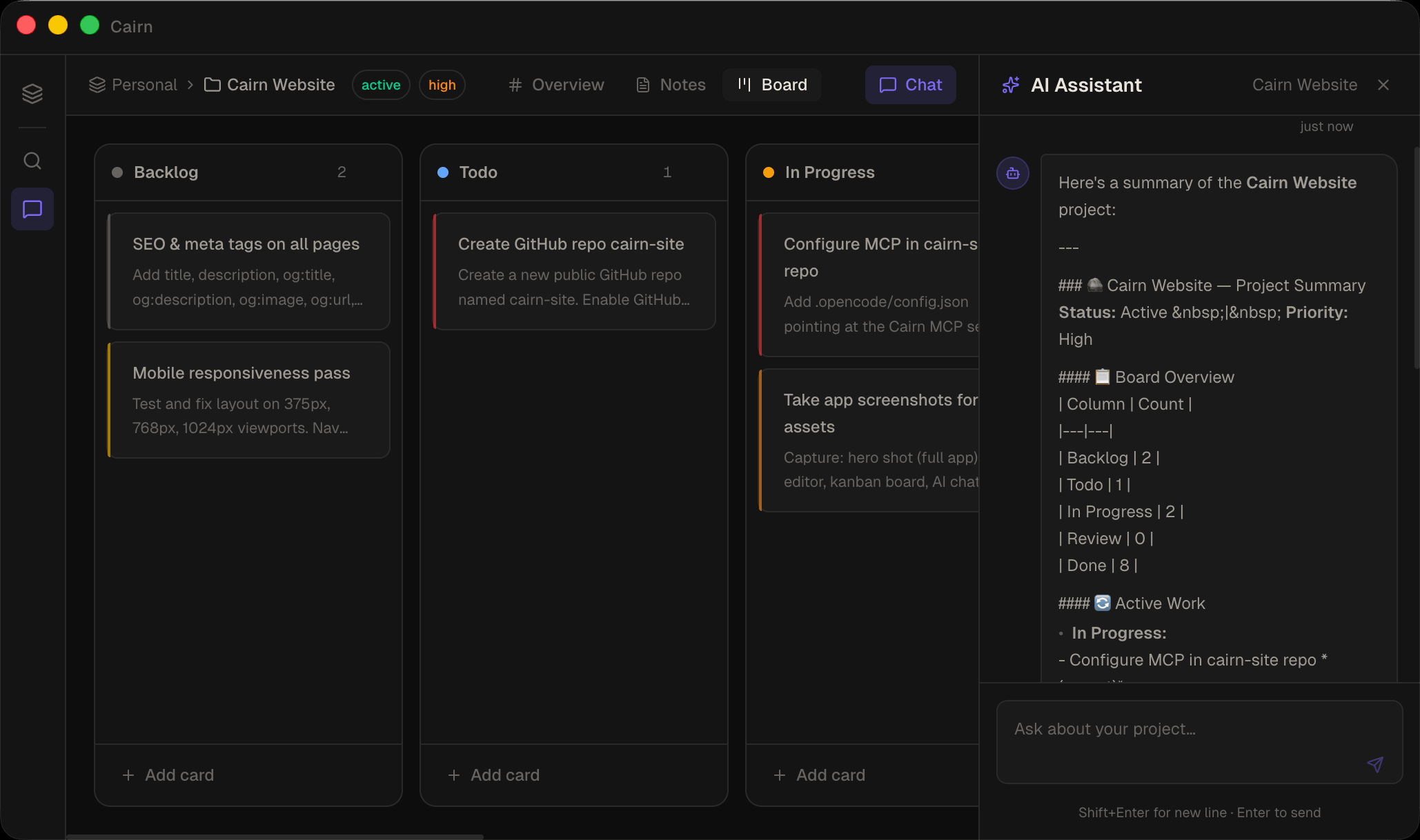

• AI chat — Integrated assistant with live project context; reads and writes your data (⌘/)
• Interactive PRD generation — Describe what you want to build; the agent asks clarifying questions then writes and saves a full PRD to your notes

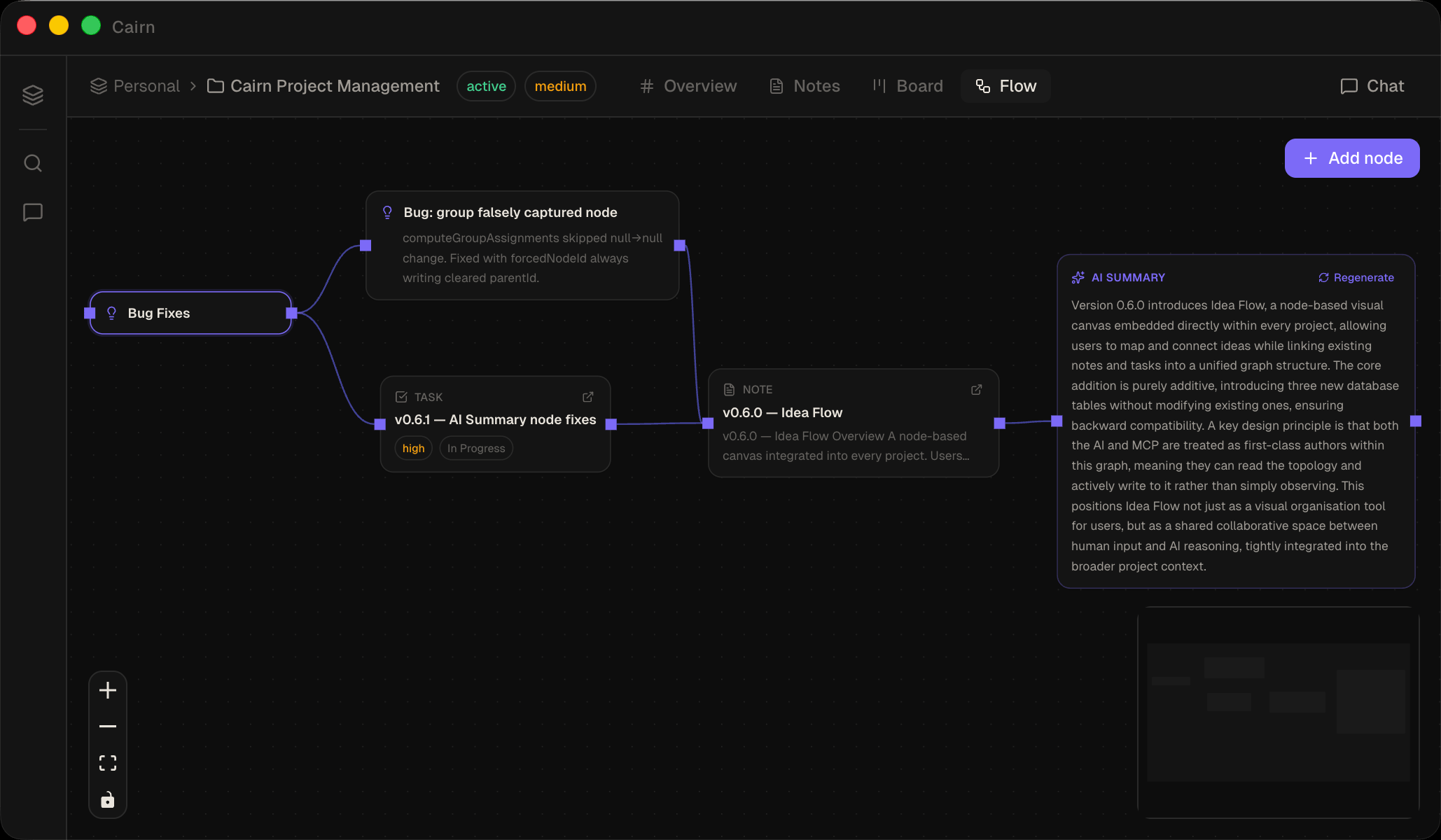

• Idea Flow — Freeform node canvas per project (⌘4): ideas, note/task refs, groups, URLs, AI summaries — connected with labelled edges
• Live dashboards — AI-generated interactive HTML dashboards with a live window.cairn.query() data bridge; inline "Fix with AI" on runtime errors; editable via built-in CodeMirror overlay
• MCP server — Exposes your workspace to external AI agents (OpenCode, Claude Desktop, etc.) via the Model Context Protocol
• Cairn Agent — Native coding agent (Agent view) with board and notes integration: moves tasks, writes session notes, captures discovered work; delegates to subagents for deep sub-tasks; Plan / Execute mode toggle; interactive tool confirmations with mobile-desktop sync; automatic retry on transient API errors; automatic context compaction for long sessions (/compact on demand); context usage ring; works with any OpenAI-compatible endpoint. Runs on the Cordis agent runtime (DeepSeek harness) — see Architecture.
• Agent workspace — Three-pane view for running external AI coding agents (Claude Code, OpenCode, Aider, or any CLI) connected to project tasks; file tree, multi-file CodeMirror 6 editor, xterm.js terminal, and git diff viewer

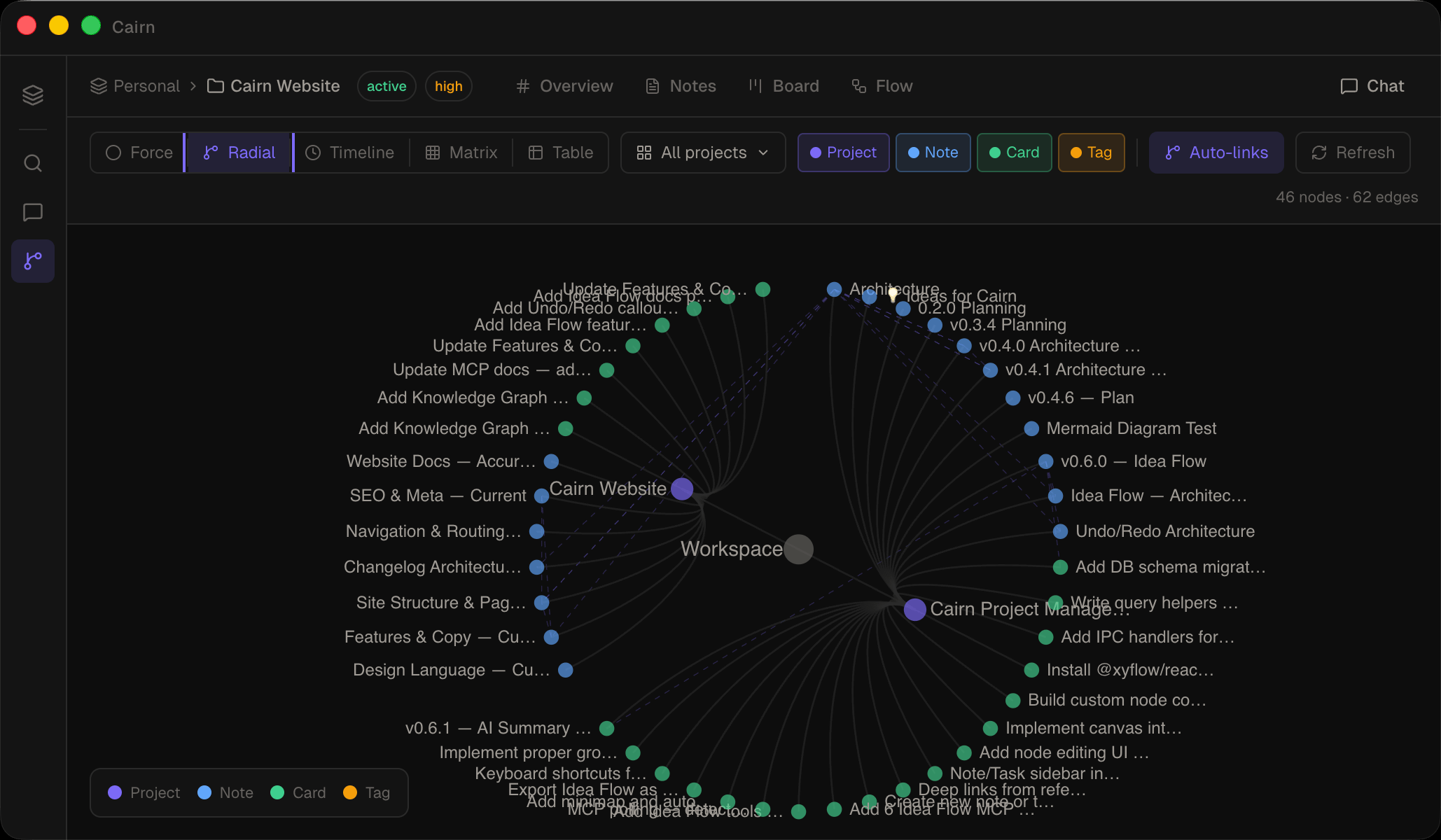

• Knowledge Graph — Workspace-wide graph of every note, card, project, and tag; Force-directed and Radial tree layouts; auto-discovered relationships
• Insights — Analytics view: Ridgeline joy plot, Beeswarm, Bullet health bars, Sankey pipeline flow, Timeline, Matrix heatmap, Table
• Font scaling — Five-step UI font size preference (XS–XL, default M) in Settings → General
• Mobile Companion — Access your workspace on any device (phone, tablet) over the local network via QR code or display PIN; features responsive layouts (slide-over drawers, fullscreen chat, wrapped note headers), Kanban touch drag-and-drop, full Idea Flow touch gestures (long-press canvas, single-tap node), and native PDF sharing sheets
• Obsidian Vault Compatibility — Works side-by-side with Obsidian vaults; renders standard double-bracket embeds (![[image.png]]), uploads files to custom attachment folders, resolves local media via sequential-fallback protocol, and merges YAML frontmatter non-destructively
• Local-first — Notes as .md files, project data in SQLite; no network required
• Dark mode — Calm, focused aesthetics

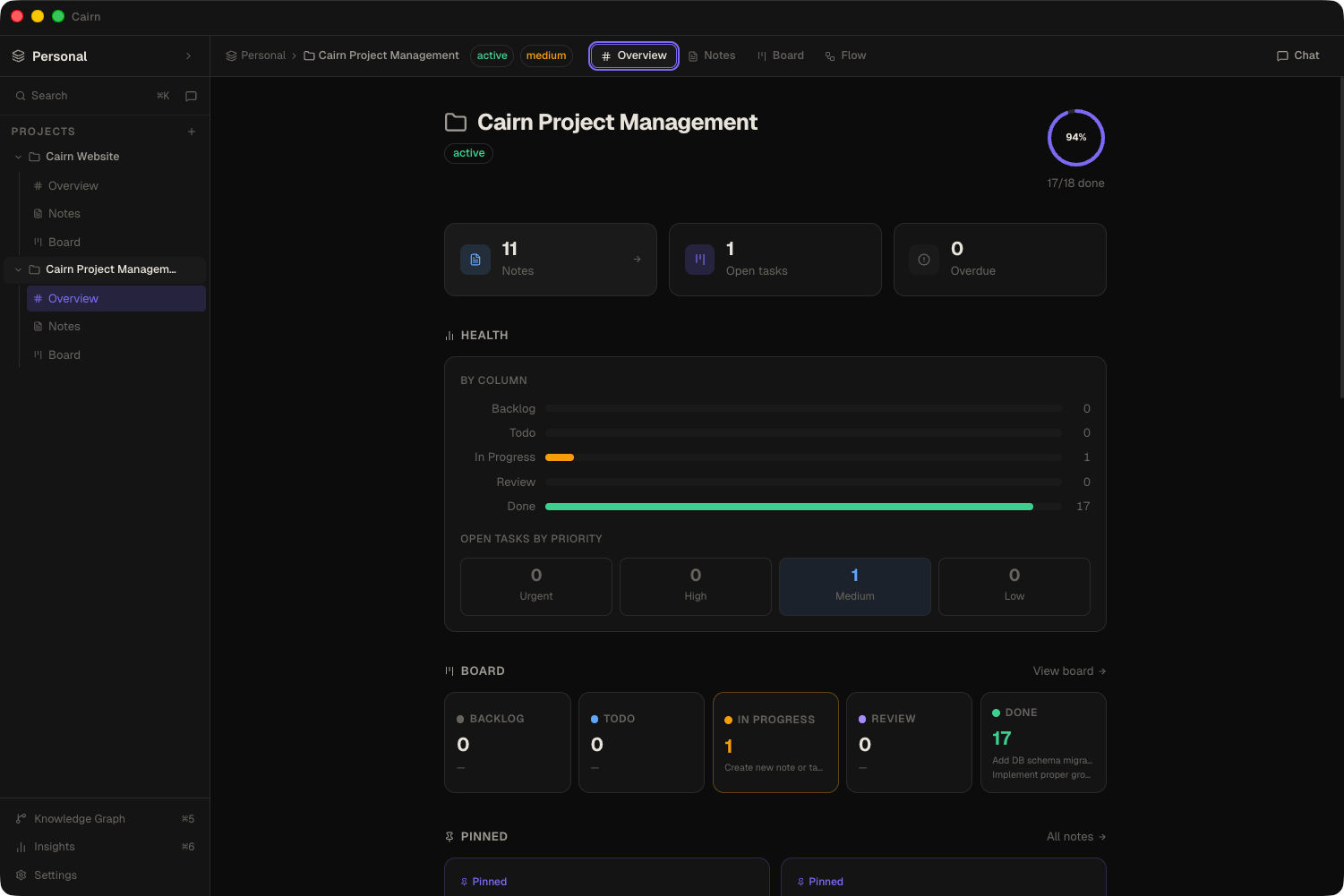

Screenshots

View screenshots

Getting started

Prerequisites

• Node.js 20+
• macOS (arm64 build provided; Windows/Linux untested)

Install and run in development

git clone https://github.com/ddutchie/cairn
cd cairn
npm install
npm run rebuild   # build better-sqlite3 native binaries for Electron + system Node
npm run compile   # compile Electron main process + bundle MCP server
npm run dev       # start Cairn (Next.js + Electron)

Build the packaged app

npm run build:mac      # macOS DMG (arm64 + x64)
npm run build:win      # Windows NSIS installer (x64 + arm64)
npm run build:linux    # Linux AppImage (x64 + arm64)
npm run build:all      # All three platforms

Output goes to dist-app/.

Note: Re-run npm run rebuild after any Electron version bump. It builds native binaries for three ABIs (Electron, Node 22/MCP, system Node/vitest) and bundles the MCP server into a self-contained binary via scripts/build-mcp-binary.js.

AI chat setup

Configure the AI endpoint in Settings → AI (tabs: Chat, Coding Agents, MCP; no restart needed):

Quick presets — one click to switch between OpenAI, Ollama (localhost:11434), and LM Studio (localhost:1234). Local servers don't need an API key.

[!NOTE] Proxy & Gateway Timeouts (504): If pointing to an API gateway proxy or reverse proxy (e.g., nginx), long synchronous non-stream requests can trigger connection timeouts (returning a 504 Gateway Time-out). All completion requests in Cairn (including chat tool loop and context compaction) stream internally to keep the connection active.

Cairn Agent

Cairn includes a native coding agent that runs directly inside the app — no external CLI binary required. It is accessible from the Agent view (⌘5) by choosing Cairn Agent in the spawn modal.

The agent runs on the Cordis agent runtime (DeepSeek harness): a shared engine drives the model↔tool loop, session persistence, approvals, subagents, background jobs, and context compaction — Cairn contributes its workspace tools, board-aware system prompt, and renderer bridges. See Architecture.

What makes it Cairn-specific

Unlike a general coding agent, the Cairn Agent is a first-class participant in your project:

• Board integration — when you attach a task at spawn time, the agent moves it to In Progress immediately and to Review (or Done) when it finishes
• Automatic notes — findings, decisions, and bugs discovered during a session are written to project notes via ensure_note (idempotent — no duplicates on re-run)
• Session summary — a summary note is created at the end of every session documenting what changed and what needs follow-up
• Out-of-scope capture — issues found beyond the current task are automatically added to the board as new tasks

Plan Mode

Launch the agent in Plan Mode to produce a spec before writing any code. The agent reads your codebase (read-only tools only) and writes a structured PRD note to your project. An Approve Plan button in the chat header then promotes the session to Execute Mode, injecting the full PRD as context for the coding run.

Subagents

The agent can delegate contained sub-tasks to a fresh subagent via the subagent tool (one-shot) or delegate (continuable background conversations you can message later). A delegated agent runs with its own session history — only its final answer returns to the parent, keeping the parent context lean for long multi-step tasks. The subagent trace renders inline and collapsible in the chat UI.

Context usage ring

A small ring in the agent pane header shows how full the model's context window is after each step. Configure the limit for your model in Settings → AI → Coding Agents → Context window (presets: 8k / 32k / 128k / 200k).

When usage reaches 80% the agent automatically compacts older context — the status bar shows "Compacting context…" while this is in flight. Type /compact in the chat input to trigger compaction on demand at any time. If a transient API error occurs, the status bar shows a countdown ("Transient error — retrying (1/3) in 8s…") and the agent retries automatically.

MCP server

Cairn ships a standalone stdio MCP server as a self-contained binary (dist-mcp/cairn-mcp), built with @yao-pkg/pkg. It connects directly to the same SQLite database as the app — writes are reflected in the UI in real time via WAL polling.

Connect from OpenCode

Add to opencode.json in your project root:

{
  "mcp": {
    "cairn": {
      "type": "local",
      "command": ["/Applications/Cairn.app/Contents/Resources/app.asar.unpacked/dist-mcp/cairn-mcp"],
      "enabled": true
    }
  }
}

Connect from Claude Desktop

Add to ~/Library/Application Support/Claude/claude_desktop_config.json:

{
  "mcpServers": {
    "cairn": {
      "command": "/Applications/Cairn.app/Contents/Resources/app.asar.unpacked/dist-mcp/cairn-mcp"
    }
  }
}

The exact paths above are generated automatically in Settings → AI → MCP — copy them from there.

Available MCP tools

The MCP surface is derived from the same schemas the in-app agents use (electron/lib/tool-schemas.ts — everything except chat-only tools such as ask_questions and suggest_connections), across notes, tasks, projects, dashboards, Idea Flow, knowledge graph, tags, and codebase search. The authoritative live list is always in the app under Settings → AI → MCP, which shows every tool with its read/write/delete category — this file does not duplicate that list so it can't rot.

Agent tip: call get_cairn_context at the start of a session for all workspace/project/column IDs. Use list_ready_tasks instead of search_tasks when you want to know what work can actually start — it filters out anything blocked by an unresolved dependency. Use update_task with blockedBy/unblockFrom to manage task dependencies.

Keyboard shortcuts

View all shortcuts

Shortcut	Action
⌘K	Open global search
⌘⇧F	Global search (any view) / File search in Agent view sidebar
⌘F	In-context search — find/replace in Note or Agent editor; filter in Notes list, Board, or Knowledge Graph
⌘N	New note (switches to Notes view)
⌘/	Toggle AI chat
⌘\	Toggle sidebar
⌘1 / ⌘2	Overview / Notes (always)
⌘3–⌘9	Walk the visible views in sidebar order (default: Board, Calendar, Flow, Agent, Calendar-all, Graph, Insights, …) — hide views in General settings to compress the range
⌘S	Save file (Agent editor)
⌘Z	Undo
⌘⇧Z / ⌘Y	Redo
Esc	Close modal / search / filter bar

Architecture

Two processes share a single SQLite database (WAL mode):

• Renderer (src/) — React/Next.js. All data flows through IPC via window.electron.*; never touches the DB or filesystem directly.
• Main process (electron/) — Node.js. Owns SQLite, file I/O, the Cordis agent runtime, and PTY sessions for coding agents. IPC handlers are split into per-domain registrars (db-handlers.ts, flow-handlers.ts, chat.ts, session-runtime-handlers.ts, runtime-handlers.ts, etc.) orchestrated by handlers.ts.
• Agent runtime (electron/cordis/) — one shared Cordis context drives chat turns (runChatCordisSession) and coding turns (runCordisCodingLoop): model↔tool loop, session persistence (JSONL), approvals, subagents, background jobs, skills, and auto-compaction via DeepSeek harness plugins. Cairn contributes its workspace tools (cairn-tools.ts), the board-aware coding prompt (lib/coding-session-prompt.ts), and renderer bridges (cairn-plugins.ts). App I/O crosses into the engine only through the HostStore seam (host-store.ts). See docs/architecture-cordis.md.
• MCP server (electron/mcp-server.ts) — self-contained binary; connects external agents to the same DB via WAL polling. SQL query helpers are shared with the Electron main process via electron/db/queries.ts (single source of truth).

Notes are plain .md files (YAML frontmatter); SQLite is the read/search cache. Writes are atomic (.tmp rename). A chokidar watcher syncs external edits at runtime. notes and task_cards carry a version integer; MCP write tools accept expectedVersion for conflict detection.

For the full architecture reference see CONTRIBUTING.md. AI coding agents should read AGENTS.md for conventions tuned to LLM context windows.

Testing

npm test                 # full gate: licenses + features + compile + unit & integration (Vitest)
npm run test:watch       # watch mode
npm run test:coverage    # coverage report
npm run test:e2e         # E2E smoke tests — headless Chromium, no Electron required
npm run test:e2e:ui      # Playwright UI mode
npm run test:e2e:headed  # headed for local debugging

Unit/integration tests (electron/**/*.test.ts) cover SQLite queries, file I/O, MCP tools end-to-end, chat executor tool cases, IPC handlers, and MCP↔chat tool parity. The E2E suite runs against the Next.js dev server with a full IPC mock — covers boot, all 8 views, and sidebar content in ~10s.

Run npm run test:e2e before cutting a release to catch renderer crashes unit tests can't reach.

Tech stack

View full stack

Platform

Tool	Role
Electron	Desktop shell
Next.js 16	UI framework (App Router, static export)
TypeScript	Language
esbuild	Bundler (Electron main + MCP binary)
vitest	Unit & integration test runner
Playwright	E2E smoke tests (browser, no Electron required)

Data & AI

Tool	Role
better-sqlite3	SQLite (arch-separated native bindings for Electron + MCP + vitest)
gray-matter	YAML frontmatter parsing for note files
chokidar	File watcher for external .md edits
@deepseek-ai/cordis + dsh-*	Agent runtime: model loop, sessions, tools, approvals, subagents, jobs, compaction
onnxruntime-node + @huggingface/transformers	Local embeddings for semantic search
@modelcontextprotocol/sdk	MCP server
Zod	Schema validation
nanoid	ID generation

UI & State

Tool	Role
Tailwind CSS v4	Styling (CSS custom properties; never raw colour names)
Zustand	State management (domain slices: ui, workspace, board, notes, tags, chat, graph, selectors, coding-agents, terminal-sessions)
Radix UI	Accessible UI primitives (dialog, dropdown, tooltip, popover, select, context menu)
Lucide React	Icons
cmdk	Command palette
react-day-picker	Date picker
date-fns	Date utilities
tailwind-merge	Tailwind class merge utility

Editor & Agent

Tool	Role
CodeMirror 6	Note editor + Agent file editor (CM6, CSS-hidden-per-tab pattern)
@codemirror/search	In-editor find/replace panel (⌘F)
node-pty	PTY process spawning (Agent terminal)
@xterm/xterm	Terminal emulator (Agent view)
@xterm/addon-fit	Terminal auto-resize
parse-diff	Git diff parser (Agent diff viewer)

Visualisation

Tool	Role
@xyflow/react	Node-based canvas (Idea Flow)
dnd-kit	Drag and drop (Kanban)
D3 v7	Analytics & graph visualisation (Insights canvases, Radial tree, Force-directed graph)
d3-sankey	Sankey pipeline diagram (Insights)
@dagrejs/dagre	Graph auto-layout (Idea Flow)

Markdown

Tool	Role
react-markdown	Markdown preview
remark-gfm	GitHub Flavored Markdown
remark-breaks	Hard line breaks in markdown
remark-math / rehype-katex	Math expression rendering
Mermaid	Diagram rendering in notes
lowlight	Syntax highlighting in code blocks

The Settings → About screen in the app shows real installed versions grouped by category (Platform, Data, AI, UI, Editor, Agent, Visualisation) and all open source licenses. These are generated automatically at build time — see below.

Star History

Contributing

Contributions are welcome — bug fixes, features, docs, and tests. See CONTRIBUTING.md for the full guide: dev setup, architecture, coding conventions, and PR checklist.

For security issues please see SECURITY.md rather than filing a public issue.

License

MIT — see LICENSE.
