CLN - CLOSED-LOOP DRIVERS FOR NEMA MOTORS

The CLN motor driver series is an open-source project aimed at creating a range of compact, cost-efficient high-performance closed-loop stepper drivers for various NEMA form factor motors. These drivers are designed to provide silent and smooth motion, high-precision position control, and energy-saving capabilities, suitable for a wide array of applications in robotics, CNC machines, 3D printers, and more.

Key Features

• 🕹️ Closed-Loop Control: Integrates an encoder for real-time position monitoring, ensuring precise and safe motion.
• 📏 Fine Positioning: Achieves high position control accuracy of 0.01° for smooth operation.
• 🛡️ Reliable Operation and Enhanced Safety: Features integrated diagnostic and protection mechanisms for the motor and the user safety.
• 🧩 Modular Concept: Offers various configurations for different cost, size and performance needs, supporting expansion boards and daisy chain connections.

Applications

• 🎓 Learning Platforms
• 🛠️ CNC Machines & 3D printers
• 🤖 Robotics & Automation Systems
• 🤝 Collaborative Robots
• 🔭 Camera & Telescope Stabilization Systems
• 🔬 Laboratory Equipment
• 🏭 Industrial Motion Control Systems
• 📳 Haptics & Force Feedback Systems

Repository Structure

• wiki: includes design documentation and other information
• hardware: contains design source files, manufacturing files, schematics, block diagrams and 3D models

Firmware

The following options are available:

• CLN-SimpleFOC: SimpleFOC based firmware for CLN. Pretty stable, ready to use
• TunePulse: Firmware for CLN and RadiX motor drivers. Currently a work in progress; estimated release date is to be determined

Hardware Versions

NEMA17 dedicated drivers

• CLN17 V3.0 [active]: newest version with best performance and BLDC support [wiki].

  • Key info: Discrete MOSFET based, 6-48V 3.2A_RMS 4.5A_PEAK, up to 60W output power, 21bit position feedback, dual-sided SMD only assembly
  • Supported interfaces: STEP-DIR-EN, USB, CAN-FD, USART, I2C, SPI, ABZ
  • Supported motors: Stepper, 3phase BLDC/PMSM





OBSOLETE / NRFND

[CLN17 V1.0](hardware/CLN17/V1.0 [OBSOLETE]) [obsolete]: pilot version [wiki]

[CLN17 V1.5](hardware/CLN17/V1.5 [OBSOLETE]) [tested]: cost-efficient version [wiki]

[CLN17 V2.0](hardware/CLN17/V2.0 [NRFND]) [tested]: high voltage version [wiki]. [CLN17 V2.1](hardware/CLN17/ [NRFND]) is improved version

[CLN17 V2.5](hardware/CLN17/V2.5 [NRFND]) [tested]: meant to be final version but will be skipped

Important Note: Obsolete designs will not be supported in future

NEMA23 and NEMA34 dedicated drivers

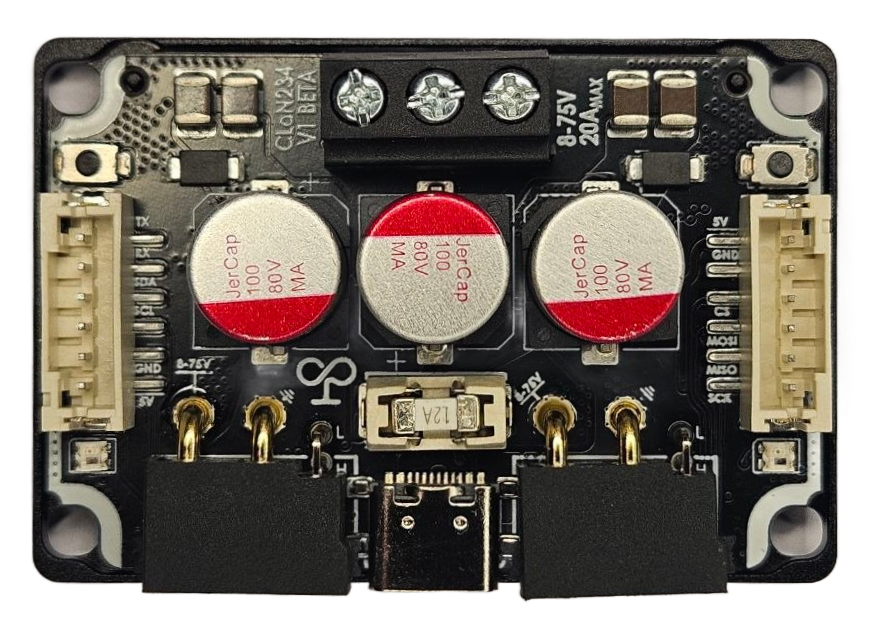

• CLN234 V1 [under tests]: powerful and versatile [wiki]

  Key info: external MOSFETs, 8-75V 10A_RMS 20A_PEAK, up to 1000W output power, 21bit position feedback, 56x38x18mm, fits into Ø60mm

  Supported interfaces: STEP-DIR-EN, USB, CAN-FD, USART, I2C, SPI, ABZ



Modular drivers dedicated for embedded systems

Jump to the RadiX project repository
