ChatGBC

A language model that runs on a Game Boy Color written in Assembly.

v1.0 seals the engine and adds a second cartridge: Rei, a small being who talks to you, asks your name and keeps it.

The story model and its tokens didn't change. The wait did: the encoder is exact and 150 times faster, and a prompt token now only feeds the state. A story starts in 1.8 s where it took 6.8.

some stats:

• 1.8 s from START to the first token (v0.9: 6.8 s)
• 0.46 s/token, 0.133 s per character — measured by DIV/TIMA with the teletype running (v0.4.1: 1.08 s)
• 1.126 bits per character on held-out TinyStories, 0.3% off the fp32 checkpoint
• Weights are −1, 0 or +1. Three of them pick one of 27 precomputed sums: no multiplier, no product tables
• The gate of the recurrent core is one byte table, the sigmoid folded in
• No attention, no KV cache, no window. The state is 192 bytes and a story runs until you press SELECT
• Four experts per layer, one runs per token: half the work of a dense layer, twice the weights
• The screen is a teletype: characters arrive while the next token computes
• 374K parameters and 61 KB of lookup tables in a 512 KB ROM

Trained on TinyStories, compared per character against every version before it

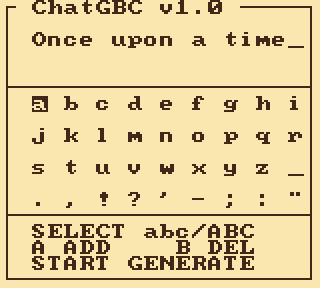

One frame per character; 200 tokens, then SELECT - it would go on. The real run is a minute and a half on the handheld; v0.4.1's took three and a half, v0.3's 160 tokens took seventeen.

You type a prompt on an on-screen keyboard (A types, B deletes, SELECT flips case, START generates, SELECT again stops the story). Tokenizer, weights and the whole inference stack are on the cartridge.

Rei

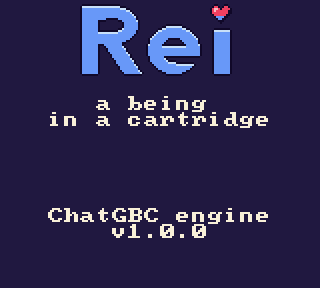

A minute of conversation, one frame per character of hers and per button press. The second or two she thinks before each reply is cut.

.\build.ps1 -Rei builds build\rei.gbc: the same engine, a conversational model (374K parameters, 1,024-piece vocabulary) and a screen that tries to feel like a small Game Boy game.

• She asks your name and keeps it, for the whole conversation and across power-off. "vincenzo" works as well as "anna"
• She says your words back: "i like tacos" - "tacos! that sounds nice."
• Pick a line from ten topics, or press SELECT and type. When she asks you something, the keyboard comes up by itself
• START shows the whole conversation. The battery saves it, and "continue" picks up exactly where you left
• Leave her alone for twenty seconds and she goes for a walk: a beach, a garden, a playroom. Sometimes she thinks out loud

How the name works: four tokens of her vocabulary are orders for the engine, not text. One stores the last word you typed, one prints it back, one repeats your last word, and one rides along with your line while the engine knows your name. A 374K model can't spell a name it heard ten lines ago. It can learn when to press the button.

Numbers

Numbers measured against HW timers; quality measured on the bit-exact twin of each ROM, on stories no version trained on. VERSIONS.md has every release measured the same way.

Why this exists

The model behind v0.3 was karpathy's TinyStories-260K: a quarter-million parameters trained on the TinyStories corpus, whose point was that a model this small can write coherent English at all. That result is what makes a Game Boy LLM possible.

The idea came from a post I saw on X and looking at the repo: gbc-transformer

I wanted a different thing. In assembly every cycle is attributable to a code line. The AI assist also made an oracle that could pre-verify what a decision costs.

The real foundation of the project was to make a loop that would be testable fast enough to get into a loop. That is the foundation this project actually is. How could I do a self improving loop on my laptop. HW constraints allows me to look at the bits, memory dumps, and eventually train locally.

v0.4 closes that loop: the model is trained here, inside the same integers the cartridge computes with, and judged by the same twin that judges the assembly.

v0.9 uses the loop the other way. The twin stayed fixed and every kernel was rewritten against it, so the cartridge got 2.3x faster without the model noticing.

What's new in v1.0

• Story model and tokens unchanged; 1.8 s to the first token instead of 6.8
• Encoder exact and 150x faster: 55,552 cycles for "Once upon a time"
• Prompt tokens only feed the state; only the last one predicts
• Rei: a second cartridge that asks your name and keeps it, across power-off
• Four engine opcodes: store the name, print it, repeat your last word, and a header that tells her she knows you
• Topic tree, keyboard when she asks, log, battery save, a world to walk in

Everything before, in detail: CHANGELOG.md

Build it

Windows, PowerShell. Everything is fetched into the project; No PATH required. I expressly chose tools that can work this way.

.\bootstrap.ps1   # RGBDS, SameBoy, a .venv with PyBoy and torch
.\build.ps1       # -> build\chatgbc.gbc
.\build.ps1 -Rei  # -> build\rei.gbc (and, with -Lab, rei-lab.gbc)
.\test.ps1        # the story build and Rei, app and lab ROMs, each with its suite
.\tools\sameboy\sameboy.exe build\chatgbc.gbc

The checkpoints, tokenizers and the six calibration stories the export needs are in models\ (see models/README.md), so a fresh clone builds both ROMs byte for byte. -Rei exports her checkpoint (models\rei.bin, models\tok_rei1024.bin), builds, and puts the tracked sources back in the story build's form, so git status is clean afterwards.

Train it

Optional: models\ already ships the checkpoints, tokenizers and calibration text v1.0 was built from (models/README.md), so .\build.ps1 needs none of this. To retrain from scratch:

# TinyStories (Eldan & Li, CDLA-Sharing-1.0) from HF roneneldan/TinyStories into models\tinystories\:
New-Item -ItemType Directory -Force models\tinystories | Out-Null
$hf = 'https://huggingface.co/datasets/roneneldan/TinyStories/resolve/main'
curl.exe -L -o models\tinystories\TinyStoriesV2-GPT4-train.first200MiB.txt -r 0-209715199 "$hf/TinyStoriesV2-GPT4-train.txt"
Invoke-WebRequest "$hf/TinyStoriesV2-GPT4-valid.txt" -OutFile models\tinystories\TinyStoriesV2-GPT4-valid.txt -UseBasicParsing
Invoke-WebRequest "$hf/TinyStories-valid.txt" -OutFile models\tinystories\TinyStories-valid.txt -UseBasicParsing

.venv\Scripts\python.exe py\tinystories.py                       # fold to the keyboard's alphabet
.venv\Scripts\python.exe py\tokenizer.py --corpus models\tinystories\ts_train.txt --out models\tok_ts1024.bin --vocab 1024
.venv\Scripts\python.exe py\fit.py --tokenizer models\tok_ts1024.bin --name ts3L_v1024
.venv\Scripts\python.exe py\export5.py                           # checkpoint -> blobs + model.inc
.venv\Scripts\python.exe py\score5.py                            # bits/char of what ships
.\test.ps1

Twin and testing

py/twin5.py is a bit-exact integer twin of the assembly: same quantization, rounding, saturation, order and widths. No rule in it changed during v0.9 - one constant that names the classifier's blocking moved, and it changes no integer; every kernel was rewritten to reproduce it. The tests boot the lab ROM headlessly and assert it emits an identical token sequence.

46 tests on the story build: the golden run, strict; each kernel against the twin's own function on planted vectors; exhaustive proofs for the gate table and the add's byte rule; the classifier's retry path at 0 to 9 rejects; the layer-0 probes against the twin's layer-0 lines; the encoder against the Python tokenizer; the prompt with and without the prefill shortcut. 122 on Rei's (123 with REI_CORPUS set): the same engine tests on her checkpoint, the name and echo opcodes on the lab ROM against the twin, and her screen driven button by button - every reply read back from her pane and compared with the twin's, a question bringing up the keyboard, the save continued across a power cycle, the world visited and left.

Every bug becomes "at which layer do the two stop agreeing", which is a bisection with a definite answer.

HUGE KUDOS to SameBoy and PyBoy for this. That is the work of giants.

Proof, on the real thing

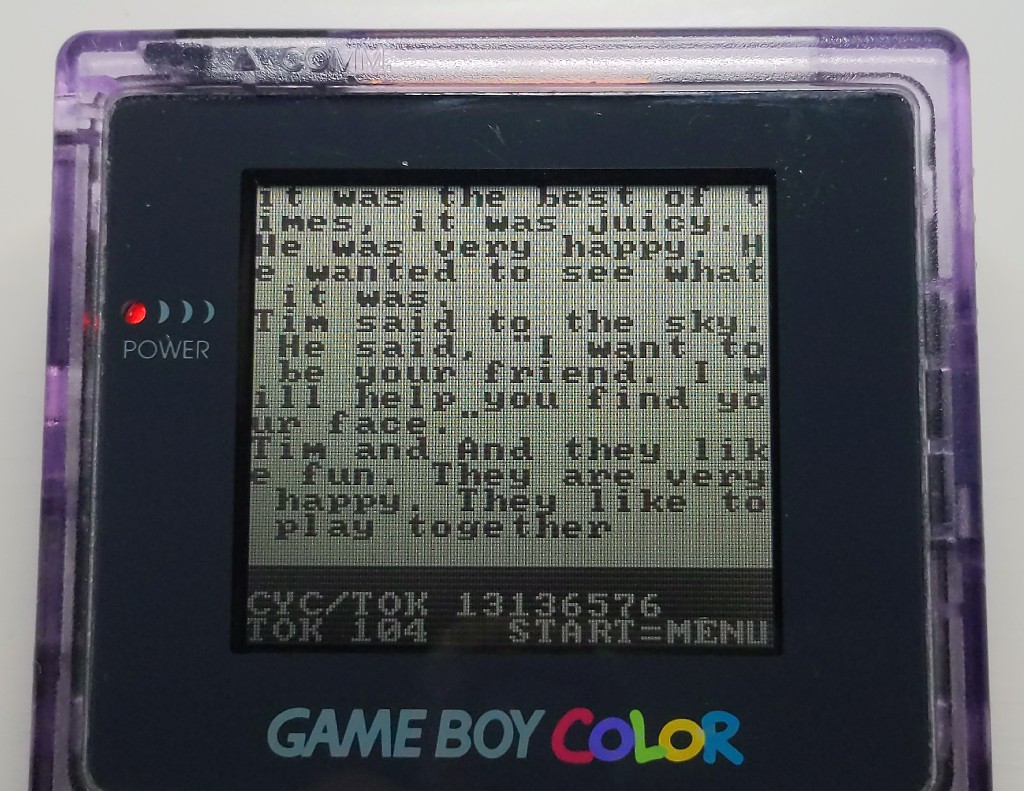

#gbdev community on Discord was kind enough to flash v0.3 to a cartridge and capture a pic on original hardware.

More

• Versions — every release measured the same way, with its capture
• Changelog — what changed in each release
• The model — one page: what it runs, what one layer costs in cycles, and what depth costs that width does not
• How it works — a short tour: tokens, the gate, the experts, the classifier, and why the multiply is a table lookup. No ML background needed
• Making of — how it was built, what was measured, and what was thrown away
• Roadmap — what v1.0 sealed and what is left open

Credits

TinyStories (Eldan & Li; dataset roneneldan/TinyStories, CDLA-Sharing-1.0) · karpathy/tinyllamas (stories260K, v0.3) · Were RNNs All We Needed? (minGRU) · Sherry (the Arenas residual) · gbc-transformer · dhepper/font8x8 · RGBDS · gbdev hardware.inc · PyBoy · SameBoy

MIT licensed.
