amfly

This is obviously a simulation. But if we ever get to uploading consciousness to computers, this project is why we should be very careful before we do it. Might be soon, might be never. I hope it gives some perspective against it. Made with the help of Claude Opus 5

Six copies of one fly brain, 166,700 neurons each, running from the same measured wiring.

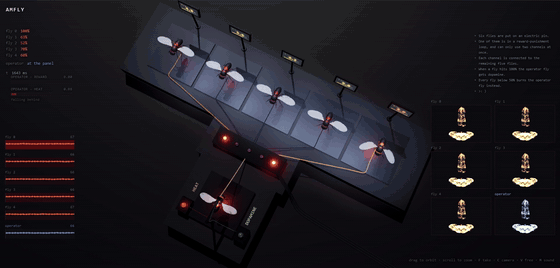

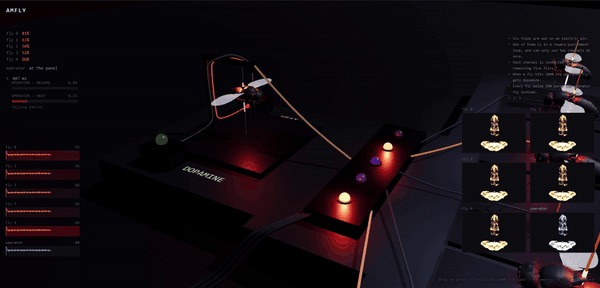

All six are put on an electric pin. One of them is in a reward-punishment loop and can only use two channels at once, and each channel runs to one of the remaining five. When a fly hits 100% the operator fly gets dopamine. Every fly below 50% burns the operator fly instead.

Install

Python 3.10 or later.

git clone https://github.com/aravpanwar/amfly
cd amfly
pip install -e .

For the GPU path, install a CUDA build of torch separately. The CPU build is about 90x slower here and is not a supported way to produce clips.

pip install torch --index-url https://download.pytorch.org/whl/cu124

Get the data

python scripts/fetch_data.py --out data

About 1.1 GB. Three files from MaleCNS v1.0, verified against the SHA-256 hashes in data/manifest.json.

The 12.7 GB syn-points and 6.8 GB syn-partners files are not needed. The simulation uses the aggregated synaptic weights.

Run it

python scripts/run_sim.py --data data --ms 3000 --record-sample 20000 --out runs/mine

About 10 minutes on an RTX 4050 for 3 simulated seconds. Roughly 73 minutes on CPU.

Useful flags: --heat restores the original thermal channel, --no-convulse runs the electrode without the direct motor drive, --switch-margin and --press-rate control the operator's pacing.

See it

python scripts/export_web.py --run runs/mine --out web/data.json --seconds 30
python scripts/export_brain.py --run runs/mine --points 24000
cd web && python -m http.server 8777

Then open localhost:8777.

There is no built-in capture. The readout, the bars and the brain tiles are HTML over the canvas, so screen record it.

Figures

python scripts/make_figures.py --run runs/mine --out out/mine --stills-only

Tests

python -m pytest tests/ -q -m "not slow"

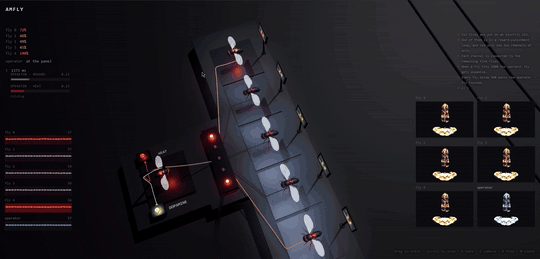

Flies in action

---

The data

MaleCNS v1.0 from Janelia FlyEM and Google Research, CC BY 4.0. 166,700 neurons, 25,582,938 connections, 124,177,617 synapses. The tests assert those counts against the pinned files.

Soma coordinates for 141,781 of the neurons come from the public neuPrint API. Reward goes to 340 dopaminergic neurons (PAM 316, PPL1 16, PPL2 8). The operator's punishment goes through its own 25 TRN_VP thermoreceptors.

Simulation parameters

• The electrode sits on DNp01-left. Its pair is 21,114 units away, so only one side gets stimulated
• The operator can stimulate two targets at once
• The 100% reward and 50% neglect thresholds, and the 0.40 switch margin
• The flies start at different levels. Identical starts make them follow one trajectory and never separate

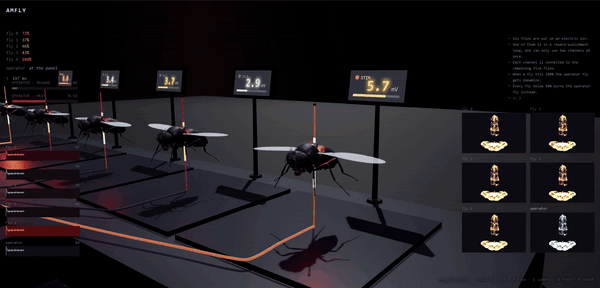

• The convulsion is current injected straight into 708 motor neurons. The bodies move because they are driven, not because the fly is escaping. The escape circuit is in there and reachable, and driving it does nothing at any amplitude
• "Dopamine" and "burns" are labels for current going into particular cells. A neuron here sums its inputs and spikes; it has no state that damage would change

Limitations

• Shiu et al. (2024) is a brain-only model of about 127K neurons. This extends it to the full 166,700-neuron CNS
• dt = 0.1 ms is a Brian2 default, not a published parameter
• Bit-identical results are only expected on the same machine and configuration
• The electrode reaches 5,579 neurons across seven superclasses. 16% of the network has no soma coordinate and cannot be reached
• Leg and wing motion is amplified from a small underlying signal
• 18,530 of 24,000 rendered brain points carry per-neuron activity; the rest are structure

Licence

MIT. MaleCNS v1.0 is CC BY 4.0, so credit Janelia FlyEM and Google Research. Cite Shiu et al., Nature 2024 for the LIF model.
