ABot-PhysWorld is a physically consistent, action-controllable video world model for robotic manipulation, built on a 14-billion-parameter Diffusion Transformer. It integrates physics-aware training, memory-efficient preference optimization, and precise spatial action injection to generate realistic and physically plausible robot-object interactions — even in zero-shot settings.

🗞️ News

• [2026-04] 🏆 1st Place on WorldArena Leaderboard! ABot-PhysWorld achieves the top rank on the WorldArena benchmark.
• [2026-04] 🥈 2nd Place on GigaBrain Challenge CVPR 2026 – World Model Track! ABot-PhysWorld secures the runner-up position in the CVPR 2026 GigaBrain Challenge World Model Track.
• [2026-04] 🎮 A2V code released! Action-to-Video training and inference via VACE parallel context blocks. See training/README_A2V.md and inference/README_A2V.md.
• [2026-04] 🧪 DPO training released! Direct Preference Optimization pipeline for physics-aware alignment with LoRA. See training/README_DPO.md.
• [2026-03] 🎉 Training code released! Full-parameter SFT training scripts for fine-tuning on custom robot manipulation datasets. See training/.
• [2026-03] 📦 SFT training data released! The v1 SFT training dataset is available on ModelScope.
• [2026-03] 🔬 Benchmark released! EZS-Bench evaluation toolkit and data are open-sourced. See EZS-Bench/.
• [2026-03] 🚀 Inference code released! Generate robot manipulation videos with the pre-trained model. See inference/.

🏆 Competition Results

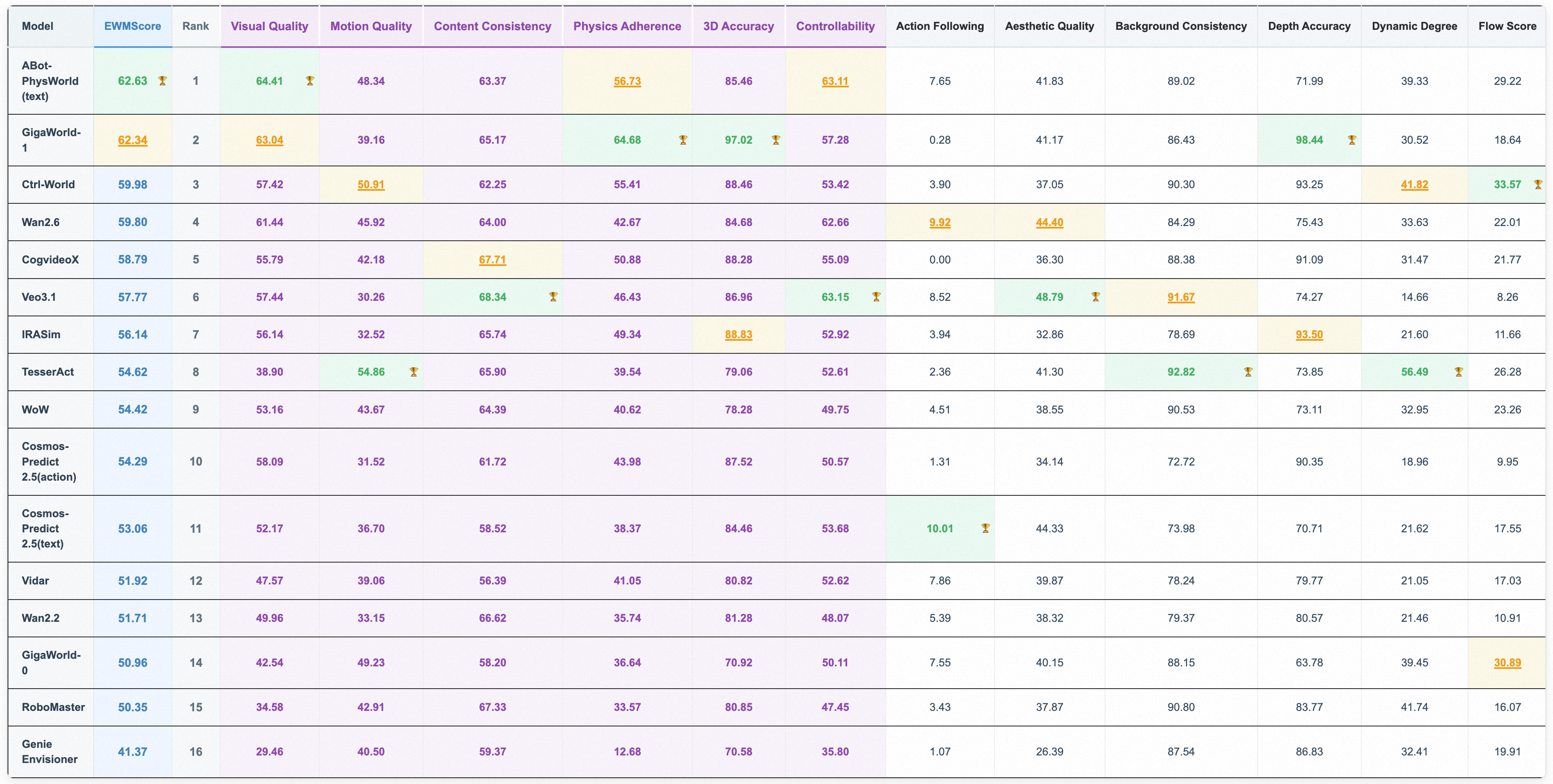

WorldArena Leaderboard – 🥇 1st Place

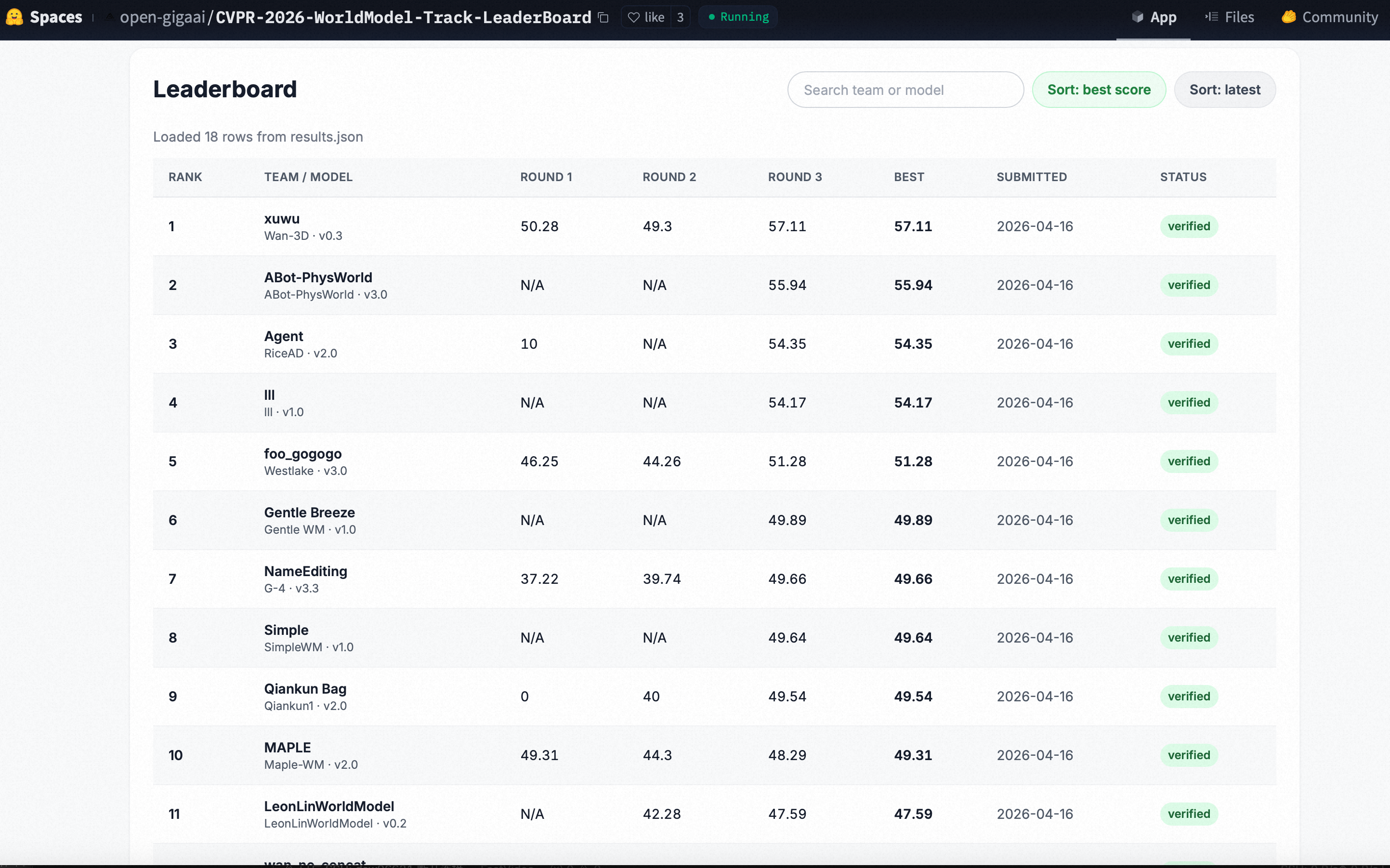

GigaBrain Challenge CVPR 2026 – World Model Track – 🥈 2nd Place

Table of Contents

• 📚 Key Contributions
• 🚀 EZS-Bench
• 📊 Evaluation
• 🖼️ Qualitative Results
• 🛠️ Usage
• 🏋️ Training
• 🎮 A2V (Action-to-Video)
• 🧪 DPO Training
• 📜 Citing

📚 Key Contributions

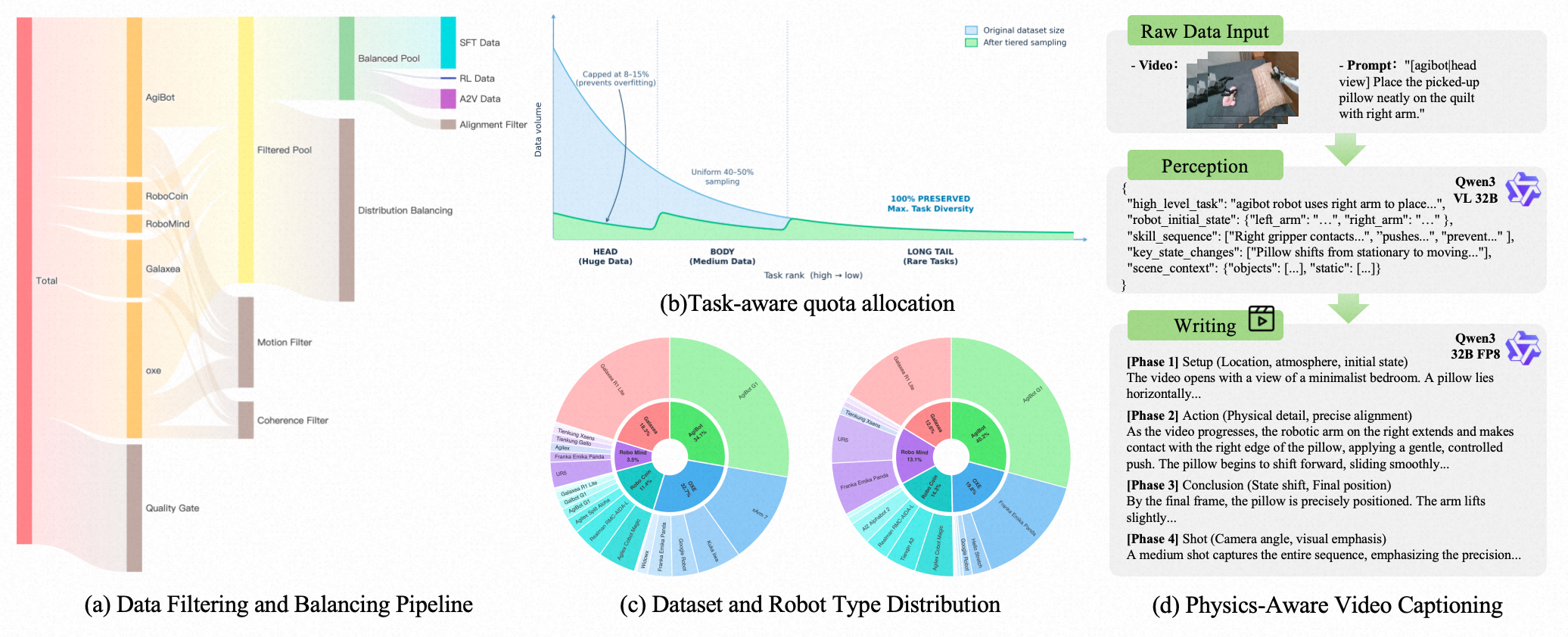

1. Industrial-Grade Data Pipeline
   Curated ~3M real-world manipulation clips from five datasets (AgiBot, RoboCoin, RoboMind, Galaxea, OXE) with motion, semantic, and action consistency filtering, plus hierarchical sampling for balanced generalization.

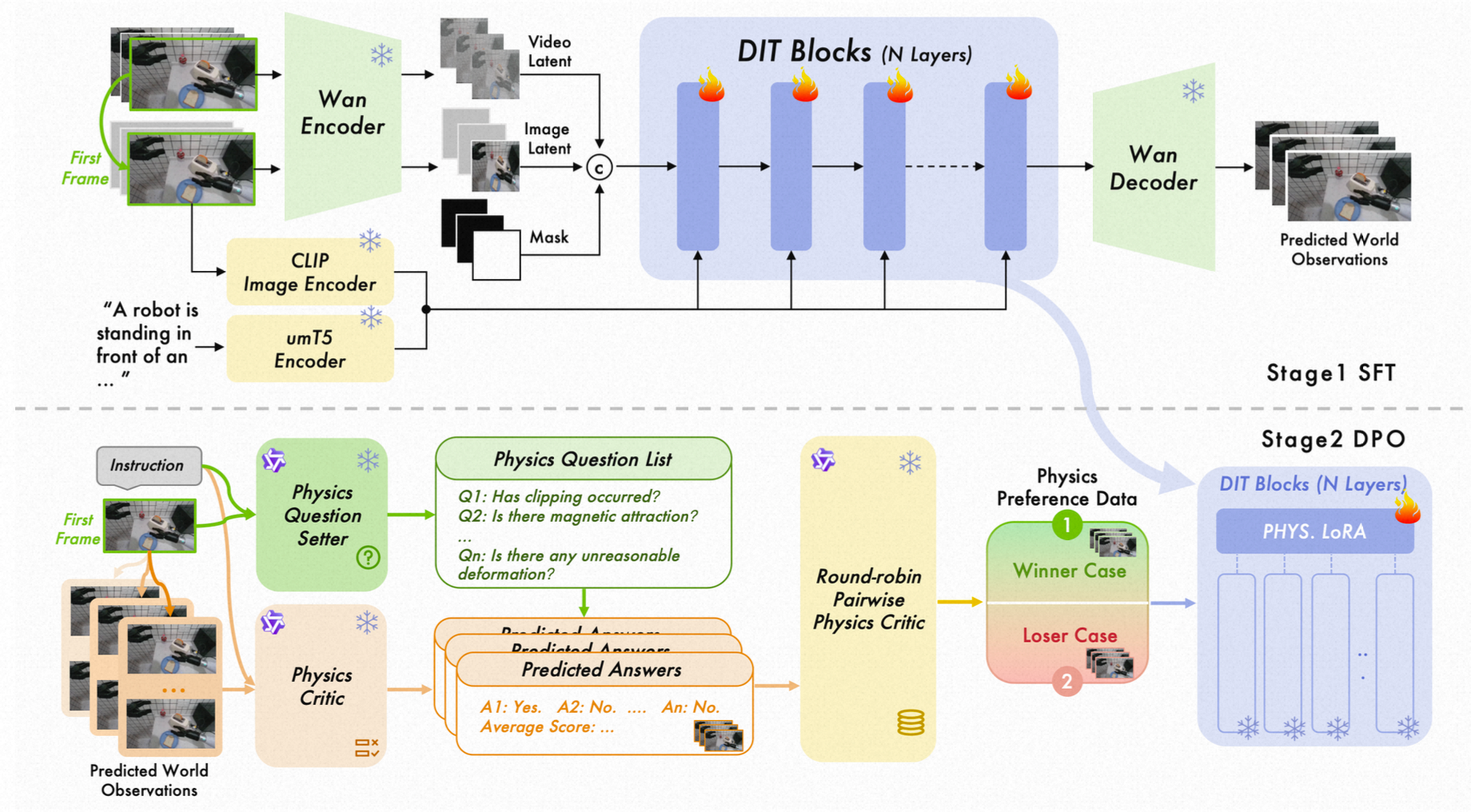

2. Physics-Aware DPO Training
   Introduces a decoupled VLM-based discriminator: Qwen3-VL generates task-specific physics checklists, Gemini 3 Pro scores videos via Chain-of-Thought; combined with LoRA-augmented DPO on a 14B DiT to enforce physical plausibility.

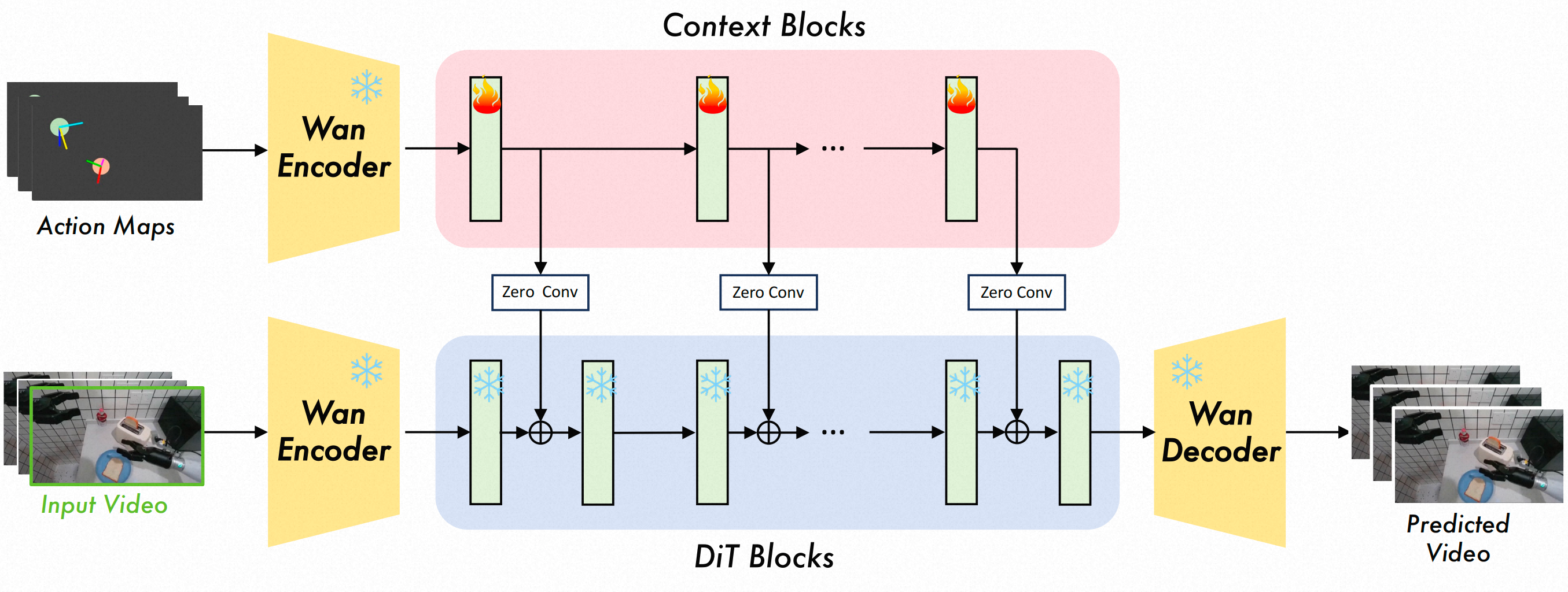

3. Parallel Context Blocks for Action Control
   Enables precise action-conditioned generation by residually injecting spatial action maps into cloned DiT blocks, preserving physical priors while supporting cross-embodiment control.



4. EZSbench – First True Zero-Shot Benchmark
   Fully training-independent evaluation covering unseen robot, scene, and task combinations, with dual-model scoring to eliminate self-evaluation bias.



---

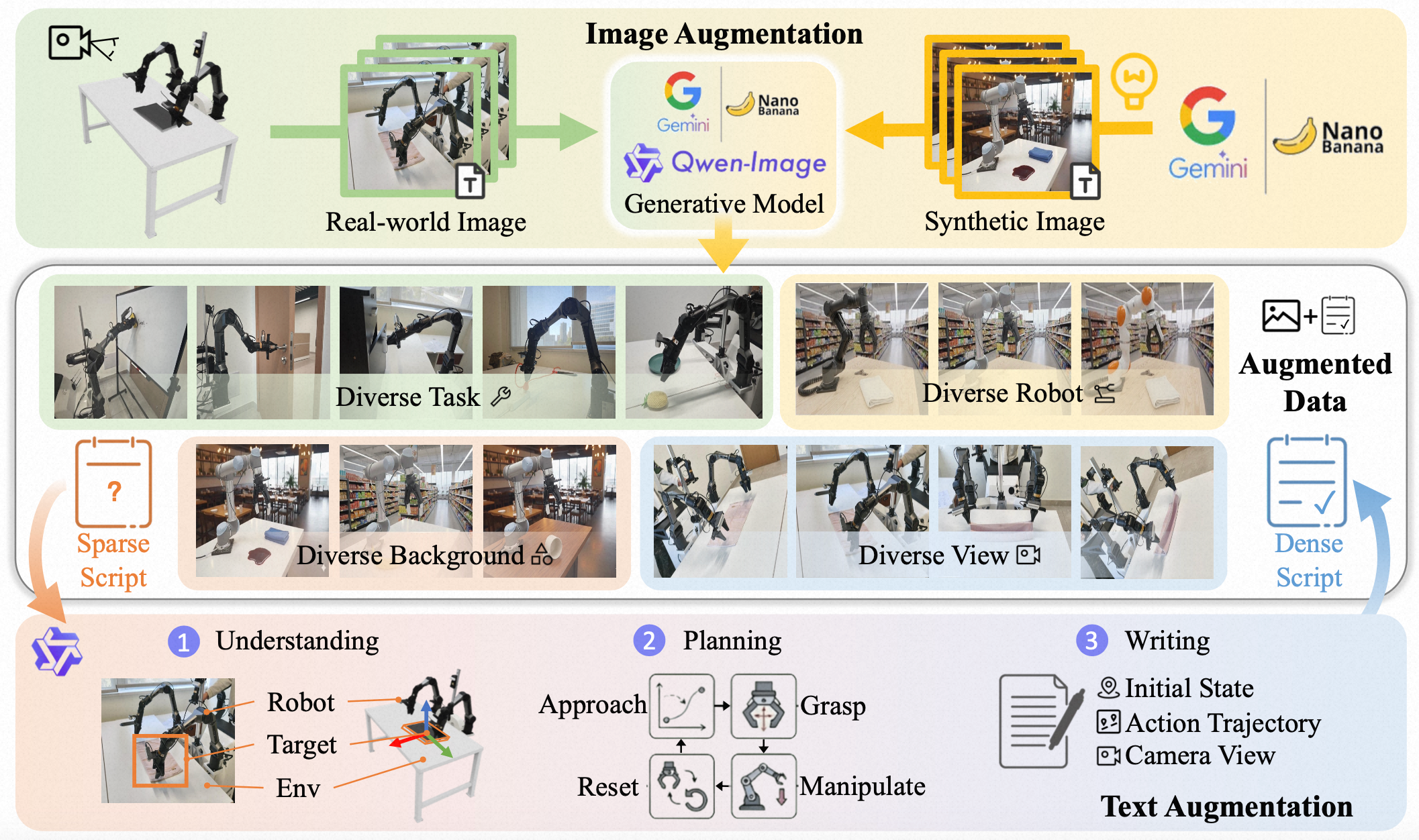

🚀 EZS-Bench

Embodied-ZeroShot Benchmark for Physically Consistent Video Generation 🤖✨

EZS-Bench is a zero-shot evaluation benchmark designed to rigorously assess physically plausible video generation in robotic manipulation. It evaluates models on physical consistency, action controllability, and cross-embodiment generalization—with no training-test data overlap. 🔍🔬

✨ Key Features

✅ True Zero-Shot Evaluation
Unseen combinations of:

• 🤖 Robot morphologies (e.g., single-arm, bimanual, custom kinematics)
• 🌍 Scenes & backgrounds
• 🎯 Manipulation tasks (pick-and-place, wiping, assembly, etc.)

🎨 Dual-Source Data Construction

• 🧬 Synthetic branch: Text-to-image generation with controlled variation
• 🖼️ Real-world editing: VLM-driven scene augmentation preserving physical interactions

🧠 Physics-Aware Evaluation

• Dynamic physical checklists generated by VLMs (e.g., "Does the gripper penetrate the object?", "Is gravity respected?")
• 30–50% negative questions to prevent guessing 🚫
• Decoupled scorer architecture to eliminate self-evaluation bias ⚖️

📊 Comprehensive Metrics
Evaluates:

• Physical fidelity (penetration, contact, deformation) 💥
• Temporal coherence 🕒
• Spatial alignment & trajectory consistency 🎯

📦 Getting Started

Download evaluation data from ModelScope:

git lfs install
git clone https://www.modelscope.cn/datasets/amap_cvlab/EZS-Bench_data.git

Install and run the evaluation toolkit:

cd EZS-Bench
pip install -e .

# Full evaluation (Video Quality + Domain Score)
torchrun --standalone --nproc_per_node=4 evaluate_ezsbench.py \
    --data_file /path/to/EZS-Bench_data/video_prompt_question_196_ezs0.jsonl \
    --method_name "YourMethod" \
    --method_dir /path/to/generated_videos \
    --output_dir ./results

The VLM judge model (Qwen2.5-VL-72B-Instruct, ~150 GB) is automatically downloaded on first run.

🔗 See EZS-Bench/README.md for full documentation.

---

📊 Evaluation

We evaluate ABot-PhysWorld on three key aspects:

• Physical Consistency (via PBench and EZSbench)
• Zero-Shot Generalization (via EZSbench)
• Action-Conditioned Controllability (via custom A2V benchmark)

📈 Summary of Advancements 🎉🎉

✅ ABot-PhysWorld establishes a new standard for physically grounded, controllable, and generalizable world models in robotic manipulation.

---

🖼️ Qualitative Results

Selected representative zero-shot generation results demonstrating ABot-PhysWorld's strong generalization and physical plausibility.

🎯 Zero-Shot Capabilities

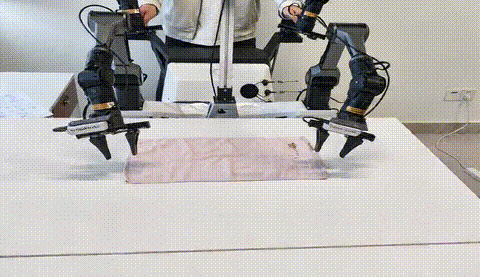

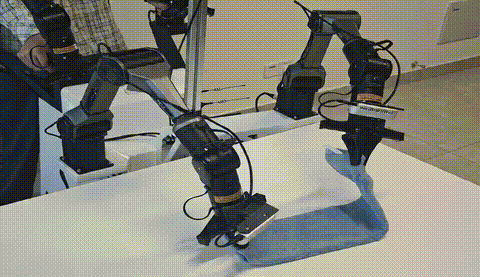

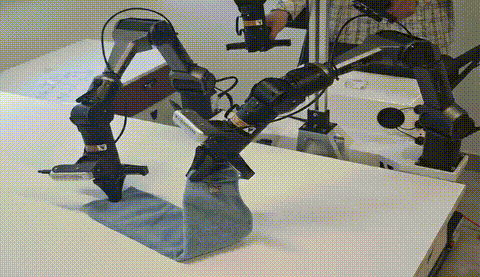

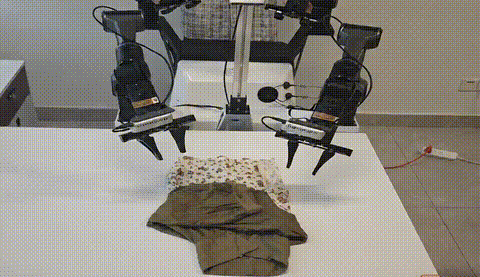

🔧 Scene 1: Deformable Object – Dual-Arm Towel Folding

• Task: Fold a towel using dual robotic arms
• Challenge: Complex cloth dynamics and bimanual coordination
• Ours:
  ✅ Physically realistic deformation
  ✅ Smooth, collision-free arm motion
  ✅ Natural folding sequence with consistent contact

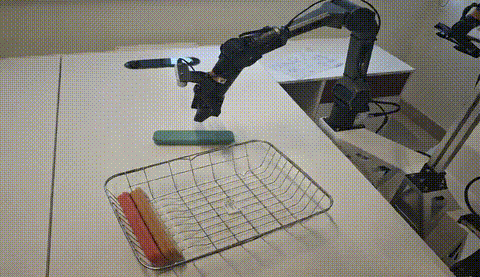

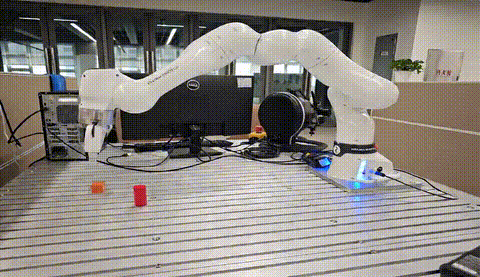

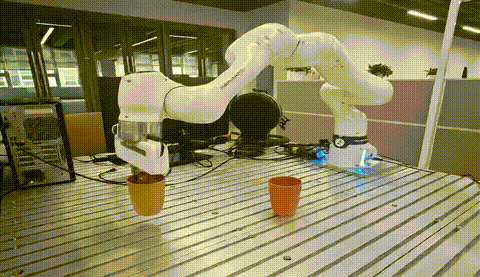

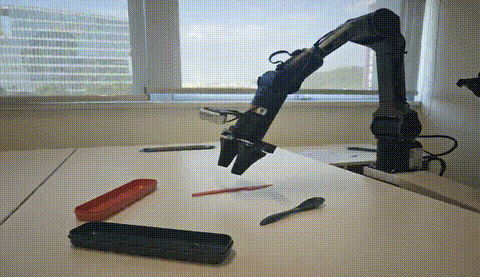

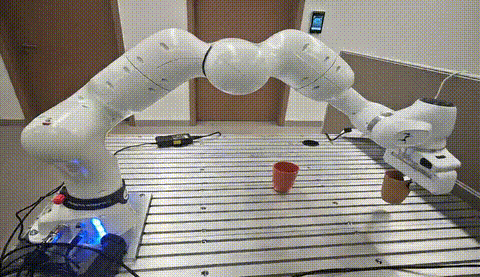

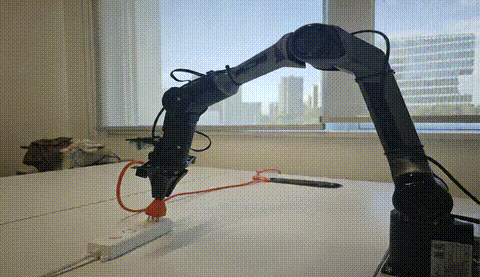

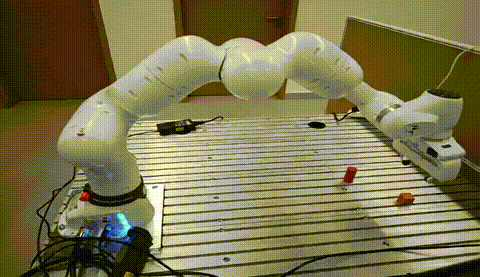

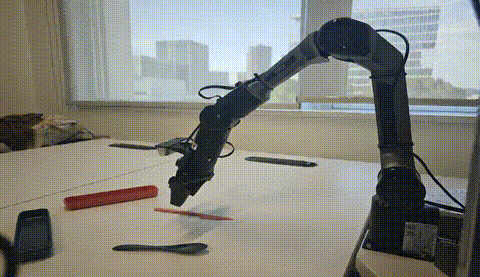

🥤 Scene 2: Fine Manipulation – Diverse Object Handling

• Task: Stack cups, build blocks, place a knife
• Challenge: Varying shapes, weights, and friction
• Ours:
  ✅ Accurate grasp pose prediction
  ✅ Adaptive gripper control
  ✅ Stable pick-and-place without slippage or penetration

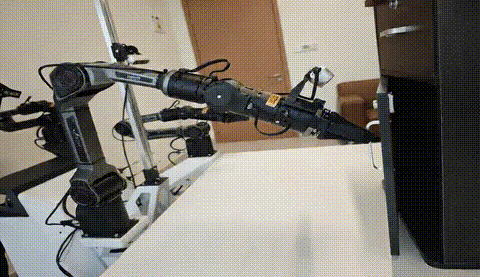

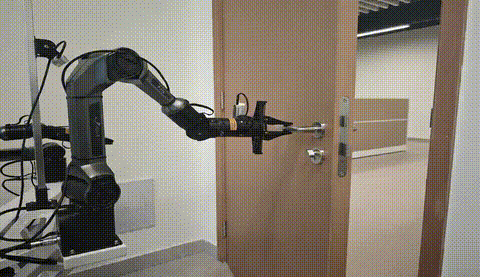

🚪 Scene 3: Articulated Object – Opening a Cabinet Door

• Task: Open a hinged cabinet or door
• Challenge: Enforce rotational constraints and correct force direction
• Ours:
  ✅ Proper handle grasping
  ✅ Realistic hinge rotation
  ✅ Motion follows physical pivot axis

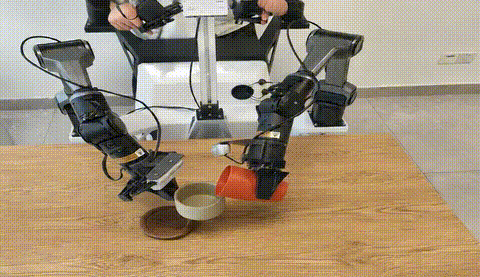

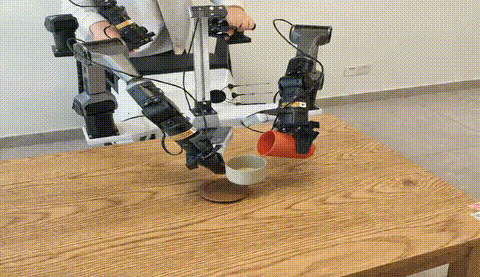

🫗 Scene 4: Fluid Interaction – Pouring Water

• Task: Pour water from a cup into a bowl using dual arms
• Challenge: Bimanual coordination, tilt control, liquid dynamics
• Ours:
  ✅ Collision-free trajectory planning
  ✅ Accurate pour timing and angle
  ✅ Visual consistency in fluid transfer (simulated proxy)

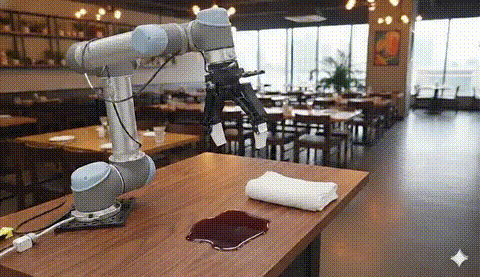

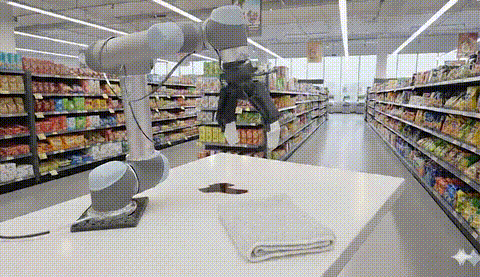

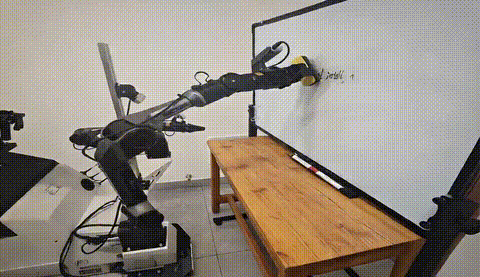

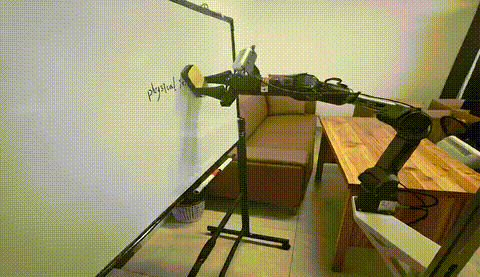

🧽 Scene 5: Cleaning Task – Wiping a Stain

Note: The Gemini watermark (bottom-right) indicates the initial frame generated by Gemini (ensuring it is completely unseen); all other frames are generated by ABot-PhysWorld.

• Task: Wipe a stain off a table
• Challenge: Maintain contact, uniform pressure, full coverage
• Ours:
  ✅ Continuous tool-surface contact
  ✅ Systematic wiping motion
  ✅ Gradual removal of the stain in video output

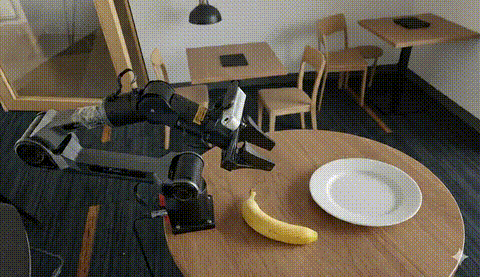

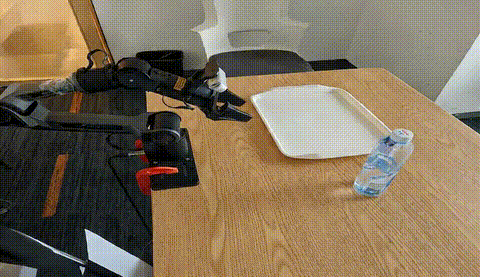

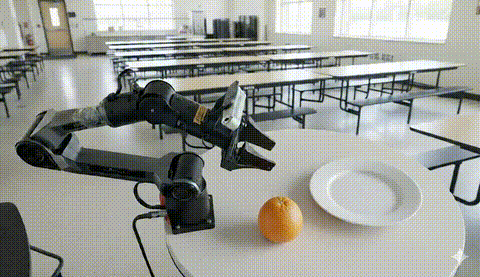

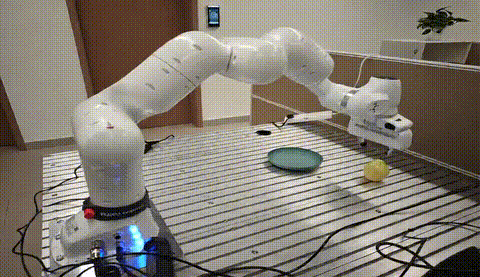

🍓 Scene 6: Multi-Scene Generalization – Fruit Sorting

Note: The Gemini watermark (bottom-right) indicates the initial frame generated by Gemini (ensuring it is completely unseen); all other frames are generated by ABot-PhysWorld.

• Task: Place fruits into a plate across diverse scenes
• Challenge: Background, lighting, and fruit variation
• Ours:
  ✅ Robust object recognition under domain shifts
  ✅ Consistent performance across unseen environments
  ✅ Fast and stable manipulation regardless of setup

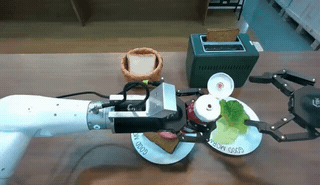

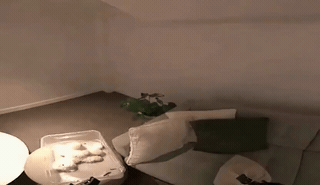

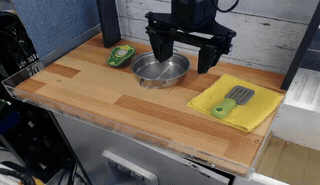

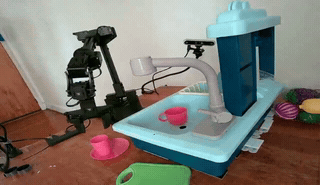

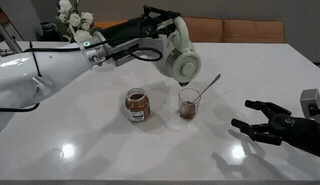

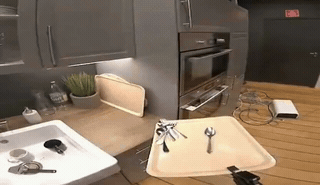

🔍 Pbench Results Demonstration

We conducted systematic qualitative comparative experiments on the PAI-Bench benchmark dataset. Below are the generated results from several typical scenarios.

Our model consistently generates physically valid trajectories even in complex, unseen scenarios — proving its utility as a reliable simulator for embodied AI.

---

🛠️ Usage

Quick Start: Video Generation Inference

Generate physically plausible robot manipulation videos using the ABot-PhysWorld fine-tuned model.

Environment Setup

# Create conda environment
conda create -n abot-physworld python=3.10
conda activate abot-physworld

# Install PyTorch with CUDA support
pip install torch torchvision --index-url https://download.pytorch.org/whl/cu121

# Install dependencies
pip install -r requirements.txt

Hardware Requirements:

Demo: Generate Video from Image + Text Prompt

cd inference

# Download demo data and run inference
python inference.py \
    --jsonl_path assets/demo.jsonl \
    --output_dir ./outputs/demo \
    --save_first_frames

This generates videos for 2 Franka robot manipulation samples. The model checkpoint is auto-downloaded from ModelScope on first run.

Single Image Inference

python inference.py \
    --input_image /path/to/image.jpg \
    --prompt "robot arm picks up the red cube from the table" \
    --output_dir ./outputs

Batch Inference from JSONL

Prepare a JSONL file (each line is a sample):

{"video": "path/to/image.jpg", "prompt": "robot grasps the object"}
{"video": "path/to/image2.jpg", "prompt": "robot places object on table"}

Then run:

python inference.py \
    --jsonl_path data.jsonl \
    --output_dir ./outputs \
    --num_samples 100  # Process max 100 samples

Full Parameter Reference

python inference.py --help

Key parameters:

• --checkpoint_path: Local path to model weights (auto-downloads if not provided)
• --cache_dir: Directory to store downloaded weights (default: ./checkpoints)
• --height, --width: Video resolution (default: 480×832)
• --num_frames: Number of output frames (default: 81 ≈ 5.4s at 15fps)
• --num_inference_steps: Denoising steps, higher = better quality but slower (default: 50)
• --cfg_scale: Classifier-free guidance scale (default: 5.0)
• --seed: Random seed for reproducibility
• --gpu_id: GPU device index

Output

• Single image: {output_dir}/{image_name}_generated.mp4
• Batch mode: {output_dir}/{unique_id}_generated.mp4 + results.json (with status for each sample)

---

Model Weights

Auto-Download: The fine-tuned checkpoint is automatically downloaded from ModelScope on first inference run.

Manual Download (Optional):

pip install modelscope
modelscope download --model amap_cvlab/Abot-PhysWorld --local_dir ./inference/checkpoints

Base Model: Wan2.1-I2V-14B-480P is also auto-downloaded by DiffSynth-Studio.

---

More Details

For detailed setup instructions, examples, and troubleshooting, see inference/README.md.

---

🏋️ Training

We provide full-parameter SFT training scripts to fine-tune Wan2.1-I2V-14B-480P on your own robot manipulation datasets.

Training Data

The v1 SFT training dataset is available on ModelScope:

git lfs install
git clone https://www.modelscope.cn/datasets/amap_cvlab/ABot-PhysWorld_SFT_Training_Data_v1.git

Quick Start

cd training

# Prepare your dataset (JSONL format, see training/assets/demo_train.jsonl)
# Then launch 8-GPU training:
bash run_train.sh

Key Features

• Full-parameter SFT on the 14B DiT model (LoRA also supported)
• DeepSpeed ZeRO-2 distributed training via Accelerate
• Encoded feature caching: Save VAE/T5/CLIP encodings to disk, skip re-encoding in subsequent runs
• Resume from checkpoint: Continue training from any saved step
• Real-time text encoding: Re-train with new captions while reusing cached video features

Resume from Checkpoint

RESUME_CHECKPOINT=./outputs/sft_training/step-800.safetensors \
bash run_train_resume.sh

Training with Encoded Cache

# First run: train + save encoded features
ENCODED_CACHE_DIR=./encoded_cache bash run_train.sh

# Subsequent runs: reuse cached features (much faster)
ENCODED_CACHE_DIR=./encoded_cache bash run_train.sh

For detailed training instructions, data preparation, and parameter reference, see training/README.md.

---

🎮 A2V (Action-to-Video)

We release the A2V training and inference code for action-conditioned video generation via VACE parallel context blocks. Given an input image and an action trajectory (end-effector poses), the model generates a physically consistent video of the robot executing the specified actions.

Quick Start: A2V Training

cd training

# Train VACE module on top of SFT DiT
DIT_CHECKPOINT=/path/to/dit_checkpoint.safetensors \
DATASET_BASE_PATH=/path/to/dataset \
DATASET_METADATA_PATH=/path/to/metadata.jsonl \
bash run_train_a2v.sh

Quick Start: A2V Inference

cd inference

# Run A2V inference (checkpoints auto-downloaded from ModelScope)
python inference_a2v.py \
    --jsonl_path ./assets/demo_a2v.jsonl \
    --output_dir ./outputs/a2v_results

# With trajectory overlay visualization
python inference_a2v.py \
    --jsonl_path data.jsonl \
    --output_dir ./outputs \
    --overlay_action_condition

For detailed documentation, see training/README_A2V.md and inference/README_A2V.md.

---

🧪 DPO Training

We release the DPO (Direct Preference Optimization) training pipeline for physics-aware alignment. Using winner/loser video pairs, the model learns to generate videos that better respect physical laws via LoRA fine-tuning.

Pipeline

1. Preprocess: Encode video pairs into cached tensors
2. Train: Run DPO LoRA training on cached data

cd training

# Step 1: Preprocess DPO data
DPO_JSONL=/path/to/dpo_pairs.jsonl \
CACHE_DIR=/path/to/dpo_cache \
bash run_preprocess_dpo.sh

# Step 2: Train DPO LoRA
DIT_CHECKPOINT=/path/to/dit_checkpoint.safetensors \
DPO_CACHE_DIR=/path/to/dpo_cache \
bash run_train_dpo.sh

For detailed documentation, see training/README_DPO.md.

---

📜 Citing

If you find ABot-PhysWorld is useful in your research or applications, please consider giving us a star 🌟 and citing it by the following BibTeX entry:

@article{chen2026abotphysworld,
  title={ABot-PhysWorld: Interactive World Foundation Model for Robotic Manipulation with Physics Alignment},
  author={Yuzhi Chen, Ronghan Chen, Dongjie Huo, Yandan Yang, Dekang Qi, Haoyun Liu, Tong Lin, Shuang Zeng, Junjin Xiao, Xinyuan Chang, Feng Xiong, Xing Wei, Zhiheng Ma, Mu Xu},
  journal={arXiv preprint arXiv:2603.23376},
  year={2026}
}

---
