🌟T-Display-S3

English | 中文

1. Supported Products

2. Examples

./examples/
├── Arduino_GFXDemo              # Arduino_GFX example
├── Arduino_GFX_PDQgraphicstest  # Arduino_GFX example
├── GetBatteryVoltage            # Get battery voltage example
├── I2CScan                      # Scan for external devices using I2C
├── ImageScroll                  # Image scrolling example by @Rudi Ackermann
├── MPR121TouchSensor            # Example of using MPR121 capacitive touch
├── PCBClock                     # TFT_eSPI PCBClock example by @VolosR
├── PokerS3                      # TFT_eSPI PokerS3 example by @VolosR
├── SerialExample                # Example of using serial communication
├── T-Display-S3-MIDI            # T-Display-S3-MIDI Shield example
├── T-Display-S3-BLE-Receiver    # Wireless BLE MIDI receiver with piano display (ESP32_Host_MIDI) by @sauloverissimo
├── T-Display-S3-BLE-Sender      # BLE MIDI sender with auto-play sequences (ESP32_Host_MIDI) @sauloverissimo
├── T-Display-S3-Piano           # USB MIDI Piano visualizer with chord detection (ESP32_Host_MIDI + Gingoduino) @sauloverissimo
├── T-Display-S3-Piano-Debug     # MIDI event monitor with raw packet inspector (ESP32_Host_MIDI) @sauloverissimo
├── T-Display-S3-Gingoduino      # Real-time chord detection and harmonic analysis (ESP32_Host_MIDI + Gingoduino) @sauloverissimo
├── T-Display-S3-Queue           # MIDI event queue visualizer for debugging (ESP32_Host_MIDI) @sauloverissimo
├── T-Display-S3-USB-Device      # BLE-to-USB MIDI bridge — T-Display-S3 as USB MIDI interface (ESP32_Host_MIDI) @sauloverissimo
├── T-Display-S3-Music-Explorer  # Interactive music theory explorer with audio synthesis (Gingoduino) @sauloverissimo
├── TFT_Rainbow                  # TFT_eSPI example
├── factory                      # Factory example
├── lv_demos                     # LVGL demo
├── nes                          # NES game emulator
├── ota                          # Over-the-air upgrade example
├── sd                           # T-Display-TF Shield example
├── tft                          # TFT_eSPI example
├── touch_test                   # Capacitive touch test example
├── usb_hid_pad                  # Capacitive Touch Screen Simulation USB HID Example
├── ULP_ADC                      # ADC detection for ULP-FSM (arduino_esp32 version: 3.0.0-rc3)
└── ULP_Count                    # Register counting for ULP-FSM (arduino_esp32 version: 3.0.0-rc3)

3. PlatformIO Quick Start (Recommended)

1. Install Visual Studio Code and Python.
2. Search for the PlatformIO plugin in the VS Code extension marketplace and install it.
3. After installation, restart VS Code.
4. In VS Code, select File > Open Folder > choose the T-Display-S3 directory.
5. Wait for third-party dependent libraries to finish installing.
6. Open the platformio.ini file.
7. Uncomment one of the lines default_envs = xxxx — make sure only one line is active.
8. Click the (checkmark) icon in the lower left corner to compile.
9. Connect the board to your computer via USB.
10. Click (arrow) to upload firmware.
11. Click (plug icon) to monitor serial output.
12. If upload fails or the USB device keeps flashing, check the FAQ below.

[!TIP] If you encounter unexpected build errors, try re-cloning (or re-downloading) this repository first. Before compiling, click the Clean button in the PlatformIO toolbar to remove stale build artifacts, then try building again.

4. Arduino IDE Manual Installation

1. Install Arduino IDE.

2. In Arduino Preferences, on the Settings tab, enter the following URL in the Additional boards manager URLs input box:

   https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json


   Note: The test phase uses version 2.0.14. Versions above 2.0.14 may not work correctly — please downgrade if you encounter issues. As of 2024/08/02, TFT_eSPI does not work on versions higher than 2.0.14 (see TFT_eSPI#3329).

3. Download T-Display-S3 and move it to your Arduino library folder (e.g. C:\Users\YourName\Documents\Arduino\libraries).

4. Copy all folders in the lib folder to your Arduino library folder.

5. Navigate to the T-Display-S3/examples directory.

6. Select any example and double-click the .ino file to open it.

7. In Arduino IDE, go to Tools and configure the following:

   Arduino IDE Setting	Value
   Board	ESP32S3 Dev Module
   Port	Your port
   USB CDC On Boot	Enable
   CPU Frequency	240MHz (WiFi)
   Core Debug Level	None
   USB DFU On Boot	Disable
   Erase All Flash Before Sketch Upload	Disable
   Events Run On	Core1
   Flash Mode	QIO 80MHz
   Flash Size	16MB (128Mb)
   Arduino Runs On	Core1
   USB Firmware MSC On Boot	Disable
   Partition Scheme	16M Flash (3M APP/9.9MB FATFS)
   PSRAM	OPI PSRAM
   Upload Mode	UART0/Hardware CDC
   Upload Speed	921600
   USB Mode	CDC and JTAG

   Options in bold are required. Others should be selected based on your actual conditions.

8. Click Upload and wait for compilation and writing to complete.

9. If upload fails or the USB device keeps flashing, check the FAQ below.

• You can also choose LilyGo T-Display-S3 as the board, but the partition table is fixed to 16M Flash (3M APP/9.9MB FATFS).
• T-Display-S3 Arduino IDE Record

5. ESP-IDF

For the ESP-IDF version of T-Display-S3 examples, see LilyGo-Display-IDF.

6. MicroPython

• russhughes/st7789s3_mpy
• lilygo-micropython

Pinout

[!IMPORTANT]

Note: GPIO15 is the peripheral power control pin. You must set it HIGH before using the board, otherwise the LCD and other peripherals will not work. For battery-powered or 5V Pin Header usage:

pinMode(15, OUTPUT);
digitalWrite(15, HIGH);

SD card pins (SD CMD/CLK/D0) are only available on boards with the SD Shield add-on. The standard T-Display-S3 board does not have an onboard SD card slot.

The battery ADC pin can only read the battery voltage when the USB-C port is not plugged in; it cannot read the battery voltage after the USB-C port is plugged in.

7. ESP32 Basic Examples

• BLE Examples
• WiFi Examples
• SPIFFS Examples
• FFat Examples
• For more ESP32 chip function examples, see arduino-esp32-libraries

8. Resources

9. FAQ

1. The screen does not light up when using battery.

   • When T-Display-S3 is powered by battery or 5V Pin Header, GPIO15 must be set to HIGH to turn on the backlight.
   • Add the following at the beginning of setup():

     void setup() {
         // Turn on display power
         pinMode(15, OUTPUT);
         digitalWrite(15, HIGH);
     }


2. The program uploads successfully, but nothing is displayed on the screen.

   • If you are using TFT_eSPI, try running Arduino_GFXDemo first. If nothing is displayed, the issue is likely with the hardware.
   • If Arduino_GFXDemo works but TFT_eSPI does not, the User_Setup_Select configuration may have been overwritten. See FAQ #3 to reconfigure TFT_eSPI.

3. How to update TFT_eSPI or verify the pin configuration is correct?

   • Search for TFT_eSPI in the Arduino IDE Library Manager and click Update.
   • Navigate to the TFT_eSPI installation folder (e.g. C:\Users\YourName\Documents\Arduino\libraries\TFT_eSPI).
   • Open User_Setup_Select.h, comment out (or delete) the default #include <User_Setup.h> line.
   • Find Setup206_LilyGo_T_Display_S3.h, uncomment it, save, and close:

     #include <User_Setups/Setup206_LilyGo_T_Display_S3.h>  // LilyGo T-Display S3 (ESP32S3 + ST7789 170x320 TFT)


4. Cannot upload any sketch — please enter upload mode manually.

   • Connect the board via USB cable.
   • Press and hold the BOOT button.
   • While holding BOOT, press the RST button.
   • Release RST.
   • Release BOOT
   • Upload the sketch.
   • Press RST to exit download mode.

5. If you use an external power supply instead of USB-C, please disable the CDC option. The board waits for USB access on startup when CDC is enabled.

   • Arduino IDE: Tools > USB CDC On Boot > Disable

     Disabling USB CDC turns off Serial redirection to USB-C. Serial output will come from GPIO43 and GPIO44 instead.

   • PlatformIO: add the following to platformio.ini:

     build_flags =
         ; -DARDUINO_USB_CDC_ON_BOOT=1   ; Enable: prints and waits for terminal on startup
         -UARDUINO_USB_CDC_ON_BOOT        ; Disable: no blocking on startup


6. If none of the above works, flash the factory firmware for quick verification. See here.

7. Can I use an external 5V pin for power? See issues/205.

8. How to adjust the charging current? The default charging current is 500mA. See issues/230.

LED Description

Charging Indicator LED Status

1. Flashes or dimly lights when no battery is connected.
2. Remains on while charging.
3. Turns off when fully charged.

V3V Indicator

1. In USB mode, the green indicator stays on.
2. In battery power mode, GPIO15 lights up when high and turns off when low.

WiFi antenna

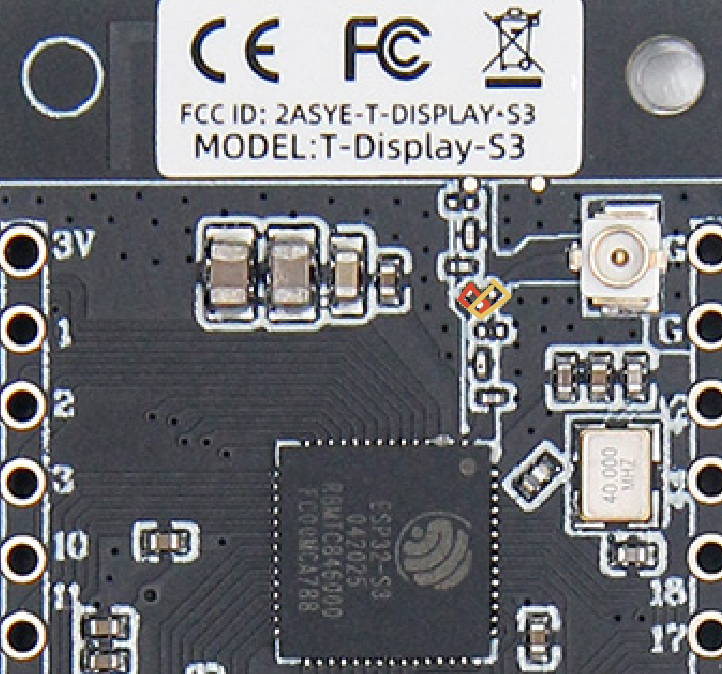

• The default is onboard antenna. If you need to use an external antenna, you need to rotate the resistor in the red position in the image below to the position highlighted in yellow to switch to external antenna mode.

Electrical parameters

• 3V pin header load does not exceed 100mA
• The 5V pin header power source comes from USB-C, and the load capacity depends on the USB-C adapter
