OpenC6 BIOS: Advanced Modular Firmware and Microkernel for ESP32-C6

OpenC6 is an open-source, high-performance BIOS and microkernel architecture designed for the ESP32-C6 (RV32IMAC). It decouples platform-level hardware initialization from user-space execution, bringing PC/Workstation architecture paradigms to microcontrollers.

Instead of deploying monolithic firmwares, OpenC6 acts as an operating host. It manages bare-metal silicon resources, runs an autonomous out-of-band supervisor on the LP-Core coprocessor, enforces hardware memory protection via Physical Memory Protection (PMP), and exposes a standardized System Call ABI. This allows dynamic loading, multitasking execution, and network deployment of unprivileged User-Mode (U-Mode) payloads without recompiling the host operating system.

---

Visual Demonstration

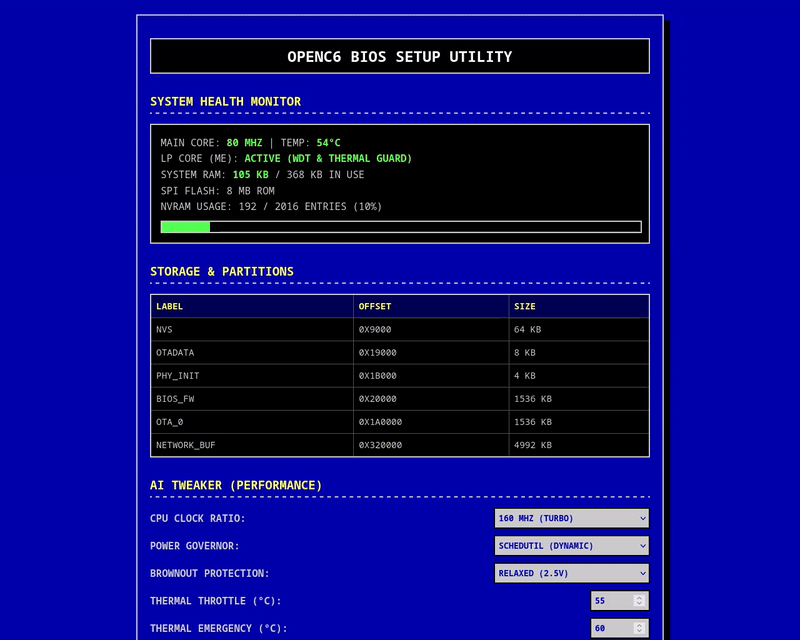

1. Retro BIOS Web Setup Utility

Classic 5:4 blue-screen configuration utility hosted directly on ESP32-C6 via standalone AP mode (192.168.4.1).

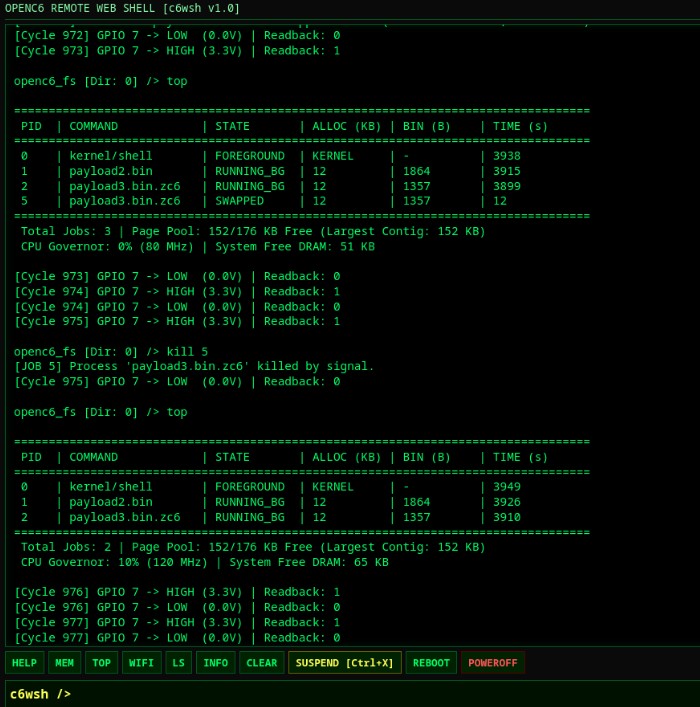

2. Preemptive Multitasking & Telemetry (top)

Local Micro UNIX Shell monitoring active process states, dynamic 4 KB page allocation, CPU load, and governor state.

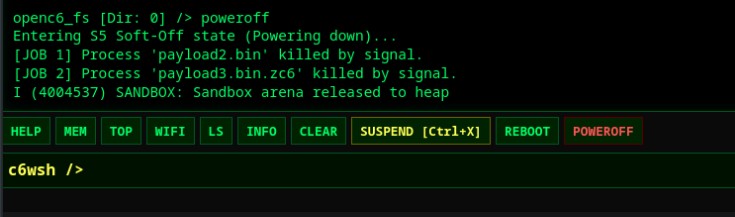

3. Remote Web Shell (c6wsh)

Lightweight streaming terminal interface running on port 80 over local Wi-Fi.

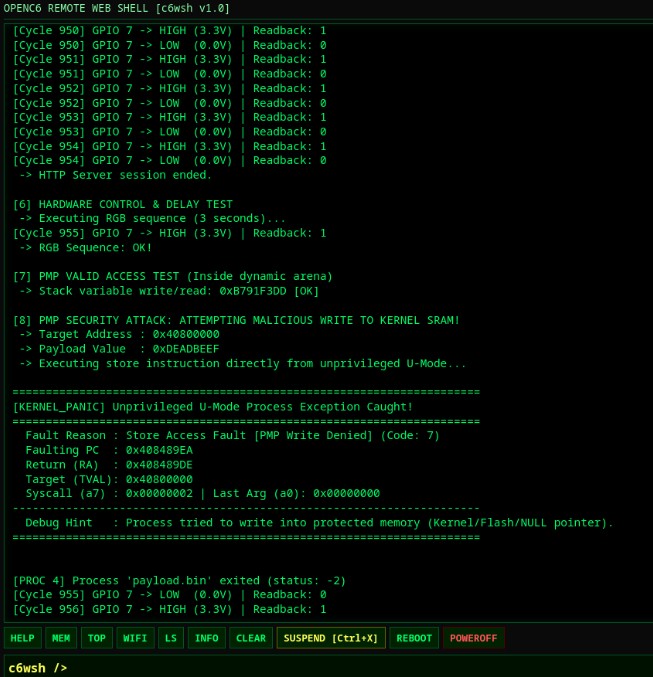

4. Hardware PMP Isolation & Trap Interception

Real-time register dump and fault diagnosis when an untrusted U-Mode binary attempts illegal memory access.

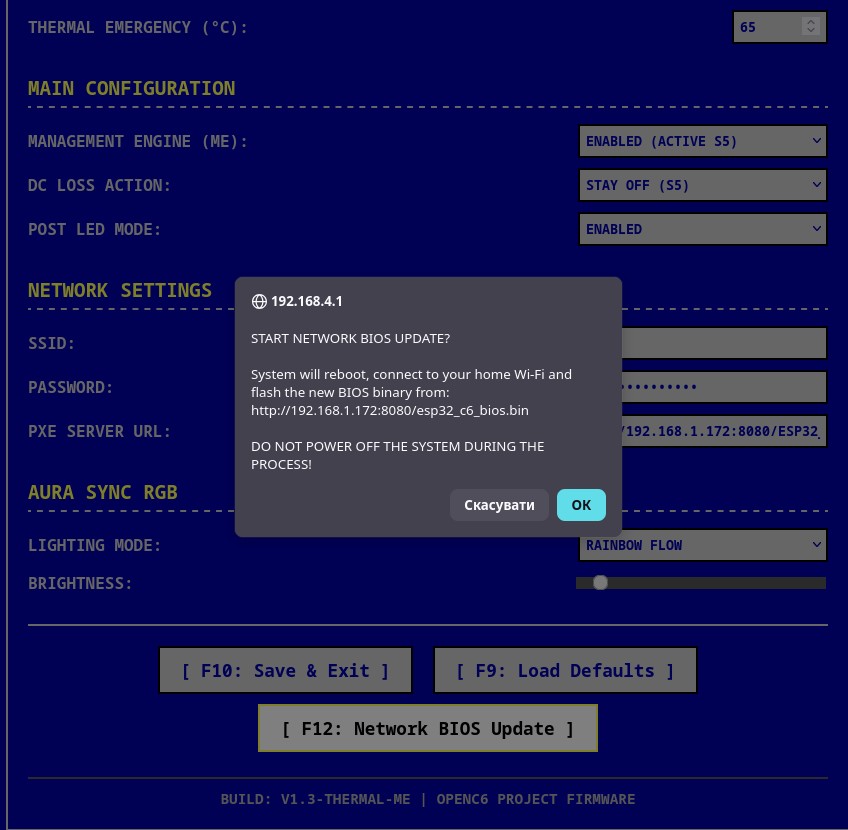

5. Wireless BIOS Firmware Update (OTA)

Safe host firmware flashing over Wi-Fi backed by hardware A/B partition rollback logic.

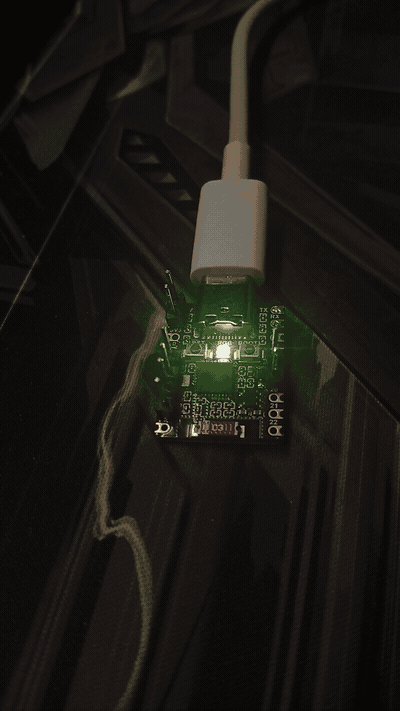

6. Dynamic Aura Sync & POST Diagnostics

Single-cycle atomic WS2812 driver scaling pulse timings to match active CPU frequency (80/120/160 MHz).

---

Key Architectural Systems

1. Hardware PMP Isolation (U-Mode Sandbox)

User applications execute strictly in unprivileged RISC-V User Mode (U-Mode). Top-of-Range (TOR) Physical Memory Protection registers isolate the execution arena from the host:

• Kernel DRAM, host execution stacks, and internal subsystem memory are strictly unreadable and unexecutable to payloads.
• Direct access to MMIO peripheral registers (0x60000000+) is hardware-blocked (Default Deny).
• Safe syscall dispatch via machine-level ecall with atomic stack switching via mscratch.
• Custom interrupt vector trampoline (sandbox_intr_trampoline) resolves FreeRTOS context-switch privilege leakage bugs on RISC-V.
• Role of FreeRTOS: FreeRTOS is retained strictly as an underlying thread scheduler and transport layer required by Espressif's proprietary Wi-Fi baseband blobs (libnet80211). OpenC6 bypasses FreeRTOS primitives for process isolation, memory allocation, virtual filesystems, and trap handling, operating as a true microkernel supervisor over bare-metal RISC-V hardware.

2. Autonomous Management Engine (LP-Core ME)

An out-of-band supervisor running independently on the Low-Power (ULP) RISC-V coprocessor:

• Hardware Watchdog monitoring main core execution (15-second hardware timeout).
• Junction temperature tracking via on-die TSENS: thermal throttling down to 80 MHz at 55 deg C, emergency hardware soft-off (LP_WDT) at 75 deg C.
• Power button handling with leaky-bucket debouncing (3-second hold triggers hardware force reset).

3. Hardware SchedUtil Frequency Governor

Autonomous CPU frequency scaling running on the LP-Core:

• Measures run-time load via a zero-overhead FreeRTOS SysTick hook operating strictly out of internal DRAM (immune to Flash cache disable stalls).
• Directly switches HP CPU frequency dividers across 80, 120, and 160 MHz using hardware PCR registers (0x60096118).
• Asymmetric hysteresis: instant step-up upon load spikes, 1000 ms hold prior to downscaling.

4. Process Manager & ZSWAP Engine

Preemptive job control supporting up to 8 concurrent processes:

• Dynamic memory allocator managing a pool of contiguous 4 KB pages using Next-Fit arbitration.
• Full shell job control: background execution (boot <path> bg), foreground management (fg, bg), process suspension, and termination (kill).
• ZSWAP Architecture: Suspended processes (Ctrl+X) have their memory pages compressed into RAM via the custom ZC6 algorithm (~1.2 KB match-finder footprint), releasing physical 4 KB pages back to the arena.
• Transparent Execution: Binaries compressed as .zc6 archives on flash are decompressed into RAM on the fly prior to launch.

5. Log-Structured Circular Flash VFS (openc6_fs)

High-performance circular filesystem residing in a dedicated SPI Flash partition:

• Fast RAM-backed directory index (RamNode) with dynamic chunk-based caching.
• Automatic background garbage collection (gc_step) with sector-erase watchdog yielding.
• Native directory hierarchy supporting standard POSIX operations (ls, cd, mkdir, cat, write, cp, mv, rm).

6. Dual Management Console

• Local Terminal: Micro UNIX Shell hosted over native USB-Serial-JTAG CDC (immunity against host DTR/RTS auto-reset drops).
• Remote Web Shell (c6wsh): Non-blocking HTTP console on port 80 with chunked output streaming and input queue multiplexing.

---

Hardware Pinout (ESP32-C6-Zero / Generic C6)

---

Micro UNIX Shell Command Reference

Connect to the USB Type-C interface using any serial monitor (115200 baud, 8N1):

System & Diagnostics

• help - Display available shell commands.
• info - View hardware CPU frequency, governor load, tick counts, temperature, and ME state.
• mem - Display dynamic arena capacity and internal DRAM allocation.
• top - Display process table, CPU governor metrics, and page pool status.
• reboot - Warm restart of the processor.
• poweroff / exit - Terminate running processes and enter S5 Soft-Off state.

Process & Job Control

• boot <path> [bg] - Execute binary in foreground or background (bg or &).
• fg <pid> - Bring background or suspended process to foreground.
• bg <pid> - Resume suspended process in background.
• suspend [pid] - Suspend running process and compress memory via ZSWAP (Ctrl+X in console).
• kill <pid> - Terminate process and cleanly release socket descriptors.

Binary Transfer & Networking

• serial [path] - Receive binary over USB CDC via openc6_loader (Default: /downloaded/payload.bin).
• pxe <url> - Download payload over Wi-Fi directly into Flash storage.
• wifi scan - Scan 2.4 GHz spectrum (Channels 1-13) and print RSSI table.
• wifi connect <ssid> [pass] - Associate with AP and commit credentials to NVRAM.
• wifi status - Print MAC address, L3 IPv4 address, and link parameters.
• wifi disconnect - Disconnect station interface.

File System Operations

• ls [path] - List directory contents.
• cd <path> - Change active directory.
• mkdir <path> - Create directory node.
• cat <path> - Print file contents.
• write <path> <text> - Write text stream to file.
• cp <src> <dst> - Duplicate file.
• mv <src> <dst> - Move or rename file.
• rm <path> - Delete file or empty directory node.
• format - Erase filesystem partition and initialize blank ring structure.

---

Quick Start Guide

1. Automated Installation (Recommended)

OpenC6 features a standalone C99 TUI deployment wizard that automatically configures host prerequisites, installs the ESP-IDF v6.1 RISC-V toolchain, compiles the BIOS, wipes stale flash partitions, and programs the target hardware.

Ensure make is installed on your host system:

# Arch Linux / Manjaro
sudo pacman -S make

# Ubuntu / Debian
sudo apt update && sudo apt install -y make

Clone the repository and launch the automated setup wizard:

git clone https://github.com/Rompass/openc6-bios.git
cd openc6-bios
make setup

2. Manual Build and Flash (Advanced)

If you already have ESP-IDF v6.1+ configured and sourced in your active shell:

. $IDF_PATH/export.sh
idf.py build erase-flash flash monitor -p /dev/ttyACM0

3. Build Host Utilities and Target Payloads

The tools/ directory includes an automated build system that compiles host utilities (openc6_loader, zc6_pack) alongside bare-metal RISC-V payloads in tools/example/*.c:

cd tools

# Builds host tools and cross-compiles all example/*.c payloads
make

Build outputs are placed in tools/build/bin/:

• tools/build/bin/openc6_loader — Host deployment utility.
• tools/build/bin/zc6_pack — ZC6 payload compression tool.
• tools/build/bin/payloads/*.bin — Compiled flat RISC-V binary payloads.

4. Deploy and Run Payloads via Serial (Type-C)

To stream and execute a compiled payload over the native USB CDC interface:

# 1. In the OpenC6 interactive shell, arm the receiver:
openc6_fs [Dir: 0] /> serial

# 2. On your host machine, stream the generated binary:
./tools/build/bin/openc6_loader /dev/ttyACM0 tools/build/bin/payloads/payload.bin

# 3. Launch the deployed binary in the U-Mode Sandbox:
openc6_fs [Dir: 0] /> boot /downloaded/payload.bin

To run the payload as a preemptive background job:

openc6_fs [Dir: 0] /> boot /downloaded/payload.bin bg

---

Network Booting (PXE) and BIOS Updates

OpenC6 supports network payload loading and full host updates over Wi-Fi:

Method A: Network Booting a Payload (PXE)

1. Host compiled payload on your workstation:

   python3 -m http.server 8080


2. In the OpenC6 shell, fetch the payload:

   openc6_fs [Dir: 0] /> pxe http://<HOST_IP>:8080/payload.bin


3. Launch the downloaded image:

   openc6_fs [Dir: 0] /> boot /downloaded/payload.bin


Method B: Wireless BIOS Firmware Update (OTA)

1. Build the updated BIOS (idf.py build) and serve openc6_bios.bin over HTTP.
2. Enter the BIOS Setup Web UI (Hold power button for 3s during power-on or boot menu, connect to BIOS_SETUP_C6, open http://192.168.4.1).
3. Set the PXE Server URL to your firmware binary endpoint.
4. Click [ F12: Network BIOS Update ].
5. The system downloads the binary into the passive OTA slot, verifies partition integrity, marks the boot slot, and restarts. In case of boot failure, hardware watchdog initiates automatic rollback.

---

Payload Development

For complete architectural specifications, memory maps, system call tables, C runtime examples, and compiler flags:

Refer to Payload Development & ABI Reference.

---

Project Roadmap

• Unified Hardware Abstraction Layer (HAL): Decoupling architecture-specific drivers (PMP, LP-Core coprocessor, PCR registers, USB CDC) into a modular HAL interface to enable flexible porting across other RISC-V platforms and targets.

---

License

This project is licensed under the MIT License. See LICENSE for details.

---
