GameRoy

An emulator and debugger for the Nintendo Game Boy, written in Rust.

Features

• Support for DMG (only).
• High accuracy (see Test suite below)
• Accurate clock frequency: don't sync over frames or sound, but the clock frequency itself.
• Battery saves support.
• Save and load states.
• Time travel backwards in time (Rewind)
• Graphical interface for listing roms in a folder.
• Debugger with a graphical interface:
  • Views for disassembly, registers, video RAM, etc...
  • Statically (or while running) trace a rom for executable memory ranges.
  • Add breakpoints at read, write, jump or execution of memory addresses.
  • Watch addresses.
  • Step code backwards.

Building and Running

You can find pre compiled binaries in the Releases page.

For building this project, you need the Rust toolchain installed (whihc includes cargo). Then follow the instructions for each platform.

This project optionally depends on cargo-about (0.5.1) for generating a list of licenses. You can install it using cargo:

cargo install cargo-about

Windows and Linux

Compiling and running for native, i.e, Windows and Linux (other platforms are untested), only needs cargo:

cargo run --release -p gameroy-native

WebAssembly

You can also build for WebAssembly, and run the emulator on the web. Using web-pack, run the following command:

cd wasm
wasm-pack build --target web

After that, open a web server that serves wasm/index.html.

For example, you can use python's http.server module:

cd wasm
python -m http.server

And access localhost:8000 in a web browser.

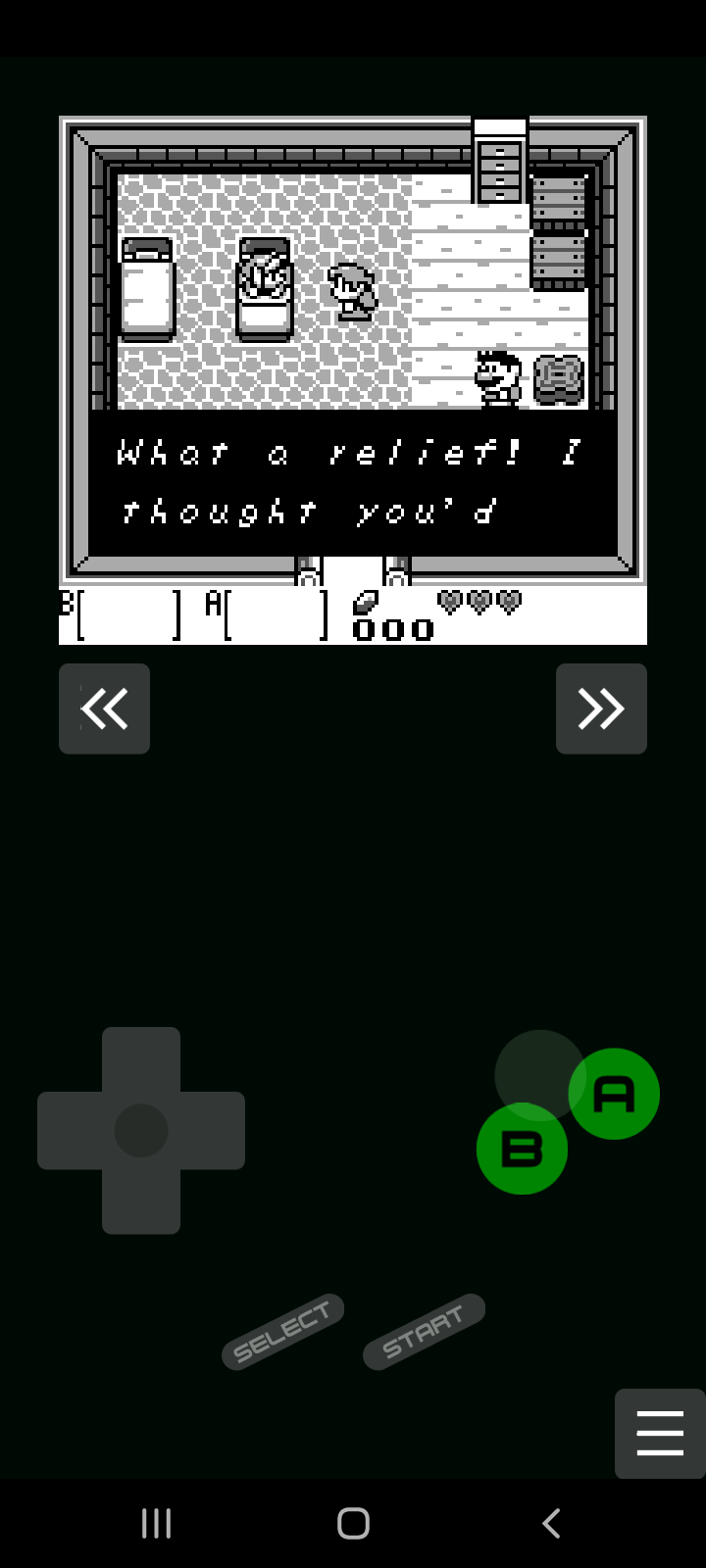

Android

To build for android, you need to have Anroid NDK installed.

GameRoy uses Gradle to build the android port. To build and install the .apk in a device:

cd android
./gradlew installDebug # or `gradlew installDebug`, on Windows

To see the logs:

adb logcat *:S gameroy:V RustStdoutStderr:V

(The project uses rust-android-gradle for building the rust code for android.)

Config

GameRoy uses a file named gameroy.toml, located in the same folder as the executable. The default gameroy.toml file comes documented.

Controls

The default keymap is:

• left: Left Arrow
• right: Right Arrow
• up: Up Arrow
• down: Down Arrow
• A: A
• B: S
• select: Backspace
• start: Return

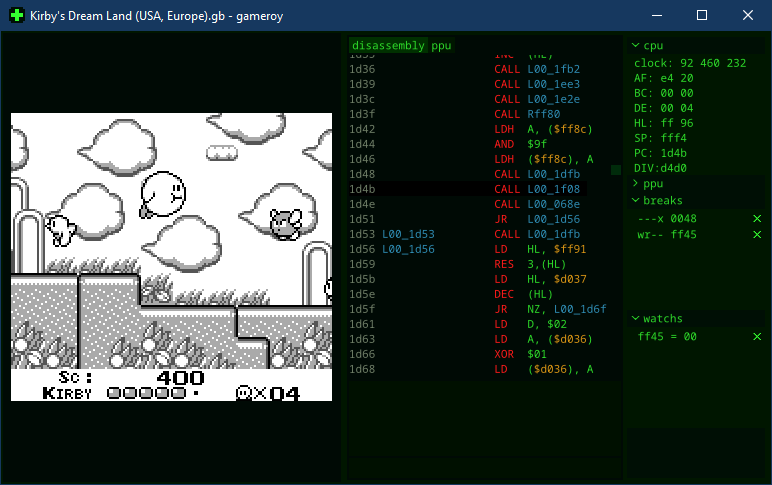

Debugger

By pressing F12 you can open/close the debug panel. There you can see a view to the disassembled code, a view to the PPU memory and state, the CPU registers, etc. At the bottom there is a text field for command input.

Debugger commands

• step (F8): execute 1 opcode.
• stepback (F7): reverse by 1 opcode.
• run (F9): continue to run.
• run for <clock_count>: run for the given number of cycles.
• run until <clock_count>: run until the total clock count reach the given value.
• runto <address>: run until reaching the address.
• watch <address>: add a memory address to the watch list, where its value will be displayed.
• break <flags> <address>: add a breakpoint to a memory address. Flags is a continuous string containing at least one of the following letters:
  • x: break immediately before executing an opcode in the address.
  • j: break immediately before jumping to the address.
  • r: break immediately before reading the address
  • w: break immediately before writing to the address
• reset: restarts the Game Boy.
• dump <path>: write the current disassembled code to a file. This disassembly is not complete nor is in a known format.

Pressing Enter with the text field empty will run a step.

Examples

• break rw ff45: break immediately before reading or writing to the LYC register.
• break x 0048: break immediately before executing the STAT Interrupt handler.
• watch ff05: watch the value of the TIMA register.

Test suite

All test roms used were obtained from c-sp/gameboy-test-roms v.51, but the emulator was only run against the tests listed below.

To run all tests, download and extract the suite to gameroy\core\tests\gameboy-test-roms, then go to the project root and run the command:

cargo test -p gameroy-core

Blargg's tests

* need GBC support. GameRoy only supports DMG.

Mooneye Test Suite

Only tests that were expected to pass on DMG were tested.

* Not tested.

Mealybug Tearoom tests

* CGB only

DMG Acid 2

👍

Age

1/7*

* Only tests that passed on SameBoy were tested.

Same suite

0/3*

* Only tests that passed on SameBoy were tested. Was not sure which tests should pass on DMG.

Resources To Be Thankful For

• The Ultimate Game Boy Talk (33c3): great overview of the Game Boy and various of it components, including the ppu fifo.
• Game Boy™️ CPU Manual: used for implement most if not all of the opcodes.
• gb-opcodes: used for opcode reference, and the JSON format was very helpful for generating lookup tables and switch cases.
• Game Boy Complete Technical Reference: used for implementing precise memory access timing of instructions.
• Pan Docs: used for overall reference.
• GBEDG: used for the implementation of the timer, and the initial implementation of the PPU.
• NightShade's Blog and gbdev.gg8.se: used for most of the implementation of the sound controller.
• Same Boys source code: great help for the last details of the sound controller, and without it I would never manage to implement a cycle accurate PPU.
• And maybe more that I don't remember now.

License

Licensed under either of

• Apache License, Version 2.0, (LICENSE-APACHE or http://www.apache.org/licenses/LICENSE-2.0)
• MIT license (LICENSE-MIT or http://opensource.org/licenses/MIT)

at your option.

Contribution

Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in the work by you, as defined in the Apache-2.0 license, shall be dual licensed as above, without any additional terms or conditions.
