1. News

Welcome volunteers to contribute and collaborate on related topics. Feel free to submit the pull requests! Currently this repo is mainly maintained by [email protected] in freetime since 2022.

• [2025/01] Demo of how to set up inference and training is available on Colab!
• [2025/01] New inference api, visualization api, evaluation api, training codebase, are available!
• [2024/07] download smplx motion (in .npz) file, visualize with our blender addon and retarget to your avatar!
• [2024/04] Thanks to @camenduru, Replicate version EMAGE is available! you can directly call EMAGE via API!
• [2024/03] Thanks to @sunday9999 for speeding up the inference video rendering from 1000s to 25s!
• [2024/02] Thanks to @wubowen416 for the scripts of automatic video visualization #83 during inference!
• [2023/05] BEAT_GENEA is allowed for pretraining in GENEA2023! Thanks for GENEA's organizers!

2. Models and Tools List

** Outputs are in SMPLX and FLAME parameters.

3. Quick Start (Inference)

Approach 1: Using Hugging Face Space

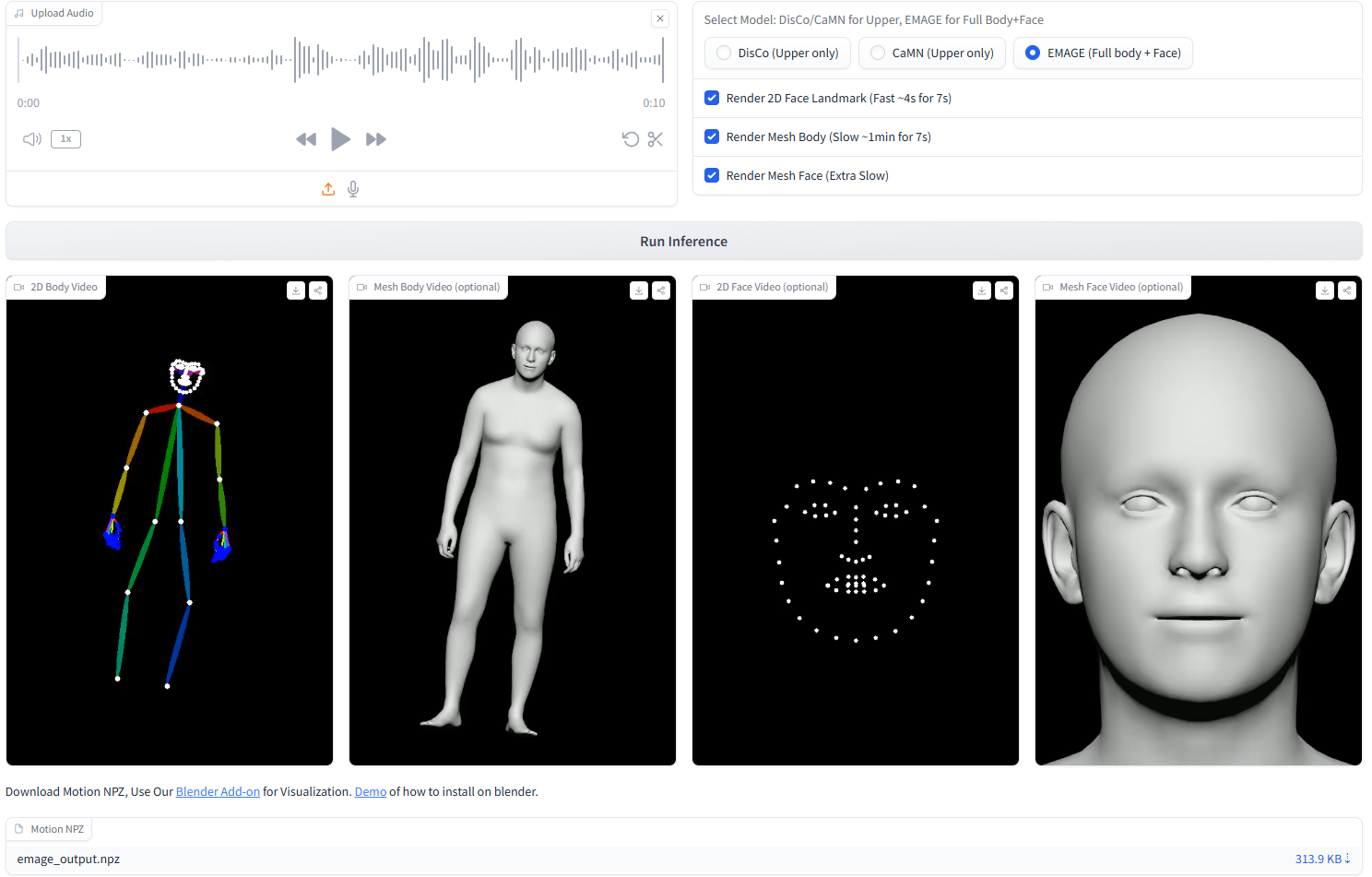

Upload your audio and directly download the results from our Hugging Face Space.

Approach 2: Local Setup

Clone the repository and set up locally.
Demo of how to set up is available on Colab.

git clone https://github.com/PantoMatrix/PantoMatrix.git
cd PantoMatrix/

bash setup.sh
source /content/py39/bin/activate

python test_camn_audio.py --visualization
# if you have trouble in install pytroch3d
# use --nopytorch3d, this will not render the 2D openpose style video
python test_camn_audio.py --visualization --nopytorch3d

# try differnet models with your data, put your audio in --audio_folder
# DisCo (ACMMM2022), upper body motion, with data resampling and rhythm content disentanglement.
python test_disco_audio.py --visualization --audio_folder ./examples/audio --save_folder ./examples/motion
# BEAT (ECCV2022), upper body motion, with body2hands decoder
python test_camn_audio.py --visualization --audio_folder ./examples/audio --save_folder ./examples/motion
# EMAGE (CVPR2024), full body  + face animation
python test_emage_audio.py --visualization --audio_folder ./examples/audio --save_folder ./examples/motion

Approach 3: Call API Directly

# copy the ./models folder iin your project folder
from .model.camn_audio import CaMNAudioModel

model = CaMNAudioModel.from_pretrained("H-Liu1997/huggingface-model/camn_audio")
model.cuda().eval()

import librosa
import numpy as np
import torch
# copy the ./emage_utils folder in your project folder
from emage_utils import beat_format_save

audio_np, sr = librosa.load("/audio_path.wav", sr=model.cfg.audio_sr)
audio = torch.from_numpy(audio_np).float().cuda().unsqueeze(0)

motion_pred = model(audio)["motion_axis_angle"]
motion_pred_np = motion_pred.cpu().numpy()
beat_format_save(motion_pred_np, "/result_motion.npz")

4. Visualization

When you run the test scripts, there is an parameter --visualization to automatic enable visualizaion.
Besides, you could also try visualiztion by the below.

Approach 1: Blender (Recommended)

Render the output using Blender by download the blender addon

Approach 2: 3D mesh

# render a npz file to a mesh video
from emage_utils import fast_render
fast_render.render_one_sequence_no_gt("/result_motion.npz", "/audio_path.wav", "/result_video.mp4", remove_global=True)

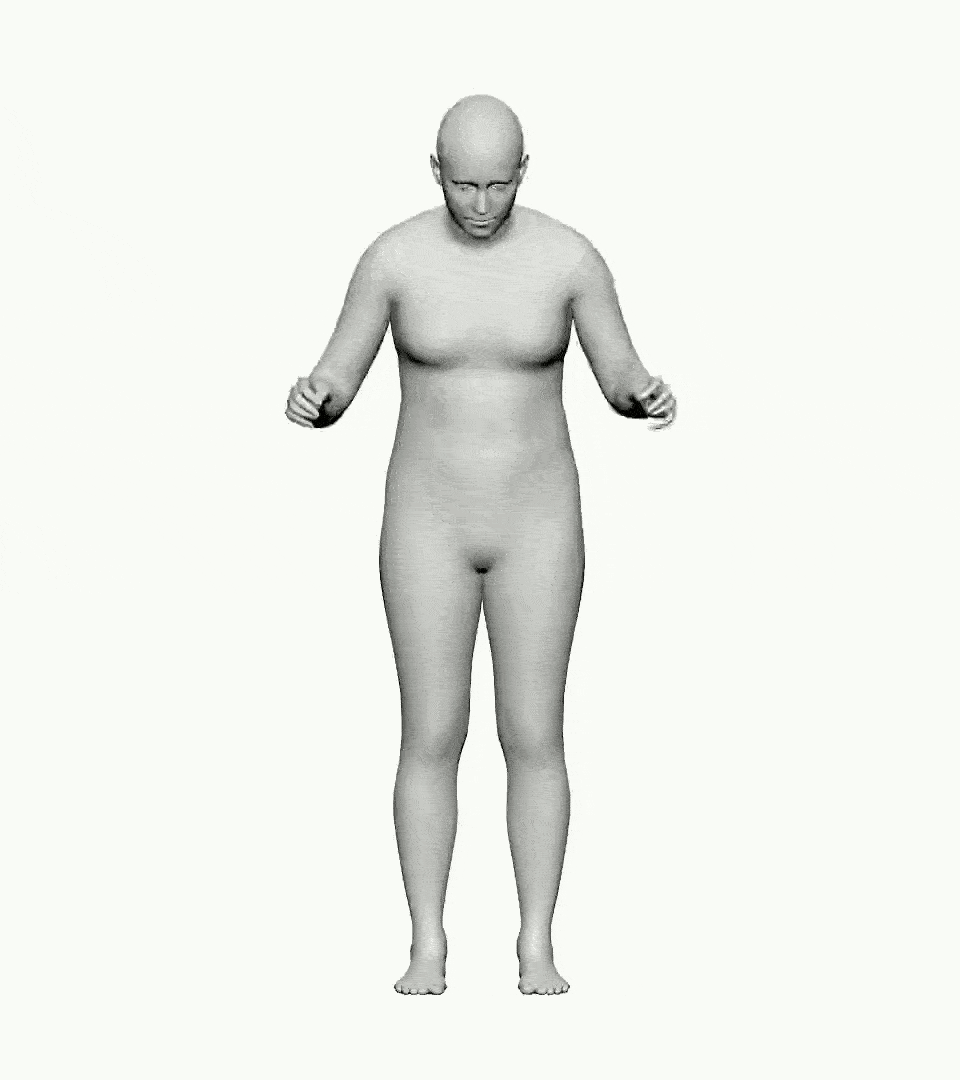

DisCo (Mesh)	CaMN (Mesh)	EMAGE (Mesh)

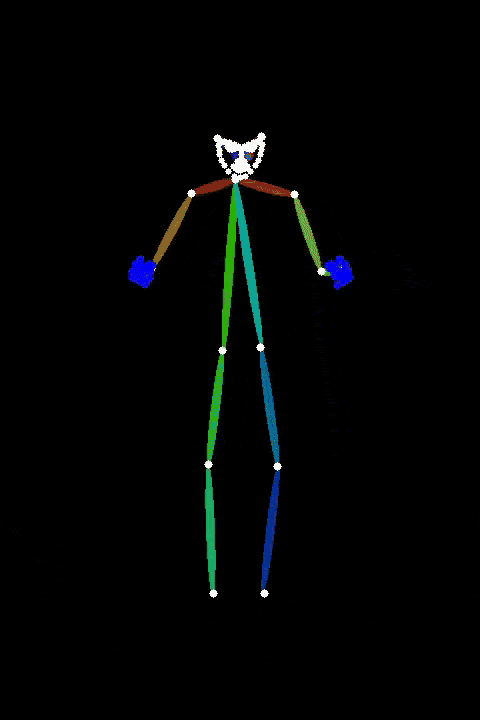

Approach 3: 2D OpenPose style video (Require Pytorch3D)

from trochvision.io import write_video
from emage_utils.format_transfer import render2d
from emage_utils import fast_render


motion_dict = np.load(npz_path, allow_pickle=True)
# face
v2d_face = render2d(motion_dict, (512, 512), face_only=True, remove_global=True)
write_video(npz_path.replace(".npz", "_2dface.mp4"), v2d_face.permute(0, 2, 3, 1), fps=30)
fast_render.add_audio_to_video(npz_path.replace(".npz", "_2dface.mp4"), audio_path, npz_path.replace(".npz", "_2dface_audio.mp4"))

# body
v2d_body = render2d(motion_dict, (720, 480), face_only=False, remove_global=True)
write_video(npz_path.replace(".npz", "_2dbody.mp4"), v2d_body.permute(0, 2, 3, 1), fps=30)
fast_render.add_audio_to_video(npz_path.replace(".npz", "_2dbody.mp4"), audio_path, npz_path.replace(".npz", "_2dbody_audio.mp4"))

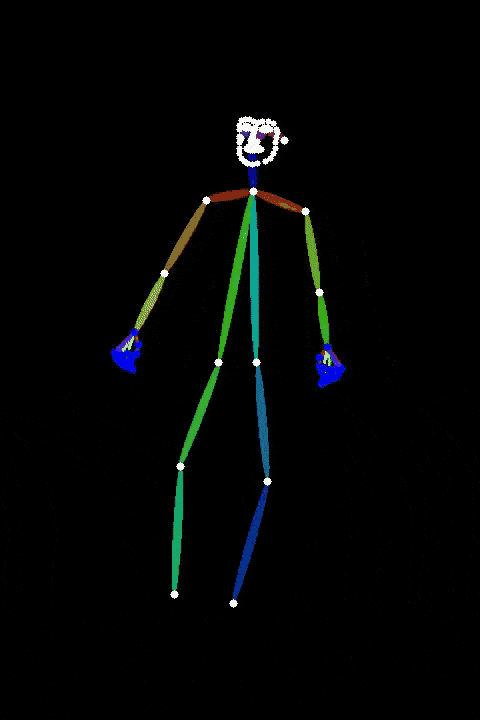

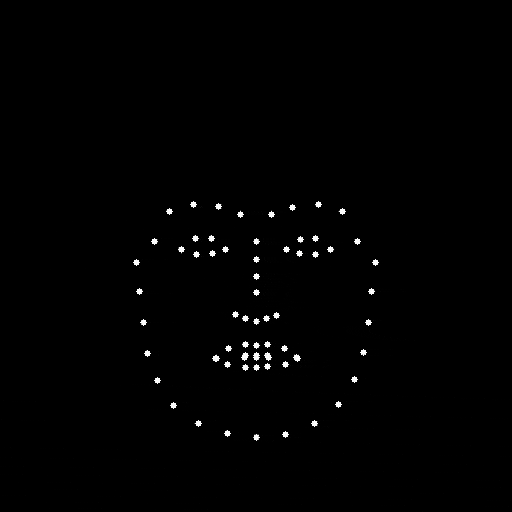

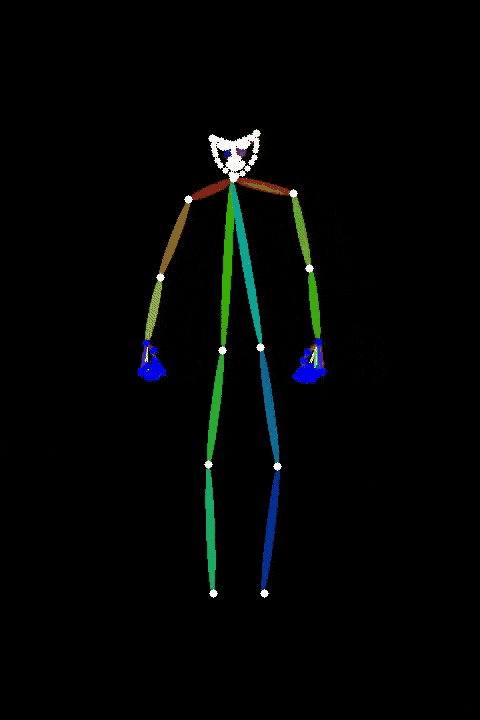

DisCo (2D Pose)	CaMN (2D Pose)	EMAGE (2D Pose)	EMAGE-Face (2D Pose)

5. Evaluation

For academic users, the evaluation code is organized into an evaluation API.

# copy the ./emage_evaltools folder into your folder
from emage_evaltools.metric import FGD, BC, L1Div, LVDFace, MSEFace

# init
fgd_evaluator = FGD(download_path="./emage_evaltools/")
bc_evaluator = BC(download_path="./emage_evaltools/", sigma=0.3, order=7)
l1div_evaluator= L1div()
lvd_evaluator = LVDFace()
mse_evaluator = MSEFace()

# Example usage
for motion_pred in all_motion_pred:
    # bc and l1 require position representation
    motion_position_pred = get_motion_rep_numpy(motion_pred, device=device, betas=betas)["position"] # t*55*3
    motion_position_pred = motion_position_pred.reshape(t, -1)
    # ignore the start and end 2s, this may for beat dataset only
    audio_beat = bc_evaluator.load_audio(test_file["audio_path"], t_start=2 * 16000, t_end=int((t-60)/30*16000))
    motion_beat = bc_evaluator.load_motion(motion_position_pred, t_start=60, t_end=t-60, pose_fps=30, without_file=True)
    bc_evaluator.compute(audio_beat, motion_beat, length=t-120, pose_fps=30)

    l1_evaluator.compute(motion_position_pred)

    face_position_pred = get_motion_rep_numpy(motion_pred, device=device, expressions=expressions_pred, expression_only=True, betas=betas)["vertices"] # t -1
    face_position_gt = get_motion_rep_numpy(motion_gt, device=device, expressions=expressions_gt, expression_only=True, betas=betas)["vertices"]
    lvd_evaluator.compute(face_position_pred, face_position_gt)
    mse_evaluator.compute(face_position_pred, face_position_gt)

    # fgd requires rotation 6d representaiton
    motion_gt = torch.from_numpy(motion_gt).to(device).unsqueeze(0)
    motion_pred = torch.from_numpy(motion_pred).to(device).unsqueeze(0)
    motion_gt = rc.axis_angle_to_rotation_6d(motion_gt.reshape(1, t, 55, 3)).reshape(1, t, 55*6)
    motion_pred = rc.axis_angle_to_rotation_6d(motion_pred.reshape(1, t, 55, 3)).reshape(1, t, 55*6)
    fgd_evaluator.update(motion_pred.float(), motion_gt.float())

metrics = {}
metrics["fgd"] = fgd_evaluator.compute()
metrics["bc"] = bc_evaluator.avg()
metrics["l1"] = l1_evaluator.avg()
metrics["lvd"] = lvd_evaluator.avg()
metrics["mse"] = mse_evaluator.avg()

Hyperparameters may vary depending on the dataset.
For example, for the BEAT dataset, we use (0.3, 7); for the TalkShow dataset, we use (0.5, 7). You may adjust based on your data.

6. Training

This new codebase only have the audio-only version model for better real-world applications.
For reproducing audio+text results in the paper, please check and reference the previous codebase below.

Before Start

Environment setup, skip if you already setup the inference.

# if you didn't run test, run the below four commands.
# git clone https://github.com/PantoMatrix/PantoMatrix.git
# cd PantoMatrix/
# bash setup.sh
# source /content/py39/bin/activate

# Download the BEAT2
sudo apt-get update
sudo apt-get install git-lfs
git lfs install
git clone https://huggingface.co/datasets/H-Liu1997/BEAT2

Your folder should like follows for the correct path

/your_root/
|-- PantoMatrix
   |-- BEAT2
   `-- train_emage_audio.py

Method 1: Training EMAGE

# Preprocessing Extract the foot contact data
python ./datasets/foot_contact.py

# (todo) train the vqvae

# train the audio2motion model
torchrun --nproc_per_node 1 --nnodes 1 train_emage_audio.py --config ./configs/emage_audio.yaml --evaluation

Use these flags as needed:

• --evaluation: Calculate the test metric.
• --wandb: Activate logging to WandB.
• --visualization: Render test results (slow; disable for efficiency).
• --test: Test mode; load last checkpoint and evaluate.
• --debug: Debug mode; iterate one data point for fast testing.

Method 2: Training CaMN

torchrun --nproc_per_node 1 --nnodes 1 train_camn_audio.py --config ./configs/camn_audio.yaml --evaluation

Method 3: Training DisCo

# (optional) Extract the cluster information
# python ./datasets/clustering.py

# train audio2motion
torchrun --nproc_per_node 1 --nnodes 1 train_disco_audio.py --config ./configs/disco_audio.yaml --evaluation
