AltiMap: one image to an interactive 3D city model

AltiMap is our working prototype for SIH 2026 · SIH26175 · DepthWizard (ISRO). Our main output is an interactive 3D city model with buildings, roof levels, trees and terrain. It starts with one aerial or satellite colour image. Our models estimate object heights and labels such as buildings and trees. We use these predictions to create 3D shapes and place the original image on the roofs and ground. For a suitable GeoTIFF, map coordinates help us add landscape elevation. Height maps and error views help check the result. They are not the whole product.

Tested height/API baseline: 84136c4. Main also includes the newer viewer and prepared-demo update 5e21266. That update does not change the Python height models or API. The accuracy tables and older UI photographs below belong to the dated baseline checks. A separate local studio check on 5 October tested saved scenes, viewer controls and a fresh GeoTIFF API request. It was not a complete browser upload/export test. Other changes on updated-dilavesh-new remain separate and are not automatically included in main. Screenshots show what the app can display. Accuracy must be checked against known heights on images not used to train the model.

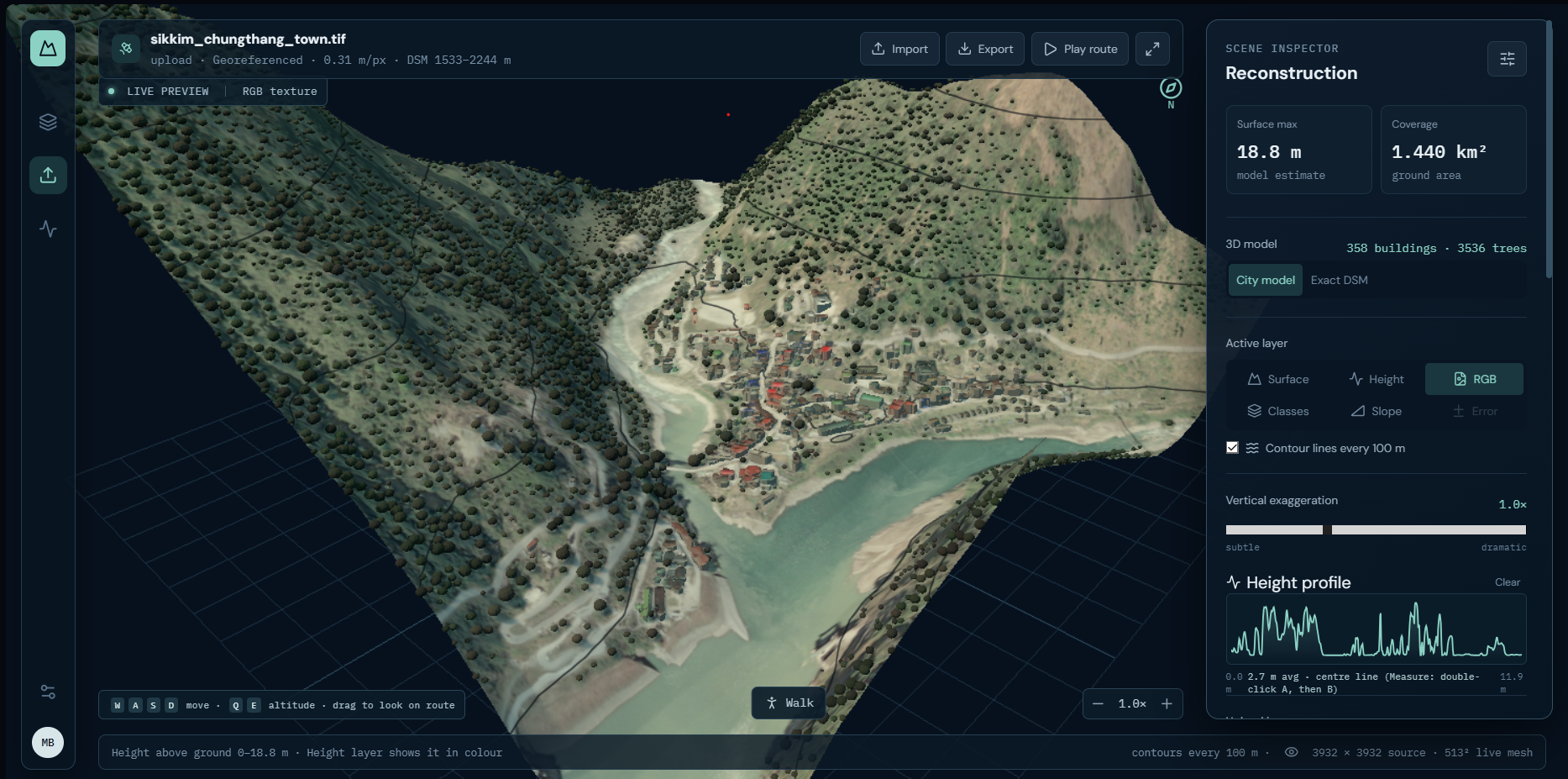

Team capture, 4 October: Chungthang, Sikkim, 3,932 × 3,932 RGB GeoTIFF; city display at 1×. The corresponding verified upload produced a DSM range of 1,533–2,244 m. No independent height reference was supplied for this scene, so this image is reconstruction evidence, not an accuracy claim.

Setup and downloads · How it works and simple definitions · Project journey · Evidence and screenshot provenance · Model card · Problem statement

Hosted demo: saved scenes only · Hosting and demo setup

Only the viewer and saved scenes are currently deployed. The public site lets you explore previously generated 3D models, but new TIFF, GeoTIFF, PNG and JPG uploads are not available there. To process your own image, run the local app with its Python inference server. Prepared demos do not run a new model prediction. Publishing this documentation does not redeploy the hosted site.

Our journey in brief

We started with generic monocular depth and direct DEM rendering. The first gave unreliable overhead height patterns; the second made good terrain but could not infer unknown buildings. Mark-1 added prediction/reference/error inspection, and Biplab's work established the terrain workspace. Dilavesh's RS3DAda height/semantic models then supplied learned object heights, with a building specialist and an optional forest specialist. Validation selected today's 25% v1 + 75% v2 building blend.

The current city view turns those outputs into separate buildings and tree crowns. Main now also includes the studio inspector and prepared-scene hosting from the viewer update. Other teammate experiments, including changes to DSM calculations, still need separate validation. Detailed branch history and historical screenshots.

What we have built

The application processes uploaded RGB; the built-in GAMUS reference gallery is not model output. The forest specialist Meta CHMv2 is supported when downloaded. It was unavailable in our local RTX 3050 upload verification, so those forest screenshots/results must not be described as CHMv2 runs.

Understanding the outputs

An RGB GeoTIFF normally contains colour pixels, map coordinates, pixel placement and pixel size. Georeferencing does not mean it already contains a DSM or the height of every building.

• nDSM: height above the local ground. A 20 m building has an nDSM height of about 20 m.
• DSM: surface elevation of roofs, treetops and ground, using a stated height reference. If that building stands on ground at 100 m elevation, its roof is conceptually at 120 m.
• DTM / ground estimate: ground elevation without buildings and trees. Our display ground is an estimate derived from coarse elevation data, not a surveyed high-resolution DTM.

Saved height maps use decimal values in metres. Missing pixels have no value, represented as NaN. They use a COG layout, which lets software read parts of a GeoTIFF efficiently. Supported georeferenced outputs keep the input map system and pixel placement. Rotated, sheared and strongly non-square image grids currently trigger warnings. See geospatial limits.

Current pipeline

RGB image / optical RGB GeoTIFF
  │
  ├─ read image, valid pixels, CRS, affine transform and pixel size
  └─ resample for the height model; overlapping-window inference
       │
       └─ RS3DAda v1 → height above ground + predicted land-cover classes
            ├─ buildings → 25% v1 + 75% v2, when v2 is installed
            ├─ dense-forest trees → CHMv2, when installed and routing permits
            └─ otherwise → v1
                 │
                 ├─ PNG/JPG → local nDSM / relative reconstruction
                 └─ GeoTIFF → selected public DEM + estimated fine detail → absolute DSM
                                      │
                       ┌──────────────┴───────────────┐
                       │                              │
                 scientific rasters             display geometry
                 reference validation           textured mesh / city
                 GeoTIFF downloads              navigation / GLB export

Height models and training

The main height model is RS3DAda, adapted from SynRS3D. Its DINOv2 image encoder reads patterns. Its DPT decoder turns them into height and class maps. We adapted v1 using GAMUS colour images, measured heights above ground and class labels.

Training rewards accurate heights, clear height boundaries and correct class labels. The technical loss is height L1 + 0.5 × gradient L1 + 0.2 × semantic cross-entropy. The v2 specialist adapts more encoder blocks and uses height-weighted supervision and high-rise training examples. Because it can overestimate unfamiliar ground/vegetation, it is routed to predicted building pixels only. Uploading an image does not retrain either model.

CHMv2 is an optional canopy specialist routed to predicted tree pixels inside extensive forest: at least 80% canopy in an approximately 150 m neighbourhood. It is not used indiscriminately on suburban trees. Actual loaded models are listed with each result.

How GeoTIFF metadata is used

The coordinate system, called the CRS, tells us how to read the map coordinates. The transform tells us where the pixels are placed. Together they help find the pixel size, fetch elevation for the right area and line up reference maps. The model estimates object heights from the colour image. It does not read hidden building heights from GeoTIFF metadata.

Copernicus and SRTM are coarse elevation sources, not alternative AI models. Their spacing is approximately 30 m; they cannot directly describe every individual roof. Copernicus is itself a surface model, already influenced by buildings and canopy. The main pipeline therefore approximates:

absolute DSM ≈ selected DEM − local 30 m mean(predicted detail) + predicted detail

The local average uses a moving filter on our image grid, not the exact original DEM cells. This keeps broad elevation while adding estimated detail. It does not guarantee exact agreement with every DEM cell or surveyed building heights. We leave out fine forest detail where it was unreliable. Ground used for the city display is estimated separately.

Copernicus uses the EGM2008 height reference; SRTM uses EGM96. This reference is also called a vertical datum. Different references and capture dates can affect a comparison with LiDAR laser measurements. Copernicus documentation · USGS SRTM documentation

City view and height measurements

City model is the primary presentation view. It combines predicted classes, object heights and estimated ground into recognizable buildings, roof levels and tree crowns, then maps the original image onto the terrain and roofs. Connected building regions are separated into roof parts. Heights inside each roof set how tall its block is. Higher points in tree regions help place tree crowns. This is implemented in viewer/city_model.py and rendered in the React/Three.js viewer.

Exact DSM is a separate check view: a continuous height surface, not the same building/tree shapes. “Exact” describes how it is drawn, not whether the heights are correct. The original height maps remain the outputs used to measure error. The simpler display shapes do not replace them. Roof/floor estimates and tree counts are estimates, not surveyed measurements. Vertical exaggeration is display-only; use 1× when discussing physical proportions.

Main result: the 3D city model

The gallery below shows city geometry, not only the Exact DSM surface. These are the supplied team photographs, displayed directly rather than hidden in a collapsed section.

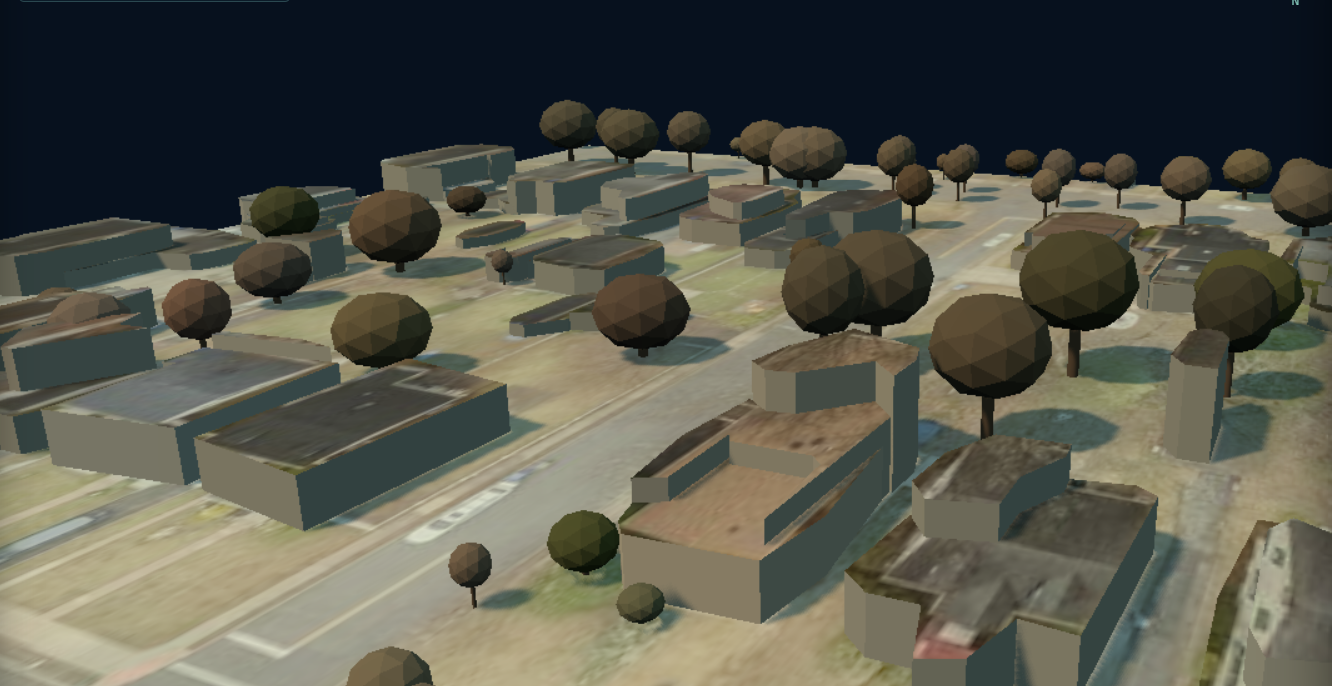

Textured buildings and trees, up close

Screenshot 203126: original imagery on the roofs and ground; simplified walls and tree crowns. The cropped capture does not identify its input scene or reference, so it demonstrates geometry, not independently established height accuracy.

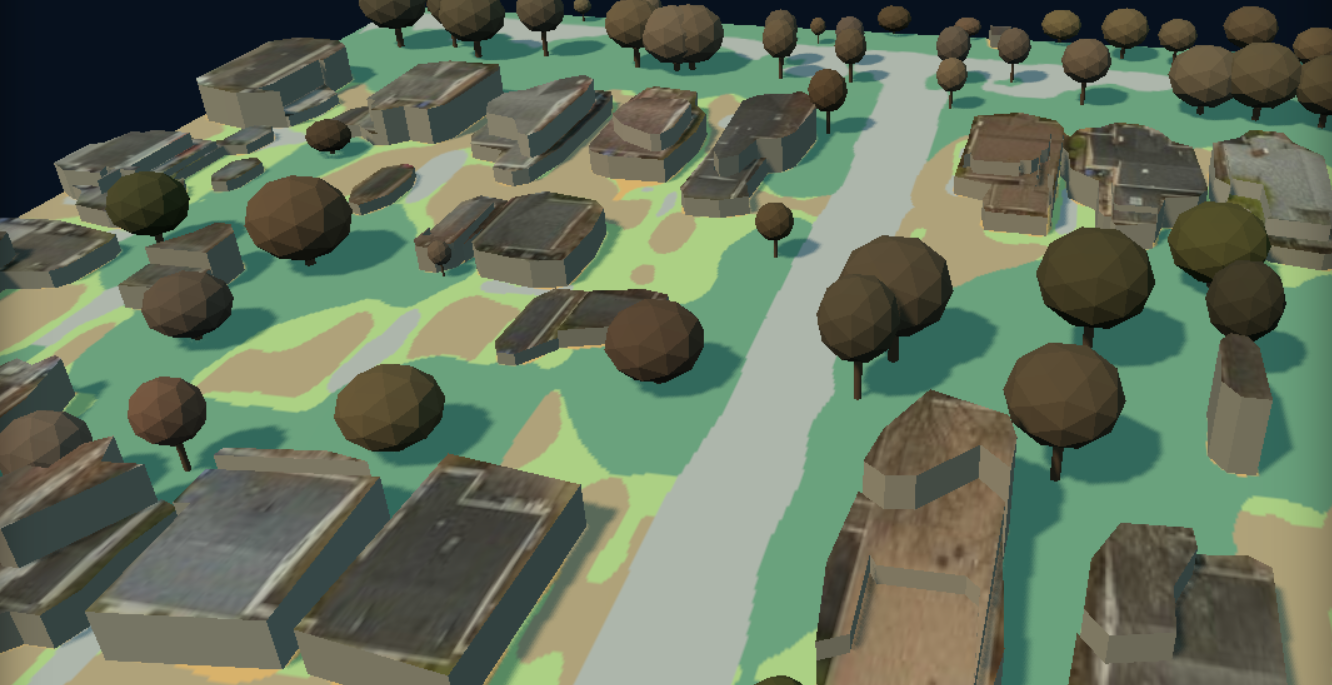

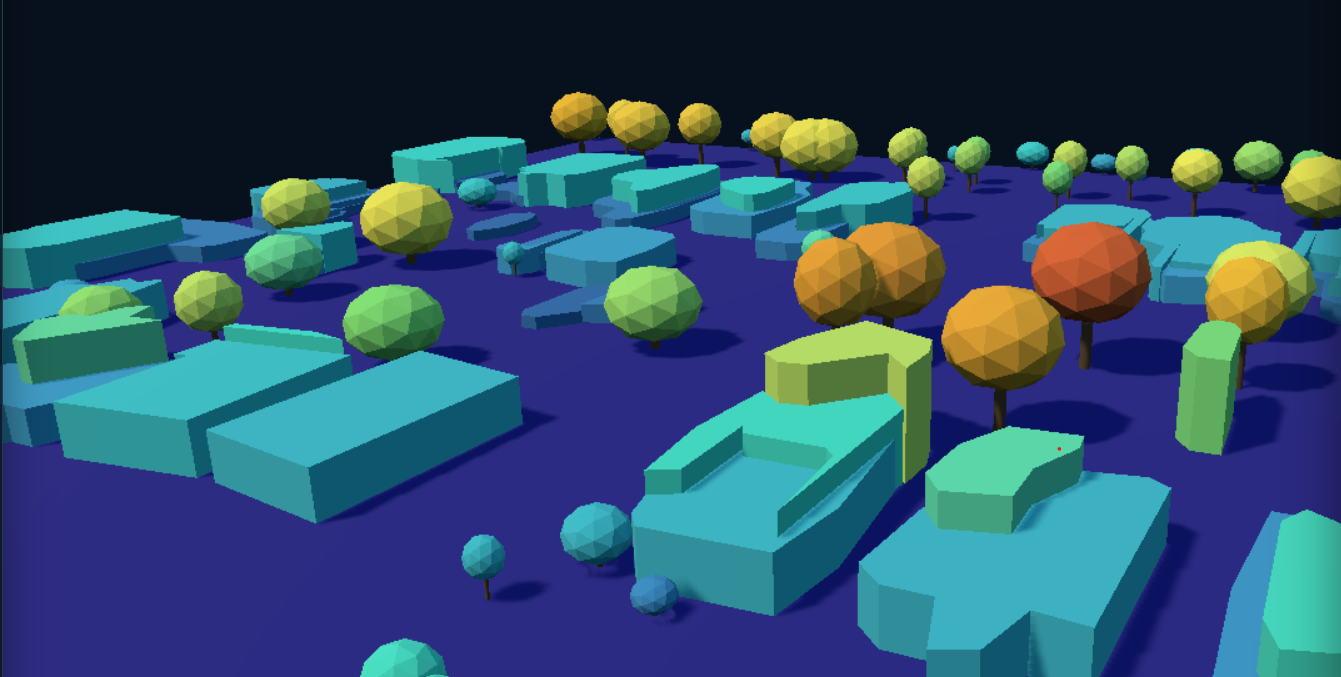

The same city representation with classes and height colouring

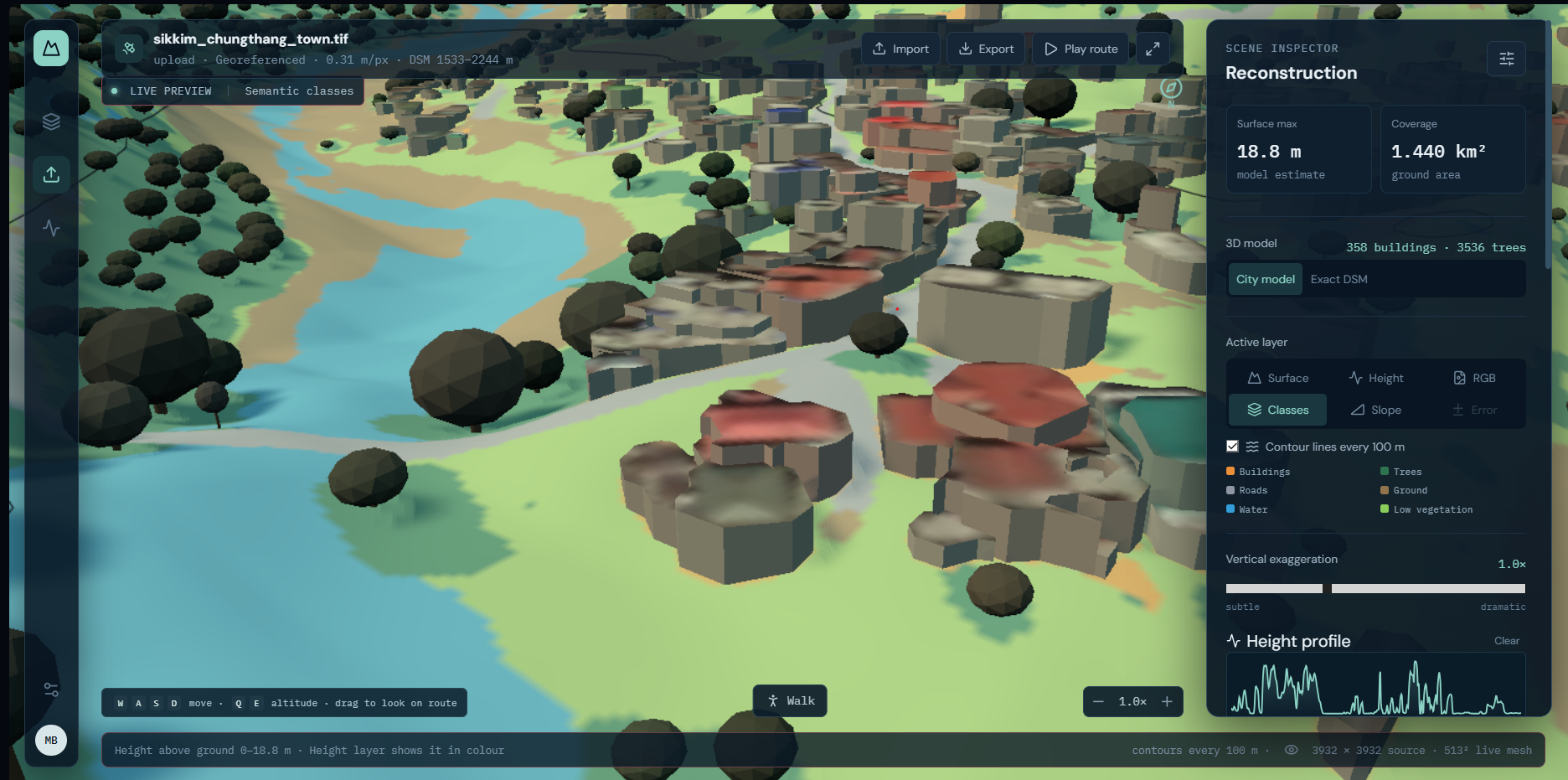

The class view separates land-cover categories; the height view makes object-height variation visible on the 3D geometry. The height screenshot is cropped without its legend, so colours alone cannot be read as particular metre values. Use the live Height layer's scale for numeric interpretation.

GeoTIFF city model on real landscape relief

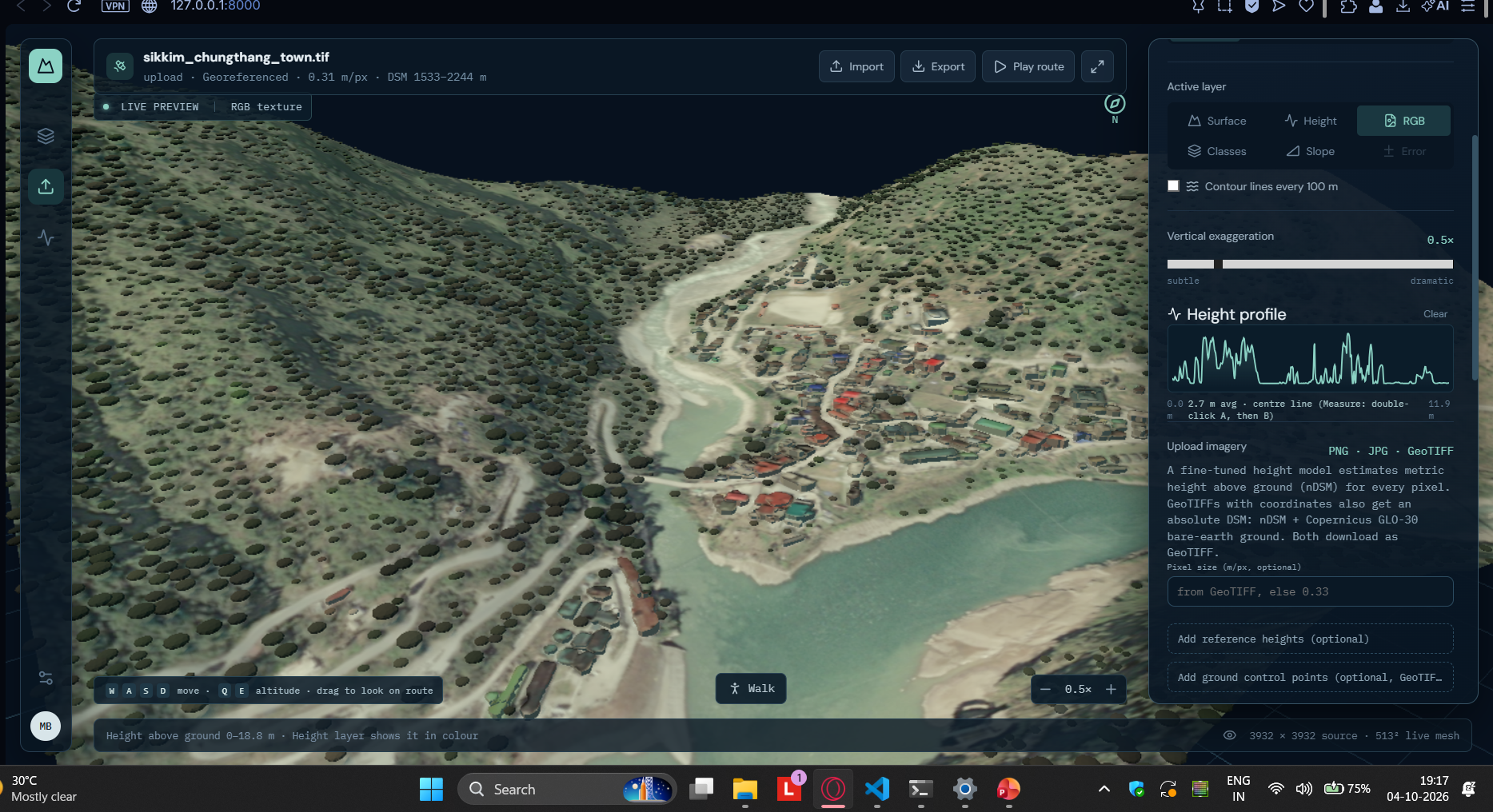

Screenshot 191733: Chungthang GeoTIFF, city geometry over mountainous terrain, at 0.5× vertical exaggeration. Screenshot 192448 is the 1× overview at the top of this README. No independent height reference was supplied for this landscape.

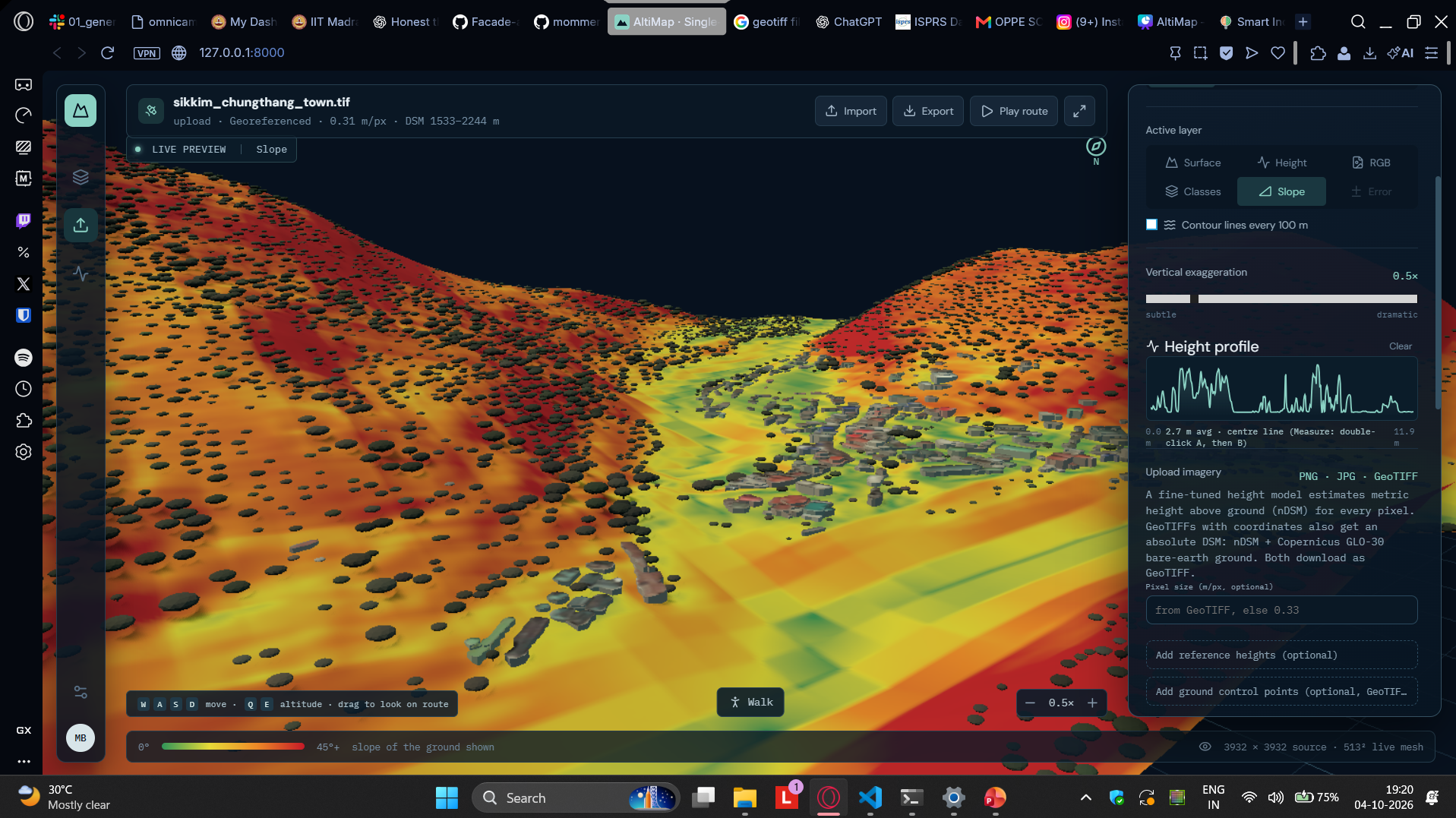

Slope and class overlays are tools for inspecting the reconstructed landscape. They are not a flood-risk forecast or supplied ground truth.

Plain-image reconstruction

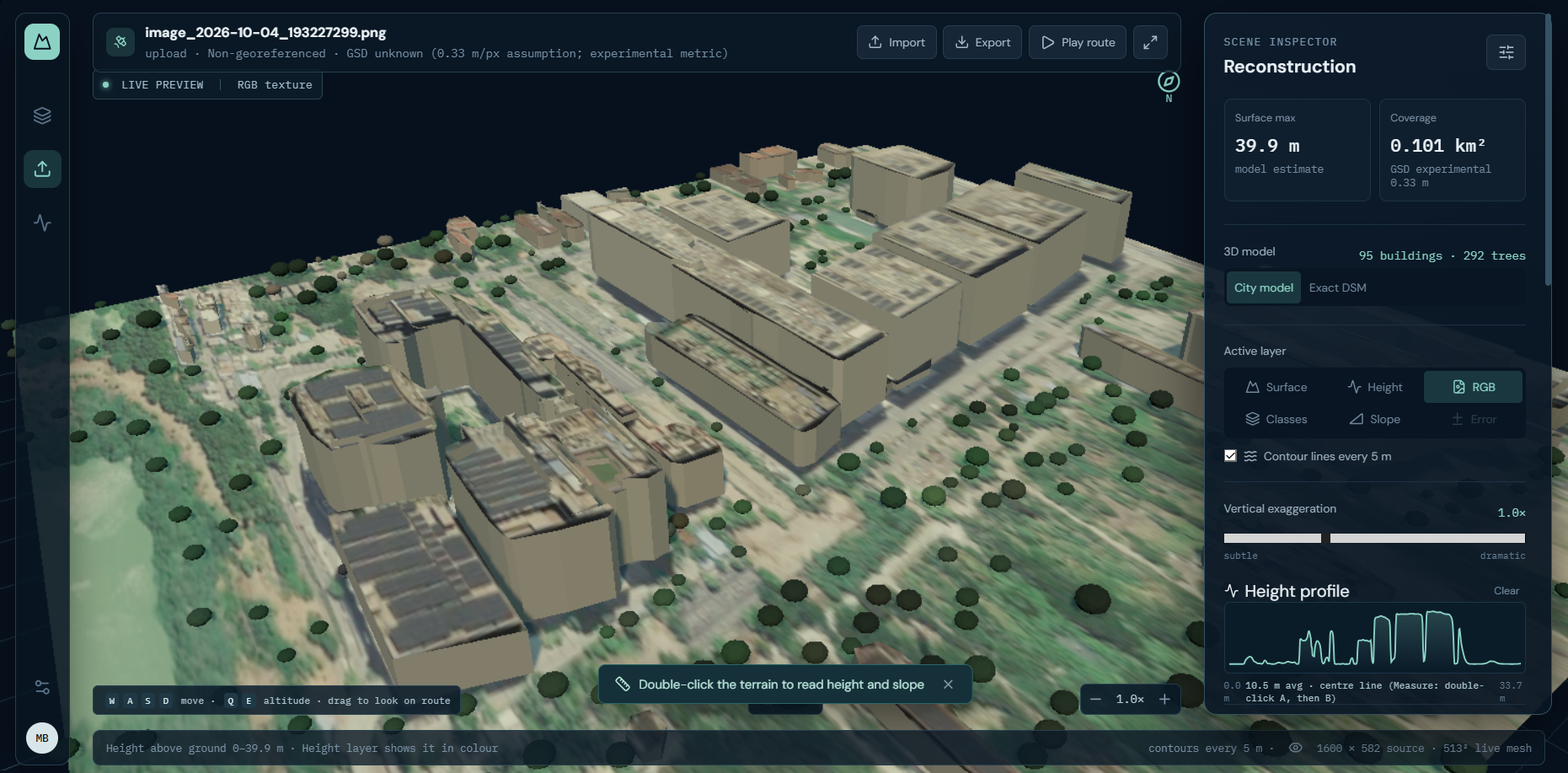

Screenshot 193331: PNG input without coordinates or known GSD. The UI explicitly marks the 0.33 m/pixel assumption as experimental. This demonstrates local reconstruction, not validated absolute heights.

These supplied captures show the earlier validated viewer and predate the current studio layout. Some contain older explanatory wording. The algorithm above describes the tested height/API baseline; the current Scenes/View/Measure/Accuracy/Context tabs are explained in the hosting guide.

New studio UI: light and dark themes

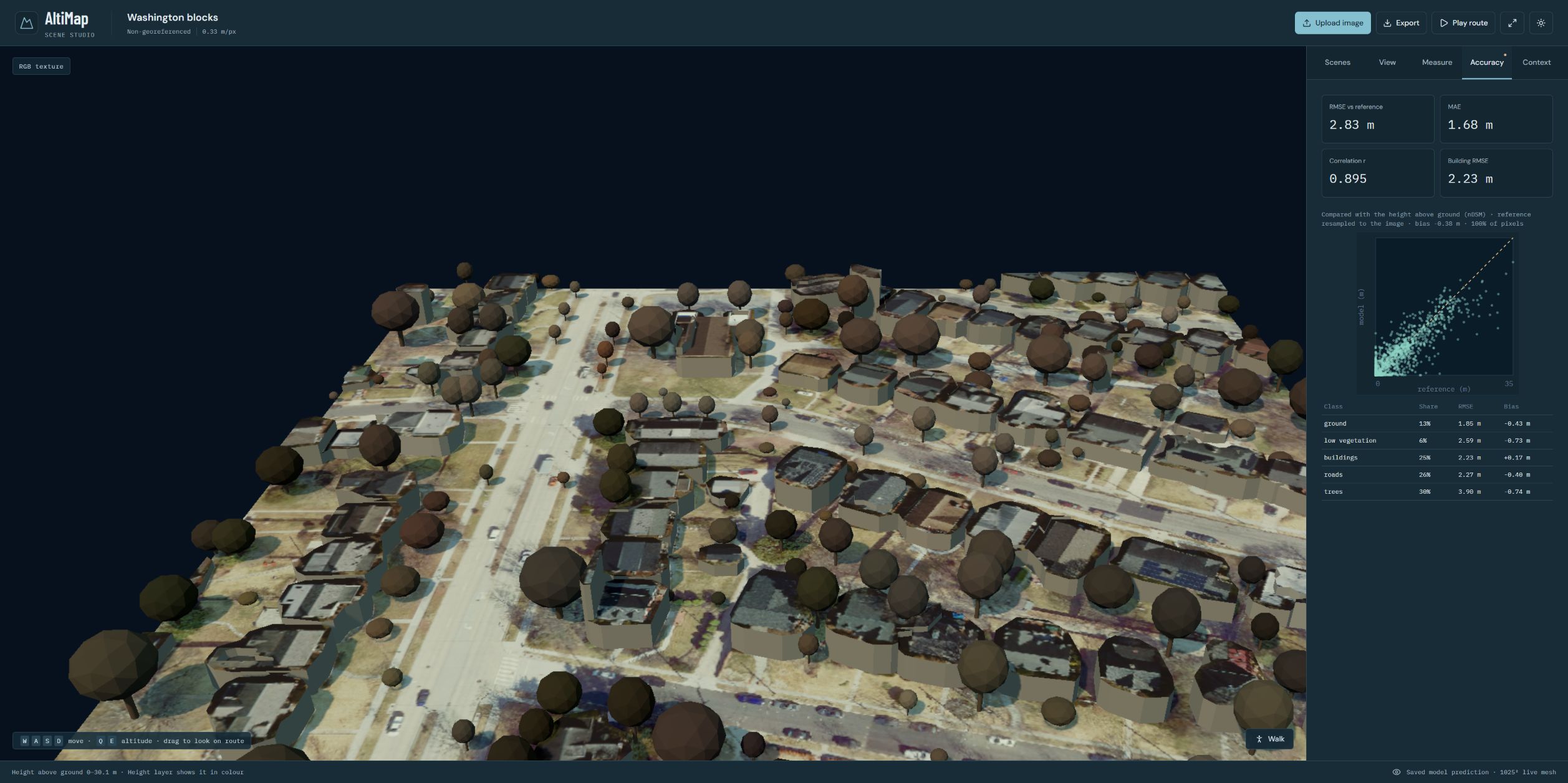

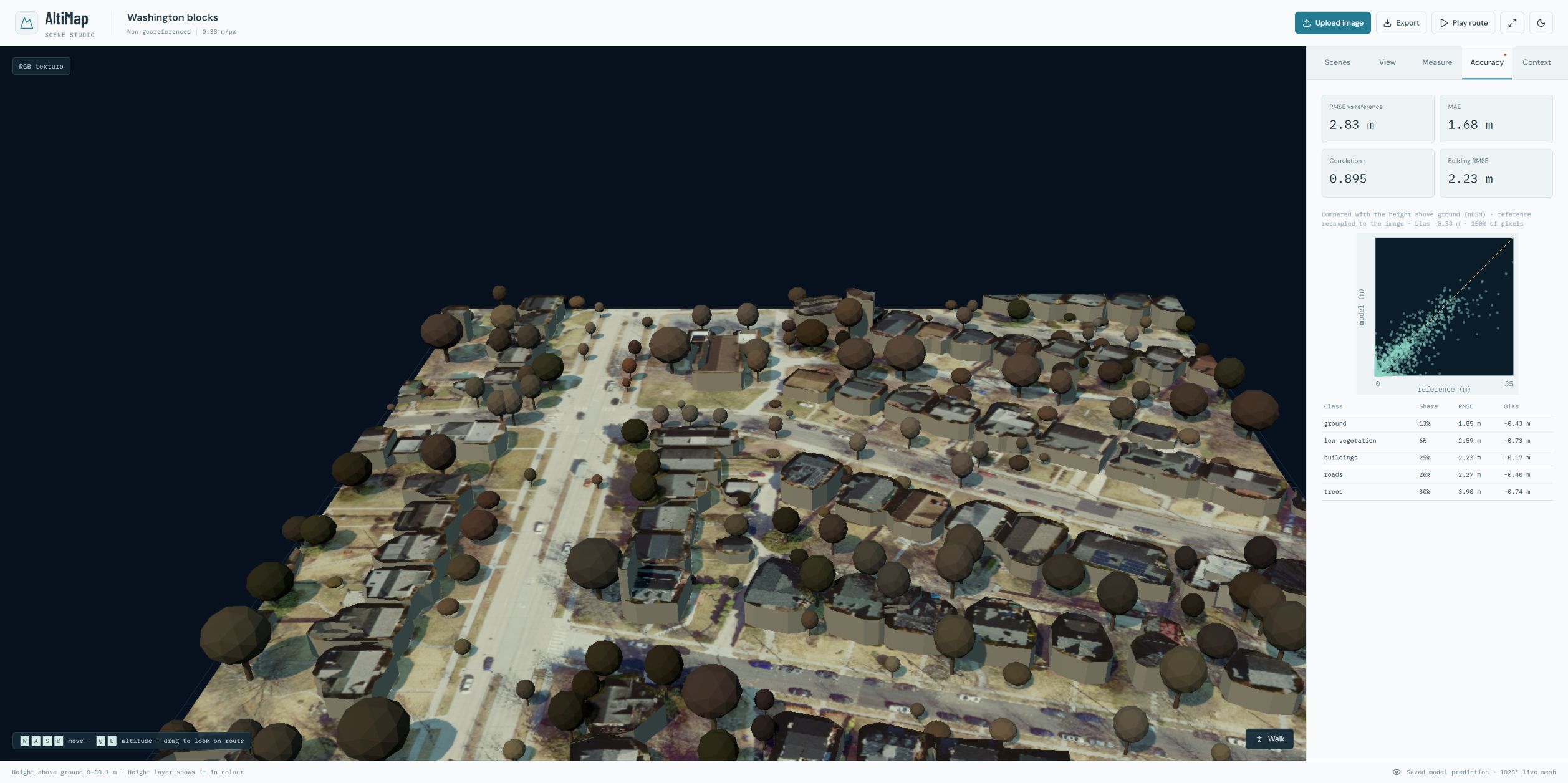

The following pictures were captured locally on 5 October using viewer commit 5e21266. The older black-UI pictures above are kept to show the working prototype and its journey. Both new pictures show the same saved Washington GAMUS prediction, not two new inference runs.

The saved scene displays RMSE 2.83 m, MAE 1.68 m and building RMSE 2.23 m. These are its saved reference scores, not a new benchmark or a claim about every image. The hosted frontend can show saved scenes without a GPU. It currently does not process new uploads; use the local Python inference server for those. See the local check and limits.

Saved map context: experimental, not live detection

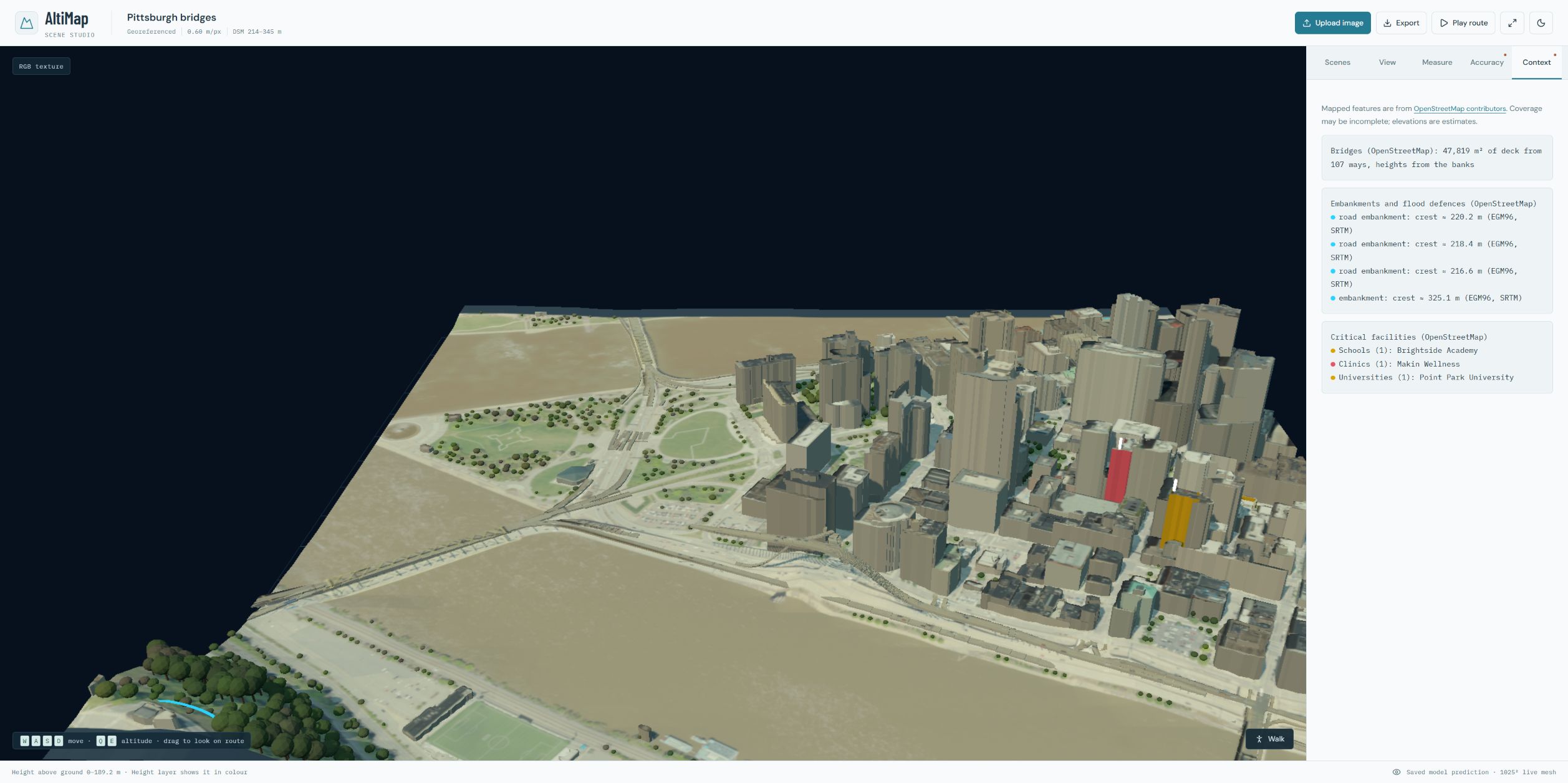

Locally checked saved-demo display: Pittsburgh bridges, 5 October. School, clinic and university names come from saved OpenStreetMap data. They are not detected from the image by our height model. The viewer on main can display these saved fields, but main's Python upload pipeline does not yet fetch this context for new images. No independent height reference is attached to this demo.

We show this as a possible map-assisted extension, not a tested live-upload feature. Adding or displaying a facility name does not prove that its building height is accurate.

Newer teammate branch: experimental city-context view

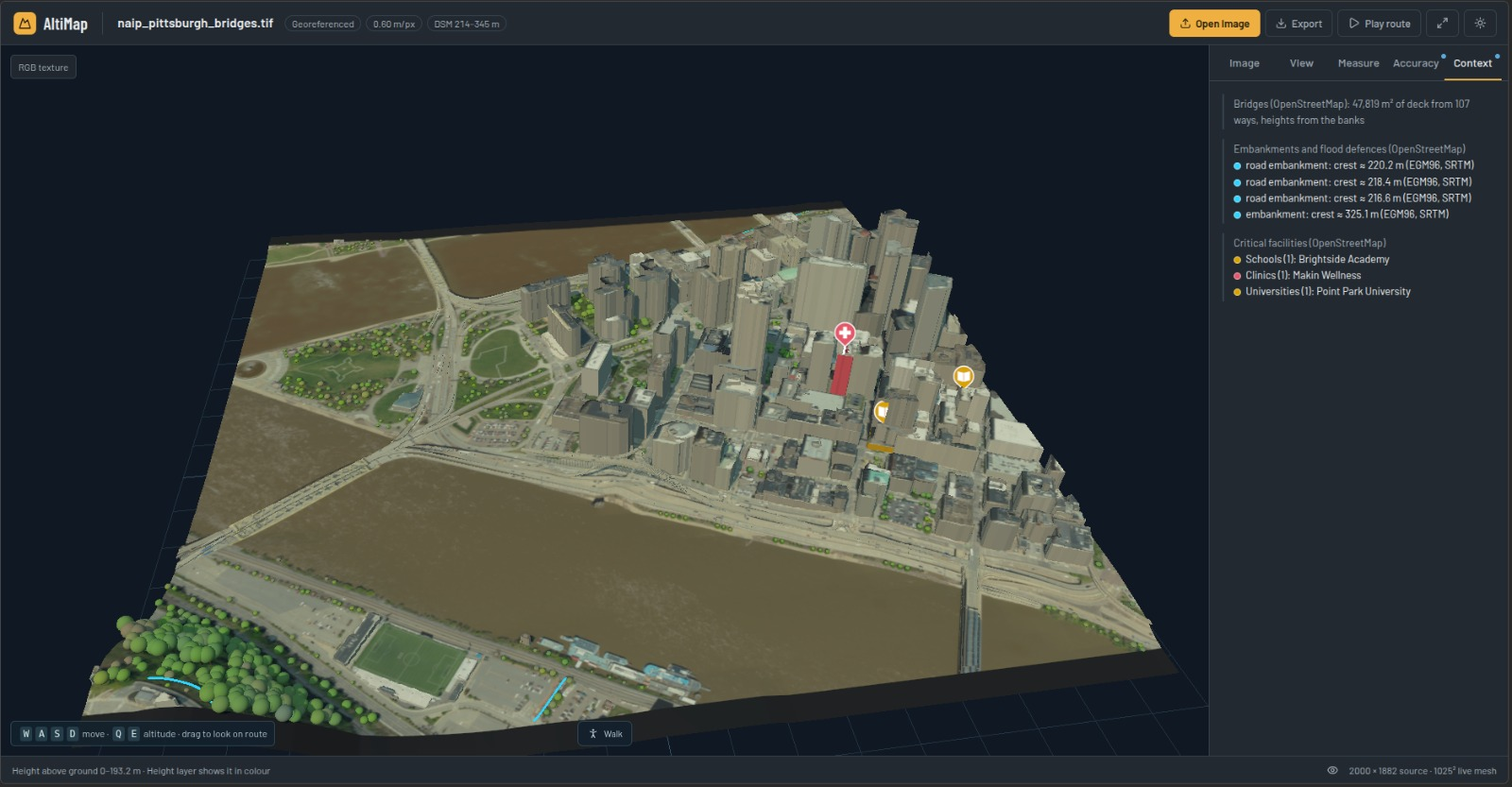

Team-provided screenshot from newer updated-dilavesh-new work: naip_pittsburgh_bridges.tif, 0.60 m/pixel, displayed DSM range 214–345 m. Visible additions include the Context tab, mapped bridge/embankment context and facility markers. This is not tested main. The exact capture commit and independent height accuracy were not established; including this image does not merge or approve all of its feature code. Main can now display prepared context through the newer studio, but that does not mean the live Python estimator contains every newer branch calculation. OpenStreetMap context is map-assisted, not a claim that our neural model detected or accurately measured the bridges and facilities.

Supporting height and error diagnostics

These views explain and evaluate the underlying height estimate. They are not substitutes for the city-model gallery above. Error metrics concern the raster prediction, not the decorative shape of a tree crown or a simplified wall.

Open the height/class rasters and independent-reference DSM error view

Predicted height and land-cover layers

Height above ground	Predicted classes

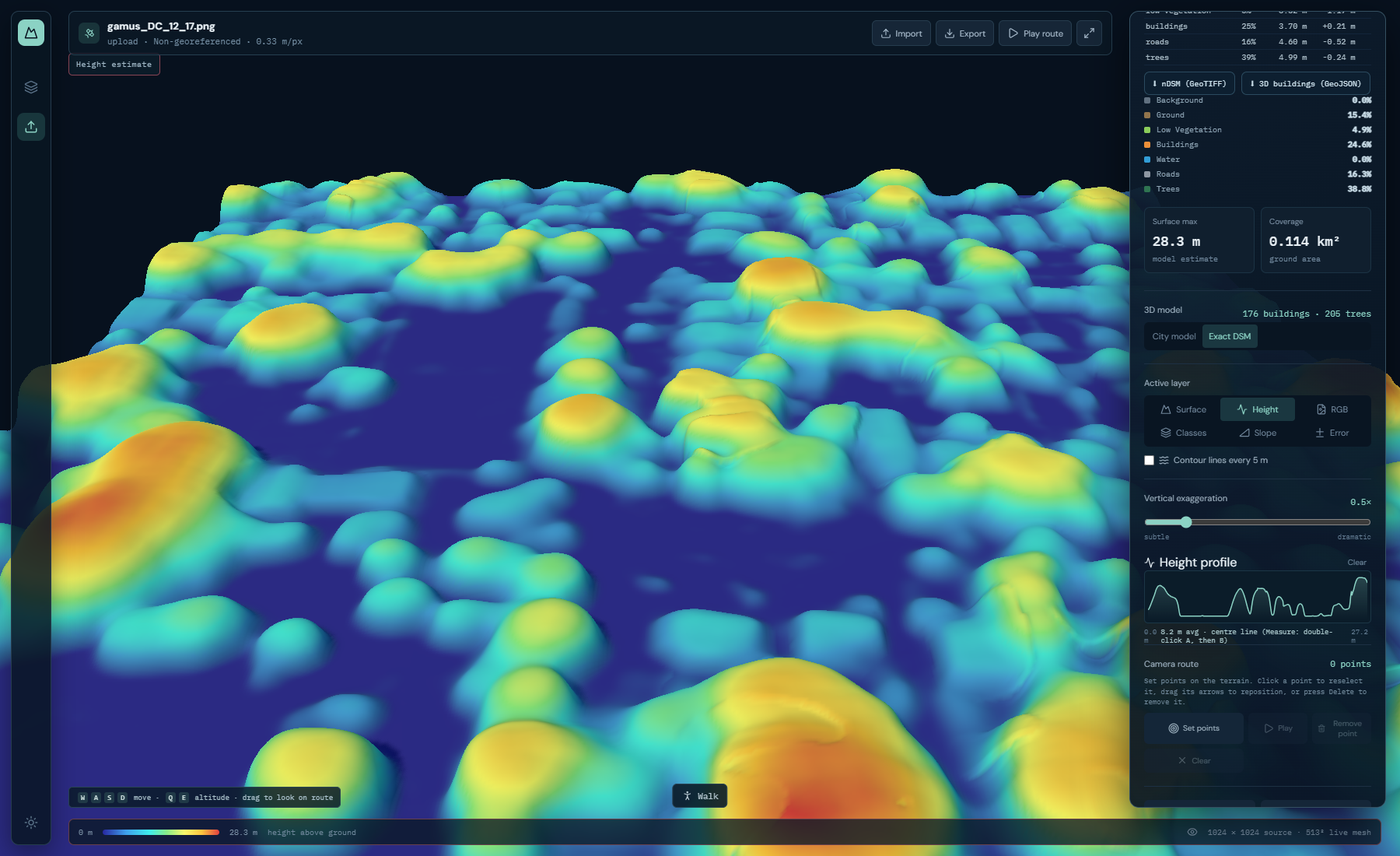

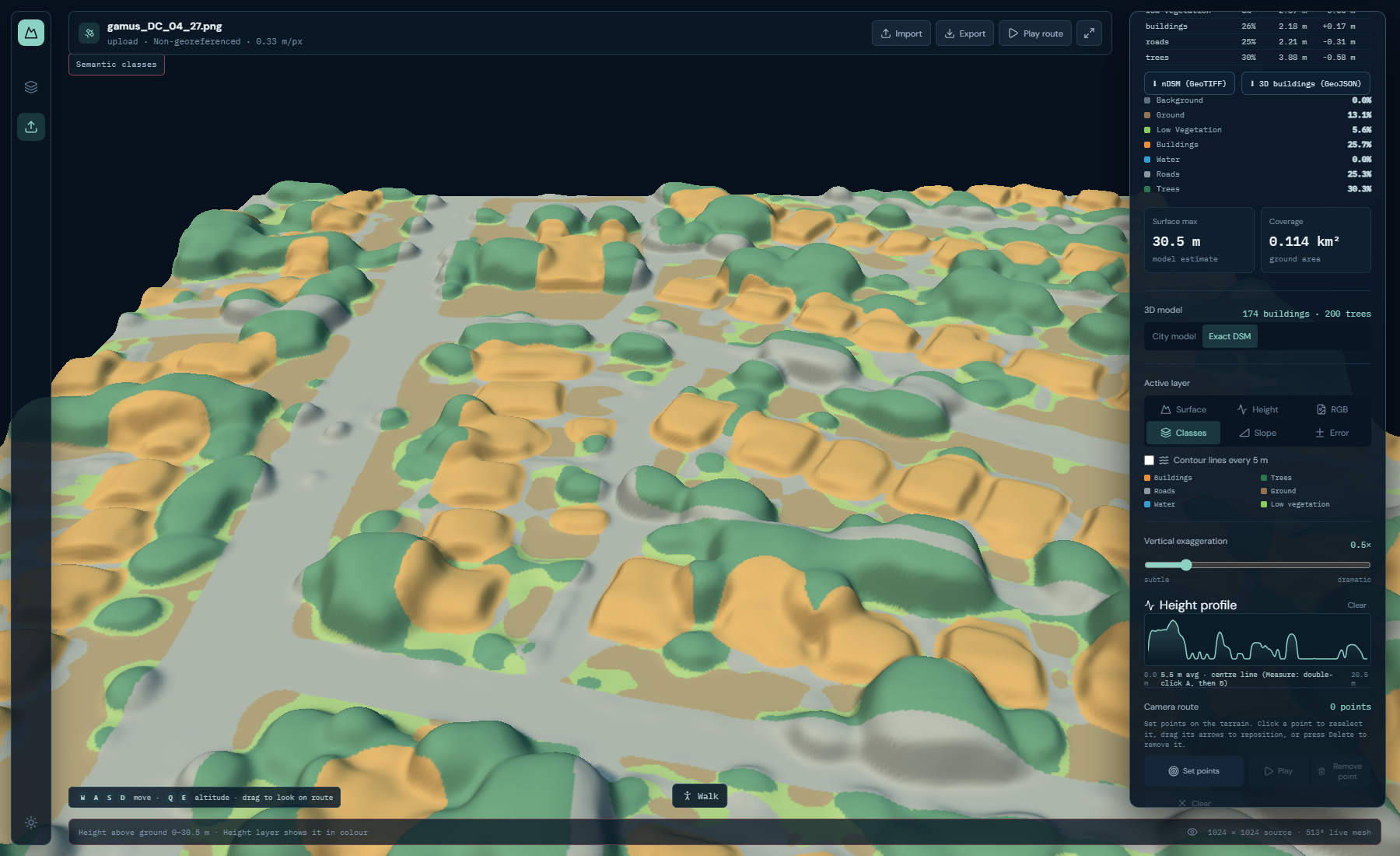

Verified 4 October uploads. Left: DC_12_17 height map. Right: DC_04_27 classes. These are different validation tiles, not a pixel-matched comparison; GAMUS upload spot checks are not the blind test benchmark.

Independent-reference error analysis

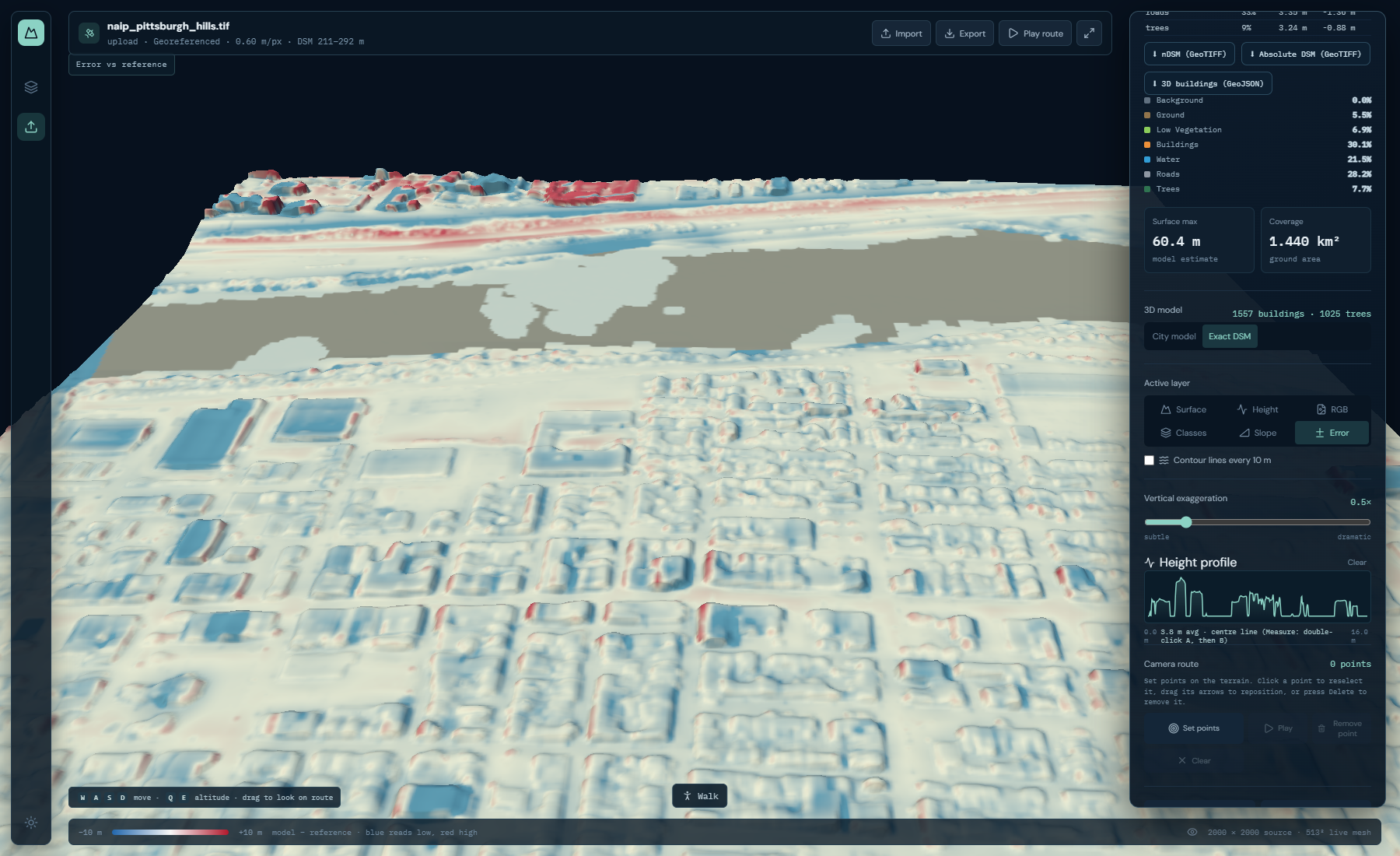

Diagnostic DSM/error view, not the primary city presentation. Pittsburgh hills: absolute-DSM RMSE 5.02 m, MAE 3.33 m, bias −2.39 m. Blue indicates too low, red too high, and grey missing reference coverage. The full-raster metrics were independently recomputed.

Measured evidence

GAMUS building-fusion experiment

The complete inventory contains 5,004 training, 859 validation and 2,861 test tiles with matching RGB, height and class files. Validation covers DC/Philadelphia; test covers DC/New York/Philadelphia. The full dataset has 8,724 complete triplets.

We saved v1/v2 predictions and compared five fixed blends and five probability-based alternatives on validation data. We then checked the selected rule on the separate test split. Invalid GAMUS −5 m reference pixels were excluded. These scores combine all valid pixels and compare heights above ground from one-pass inference. They are not absolute-DSM scores or High/TTA results for the full dataset.

Against the former blend, test RMSE improved 1.60% overall and 4.54% on buildings. This is a modest, measured improvement. It is not a new model or a guarantee for every image. Probability-based routing did not show enough benefit to replace the fixed rule.

A separate 24-validation-tile four-flip TTA check improved pooled RMSE from 3.1690 to 3.0916 m and building RMSE from 5.1284 to 4.9140 m. The ordinary 16-tile subset regressed 0.04% in overall RMSE; the tall eight-tile subset improved. The selected change adds no additional inference passes.

Proof: validation CSV · test CSV · TTA CSV · full evaluation summary · adoption report

Building metrics here use reference class labels. The upload UI instead uses predicted semantic masks to identify buildings; those two building scores must not be confused.

Actual uploads on an RTX 3050 laptop

The dated checks covered 10 real browser uploads. Seven included independent height references. We checked 17 height downloads for image size, pixel placement, map coordinates, file layout and missing-data handling. We also checked that predictions were not flat. The run used a 6 GB RTX 3050, High quality and v1/v2. CHMv2 was absent.

This table shows selected examples, not all upload results or an aggregate external benchmark. The complete dated report and raw measurements remain linked below, including unsuccessful accuracy cases. Successful processing is not uniformly accurate reconstruction; dense-urban errors remain an improvement target. Reference vertical-datum and acquisition-date differences were not resolved in these spot checks.

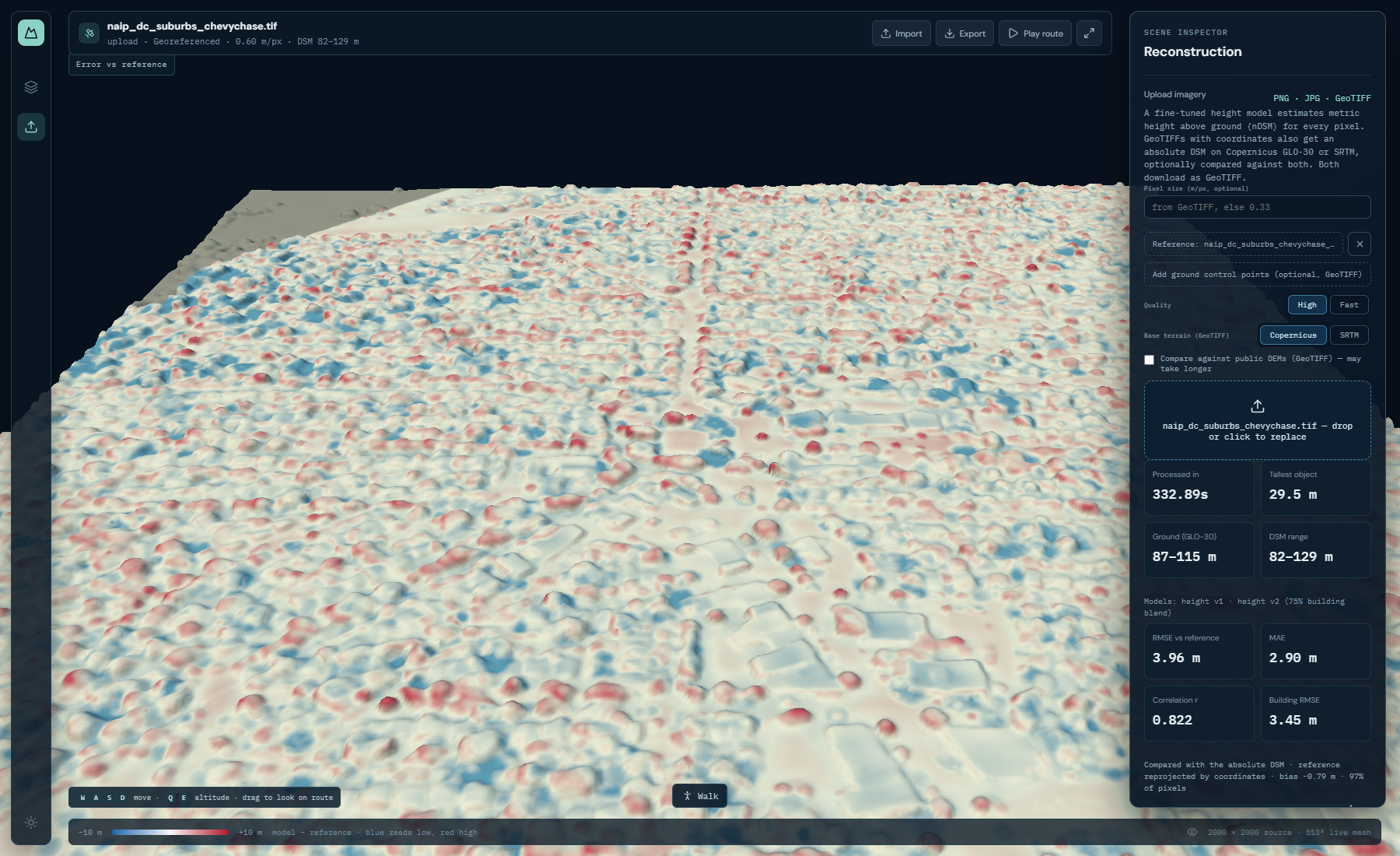

Chevy Chase: 3.96 m absolute-DSM RMSE. The scatter compares reference elevation (horizontal) with model elevation (vertical); the diagonal is perfect agreement.

The application regression checks also cover flat DEMs, unavailable secondary DEMs, valid JSON responses and optional comparisons. The 4 October report records 128 passing torch-free tests plus 12 passing API/loss tests in separate environments, and a successful frontend build. These are dated test results, not a claim that every newer branch has the same coverage.

Upload verification and qualifications · Complete measurements CSV

Our journey: what changed and what we learned

Some branches tried ideas at the same time. They were not all tested in the same way. Do not compare their scores as if they used the same images, data splits and quality settings.

Historical screenshots and the newer experimental viewer

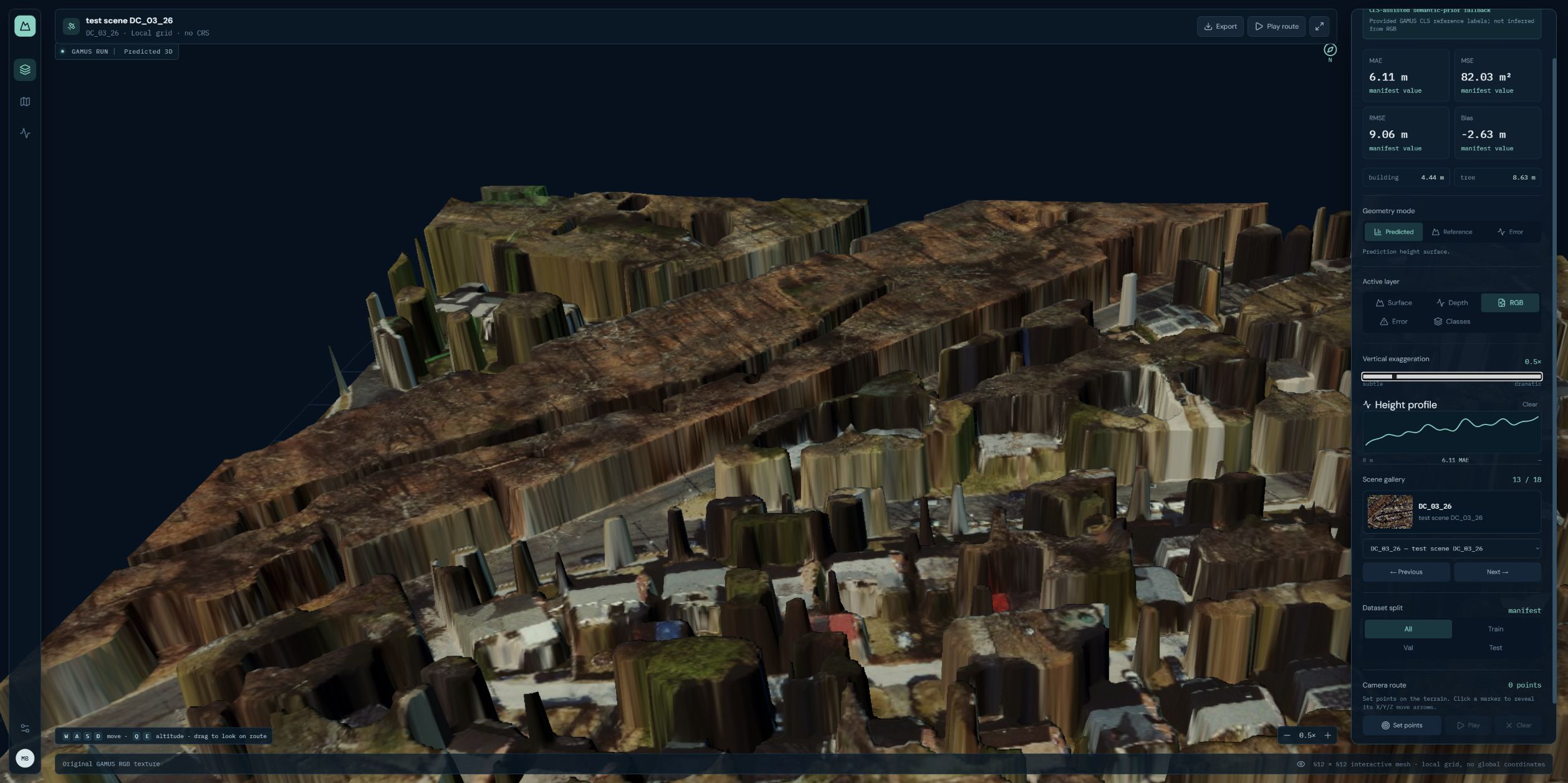

Mark-1 replay, captured 5 October from exact snapshot 97c078d: DC_03_26. The UI identifies the CLS-assisted fallback; it is not the raw RDAH prediction or an RGB-only inference result.

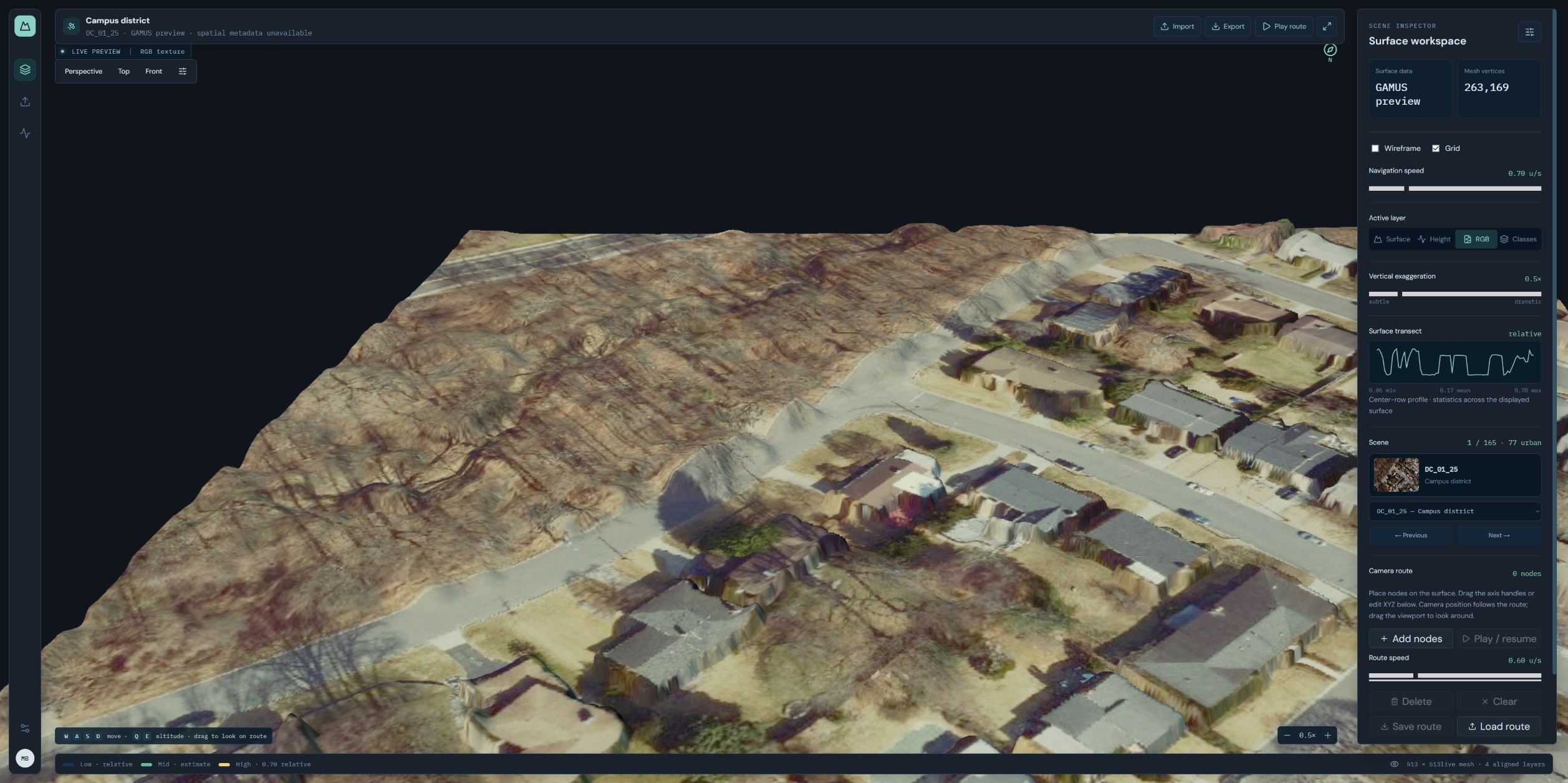

Biplab snapshot 17a8016: prepared GAMUS reference preview. This captures the earlier visualization work, not a fresh evaluation of its trained surface model.

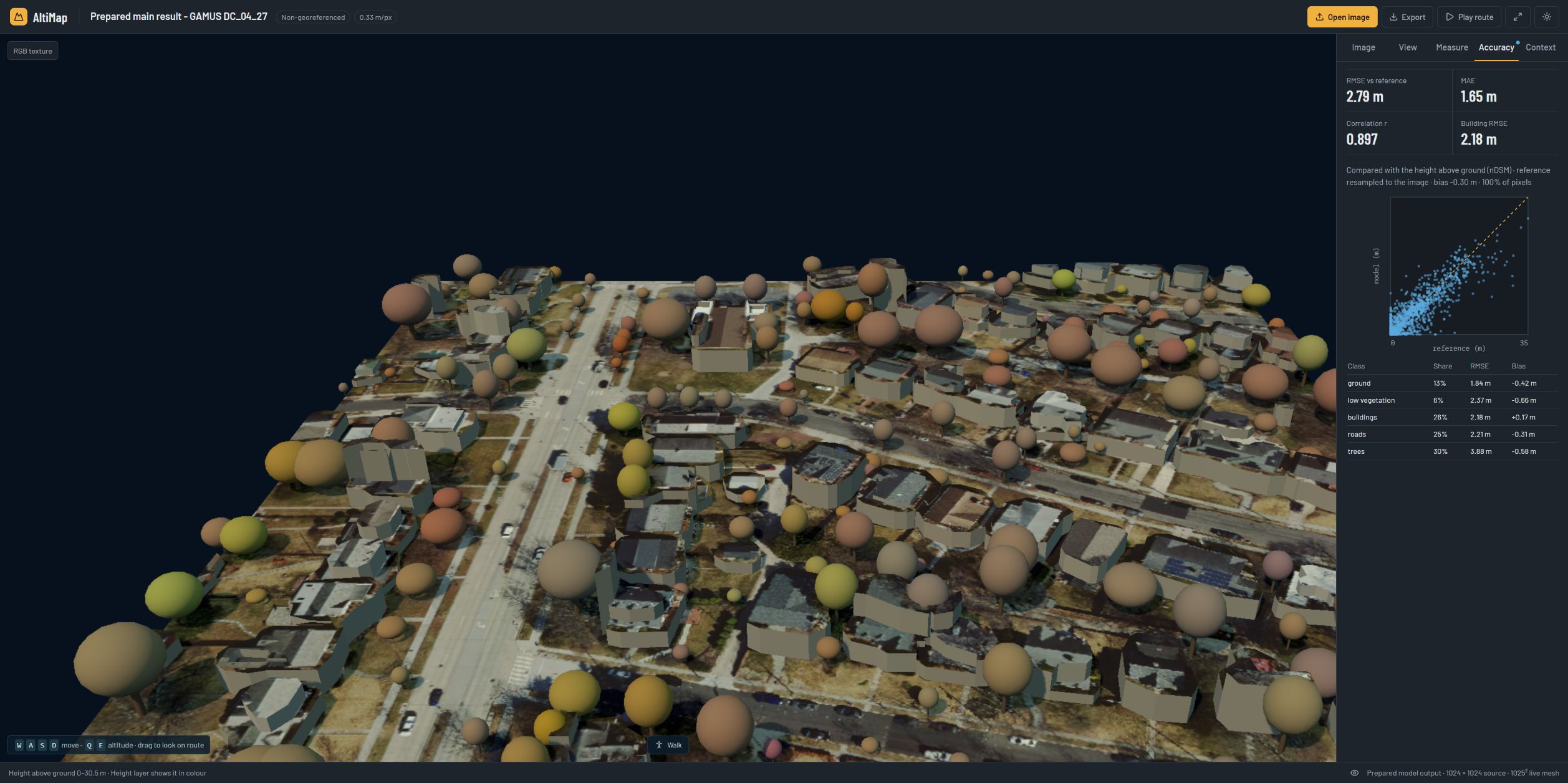

Experimental snapshot e5837d0. We tested its saved-scene loader, texture/geometry rendering, Accuracy/View tabs and orbit navigation using a previously verified main result. The displayed metrics come from that saved main result. They are not a new accuracy result for this branch. Live inference was deliberately disabled in this preview.

The newer snapshot passed 141 non-GPU tests and built successfully during documentation checks; Mark-1 passed 51 tests (one skipped), Biplab passed 52 (seven skipped). Passing unit tests does not resolve the newer branch's missing production JSON-safety/opt-in comparison fixes or certify its GeoTIFF accuracy. No experimental code was merged.

Detailed chronology, historical test screenshots and limitations

How to use the interface

Set options and attach reference files before choosing the input image. The current studio groups controls under Scenes, View, Measure, Accuracy and Context. Scenes separates saved model demos, live uploads and the GAMUS reference gallery.

MAE is the average absolute error. RMSE penalizes large mistakes more strongly. Bias is the signed average error; negative means too low. Building RMSE evaluates only building pixels. Correlation measures pattern agreement, not proof of correct absolute values. “85% of pixels” means valid evaluation coverage, not 85% accuracy.

Reference plots show sampled pixel pairs: reference on the horizontal axis, model on the vertical; below the diagonal means underestimation. Metrics use all valid overlapping pixels, not just plotted dots. Main currently infers whether an uploaded reference is nDSM or absolute DSM; check the comparison label. Ordinary coloured height screenshots are not valid metre-valued reference rasters.

Matching a public DEM used to build the DSM is not an independent check of building heights. Ground control points are known ground elevations, not roof heights. They must use a compatible height reference. The current correction shifts all elevations by one amount; it does not replace an independent accuracy check.

Run the tested version

Follow SETUP.md for prerequisites, weights, the native Windows/Linux path and troubleshooting. Model weights and bulk imagery are downloaded separately; they are not stored in Git.

Existing Docker workflow:

git clone --branch main https://github.com/ManasBytes/altimap.git
cd altimap
docker build -t altimap .
docker run --gpus all -p 8000:8000 altimap

Open http://localhost:8000. GPU Docker requires NVIDIA container support and sufficient disk. The Dockerfile exists, but the Windows verification did not rebuild/run Docker because its daemon was unavailable. See the dated setup notes rather than treating this as a fresh container certification.

For an already configured native environment:

# Windows, repository root
cd frontend
npm ci
npm run build
cd ..
.\.venv-da3\Scripts\python.exe -m viewer.server

Models load lazily on first inference. The legacy health endpoint's model_loaded field describes the old depth-model instance, not whether the current height stack has been loaded. Check actual upload results and their model provenance.

Next steps: compare models on the same data

Planned research, not implemented in main. Preserve the current models as Candidate A and keep production stable until a candidate wins on the same evidence.

Research references: RDAH-Net paper and official implementation; Depth2Elevation paper and accepted manuscript; DINOv3.

Execution priorities:

1. Freeze a reproducible benchmark: fixed RGB/reference pairs, known GSD, valid-data masks, city-disjoint development/final-check scenes, and the same evaluator.
2. Compare raw nDSM first: overall/building/tree RMSE, MAE, bias, correlation and height bins 0–2, 2–5, 5–10, 10–20, 20–50 and >50 m. Report counts, latency and VRAM.
3. Stress-test generalization: Cartosat-like 0.6 m imagery and resolution sweeps across 0.35–10 m, without pretending upsampling restores lost roof detail.
4. Evaluate absolute DSM separately: DEM-only versus model-assisted DSM, vertical-datum handling, dense-urban ground errors and safer native-grid fusion.
5. Validate changes from the newer branch selectively: API failure paths, geospatial units, navigation, context reliability and measured raster effects before adoption.
6. Improve deployment evidence: independently rerun the full specialist stack and container setup, then save matched RGB/reference/prediction/error/3D examples.

Do not rank candidates using published numbers from different datasets/splits. Optional ensembles, fine-tuning or routing changes must beat the fixed baseline without hidden reference-label inputs or tuning on the final-check set.

Repository guide and limitations

Key limits remain domain shift, tall buildings, sparse/forest canopy, coarse DEM ground accuracy, unknown PNG scale, unsupported affine grids, acquisition/datum mismatches and network dependence. Rendered tree shapes and roof blocks are simplified; smooth appearance is not proof of accurate heights. Large scenes can take minutes on a laptop GPU.

Upstream work and dataset licences matter. Keep the supplied notices with distributed weights; the v2/SynRS3D path includes non-commercial restrictions and CHMv2 carries the DINOv3 licence. See THIRD_PARTY_NOTICES.md.
