FlexGEMM

FlexGEMM is a high-performance, Triton-powered GEMM backend designed for 3D sparse convolutions.

It implements Explicit, Implicit, and Masked Implicit algorithm variants, featuring optional Split-K parallelism for sparse GEMM. FlexGEMM delivers state-of-the-art performance for Submanifold Convolution and voxel-based neural networks, consistently outperforming existing solutions.

Resources

• Deep Dive: Read the technical blog at JeffreyXiang's Blog.
• Real-world Demo: See FlexGEMM in action in the TRELLIS.2 project.

✨ Why FlexGEMM?

• Triton-First Architecture: Built entirely on Triton, ensuring high-performance kernel execution and cross-platform compatibility.
• Sparse-Optimized: Specifically tailored for 3D sparse tensors, efficiently handling highly irregular sparsity patterns.
• Blazing Fast: Consistently outperforms standard sparse convolution libraries (such as spconv, torchsparse) in training throughput.

🛠️ Installation

Prerequisites

• PyTorch ≥ 2.4.0
• Triton ≥ 3.2.0

Install via pip

git clone https://github.com/JeffreyXiang/FlexGEMM.git
cd FlexGEMM
pip install . --no-build-isolation

💻 Usage Example

Here is a minimal example demonstrating how to perform a sparse submanifold convolution using FlexGEMM:

import torch
import flex_gemm
from flex_gemm.ops.spconv import sparse_submanifold_conv3d
from tests.spconv_fwd import sphere_coords

# 1. Prepare Sparse Voxel Data
# Generate a sparse voxel shell
feats, coords, shape = sphere_coords(256, 256, dtype=torch.float16, device='cuda')

# 2. Define Weights and Bias
Ci, Co = 256, 256
Ks = 3
weight = torch.randn(Co, Ks, Ks, Ks, Ci, dtype=torch.float16, device='cuda', requires_grad=True)
bias = torch.randn(Co, dtype=torch.float16, device='cuda', requires_grad=True)

# 3. Configure Algorithm
# Example: Using Masked Implicit GEMM with Split-K optimization
flex_gemm.ops.spconv.set_algorithm(
    flex_gemm.ops.spconv.Algorithm.MASKED_IMPLICIT_GEMM_SPLITK
)

# 4. Forward Pass
out_feats, neighbor_cache = sparse_submanifold_conv3d(
    feats, coords, shape,
    weight, bias,
)

# 5. Backward Pass
out_feats.sum().backward()

📊 Performance

FlexGEMM demonstrates significant speed improvements over existing baselines.

Test Environment:

• GPU: NVIDIA A100 80GB PCIe
• Software: PyTorch 2.4.1, CUDA 12.0, Triton 3.2.0

Benchmark Results

Note: FlexGEMM achieves ~2× acceleration compared to previous state-of-the-art methods under efficient data formats like FP16 and TF32.

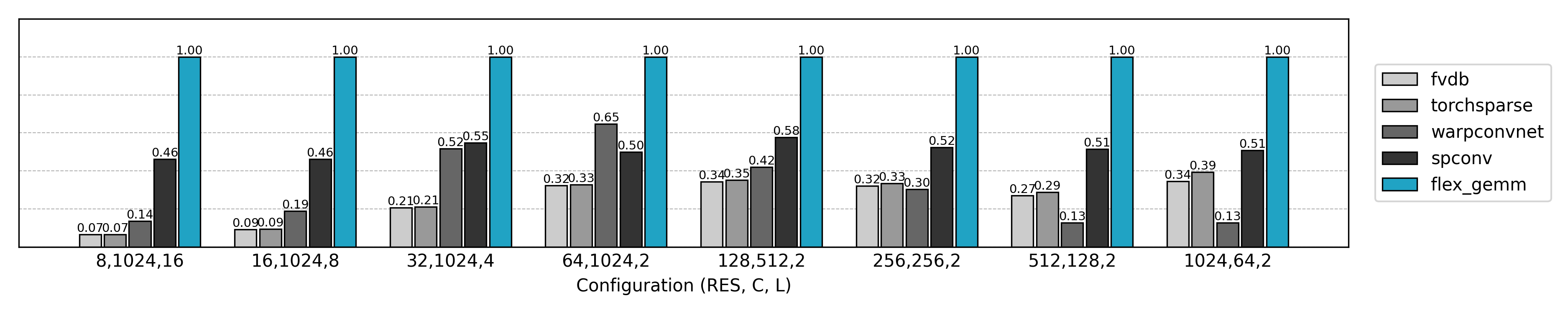

1. FP16 Precision (Training Speed)

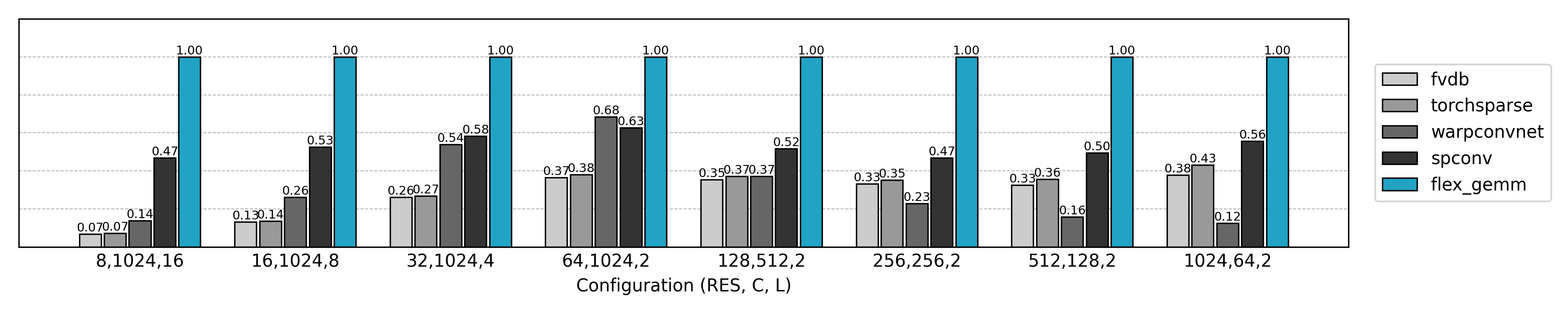

2. TF32 Precision (Training Speed)

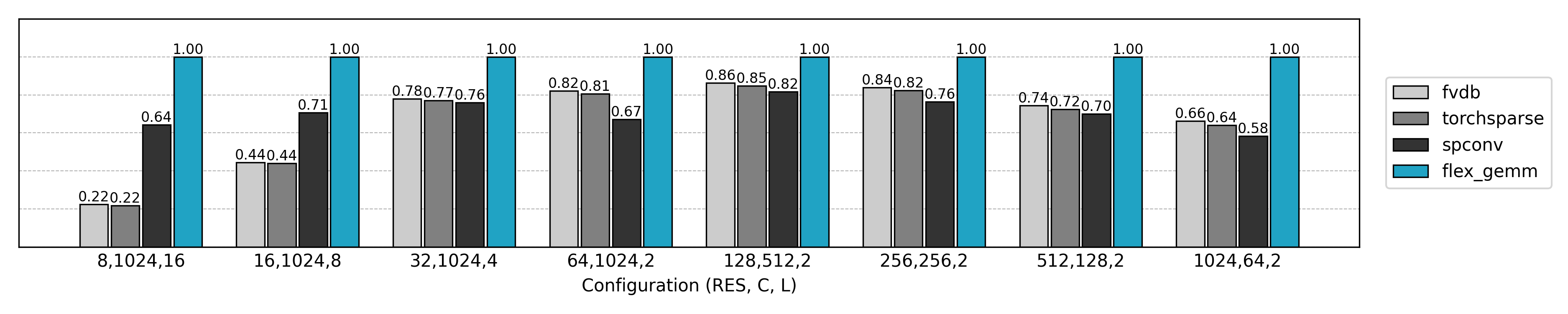

3. FP32 Precision (Training Speed)

Performance Summary

• SOTA Speed: Consistently outperforms spconv, torchsparse, and fvdb.
• Scalability: Robust performance across various channel widths (C=64 to C=1024) and resolutions (RES=8 to RES=1024).
• Memory Efficient: Delivers higher throughput without increasing GPU memory overhead.
• Application Ready: Ideal for high-resolution voxelized point clouds, submanifold convolutions, and large-scale 3D networks.

🤝 Contributing

We welcome contributions to make FlexGEMM faster and more robust!

How to help

• Report Bugs: Open an issue describing the bug and how to reproduce it.
• Suggest Features: Have an idea for a new algorithm or optimization? Let us know!
• Submit Pull Requests:
  1. Fork the repository and create your branch from main.
  2. Ensure your code follows the project's style.
  3. Run the tests in the tests/ directory to ensure no regressions.
  4. Open a Pull Request with a detailed description.

We appreciate all contributors who help improve this project!

📜 License

This project is released under the MIT License.
