VeloceNet-Studio

Cross-platform network monitoring and analysis studio built with Flutter + a Rust engine (Tokio, via FFI).

Live latency matrix (ICMP / TCP), visual traceroute, bandwidth monitor, Warp endpoint scanner, TCP port scanner and DNS lookup — with Light/Dark/System themes and English/فارسی/Русский/中文 UI.

License: GPL-3.0-or-later — see LICENSE.

Screenshots

Screenshots live in docs/screenshots/. If an image is missing below, capture it with Win+Shift+S at 1600×900 and save it under that path.

Features

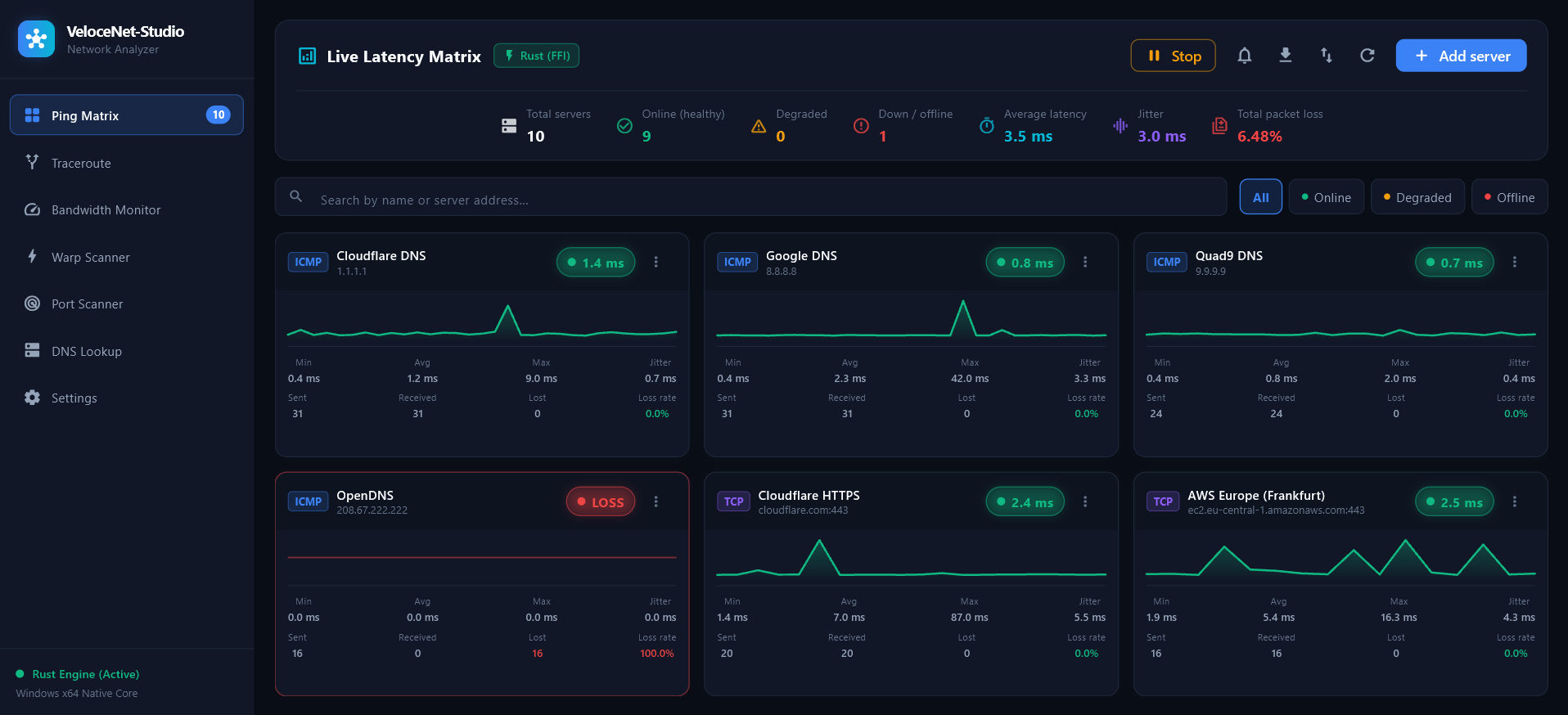

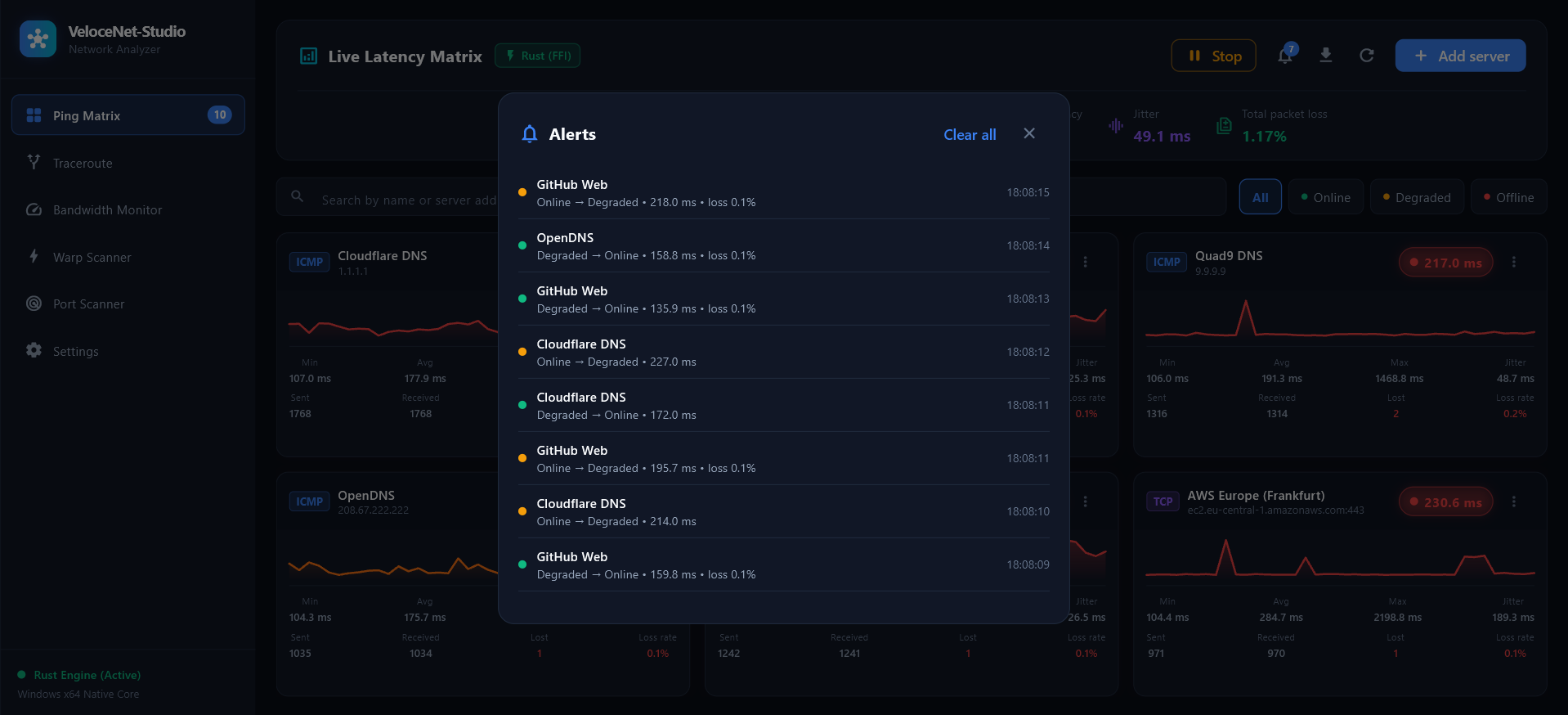

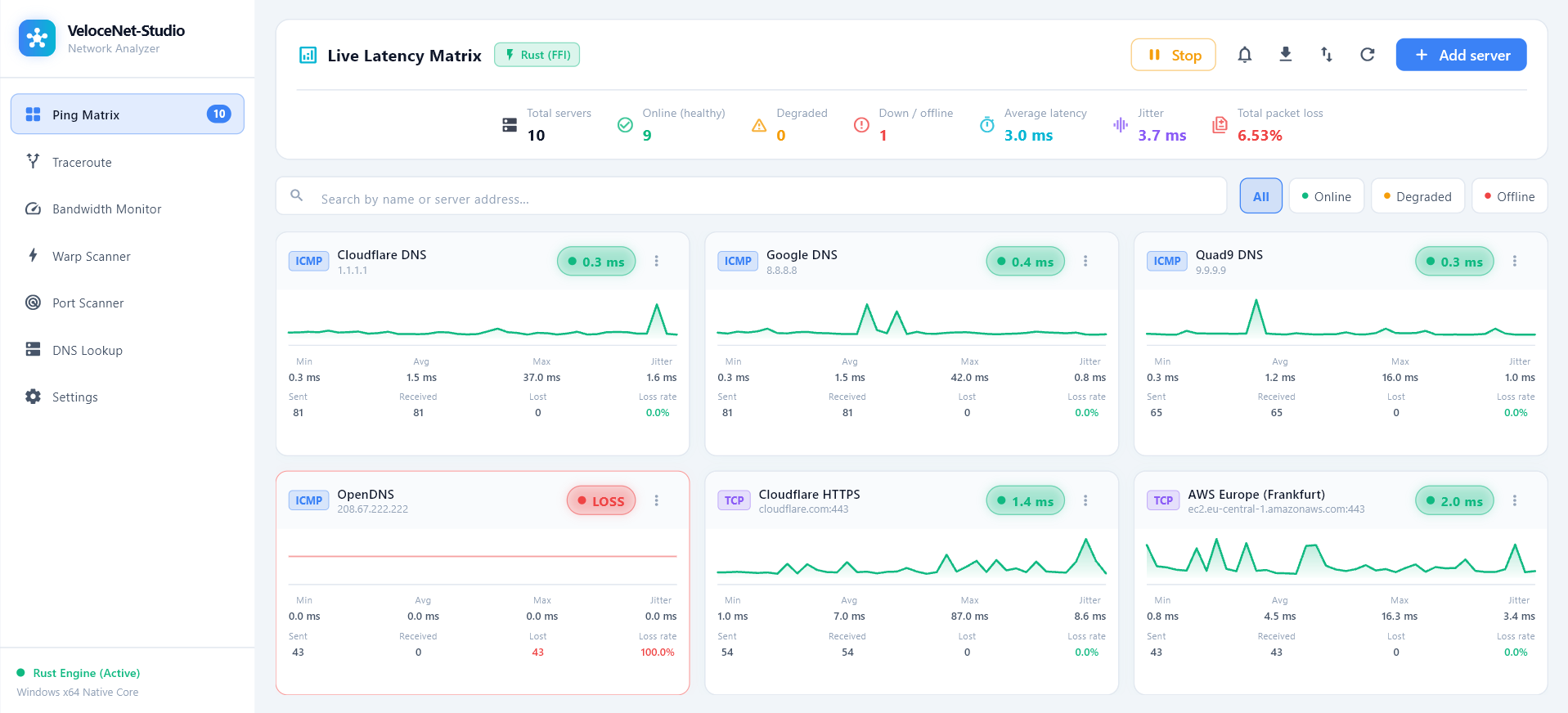

• Ping Matrix — concurrent ICMP (Windows IP Helper, no admin needed) + TCP-handshake probes, live sparklines, RTT avg/min/max, RFC 3550 jitter, loss %, status-change alert log with unread badge, one-click CSV export and versioned JSON backup (export + paste-to-import).

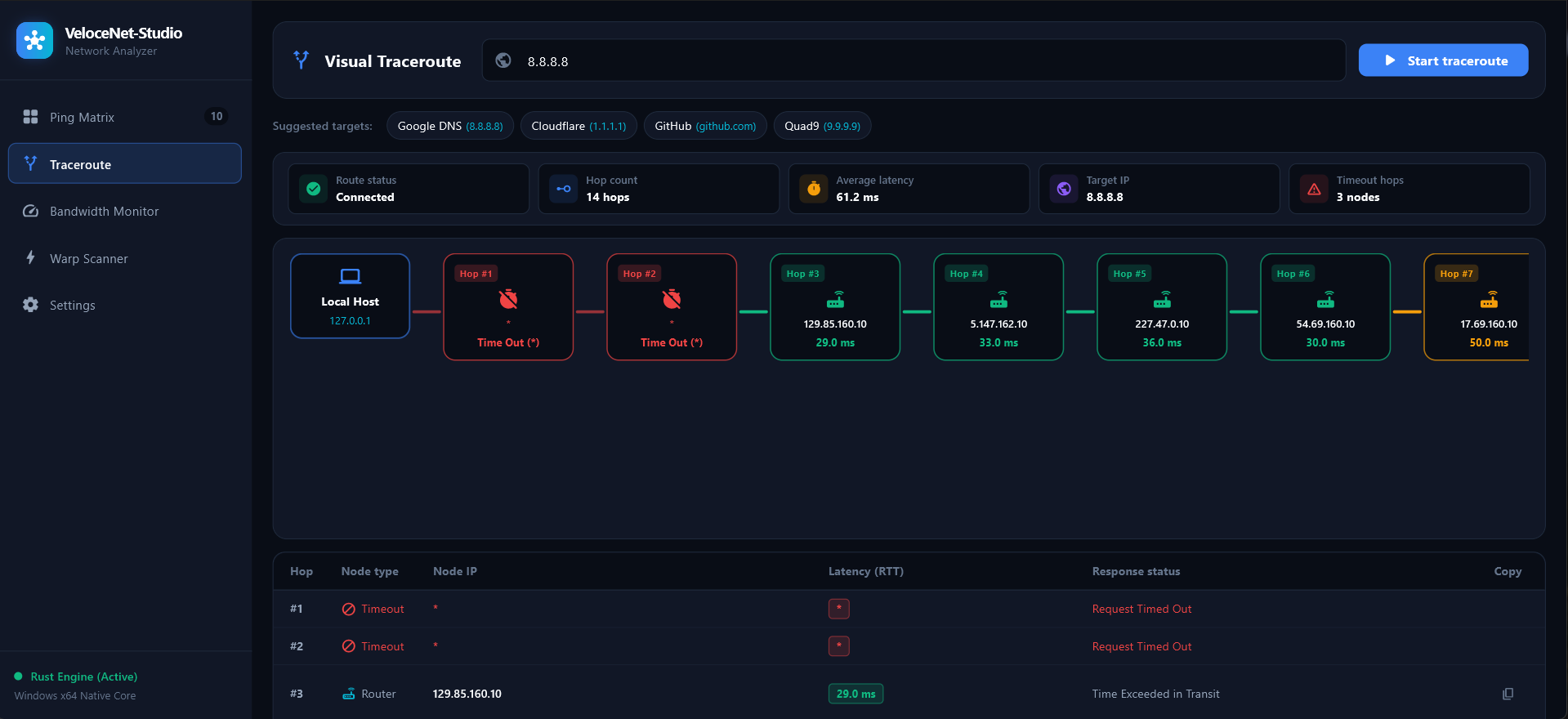

• Traceroute — TTL-based visual hop chain + data table (Windows native ICMP), IPv4/IPv6 parsing, averaged multi-sample RTT.

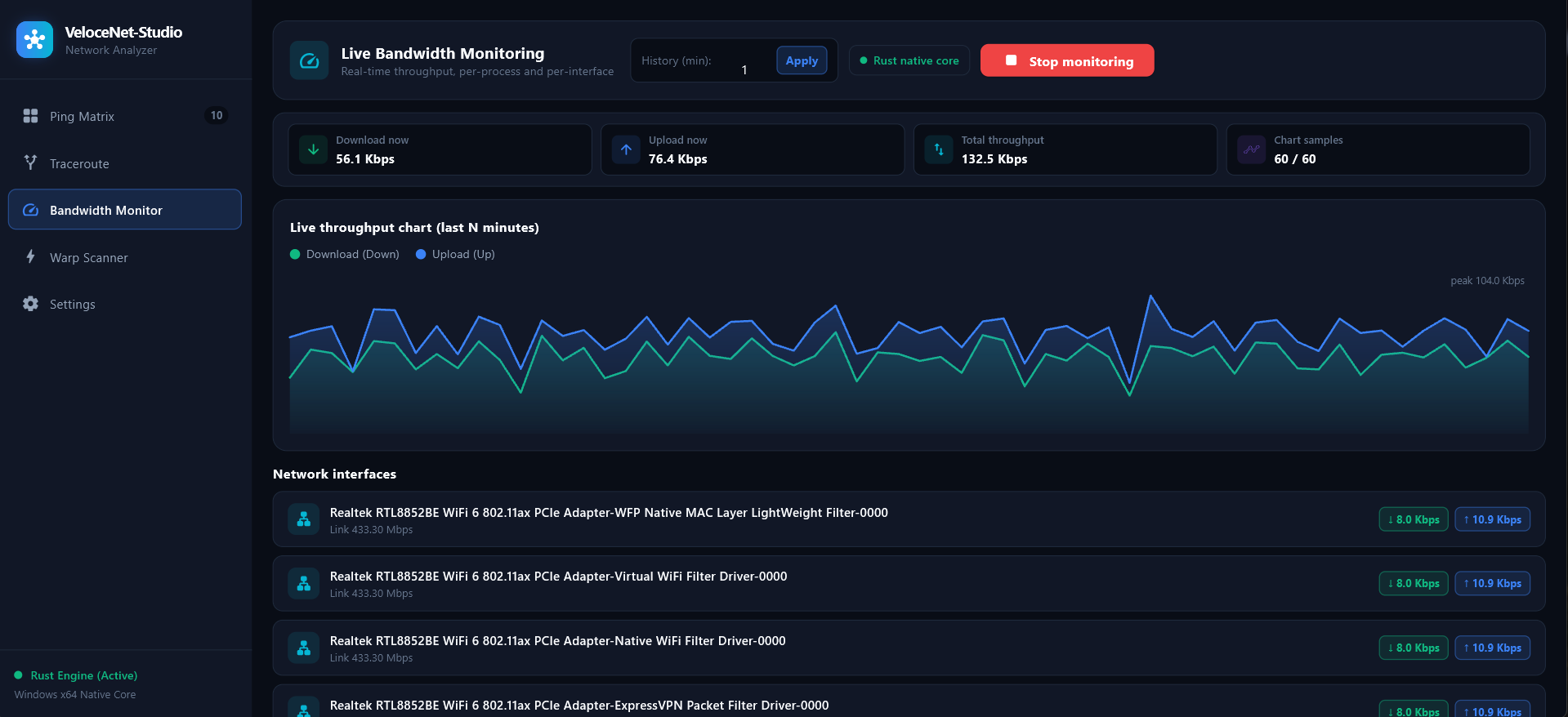

• Bandwidth — per-interface live deltas via GetIfTable2 (64-bit counters), top processes by connection share (explicitly labeled estimated).

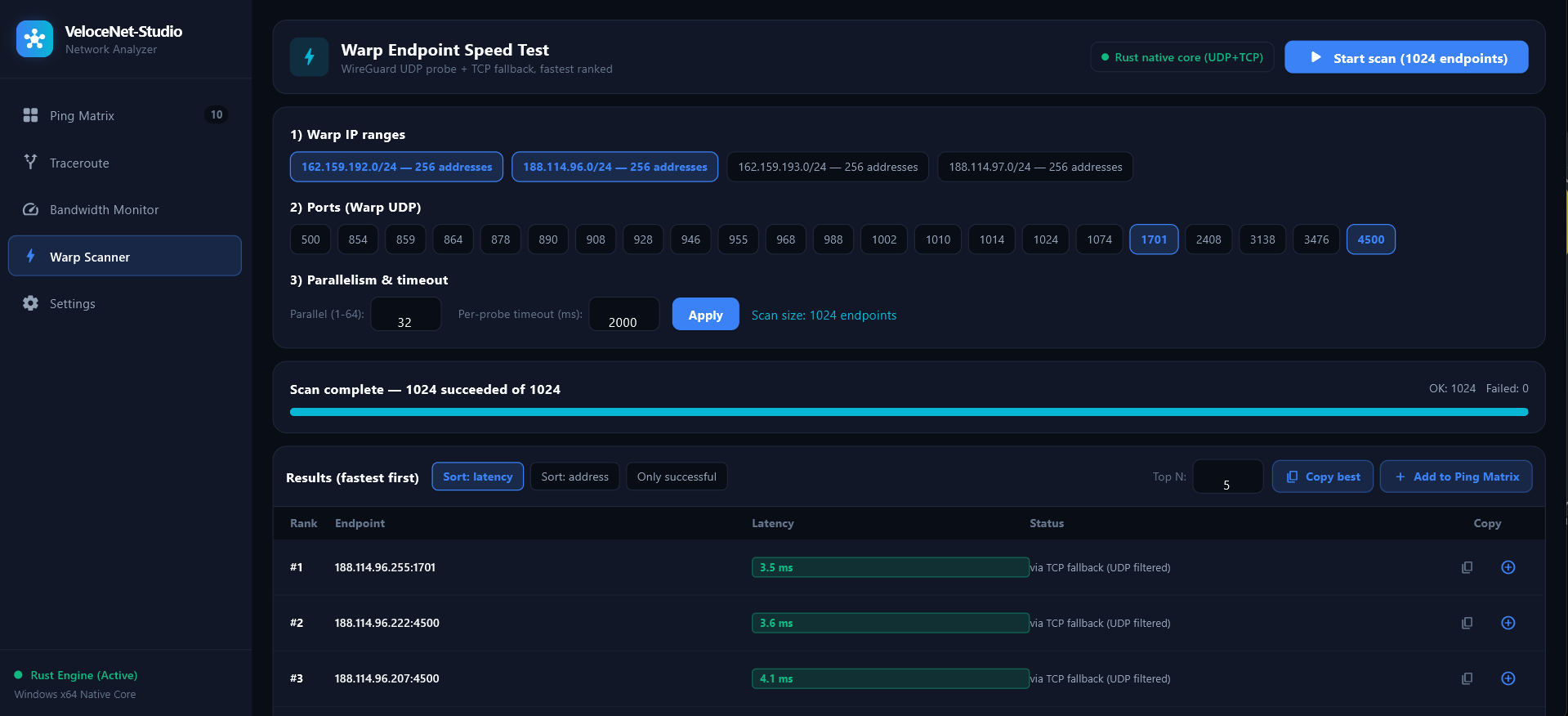

• Warp Scanner — WireGuard-style UDP probe + TCP fallback, ranking, copy-to-clipboard, one-click add to Ping Matrix.

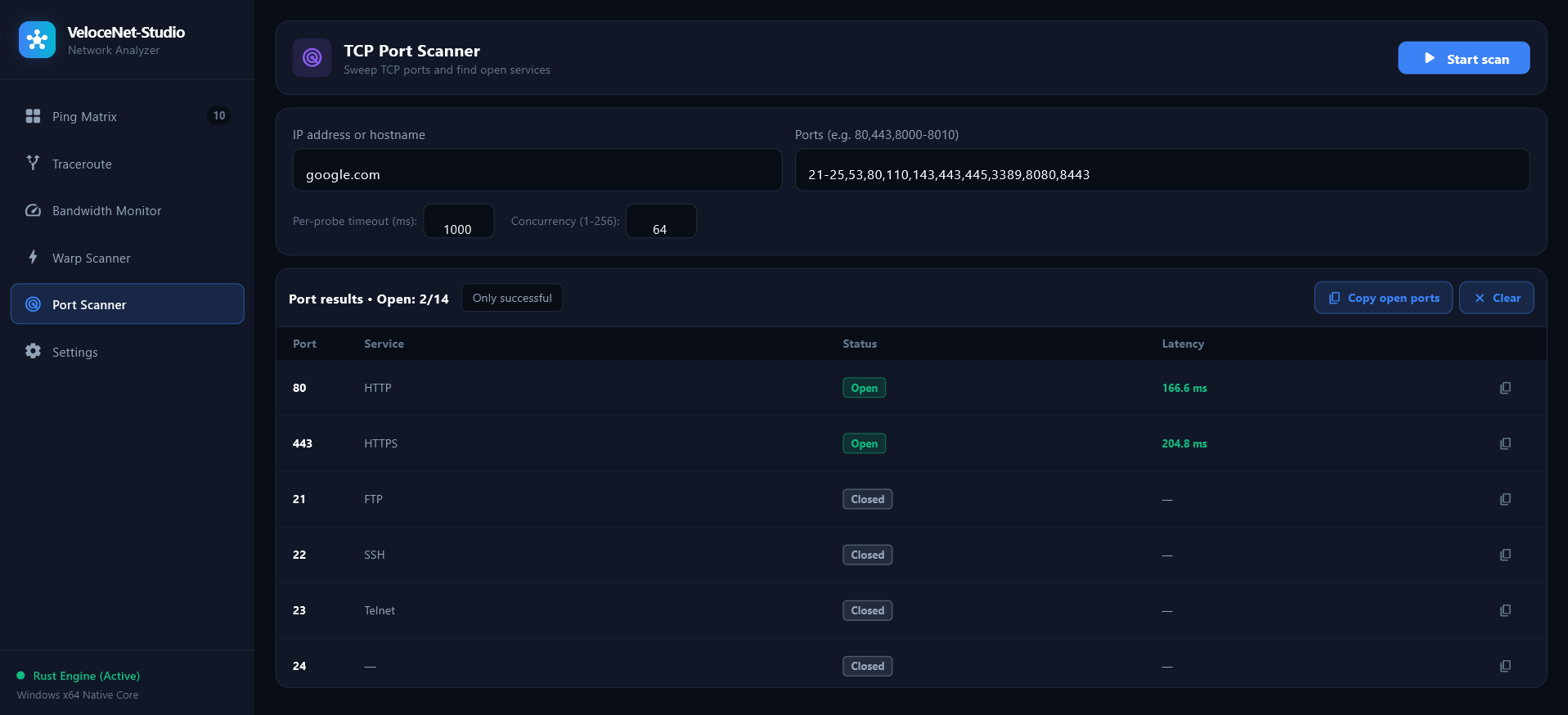

• Port Scanner — TCP sweep with port-list specs (80,443,8000-8010), open/closed/filtered states, service guesses.

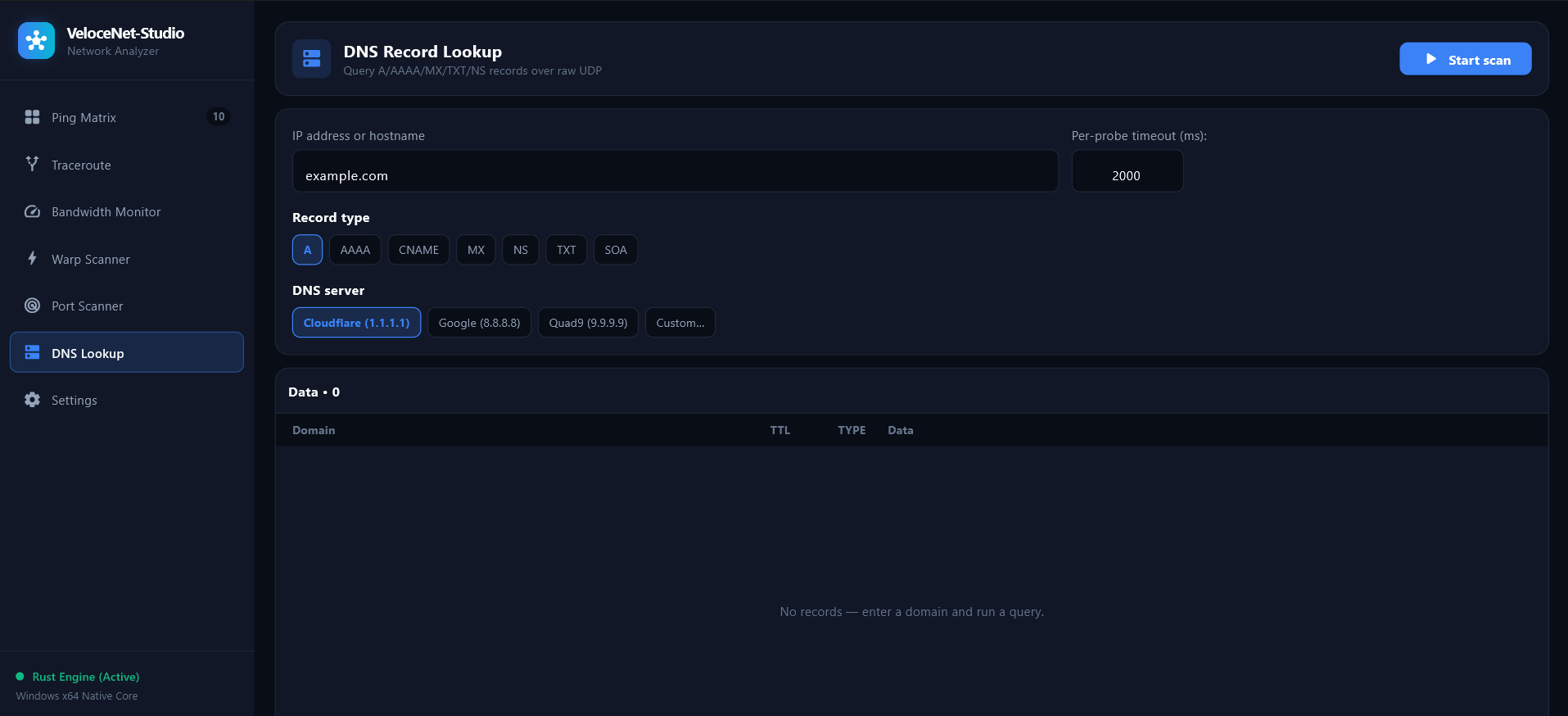

• DNS Lookup — raw UDP client for A/AAAA/MX/TXT/NS/CNAME/SOA records against Cloudflare/Google/Quad9 or a custom server, with NXDOMAIN distinction and query-time display.

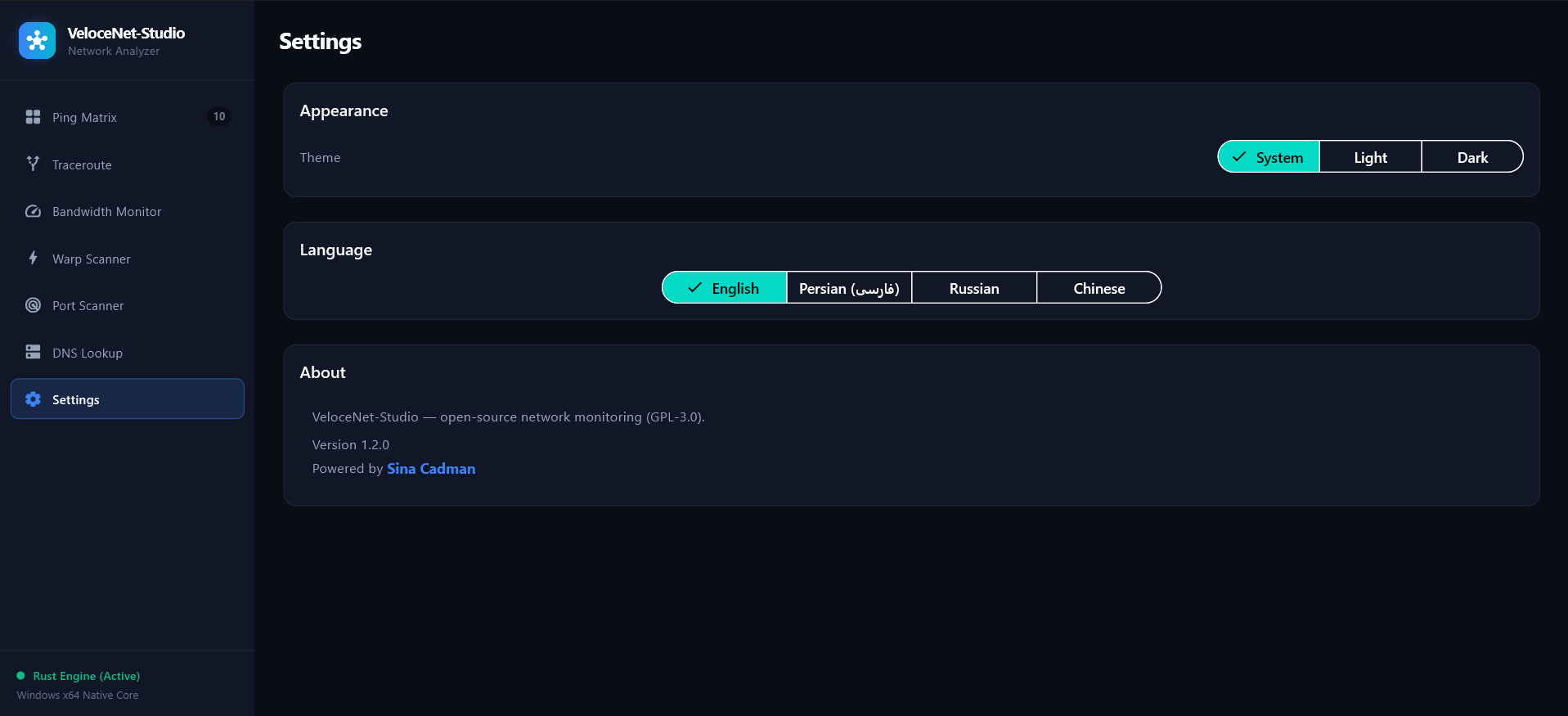

• Settings — Light / Dark / System theme + English / فارسی / Русский / 中文 locale, persisted with shared_preferences (default: English).
• Resilient engine — if the Rust .dll/.so isn't built, the app automatically uses the Dart fallback prober so the UI stays usable.

Download (v1.2.0)

No build needed — pick your platform from the v1.2.0 release:

Native ICMP probing is Windows-only for now; on Linux/macOS those probes transparently fall back to TCP. See CHANGELOG.md for what's in this release.

Build from source (Windows)

Prerequisites: Flutter SDK ≥ 3.22 · Rust stable (rustup) · Windows 10/11 x64 for full native features.

.\build_native.ps1      # cargo build --release + stage netstudio_engine.dll
flutter pub get
flutter run -d windows

Manual alternative:

cd native_engine
cargo build --release
Copy-Item target\release\netstudio_engine.dll ..
cd ..
flutter run -d windows

Linux/macOS: cargo build --release produces libnetstudio_engine.so / .dylib; ICMP falls back to TCP where raw sockets aren't available.

How it works

┌──────────── Flutter UI ────────────┐      ┌────────── Rust engine ──────────┐
│ Ping Matrix · Traceroute           │ JSON │ Tokio probers (ICMP/TCP/TTL)    │
│ Bandwidth · Warp · Portscan · DNS  │◄────►│ stats (RTT/jitter/loss)         │
│ SettingsController (theme+locale)  │  FFI │ traceroute / bandwidth / warp   │
└────────────────────────────────────┘      └─────────────────────────────────┘

• FFI boundary: lib/core/ffi/ (Dart) ↔ native_engine/src/ffi.rs (C ABI). All strings are validated in Dart before crossing; numeric ranges are clamped on both sides.
• Native library is resolved from absolute paths anchored at the running executable only — never cwd/PATH (DLL-hijacking safe).
• State: PingMatrixController, TracerouteController, BandwidthController, WarpController, SettingsController (all ChangeNotifier-based).

Project structure

lib/
  main.dart                      # async boot + SettingsController load
  core/ffi/                      # native_library.dart, native_bindings.dart
  core/theme/                    # app_colors.dart, app_theme.dart, theme_x.dart
  core/settings/                 # settings_controller.dart (theme+locale)
  core/i18n/                     # JSON-backed AppStrings (en/fa/ru/zh, default en)
  models/ services/ state/       # incl. alert_log.dart (status-change history)
  views/
    main_shell_view.dart         # sidebar + IndexedStack tabs
    ping_matrix/ traceroute/ bandwidth/ warp/ portscan/ dnslookup/ settings/
native_engine/src/
  engine.rs ffi.rs stats.rs probe/ traceroute.rs bandwidth.rs warp.rs
.github/workflows/              # ci.yml, release.yml
docs/screenshots/               # images used above

Security notes

• No cwd/PATH DLL probing; missing engine → Dart fallback (never a crash).
• Warp scan input capped (256 KB / 4096 endpoints); IPv6 handled explicitly (bracketed [::1]:port).
• Per-process bandwidth is a connection-share estimate (Windows exposes no per-PID byte counters without ETW) — the UI labels it as such.

Contributing

See CONTRIBUTING.md. TL;DR:

flutter analyze --no-pub
flutter test --no-pub
cd native_engine && cargo test --release && cargo clippy --release -- -D warnings

New UI strings must go through the JSON dictionaries in assets/lang/ (all four locales — test/i18n_parity_test.dart enforces it); new colors through ThemeX. Bug reports and feature requests use the issue templates.

Changelog & roadmap

See CHANGELOG.md. Near-term ideas: Linux/macOS native ICMP, Prometheus export endpoint, real per-process accounting (ETW), uptime-history persistence.
