Belkins BirdNET

A live, hand-illustrated collage of the birds outside your window — named by ear.

---

🐦 What it is

A single $17 USB microphone in your window turns the birds outside into a living collage. Belkins BirdNET listens through the mic, lets Cornell's BirdNET name every passing call, and blooms each species onto the screen as a hand-painted kachō-e illustration — sized by how often it's been heard and repainted within seconds of each new detection.

500 bundled illustrations across 250 species, a Gemini pipeline to restyle them for your region, an optional e-ink frame for your wall — and one read-only SQLite file at the heart of it all.

Belkins BirdNET is a standalone build of BirdNET-Pi; the live-collage concept is inspired by AvianVisitors. Kudos, license, and full Cornell attribution are below.

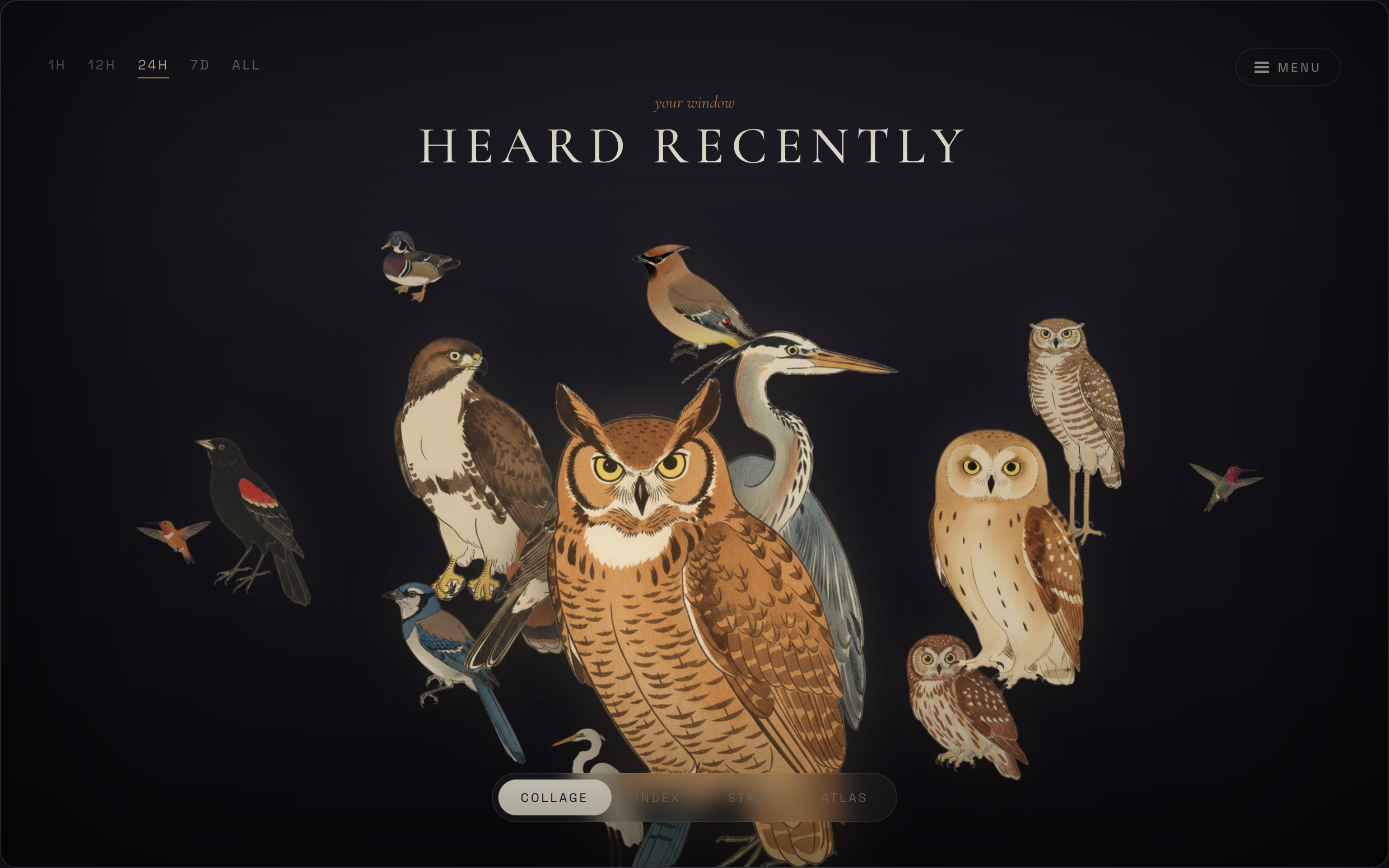

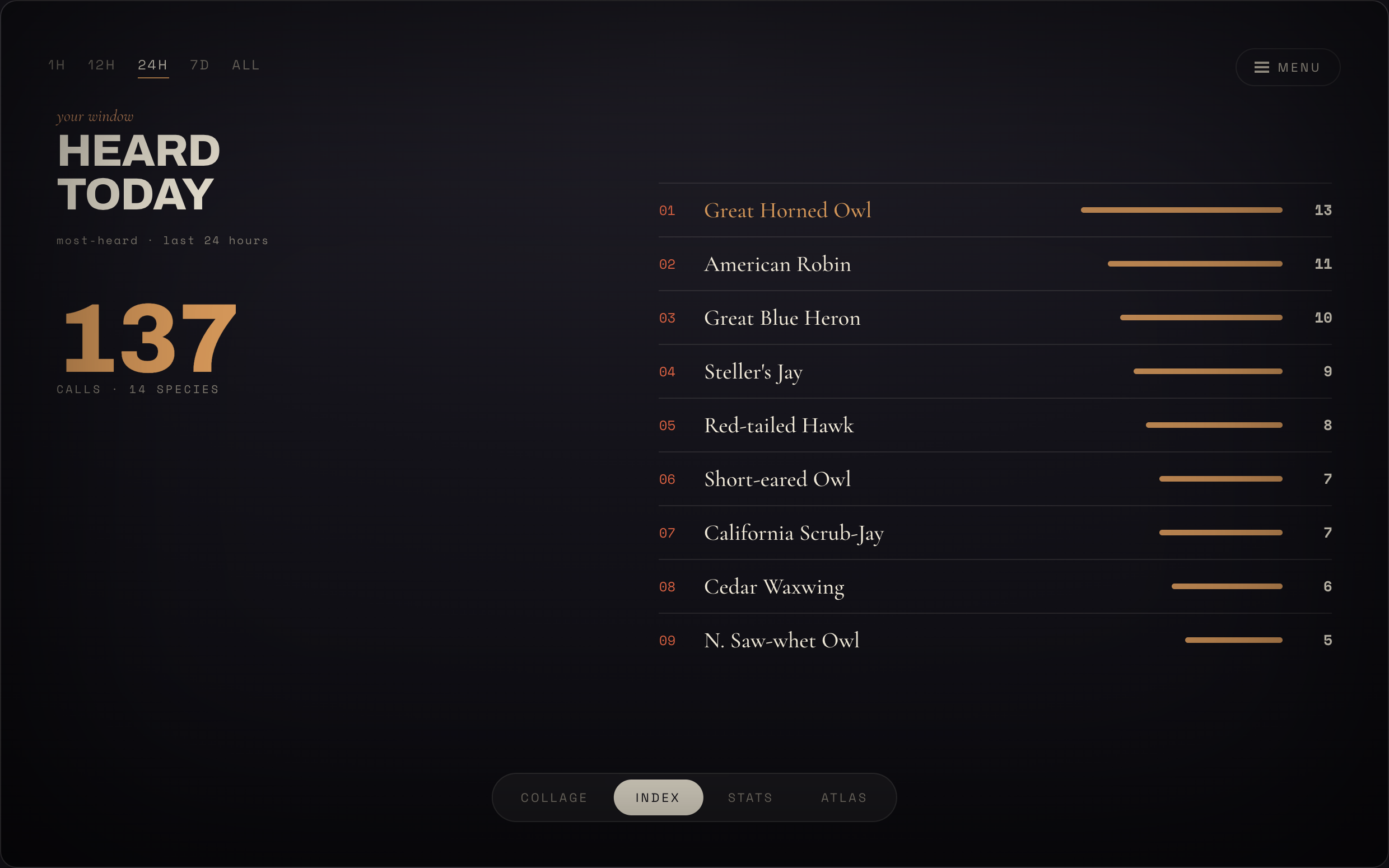

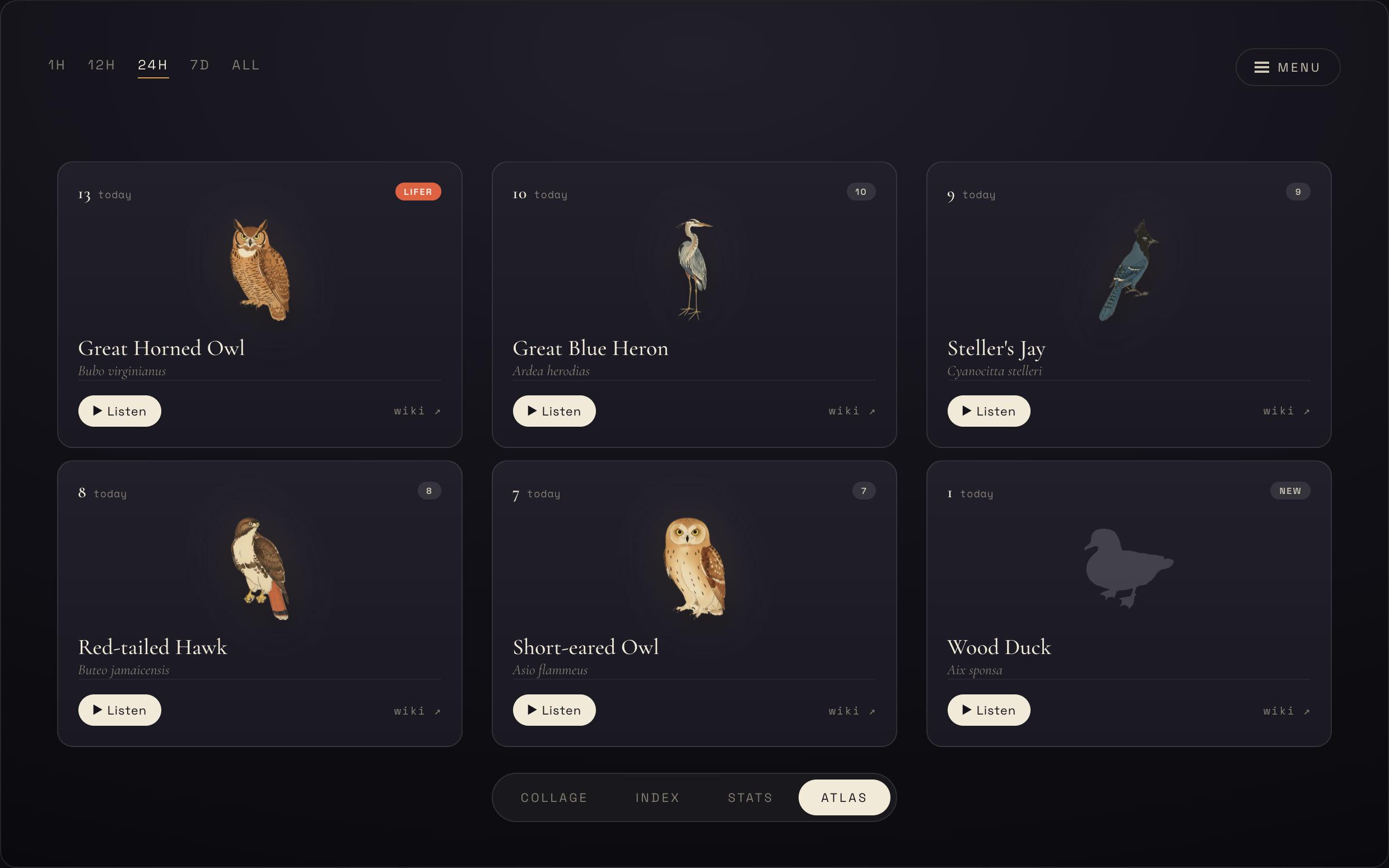

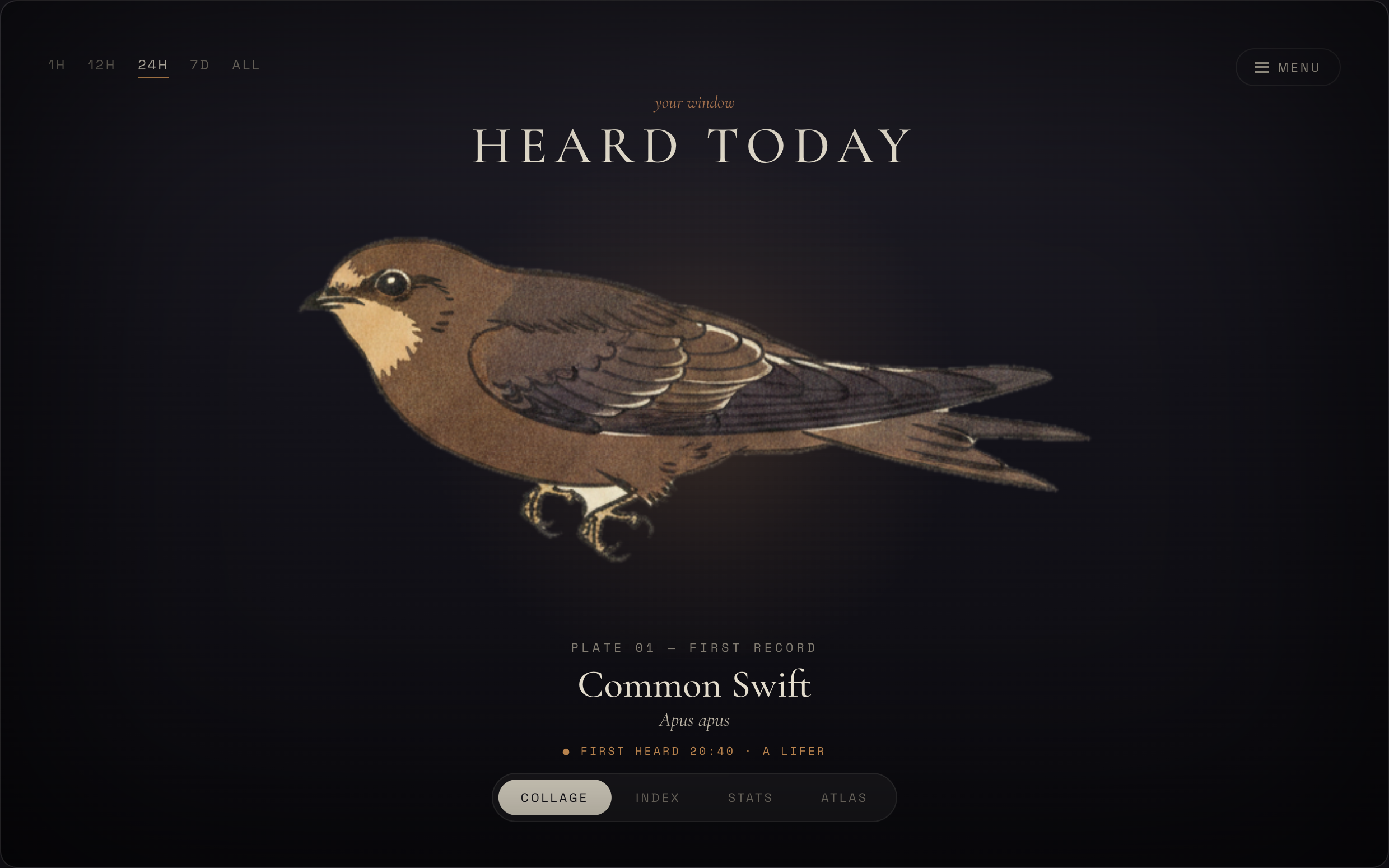

_{The Living Gallery — a dark nocturne theme (with a light day theme), where every detected bird is spotlit. Collage · Index · Stats · Atlas.}

_{A handful of the 500 bundled kachō-e illustrations — every species ships in a perched and a flight pose.}

---

🗺️ How it works

From a microphone in the window to a hand-painted bird on the wall — every arrow is real data flow.

flowchart LR
    classDef cap fill:#fde68a,stroke:#d97706,color:#3f2d00;
    classDef det fill:#bfdbfe,stroke:#2563eb,color:#0b2447;
    classDef sto fill:#c7f9e5,stroke:#0d9488,color:#06372b;
    classDef ill fill:#fbcfe8,stroke:#db2777,color:#4a0d2b;
    classDef disp fill:#ddd6fe,stroke:#7c3aed,color:#2a1259;
    classDef fwd fill:#fecaca,stroke:#dc2626,color:#4c0519;
    classDef frm fill:#fed7aa,stroke:#ea580c,color:#451a03;

    subgraph LISTEN [" Listen "]
        mic["USB lavalier mic"]:::cap
        rec["BirdNET-Pi recorder"]:::cap
    end
    subgraph IDENT [" Identify "]
        model["BirdNET 6K v2.4<br/>6,522 labels"]:::det
        ana["birdnet_analysis.py"]:::det
    end
    subgraph CORE [" Store + Read API "]
        db[("birds.db<br/>SQLite")]:::sto
        media["By_Date<br/>mp3 + spectrogram"]:::sto
        api["birdnet-api.php"]:::sto
        cut["cutout.php<br/>image resolver"]:::sto
    end
    subgraph ART [" Illustrate (optional) "]
        gemini["Gemini 2.5<br/>Flash Image"]:::ill
        pregen["pregen.py"]:::ill
        cutpy["cutout.py<br/>BiRefNet matte"]:::ill
        illus["500 illustrations<br/>250 species"]:::ill
    end
    subgraph SHOW [" Show "]
        ui["Collage UI<br/>apt.js"]:::disp
        web["web/ React shell"]:::disp
        cast["birdcast<br/>SSE :8090"]:::disp
        caddy["Caddy + PHP-FPM<br/>birdnet.local"]:::disp
    end
    subgraph WALL [" Wall frame "]
        bw["BirdWeather<br/>GraphQL"]:::frm
        shoot["shoot.py"]:::frm
        disp["display.py"]:::frm
        inky["Inky 13.3in<br/>e-ink Spectra-6"]:::frm
    end
    subgraph OUT [" Forward "]
        cf["Cloudflare Tunnel"]:::fwd
        ha["Home Assistant"]:::fwd
        mqtt["MQTT bridge"]:::fwd
    end

    mic --> rec -->|"WAV segment"| ana
    model --> ana
    ana -->|"detection row"| db
    ana -->|"clip + png"| media
    ana -. "emit_detected" .-> cast
    db --> api
    db --> cast
    media --> api
    illus --> cut
    gemini --> pregen --> cutpy --> illus
    api --> ui
    cut --> ui
    api --> web
    cast -. "bird.detected, under 3s" .-> web
    ui --> caddy
    web --> caddy
    caddy --> cf
    api --> ha
    api --> mqtt
    ui -->|"1200x1600 shot"| shoot
    bw --> shoot
    shoot --> disp --> inky

---

🛠️ Bill of materials

Optional: a Gemini API key to restyle illustrations, and an eBird API key to filter species by region.

---

🚀 Quickstart

1 · Flash the SD card

Use Raspberry Pi Imager → Raspberry Pi OS Lite (64-bit). In the customisation dialog set a username, WiFi SSID + password, hostname birdnet, and enable SSH with password auth. Plug the USB mic into the Pi, place the capsule in a window, and boot.

2 · Run the installer

Assumes passwordless sudo (the Raspberry Pi OS Lite default).

ssh <your-username>@birdnet.local
curl -s https://raw.githubusercontent.com/Belkins/belkins-birdnet/main/newinstaller.sh | bash

Clones this repo, installs BirdNET-Pi, and symlinks the Belkins BirdNET overlay into the Caddy web root. Takes 20–40 minutes and reboots when done.

• Collage: http://birdnet.local/
• Stock BirdNET-Pi UI: http://birdnet.local/index.php
• The menu button (top-right) opens an admin overlay with settings, system, log, and tool panels.

3 · (Optional) Restyle the illustrations

The repo ships with 500 bundled illustrations. To restyle them or generate a set for your own region:

pip install -r ~/BirdNET-Pi/avian/scripts/requirements.txt
export GEMINI_API_KEY='your-key'   # image generation requires billing enabled

# generate on a cream ground → cut the ground off → rebuild the collage masks
python3 ~/BirdNET-Pi/avian/scripts/pregen.py --labels ~/BirdNET-Pi/model/labels.txt --force
python3 ~/BirdNET-Pi/avian/scripts/cutout.py
python3 ~/BirdNET-Pi/avian/scripts/build_masks.py

Filter to your region with --ebird-region US-CA (needs EBIRD_API_KEY). The full pipeline, prompt, reference images, and per-species tuning live in avian/scripts/README.md; the style lives in prompt.template.md.

---

⚡ Realtime (birdcast)

New work in this build: a stdlib Server-Sent-Events spine so detections paint the instant BirdNET writes them.

• avian/realtime/birdcast.py — POST /emit in, GET /events out, ~500-event replay ring buffer, reads birds.db read-only.
• web/ — a Vite + React + TypeScript collage shell that seeds from the snapshot API, subscribes to the SSE stream, and paints in each new bird (Canvas2D fade + scale, no re-pack). Runs with no backend at all via npm run dev:mock.

# on the Pi — additive, idempotent, non-destructive. Brings up the SSE spine +
# the React collage at /collage (and the auto-gen watcher below, if its env is set).
bash deploy-christina.sh

deploy-realtime.sh is the spine-only subset if you don't want the collage yet.

---

🎨 Auto-gen — birds that aren't in the library yet

The collage ships 250 illustrated species. When BirdNET hears one that isn't bundled, the auto-gen watcher generates its kachō-e illustration on the fly and paints it in — no human in the loop.

detection → forwarder (Pi) ──HTTPS──▶ birdgen (Railway) ──▶ Gemini + cream-key cutout
                                                              │
   collage  ◀── cutout.php 302 ◀── /asset/<slug>.png  ◀───────┘   (frontend retries → paints)

• services/birdgen/ — a small FastAPI service that deploys to Railway: a Bearer-auth POST /detected webhook, a single-flight queue, pregen.gen_one + the cream-key cutout, an SQLite-lease dedup state machine (queued → generating → done/dead), and GET /asset/<slug>.png off a persistent volume. The Gemini key lives only here — never on the Pi.
• avian/realtime/forwarder.py — a Pi-side daemon that subscribes to the birdcast SSE, drops bundled / low-confidence (<0.70) detections, and forwards genuinely-new species to Railway (plus a reconcile sweep every 6 h that heals anything the live stream missed). Holds only a rotatable webhook secret.
• avian/api/cutout.php — with AV_RAILWAY_ASSET_BASE set, a long-tail miss 302-redirects to the Railway asset (unset → unchanged behavior).
• avian/realtime/railway_liveness.py — a 6-hourly systemd timer that pushes a phone alert (ntfy) if the Railway service ever goes dark.
• avian/api/regen.php — the repaint gesture: anyone on the LAN can ask the museum to repaint a plate from the bird dossier (repaint ↺). The old plate stays on the wall until its replacement passes every QA gate (never-worse, atomic swap, previous plate archived to _prev/); presses are cooled down per species (15 min) and globally, spend is fenced by a $6/month manual sub-budget inside the $20 ledger, and the endpoint stays dark until armed with pool-env credentials (AV_RAILWAY_API_BASE + AV_REGEN_SECRET in the php-fpm pool — the secret never reaches a browser). The popup's control budget is constitutional: see docs/POPUP-BUDGET.md.

# deploy the generator (needs a Railway account + a billing-enabled Gemini key)
cd services/birdgen
railway up
railway volume add -m /data/assets
railway variables set GEMINI_API_KEY=… WATCHER_WEBHOOK_SECRET=…
railway domain
# then on the Pi, wire it (same secret + the Railway URL):
CHRISTINA_RAILWAY_BASE=https://<svc>.up.railway.app \
CHRISTINA_WEBHOOK_SECRET=<secret> bash deploy-christina.sh

Cost: ~$0.04 per genuinely-new species, on-demand. Generation requires a billing-enabled Gemini key; the worker is single-flight, deduped, and degrades gracefully — if Railway is down the collage keeps running, just without new art.

---

📡 Forward off your LAN

Three independent recipes in avian/forwarding/:

• Cloudflare Tunnel — a public HTTPS URL with no port-forwarding.
• Home Assistant — a REST sensor exposing the latest detection.
• MQTT bridge — publishes every new detection to your broker.

---

🖼️ Wall frame

An optional e-ink frame mirrors the last 24h of birds onto a panel by your window — in the nocturne or day theme. Build it from frame/. It can run off your own BirdNET mic, or standalone from BirdWeather for any ZIP code with no mic at all.

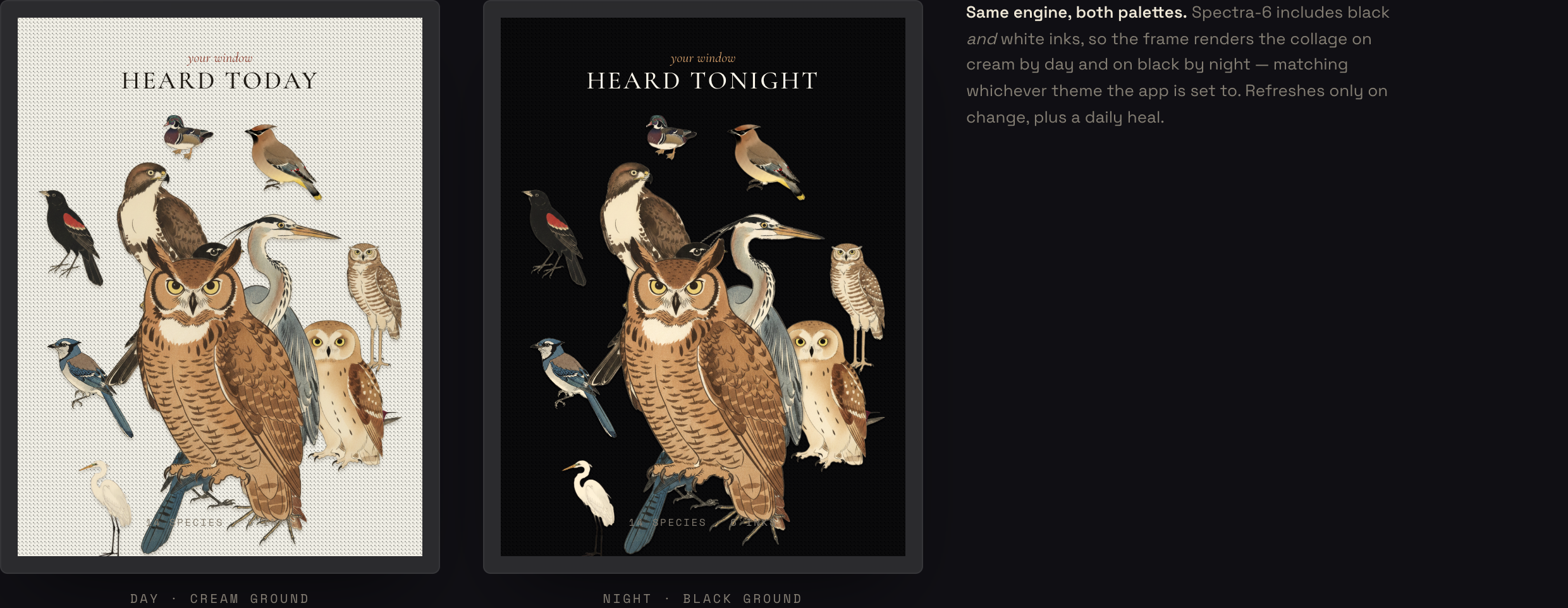

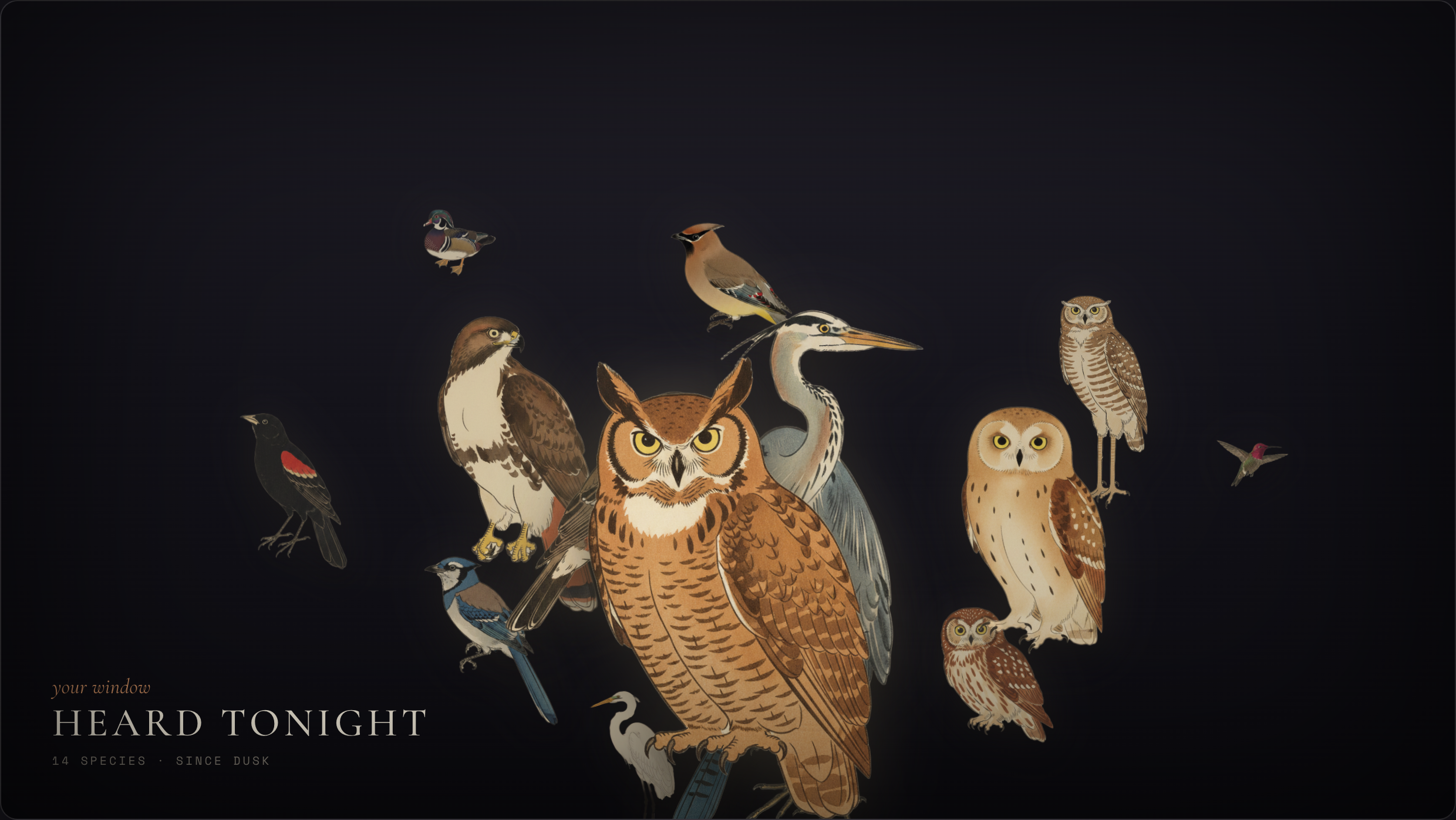

_{Left running on a wall screen, or printed to the 13.3" Spectra-6 e-ink frame — same composition, six inks, day or night.}

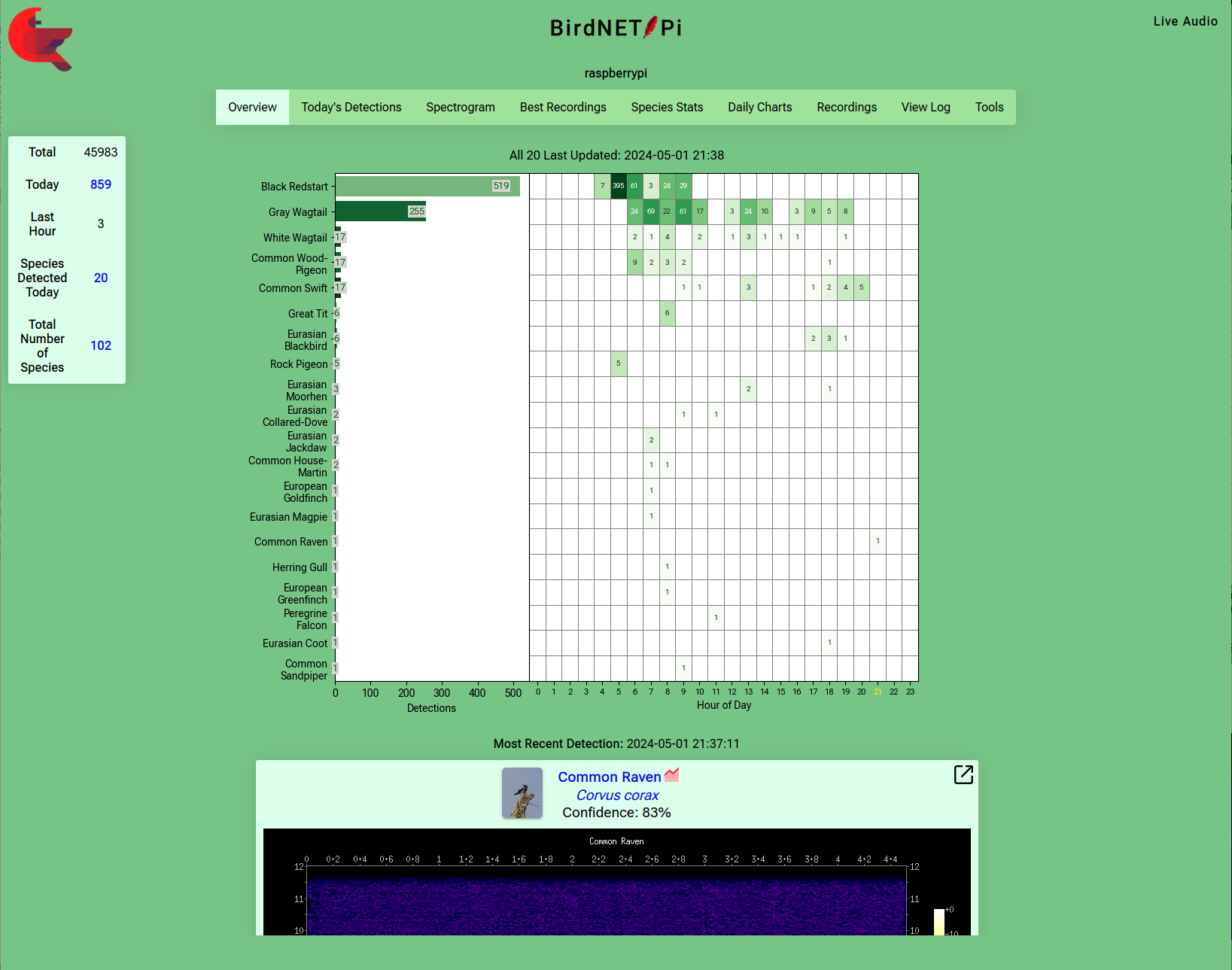

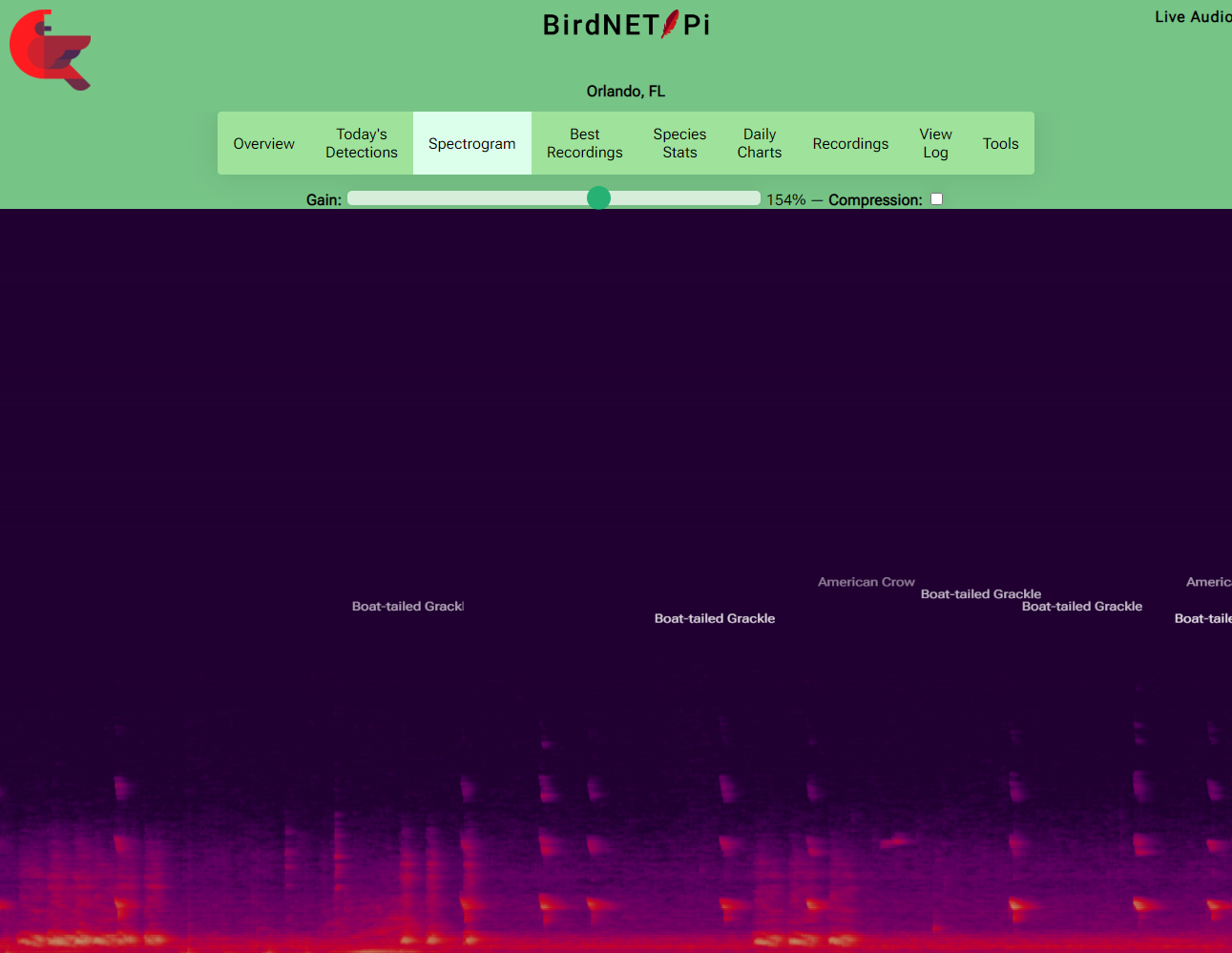

Stock BirdNET-Pi dashboards (still there under the hood)

---

📂 Repo layout

avian/                  # everything Belkins BirdNET adds to BirdNET-Pi
├── frontend/           # static HTML/JS/CSS for the collage
├── assets/             # bundled kachō-e illustrations + photo-cutout fallbacks
├── api/                # PHP shims served by BirdNET-Pi's PHP-FPM (cutout.php 302)
├── scripts/            # generate → cutout (creamkey) → masks pipeline + prompt
├── realtime/           # birdcast SSE spine + forwarder + liveness monitor
└── forwarding/         # optional HA / MQTT / Cloudflare configs
web/                    # next-gen React + TS collage shell (live SSE)
services/birdgen/       # Railway: on-demand kachō-e generator (Gemini + cream-key)
frame/                  # optional e-ink wall display
deploy-christina.sh     # one-shot full-stack deploy on the Pi (spine + collage + watcher)

Everything outside avian/, web/, services/, and frame/ is upstream BirdNET-Pi.

---

🙏 Kudos

Belkins BirdNET stands on the work of others:

• AvianVisitors by Twarner491 — the original live-collage idea, the kachō-e bird treatment, and the overlay this build grew from. Thank you for the inspiration. 🐦
• BirdNET-Pi (Nachtzuster · Patrick McGuire) — the recording + detection foundation.
• The K. Lisa Yang Center for Conservation Bioacoustics, Cornell Lab of Ornithology — the BirdNET model itself.

---

📜 License

CC-BY-NC-SA-4.0, inherited from BirdNET-Pi. Non-commercial use only. See the BirdNET-Pi README for full Cornell attribution.

BirdNET-Lite and the BirdNET model are © the K. Lisa Yang Center for Conservation Bioacoustics, Cornell Lab of Ornithology. BirdNET-Pi is © Patrick McGuire. Belkins BirdNET is a derivative work distributed under the same CC-BY-NC-SA-4.0 terms — see LICENSE.

---
