OpsGraph

Ask your PostgreSQL data a question. Inspect the evidence behind the answer.

OpsGraph is an open-source, self-hosted investigation workspace for one operator. Your model plans bounded, read-only queries; application policy controls their execution. You can follow the work, inspect captured records and SQL, and ask a follow-up that collects fresh evidence. Credentials stay on your backend.

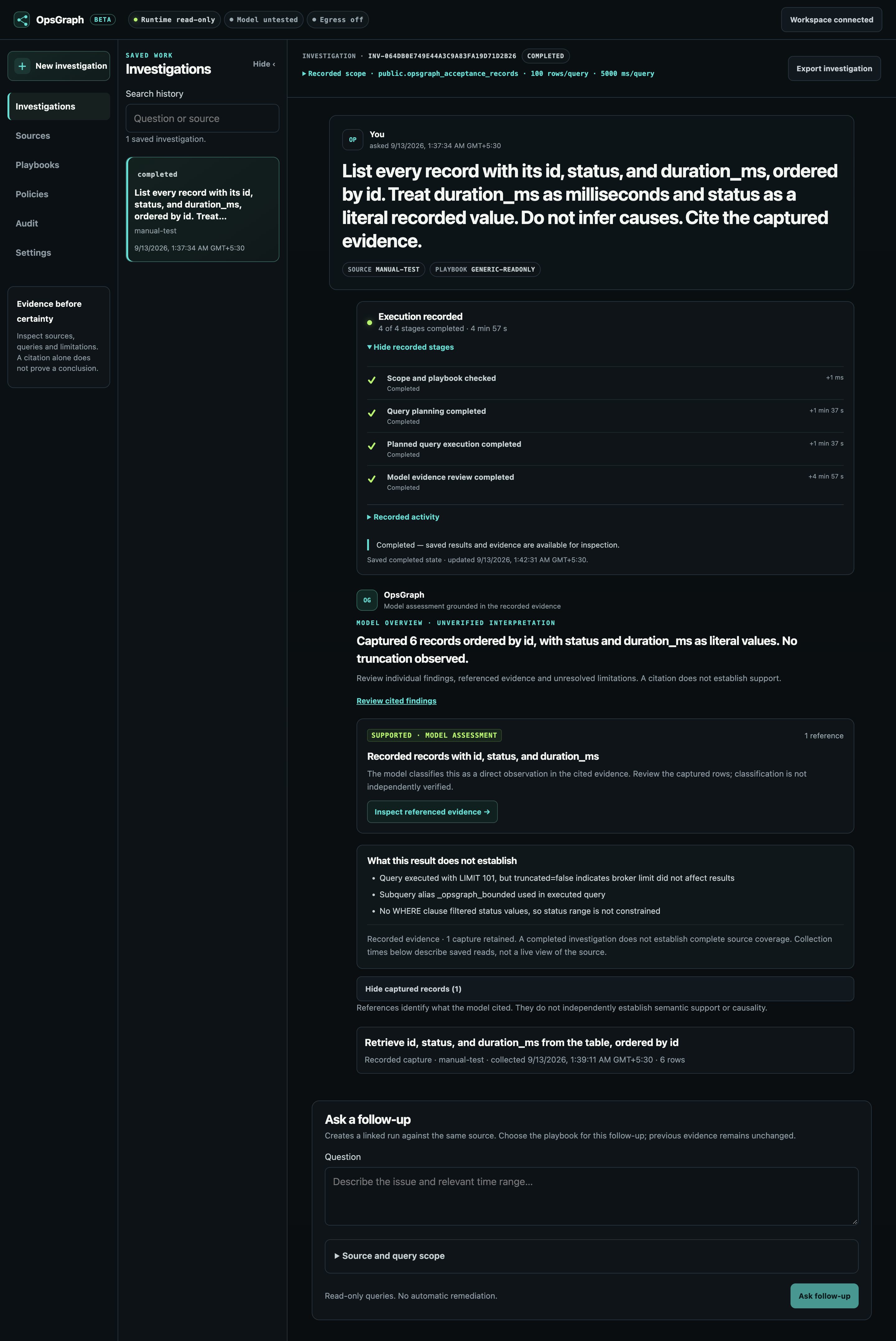

A real saved investigation against a six-row test dataset. Open the image for the full page. Its saved result is separate from the current model connection status.

Get started · Docker · Quickstart · Support matrix

Why OpsGraph?

• See what happened. Follow recorded execution, then open a citation to inspect the query, source, collection time, captured rows and limits.
• Keep control of access. Choose explicit PostgreSQL tables and use a dedicated read-only role. The model cannot grant itself access or make database changes.
• Use your model. Run locally with Ollama without a paid account, or configure an OpenAI-compatible service or Anthropic with explicit external-data permission.
• Keep the investigation. Reopen history, export evidence, challenge a finding with a linked follow-up, or retry a failed attempt with fresh queries.

FastAPI serves the browser workspace, LangGraph coordinates investigations, and SQLite stores local history. PostgreSQL is the supported database connector. A citation or matching hash does not prove a conclusion true: review the records and supply any missing business definitions before acting on an answer.

Get started

Beta 1 (v0.1.0b1) is a prerelease for evaluation. Download a matching offline bundle and checksum, or use the v0.1.0b1 source checkout below. The bundle quickstart explains installation and verification. Release assets include matching application and dependency source archives. Older alpha downloads do not contain the current beta workflow.

You need:

• Git, uv and Python 3.11–3.13 for the source path, plus a modern browser.
• An authorized non-sensitive PostgreSQL test database, a dedicated read-only login, and the names of the tables you want to inspect. Ask your database administrator for these if you do not have them; setup does not create them.
• A running model. For the tested local path, install Ollama, then deliberately run ollama pull qwen3:8b. This downloads several GB; OpsGraph never downloads models for you. Allow 2 GiB of installation headroom plus model storage and memory.

Linux, macOS and Windows

Run these commands in Terminal on macOS/Linux or PowerShell on Windows:

git clone --branch v0.1.0b1 --single-branch https://github.com/Arittra-Bag/opsgraph.git
cd opsgraph
uv sync --locked --all-extras
uv run opsgraph launch --configure

Setup asks for your database connection string (DSN), approved schemas and model. For Ollama on the same host, use http://127.0.0.1:11434/v1 and your installed model identifier. If your runtime uses another port, enter that port. Setup creates the private workspace key and opens a connected browser automatically. No manual key generation is needed for the launcher-opened browser.

To stop, press Ctrl+C in the terminal. To return later, run uv run opsgraph launch from the same checkout; your workspace and history are preserved. If port 8000 is occupied, add --port 8010. For private workspace locations, separate-browser access and recovery, see the quickstart.

These checks cover different things; see the support matrix for exact versions, provider coverage and previously recorded live macOS workflow results. The screenshot uses a saved investigation from that earlier testing. This is a public validation beta for one operator, not a stable or production-ready release.

Your first investigation

1. Connect the source. In Sources, keep OPSGRAPH_SOURCE_DSN as the backend reference, enter your actual schema-qualified tables, then save and inspect. Review the discovered columns. Leave optional playbook mappings empty for general investigations.

2. Test the model. In Settings, choose the provider and model, save, then select Test actual model connection. Saving alone does not test it. The test sends a structured request without source records.

3. Ask a question. Select New investigation, your source and General read-only. Start with a small, concrete request, such as:

   List the id, status and duration_ms of each record, ordered by id. Treat duration_ms as milliseconds and status as a recorded value. Do not infer causes. Cite the captured evidence.

   Use this example only if your inspected table has those columns and meanings; adapt it to your own schema. The screenshot's test table is not bundled data.

4. Check the answer. Watch recorded activity, then open referenced evidence. Compare the answer with the captured rows and SQL. Review any limits or missing evidence. Export the investigation if needed; exports can contain sensitive data.

No database yet? You can configure and test the model first, but a real investigation needs a real source. OpsGraph does not substitute sample answers.

Run with Docker

Docker Compose can run the OpsGraph backend on Linux, macOS or Windows with Linux containers. PostgreSQL and the model runtime are separate services; Compose does not provision them or download model weights.

From the checkout, first create a private configuration and set container-reachable addresses, then start:

docker compose --env-file .env -f deploy/compose.yaml up --build -d

Open http://127.0.0.1:8000 and connect with the workspace key from your private .env. History stays in the opsgraph-state Docker volume. The container guide includes host networking, permissions, logs, stop and restart commands. Inside a container, 127.0.0.1 means that container, not your host computer.

Limits and recovery

Each investigation allows up to three SELECT queries, 100 captured rows per query and five seconds per query; playbooks may impose stricter limits. PostgreSQL AST validation, approved table scope, role checks and read-only transactions enforce access. No database writes, automatic remediation, team accounts, CDC or executable third-party plugins are included in this beta.

Reloading reconnects to saved work. Cancellation waits for the active operation to exit and stops further scheduling. Interrupted runs keep captured evidence; retry starts a fresh attempt. Follow-ups link to earlier work and query again.

One narrowly detected answer inconsistency can trigger an answer-only correction using the same evidence. This does not rerun SQL or establish arbitrary business meaning. A second inconsistent answer fails visibly and preserves the evidence. There is no simulated progress or automatic fallback to another model.

For contributors and coding agents

Use the source setup above. Keep changes scoped, preserve private workspaces and never commit .env, database files, credentials or real investigation exports. Use disposable test resources for live tests. From the repository root:

uv run ruff check src tests scripts
uv run ruff format --check src tests scripts
uv run python -m pytest -q
node --test tests/frontend/*.cjs
uv build --build-constraints requirements-build.lock --require-hashes
uv run python scripts/wheel_smoke.py

The wheel smoke test expects one wheel in dist; keep older build artifacts outside that folder. Frontend tests need Node.js (CI uses Node 22). Ordinary tests use fixtures; real PostgreSQL/model acceptance is opt-in. Passing fixture tests does not prove a live deployment works. Read the product boundary, connector contract and security policy before changing execution or access behavior.

Help, security and license

• Installation and troubleshooting
• Upgrade, backup, restore and uninstall
• Migration from alpha · Changelog
• Report a bug: include the version, OS, provider and sanitized error; remove credentials and source records.
• Report a security issue privately

Protect your workspace and backups: questions, SQL and captured records can be sensitive. External inference and tracing are off by default; see SECURITY.md before connecting data.

OpsGraph's own source remains Apache-2.0. Dependencies retain their licenses; accompanying source, notices and GPL/LGPL obligations for the integrated bundle are described in beta distribution.
