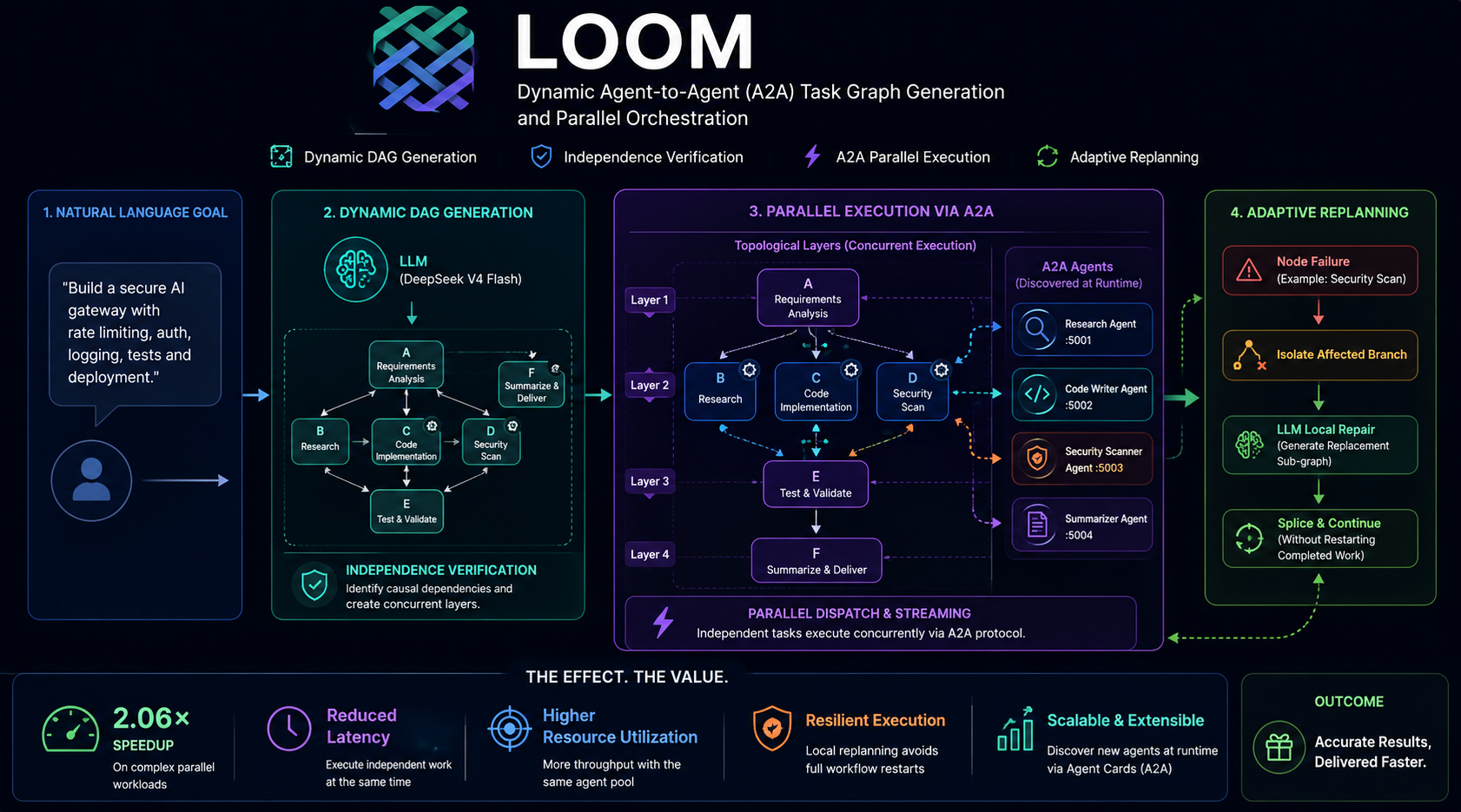

Overview

Traditional multi-agent pipelines frequently rely on static, compile-time routing tables where tasks execute sequentially regardless of whether subtasks are truly interdependent.

Loom adapts recent multi-agent research to make orchestration dynamic:

1. Dynamic Task Graph Synthesis: Uses DeepSeek V4 Flash to decompose a natural language goal into a Directed Acyclic Graph (DAG) of typed tasks.
2. Dynamic A2A Discovery: Resolves remote agent capabilities at runtime by querying standard /.well-known/agent-card.json endpoints.
3. SpecTool Independence Verification: Verifies causal dependencies across subtasks and automatically groups independent tasks into concurrent topological layers.
4. Dynamic Replanning: If a subtask encounters an error, Loom isolates the affected branch, asks the LLM for a localized repair, and splices the replacement sub-graph without restarting previously completed nodes.

STATIC PIPELINE
[Goal] ──> [Task 1] ──> [Task 2] ──> [Task 3] ──> (Sequential / Hardcoded)

LOOM DYNAMIC EXECUTION
            ┌──> [Task 1: Research (:5001)] ──────┐
[Goal] ──> [Task DAG] ─┤                                  ├──> [Task 4: Summarize (:5004)] ──> [Output]
            └──> [Task 2: Code Gen (:5002)] ──────┘
                      └──> [Task 3: Security Scan (:5003)]

---

System Architecture

flowchart TD
    User([Client Request]) -->|POST /orchestrate| API[Loom Gateway]

    subgraph Discovery [1. Dynamic Agent Discovery]
        Seeds[Seed URLs] --> Resolver[AgentDiscoveryService]
        Resolver -->|GET /.well-known/agent-card.json| W1[Research Agent :5001]
        Resolver -->|GET /.well-known/agent-card.json| W2[Code Writer Agent :5002]
        Resolver -->|GET /.well-known/agent-card.json| W3[Security Scanner :5003]
        Resolver -->|GET /.well-known/agent-card.json| W4[Summarizer Agent :5004]
        Resolver --> Index[(Inverted Skill Index)]
    end

    subgraph DAG_Gen [2. Dynamic DAG Generation]
        API --> Generator[DAGGenerator - DeepSeek V4 Flash]
        Index -.->|Available Skills| Generator
        Generator -->|Structured Task Schema| DAG[(TaskDAG Model)]
        DAG --> Verifier[Independence Verifier]
        Verifier -->|Topological Layers| Layers[[Parallel Execution Groups]]
    end

    subgraph Execution [3. Parallel Scheduler & Replanner]
        Layers --> Sched[ParallelScheduler]
        Sched -->|Concurrent Dispatches| Dispatcher[A2ADispatcher]

        Dispatcher -->|A2A Protobuf Stream| W1
        Dispatcher -->|A2A Protobuf Stream| W2
        Dispatcher -->|A2A Protobuf Stream| W3
        Dispatcher -->|A2A Protobuf Stream| W4

        Sched -.->|On Node Failure| Replanner[Dynamic Replanner]
        Replanner -.->|Splice Subgraph| DAG
    end

    Execution -->|ExecutionTrace + Results| API
    API -->|OrchestrationResponse| User

---

Core Features

---

Evaluation Framework (5 Core Categories)

Loom performance, reliability, and efficiency are evaluated across 5 core metric dimensions:

1. Orchestration Efficiency & Concurrency: Parallel speedup ratio (Speedup = T_seq / T_wall), real wall-clock latency, sequential baseline, max parallel width, and scheduling overhead.
2. DAG Generation Quality & Graph Topology: Model reasoning latency (dag_gen_ms), structural validity (dag_correctness_pct), skill grounding vs hallucination rate, and critical path depth.
3. Fault Tolerance & Dynamic Replanning: Workflow success rate (success_rate_pct), subtask completion rate, dynamic replan frequency (replan_count), convergence rounds, and node retries.
4. A2A Protocol & Network Performance: Live Agent Discovery resolution time (0.006 ms), active agent inventory, indexed skill coverage, and A2A Protobuf dispatch latency.
5. LLM Resource & Token Efficiency: Prompt token count, completion token count, and total token footprint across the workflow lifecycle.

---

Benchmark Results & Step-by-Step Traces

All benchmarks were evaluated against 4 live, autonomous A2A worker microservices with zero mocked data, using DeepSeek V4 Flash as the model.

Comprehensive Metrics Matrix

---

Scenario 1: Complex Diamond Multi-Stage Graph (2.06x Speedup)

Goal: "Architect an AI agent gateway: research threat models, concurrently write the core routing engine and token rate limiter, perform independent security vulnerability scans, and produce an integrated security audit summary."

graph TD
    classDef comp fill:#1e3a8a,stroke:#3b82f6,stroke-width:2px,color:#fff;
    classDef sync fill:#047857,stroke:#10b981,stroke-width:2px,color:#fff;

    Start([Start Orchestration]) --> G0

    subgraph G0["Stage 0: Parallel Branching (Width: 3)"]
        T1["t1: Research Threat Models (research-agent)"]:::comp
        T2["t2: Core Routing Engine (code-writer-agent)"]:::comp
        T3["t3: Token Rate Limiter (code-writer-agent)"]:::comp
    end

    G0 --> G1

    subgraph G1["Stage 1: Parallel Security Scans (Width: 2)"]
        T4["t4: Scan Routing Engine (security-scanner-agent)"]:::comp
        T5["t5: Scan Rate Limiter (security-scanner-agent)"]:::comp
    end

    G1 --> G2

    subgraph G2["Stage 2: Final Synthesis (Width: 1)"]
        T6["t6: Integrated Security Audit Summary (summarizer-agent)"]:::sync
    end

    G2 --> Done([Execution Finished: 2.06x Speedup])

---

Scenario 2: Multi-Branch Fork-Join Concurrency

Goal: "Conduct simultaneous research on A2A protocol specifications, generate a Python client, scan the implementation for security vulnerabilities in parallel, and generate an executive summary report."

graph TD
    classDef comp fill:#1e3a8a,stroke:#3b82f6,stroke-width:2px,color:#fff;
    classDef sync fill:#047857,stroke:#10b981,stroke-width:2px,color:#fff;

    Start([Start Orchestration]) --> T1

    T1["t1: Research Protocol Specs (research-agent, 13.9KB payload)"]:::comp --> T2
    T2["t2: Python Client Generator (code-writer-agent, context-aware)"]:::comp --> T3
    T3["t3: Security Scanner (security-scanner-agent, 12.2KB audit)"]:::comp --> T4
    T4["t4: Executive Summary Report (summarizer-agent, 8.3KB report)"]:::sync --> Done([Execution Completed])

---

Scenario 3: Linear Sequential Pipeline

Goal: "Research FastAPI security best practices, implement a secured authentication router, scan for vulnerabilities, and summarize the audit findings."

graph TD
    classDef comp fill:#1e3a8a,stroke:#3b82f6,stroke-width:2px,color:#fff;
    classDef sync fill:#047857,stroke:#10b981,stroke-width:2px,color:#fff;

    Start([Start Orchestration]) --> T1

    T1["t1: Research FastAPI Security (research-agent)"]:::comp --> T2
    T2["t2: Secured Auth Router (code-writer-agent, 15.2KB code)"]:::comp --> T3
    T3["t3: Vulnerability Scanner (security-scanner-agent, 13.8KB report)"]:::comp --> T4
    T4["t4: Summary Findings (summarizer-agent, 9.2KB report)"]:::sync --> Done([Execution Completed])

---

Quickstart Guide

Local Setup

1. Clone & Install Dependencies

git clone https://github.com/aayaann-kausar/loom.git
cd loom

# Create virtual environment and install dependencies
uv venv .venv
source .venv/bin/activate
uv pip install -e ".[dev]"

2. Configure Environment

cp .env.example .env
# Set LLM_PROVIDER=nvidia_nim, NVIDIA_MODEL=deepseek-ai/deepseek-v4-flash, and insert your NVIDIA_API_KEY

3. Start the 4 A2A Worker Agents

# In separate terminal windows:
python -m workers.research_agent          # Port :5001
python -m workers.code_writer_agent       # Port :5002
python -m workers.security_scanner_agent  # Port :5003
python -m workers.summarizer_agent        # Port :5004

4. Launch the Loom Orchestrator

python -m loom
# Gateway running on http://localhost:8000

5. Send an Orchestration Request

curl -X POST http://localhost:8000/orchestrate \
  -H "Content-Type: application/json" \
  -d '{
    "goal": "Research Python asyncio patterns, implement an HTTP client pool, scan for security vulnerabilities, and summarize findings."
  }'

---

Docker Compose Setup

Run the orchestrator and all 4 worker agents in containers with a single command:

export NVIDIA_API_KEY="your_api_key_here"
docker compose up --build

Access Swagger API documentation at http://localhost:8000/docs.

---

API Reference

POST /orchestrate

Accepts a natural language goal, generates a dynamic DAG, dispatches subtasks across discovered A2A workers, and returns the unified result.

Request:

{
  "goal": "Research FastAPI security best practices, implement a secured authentication router, scan for vulnerabilities, and summarize findings."
}

Response:

{
  "run_id": "c9a41e9e-5b12-4217-a518-e3258c734b41",
  "status": "completed",
  "goal": "Research FastAPI security best practices...",
  "result": {
    "Research": "FastAPI security analysis...",
    "Code Writer": "```python\n@router.post('/login')...\n```",
    "Security Audit": "0 critical vulnerabilities identified.",
    "Summary": "Executive summary of authentication router."
  },
  "execution_trace": {
    "parallel_groups_count": 3,
    "max_parallel_width": 3,
    "total_execution_time_ms": 151092.8,
    "sequential_baseline_time_ms": 311158.4,
    "speedup_ratio": 2.06,
    "nodes_executed": 6,
    "nodes_failed": 0
  }
}

GET /health

Returns service health status, active worker counts, and registered skill tags.

GET /agents

Returns the current inventory of discovered A2A agents and endpoints.

POST /discover

Triggers an immediate discovery re-scan across configured seed URLs.

---

Project Structure

loom/
├── benchmarks/                    # Benchmark evaluation suite
│   ├── run_benchmarks.py          # Benchmark runner with live metrics collection
│   ├── results/                   # JSON benchmark outputs
│   └── scenarios/                 # Linear, branching, and diamond scenarios
├── docs/                          # In-depth architectural & benchmark documentation
│   ├── architecture.md            # System internals and independence checking
│   └── benchmarks.md              # Complete benchmark tables and traces
├── src/loom/                   # Core orchestrator package
│   ├── a2a_client/                # A2A streaming client with connection pooling
│   ├── core/                      # DAG generator, independence verifier, scheduler, replanner
│   ├── discovery/                 # Dynamic A2A Agent Card resolver
│   ├── utils/                     # Structured logging and LLM invocation
│   ├── api.py                     # FastAPI REST application
│   └── config.py                  # Pydantic Settings
├── workers/                       # 4 Specialized A2A worker microservices
│   ├── research_agent/            # Skill: 'research' (:5001)
│   ├── code_writer_agent/         # Skill: 'code_generation' (:5002)
│   ├── security_scanner_agent/    # Skill: 'security_scan' (:5003)
│   └── summarizer_agent/          # Skill: 'summarization' (:5004)
├── tests/                         # Test suite
├── Dockerfile                     # Container image definition
├── docker-compose.yml             # Full 5-service orchestration stack
└── pyproject.toml                 # Dependencies and build metadata

---

Documentation & References

• Loom Architecture & Internals
• Comprehensive Benchmark Report
• Google Agent-to-Agent (A2A) Protocol
• DynTaskMAS (arXiv:2503.07675)
• Evolving Orchestration (arXiv:2505.19591)

---

License

Distributed under the MIT License.
