qrframe

code-based qr code generator

Blatantly inspired by QRBTF and Anthony Fu's QR Toolkit.

Here's a post I wrote about crafting QR codes that goes into deeper detail about how they work and ways to make them pretty.

Examples

[!CAUTION] These example QR codes may not be reliably scannable! Results may vary drastically based on device and scanner!

This project is a tool to create designs! These are only examples!

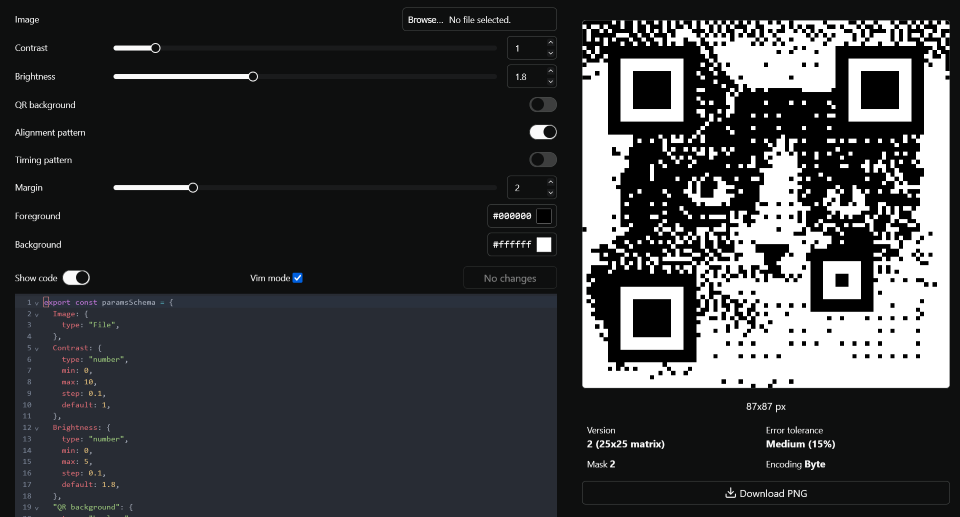

Create/modify designs with code

Customize data

• encoder, version, error tolerance, mask pattern
• powered by furious-qr, my small and hackable qr code generator

Customize appearance

• Choose any preset, customize or even create a new one from scratch via code editor.
• Define arbitrary UI parameters in code
• All preset code runs in browser in a web worker with no restrictions.
  • There is a 5s timeout to stop infinite loops.
  • Generated SVGs are not sanitized.
  • There is nothing to exploit/attack and no risk from bad code except crashing your tab.

Creating a preset

A preset must export paramsSchema and either renderSVG or renderCanvas

paramsSchema

This schema defines the UI components whose values are passed into renderSVG or renderCanvas via the params object.

All properties besides type are optional, except

• type select must have a nonempty options array
• type array must have a valid props value.

In this example, default is set explicitly to the implicit default value.

export const paramsSchema = {
  Example1: {
    type: "number",
    min: 0,
    max: 10,
    step: 0.1,
    default: 0,
  },
  Example2: {
    type: "boolean",
    default: false,
  },
  Example3: {
    type: "color",
    default: "#000000", // css color string (hex/rgba/hsla)
  },
  Example4: {
    type: "select",
    options: ["I'm feeling", 22],
    default: "I'm feeling", // first option
  },
  Example5: {
    type: "file",
    accept: ".jpeg, .jpg, .png",
    default: null,
  },
  Example6: {
    type: "array",
    props: {
      type: "number", // any type except "array"
      // corresponding props
    },
    resizable: true,
    defaultLength: 5, // overridden by default
    default: [], // overrides defaultLength
  },
};

renderSVG and renderCanvas

type renderSVG = (qr: Qr, params: Params) => string;

type renderCanvas = (qr: Qr, params: Params, canvas: OffscreenCanvas) => void;

params is an object with all the keys of paramsSchema paired with the value from their respective input component.

qr contains the final QR code in matrix. This represents a square where one side is version * 4 + 17 wide, and modules (aka pixels) are stored from the left to right, top to bottom.

type Qr = {
  matrix: Uint8Array; // see below
  version: number; // 1- 40
  mask: number; // 0 - 7,
  ecl: number; // 0 - 3, Low, Medium, Quartile, High
};

// bit flags for each u8 in matrix
const Module = {
  ON: 1 << 0,
  DATA: 1 << 1,
  FINDER: 1 << 2,
  ALIGNMENT: 1 << 3,
  TIMING: 1 << 4,
  FORMAT: 1 << 5,
  VERSION: 1 << 6,
  MODIFIER: 1 << 7,
};

MODIFIER is set for Finder and Alignment centers, Format and Version copy.

Self-hosting

pnpm run build

The static files are available in .output/public

Serving under a nonroot path is broken until https://github.com/solidjs/solid-start/pull/2152 is merged and released.

Once fixed update @solidjs/vite-plugin-nitro-2 and modify base in vite.config.ts.
