probe_spatial: Probing Spatial Understanding in Video Foundation Models

This repository extends VidFM3D with a Spatial Diagnostic Suite — diagnostic probes that characterize what kind of 3D / temporal / ego-centric understanding a Video Foundation Model (VFM) has internalized, all trained on frozen VFM features without touching VFM weights.

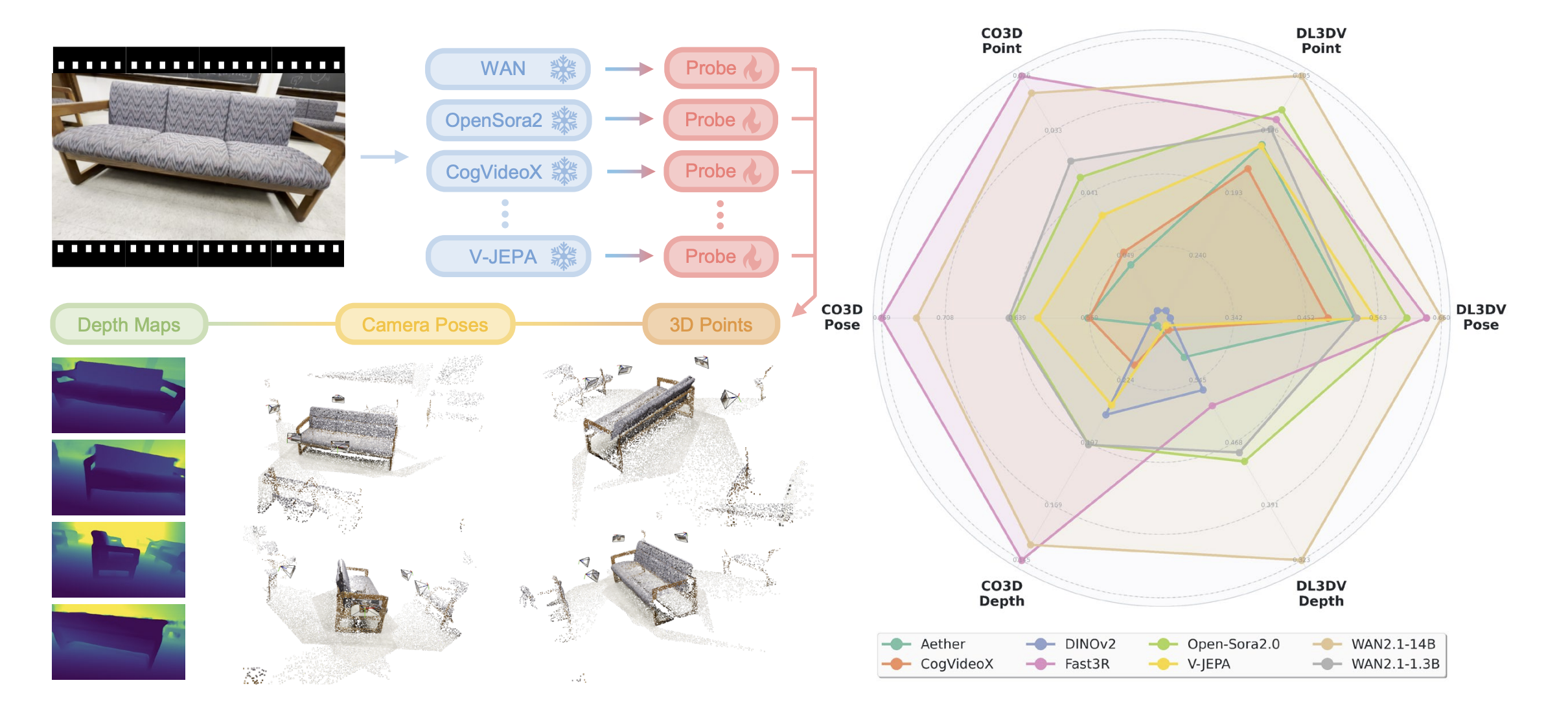

Based on: VidFM3D: How Much 3D Do Video Foundation Models Encode?

Quick-start: reproduce results on a new server

# 1. Clone repo
git clone https://github.com/yyyybq/probe_spatial.git
cd probe_spatial

# 2. Create env (see Installation section below)
conda create -n vidfm3d python=3.11 cmake=3.14.0 -y
conda activate vidfm3d
conda install pytorch torchvision torchaudio pytorch-cuda=12.4 nvidia/label/cuda-12.4.0::cuda-toolkit -c pytorch -c nvidia
pip install "git+https://github.com/facebookresearch/pytorch3d.git@stable" --no-build-isolation
pip install -r requirements.txt
pip install -e .

# 3. Keep code and data separate
export PROJECT_ROOT=$PWD
export DATASET_ROOT=/data/probe_spatial_data/InsScene-15K
mkdir -p ${DATASET_ROOT}

# 4. Download InsScene-15K data outside the git checkout
python data/download_inscene15k.py --step download_scannetpp --base-dir ${DATASET_ROOT}
python data/download_inscene15k.py --step extract_scannetpp  --base-dir ${DATASET_ROOT}

# 5. Extract streaming VFM features outside the git checkout.
# Streaming temporal probes now use ScanNet++ only.  Infinigen frames are
# independent rendered views, not a video trajectory.
INSCENE_DATA=${DATASET_ROOT}
python -m features.run_inscene15k --vfm wan --mode streaming_prefix \
    --model-id Wan-AI/Wan2.1-T2V-1.3B-Diffusers \
    --data-root ${INSCENE_DATA}/data --out-root ${INSCENE_DATA}/FEAT_STREAMING \
    --source scannetpp --t 749 --output-layers 20 \
    --prefix-lengths "8,12,16,24" --prefix-max-len 24

# Layer sweeps: pass multiple layers, then train with feature_layer=<L>.
# Current default sweep models:
#   wan cogvideox vjepa2 dino aether f3r qwen2_5_vl_3b bagel
# Layer defaults are registered in vidfm3d/utils/feature_layers.py.
export INSCENE_DATA_ROOT=${INSCENE_DATA}/data
export INSCENE_STREAMING_FEAT_ROOT=${INSCENE_DATA}/FEAT_STREAMING
export INSCENE_TARGET_FEAT_ROOT=${INSCENE_DATA}/FEAT_TARGET

# 6. Train streaming diagnostic probes for the default model matrix on GPU 0
DEV=0 \
PROBES="streaming_depth view_consistency ego_belief ego_belief_v2 action_dynamics path_integration counterfactual" \
PREFIX_LENGTHS="8 12 16 24" LAYERS="default" \
    bash scripts/run_streaming_probe_sweep.sh

# 7. Test & evaluate
python scripts/summarize_streaming_prefix_sweep.py \
    --runs-root logs/inscene15k_streaming/runs \
    --output streaming_prefix_sweep.csv

Note: streaming is the default experimental setting. Legacy normal/full-clip scripts now require ALLOW_NON_STREAMING=1 and should only be used for old ablations or historical comparison.

Temporal validity note: old streaming caches/runs that include Infinigen are not valid evidence for temporal, memory, action, path-integration, or counterfactual conclusions. Infinigen's 100 frames are independent views. New temporal experiments default to ScanNet++ only. See TEMPORAL_DATA_VALIDITY.md.

Current configs resolve dataset/cache roots from environment variables first. Set the relevant roots before launching jobs, or pass Hydra overrides explicitly:

python vidfm3d/train.py experiment=inscene15k_streaming/action_dynamics_wan_v1 \
    streaming_feat_root=/data/InsScene-15K/FEAT_STREAMING

On a shared cluster, the dataset also honors INSCENE_DATA_ROOT, INSCENE_FEAT_ROOT, INSCENE_CONTEXT_FEAT_ROOT, INSCENE_TARGET_FEAT_ROOT, INSCENE_STREAMING_FEAT_ROOT, and INSCENE_SHUFFLED_FEAT_ROOT; these take precedence over YAML paths. See EXPERIMENT_PROTOCOL.md and TRAINING_LOGIC_AUDIT.md for the current causal-cache protocol and task-by-task input contracts.

See PROBE_SPATIAL_GUIDE.md §8.1.1 for layer-wise extraction, probing, and scripts/summarize_layer_sweep.py best-layer/last-layer reports. Legacy non-streaming layer sweeps require explicit opt-in:

ALLOW_NON_STREAMING=1 VFM=wan PROBE=view_consistency LAYERS="0 5 10 15 20 25 29" \
  bash scripts/run_feature_layer_probe_sweep.sh

New Server Layout: Code/Data Separation

Use the git checkout only for source code, configs, scripts, docs, and small CSV summaries. Put raw data, extracted features, packaged archives, and large intermediate files under a separate storage root:

export PROJECT_ROOT=/workspace/probe_spatial
export DATASET_ROOT=/data/probe_spatial_data/InsScene-15K

git clone [email protected]:yyyybq/probe_spatial.git ${PROJECT_ROOT}
cd ${PROJECT_ROOT}
mkdir -p ${DATASET_ROOT}

export INSCENE_DATA_ROOT=${DATASET_ROOT}/data
export INSCENE_TARGET_FEAT_ROOT=${DATASET_ROOT}/FEAT_TARGET
export INSCENE_STREAMING_FEAT_ROOT=${DATASET_ROOT}/FEAT_STREAMING

Do not place InsScene-15K/, FEAT*/, .sft, checkpoint, or archive files inside the repository. The .gitignore has guards for common mistakes, but the clean layout above is the main protection.

To update code without touching data:

cd ${PROJECT_ROOT}
git pull --ff-only origin main
source /path/to/conda.sh
conda activate vidfm3d

To extract all feature caches first and then run many probing experiments:

cd ${PROJECT_ROOT}
export DATASET_ROOT=/data/probe_spatial_data/InsScene-15K
export INSCENE_DATA_ROOT=${DATASET_ROOT}/data
export INSCENE_STREAMING_FEAT_ROOT=${DATASET_ROOT}/FEAT_STREAMING
export INSCENE_TARGET_FEAT_ROOT=${DATASET_ROOT}/FEAT_TARGET

python data/download_inscene15k.py --step all --base-dir ${DATASET_ROOT}

VFM=wan
MODEL_ID=Wan-AI/Wan2.1-T2V-1.3B-Diffusers
python -m features.run_inscene15k --vfm ${VFM} --model-id ${MODEL_ID} \
    --mode streaming_prefix --data-root ${INSCENE_DATA_ROOT} \
    --out-root ${INSCENE_STREAMING_FEAT_ROOT} --t 749 --output-layers 20 \
    --source scannetpp --prefix-lengths "8,12,16,24" --prefix-max-len 24
python -m features.run_inscene15k --vfm ${VFM} --model-id ${MODEL_ID} \
    --mode target_isolated --data-root ${INSCENE_DATA_ROOT} \
    --out-root ${INSCENE_TARGET_FEAT_ROOT} --t 749 --output-layers 20 \
    --source scannetpp --prefix-lengths "8,12,16,24" --prefix-max-len 24 \
    --target-from-streaming-windows --target-prefix-lengths "8,12,16,24" \
    --target-horizons "1,2,4"

After extraction, train from the fixed feature dataset:

cd ${PROJECT_ROOT}
PROBES="streaming_depth view_consistency ego_belief ego_belief_v2 action_dynamics path_integration counterfactual" \
PREFIX_LENGTHS="8 12 16 24" LAYERS="default" \
EXTRACT_STREAMING=0 EXTRACT_TARGETS=0 \
    bash scripts/run_streaming_probe_sweep.sh

Package extracted features as a Hugging Face dataset bundle:

cd ${PROJECT_ROOT}
DATASET_ROOT=/data/probe_spatial_data/InsScene-15K VFM=wan \
    bash scripts/package_inscene_feature_dataset.sh

export HF_REPO_ID=your-org/inscene15k-wan-probe-spatial-features
python -m pip install -U huggingface_hub
huggingface-cli login
huggingface-cli repo create ${HF_REPO_ID} --type dataset --private
huggingface-cli upload --repo-type dataset ${HF_REPO_ID} \
    /data/probe_spatial_data/InsScene-15K/feature_dataset_bundle/<bundle-name> .

When downloading that feature dataset on another machine, extract the archives back under DATASET_ROOT, then source env.sh from the bundle or export the same INSCENE_*_ROOT variables manually.

Installation

conda create -n vidfm3d python=3.11 cmake=3.14.0 -y
conda activate vidfm3d

# PyTorch (CUDA 12.4)
conda install pytorch torchvision torchaudio pytorch-cuda=12.4 \
    nvidia/label/cuda-12.4.0::cuda-toolkit -c pytorch -c nvidia

# PyTorch3D (takes a while to compile; set MAX_JOBS=4 on low-RAM machines)
pip install "git+https://github.com/facebookresearch/pytorch3d.git@stable" --no-build-isolation

pip install -r requirements.txt
pip install -e .

export CUDA_HOME=/usr/local/cuda-12.4
pip install "git+https://github.com/facebookresearch/pytorch3d.git@stable"

conda install "mkl<2024.1" "intel-openmp<2024.1" -c conda-forge -y

Dataset Preparation

InsScene-15K (primary dataset)

InsScene-15K (HuggingFace: lifuguan/InsScene-15K) combines Infinigen synthetic scenes and ScanNet++ real-world scenes.

# Current temporal experiments are ScanNet++ only.
python data/download_inscene15k.py --step download_scannetpp --base-dir /data/InsScene-15K
python data/download_inscene15k.py --step extract_scannetpp  --base-dir /data/InsScene-15K

# Infinigen download/extraction is legacy/debug only and is not used for
# temporal streaming conclusions.

Expected structure after extraction:

/data/InsScene-15K/
  data/
    processed_scannetpp_v2/   # ScanNet++ real-world scenes
  FEAT_STREAMING/             # default streaming_prefix features
  FEAT_TARGET/                # filled by feature extraction --mode target_isolated (C1/C2/C3 targets)
  FEAT/                       # legacy normal features, only with ALLOW_NON_STREAMING=1
  FEAT_SHUFFLED/              # legacy A3 shuffled features
  FEAT_CONTEXT/               # legacy non-streaming C context_segment features

CO3Dv2 / DL3DV (original VidFM3D datasets)

Follow the original VidFM3D instructions for CO3Dv2 and DL3DV.

Feature Extraction

Features are pre-extracted once and cached as .sft files. The extractor is resume-safe (skips already-done scenes).

InsScene-15K — extraction modes

INSCENE_DATA=/data/InsScene-15K
VFM=wan
MODEL_ID=Wan-AI/Wan2.1-T2V-1.3B-Diffusers

# Streaming-prefix features (default; shared by A1/A2/B1/B2/C1/C2/C3)
python -m features.run_inscene15k --vfm ${VFM} --model-id ${MODEL_ID} \
    --mode streaming_prefix \
    --data-root ${INSCENE_DATA}/data --out-root ${INSCENE_DATA}/FEAT_STREAMING \
    --source scannetpp \
    --t 749 --output-layers 20 --prefix-lengths "8,12,16,24" \
    --prefix-max-len 24

# Isolated target features for C1/C2/C3. These are selected from the same
# ScanNet++ streaming windows, but each target frame is forwarded alone.
python -m features.run_inscene15k --vfm ${VFM} --model-id ${MODEL_ID} \
    --mode target_isolated \
    --data-root ${INSCENE_DATA}/data --out-root ${INSCENE_DATA}/FEAT_TARGET \
    --source scannetpp \
    --t 749 --output-layers 20 --prefix-lengths "8,12,16,24" \
    --prefix-max-len 24 --target-from-streaming-windows \
    --target-prefix-lengths "8,12,16,24" --target-horizons "1,2,4"

Streaming prefixes are built from ScanNet++ motion-normalized temporal windows. The default four cached prefixes are common-history 8, then 8+4, 8+8, and 8+16 observations. Long ScanNet++ videos are cut into a capped number of windows per scene so one recording does not dominate the dataset. The default observation step is --streaming-motion-step 0.35 with --streaming-rotation-weight 0.5, which gives visible camera motion without jumping as far as the earlier 0.5 step.

C1/C2/C3 use the same shared streaming-prefix video cache for their input, but their prediction targets default to a separate target_isolated cache. This prevents the target feature from being produced by a VFM forward pass that has already seen the input history plus the target frame. The target frame ids are computed from the same ScanNet++ motion-normalized window, prefix length, and future horizons used by the C dataset samples. Streaming prefix length is orthogonal to probe type: C probes run for each requested prefix 8/12/16/24, not only for prefix 8.

Streaming C-series data flow:

sampled observations: I_0 ... I_7 | I_8 | I_9 | I_11
                      \_________/   target target target
                      common history

input feature:        VFM([I_0, ..., I_7])
                      -> FEAT_STREAMING/.../prefix_000007/...sft

action condition:     relative camera motion from I_7 to each target

target feature:       VFM([I_8]) / VFM([I_9]) / VFM([I_11])
                      -> FEAT_TARGET/.../feature_*.sft + target_indices.npy

probe training:       probe(input_feature, action) predicts target_feature

For C, the default target cache covers the union of prefix_len + horizon positions for every C prefix and horizon. With prefix_len in {8,12,16,24} and horizon in {1,2,4}, isolated targets are drawn from observation positions:

prefix 8  -> obs 8, 9, 11
prefix 12 -> obs 12, 13, 15
prefix 16 -> obs 16, 17, 19
prefix 24 -> obs 24, 25, 27

Streaming B1/B2 use common-history hidden-object selection. The object is selected once per ScanNet++ temporal window from frames [0..7]; it must be visible in at least three history frames, have at least 1024 valid pixels in its best query frame, and avoid the image border by at least 16 pixels. Selection prefers objects visible at the common-history tail obs7, but falls back to a history-visible object if no such candidate exists. Hidden B1/B2 train/evaluate on prefixes 8/12/16/24: prefix 8 is the visible-current baseline when the chosen object is visible at obs7, while prefixes 12/16/24 require the same object to be hidden at observation tails 11/15/23. The same raw object id and query history are reused across the prefix sweep.

There is also a B2 visible-object sanity probe, visible_ego_belief_v2. It uses the same B2 head and metrics, but selects an object visible in the current prefix-tail frame and expresses its position in that same tail camera frame. The object query may therefore be pooled from the current visible view. This is intended as a lower-bound check: if visible-object localization fails, the hidden-object B2 result should not be interpreted as purely a memory problem.

Switch --vfm cogvideox --model-id THUDM/CogVideoX-5b-I2V or --vfm vjepa2 (uses features/vjepa2/vjepa2_feature.py) for other VFMs.

Feature layer convention

The current diagnostic defaults are now centralized in vidfm3d/utils/feature_layers.py and remain backward compatible:

To probe other layers, extract them by passing explicit layer ids, or use the aliases default, last, and all:

# Multiple Wan layers in one pass; writes feature_t749_layer{L}.sft files.
python -m features.run_inscene15k --vfm wan \
    --data-root ${INSCENE_DATA}/data --out-root ${INSCENE_DATA}/FEAT \
    --t 749 --output-layers 0 5 10 15 20 25 29

# V-JEPA2 all registered layers; writes feature_layer{L}.sft files.
python -m features.run_inscene15k --vfm vjepa2 \
    --data-root ${INSCENE_DATA}/data --out-root ${INSCENE_DATA}/FEAT \
    --all-layers

# Qwen2.5-VL: -1 is the default visual-merger cache; non-negative ids are
# vision-tower blocks captured by hooks.
python -m features.run_inscene15k_mllm --backend qwen2_5_vl \
    --data-root ${INSCENE_DATA}/data --out-root ${INSCENE_DATA}/FEAT_MLLM \
    --output-layers -1 0 8 16 24 31

Layer-wise streaming probe training uses run_streaming_probe_sweep.sh and sweeps both prefix_len and feature_layer:

DRY_RUN=1 VFM=wan PROBES="ego_belief action_dynamics" \
PREFIX_LENGTHS="8 12 16 24" LAYERS="0 5 10 15 20 25 29" \
    bash scripts/run_streaming_probe_sweep.sh

The old run_feature_layer_probe_sweep.sh is now guarded and requires ALLOW_NON_STREAMING=1.

Direct VLM probing is parallel to the SAE path. By default it uses the same streaming setting as other models and feeds each selected VLM layer directly into the ordinary diagnostic probe heads:

INSCENE_STREAMING_FEAT_ROOT=/data/InsScene-15K/FEAT_STREAMING_MLLM \
INSCENE_TARGET_FEAT_ROOT=/data/InsScene-15K/FEAT_TARGET_MLLM \
VFMS="qwen2_5_vl qwen2_5_vl_3b bagel" \
PROBES="streaming_depth view_consistency ego_belief ego_belief_v2 action_dynamics path_integration counterfactual" \
PREFIX_LENGTHS="8 12 16 24" \
LAYERS="-1 8 16 24 31" \
    bash scripts/run_direct_vlm_probe_sweep.sh

The main streaming sweep already includes qwen2_5_vl_3b and bagel by default. Set VFMS=... to run a smaller subset, or VFM=wan for the old single-model behavior.

For Qwen, layer -1 is the visual-merger output; non-negative layers are vision-tower block outputs. The sweep script reads an existing .sft cache to infer video_channels per layer, so direct probes can handle layers whose channel dimension differs from the -1 cache. Legacy non-streaming direct VLM requires STREAMING=0 ALLOW_NON_STREAMING=1.

Training

Diagnostic probes (A1 / A2 / B1 / B2 / C1 / C2 / C3) — default streaming

Train the default shared streaming-prefix sweep:

INSCENE_STREAMING_FEAT_ROOT=/data/InsScene-15K/FEAT_STREAMING \
INSCENE_TARGET_FEAT_ROOT=/data/InsScene-15K/FEAT_TARGET \
PROBES="streaming_depth view_consistency ego_belief ego_belief_v2 action_dynamics path_integration counterfactual" \
PREFIX_LENGTHS="8 12 16 24" LAYERS="default" \
    bash scripts/run_streaming_probe_sweep.sh

scripts/run_streaming_probe_sweep.sh first extracts one shared streaming_prefix cache for the requested prefix lengths, then trains one run per (probe, prefix_len, layer). C probes additionally require target_isolated caches. By default the script extracts only the exact streaming C target frame ids, using --target-from-streaming-windows, --target-prefix-lengths "${C_PREFIX_LENGTHS}", and --target-horizons "${C_TARGET_HORIZONS}".

The same streaming interface works for direct VLM features:

INSCENE_STREAMING_FEAT_ROOT=/data/InsScene-15K/FEAT_STREAMING_MLLM \
INSCENE_TARGET_FEAT_ROOT=/data/InsScene-15K/FEAT_TARGET_MLLM \
VFM=qwen2_5_vl \
PROBES="streaming_depth view_consistency ego_belief ego_belief_v2 action_dynamics path_integration counterfactual" \
PREFIX_LENGTHS="8 12 16 24" LAYERS="-1 8 16 24 31" \
    bash scripts/run_streaming_probe_sweep.sh

For VLM streaming, each prefix_len is forwarded as the real image prefix [I_0, ..., I_t]; target frames for C probes are forwarded separately as single-frame target-isolated caches.

Legacy non-streaming sweep scripts (run_diag_sweep.sh, run_diag_new_sweep.sh, run_diag_new_parallel.sh, run_feature_layer_probe_sweep.sh) now refuse to run unless ALLOW_NON_STREAMING=1 is set.

Train a single probe:

# One streaming probe, one or more prefix lengths.
DEV=0 VFM=wan PROBES="ego_belief" PREFIX_LENGTHS="8 12 16 24" \
LAYERS="default" bash scripts/run_streaming_probe_sweep.sh

# B2 sanity: object is visible in the current prefix-tail view.
DEV=0 VFM=wan PROBES="visible_ego_belief_v2" PREFIX_LENGTHS="8 12 16 24" \
LAYERS="default" bash scripts/run_streaming_probe_sweep.sh

# C probes also need target-isolated caches; the script extracts them by default.
DEV=0 VFM=wan PROBES="action_dynamics" PREFIX_LENGTHS="8 12 16 24" \
LAYERS="default" bash scripts/run_streaming_probe_sweep.sh

Training runs for 50 epochs (≈2–4 hours per probe on 1× L40S), auto-resumes from last.ckpt.

Legacy control experiments (non-streaming scrambled features as baseline):

ALLOW_NON_STREAMING=1 CUDA_VISIBLE_DEVICES=0 python vidfm3d/train.py \
    experiment=inscene15k_ext/action_dynamics_wan_ctrl

A1 Baseline Probe (depth / camera / identity) — original VidFM3D legacy

# Wan2.1
ALLOW_NON_STREAMING=1 CUDA_VISIBLE_DEVICES=0 python vidfm3d/train.py experiment=inscene15k/wan_probe_v3

# V-JEPA2
ALLOW_NON_STREAMING=1 CUDA_VISIBLE_DEVICES=1 python vidfm3d/train.py experiment=inscene15k/vjepa2_probe_v3

Trains for 100 epochs, checkpointed every 5 epochs.

Override data paths

If your data is not at the default path, set the environment roots before launching Hydra:

INSCENE_DATA_ROOT=/your/InsScene-15K/data \
INSCENE_STREAMING_FEAT_ROOT=/your/InsScene-15K/FEAT_STREAMING \
INSCENE_TARGET_FEAT_ROOT=/your/InsScene-15K/FEAT_TARGET \
bash scripts/run_streaming_probe_sweep.sh

Evaluation

Diagnostic Probes (A2 / A3 / B1 / B2 / C1 / C2 / C3)

# Evaluate all trained runs and aggregate into a CSV
bash scripts/run_diag_eval_sweep.sh     # writes comparison_val.csv

# Evaluate a single run
python vidfm3d/eval_diag.py \
    experiment=inscene15k_ext/view_consistency_wan_v1 \
    ckpt_path=logs/<run>/checkpoints/last.ckpt \
    eval_split=val train=false test=false

Test mode (final numbers; requires a frozen three-way split manifest):

export INSCENE_SPLIT_MANIFEST=$PWD/configs/splits/inscene15k_v1.json
python vidfm3d/eval_diag.py experiment=inscene15k_ext/action_dynamics_wan_v1 \
    ckpt_path=/path/to/last.ckpt +eval_split=test train=false test=false

eval_diag.py computes C1 retrieval globally, so final R@K no longer depends on evaluation batch size. It also reports no-action and last-observation baselines. C2/C3 reuse the same evaluator and report horizon validity, retrieval/path metrics, and counterfactual intervention metrics.

A1 Baseline Probe

# Evaluate depth, camera (Auc_30, Rac_15, Tac_15), and identity
python eval_pertask_v3.py --models wan,vjepa2 --gpu 0

Results summary (InsScene-15K val, 953 samples):

New Probe Results Summary

Repository Structure

probe_spatial/
├── data/
│   └── download_inscene15k.py       # Download + extract InsScene-15K
├── configs/
│   ├── train.yaml                   # Hydra top-level config
│   ├── model/
│   │   ├── probe.yaml               # A1 probe (depth/camera/identity)
│   │   └── probe_ext.yaml           # Diagnostic probes
│   └── experiment/
│       ├── inscene15k/              # A1 experiments
│       ├── inscene15k_ext/          # Non-streaming A2/A3/B1/B2/C1/C2/C3 configs
│       └── inscene15k_streaming/    # Shared streaming A1/A2/B1/B2/C1/C2/C3 configs
├── features/
│   ├── run_inscene15k.py            # Feature extractor (normal/shuffled/context/target modes)
│   ├── wan/                         # Wan feature extraction
│   ├── cogvideox/                   # CogVideoX feature extraction
│   └── vjepa2/                      # V-JEPA2 feature extraction
├── vidfm3d/
│   ├── train.py                     # Hydra entry point
│   ├── eval_diag.py                 # Per-sample dump for diagnostic probes
│   ├── eval_diag_compare.py         # Aggregate runs into CSV
│   ├── data/components/
│   │   └── inscene15k_dataset.py    # Dataset (extended with diag flags)
│   ├── models/
│   │   ├── probe_ext_module.py      # LitModule for diagnostic probes
│   │   └── components/
│   │       ├── probe_view_consistency.py   # A2 head
│   │       ├── probe_abnormal.py           # A3 head
│   │       ├── probe_ego_belief.py         # B1 head
│   │       ├── probe_ego_belief_v2.py      # B2 head
│   │       ├── probe_action_dynamics.py    # C1 head
│   │       ├── probe_path_integration.py   # C2 head
│   │       └── probe_counterfactual.py     # C3 head
│   └── utils/
│       └── spatial_diag.py          # Geometry helpers (overlap, polar, pose)
├── scripts/
│   ├── run_streaming_probe_sweep.sh # Default streaming-prefix cache/train/eval sweep
│   ├── run_diag_sweep.sh            # Legacy non-streaming sweep; requires ALLOW_NON_STREAMING=1
│   ├── run_diag_new_sweep.sh        # Legacy non-streaming C2/C3; requires ALLOW_NON_STREAMING=1
│   ├── run_diag_new_parallel.sh     # Legacy non-streaming C2/C3; requires ALLOW_NON_STREAMING=1
│   ├── package_inscene_feature_dataset.sh # Package external feature caches for HF
│   └── run_diag_eval_sweep.sh       # Eval all runs, write CSV
└── eval_pertask_v3.py               # A1 evaluation script

Known Issues & Fixes

PyTorch 2.6 weights_only error on checkpoint resume torch.load defaults to weights_only=True in PyTorch 2.6+, which breaks Lightning checkpoint loading with OmegaConf objects. Fixed in vidfm3d/train.py via monkeypatch.

last.ckpt not updating when val/loss plateaus Fixed in vidfm3d/train.py via monkeypatch that unconditionally saves last.ckpt every epoch.

Hydra parse error with = in checkpoint path epoch=49-step=104850.ckpt contains = which confuses Hydra's CLI parser. Workaround: symlink to /tmp/eval_ck.ckpt first.

C1 target caches The dataset now accepts only exact target-frame matches. Sparse target caches are sampled directly; use --num-targets 0 when every frame must be available.

CO3Dv2 and DL3DV (original VidFM3D datasets)

python -m vidfm3d.data.processing.co3d.extract_frames \
    --raw_root vidfm3d/data/CO3D/CO3D-data \
    --out_root vidfm3d/data/CO3D/CO3D-raw \
    --stride 1 --num_frames 81 --trunc_thresh 0.25 --resize_to 960 540
python -m vidfm3d.data.processing.process_co3d --root vidfm3d/data/CO3D

python -m vidfm3d.data.processing.process_dl3dv --root vidfm3d/data/DL3DV

python -m features.run_co3d  --vfm wan --model-id Wan-AI/Wan2.1-T2V-1.3B-Diffusers --output-layers 20 --t 749
python -m features.run_dl3dv --vfm wan --model-id Wan-AI/Wan2.1-T2V-1.3B-Diffusers --output-layers 20 --t 749

python vidfm3d/train.py experiment=co3d/wan job_name=wan
python vidfm3d/train.py experiment=dl3dv/wan job_name=wan

python scripts/parse_results.py \
    --groups dl3dv,co3d --runs wan \
    --metrics "val/Auc_30,val/pmap_mse_aligned,val/loss_depth"

Citation

@article{huang2025vidfm3d,
  title   = {How Much 3D Do Video Foundation Models Encode?},
  author  = {Huang, Zixuan and Li, Xiang and Lv, Zhaoyang and Rehg, James M.},
  booktitle = {arXiv preprint arXiv:2512.19949},
  year    = {2025}
}

Acknowledgments

This project builds on:

• VidFM3D — original probing framework (MIT)
• Fast3R — training & data infrastructure
• VGGT — architecture and data processing

Foundation models evaluated: Wan 2.1, CogVideoX, V-JEPA2 (each under its own license).
