RISC-V Core

Github: http://github.com/ultraembedded/riscv

A 32-bit RISC-V core written in Verilog and an instruction set simulator supporting RV32IM.
This core has been tested against a co-simulation model and exercised on FPGA.

For a higher performance dual issue CPU with branch prediction, see my latest RISC-V core here; http://github.com/ultraembedded/biriscv

Overview

Features

32-bit RISC-V ISA CPU core.
Support RISC-V integer (I), multiplication and division (M), and CSR instructions (Z) extensions (RV32IMZicsr).
Supports user, supervisor and machine mode privilege levels.
Basic MMU support - capable of booting Linux with atomics (RV-A) SW emulation.
Implements base ISA spec v2.1 and privileged ISA spec v1.11.
Verified using Google's RISCV-DV random instruction sequences using cosimulation against C++ ISA model.
Support for instruction / data cache, AXI bus interfaces or tightly coupled memories.
Configurable number of pipeline stages and result forwarding options.
Synthesizable Verilog 2001, Verilator and FPGA friendly.
Coremark: 2.94 CoreMark/MHz
Dhrystone: 1.25 DMIPS/MHz ('legal compile options' / 337 instructions per iteration)
Want higher performance (4.1CM/MHz / 1.9DMIPS/MHz) - see my improved core.

Configuration

Param Name	Valid Range	Description
SUPPORT_SUPER	1/0	Enable supervisor / user privilege levels.
SUPPORT_MMU	1/0	Enable basic memory management unit.
SUPPORT_MULDIV	1/0	Enable HW multiply / divide (RV-M).
SUPPORT_LOAD_BYPASS	1/0	Support load result bypass paths.
SUPPORT_MUL_BYPASS	1/0	Support multiply result bypass paths.
SUPPORT_REGFILE_XILINX	1/0	Support Xilinx optimised register file.
EXTRA_DECODE_STAGE	1/0	Extra decode pipe stage for improved timing.
MEM_CACHE_ADDR_MIN	32'h0 - 32'hffffffff	Lowest cacheable memory address.
MEM_CACHE_ADDR_MAX	32'h0 - 32'hffffffff	Highest cacheable memory address.

Directories

Name	Contents
core/riscv	RISC-V pipelined RV32IM CPU core (Verilog)
isa_sim	Instruction set simulator (C)
top_tcm_axi/src_v	Example instance with 64KB DP-RAM & AXI Interfaces
top_tcm_axi/tb	System-C testbench for the core
top_cache_axi/src_v	Example instance with instruction and data caches.
top_cache_axi/tb	System-C testbench for the core

Example Core Instance (with TCM memory)

The top (top_tcm_axi/src_v/riscv_tcm_top.v) contains;

Instances one of the above cores, adding RAM and standard bus interfaces.
64KB dual ported RAM for (I/D code and data).
AXI4 slave port for loading the RAM, DMA access, etc (including support for burst access).
AXI4-Lite master port for CPU access to peripherals.
Separate reset for CPU core to dual ported RAM / AXI interface (to allow program code to be loaded prior to CPU reset de-assertion).

Memory Map

Range	Description
0x0000_0000 - 0x0000_ffff	64KB TCM Memory
0x0000_2000	Boot address (configurable, see RISCV_BOOT_ADDRESS)
0x8000_0000 - 0xffff_ffff	Peripheral address space (from AXI4-L port)

Interfaces

Name	Description
clk_i	Clock input
rst_i	Async reset, active-high. Reset memory / AXI interface.
rst_cpu_i	Async reset, active-high. Reset CPU core (excluding AXI / memory).
axi_t_*	AXI4 slave interface for access to 64KB TCM memory.
axi_i_*	AXI4-Lite master interface for CPU access to peripherals.
intr_i	Active high interrupt input (for connection external int controller).

Testbench

A basic System-C / Verilator based testbench for the core is provided.

Dependencies;

gcc
make
libelf
System-C (specify path using SYSTEMC_HOME)
Verilator (specify path using VERILATOR_SRC)

To build the testbench;

cd top_tcm_axi/tb
make

To run the provided test executable;

cd top_tcm_axi/tb
make run

Example Core Instance (with caches)

The top (top_cache_axi/src_v/riscv_top.v) contains;

Instances one of the above cores, adding RAM and standard bus interfaces.
16KB 2-way set associative instruction cache
16KB 2-way set associative data cache with write-back and allocate on write.
2 x AXI4 master port for CPU access to instruction / data / peripherals.

Interfaces

Name	Description
clk_i	Clock input
rst_i	Async reset, active-high. Reset memory / AXI interface.
axi_i_*	AXI4 master interface for CPU access to instruction memory.
axi_d_*	AXI4 master interface for CPU access to data / peripheral memories.
intr_i	Active high interrupt input (for connection external int controller).
reset_vector_i	Boot vector.

Execution Example

asic

cpu

fpga

pipeline-processor

risc-v

riscv-linux

rv32i

rv32im

verification

verilator

verilog

Significant stargazers

Mara van der Laan

4,758 followers · starred Jan 2020

Tristan Ross

366 followers · starred Nov 2025

CharlesCNorton

230 followers · starred Apr 2026

Yang Liu

276 followers · starred Aug 2022

Similar repos

ultraembedded/biriscv

32-bit Superscalar RISC-V CPU

1,315

same org

YosysHQ/picorv32

PicoRV32 - A Size-Optimized RISC-V CPU

4,392

syntacore/scr1

SCR1 is a high-quality open-source RISC-V MCU core in Verilog

1,007

liangkangnan/tinyriscv

A very simple and easy to understand RISC-V core.

1,548

SpinalHDL/VexRiscv

A FPGA friendly 32 bit RISC-V CPU implementation

3,293

spzbrnmrc/Tiny-Vedas

RISC-V Infrastructure for AI Accelerators

stnolting/neorv32

🖥️ A small, customizable and extensible MCU-class 32-bit RISC-V soft-core CPU and…

2,297

darklife/darkriscv

opensouce RISC-V cpu core implemented in Verilog from scratch in one night!

2,626

ultraembedded/riscv

RISC-V CPU Core (RV32IM)

Verilog

1,802

48 commits

updated Sep 18, 2021

See the code

README

RISC-V Core

Github: http://github.com/ultraembedded/riscv

A 32-bit RISC-V core written in Verilog and an instruction set simulator supporting RV32IM.
This core has been tested against a co-simulation model and exercised on FPGA.

For a higher performance dual issue CPU with branch prediction, see my latest RISC-V core here; http://github.com/ultraembedded/biriscv

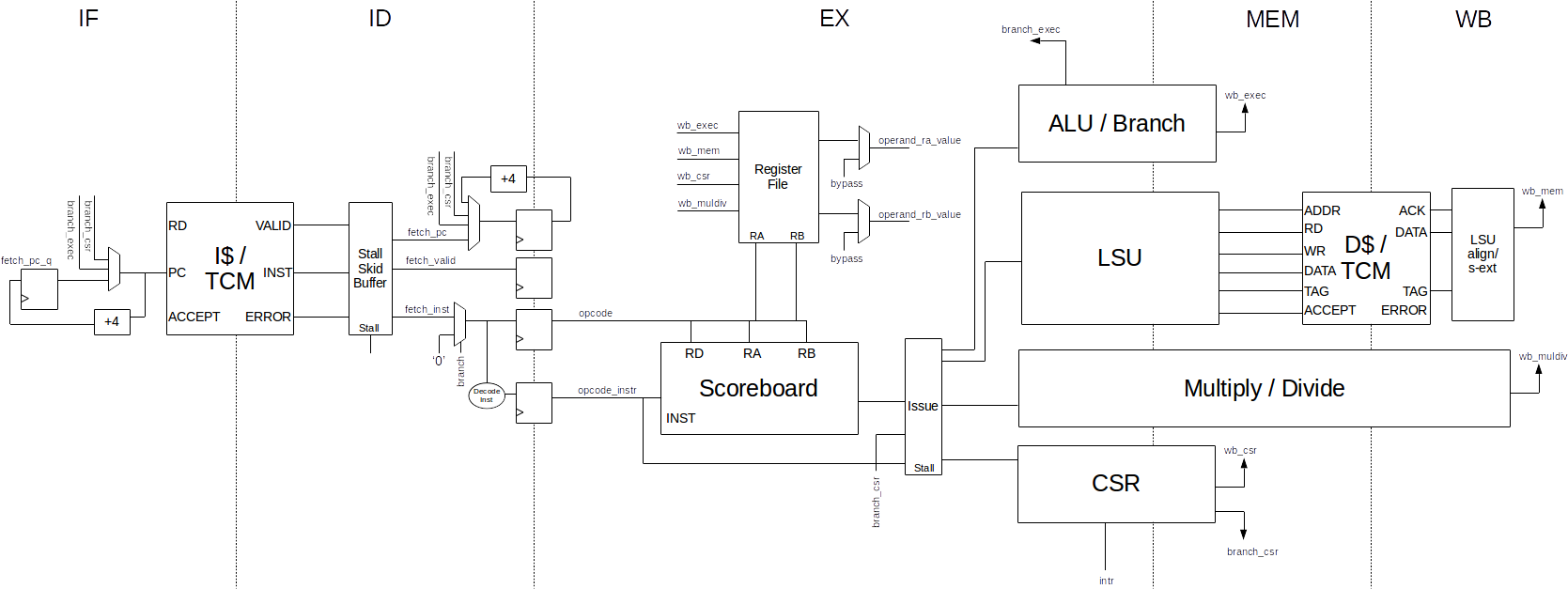

Overview

Features

32-bit RISC-V ISA CPU core.
Support RISC-V integer (I), multiplication and division (M), and CSR instructions (Z) extensions (RV32IMZicsr).
Supports user, supervisor and machine mode privilege levels.
Basic MMU support - capable of booting Linux with atomics (RV-A) SW emulation.
Implements base ISA spec v2.1 and privileged ISA spec v1.11.
Verified using Google's RISCV-DV random instruction sequences using cosimulation against C++ ISA model.
Support for instruction / data cache, AXI bus interfaces or tightly coupled memories.
Configurable number of pipeline stages and result forwarding options.
Synthesizable Verilog 2001, Verilator and FPGA friendly.
Coremark: 2.94 CoreMark/MHz
Dhrystone: 1.25 DMIPS/MHz ('legal compile options' / 337 instructions per iteration)
Want higher performance (4.1CM/MHz / 1.9DMIPS/MHz) - see my improved core.

Configuration

Param Name	Valid Range	Description
SUPPORT_SUPER	1/0	Enable supervisor / user privilege levels.
SUPPORT_MMU	1/0	Enable basic memory management unit.
SUPPORT_MULDIV	1/0	Enable HW multiply / divide (RV-M).
SUPPORT_LOAD_BYPASS	1/0	Support load result bypass paths.
SUPPORT_MUL_BYPASS	1/0	Support multiply result bypass paths.
SUPPORT_REGFILE_XILINX	1/0	Support Xilinx optimised register file.
EXTRA_DECODE_STAGE	1/0	Extra decode pipe stage for improved timing.
MEM_CACHE_ADDR_MIN	32'h0 - 32'hffffffff	Lowest cacheable memory address.
MEM_CACHE_ADDR_MAX	32'h0 - 32'hffffffff	Highest cacheable memory address.

Directories

Name	Contents
core/riscv	RISC-V pipelined RV32IM CPU core (Verilog)
isa_sim	Instruction set simulator (C)
top_tcm_axi/src_v	Example instance with 64KB DP-RAM & AXI Interfaces
top_tcm_axi/tb	System-C testbench for the core
top_cache_axi/src_v	Example instance with instruction and data caches.
top_cache_axi/tb	System-C testbench for the core

Example Core Instance (with TCM memory)

The top (top_tcm_axi/src_v/riscv_tcm_top.v) contains;

Instances one of the above cores, adding RAM and standard bus interfaces.
64KB dual ported RAM for (I/D code and data).
AXI4 slave port for loading the RAM, DMA access, etc (including support for burst access).
AXI4-Lite master port for CPU access to peripherals.
Separate reset for CPU core to dual ported RAM / AXI interface (to allow program code to be loaded prior to CPU reset de-assertion).

Memory Map

Range	Description
0x0000_0000 - 0x0000_ffff	64KB TCM Memory
0x0000_2000	Boot address (configurable, see RISCV_BOOT_ADDRESS)
0x8000_0000 - 0xffff_ffff	Peripheral address space (from AXI4-L port)

Interfaces

Name	Description
clk_i	Clock input
rst_i	Async reset, active-high. Reset memory / AXI interface.
rst_cpu_i	Async reset, active-high. Reset CPU core (excluding AXI / memory).
axi_t_*	AXI4 slave interface for access to 64KB TCM memory.
axi_i_*	AXI4-Lite master interface for CPU access to peripherals.
intr_i	Active high interrupt input (for connection external int controller).

Testbench

A basic System-C / Verilator based testbench for the core is provided.

Dependencies;

gcc
make
libelf
System-C (specify path using SYSTEMC_HOME)
Verilator (specify path using VERILATOR_SRC)

To build the testbench;

cd top_tcm_axi/tb
make

To run the provided test executable;

cd top_tcm_axi/tb
make run

Example Core Instance (with caches)

The top (top_cache_axi/src_v/riscv_top.v) contains;

Instances one of the above cores, adding RAM and standard bus interfaces.
16KB 2-way set associative instruction cache
16KB 2-way set associative data cache with write-back and allocate on write.
2 x AXI4 master port for CPU access to instruction / data / peripherals.

Interfaces

Name	Description
clk_i	Clock input
rst_i	Async reset, active-high. Reset memory / AXI interface.
axi_i_*	AXI4 master interface for CPU access to instruction memory.
axi_d_*	AXI4 master interface for CPU access to data / peripheral memories.
intr_i	Active high interrupt input (for connection external int controller).
reset_vector_i	Boot vector.

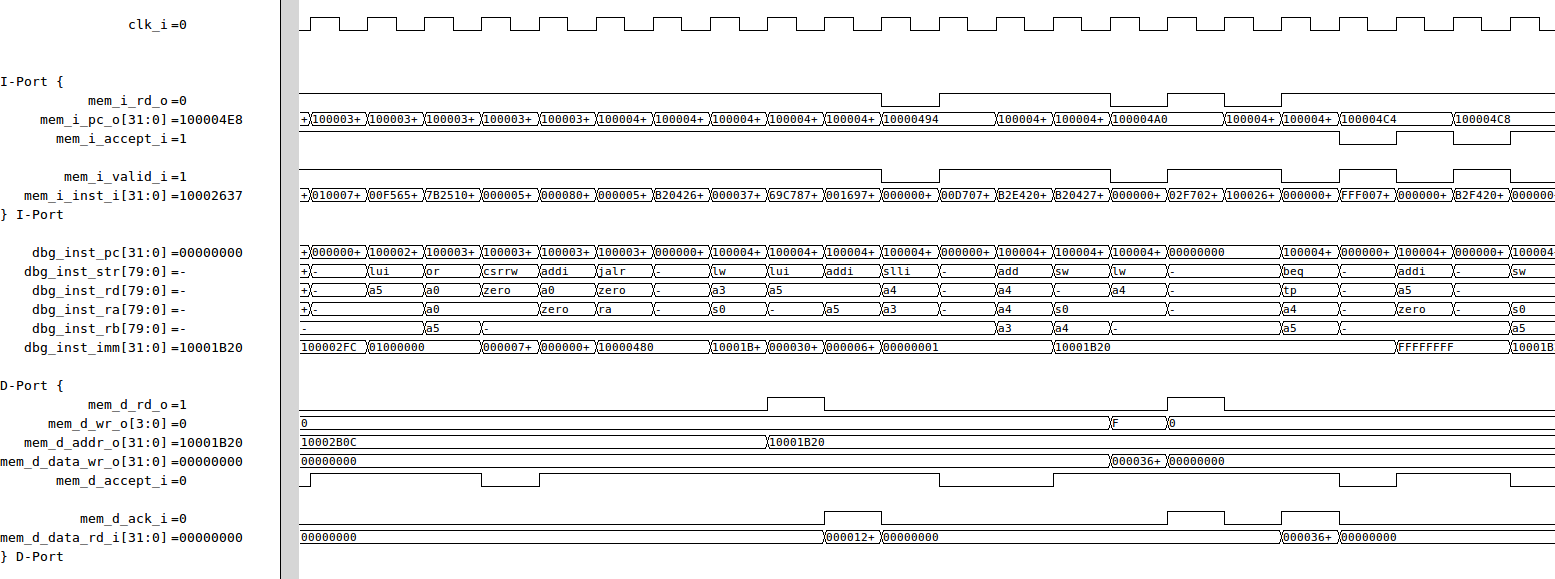

Execution Example

asic

cpu

fpga

pipeline-processor

risc-v

riscv-linux

rv32i

rv32im

verification

verilator

verilog
