Point2Pose

Occlusion-Recovering 6D Pose Tracking and 3D Reconstruction for Multiple Unknown Objects via 2D Point Trackers

European Conference on Computer Vision (ECCV) 2026

Tzu-Yuan Lin¹  ·  Ho Jae Lee¹  ·  Kevin Doherty^2,§  ·  Yonghyeon Lee¹  ·  Sangbae Kim¹

¹Massachusetts Institute of Technology    ²Boston Dynamics

^§Work conducted in personal time and independently of the author's affiliated organization.

📰 News and Updates

• [09/2026] Point2Pose now runs real-time at 30 Hz on a NVIDIA 4090 GPU!
• [09/2026] The live demo can now re-measure an object's bounding box from the fused SDF. Press b while tracking. Details
• [08/2026] Model-based Point2Pose is released along with Gaussian splats reconstruction!
• [06/2026] Point2Pose is accepted to ECCV 2026!

🎯 About

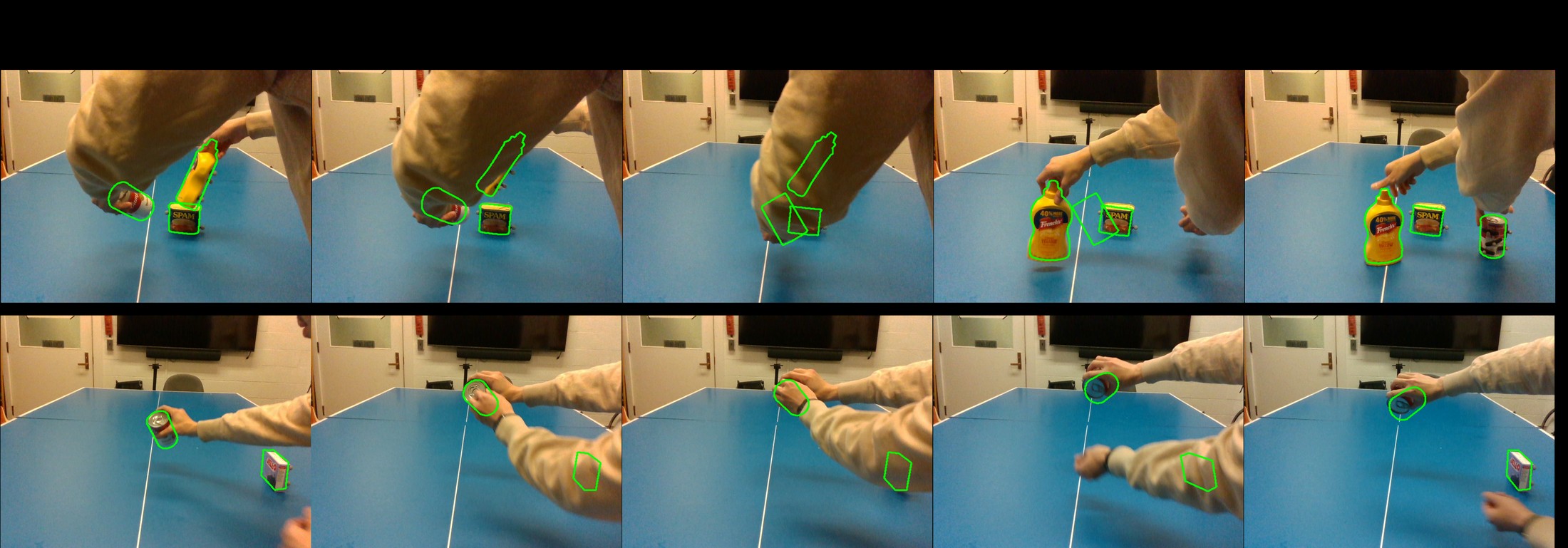

Point2Pose is a model-free method for causal 6D pose tracking of multiple rigid objects from RGB-D video, initialized from a few clicked image points. Long-range 2D point tracks keep correspondences alive, so a fully occluded object is re-localized the instant it reappears — and each target is reconstructed as a textured mesh while tracking.

Disclaimer

The readme is AI-generated. Please submit an issue if you find any problem.

🆕 Model-Based Point2Pose

We recently made a model-based variant of Point2Pose. The new framework supports:

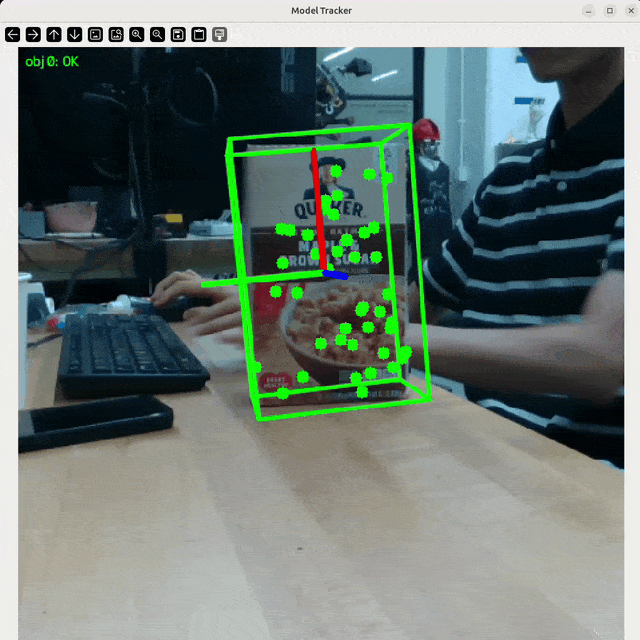

• Model-based tracking. Given a Gaussian or mesh model, the system can track its 6D pose. README
• Gaussian Splats Reconstruction. The new pipeline supports Gaussian splat reconstruction for higher visual modality. README

Model-based tracking and the 3DGS reconstruction pipeline are contributed by Sang Min Kim. Sangmin is a great researcher on 3D vision and robotics! Check out his other work

📑 Table of Contents

• About
• Installation
  • Swappable point trackers
  • Choosing a SAM2 checkpoint
• Model-Based Point2Pose
• RealSense Live Demo
  • Refining the object box from the SDF (b)
• Running on Datasets
• Configuration & Architecture
• Outputs and Logging
• Repository Structure
• Known Issues
• Acknowledgements
• License
• Citation

🛠 Installation

Tested on Ubuntu 22.04 with Python 3.11, PyTorch 2.4 + CUDA 12.1, and an NVIDIA RTX 4090.

1. Clone the repository

git clone --recurse-submodules git@github.com:tzuyuan/point-to-pose.git
cd point-to-pose

(Already cloned? git submodule update --init --recursive.)

2. Create the environment

conda env create -f environment.yml
conda activate point2pose

That is the whole setup — there is no package to install. Every entry-point script adds the repository root to sys.path, so run everything from the repository root and imports resolve on their own:

python examples/realsense_tracking/realsense_tracking.py
python experiments/ho3d/run_ho3d_single.py -v AP12 ...

The pins in environment.yml are the exact versions the paper results were produced with (Ubuntu 22.04 · Python 3.11 · CUDA 12.1 · RTX 4090). Three extras are commented out at the bottom of the file — uncomment what you need: pycuda (CUDA TSDF fusion, needs nvcc at install time), transformers (Track-On2 backend), lcm (LCM pose publishing).

python -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt
# other CUDA build: pip install -r requirements.txt --extra-index-url https://download.pytorch.org/whl/cu121

3. Third-party components

Three components are not on PyPI and must be installed from source. The quick route:

pip install --no-build-isolation -r requirements-third-party.txt

(--no-build-isolation matters — these packages import torch at build time.) Or clone them individually, which is preferable if you want to read or patch their code:

4. Download checkpoints

# SAM2 (from inside the segment-anything-2-real-time clone)
cd checkpoints && ./download_ckpts.sh
# then copy/symlink sam2.1_hiera_small.pt (default) and/or
# sam2.1_hiera_large.pt into point-to-pose/checkpoints/sam2.1/

# BootsTAPIR (default tracker)
wget -P checkpoints/tapir https://storage.googleapis.com/dm-tapnet/causal_tapir_checkpoint.npy

Expected layout (paths are configurable in the YAML configs):

checkpoints/
├── sam2.1/    sam2.1_hiera_small.pt          # segmentation (default)
│              sam2.1_hiera_large.pt          # segmentation (higher fidelity)
├── tapir/     causal_bootstapir_checkpoint.pt # default point tracker
├── tapnext/   tapnextpp_ckpt.pt              # optional tracker
└── trackon/   trackon2_dinov2_checkpoint.pt  # optional tracker

Choosing a SAM2 checkpoint

SAM2 runs on every frame, so which checkpoint you pick is the single biggest lever on live latency. The default config uses small; large is what the paper results were produced with.

_{*Measured on an RTX 4090 at 640×480, single object. Swap by editing the segmenter: block:}

segmenter:
  type: sam2
  params:
    model_cfg: configs/sam2.1/sam2.1_hiera_s.yaml   # _l.yaml for large
    checkpoint: <repo>/checkpoints/sam2.1/sam2.1_hiera_small.pt
    device: cuda

⚠️ Update the paths in the configs. The YAML files under configs/ currently contain absolute paths (/home/justin/code/point-to-pose/..., /home/justin/data/...). Point checkpoint_path, debug_dir, and pose_save_path at your own locations before running.

Swappable point trackers

The default tracker is BootsTAPIR (type: tapir). Four alternatives ship with the repo — all implement the same Tracker interface (initialize, add_query_points, track_once) and are selected purely by the tracker: block of the pipeline config. Example blocks for each are in configs/realsense/default.yaml.

* Tracker forward pass only, RTX 4090, at each tracker's benchmark resolution.

cd tapnet && git pull   # or: git checkout origin/main -- tapnet/tapnext tapnet/tapnextpp
wget -P checkpoints/tapnext https://storage.googleapis.com/dm-tapnet/tapnextpp/tapnextpp_ckpt.pt

cd third_party
git clone https://github.com/gorkaydemir/track_on.git
pip install mmcv==2.2.0 -f https://download.openmmlab.com/mmcv/dist/cu121/torch2.4/index.html
pip install "transformers>=4.56.1"

# DINOv2 backbone (default, ungated; ViT backbone auto-downloads from HF)
wget -O checkpoints/trackon/trackon2_dinov2_checkpoint.pt "https://huggingface.co/gorkaydemir/track_on2/resolve/main/trackon2_dinov2_checkpoint.pt?download=true"

# DINOv3 variants (better real-world numbers, esp. Track-On-R)
wget -O checkpoints/trackon/trackon2_dinov3_checkpoint.pt "https://huggingface.co/gorkaydemir/track_on2/resolve/main/trackon2_dinov3_checkpoint.pt?download=true"
wget -O checkpoints/trackon/track_on_r.pt "https://huggingface.co/gorkaydemir/track_on_r/resolve/main/track_on_r.pt?download=true"

cd third_party
git clone https://github.com/ImFusionGmbH/lite-tracker.git

🎥 RealSense Live Demo

Click a few points on any object in the live feed and Point2Pose starts tracking its 6D pose and reconstructing its mesh — no CAD model, no training.

Requirements

• Intel RealSense RGB-D camera (tested on D435i / D455), USB 3.0
• NVIDIA GPU with CUDA (≥8 GB recommended)
• pyrealsense2, SAM2 and TAPIR checkpoints in place

1. Set your camera serial

rs-enumerate-devices -s     # find your serial

Set it in the config you plan to use:

# configs/realsense/default.yaml
realsense:
  params:
    rs_serial: 941322070969

Other keys worth checking in the same file: pipeline.params.max_num_obj (how many objects to track), estimate_init_pose, debug_level, save_pose / pose_save_path, and the tracker: block.

configs/realsense/default.yaml is tuned for live tracking: TAPIR runs on a SAM-mask-centred crop (type: tapir_crop) at 256×256, all query points are refined in one chunk rather than the hardcoded 64, SAM2 runs the small checkpoint instead of large, and per-frame debug images are off. configs/realsense/default_high_res.yaml is the slower, higher-fidelity variant — 512×512, sam2.1_hiera_large, debug images on.

2. Run

conda activate point2pose
python examples/realsense_tracking/realsense_tracking.py     # 2D overlay only

3. Controls

Workflow: click 1–3 points on object #1 → press n → click points on object #2 → … → press s. A live SAM2 mask preview updates as you click, so you can verify the segmentation before committing. Once tracking starts, the window shows the masks, the tracked points, the estimated pose axes/box, and the frame counter.

Refining the object box from the SDF (b)

The box you get at startup is fitted to a single masked view, so it only covers the first visible surface and systematically underestimates the object along the viewing direction — the depth axis can come out at essentially zero. Since the pipeline is already fusing a TSDF of each object while it tracks, that volume is a much better thing to measure once you have looked at the object from a few sides.

Press b during a tracking session to start measuring the box from the fused SDF instead. The overlay reports which state you are in:

So the usual flow is: start tracking, walk the camera around the object, press b and watch the box settle, then press b again to lock it in. Pressing b re-measures immediately rather than waiting for the next keyframe, so the box responds to the keypress. A third press resumes estimating.

Measuring a fused TSDF needs some care, because depth noise and mask leakage both end up in the volume. Three filters run before the box is fitted:

• Observation weight — a voxel carved by one noisy depth pixel keeps a weight of 1 forever, while real surface is re-observed on every keyframe. This is what removes depth speckle.
• Morphological opening — deletes isolated voxels and one-voxel bridges that survive the weight test.
• Connected components — the filter that matters most. When the mask leaks onto the table or your hand, those fragments fuse as blobs disconnected from the object, and a box drawn around the union spans the empty gap between them. Only the largest connected surface is kept.

On a synthetic object of known size fused from 12 views, the refined box recovers the true extent exactly on clean depth and to within one voxel (4 mm) with 3 mm of depth noise, against a single-view baseline that misses the depth axis completely.

Tuning lives under reconstructor.params in the config: bbox_sdf_min_weight, bbox_sdf_open_iters and bbox_sdf_keep_component_ratio control the three filters above, bbox_sdf_min_integrations sets how much SDF coverage to wait for, and bbox_sdf_max_rel_extent_change rejects implausible jumps. bbox_sdf_refine_enable chooses which state the session starts in — it ships as false, so the box stays put until you ask for it. The feature needs sdf_backend: python_tsdf; nvblox keeps no dense grid to measure.

3D visualization (Rerun)

realsense_tracking_3d.py runs the exact same demo and adds a live 3D UI:

python examples/realsense_tracking/realsense_tracking_3d.py \
    --config configs/realsense/default.yaml \
    --viz-config configs/visualization/pose_3d_demo.yaml

Both flags are optional (without --viz-config, a visualization_3d: section in the pipeline config is used, otherwise built-in defaults). The Rerun viewer shows, on a scrubbable timeline:

• Object frame · map — the keypoint map, the growing TSDF mesh, camera trajectory, live-textured camera frustum, and keyframe frustums with RGB thumbnails.
• Camera frame · trails — the full map posed in the camera frame with fading per-point traces; the frustum turns red when tracking is lost and green again on recovery.
• RGB / Events — tracked points, SAM2 masks, and reprojection whiskers colored by pixel error.
• Residual / Tracking — residual (mm), inliers, tracked points, and FPS plots.

A button strip in the cv2 window toggles layers (map · mesh · kfs · traj · bbox · traces · 2d · mask · reproj) and cycles point coloring (track_id → inlier → frame_id → uncertainty → object). Set visualization_3d.rerun.save_rrd: ./debug/session.rrd to record the whole session and replay it later with rerun session.rrd — handy for cutting demo videos offline.

Other UI modes via ui_mode: web (viser, browser-based), combined (single cv2 dashboard with mp4 recording), windows (two Open3D windows). Full details: examples/realsense_tracking/README_3D_VIZ.md.

Recording sequences

To capture RGB-D for offline runs (saved in the YCBMultiTrack layout: rgb/, depth/ uint16 mm, cam_K.txt):

python examples/realsense_tracking/record_rgbd.py --out ~/data/my_take01 [--serial N]
# keys: r / space = start-stop recording, q / esc = quit

Demo troubleshooting

📊 Running on Datasets

Point2Pose is evaluated on HO3D-v3, YCBInEOAT, and our own YCBMultiTrack (synthetic + real). Every runner takes --data_path, --out_dir, and --config_path; the paper settings live in configs/ho3d_exp/eccv_final.yaml, configs/ycbineoat/eccv_final.yaml, and configs/ycbinisaac/eccv_final.yaml.

# HO3D — single sequence / all 13 evaluation sequences
python experiments/ho3d/run_ho3d_single.py -v AP12 \
    --data_path /path/to/HO3D_V3 --out_dir results/ho3d_single \
    -c configs/ho3d_exp/eccv_final.yaml
python experiments/ho3d/run_ho3d_all.py \
    --data_path /path/to/HO3D_V3 --out_dir results/ho3d_all \
    -c configs/ho3d_exp/eccv_final.yaml

# YCBInEOAT
python experiments/ycbineoat/run_ycbineoat_all.py \
    --data_path /path/to/YCBInEOAT -m /path/to/YCB_models_with_ply \
    --out_dir results/ycbineoat_all -c configs/ycbineoat/eccv_final.yaml

# YCBMultiTrack (synthetic + real)
python experiments/ycbinisaac/run_ycbinisaac_all.py \
    --data_path /path/to/YCBMultiTrack -m /path/to/YCB_models \
    --out_dir results/ycbinisaac_all -c configs/ycbinisaac/eccv_final.yaml

Each runner writes per-sequence poses, ADD / ADD-S AUC tables, error-vs-time plots, and exported meshes (Chamfer distance against the ground-truth mesh where available) into --out_dir. Ablations from the paper are driven by experiments/ho3d/run_ho3d_ablation.py, which sweeps every configs/ho3d_exp/eccv_abla_*.yaml config into its own output folder (--data_path, --config_glob, --output_root).

Dataset layout. YCBInIsaacReader / YcbineoatReader expect, per sequence: rgb/ (or jpg/), depth/, cam_K.txt, plus masks/<object>/ and annotated_poses/<object>/ for evaluation; Ho3dReader reads the standard HO3D evaluation/<seq>/ layout. See point2pose/io/sources/dataset/datareader.py.

🧩 Configuration & Architecture

The pipeline is a registry of interchangeable modules assembled from one YAML file. Every block has a type (registry key) and a params dict, so swapping a component never requires touching code.

Key pipeline parameters: max_num_obj, frame_reg_mode (f2f / f2m / hybrid), estimate_init_pose, use_graph_optimization, and the pose-jump-guard / map-growth gates. configs/realsense/default.yaml is the annotated reference config, tuned for live speed; configs/realsense/default_high_res.yaml is the higher-fidelity variant.

The object box normally comes from a single masked view, so it only covers the first visible surface. Setting reconstructor.params.bbox_sdf_refine_enable re-measures it from the fused TSDF instead, after noise rejection (per-voxel observation weight, morphological opening) and discontinuity removal (connected components, so mask leaks onto the table or hand do not stretch the box). The bbox_sdf_* keys in default.yaml document each filter.

Adding a new module is three steps: subclass the base class in point2pose/core/, decorate it with @TRACKER.register_module("my_tracker") (or the relevant registry), and point the config's type at the new key.

💾 Outputs and Logging

Set in the pipeline config:

pipeline:
  params:
    save_pose: true
    pose_save_path: /path/to/poses
    debug_level: 1                 # 0-2
    debug_dir: /path/to/debug

Full description: doc/pose_logging.md.

📁 Repository Structure

point2pose/
├── core/           base classes + module registry
├── data_types/     Frame, KeyFrame, PointTrackTable, results
├── io/             dataset readers, RealSense source, pose/point-cloud logging
├── modules/        segmenter · tracker · sampler · register · optimizer · criterion · reconstruction
├── pipeline/       ModularPipeline and its components
├── visualization/  Rerun / viser / Open3D dashboards
└── utils/          transforms, Lie algebra, evaluation, mesh metrics

configs/            per-dataset and per-experiment YAML (eccv_final.yaml = paper settings)
environment.yml     conda environment (requirements.txt carries the same pins for pip/venv)
examples/           RealSense live demo (2D, 3D viz, recorder)
experiments/        dataset runners, ablations, tracker sweep
scripts/            benchmarks, debug visualization, paper/poster figures
test/               pytest unit tests (`pytest`)
doc/                pose logging and RealSense tracker docs

⚠️ Known Issues

• OpenCV window hangs when importing torchvision first. With torchvision 0.19 + opencv-python 4.11, importing torchvision before the first cv2.namedWindow call makes that call spin forever. The tracker modules therefore defer heavy imports until construction — when writing new scripts with an OpenCV UI, create the window before constructing ModularPipeline (the RealSense demo already does this).
• Global bf16 autocast. The SAM2 segmenter module enables global bf16 autocast at import time; be aware if you mix in fp32-only ops (e.g. mmcv used by Track-On).
• numpy pinning. rerun-sdk ≥ 0.36 needs numpy ≥ 2, while numba (< 2.3) and tensorflow (< 2.2) impose upper bounds — numpy 2.1.3 satisfies all three.
• Absolute paths in configs. The shipped YAML files reference the authors' machine paths; update them for your setup.

🙏 Acknowledgements

This work builds on excellent open-source projects: SAM2 and its real-time fork, TAPIR / BootsTAPIR and TAPNext, Track-On2, LiteTracker, CoTracker3, LightGlue / SuperPoint, GTSAM, Open3D, and Rerun. We also thank the authors of BundleTrack, BundleSDF, and FoundationPose for their datasets and baselines.

📄 License

Released under the BSD 3-Clause License. Third-party components keep their own licenses — note in particular that CoTracker3 weights (used by cotracker3_online and litetracker) are CC BY-NC (non-commercial).

📚 Citation

If you find Point2Pose useful in your research, please cite:

@inproceedings{lin2026point2pose,
  title     = {Point2Pose: Occlusion-Recovering 6D Pose Tracking and 3D Reconstruction
               for Multiple Unknown Objects via 2D Point Trackers},
  author    = {Lin, Tzu-Yuan and Lee, Ho Jae and Doherty, Kevin and Lee, Yonghyeon and Kim, Sangbae},
  booktitle = {European Conference on Computer Vision (ECCV)},
  year      = {2026},
}
