Aldine

Write LaTeX together. Fast, versioned, yours.

Aldine is a slim, self-hosted, open-source LaTeX collaboration platform, an Overleaf alternative built for speed and simplicity. Real-time multi-cursor editing, every project a real git repo with branches, native Zotero, ~2s warm recompiles. Two containers and flat files by default: no database to migrate, nothing to babysit.

Homepage · Try the live demo (resets nightly) · Quick start · How Aldine compares · Screenshots · Self-hosting · Contributing

Live collaboration, a recompile, and a SyncTeX jump, in one real recording (compile wait trimmed):

Status: Aldine is young (v0.x). It compiles real papers daily and every headline feature has a Playwright end-to-end test, but expect rough edges. (CI runs typecheck, build, and the integration suites; the browser tests run locally, since they need a TeX Live container.) File issues generously.

Features

• Bring your Overleaf projects, and take them with you: download any Overleaf project as a ZIP, drop it on the home screen, keep writing — root file detected, first typeset automatic.

• Real-time collaboration: CRDT-based (Yjs), multi-cursor with live presence, conflict-free by construction. Unlimited collaborators.

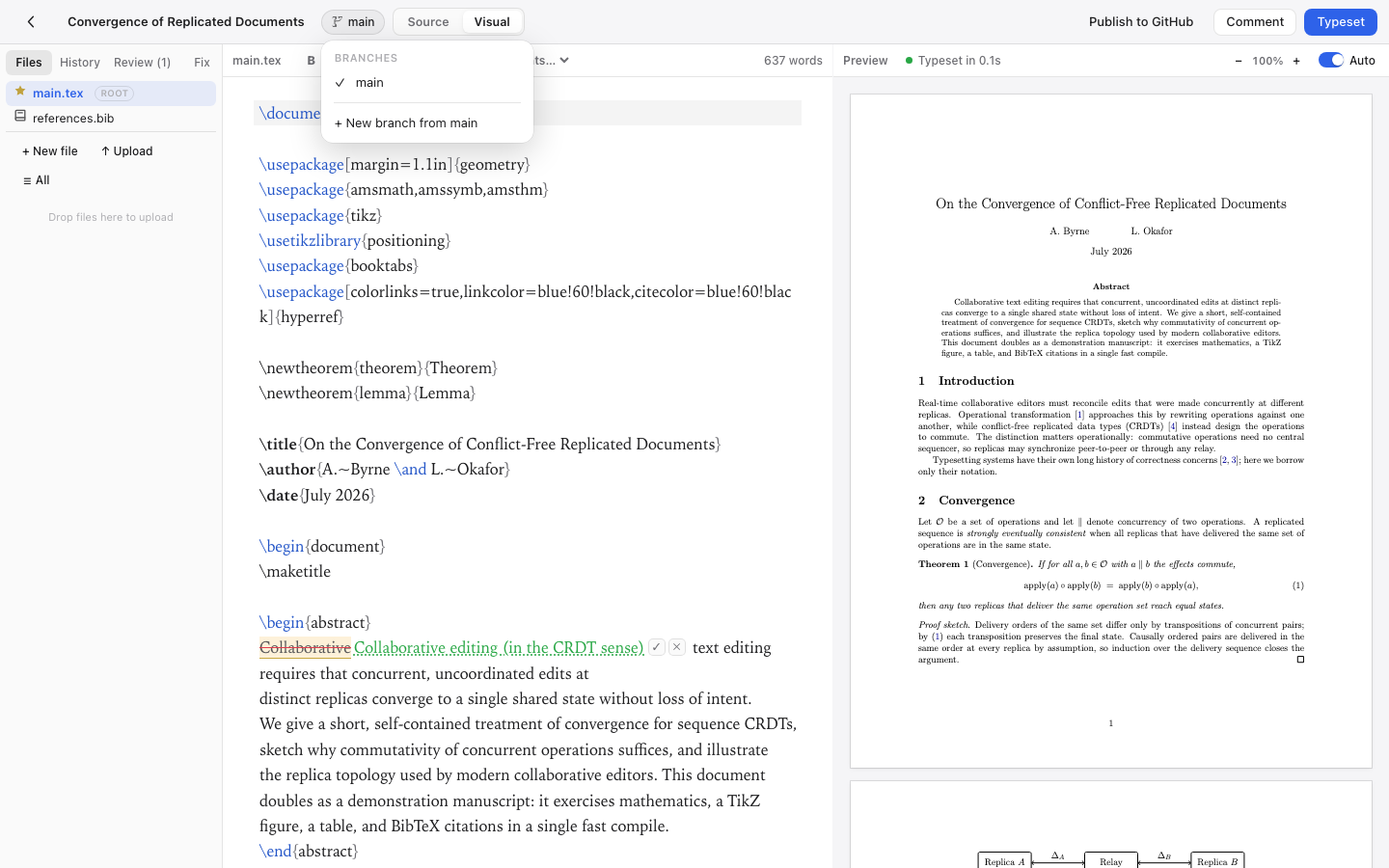

• Git-native with branches: every project is a real git repository. Create branches, edit them independently, merge back from the UI. Publish a project to GitHub, GitLab, Gitea or Forgejo and a co-author can clone it and keep using VS Code; their commits come back with one Pull.

• Fast, sandboxed compiles: TeX Live + latexmk with persistent incremental builds (~2s warm recompiles) in a no-egress container with restricted shell-escape; errors surfaced with line numbers and click-to-jump.

• GitHub/GitLab/Gitea/Forgejo sync: import from GitHub, GitLab, Gitea or Forgejo as a project or publish a local project to a fresh repo, push/pull with ahead/behind indicators, branches, conflict resolution, server-side autopush, and open a pull or merge request, all from the editor. gitlab.com and self-hosted GitLab, any Gitea or Forgejo instance (Codeberg included); a personal access token needs no OAuth app. A team instance can create every new project in a GitLab group automatically and push every autosave from the server.

• Native Zotero integration: link your whole Zotero library or a single collection, no premium tier required; keep a .bib in sync with cheap version-aware refresh, insert citations from a search panel or via \cite{ autocomplete.

• Claude as a collaborator (optional, ALDINE_MCP=1): connect your instance to claude.ai, Claude Desktop, Cowork or Claude Code over MCP and Claude edits, typesets and shows the PDF in the chat (inline on claude.ai, Claude Desktop and Cowork; a signed link elsewhere); every change is a git commit authored "Claude" with a review-and-revert toast in the editor. Setup, reachability and the security model: docs/AGENT_API.md.



Everything else: visual editor, review mode, AI error fix, SyncTeX, plugins, auth, scaling…

• Visual editing mode (experimental): LaTeX renders as formatted text while the source stays authoritative and byte-stable (it never rewrites source you didn't deliberately edit). WYSIWYG math (click an equation to edit it in a MathLive popover), editable tables, inline tracked changes from review suggestions, paste-rich-text-to-LaTeX, image-previewing figure chips, and an outline. Cursor-reveal shows raw source under the caret, including a remote collaborator's. Enable it in the command palette (⌘K), off by default.

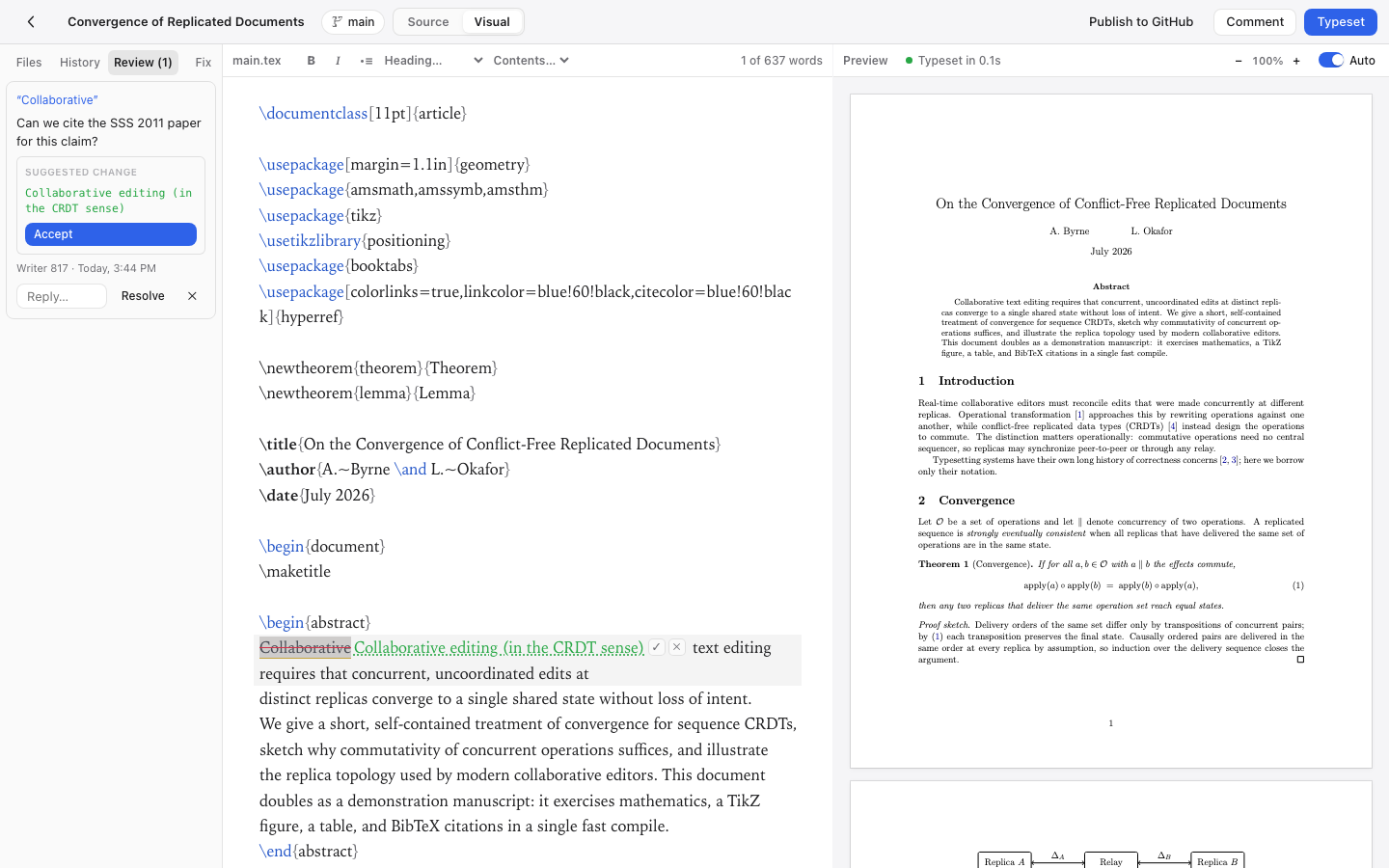

• Review mode: select text and leave an anchored, threaded comment; optionally attach a suggested replacement the author accepts with one click. Comments highlight in the editor, resolve/reopen, and track edits.
• AI error fix (optional, BYO key): on a failed typeset, get a plain-English diagnosis and one-click fixes. Set OPENROUTER_API_KEY, OPENAI_API_KEY, or ANTHROPIC_API_KEY on the server to enable (that precedence order if several are set; ALDINE_AI_MODEL overrides the model). The key stays server-side and never reaches the browser. Unset the key and Aldine is a 100% AI-free editor.
• Find and cite papers without leaving the editor: search the literature by title or author (OpenAlex), or paste a DOI / arXiv id — one click appends the BibTeX and inserts the \cite (no account, free public APIs).
• SyncTeX both ways: double-click the PDF to jump to source; ⌘J to jump the PDF to your cursor, with a highlight flash.
• Plugin system: manifest + ES module plugins add sidebar panels and write into the editor. Zotero, references, and AI-fix ship as plugins; write your own.
• Templates & import: article, IAC conference paper, beamer, report/thesis, plus your group's own templates from any git repository (TEMPLATE_REPOS); or import an existing project from an Overleaf ZIP.
• Editor niceties: auto-typeset on idle, live whole-document word count, spellcheck, PDF zoom + download, drag-drop figure upload, plain-English error hints + raw log, command palette (⌘K / Ctrl+K).
• Multi-user auth (optional): set AUTH_ENABLED=1 for login, per-project ownership, and sharing (invite-only or link). Google, GitHub & ORCID SSO, your own OpenID Connect provider (Keycloak, Authentik, Authelia, Pocket ID; docs/OIDC.md), or email/password (scrypt-hashed, revocable HTTP-only-cookie sessions); ALDINE_SSO_ONLY=1 disables passwords entirely. Off by default (single-tenant); the collab socket is access-checked. ALDINE_ADMIN_EMAILS=you@example.org opens /admin: accounts, active users (7 / 30 days, editing now), projects, compile time. Metadata only.
• Scales when you need it: flat-file storage by default; set DATABASE_URL for Postgres and REDIS_URL for shared rate limits and cross-node collab events. One app node is still the supported topology; docs/SCALING.md says exactly what is and isn't built.
• Apple-style UI: system fonts, hairline borders, light & dark mode, keyboard-first (⌘S typeset, ⌘J jump, ⌘K command palette).

Quick start

No clone, no build: save this as docker-compose.yml and run docker compose up -d:

name: aldine

services:
  app:
    image: ghcr.io/trahloff/aldine-app:${ALDINE_VERSION:-0.11.0}
    ports:
      - "8080:3000"
    volumes:
      - aldine-data:/data
      - aldine-secrets:/secrets
    networks: [frontend, backend]
    init: true
    restart: unless-stopped

  compiler:
    image: ghcr.io/trahloff/aldine-compiler:${ALDINE_VERSION:-0.11.0}${ALDINE_TEXLIVE:-}
    volumes:
      - aldine-data:/data
    # The compiler runs untrusted LaTeX. Keep this block.
    networks: [backend]
    mem_limit: 2g
    pids_limit: 256
    cap_drop: [ALL]
    security_opt: [no-new-privileges]
    init: true
    restart: unless-stopped

networks:
  frontend: {}
  backend:
    internal: true # no route to the internet

volumes:
  aldine-data:
  aldine-secrets:

Open http://localhost:8080. That's it. Projects live in the aldine-data volume, and everything else (auth, SSO, AI fix, email) is opt-in via environment variables when you want it.

That is the repo-root docker-compose.yml verbatim, so a clone works identically: git clone https://github.com/trahloff/Aldine && cd Aldine && docker compose up -d. Keep the name: aldine line wherever you save it: it fixes the volume names, which is what lets you switch compose files later and what deploy/backup.sh looks for.

• You are pinned to a version. The block above says ${ALDINE_VERSION:-0.11.0}, so a fresh copy installs the current release and nothing under a running install changes on its own. To upgrade, read the CHANGELOG, back up (deploy/backup.sh), then:

  ALDINE_VERSION=0.4.0 docker compose pull && docker compose up -d


  To roll back, set ALDINE_VERSION to the previous release and run the same command. Your projects live in the aldine-data and aldine-secrets volumes and an image swap does not touch them. :latest still exists and points at the newest release; pinning is what lets you choose when to move.

• Pre-1.0 stability. Versions follow SemVer with one caveat: before 1.0 a minor bump (0.3 to 0.4) may change behaviour or on-disk layout, a patch bump (0.4.0 to 0.4.1) will not. Every release is built from a commit that passed CI, and its images are booted and made to typeset a real document before :latest moves to them. Upgrades across a minor are not yet tested against existing data, so back up first. Watch the repo's Releases for security fixes: per SECURITY.md, only the latest release gets them.

• The first pull is big. TeX Live lives in the compiler image: about 1.1 GB compressed, 4.3 GB on disk. It carries TeX Live's medium scheme plus the pictures, latexextra and bibtexextra collections (pgfplots, tikz-cd, cleveref, todonotes, minted, biblatex, …), the publisher classes, and the Arabic, Persian, Cyrillic and Greek scripts; the one family it leaves out is CJK. After the first pull, starts take seconds. Ready when curl localhost:8080/api/health returns {"ok":true,"name":"aldine"}.

• Need a package it does not have? The missing-package error in the editor names it. Two ways to get it, and project settings show which image you are on:

  • Add just that package. Put a docker-compose.override.yml next to docker-compose.yml that builds a derived compiler image, then docker compose up -d --build. tlmgr installs from the same dated TeX Live snapshot the release was built from, so this keeps working after the release ages:

    services:
      compiler:
        image: aldine-compiler-local
        build:
          dockerfile_inline: |
            FROM ghcr.io/trahloff/aldine-compiler:0.11.0
            RUN tlmgr install pgfplots tikz-cd


    Bump the FROM tag when you bump ALDINE_VERSION. Compose builds the image on your machine, so this works for arm64 servers as well.
  • Get everything. Every release from 0.4.0 also ships all of TeX Live as -full (about 2.8 GB compressed, 9 GB on disk; CJK is only here). Add ALDINE_TEXLIVE=-full next to ALDINE_VERSION and pull again.

• Port 8080 taken? Change the left side of ports:; with docker-compose.full.yml, set ALDINE_PORT=8081 in .env instead.

• Everything beyond the minimum: building from source (latest main, not a release), auth/SSO/AI/email options, TLS, Postgres/Redis. All of it lives in docker-compose.full.yml, which carries the same compiler sandbox and the same volumes, so you can switch without losing data: docker compose -f docker-compose.full.yml up -d --build. The first build installs TeX Live into the compiler image; expect 20–60 minutes (the tlmgr install step is most of it), then seconds per start. ALDINE_TEXLIVE_SCHEME=full builds the all-of-TeX-Live variant instead.

How Aldine compares

If Overleaf CE fits you, use it; it's good software. Aldine exists for people who want track changes, git, and Zotero without paid tiers, in a deployment they can hold in their head.

Screenshots

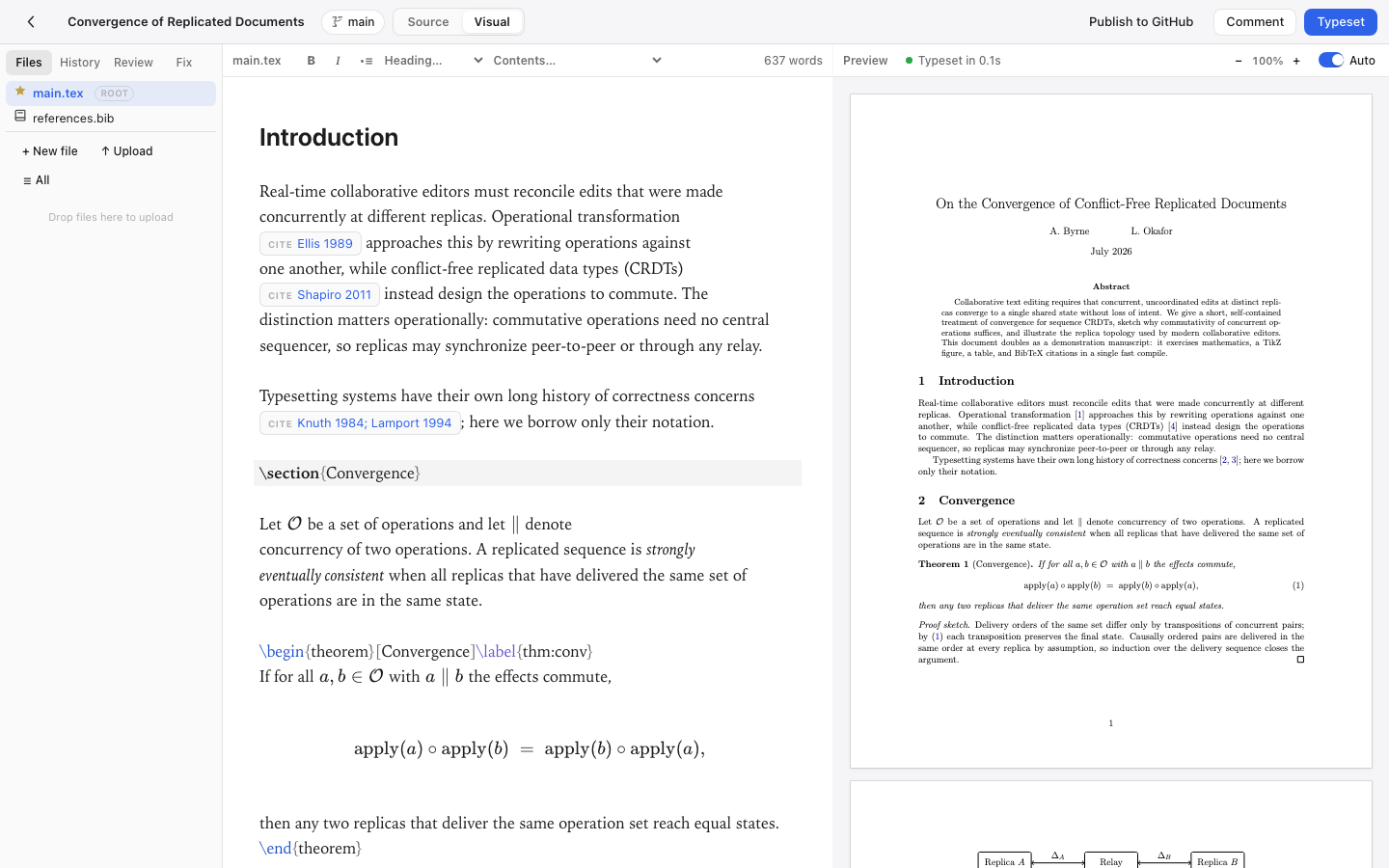

Visual editing (experimental): the source rendered as formatted text, byte-stable, with math and tables editable in place. Enable via ⌘K.

Development

npm install
npm run dev:server     # API + collab on :3000
npm run dev:web        # Vite on :5173 (proxies to :3000)
docker build -t aldine-compiler apps/compiler
docker run -d -p 4020:4020 -v $PWD/.data:/data aldine-compiler

Tests

npm run typecheck -w apps/web && npm run test -w apps/web   # tsc + vitest
npm run test:github -w apps/server                          # GitHub-sync integration
npm run test:gitlab -w apps/server                          # GitLab-sync integration
npm run test:gitea -w apps/server                           # Gitea/Forgejo-sync integration
npm run test:db -w apps/server                              # datastore conformance

End-to-end (Playwright; covers compile, collab, branches, plugins, Zotero). The suite starts its own app on :3100 but not the compiler, and it runs against .data-e2e, so the compiler has to point at that directory or every compile test fails against a healthy-looking compiler:

npx playwright install chromium
DATA_DIR=$(pwd)/.data-e2e PORT=4020 node apps/compiler/server.js &   # or a container on the same dir
npm run test:e2e
ALDINE_URL=http://localhost:8080 npm run test:e2e   # against a running compose stack instead

Production deploy

Settings live in a .env file next to the compose files, so every later docker compose call picks them up. Give each comment its own line: anything after a value becomes part of the value, and AUTH_ENABLED=1 multi-user login is not 1, so auth silently stays off.

# app on loopback only; your reverse proxy fronts it
ALDINE_APP_BIND=127.0.0.1
# absolute URL of the app, used in OAuth callbacks, password-reset links and
# the PDF links the MCP connector hands out. Give it a path to serve Aldine
# under a prefix (https://server/internal/aldine); the Claude connector URL
# is <ALDINE_PUBLIC_URL>/mcp
ALDINE_PUBLIC_URL=https://aldine.example.com
# signs the connector's 15-minute PDF links; generated into META_DIR when
# unset — set it explicitly when several nodes do not share that volume.
# At least 32 characters (`openssl rand -base64 32`); shorter values refuse to boot
ALDINE_SIGNING_SECRET=
# MCP endpoint for Claude (docs/AGENT_API.md); needs AUTH_ENABLED=1 or ALDINE_MCP_TOKEN
ALDINE_MCP=
# static bearer for /mcp with auth off (single-tenant); ignored when AUTH_ENABLED=1
ALDINE_MCP_TOKEN=

# Everything below is optional and off unless set.
# multi-user login, ownership and sharing (unset = single-tenant)
AUTH_ENABLED=1
# Google SSO
GOOGLE_OAUTH_CLIENT_ID=
GOOGLE_OAUTH_CLIENT_SECRET=
# GitHub SSO
GITHUB_LOGIN_CLIENT_ID=
GITHUB_LOGIN_CLIENT_SECRET=
# ORCID SSO: a Public API client (orcid.org/developer-tools, HTTPS callback
# <ALDINE_PUBLIC_URL>/api/auth/oauth/orcid/callback); ORCID_SANDBOX=1 for sandbox.orcid.org
ORCID_CLIENT_ID=
ORCID_CLIENT_SECRET=
# OpenID Connect SSO (Keycloak, Authentik, Authelia, Pocket ID, …): redirect URI
# <ALDINE_PUBLIC_URL>/api/auth/oauth/oidc/callback; every option in docs/OIDC.md
OIDC_ISSUER=
OIDC_CLIENT_ID=
OIDC_CLIENT_SECRET=
OIDC_LABEL=
OIDC_ALLOWED_GROUPS=
# GitHub repo sync: a separate OAuth app with repo scope
GITHUB_CLIENT_ID=
GITHUB_CLIENT_SECRET=
# GitLab sync (gitlab.com or self-hosted); PAT connect works without these
GITLAB_URL=https://gitlab.com
GITLAB_CLIENT_ID=
GITLAB_CLIENT_SECRET=
# Gitea / Forgejo sync needs nothing here: users paste a token and their instance URL
# REMOTE_PROVIDERS=github,gitlab,gitea   # hide a provider by leaving it out
# Optional: every new project is also created on GitLab in this group (service
# account PAT with scope api and Owner on the group). Off unless both are set.
GITLAB_TOKEN=
GITLAB_DEFAULT_GROUP=
# GITLAB_DEFAULT_VISIBILITY=private   # or internal | public
# AUTOPUSH_DEBOUNCE_MS=30000
# AI error fix, bring your own key
OPENROUTER_API_KEY=
# password-reset email: SMTP, or SES_FROM + AWS_REGION instead
SMTP_HOST=
SMTP_PORT=587
SMTP_USER=
SMTP_PASS=
SMTP_FROM=
# error tracking, and which instance the errors came from
SENTRY_DSN=
SENTRY_ENVIRONMENT=production
# Templates from your own git repositories (see templates/README.md)
# TEMPLATE_REPOS='[{"id":"lab","label":"Lab templates","url":"https://gitlab.example.org/latex/templates.git","tokenEnv":"TEMPLATE_REPO_LAB_TOKEN"}]'
# TEMPLATE_REPO_LAB_TOKEN=

# Behind your existing reverse proxy (nginx, Traefik, …), the usual setup. The
# prod overlay trusts proxy headers, sets secure cookies, and rotates logs;
# point your proxy at 127.0.0.1:8080.
# Sample nginx vhost (WebSocket + body-size gotchas handled): deploy/nginx.conf
docker compose -f docker-compose.full.yml -f deploy/docker-compose.prod.yml \
  up -d --build

# …or, if nothing else owns ports 80/443, add the bundled Caddy for
# zero-config HTTPS: append `--profile tls` and set ALDINE_DOMAIN in .env.

# Back up the data + secrets volumes:
deploy/backup.sh aldine-backup.tar.gz
# Restore, after stopping the stack with `docker compose down`:
#   deploy/restore.sh aldine-backup.tar.gz

Every variable Aldine reads is listed in deploy/README.md.

Isolation & limits. The compiler runs on an internal-only Docker network (no internet egress), drops all Linux capabilities, and is bounded on CPU / memory / PIDs; LaTeX compiles with restricted shell-escape (whitelist only) and openin_any=p. Per-client rate limits guard login, AI, and reference lookups; compiles are concurrency-capped, with optional per-user compile quotas (ALDINE_COMPILE_QUOTA_MIN) if you host for a group.

See deploy/README.md for the full single-VPS runbook (nginx/Traefik/Caddy ingress, backups, SSO setup, Postgres/Redis, every config variable), deploy/aws for a Terraform/Fargate deployment, and SECURITY.md for the threat model and how to report vulnerabilities.

Architecture

┌────────────┐   HTTP/WS    ┌──────────────────────────────┐
│  Browser   │ ───────────► │  app (Node 22)               │
│  React +   │              │  Fastify API + Hocuspocus    │
│  CM6 + Yjs │              │  git repos + worktrees       │
└────────────┘              └──────────┬───────────────────┘
                                       │ shared volume /data
                            ┌──────────▼───────────────────┐
                            │  compiler (TeX Live medium)  │
                            │  latexmk wrapper, sandboxed  │
                            └──────────────────────────────┘

• One Yjs document per file per branch (project::branch::path), persisted straight to the git worktree with debounced writes and auto-commits.
• Branches are git worktrees, so every branch is editable concurrently.
• Compile output stays inside the project tree (.aldine-out/, kept out of git history) which keeps latexmk's incremental cache warm.

Data & storage

Two separate concerns, behind two seams:

• Project files: real git repos + worktrees on disk (store.ts). This is what gives you branches and history.
• Relational/metadata: users, sessions, project metadata, review comments, and usage go through the DataStore interface (db/). Two backends:
  • JSON files (default, zero-dependency): the slim single-node self-host.
  • Postgres (set DATABASE_URL): the horizontally-scalable backend, and the prerequisite for ever running multiple app nodes. pg is an optional dependency; the same conformance suite runs against both.

For how this scales past one box (and what the remaining walls are), see docs/SCALING.md.

Plugins

A plugin is a folder in plugins/:

plugins/hello/
├── manifest.json   # { "id": "hello", "name": "Hello", "version": "1.0.0", "entry": "index.js" }
└── index.js        # export default { activate(aldine) { ... } }

The aldine API exposes ui.registerSidebarPanel, editor.insertAtCursor, project context, compile(), toast(), and fetch(). See plugins/zotero for a complete example.

Templates

A template is a folder with a template.json and the files to start from; the shipped ones live in templates/. A group that keeps its own thesis, poster or report templates puts the same layout in any git repository (GitHub, GitLab, Gitea, a bare repo over https), lists it in TEMPLATE_REPOS, and the templates appear in the gallery under the repository's name, refreshed on an interval or with "Refresh templates", with {{PROJECT_NAME}}, {{AUTHOR}} and {{DATE}} filled in on create. Layout, manifest fields, placeholders and private-repository tokens: templates/README.md.

License

Copyright (C) 2026 Tobias Rahloff.

AGPL-3.0: self-host freely; if you offer a modified Aldine as a service, share your changes. Third-party plugins interact with Aldine over its plugin API and may use any license. Each folder under templates/ carries its own LICENSE and states it in template.json (the gallery shows it on the tile): the generic templates are MIT, and templates/iac-paper is LPPL-1.3c, the customary license for a LaTeX class file. Venue templates are generated from the classes installed in the compiler image, with the license tlmgr reports; no publisher file is stored in this repository. Overleaf is a trademark of its owners; Aldine is an independent project, not affiliated with or endorsed by Overleaf.

Two things stated plainly, because finding them out later feels like a bait-and-switch. A hosted Aldine service is planned, and contributions are accepted under a CLA that permits relicensing, so a commercially licensed edition is possible in future. What will not change: the self-hosted edition stays AGPL-3.0, and no feature that works today moves behind a paid tier. The name is handled separately in TRADEMARK.md.
