GoLibAFL

Introduction

This project provides a setup for fuzzing golang binaries using LibAFL. By leveraging Go’s native libFuzzer-compatible instrumentation (sancov_8bit), we enable advanced fuzzing capabilities beyond Go’s built-in fuzzing support.

• In-process fuzzing for maximum performance.
• Coverage-guided fuzzing with comparison tracing support for guided mutation.
• Interoperability with Go via Foreign Function Interface (FFI).

Performance

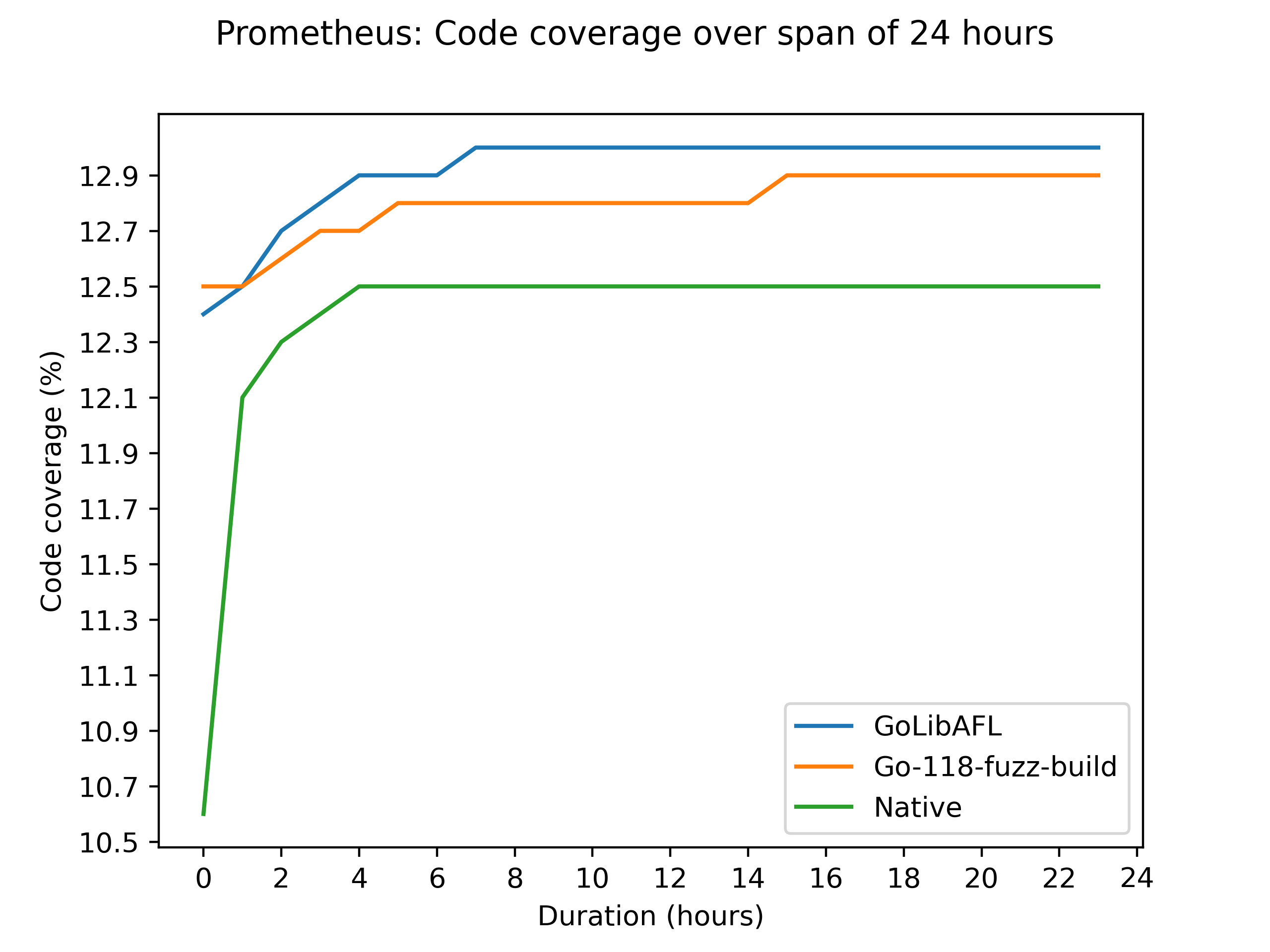

Across all our 24-hour benchmarks, GoLibAFL consistently achieved higher code coverage than existing Go fuzzing solutions. Below is the result for the prometheus target. For the results of the other two targets refer to the images directory.

Installation

Requirements

• Go 1.18 or later (recommended: latest version)
• Rust (nightly toolchain recommended for optimizations)
• Cargo and Rust toolchain installed

Building and running a fuzzer

1. Clone the repository:

   git clone <repo-url>
   cd <repo-name>


2. Define your golang harness (see below)

3. Define the harness location with the environement variable HARNESS:

   export "HARNESS=harnesses/prometheus"


4. Optionally, define the location of the go binary with the GO_PATH environment variable:

   export "GO_PATH=path/to/go/binary"


5. Build and run the Rust-based LibAFL fuzzer:

   cargo run --release -- fuzz


   or

   docker build --build-arg HARNESS="harnesses/prometheus" -t golibafl .
   docker run -v ./output:/golibafl/output golibafl


For an elaborate description of how to fuzz one of the example targets, refer to the README

Usage

Defining a harness in Go

To define a harness, create a function named harness within the main package that accepts a byte slice as input:

package main

func harness(data []byte) {
}

Next, initialize a Go module and download its dependencies:

go mod init fuzz
go mod tidy

Running a specific input

To execute the harness with a specific input, run:

cargo run -- run -i <path_to_input>

If no input path is provided, the default input directory is ./input.

Available options

To see the available command-line options for a subcommand, use:

cargo run -- fuzz --help
cargo run -- run --help

Troubleshoot

Issues on macOS

Undefined symbols for architecture arm64

While fuzzing on macOS, you might encounter issues like:

  = note: Undefined symbols for architecture arm64:
            "_CFArrayAppendValue", referenced from:
                _runtime.text in libharness.a[2](go.o)

If that is the case, update the build.rs and add the missing framework(s) missed within the #[cfg(target_os = "macos")] block, for example:

println!("cargo:rustc-link-lib=framework=CoreFoundation");
println!("cargo:rustc-link-lib=framework=Security");
println!("cargo:rustc-link-lib=framework=SystemConfiguration");
println!("cargo:rustc-link-lib=dylib=resolv");

You can find the missing frameworks by Googling the missing symbol. Here _CFArrayAppendValueis missing which is in CoreFoundation, thus the cargo:rustc-link-lib=framework=CoreFoundation.

Performance optimization

• Use Rust nightly toolchain for optimized memory mapping.
• Upgrade Go to at least version 1.23 to avoid cgo stack bound performance issues.

License

This project is licensed under the Apache 2.0 License.
