lucidVIEW

NOTE: This project uses libraries which now require an OSMF https://opensourcemaintenancefee.org/ as such no further development will be done with the current dependencies

The cross-platform markdown viewer that doesn't wrap a browser. Native Avalonia rendering, mermaid diagrams via the bundled Naiad engine, real print, PDF export, seven themes, and a self-documenting in-app User Manual. Single executable, ~50 MB. By mostlylucid.

---

Why?

Every other markdown viewer either:

• Wraps a Chromium browser (100MB+ bloat, slow startup, weird font rendering)
• Looks like it's from 2005
• Doesn't render mermaid diagrams without an internet round-trip
• Can't open a .md file you double-click

lucidVIEW does none of those. It's a real native desktop app that opens instantly, prints to your printer, and renders mermaid offline.

---

Features

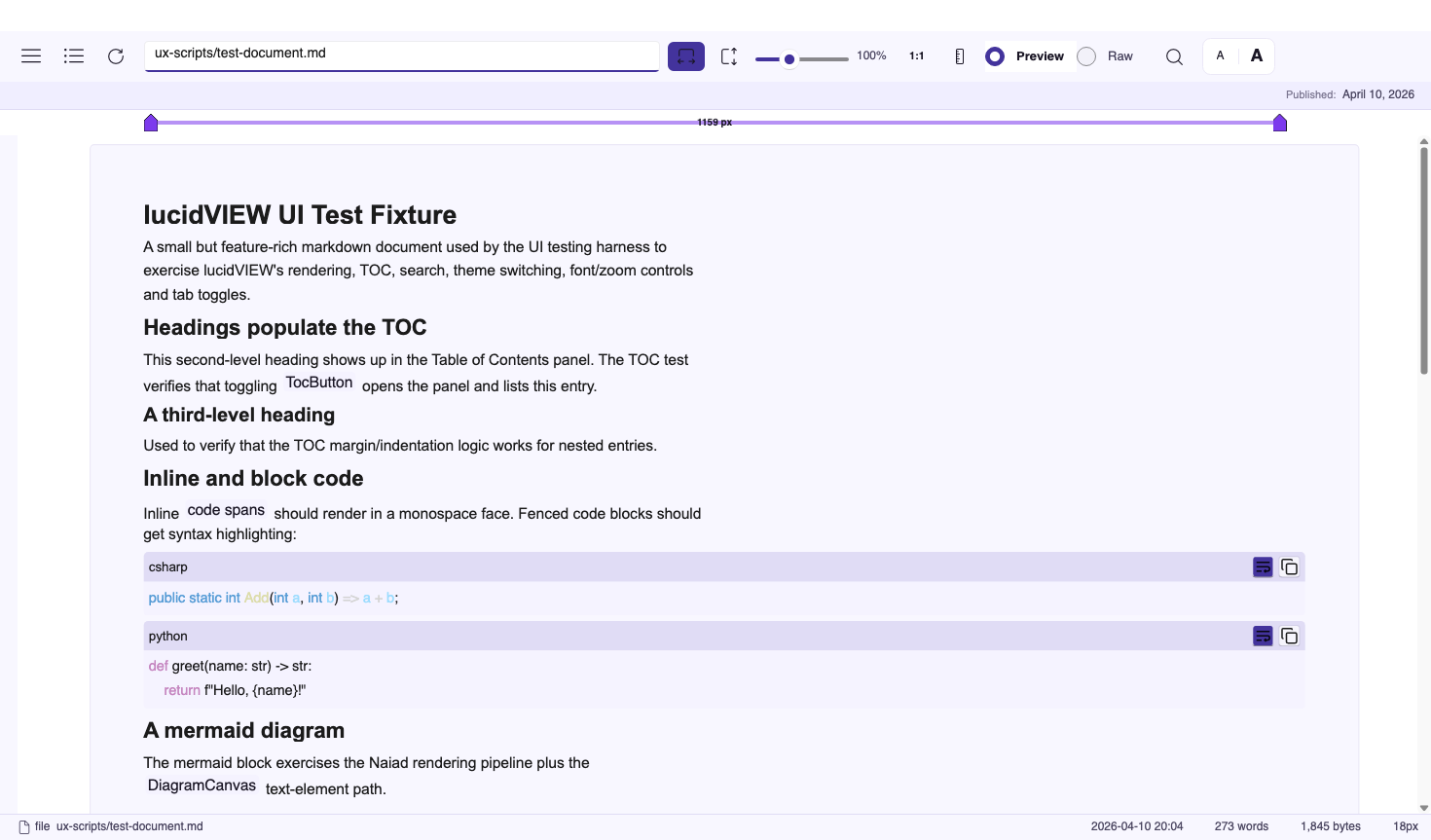

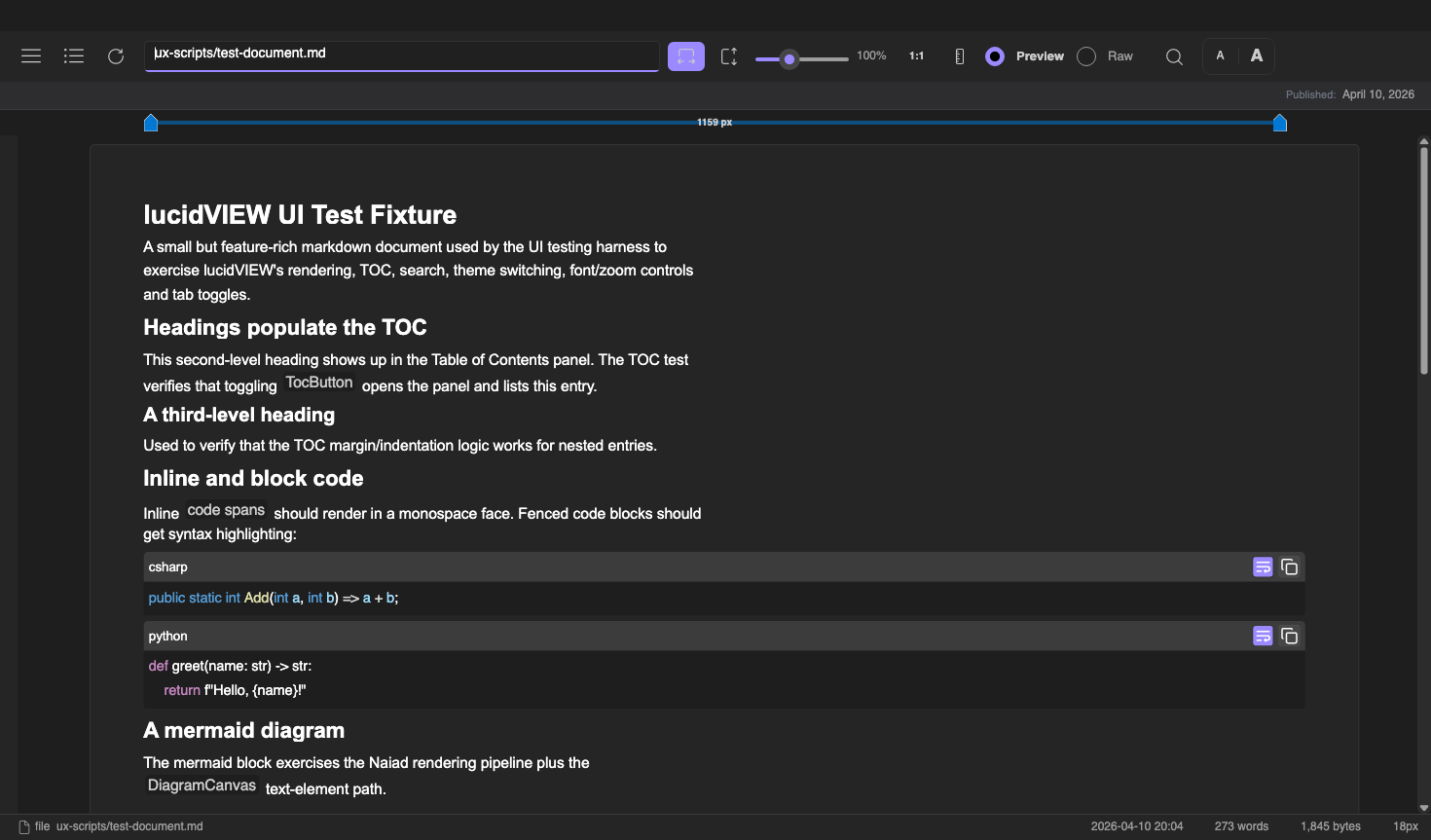

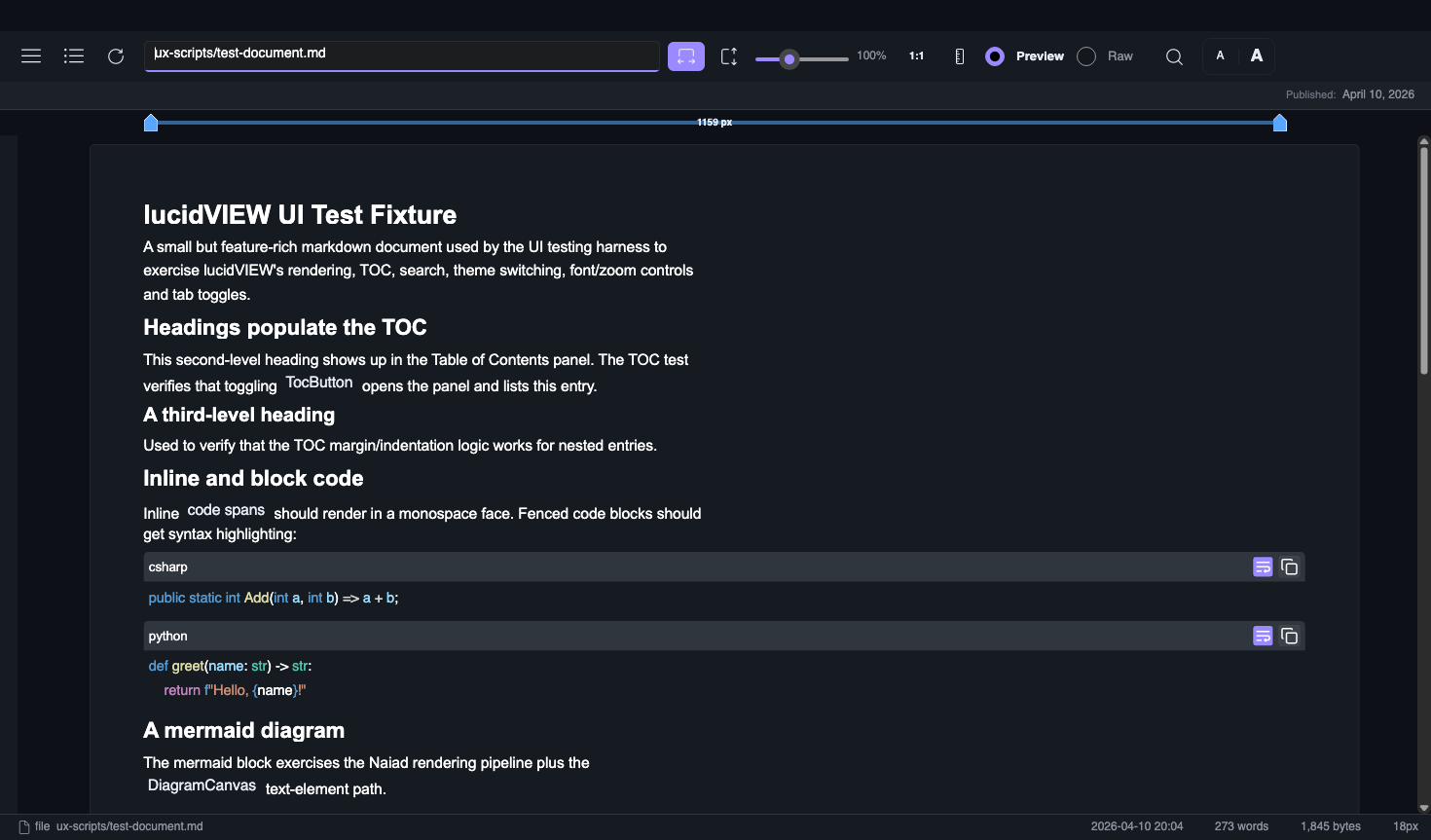

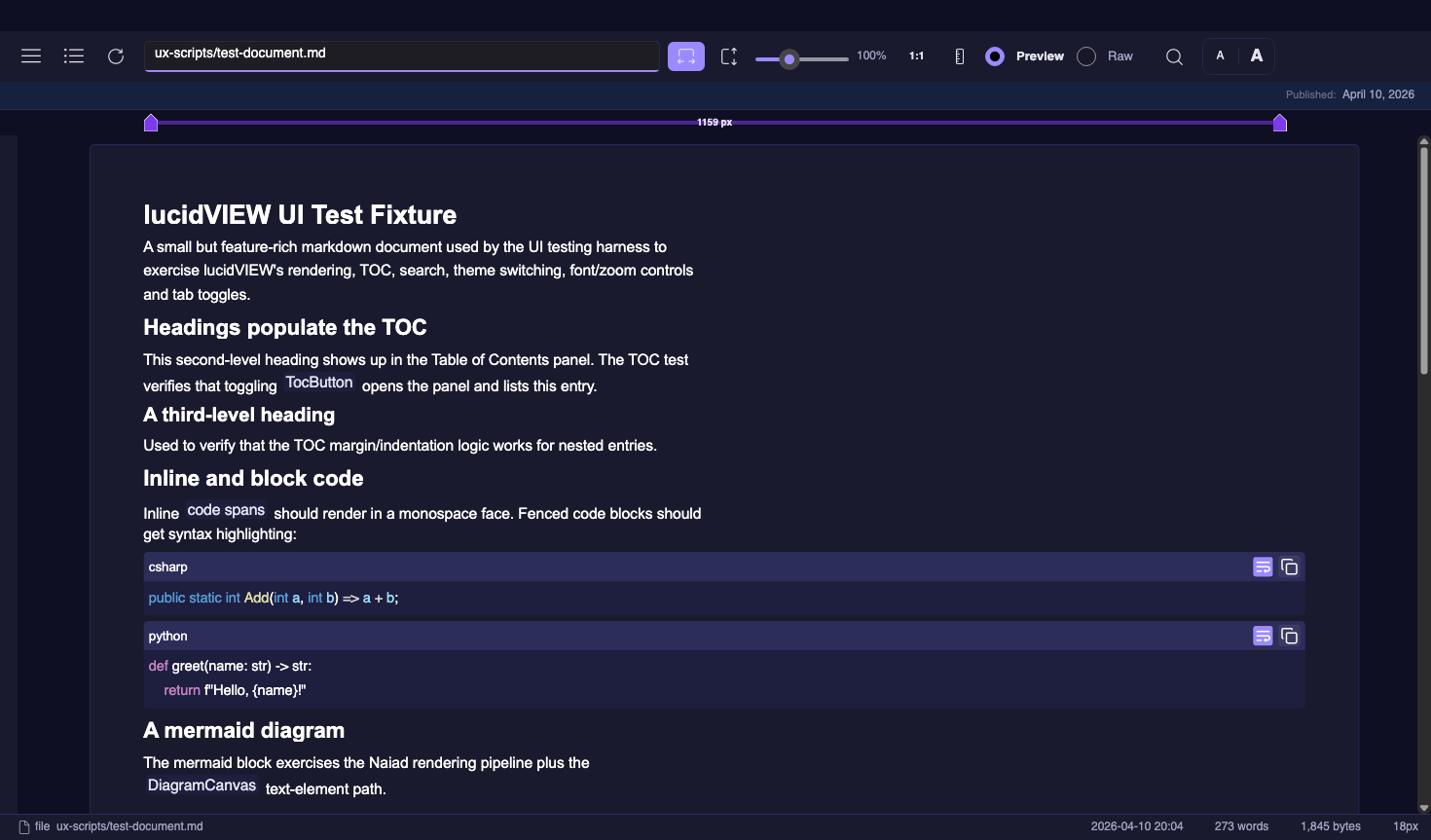

Themes at a glance

The full feature walkthrough lives in the in-app User Manual — press F1 from inside lucidVIEW or read MarkdownViewer/Assets/manual/user-manual.md.

Large local files

Files of 16 MiB or more open in a separate read-only reader. It builds a sparse line index without loading the whole file, then loads only the current page. Drag the scrollbar, enter a line number (or line:column), or use Page Up/Down and Ctrl+Home/End. Ctrl+F opens literal text search; Enter and Shift+Enter find the next or previous match, including multiple matches on one line. Search can be cancelled.

UTF-8 and BOM-marked UTF-16/UTF-32 files are supported, with LF, CRLF, or CR line endings. Markdown initially shows source while a streaming parser finds complete block boundaries. Preview then renders one page with the normal native Markdown and diagram control. Ordinary code blocks, lists, and tables stay together; blocks exceeding 512 lines or the 256 KiB page budget use source fragments. Reference links defined on other pages are collected up to a 256 KiB metadata budget. Heading links navigate across pages, including duplicate titles, setext headings, and explicit IDs. Footnotes across pages can differ from a full-document render; heading IDs that depend on reference definitions elsewhere in the file can also differ. The Preview/Source button provides access to the Markdown source.

Source pages contain up to 120 lines or 65,536 characters. Longer lines continue across pages; Page Up/Down reaches their complete contents. UTF-16 surrogate pairs remain together. Byte checkpoints added while reading make revisiting a late column efficient. Search opens the page containing the exact match and shows a separate context snippet. The index detects file changes and asks you to reopen the file. Editing and whole-document PDF export are available through the regular reader for smaller files.

The reader uses buffered asynchronous file access with sparse byte offsets and keeps one page in the visual tree. Memory mapping alone would leave the costs of decoding, Markdown parsing, and controls for the whole document; those costs are bounded separately here. Index memory scales with line checkpoints, pages, and headings. Heading entries store 128-bit fingerprints and source line numbers; the index does not retain heading text or inline trees.

---

Install

Grab the latest release from https://github.com/scottgal/lucidview/releases.

🪟 Windows

cd $env:USERPROFILE\Downloads
Expand-Archive lucidVIEW-win-x64.zip -DestinationPath "$env:LOCALAPPDATA\Programs\lucidVIEW" -Force
& "$env:LOCALAPPDATA\Programs\lucidVIEW\lucidVIEW.exe"

On first launch SmartScreen may flag the unsigned binary — click More info → Run anyway.

🍎 macOS

One-liner — downloads the latest release for your CPU architecture, clears the Gatekeeper quarantine attribute, drops the bundle into /Applications and opens it:

curl -fsSL https://raw.githubusercontent.com/scottgal/lucidview/main/Scripts/install-macos.sh | bash

Inspect Scripts/install-macos.sh first if you prefer — it only runs curl, unzip, xattr -dr com.apple.quarantine, and mv against the lucidVIEW bundle.

If you'd rather drive it by hand:

cd ~/Downloads
unzip -o lucidVIEW-osx-arm64.zip            # or osx-x64 on Intel
xattr -dr com.apple.quarantine lucidVIEW.app
mv lucidVIEW.app /Applications/
open /Applications/lucidVIEW.app

Why the xattr step is necessary. The release bundle is ad-hoc codesigned (codesign --sign -) but not Apple Developer ID-signed and not notarized. Without the quarantine-clear, the first launch hits Gatekeeper and shows "lucidVIEW is damaged and can't be opened" — that message is misleading; the binary is fine, macOS just doesn't trust unsigned code from the internet. Removing com.apple.quarantine tells the OS the user has made an explicit decision to run it. (Proper notarization would skip this step but needs a paid Apple Developer account.)

🐧 Linux

cd ~/Downloads
unzip -o lucidVIEW-linux-x64.zip -d ~/.local/opt/lucidVIEW
chmod +x ~/.local/opt/lucidVIEW/lucidVIEW
ln -sf ~/.local/opt/lucidVIEW/lucidVIEW ~/.local/bin/lucidview
lucidview

Printing requires CUPS (sudo apt install cups on Debian/Ubuntu).

---

Usage

lucidVIEW path/to/document.md       # opens directly
lucidVIEW                           # welcome screen, then drag/drop or Ctrl+O

Shortcuts

---

Build from source

git clone https://github.com/scottgal/lucidview.git
cd lucidview
dotnet run --project MarkdownViewer/MarkdownViewer.csproj

Publish a single-file binary for your platform:

pwsh ./publish.ps1 -Platform osx-arm64    # win | linux | osx-x64 | osx-arm64 | all

The macOS targets assemble a proper .app bundle. See docs/macos-bundle.md for the full bundle layout and docs/windows-store.md for the MSIX packaging flow.

UI testing

lucidVIEW ships with a Debug-only UI testing harness (Mostlylucid.Avalonia.UITesting) that drives the app from YAML scripts:

dotnet run --project MarkdownViewer -- --ux-test --script ux-scripts/smoke-all-functions.yaml --output ux-results
dotnet run --project MarkdownViewer -- --ux-repl    # interactive REPL
dotnet run --project MarkdownViewer -- --ux-mcp     # MCP server for LLM-driven testing

The same harness regenerates the in-app User Manual screenshots (ux-scripts/capture-manual.yaml).

---

Naiad fork

lucidVIEW bundles a fork of Naiad (Simon Cropp's pure C# Mermaid renderer), published as Mostlylucid.Naiad. The fork extends upstream with:

• 12 additional diagram types — Dendrogram, Bubble Pack, Voronoi, Parallel Coordinates, Geo Map, BPMN, Wireframe skin pack, and more
• Multiple render surfaces — core SVG plus SkiaSharp, ImageSharp, Blazor, and WebAssembly targets
• Plugin system — render-surface plugins, skin packs, fluent API plugins
• Mostlylucid.Dagre layout engine — a C# port of dagre with improved edge routing
• Tulip TLP graph format import/export
• Theming — light/dark themes, Mermaid %%init%% directive support

The intention is to contribute these changes back upstream. See the full Naiad README for diagram previews and documentation.

Diagram examples

All rendered natively by Naiad — no browser, no JavaScript, no external services.

---

Stack

---

lucidVIEW-FULL: the dogfood sibling (not a download)

Alongside the lean MarkdownViewer/ project there is a second exe in the repo, MarkdownViewer.Full/. It is never published. There is no download link, no release artifact, no Windows Store entry. The only way to run it is to build from source. It exists as a tight feedback loop against the Mostlylucid.StyloExtract 2.0 library so the upstream extractor can iterate against real-world web pages without the lean release path ever changing.

If you came here looking for a more featureful download of lucidVIEW, there isn't one. The lean build below is what ships and is what almost everyone wants.

What FULL adds on top of lean (against Mostlylucid.StyloExtract.* 2.0.0):

• Mostlylucid.StyloExtract.Core + .Templates + .Playwright + .Streaming + .Llm.LlamaSharp
• LLamaSharp 0.27.0 for in-process CPU LLM template induction
• Microsoft.Playwright 1.60.0 for rendered-DOM auto-retry on SPA pages
• Streaming gateway scanner wired into the HTTP byte stream
• F2 Extraction Details panel with NDJSON export
• Pipeline stage indicator in the status bar (fetch · stream · match · induce · llm · render)
• First-run bootstrap dialog (model + browser install)
• Read/Scan mode toggle (RagFull vs Sitemap extraction profile)
• CLI verbs: --doctor / --install-browsers / --download-model / --shot <url> <out.png>

Run it from source:

dotnet run --project MarkdownViewer.Full/MarkdownViewer.Full.csproj -c Debug

Lean Release output is unaffected. Every lean source touch that supports FULL is guarded by #if FULL and runtime-neutral when the constant is not defined. See docs/full-edition.md for the full guide: what FULL does, the dogfood pipeline step-by-step, CLI reference, settings layout, and the rules this branch lives under.

---

License

The Unlicense — do whatever you want.

---

View this README inside lucidVIEW with Shift+F1. The in-app User Manual (F1) has the full feature walkthrough.
