Orrery

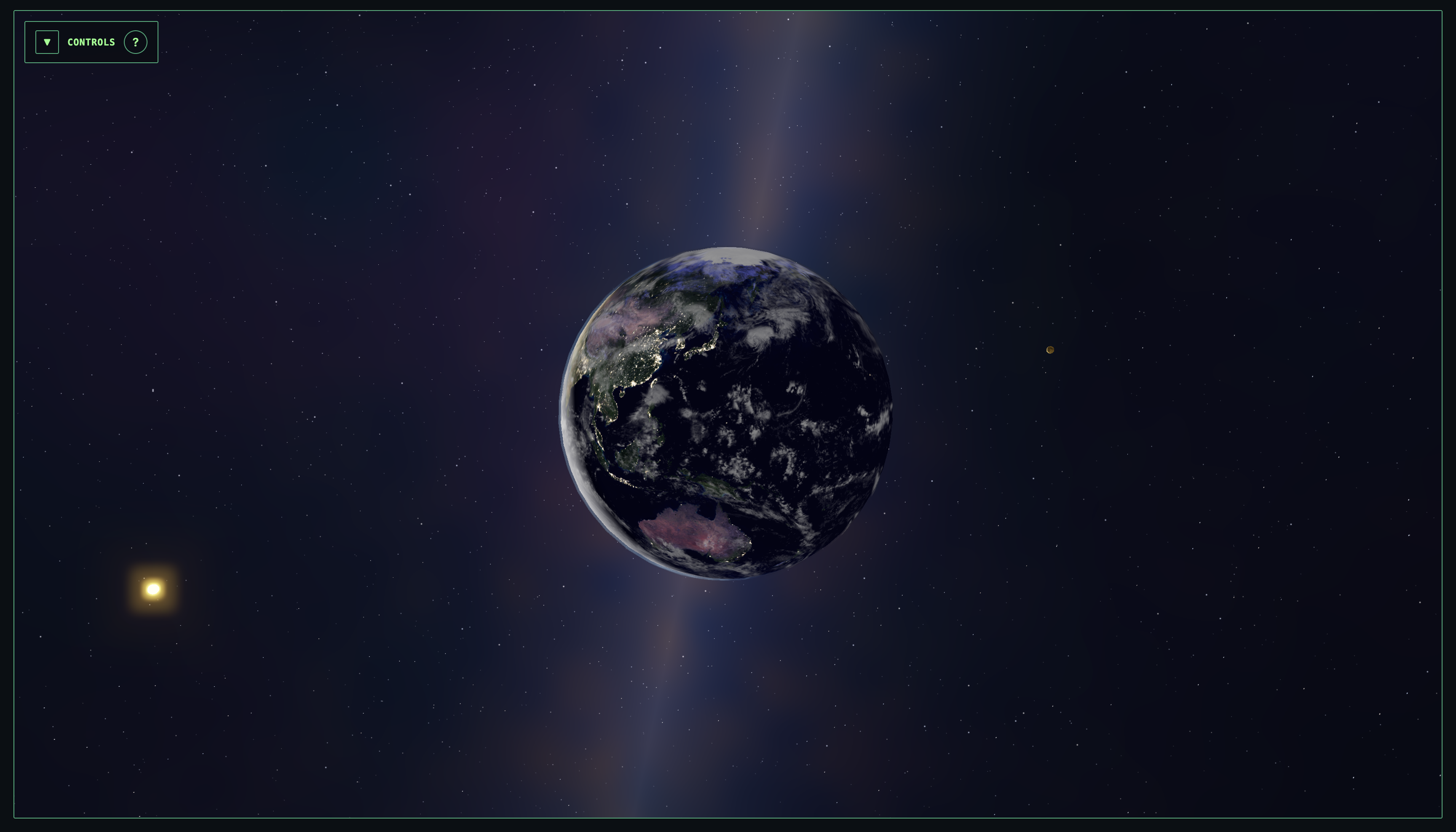

Minimal Vite + React + TypeScript app that renders a solar system visualization using real space geometry data from NAIF (NASA’s Navigation and Ancillary Information Facility).

Live Demo

Development

From repo root:

• pnpm install
• pnpm run dev

NAIF kernels

This viewer ships a small set of NAIF Generic Kernels as static assets under public/static/kernels/naif/:

• lsk/naif0012.tls (LSK)
• pck/pck00011.tpc (PCK)
• spk/planets/de432s.bsp (SPK)

These kernel files are redistributed unmodified, consistent with NAIF's rules: https://naif.jpl.nasa.gov/naif/rules.html

Scripts

From repo root:

• pnpm run format (auto-format)
• pnpm run format:check (CI)
• pnpm run lint
• pnpm run lint:fix
• pnpm run build
• pnpm run typecheck
• pnpm run test

Conventions

Frames / world space

• Canonical world (inertial) frame: J2000.
• Handedness: follow SPICE conventions for the requested frame (for J2000, treat it as a right-handed inertial frame).

Time

• et is ephemeris time in seconds past the J2000 epoch.
• In this codebase we represent it as a plain number (EtSeconds).

Units

• Positions are expressed in kilometers (positionKm).
• Velocities are expressed in kilometers per second (velocityKmPerSec).
• Radii (for rendering) are expressed in kilometers (radiusKm).

Scaling to renderer units

SPICE scales are huge for typical WebGL scenes.

• 1 threeUnit = 1,000,000 km (kmToWorld = 1 / 1_000_000)

Tune this depending on camera near/far planes, desired look, and precision.

Precision strategy

WebGL vertices end up in 32-bit float space; solar-system-scale positions (e.g. 1 AU in km) lose fine detail when used directly as world coordinates.

• Query body positions in a stable inertial frame (J2000) relative to a stable observer (we use SUN).
• Pick a focus target (defaults to Earth).
• Each update, compute delta between body and focus position.
• Convert delta into renderer units and assign to Three.js object positions.

Frame transforms

SpiceClient.getFrameTransform({ from, to, et }) returns a Mat3 rotation matrix.

• Representation: a flat number[9] in column-major order to match Three.js Matrix3.
• Indexing:
  • m = [ m00, m10, m20, m01, m11, m21, m02, m12, m22 ]
  • This corresponds to columns c0=(m00,m10,m20), c1=(m01,m11,m21), c2=(m02,m12,m22).

The transform is intended to be applied as:

• v_to = M(from->to) * v_from

Visual regression testing

Playwright e2e tests live in e2e.

From repo root:

• pnpm run e2e
