spotdiff.vim

A range and area selectable :diffthis to compare partially

Vim provides a diff mode which is useful to see differences between windows. However, it always shows the differences for entire line. And it can not compare a sequence of words within a line, and sentences and paragraphs which are separated into several lines.

To compare partially everywhere in any window, this plugin provides two groups of commands, which are alternative to vim original :diffthis, :diffoff, and :diffupdate. One is for which allows to select a range of lines in diff mode. Another is for which allows to select the Visual, motion, and text object area in non-diff normal mode. Both work independently in a tab page.

Selecting a range of lines

There are :Diffthis, :Diffoff, and :Diffupdate commands available.

You can use :Diffthis to specify a range of lines to be compared. And can use :Diffoff to reset and :Diffupdate to update the differences.

Do not use vim original diff commands together with this plugin's ones. Try :Diffoff! to reset all in a trouble.

If you have installed diffchar.vim plugin, you can see the exact differences and use their options and keymaps.

Commands

• :[range]Diffthis

  • Select a range of lines with [range] (default: current line) and make the current window diff mode. The selected lines are highlighted in hl-CursorColumn. Shortly after the two separate windows become diff mode, :Diffthis shows the differences for selected lines in each window. It is also possible to select two ranges of lines in the same window. In that case, :Diffthis opens a temporary new window at above or below (or left or right if "vertical" is included in the 'diffopt' option) of the current one, copies selected lines to it, and shows the difference with source window.

• :Diffoff[!]

  • Clear the selected range of lines and reset diff mode for the current window. If ! flag is specified, clear and reset for all windows in the current tab page. The temporary window created by :Diffthis will be closed.

• :Diffupdate

  • Update the differences for the selected range of lines in the current tab page.

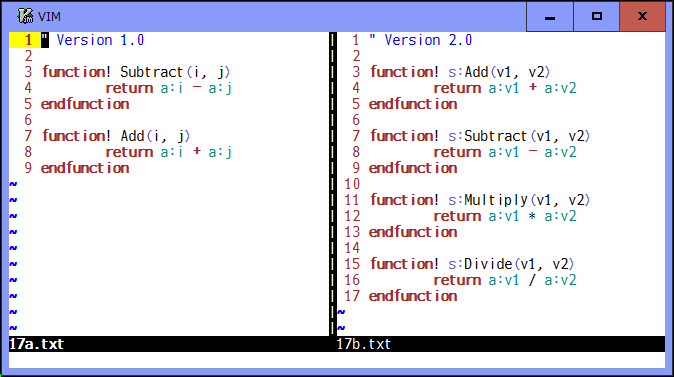

Demo

Selecting the Visual, motion, and text object area

There are :VDiffthis, :VDiffoff, and :VDiffupdate commands available.

You can use :VDiffthis to specify the Visual area to be compared. And can use :VDiffoff to reset and :VDiffupdate to update the differences. Note that those commands work in non-diff normal mode.

While showing the exact differences, when the cursor is moved on a difference unit, you can see its corresponding unit highlighted in hl-Cursor, according to the g:DiffPairVisible option.

You can use ]b or ]e to jump cursor to start or end position of the next difference unit, and [b or [e to the start or end position of the previous unit.

This plugin provides the corresponding mappings to those commands, such as <Plug>(VDiffthis) and <Plug>(VDiffoff). As a default, <Leader>t and <Leader>o keys are mapped to them and, for example, v$<Leader>t selects the text from the current cursor position to the end of line and 3vis<Leader>t selects the next 3 sentences as the Visual area. And <Leader>o clears the selected area.

In addition to selecting the Visual area, you can use <Leader>t as a custom operator followed by a motion or a text object command, which will set those selected area as the Visual one and then call :VDiffthis. For example, <Leader>t$ and <Leader>t3is work same as above examples.

Commands

• :[range]VDiffthis[!]

  • Select the characterwise, linewise, or blockwise Visual area most recently used in the current window. If [range] (default: current line) is not specified as '<,'> and different from the last Visual area, those specified lines are selected as linewise area instead. The selected area is highlighted in hl-DiffChange with "italic", and then will be compared as a single combined line. Shortly after the two area are selected, :VDiffthis compares them based on the g:DiffUnit option and "icase", "iwhite", "iwhiteall" and "iwhiteeol" flags in the 'diffopt' option. In addition, when "indent-heuristic" is specified, positioning of the added/deleted diff units is adjusted to make them easier to read. Then their differences are shown using the g:DiffColors option. It is also possible to select two area in the same window. If ! flag is specified, each line is separately compared, which would be useful particular for columns in a table on blockwise area. Redundant lines in the line-by-line comparison are shown with "strikethrough".

• :VDiffoff[!]

  • Clear the selected area in the current window and reset the differences. When there are two area selected in the same window, both area will be cleared. But either one is cleared if the current cursor is located within it. If ! flag is specified, clear and reset all area in the current tab page.

• :VDiffupdate

  • Compare the selected area again and show their differences in the current tab page, when you make changes to the selected area or you want to change the g:DiffUnit or g:DiffColors option or some flags in the 'diffopt' option.

Options

These options are same as those used in the diffchar.vim plugin.

• g:DiffUnit, t:DiffUnit: A type of difference unit

  Value	Description
  'Char'	any single character
  'Word1'	\w\+ word and any \W single character (default)
  'Word2'	non-space and space words
  'Word3'	\< or \> character class boundaries (set by iskeyword option)
  'word'	see word
  'WORD'	see WORD
  '[{del}]'	one or more diff unit delimiters (e.g. "[,:\t<>]")
  '/{pat}/'	a pattern to split into diff units (e.g. '/.{4}\zs/')

• g:DiffColors, t:DiffColors: Matching colors for changed units (hl-DiffAdd for added units)

  Value	Description
  0	hl-DiffText (default)
  1	hl-DiffText + a few (3, 4, ...) highlight groups
  2	hl-DiffText + several (7, 8, ...) highlight groups
  3	hl-DiffText + many (11, 12, ...) highlight groups
  100	all available highlight groups in random order
  [{hlg}]	a list of your favorite highlight groups

• g:DiffPairVisible, t:DiffPairVisible: Visibility of corresponding diff units

  Value	Description
  0	disable
  1	highlight with hl-Cursor (default)

Keymaps

These keymaps are same as those used in the diffchar.vim plugin.

These keymaps are used only in this plugin.

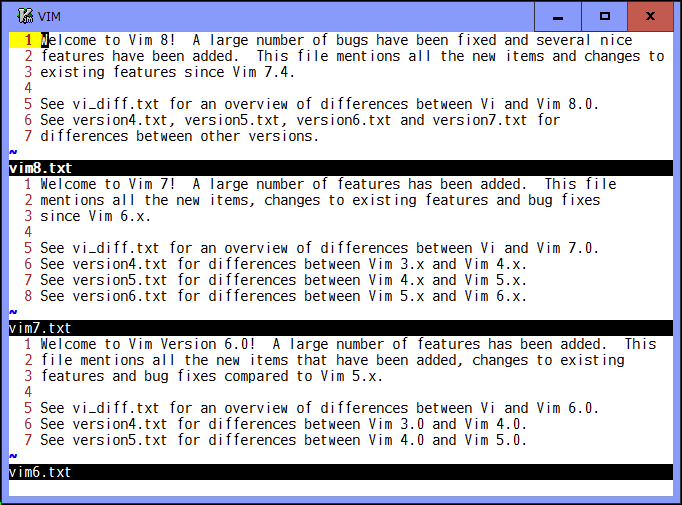

Demo
