ToolRL: Reward is All Tool Learning Needs

🤗 Model | 📊 Dataset | 📖 Paper

ToolRL is the code repository for paper "ToolRL: Reward is All Tool Learning Needs".

Our code is built upon veRL and TinyZero.

🔍 Installation

Please install torch, vllm and ray according to your own environment configuration. We provide a configuration example adapted from TinyZero in the following:

# install torch
pip install torch==2.4.0 --index-url https://download.pytorch.org/whl/cu121
# install vllm
pip install vllm==0.6.3
pip install ray

Please further install the verl in the current project and flash attention.

# verl
pip install -e .

# flash attention 2
pip install flash-attn --no-build-isolation

📊 Dataset

We provide the raw dataset in ./dataset/rlla_4k_raw, which consists of 2K ToolACE data, 1K Hammer (Masked) data, and 1K xLAM data.

The SFT data includes thought content distilled from Deepseek-R1, whereas the RL data contains only placeholders in the thought field.

For training purposes, the raw data must be further processed. The processed RL training data is available at ./dataset/rlla_4k.

🧪 Training

For GRPO and PPO training, please specify the configuration in ./train_grpo.sh, including the BASE_MODEL and EXPERIMENT_NAME variables. The dataset is set by default to ./dataset/rlla_4k.

bash train_grpo.sh  # For GRPO Training
bash train_ppo.sh  # For PPO Training

Reward variants

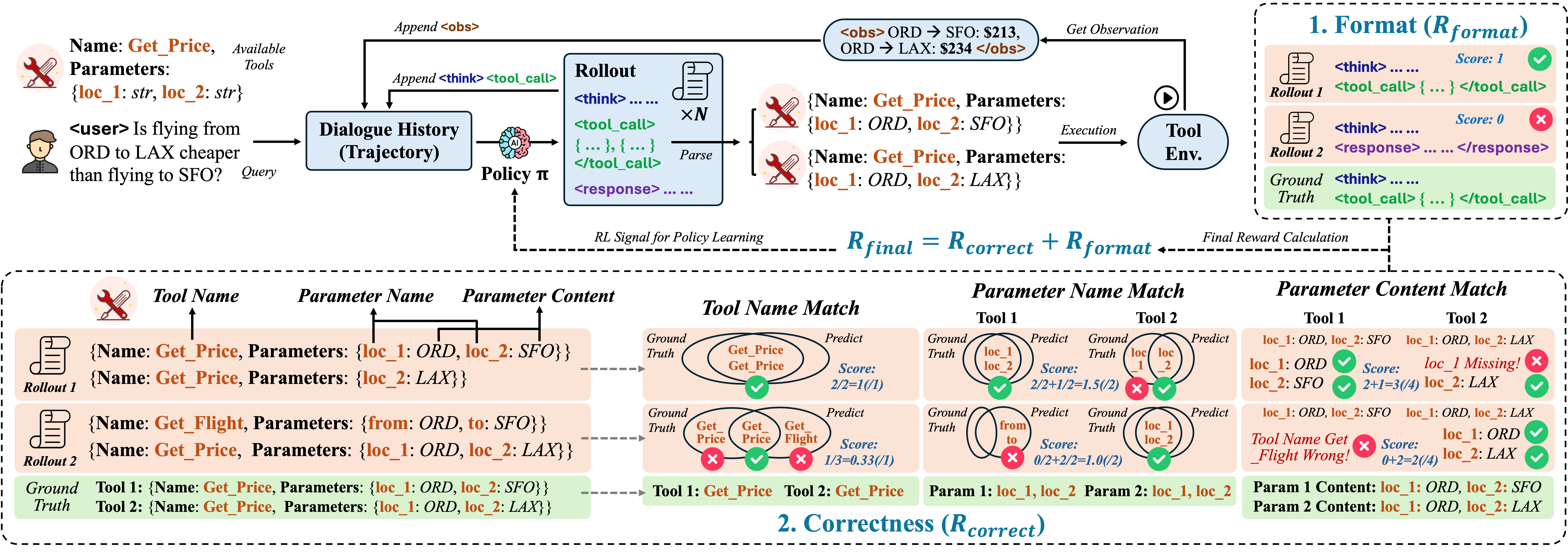

The training script uses by default the reward function introduced in Section 3.3 (\textit{Reward Design}) of the paper. In the following, we introduce several reward variants that can be activated via environment variables. All reward-specific environment variables are handled in the core reward module located at ./verl/utils/reward\_score/rlla.py.

export WITHLENGTH=1 # Add the settled length reward function (Section 5.1)
export SCHEDULELENGTH=1 # Add the dynamic length reward function (Section 5.1)
export CORRECTMAX1=1 # Change to equal max (Section 5.2)
export MAX1STEP30MAX3=1 # Change to two stage scale (Section 5.2)
export SCHEDULEREWARD=1 # Chenge to smooth dynamic scale (Section 5.2)
export REFINEDREWARD=1 # Change to finegrained reward (Section 5.3)
export INTERMEDIATEREWARD=1 # Change to intermediate reward (Section 5.3)
export COARSEREWARD=1 # Change to coarse reward (Section 5.3)

To train the model with a specific reward variant, please enable one of the environment variables described above.

🖊️ Citation

@article{qian2025toolrl,
  title={ToolRL: Reward is All Tool Learning Needs},
  author={Qian, Cheng and Acikgoz, Emre Can and He, Qi and Wang, Hongru and Chen, Xiusi and Hakkani-T{\"u}r, Dilek and Tur, Gokhan and Ji, Heng},
  journal={arXiv preprint arXiv:2504.13958},
  year={2025}
}
