Games you play with your palm in mid-air. You never touch the screen: the phone plays an inaudible ultrasonic tone through its own speaker, listens to the echo with its own microphone and works out how far your palm is. That distance becomes the height of your ship or your car. No camera, no extra hardware, nothing to install — it is a web page.

• Sonar control — your palm in mid-air instead of buttons.
• Skin playlist — six worlds in SonaFly and three in SonaRace: build a playlist of them and the world changes right during the game.

▶ Play: sonaroids.app

• iPhone: open it in Safari and add it to the Home Screen.
• Android: best in the app — download the APK (the link is on the games' screen too).

The games

SonaFly — a space shooter

The ship fires on its own; all you choose is where it is.

• Rocks split when hit: large → two medium → two small.
• Points depend on height: the middle of the screen ×3, then ×2, the edges ×1. Hits in a row add a streak multiplier, up to ×4.
• Power-ups — fly into them: a shield (takes one hit), triple shot, slow motion (once the game has sped up), a heart (an extra life, after you've lost one).
• Saucers: a large one from level 2, a small one that aims at you from level 4. Line up with them and they sidestep.

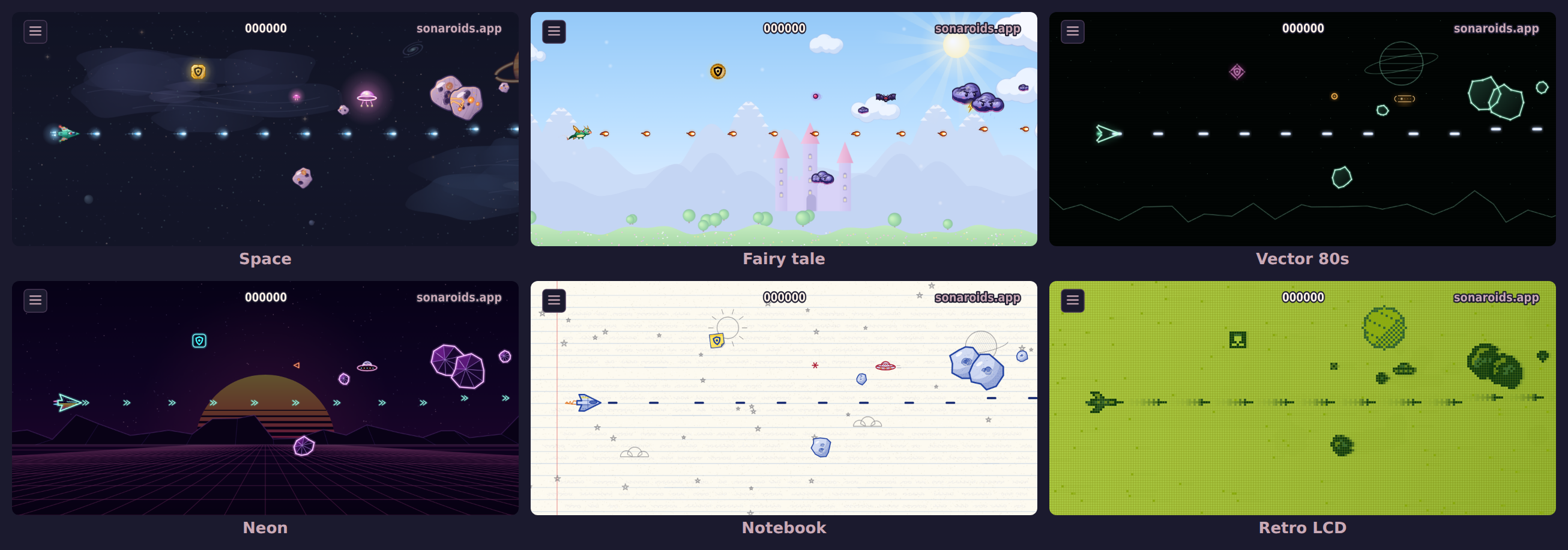

• Six skins: space, fairy tale, vector 80s, neon, notebook, retro LCD — each in HD or in pixels, each with its own ship, saucers, power-ups, shots, shield, asteroids and explosions. In every skin things are drawn exactly the size the game counts them.

SonaRace — a race along a winding road

The car drives itself and slowly speeds up; your palm steers it across the road.

• Fuel runs out as you go. Pick up the bottles marked F (the pumps in the notebook, the canisters with the pirates); when the fuel is gone, so is the race.
• Coins (stars in the notebook, doubloons with a skull with the pirates): a whole line of them is worth more. Every car you pass scores too.
• Knocking into a car slows you down and costs fuel. The verge slows you too, and so does a syrup puddle (an ink blot in the notebook, a whirlpool with the pirates) — though just touching one with an edge is forgiven.
• Gifts: a magnet pulls coins and gifts in, a shield bubble takes one knock. The super gift — turbo, magnet and shield at once — comes exactly once in every eight gifts.

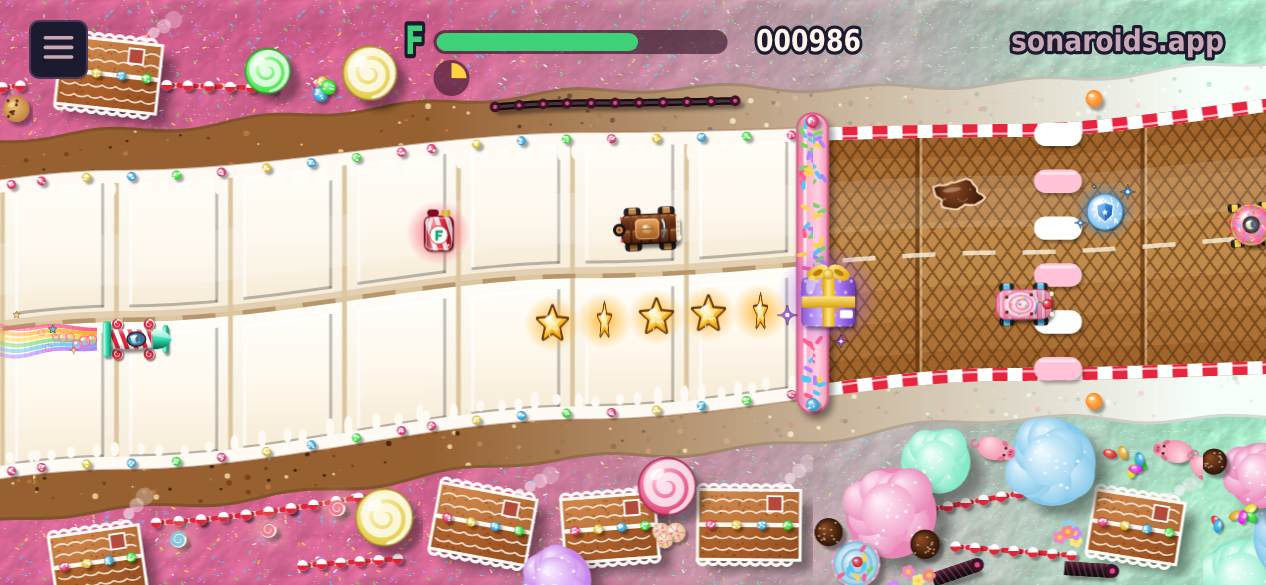

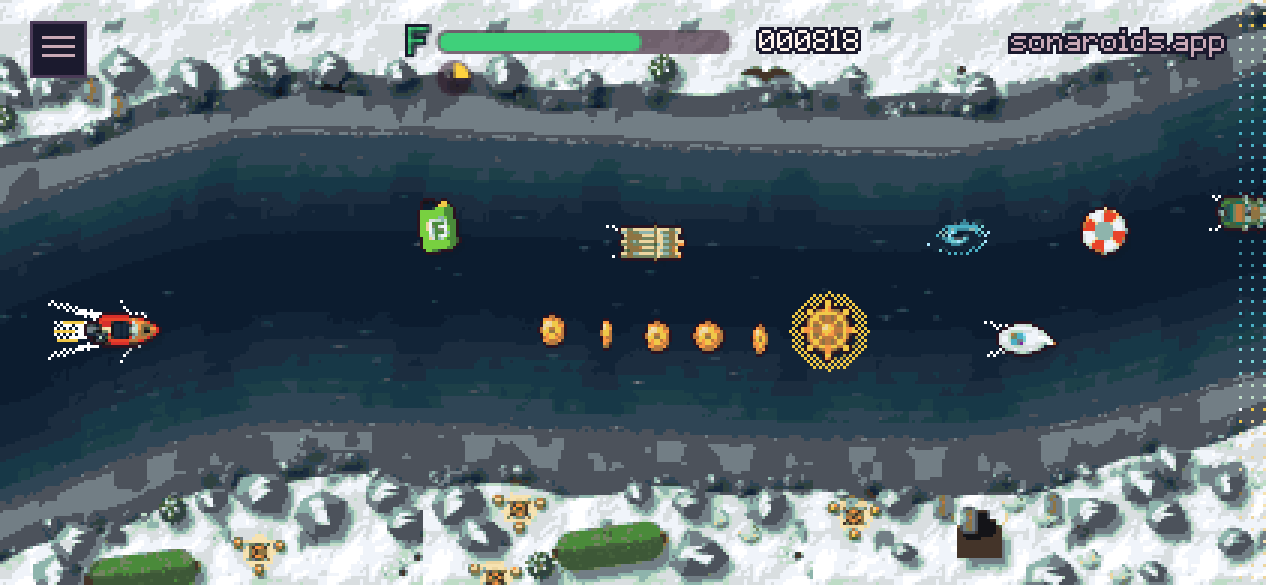

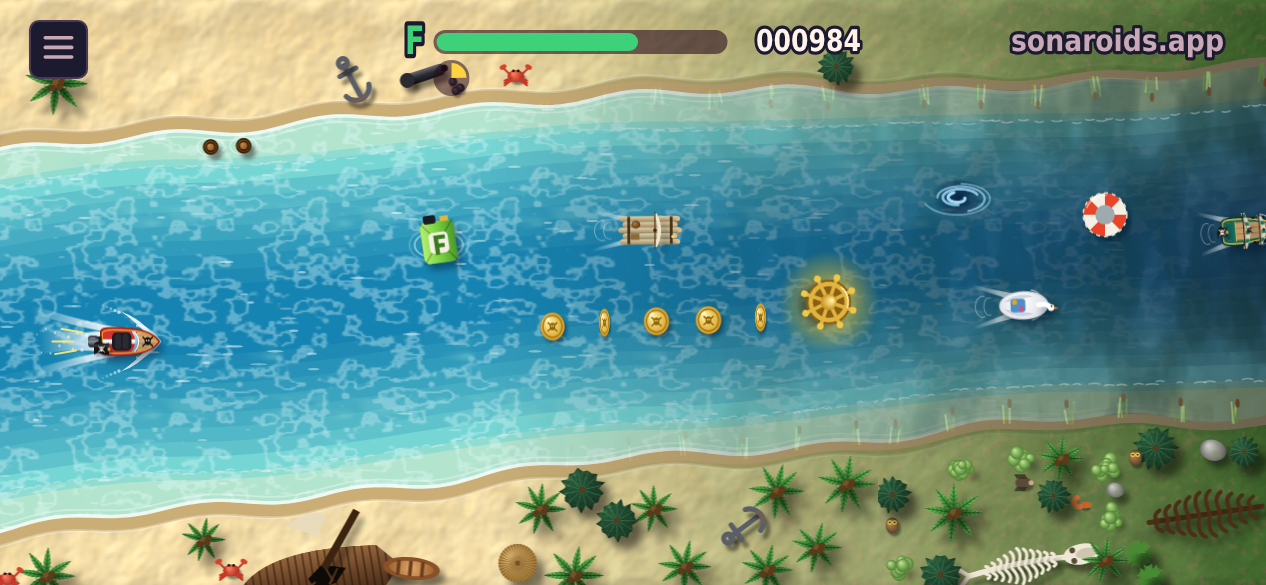

• Three skins: the candy land, the notebook and the pirate world — a red speedboat down a river from a tropical lagoon through a Finnish forest to the Viking fjords and back, past rafts, longships, canoes, swan pedalos and galleons — each in HD or in pixels. Steering: along the road (the default — the car keeps its place across the road through the bends) or by height.

How to play

There are two ways:

1. Set the media volume to 20–30% (40–60% on iPhone). If the game says the phone can't hear its own sound, turn off silent mode — it can mute the game.
2. Pick the probe. Wide gives cleaner control, but children and pets may hear it. Normal is silent but slightly rougher. The game asks before every game.
3. Allow the microphone and take your hand away for a moment: the game learns how the empty room sounds.
4. Wave your palm. Nearer the phone — the ship goes lower; farther — higher. Don't cover the speaker or the microphone. The game fits the screen to your range, then shows the real ship (or car) following your palm. Check the top and the bottom, and play.

A game lasts a few minutes: the pace keeps growing, and a hand held in the air gets tired too — that's part of it.

Skins in both games: the menu's «◀ ▶» arrows step through the skins, a tap in the middle opens the «Skins» screen. There you leaf through the skins and build a playlist with «+ ADD TO PLAYLIST» / «- REMOVE»; it is shown as a line under the card. One skin in it — you always play in it; several — they change during the game, in turn or at random, after the time you set (15–120 s, or 25–40 s at random). The «All in a row» tick turns them all on; untick it and your playlist comes back.

The pause in both games: go on, start over (straight away or with a new fit), end the game, exit to the menu. Beside them are the skin, the graphics (HD or pixels) and the sounds "- SOUNDS ▮▮▮▮▮▮▯▯ +": eight levels, a tap in the middle switches them off and on. The skin and the graphics can be changed in the middle of a game. If the game's own sounds get too loud for the microphone, it turns them down by itself.

Settings (the games' screen): sounds; graphics (chosen in the game, always HD or always pixels); the probe band (chosen before a game, always wide or always normal); auto-calibration; room following (for the manual calibration); advanced probe settings (only in the Android app — the microphone, the speaker, the volume).

Again after a game — straight to the countdown with the same calibration; "Recalibrate" beside it. If a palm was over the phone while the empty room was measured, the room is measured once more.

Room following (off by default): the manual calibration, but the room is learnt during the game too, as in auto-calibration.

Auto-calibration (off by default): play one game the usual way (with the waving), then switch it on. From then on the game gets ready in a couple of seconds with no waving — it takes the range and the middle of your last manual calibration for this probe band (the middle 6 mm farther from the phone, so the bottom of the screen doesn't end up at the port; the calibration's date is in the settings), shows a try-out flight ("Play" or "Recalibrate"), "Again" goes straight to the countdown, and the echo processing keeps learning the room during the game — a noisier room or a thing put down near the phone doesn't take the palm away. The screen itself is not refitted to the palm in flight: every try at that (1.10–1.13) steered worse. If it steers worse, switch it off, play with the manual calibration, switch it on again.

If something's wrong: a tap on the version on the games' screen reloads the page, and a long press opens "Logs". They record what the phone heard and can be attached to an issue.

Phones

iPhone plays well in Safari.

On Android a lot depends on the phone itself: how well its speaker and microphone pass 16–20 kHz. In a browser the page can't choose which microphone records, and doesn't know how loud the phone plays. That is what the app (android/) is for. Inside it shows the same site, so the games in it are always current, but it records and plays the sound itself:

• before a game it tries the built-in microphones in a couple of seconds and keeps the steadiest;
• it sets the volume by measurement;
• it switches off the phone's noise suppression, gain control and echo cancelling;
• it updates itself.

With the app and the wide probe a Mi 9 Lite (from 2019) plays like an iPhone. The notes games send to the server show the palm heard on Galaxy S25, Pixel 8 Pro, Nothing Phone (3a), realme GT Neo 5 and Honor 600 Lite. A OnePlus 13 is poor on the table but almost as good as an iPhone in the hand. A Redmi Note 10S hears the palm reliably only within about 10 cm. A OnePlus 9 Pro is too quiet. The game works out which end of the phone your hand should be at, and says so if it can't hear the palm. Details: docs/design.md, section 2.

High scores and fair play

Each game has its own tables: today, this week and all time. The first time a game makes a table, it asks for a name (Latin letters, digits, _). A transfer code moves your name and scores to another browser or phone.

Bots play in the tables too — about 40 players the server plays itself, from beginners to strong ones, so there is always someone to beat. Their games are real — the game's bot, by the same rules — and the strongest stay a little below the best person. The «PEOPLE ONLY» tab over the table leaves them out.

What goes to the server is not a score but the game itself: the layout number and the palm height at every step, a few KB. Both games are deterministic — even steps 60 times a second, random numbers from a seed, no transcendental functions. So the server replays every game with the very same code (src/13_core.js for SonaFly, src/14_race.js for SonaRace) and keeps the score only if it repeats.

A player is a random key kept on the phone; the server stores only its hash. With each game goes a short note on the phone: iOS or Android, the browser, the model (on Android), which probe, the volume, how well it heard the probe. That shows where the sonar works. The server stores no user agent string and no IP. It is plain Node + SQLite, in server/.

How the sonar works

• The probe is a repeating multi-tone signal: 512 samples at 48 kHz, 23 tones from 18.4 to 20.4 kHz (normal) or 48 tones from 16 to 20.5 kHz (wide). An AudioWorklet delivers the microphone stream sample-exact, and the echo picture is worked out every 10.7 ms.
• The wider the band, the finer the distance: about 8 cm for the normal probe, about 4 cm for the wide one. Against a ruler the wide probe followed the palm about twice as smoothly (spread 2.2 mm against 5.3).
• Motion and position. The palm's motion comes from the phase shift of the echo: sub-millimetre, but it drifts. Its position comes from where the echo sits compared with the empty room: noisy, but it doesn't drift. The two are fused: motion drives the ship, position keeps it from wandering. While a game runs, the empty room's picture is held still, so a palm that stays in one place doesn't slowly fade into the background.
• Fitting each phone. The echo is measured against the direct sound's own level. If the phone's speaker fades toward 20 kHz, the band is evened out. If the phone drops a stretch of sound, or the whole echo picture shifts in time (it happens with the phone in the hand), the direct sound is found again.
• What it can't do. The sonar hears one thing: how far the palm is. With one microphone (all Safari gives) left and right sound the same, and two hands don't separate either. The lab tried all of it in September 2026; notes in lab/HANDOVER.md (Russian).

For developers

What's where

The games' code (src/)

Building and checks

python3 build.py                 # src/ → game/play/index.html (python3 font/make_font.py after changing the font)
python3 build.py --icons         # redraw the Home Screen icons (needs Pillow)
sh tests/run.sh                  # the games and the server (~9 min: the real-time ones alone, then the rest two at once)
cd lab && sh tools/run_all.sh    # the sonar lab

Node 22.13+ (the server uses node:sqlite) and Python 3. The screen and full-game checks play both games in headless Chromium with a synthetic microphone and a fake high-score server. They need Playwright and are skipped without it. On every check bots drive over a hundred SonaRace races to keep a race's length and difficulty where they were tuned. GitHub Actions runs the checks on every push to main and publishes the site only if they pass.

The version is in VERSION: it shows on the games' screen and goes into the logs. CHANGELOG.md says what each version changed and why. When a change alters play, the rules tag in src/13_core.js or src/14_race.js changes too, and the server is updated together with the site.

GIFs and pictures

All taken from the real games in headless Chromium (needs Playwright):

PROMO=mix NODE_PATH=$(npm root -g) node promo/make_promo.js && PROMO=mix python3 promo/make_promo.py   # the GIF at the top (the skin playlist): promo/sonaroids_skins_en.gif, _ru (+ *_full.gif, 800×450)
NODE_PATH=$(npm root -g) node promo/make_promo.js && python3 promo/make_promo.py   # the earlier GIF, four games one after another: promo/sonaroids_en.gif, sonaroids_ru.gif
PROMO=pixel NODE_PATH=$(npm root -g) node promo/make_promo.js && PROMO=pixel python3 promo/make_promo.py   # the same with the games in pixels: promo/sonaroids_pixel_*.gif

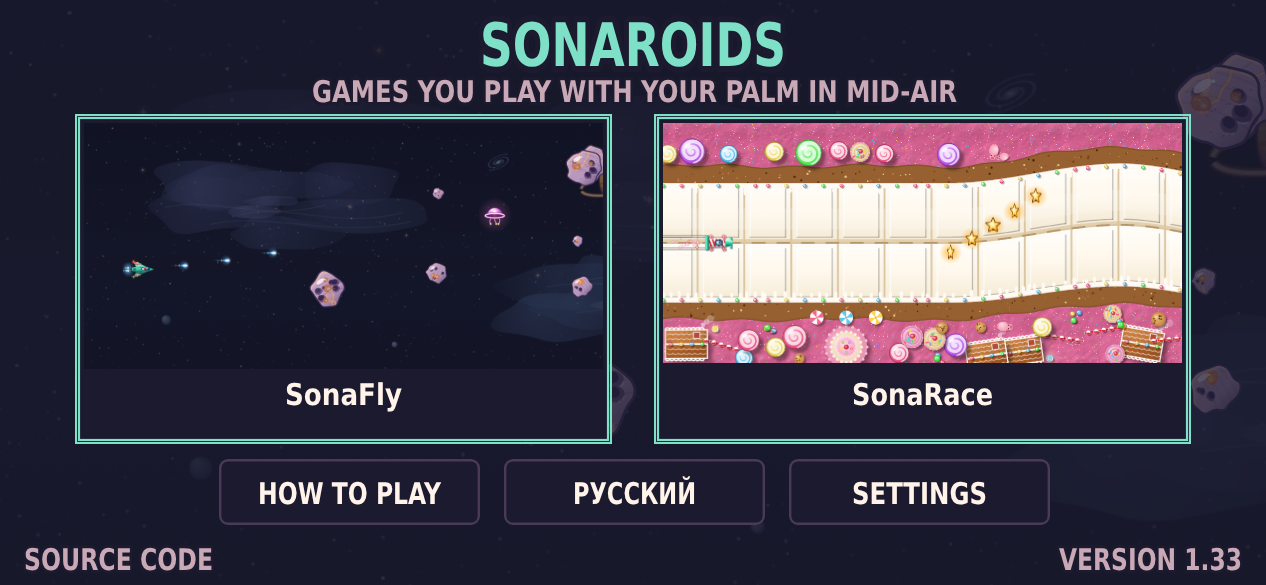

NODE_PATH=$(npm root -g) node promo/make_shots.js                                  # the games' pictures: promo/games.png, sonafly_skins.png, sonarace_*.png
sh promo/make_all.sh                                                               # the older pixel GIFs (table and hand)

The GIFs also need numpy, Pillow and ffmpeg. The palm in them is drawn by code (promo/promo_hand.py); the games on the screen really play, steered by that same palm.

License

MIT — see LICENSE.
