stageload

Run multi-stage PyTorch pipelines on Apple Silicon with only the current stage's weights in memory.

Why

On Apple Silicon the CPU and the GPU share one pool of memory. The usual way to fit a big pipeline, keeping idle models "on the CPU" and moving the active one to the GPU, frees nothing there: both copies sit in the same RAM. Pixal3D runs in that mode by default (low_vram is on unless its pipeline.json turns it off), so a 1024_cascade run keeps all seven of its models in memory for the whole run and copies the active one to MPS on top. It also loads the same DINOv3 backbone four times, once per feature extractor.

stageload loads a model the first time a stage asks for it and releases it in place when the pipeline moves to a stage that does not need it. Releasing moves the module's tensors to PyTorch's meta device, which frees their storage even while other code still holds a reference to the module. The design is in docs/design/2026-10-04-stageload-design.md.

Any pipeline that runs its models in turn

Nothing in the core knows about Pixal3D. A pipeline needs three things: a function that builds each model on its own, the list of models each stage uses, and a call where each stage begins. In code you own, that call is models.enter("decode"); in code you don't, on_call attaches it to a method that already runs at that point, and the pipeline stays as it is. A text-to-image pipeline (a text encoder, a denoiser and an image decoder, one after another) has the same shape; Qwen-Image-2.1 through diffusers is the second pipeline measured (results). Pixal3D-mac is the first adapter; bench/qwen_image.py wires a diffusers pipeline without changing its code, and Use it in your own pipeline shows the core on two models.

Results

Pixal3D

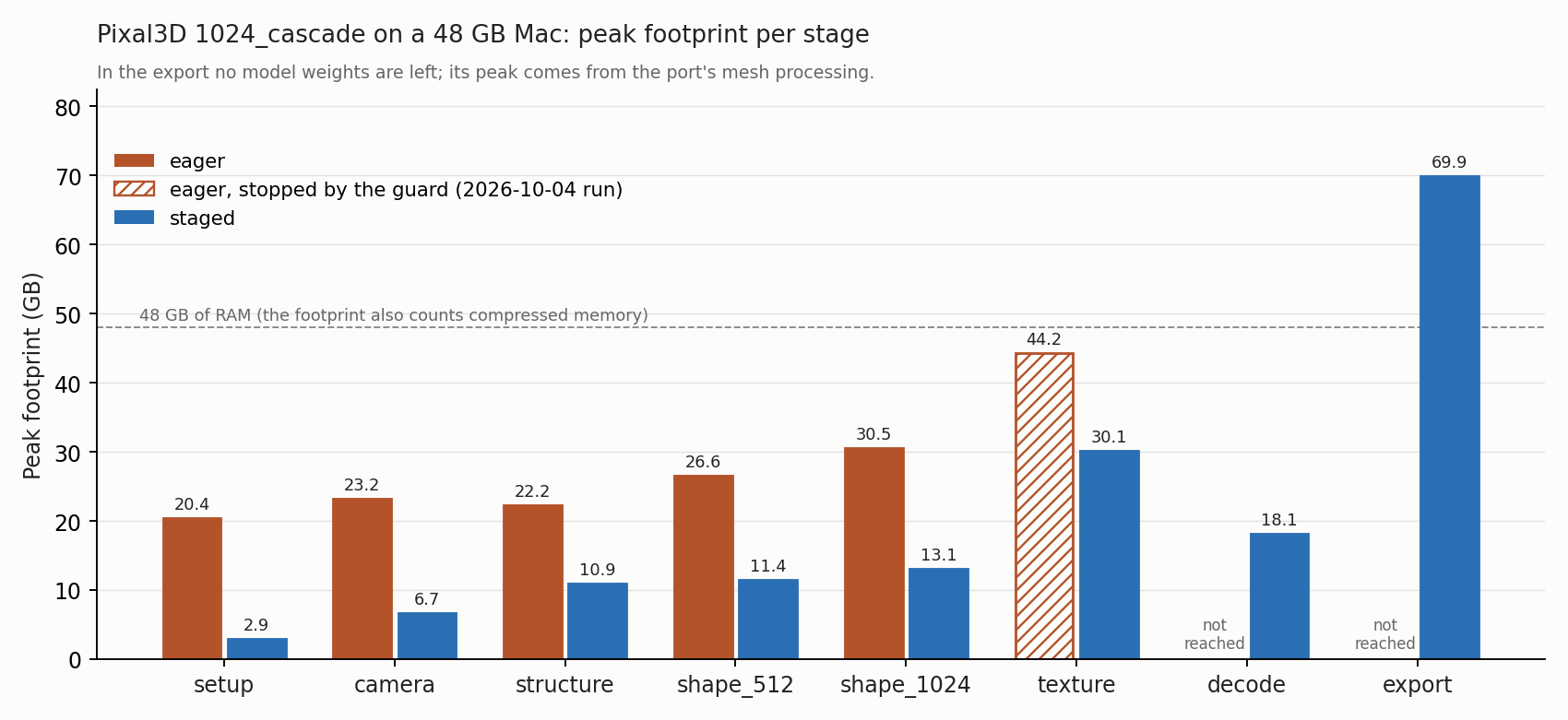

Pixal3D 1024_cascade on an Apple M5 Pro with 48 GB, one image, seed 7, two runs per mode (details and traces):

• Eager loading did not get through the texture stage on this machine. Within 10 s of entering it the footprint rose from 27 to 44 GB, available memory fell to 6 % and swap reached 27 GB, 12 GB more than when the run started, so the guard stopped it. The other eager numbers come from runs stopped where the texture stage begins. Both staged runs finished, in about ten minutes each, of which 24 s went to loading models.
• Most of the texture stage's 30 GB is working memory, not weights: the texture model is 2.6 GB. When decoding began, releasing it and emptying the MPS allocator's cache brought the footprint down to 4.5 GB in one run and 8.0 GB in the other within two seconds.
• The highest staged footprint is the port's own mesh export, after every weight has been released; stageload does not change it.
• Output: the first latent (the sparse structure) is the same bit for bit in every run. From the next stage on, Pixal3D-mac does not repeat itself on MPS even with the same seed: the one pair of eager runs differed by 1.77 in the 512 shape latent, and staged runs differ from eager runs by 1.24 to 1.86. That shows any change from staged loading is no larger than the port's own variation; it cannot show there is none.

A staged run on a character image, rendered in Blender (bench/render_glb.py):

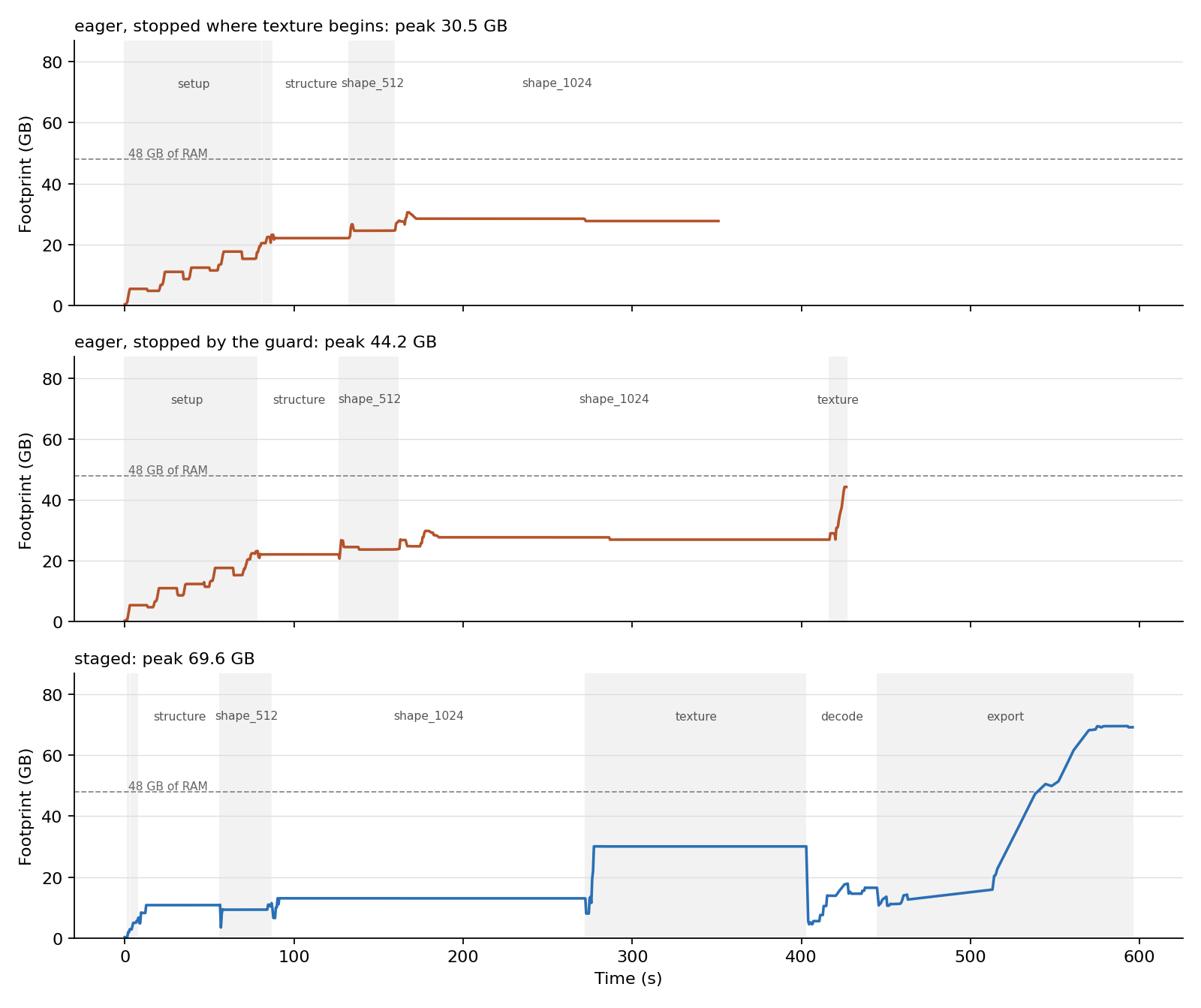

The footprint over time, for an eager run stopped where the texture stage begins, the eager run the guard stopped, and a staged run:

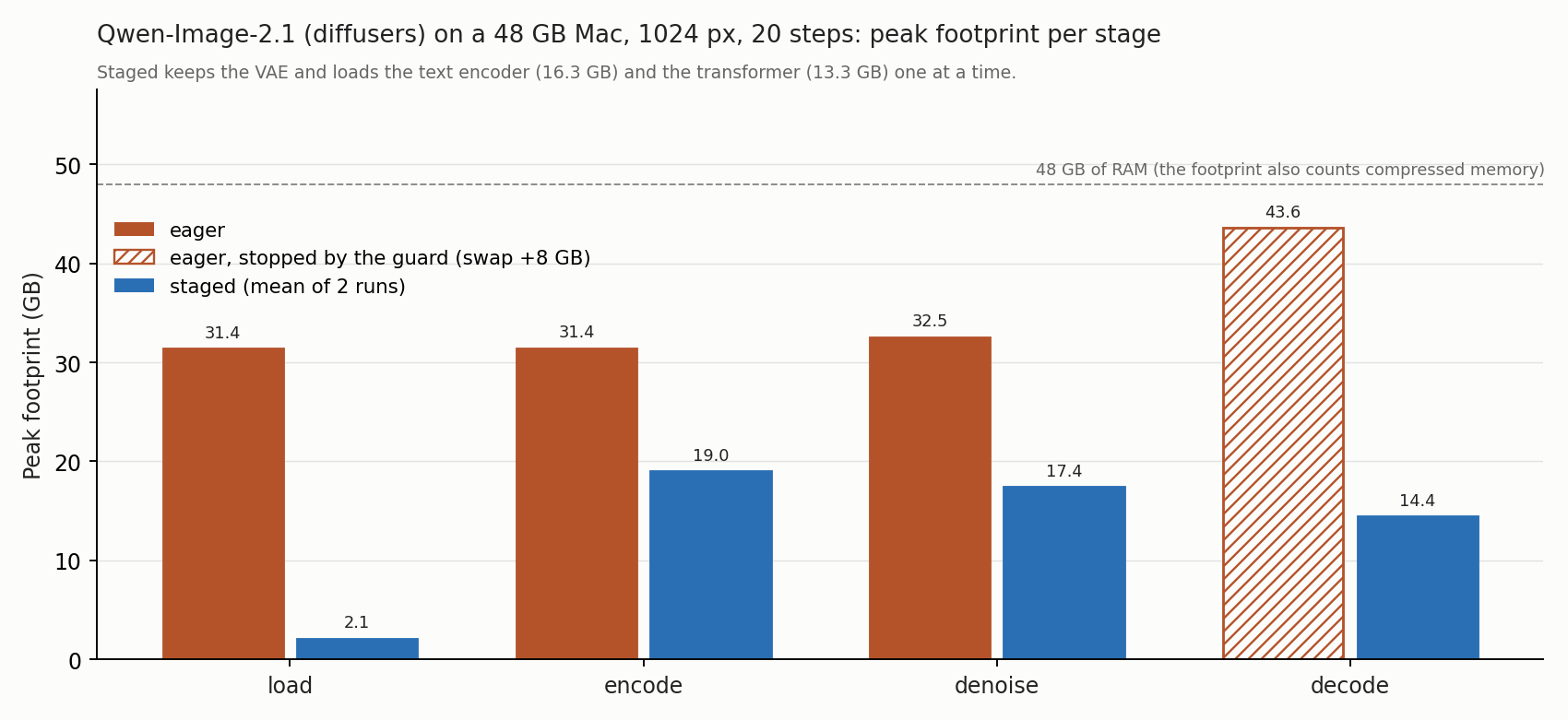

Qwen-Image-2.1 through diffusers

Text to image at 1024 x 1024, 20 steps, seed 7, on the same Mac (details and traces). Eager is the usual QwenImage21Pipeline.from_pretrained(...).to("mps"). Staged keeps the VAE and loads the text encoder (16.3 GB) and the transformer (13.3 GB) one at a time; the pipeline's code is unchanged.

• Eager ran all 20 steps. The VAE decode then took its footprint from 32.5 to 43.6 GB and swap grew by 8 GB, so the guard stopped it before it wrote an image. Staged released the transformer before the decode, and its swap did not grow in either of its two runs.
• A step costs the same: the second staged run's denoising took 79 s, eager's 77 s. Staged spent 13 s loading the two models.
• The two staged runs produced the same image, bit for bit. Eager produced none, so these runs do not show that both modes give the same image.

How it works

• StagedModels is a dictionary of models that loads each one on first access. enter(stage) releases every loaded model the stage does not list. Checking name in models, len() and iterating names never load anything.
• Loading a model leaves the random generators where they were: torch's CPU, MPS and CUDA generators, Python's random and NumPy's global one. A pipeline that seeds once and draws noise stage by stage would otherwise get different noise, and a different result, as soon as a model is built in the middle of the run.
• release(module) moves every parameter and buffer to meta, collects garbage and empties the MPS cache. Calling a released module raises ReleasedModuleError with its name and the stage that released it, instead of PyTorch's error about meta tensors.
• on_call(obj, method, before=..., after=...) marks stage boundaries on an existing pipeline object, so its own run() executes unchanged.
• share(owner, "from_pretrained") makes identical loads return one instance for the duration of a block; the Pixal3D adapter uses it to give four extractors one DINOv3 backbone.
• MemoryMeter writes a JSONL trace: the process footprint (phys_footprint, the number Activity Monitor shows), swap and kern.memorystatus_level every 0.5 s, plus every load, release and stage change.

Pixal3D-mac

Install Pixal3D-mac with its own README, then add stageload to the port's environment without touching its packages, and run it from there:

cd path/to/Pixal3D-mac
.venv/bin/pip install --no-deps git+https://github.com/nefayran/stageload
.venv/bin/stageload-pixal3d photo.png -o photo.glb

--load eager runs the port's own loading for comparison. Flags, stages and the bench are in docs/pixal3d.md.

The guard

stageload guard starts one command only when there is room for it, and stops it before swap runs away. It needs no root, and the only processes it ever stops are the command and its process group.

stageload guard --wait-free 40 --swap-budget 8G --busy 'ltx-2-mlx' -- python train.py

It waits until kern.memorystatus_level is at least --wait-free percent and no process has matched a --busy pattern for --quiet-for (a minute by default, so the gap between two jobs of a chain does not count as quiet), then runs the command. It stops the command if swap grows more than --swap-budget over what was used at the start, or if available memory stays under --kill-free (10 %) for two samples. Stopping means SIGTERM to the command's process group and, five seconds later, SIGKILL to whatever of the group is left.

Exit code 3 means the guard stopped the command, 4 that it never found room to start it, and 127 that the command could not be started. If the guard itself gets Ctrl-C, SIGTERM or SIGHUP, it stops the command first and exits with 128 plus the signal number; a second signal while the command is shutting down sends SIGKILL at once. A signal the guard was started to ignore, such as SIGHUP under nohup, stays ignored. Otherwise you get the command's own exit code, or 128 plus the signal number if a signal ended it.

The --busy patterns match whole command lines, like pgrep -f. The guard leaves itself and the shells that started it out, but any other process whose command line contains a pattern counts, a shell running a script that mentions it included.

For a safety net across the whole machine, see macos-oom-guard, a root daemon that kills the largest process before the kernel panics. The two do different jobs and can run together.

Use it in your own pipeline

import torch
from safetensors.torch import load_file
from stageload import StagedModels

DEVICE = "mps"

def loader(cls, path):             # cls: one of your nn.Module classes
    def load():
        with torch.device(DEVICE):  # built on the GPU, not on the CPU and then moved
            model = cls()
        model.load_state_dict(load_file(path, device=DEVICE))
        return model.eval()
    return load

models = StagedModels(
    {"encoder": loader(Encoder, "encoder.safetensors"),
     "decoder": loader(Decoder, "decoder.safetensors")},
    stages={"encode": ["encoder"], "decode": ["decoder"]},
)

models.enter("encode")
latent = models["encoder"](image)   # loaded here
models.enter("decode")              # the encoder is released here
mesh = models["decoder"](latent)
models.close()

Limits

• The meter and the guard read macOS counters (libproc, sysctl). The registry and release work wherever PyTorch runs.
• One adapter so far: Pixal3D-mac, tested at commit 0be9e69, and staged loading has a plan for its 1024_cascade pipeline only.
• A staged Pixal3D pipeline serves one image; the command builds a new one per image.
• The Qwen-Image wiring is a bench script for one pipeline, run with diffusers from main (0.41.0.dev0), not a packaged adapter.
• stageload builds Pixal3D's models directly on MPS, where the port builds them on the CPU. The sparse attention's rotary frequencies, computed when a model is built, then come out slightly different (up to 6e-8 apart). Because the port does not repeat its sparse stages on MPS with the same seed, a staged result can only be checked against eager within that run-to-run spread, and the texture latent and the final GLB were not compared at all.
• The meter samples from a thread inside the process. While native code holds the interpreter lock it takes no samples, so a short peak inside such a call can be missed.

License

MIT. Pixal3D and Pixal3D-mac are MIT-licensed as well and are not included here; the adapter imports the port at run time.
